Tutorial: start from an existing database
Applies to:
SQL Server
Azure SQL Database
Azure SQL Managed Instance
SQL projects contain declarative (CREATE statement) files for all the objects in a database, such as tables, views, and stored procedures. These files can be used to create new databases, update existing databases, or even just to track the database in source control. Often we are starting with a SQL project when we have an existing database and want to create objects in the SQL project that match the database with minimal effort.
Some SQL projects tools include a single step for creating a new SQL project from an existing database. Other tools require a few steps to create a new SQL project and then import objects from an existing database. Except for the Visual Studio (SQL Server Data Tools) instructions, the guide focuses on SDK-style SQL projects.
With option 1 in this tutorial, you:
Step 1: create a new SQL project from an existing database Step 2: build the SQL project
With option 2 in this tutorial, you:
- Step 1: create a new empty SQL project
- Step 2: import objects from an existing database
- Step 3: build the SQL project
Prerequisites
- .NET 8 SDK
- Visual Studio 2022 Community, Professional, or Enterprise
- SQL Server Data Tools, SDK-style (preview) installed in Visual Studio 2022
- SqlPackage CLI
# install SqlPackage CLI
dotnet tool install -g Microsoft.SqlPackage
# install SqlPackage CLI
dotnet tool install -g Microsoft.SqlPackage
# install Microsoft.Build.Sql.Templates
dotnet new install Microsoft.Build.Sql.Templates
Note
To complete the tutorial, you need access to an Azure SQL or SQL Server instance. You can develop locally for free with SQL Server developer edition on Windows or in containers.
Option 1: Create a new SQL project from an existing database
Step 1: Create a new SQL project from an existing database

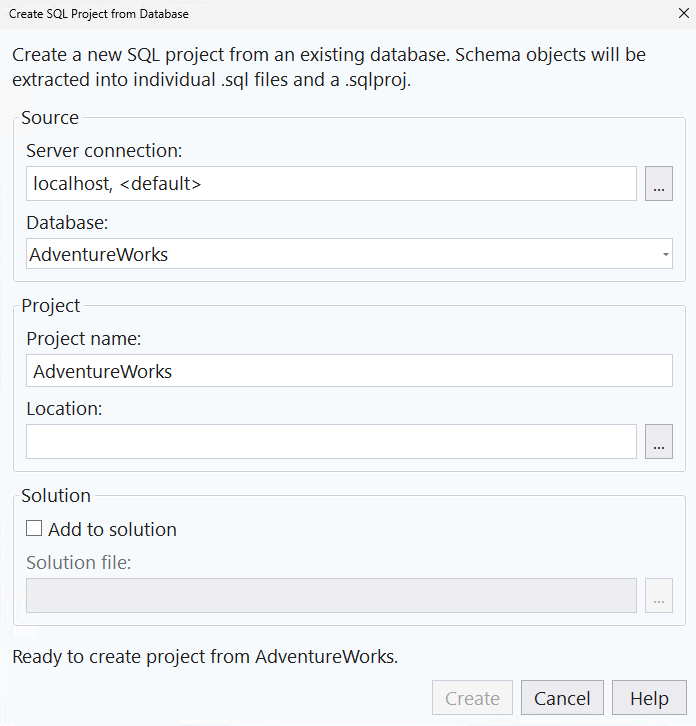

From the SQL Server object explorer in Visual Studio, right-click the database you want to create a project from and select Create New Project....
In the Create New Project dialog, provide a project name, which doesn't need to match a database name. Verify and modify the project location as needed. The default import settings import the objects into folders by schema, then object type. You can modify the import settings to change the folder structure or to include permissions in the objects being imported. Start the import.
While the import proceeds, progress is displayed as messages in the Import Database dialog. When the import is complete, the imported objects are visible in the Solution Explorer and the logs are stored in a file in the project directory under Import Schema Logs. Select Finish.
Option 1 isn't available for the command line. Use option 2 instead.
In the database object explorer view in VS Code or Azure Data Studio, select a database you want to create a project from. Right-click the database and select Create Project from Database.

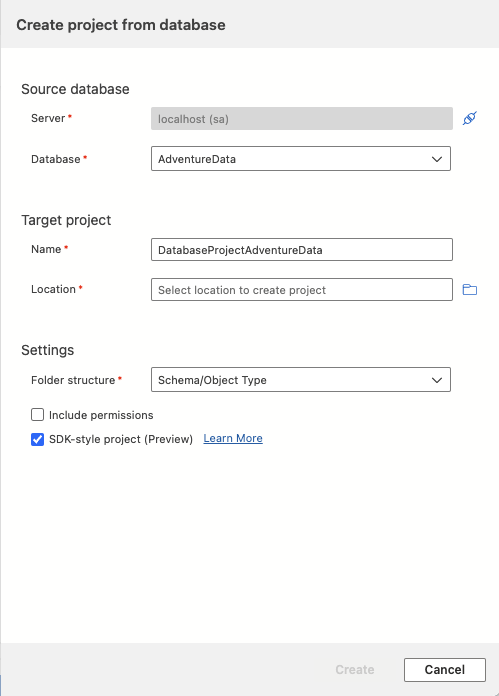

In Azure Data Studio, the Create project from database dialog requires the project name and location to be selected. The default import settings import the objects into folders by schema, then object type. You can select a different folder structure or to include permissions in the objects being imported before selecting Create.
In VS Code, the command prompts ask for a project name and location. The default import settings import the objects into folders by schema, then object type. You can select a different folder structure or to include permissions in the objects being imported before the import begins.
Open the Database Projects view to see the new project and imported object definitions.
Option 1 isn't available for the command line. Use option 2 instead.
Step 2: Build the SQL project
The build process validates the relationships between objects and the syntax against the target platform specified in the project file. The artifact output from the build process is a .dacpac file, which can be used to deploy the project to a target database and contains the compiled model of the database schema.
In Solution Explorer, right-click the project node and select Build.
The output window automatically opens to display the build process. If there are errors or warnings, they're displayed in the output window. On a successful build, the build artifact (.dacpac file) is created its location is included in the build output (default is bin\Debug\projectname.dacpac).
Option 1 isn't available for the command line. Use option 2 instead.
In the Database Projects view of VS Code or Azure Data Studio, right-click the project node and select Build.
The output window automatically opens to display the build process. If there are errors or warnings, they're displayed in the output window. On a successful build, the build artifact (.dacpac file) is created its location is included in the build output (default is bin/Debug/projectname.dacpac).
Option 1 isn't available for the command line. Use option 2 instead.
Option 2: Create a new empty SQL project and import objects from an existing database
Alternatively, the project creation and object import steps can be done separately.
Step 1: Create a new empty SQL project
We start our project by creating a new SQL database project before importing our objects to it.
Select File, New, then Project.

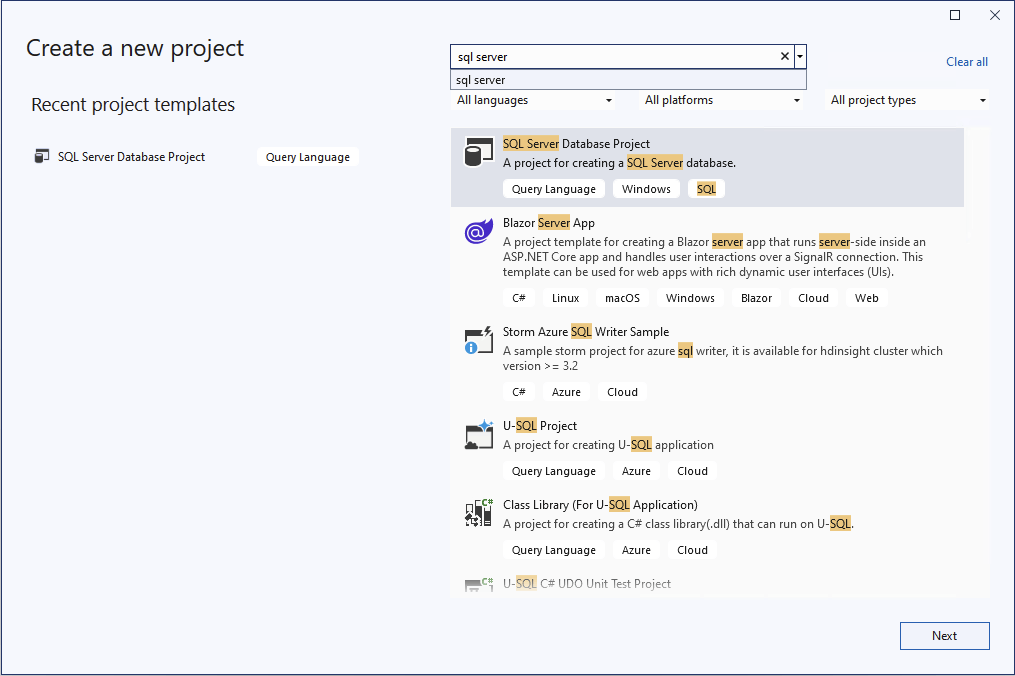

In the New Project dialog box, use the term SQL Server in the search box. The top result should be SQL Server Database Project.
Select Next to proceed to the next step. Provide a project name, which doesn't need to match a database name. Verify and modify the project location as needed.
Select Create to create the project. The empty project is opened and visible in the Solution Explorer for editing.
Select File, New, then Project.

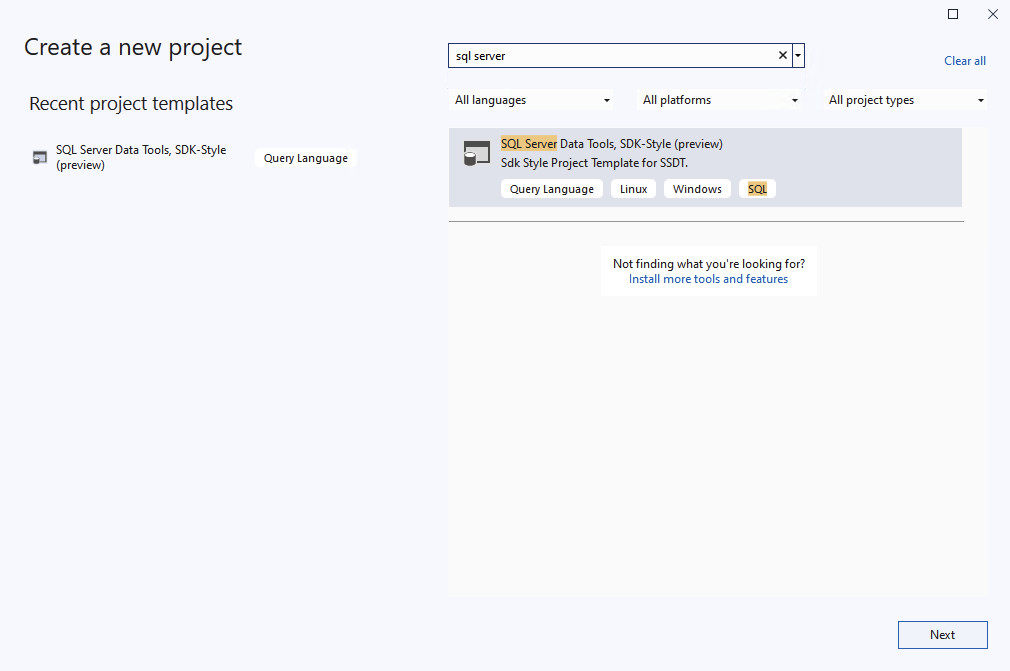

In the New Project dialog box, use the term SQL Server in the search box. The top result should be SQL Server Database Project, SDK-style (preview).
Select Next to proceed to the next step. Provide a project name, which doesn't need to match a database name. Verify and modify the project location as needed.
Select Create to create the project. The empty project is opened and visible in the Solution Explorer for editing.

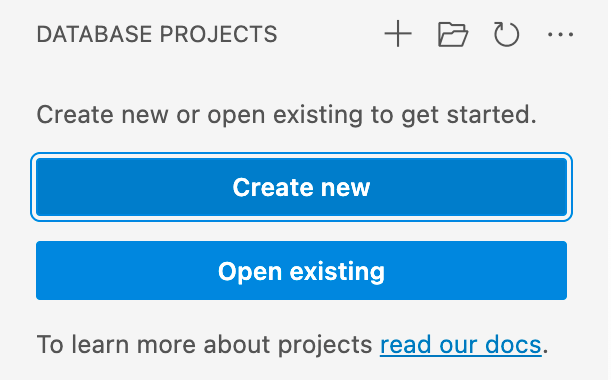

In the Database Projects view of VS Code or Azure Data Studio, select the New Project button.
The first prompt determines which project template to use, primarily based on whether the target platform is SQL Server or Azure SQL. If prompted to select a specific version of SQL, choose the version that matches the target database but if the target database version is unknown, choose the latest version as the value can be modified later.
Enter a project name in the text input that appears, which doesn't need to match a database name.
In the "Select a Folder" dialog that appears, select a directory for the project's folder, .sqlproj file, and other contents to reside in.
When prompted whether to create an SDK-style project (preview), select Yes.
Once completed, the empty project is opened and visible in the Database Projects view for editing.
With the .NET templates for Microsoft.Build.Sql projects installed, you can create a new SQL database project from the command line. The -n option specifies the name of the project, and the -tp option specifies the project target platform.
Use the -h option to see all available options.
# install Microsoft.Build.Sql.Templates
dotnet new sqlproject -n MyDatabaseProject
Step 2: Import objects from an existing database
In Solution Explorer, right-click the project node and select Import -> Database.... If this option is disabled, your database project might have objects created in it. You can delete the objects or create a new project.

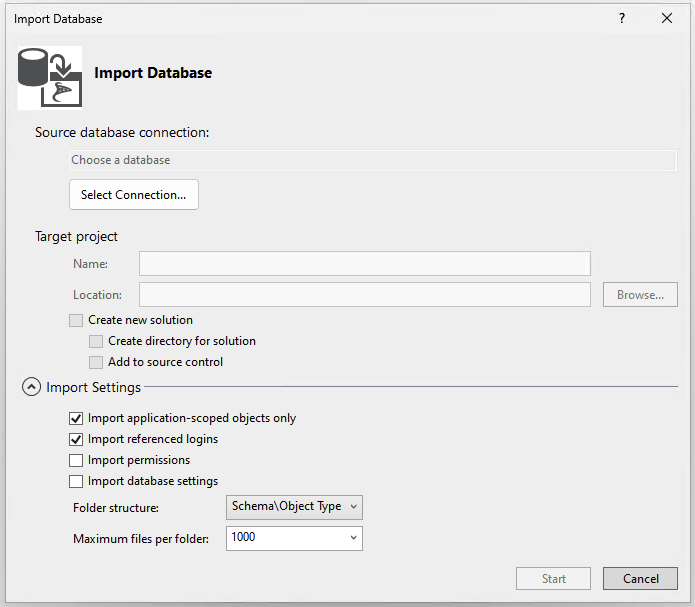

In the Import Database dialog, select the connection to the database you want to import objects from. If you've connected to the database in SQL Server object explorer, it's present in the history list.
The default import settings import the objects into folders by schema, then object type. You can modify the import settings to change the folder structure or to include permissions in the objects being imported. Start the import.
While the import proceeds, progress is displayed as messages in the Import Database dialog. When the import is complete, the imported objects are visible in the Solution Explorer and the logs are stored in a file in the project directory under Import Schema Logs. Select Finish to return to the project.
We will use the SqlPackage CLI to import objects from an existing database to the new SQL database project we created in Visual Studio in step 1. The following SqlPackage command imports the schema of a database to a folder MyDatabaseProject organized by nested schema and object type folders.
sqlpackage /a:Extract /ssn:localhost /sdn:MyDatabase /tf:MyDatabaseProject /p:ExtractTarget=SchemaObjectType
When these folders are placed in an SDK-style SQL database project folder, they're automatically included in the project without the need to import them or modify the SQL project file.
Note
The SQL Database Projects extension in VS Code doesn't support importing objects from a database into a project. Use the SQL Database Projects extension in Azure Data Studio to import objects from a database or follow option 1 to create a new project from an existing database in VS Code.
In the SQL Database Projects extension in Azure Data Studio, open the Database Projects view. Right-click the project node and select Update project from database.

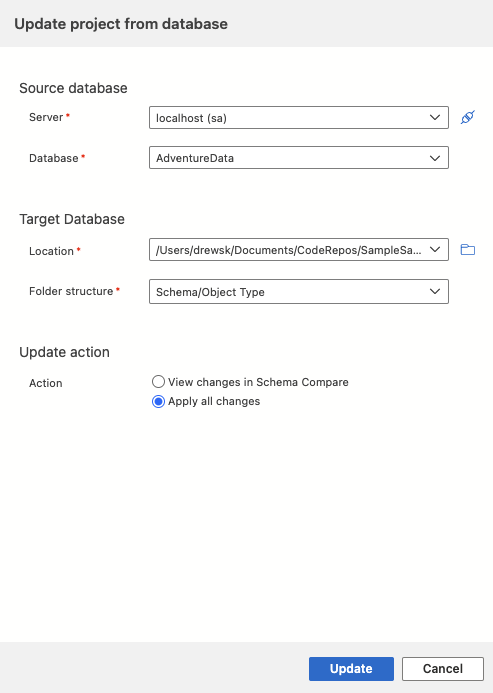

In the Update Database dialog, select the connection to the database you want to import objects from. If you've connected to the database in the Connections view, it's present in the history list.
Select either View changes in schema compare to review and choose a subset of objects to import or Apply all changes to import all objects.
The SqlPackage CLI can be used to extract the schema of an existing database to a .dacpac file or individual .sql files. The following SqlPackage command extracts the schema of a database to a .sql files organized by nested schema and object type folders.
sqlpackage /a:Extract /ssn:localhost /sdn:MyDatabase /tf:MyDatabaseProject /p:ExtractTarget=SchemaObjectType
When these folders are placed in an SDK-style SQL database project folder, they're automatically included in the project without the need to import them or modify the SQL project file.
Step 3: Build the SQL project
The build process validates the relationships between objects and the syntax against the target platform specified in the project file. The artifact output from the build process is a .dacpac file, which can be used to deploy the project to a target database and contains the compiled model of the database schema.
In Solution Explorer, right-click the project node and select Build.
The output window automatically opens to display the build process. If there are errors or warnings, they're displayed in the output window. On a successful build, the build artifact (.dacpac file) is created its location is included in the build output (default is bin\Debug\projectname.dacpac).
In Solution Explorer, right-click the project node and select Build.
The output window automatically opens to display the build process. If there are errors or warnings, they're displayed in the output window. On a successful build, the build artifact (.dacpac file) is created its location is included in the build output (default is bin\Debug\projectname.dacpac).
In the Database Projects view of VS Code or Azure Data Studio, right-click the project node and select Build.
The output window automatically opens to display the build process. If there are errors or warnings, they're displayed in the output window. On a successful build, the build artifact (.dacpac file) is created its location is included in the build output (default is bin/Debug/projectname.dacpac).
SQL database projects can be built from the command line using the dotnet build command.
dotnet build
# optionally specify the project file
dotnet build MyDatabaseProject.sqlproj
The build output includes any errors or warnings and the specific files and line numbers where they occur. On a successful build, the build artifact (.dacpac file) is created its location is included in the build output (default is bin/Debug/projectname.dacpac).
