Use the SAP Business Warehouse connector in Power BI Desktop

  • Стаття

You can use Power BI Desktop to access SAP Business Warehouse (SAP BW) data. The SAP BW Connector Implementation 2.0 has significant improvements in performance and capabilities from version 1.0.

For information about how SAP customers can benefit from connecting Power BI to their SAP BW systems, see the Power BI and SAP BW whitepaper. For details about using DirectQuery with SAP BW, see DirectQuery and SAP Business Warehouse (BW).

Important

Version 1.0 of the SAP BW connector is deprecated. New connections use Implementation 2.0 of the SAP BW connector. All support for version 1.0 will be removed from the connector in the near future. Use the information in this article to update existing version 1.0 reports to use Implementation 2.0 of the connector.

Use the SAP BW Connector

Follow these steps to install and connect to data with the SAP BW Connector.

Prerequisite

Implementation 2.0 of the SAP Connector requires the SAP .NET Connector 3.0 or 3.1. You can download the SAP .NET Connector 3.0 or 3.1 from SAP. Access to the download requires a valid S-user sign-in.

The .NET Framework connector comes in 32-bit and 64-bit versions. Choose the version that matches your Power BI Desktop installation version.

When you install, in Optional setup steps, make sure you select Install assemblies to GAC.

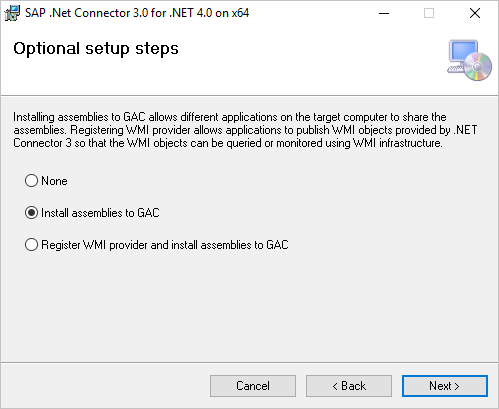

Screenshot of the SAP optional setup steps with Install assemblies to GAC selected.

Note

The first version of the SAP BW Connector required the NetWeaver DLLs. The current version doesn't require NetWeaver DLLs.

Connect to SAP BW data in Power BI Desktop

To connect to SAP BW data by using the SAP BW Connector, follow these steps:

  1. In Power BI Desktop, select Get data.

  2. On the Get Data screen, select Database, and then select either SAP Business Warehouse Application Server or SAP Business Warehouse Message Server.

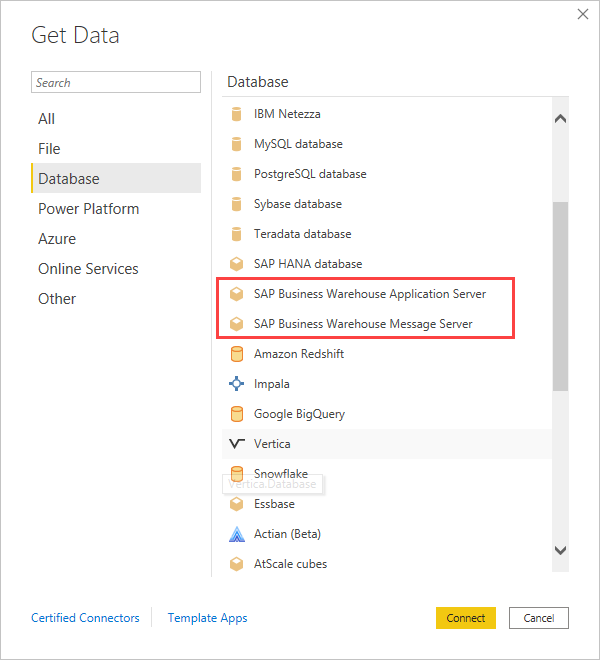

    Screenshot that shows the Get Data options for SAP.

  3. Select Connect.

  4. On the next screen, enter server, system, and client information, and whether to use Import or DirectQuery connectivity method. For detailed instructions, see:

    Note

    You can use the SAP BW Connector to import data from your SAP BW Server cubes, which is the default, or you can use DirectQuery to connect to the data. For more information about using the SAP BW Connector with DirectQuery, see DirectQuery and SAP Business Warehouse (BW).

    You can also select Advanced options, and select a Language code, a custom MDX statement to run against the specified server, and other options. For more information, see Use advanced options.

  5. Select OK to establish the connection.

  6. Provide any necessary authentication data and select Connect. For more information about authentication, see Authentication with a data source.

  7. If you didn't specify a custom MDX statement, the Navigator screen shows a list of all cubes available on the server. You can drill down and select items from the available cubes, including dimensions and measures. Power BI shows queries and cubes that the Open Analysis Interfaces expose.

    When you select one or more items from the server, the Navigator shows a preview of the output table.

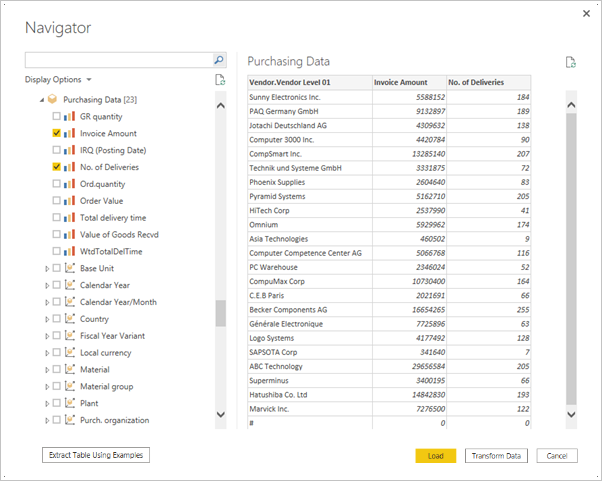

    Screenshot of a SAP table preview in the Navigator screen.

    The Navigator dialog also provides the following display options:

    • Only selected items. By default, Navigator displays all items. This option is useful to verify the final set of items you select. Alternatively, you can select the column names in the preview area to view the selected items.
    • Enable data previews. This value is the default, and displays data previews. Deselect this option to reduce the number of server calls by no longer requesting preview data.
    • Technical names. SAP BW supports user-defined technical names for objects within a cube. Cube owners can expose these friendly names for cube objects, instead of exposing only the physical names for the objects.

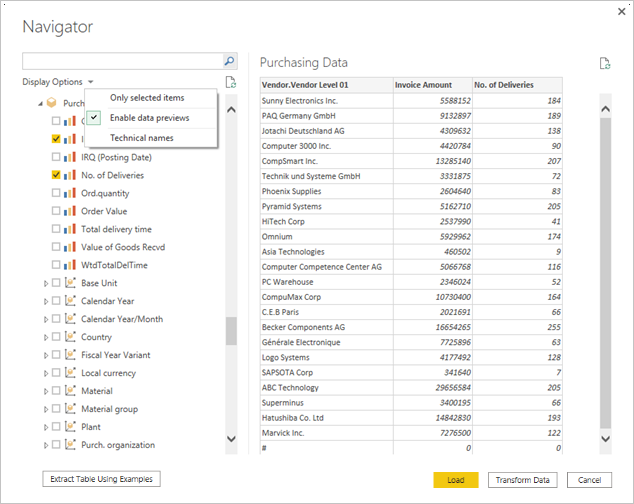

    Screenshot of the display options in the Navigator window.

  8. After you select all the objects you want, choose one of the following options:

    • Load to load the entire set of rows for the output table into the Power BI Desktop data model. The Report view opens. You can begin visualizing the data, or make further modifications by using the Data or Model views.
    • Transform Data to open Power Query Editor with the data. You can specify more data transformation and filtering steps before you bring the entire set of rows into the Power BI Desktop data model.

Along with data from SAP BW cubes, you can also import data from a wide range of other data sources in Power BI Desktop, and combine them into a single report. This ability presents many interesting scenarios for reporting and analytics on top of SAP BW data.

New options in SAP BW Implementation 2.0

This section lists some SAP BW Connector Implementation 2.0 features and improvements. For more information, see Implementation details.

Advanced options

You can set the following options under Advanced options on the SAP BW connection screen:

  • Execution mode specifies how the MDX interface executes queries on the server. The following options are valid:

    • BasXml
    • BasXmlGzip
    • DataStream

    The default value is BasXmlGzip. This mode can improve performance for low latency or high volume queries.

  • Batch size specifies the maximum number of rows to retrieve at a time when executing an MDX statement. A small number means more calls to the server while retrieving a large semantic model. A large value might improve performance, but could cause memory issues on the SAP BW server. The default value is 50000.

  • Enable characteristic structures changes the way the Navigator displays characteristic structures. The default value for this option is false, or unchecked. This option affects the list of objects available for selection, and isn't supported in native query mode.

Other improvements

The following list describes other Implementation 2.0 improvements:

  • Better performance.
  • Ability to retrieve several million rows of data, and fine-tuning through the batch size parameter.
  • Ability to switch execution modes.
  • Support for compressed mode, especially beneficial for high-latency connections or large semantic models.
  • Improved detection of Date variables.
  • Date (ABAP type DATS) and Time (ABAP type TIMS) dimensions exposed as dates and times, instead of text values. For more information, see Support for typed dates in SAP BW.
  • Better exception handling. Errors that occur in BAPI calls are now surfaced.
  • Column folding in BasXml and BasXmlGzip modes. For example, if the generated MDX query retrieves 40 columns but the current selection only needs 10, this request passes on to the server to retrieve a smaller semantic model.

Update existing Implementation 1.0 reports

You can change existing reports to use Implementation 2.0 only in Import mode.

  1. From the existing report in Power BI Desktop, select Transform data in the ribbon, and then select the SAP Business Warehouse query to update.

  2. Right-click the query and select Advanced Editor.

  3. In the Advanced Editor, change the SapBusinessWarehouse.Cubes calls as follows:

  4. Determine whether the query already contains an option record, such as the following examples:

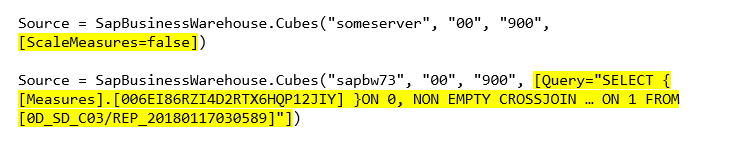

    Screenshot that shows a plaintext query with an option record.

    If so, add the [Implementation 2.0] option, and remove any ScaleMeasures option:

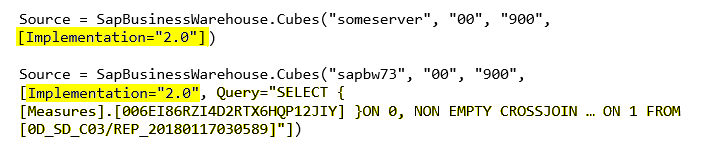

    Screenshot that shows a plaintext query with the added value Implementation = 2.0.

    Note

    The ScaleMeasures option is deprecated in this implementation. The connector now always shows unscaled values.

  5. If the query doesn't already include an options record, add it. For example, change the following entry:

    Screenshot that shows a plaintext query with an option record added.

    to:

    Screenshot that shows a plaintext query of the new option with the added value Implementation = 2.0.

Note

Implementation 2.0 of the SAP BW Connector should be compatible with version 1. However, there might be some differences because of the different SAP BW MDX execution modes. To resolve any discrepancies, try switching between execution modes.

Troubleshooting

This section provides some troubleshooting situations and solutions for the SAP BW connector. For more information, see SAP Business Warehouse connector troubleshooting.

Numeric data from SAP BW returns misformatted numeric data

In this issue, SAP BW returns numeric data with decimal points instead of commas. For example, 1,000,000 returns as 1.000.000.

SAP BW returns decimal data with either a comma or a period as the decimal separator. To specify which of these characters SAP BW should use for the decimal separator, the Power BI Desktop driver makes a call to BAPI_USER_GET_DETAIL. This call returns a structure called DEFAULTS, which has a field called DCPFM that stores Decimal Format Notation as one of the following values:

  • ' ' (space) = Decimal point is comma: N.NNN,NN
  • 'X' = Decimal point is period: N,NNN.NN
  • 'Y' = Decimal point is N: NNN NNN,NN

With this issue, the call to BAPI_USER_GET_DETAIL fails for a particular user, who gets the misformatted data, with an error message similar to the following message:

 You are not authorized to display users in group TI:
     <item>
         <TYPE>E</TYPE>
         <ID>01</ID>
         <NUMBER>512</NUMBER>
         <MESSAGE>You are not authorized to display users in group TI</MESSAGE>
         <LOG_NO/>
         <LOG_MSG_NO>000000</LOG_MSG_NO>
         <MESSAGE_V1>TI</MESSAGE_V1>
         <MESSAGE_V2/>
         <MESSAGE_V3/>
         <MESSAGE_V4/>
         <PARAMETER/>
         <ROW>0</ROW>
         <FIELD>BNAME</FIELD>
         <SYSTEM>CLNTPW1400</SYSTEM>
     </item>

To solve this error, the SAP admin must grant the Power BI SAP BW user the right to execute BAPI_USER_GET_DETAIL. Also, verify that the user's data has the correct DCPFM value.

Need connectivity for SAP BEx queries

You can do BEx queries in Power BI Desktop by enabling the Release for External Access property, as shown in the following image:

Screenshot that shows enabling Release for External Access.

In this issue, Navigator doesn't display a data preview and instead shows an Object reference not set to an instance of an object error message.

SAP users need access to the following specific BAPI function modules to get metadata and retrieve data from SAP BW's InfoProviders:

  • BAPI_MDPROVIDER_GET_CATALOGS
  • BAPI_MDPROVIDER_GET_CUBES
  • BAPI_MDPROVIDER_GET_DIMENSIONS
  • BAPI_MDPROVIDER_GET_HIERARCHYS
  • BAPI_MDPROVIDER_GET_LEVELS
  • BAPI_MDPROVIDER_GET_MEASURES
  • BAPI_MDPROVIDER_GET_MEMBERS
  • BAPI_MDPROVIDER_GET_VARIABLES
  • BAPI_IOBJ_GETDETAIL

To solve this issue, verify that the user has access to the MDPROVIDER modules and BAPI_IOBJ_GETDETAIL.

Enable tracing

To further troubleshoot these or similar issues, you can enable tracing:

  1. In Power BI Desktop, select File > Options and settings > Options.
  2. In Options, select Diagnostics, and then select Enable tracing under Diagnostic Options.
  3. Try to get data from SAP BW while tracing is active, and examine the trace file for more detail.

SAP BW Connection support

The following table describes current Power BI support for SAP BW.

Product Mode Authentication Connector SNC Library Supported
Power BI Desktop Any User / password Application Server N/A Yes
Power BI Desktop Any Windows Application Server sapcrypto + gsskrb5/gx64krb5 Yes
Power BI Desktop Any Windows via impersonation Application Server sapcrypto + gsskrb5/gx64krb5 Yes
Power BI Desktop Any User / password Message Server N/A Yes
Power BI Desktop Any Windows Message Server sapcrypto + gsskrb5/gx64krb5 Yes
Power BI Desktop Any Windows via impersonation Message Server sapcrypto + gsskrb5/gx64krb5 Yes
Power BI Gateway Import Same as Power BI Desktop
Power BI Gateway DirectQuery User / password Application Server N/A Yes
Power BI Gateway DirectQuery Windows via impersonation (fixed user, no SSO) Application Server sapcrypto + gsskrb5/gx64krb5 Yes
Power BI Gateway DirectQuery Use SSO via Kerberos for DirectQuery queries option Application Server sapcrypto + gsskrb5/gx64krb5 Yes
Power BI Gateway DirectQuery User / password Message Server N/A Yes
Power BI Gateway DirectQuery Windows via impersonation (fixed user, no SSO) Message Server sapcrypto + gsskrb5/gx64krb5 Yes
Power BI Gateway DirectQuery Use SSO via Kerberos for DirectQuery queries option Message Server gsskrb5/gx64krb5 No
Power BI Gateway DirectQuery Use SSO via Kerberos for DirectQuery queries option Message Server sapcrypto Yes
