Track progress with status and trend query-based charts

TFS 2018

You can quickly view the status of work in progress by charting the results of a flat-list query. Different chart views such as pie, column, pivot, or trend are supported. Charts support viewing a count of work items or a sum of values for select numeric fields, such as Story Points, Effort, or Remaining Work. Group work by State, Assigned To, or other system defined or custom field.

In this article you'll learn how to perform the following tasks:

  • Construct a flat-list query to support your chart
  • Create and share your query-based chart
  • Create a status pie, column, bar, or pivot chart
  • Create a trend chart
  • Add a chart to a dashboard

Note

This article describes how to configure work tracking query charts. To add existing query charts to dashboards, see Add charts to a dashboard. For information on configuring a Chart for Work Items widget, see Configure a chart for work items widget.

For an overview of all work tracking charts and in-context reports, see About dashboards, charts, reports, & widgets.

For example, the following image illustrates four different charts created from the same flat-list query. The pie chart groups the 146 active bugs by priority, and the bar chart groups the bugs by team and their triage status. The last two chart show two different trend views of the active bugs over the last two weeks.

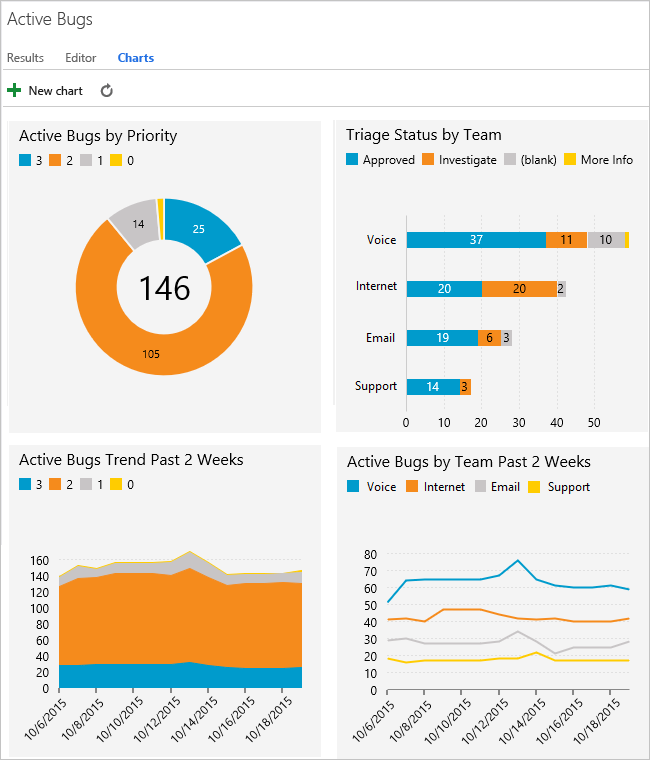

Screenshot of 4 charts for a flat-list query.

Prerequisites

Prerequisites to meet include having Basic access or higher and to have created a flat-list query. Only flat-list queries support charts.

If you want to add the chart to a dashboard, then you need to save the query under the Shared Queries folder, and create the dashboard where you want to add the chart.

  • To create a query chart, you must have Basic access or higher. Users with Stakeholder access can't view or create charts from the Queries page, however, they can view charts added to a team dashboard. For details, see Stakeholder access quick reference.
  • To add a chart to a dashboard, you must save the query to a Shared Queries folder. To do that, you must be granted permissions to save queries under a folder. To get permissions granted, see Set permissions on queries and query folders.
  • To add a query chart to a team dashboard, you must be a member of the team or be a member of the Project Administrators security group.
  • To view a query chart added to a dashboard, you must have Read permissions to the underlying query. If that permission has been denied, then the widget will display with a Widget failed to load message.

To learn more about dashboard permissions, see Set dashboard permissions.

Create a flat-list query

When creating a query to support your chart, follow these guidelines.

  • Always select the Flat list of work items query type. Other query types aren't supported for charting. For more information, see Define a query, Define a flat-list query.

  • Add those fields to either a query clause or the column options that you want to use within your chart. You can group charts by any field except date-time, free-form text, and tag fields. For example:

    • To group by Status, include the State field
    • To group by work assignments, include the Assigned To field
    • To group by sprints or iterations, include the Iteration Path
    • To group by team, include the Node Name field that displays the leaf node of the Area Path
    • To group by a custom field, include it.
  • To sum a numeric column, include the corresponding field in your query clause or column options. For more examples of charts created from numeric fields, see Query by a numeric field.

  • If you plan to add your query to a dashboard, save your query as a Shared query.

  • You can't group charts by the following field data types:

    • ID
    • Date-time, such as Created Date, Changed Date
    • Plain text, such as Title
    • Rich-text, such as Description, Repro Steps
    • Tags (You can filter a query using tags, however you can't use tags to configure your chart).

Display of areas and iterations

When you select Area Path or Iteration Path, only the leaf node appears in the chart. The leaf node is the last node of the full path. For example, Phone is the leaf node of FabrikamFiber/Fabrikam Website/Phone. If your query contains a mixed level of leaf nodes, your chart might not reflect expected results.

Select the Node Name field, the area path leaf node, to see if that improves your results.

Charts display in browsers that support Scalable Vector Graphics (SVG). Supported browsers include Microsoft Edge, Internet Explorer 9 and later versions, Chrome, Firefox and Safari on Mac. Charts aren't optimized for mobile or touch displays.

Sort by Value or Label

Most charts allow you to choose how you want to sort the data. You can sort by Value or Label and select Ascending or Descending.

  • Value: Sorts data by the numeric value
  • Label: Sorts by the label selected for grouping the data.

Limited display of series

When a chart contains more than seven items within the data series, values in the eight-plus items are consolidated into a set labeled "other"?

Screenshot of Other category groups data beyond 7 set series.

Chart availability

  • Charts saved under Shared Queries are viewable by all team members, except members with Stakeholder access, and can be added to dashboards.
  • Charts that you create for queries under your My Queries folder are visible only to you.
  • You can copy and email the URL of any chart page to share it with a project member.
  • To create similar charts for tests, see Track test status.

Create a query-based chart

  1. From Queries, open the chart editor for a flat list query. You must belong to the Contributors group to create charts.

    Screenshot of Web portal, Queries page, Chart tab, New chart link.

    If you have Stakeholder access, the Charts and New Chart links won't appear.

  2. Select the chart type and field for grouping values. When you use pie, bar, and column charts, select a single field to view a count of work items.

    Screenshot of web portal, Queries page, Chart tab, Configure Chart dialog, Configure a Pie chart.

    If you don't see the field you want in the Group by drop-down list, add the field as a column to the query and save the query. Also, the Aggregation options depend on the fields used in the query or those selected from the Column Options.

    If you receive an error message when you close the chart editor, you need to request Basic access.

  3. To sort the results, select Value or Label as the sort option and then Ascending or Descending.

    To change a color, select a color on the chart and pick a new color from the color picker.

Charts automatically update when you edit the query or refresh the query results.

Add a Pie chart

Use a pie chart to show group percentages with six or fewer categories. Good examples of pie charts are:

  • Active Bugs Status, group by State
  • User Story Status, group by State
  • User Story Progress, group by Completed, In Progress, or Cut

For example, the following query filters User Stories based on the State for Cut, In Progress, and Completed since the start of the year.

Screenshot of Query Editor, filter User Stories by State.

The pie chart configuration is as shown in the following image.

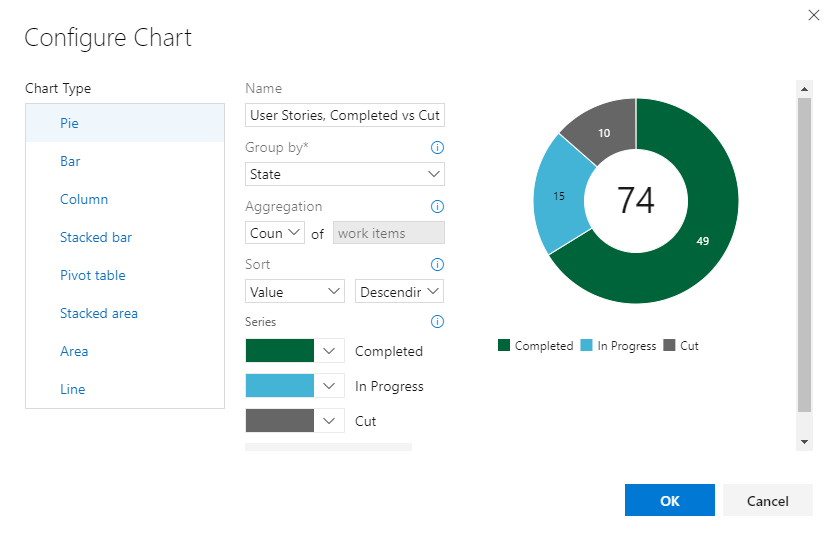

Screenshot of Configure chart dialog, Pie chart.

The combined query and chart configuration yield the following pie chart.

Screenshot of Charts, pie chart example.

Add a Stacked bar chart

A stacked bar chart lets you track progress against two field values. Node Name will display the last leaf within an area path. Use this when you want to show data across teams, and each node corresponds to a team.

Screenshot of web portal, Queries page, Chart tab, Configure Chart dialog, Stacked bar chart.

Add a Pivot table

The Pivot table displays a table of configurable rows and columns, with columns showing a count of work items or sum of a numeric field. Choose a Pivot table when you want to compare across areas the work being performed.

The following image shows an example of active bugs assigned to developers and their current state.

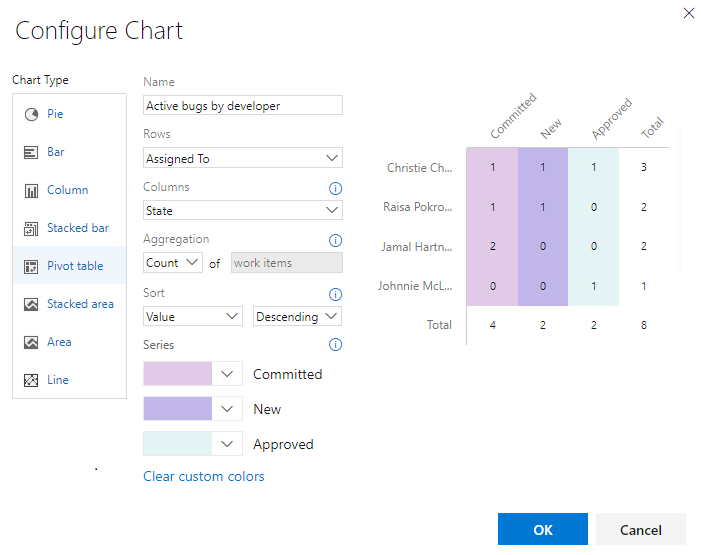

Screenshot of Configure Chart dialog, Pivot table.

Add a Trend chart

Trend charts let you view progress over time. You can select a rolling period ranging from the last week to the last year.

Screenshot of Web portal, Queries page, Chart tab, Configure Chart dialog, two week trend chart.

Trend data is extracted from the work tracking data store. Like most data stores, the schema of the relational database is designed and optimized for the online transactional processing of data. As the tool or plug-in performs an activity, it writes the latest information to the operational store. Therefore, data in the operational store is constantly changing and being updated, and all data is current.

Add a Burndown chart

Burndown charts are useful for determining how quickly work is progressing based on a numeric field value, such as Story Points, Effort, or Remaining Work, or on a count of work items.

To create a burndown chart, make sure to add the numeric field you want to your query. To view a burndown chart of tasks, select the Sum operator for Remaining Work.

Screenshot of Web portal, Queries page, Chart tab, Configure Chart dialog, Trend chart for the past four weeks.

Add chart to a dashboard

A chart added to a dashboard is added through the addition of a Chart for Work Items widget. You can add the chart to a dashboard as shown in the following procedure, or by adding the Chart for Work Items widget directly. To learn more, see Configure a chart for work items widget.

Tip

All query charts are limited in size. However, charts added to a dashboard can be re-sized and re-configured by opening the Chart for Work Items widget used to display them.

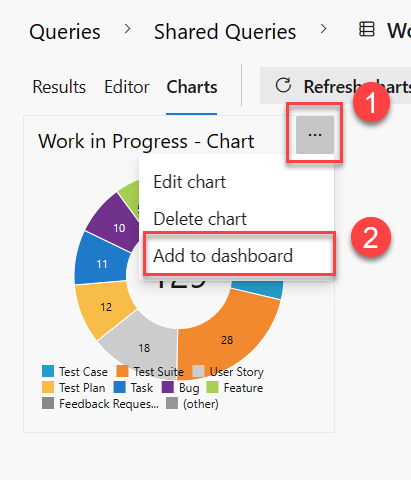

  • Select the actions icon for the chart you want to add, and select Add to dashboard.

Screenshot of a chart context menu, add to a team dashboard.

To add other types of charts, such as test results and build summary charts, see Add widgets and chart to a dashboard.

Query-based charts versus Excel-generated PivotCharts

Query-based charts generate data from the work item tracking data store and therefore display the most recent data. Excel PivotCharts access data published to the Analysis Services cube, which is refreshed every two hours by default. Excel charts require your project's project collection is configured with SQL Server Reporting Services and Analysis Services.
