Create, change, or delete a virtual network

If you don't have an Azure account with an active subscription, create one for free. Complete one of these tasks before starting the remainder of this article:

• Portal users: Sign in to the Azure portal with your Azure account.

• PowerShell users: Either run the commands in the Azure Cloud Shell, or run PowerShell locally from your computer. The Azure Cloud Shell is a free interactive shell that you can use to run the steps in this article. It has common Azure tools preinstalled and configured to use with your account. In the Azure Cloud Shell browser tab, find the Select environment dropdown list, then pick PowerShell if it isn't already selected.

  If you're running PowerShell locally, use Azure PowerShell module version 1.0.0 or later. Run Get-Module -ListAvailable Az.Network to find the installed version. If you need to install or upgrade, see Install Azure PowerShell module. Run Connect-AzAccount to sign in to Azure.

• Azure CLI users: Either run the commands in the Azure Cloud Shell, or run Azure CLI locally from your computer. The Azure Cloud Shell is a free interactive shell that you can use to run the steps in this article. It has common Azure tools preinstalled and configured to use with your account. In the Azure Cloud Shell browser tab, find the Select environment dropdown list, then pick Bash if it isn't already selected.

  If you're running Azure CLI locally, use Azure CLI version 2.0.31 or later. Run az --version to find the installed version. If you need to install or upgrade, see Install Azure CLI. Run az login to sign in to Azure.

The account you log into, or connect to Azure with, must be assigned to the network contributor role or to a custom role that is assigned the appropriate actions listed in Permissions.

Create a virtual network using the Azure portal

1. In the search box at the top of the portal, enter Virtual networks. Select Virtual networks in the search results.

2. Select + Create.

3. In the Basics tab of Create virtual network, enter or select values for the following settings:

   Setting	Value	Details
   Project details
   Subscription	Select your subscription.	You can't use the same virtual network in more than one Azure subscription. However, you can connect a virtual network in one subscription to virtual networks in other subscriptions using virtual network peering. Any Azure resource that you connect to the virtual network must be in the same subscription as the virtual network.
   Resource group	Select an existing resource group or create a new one by selecting Create new.	An Azure resource that you connect to the virtual network can be in the same resource group as the virtual network or in a different resource group.
   Instance details
   Name	Enter a name for the virtual network you're creating.	The name must be unique in the resource group that you select to create the virtual network in. You can't change the name after the virtual network is created. For naming suggestions, see Naming conventions. Following a naming convention can help make it easier to manage multiple virtual networks.
   Region	Select an Azure region.	A virtual network can be in only one Azure region. However, you can connect a virtual network in one region to a virtual network in another region using virtual network peering. Any Azure resource that you connect to the virtual network must be in the same region as the virtual network.

4. Select IP Addresses tab or Next: Security >, Next: IP Addresses > and enter the following IP address information:

   • IPv4 Address space: The address space for a virtual network is composed of one or more non-overlapping address ranges that are specified in CIDR notation. The address range you define can be public or private (RFC 1918). Whether you define the address range as public or private, the address range is reachable only from within the virtual network, from interconnected virtual networks, and from any on-premises networks that you've connected to the virtual network.

     You can't add the following address ranges:

     • 224.0.0.0/4 (Multicast)
     • 255.255.255.255/32 (Broadcast)
     • 127.0.0.0/8 (Loopback)
     • 169.254.0.0/16 (Link-local)
     • 168.63.129.16/32 (Internal DNS, DHCP, and Azure Load Balancer health probe)

     The portal requires that you define at least one IPv4 address range when you create a virtual network. You can change the address space after the virtual network is created, under specific conditions.

     Warning

     If a virtual network has address ranges that overlap with another virtual network or on-premises network, the two networks can't be connected. Before you define an address range, consider whether you might want to connect the virtual network to other virtual networks or on-premises networks in the future. Microsoft recommends configuring virtual network address ranges with private address space or public address space owned by your organization.

   • Add IPv6 address space: IPv6 address space of an Azure Virtual Network enables you to host applications in Azure with IPv6 and IPv4 connectivity within the virtual network and to and from the Internet.

   • Subnet name: The subnet name must be unique within the virtual network. You can't change the subnet name after the subnet is created. The portal requires that you define one subnet when you create a virtual network, even though a virtual network isn't required to have any subnets. In the portal, you can define one or more subnets when you create a virtual network. You can add more subnets to the virtual network later, after the virtual network is created. To add a subnet to a virtual network, see Manage subnets.

     Tip

     Sometimes, administrators create different subnets to filter or control traffic routing between the subnets. Before you define subnets, consider how you might want to filter and route traffic between your subnets. To learn more about filtering traffic between subnets, see Network security groups. Azure automatically routes traffic between subnets, but you can override Azure default routes. To learn more about Azures default subnet traffic routing, see Routing overview.

   • Subnet address range: The range must be within the address space you entered for the virtual network. The smallest range you can specify is /29, which provides eight IP addresses for the subnet. Azure reserves the first and last address in each subnet for protocol conformance. Three more addresses are reserved for Azure service usage. As a result, a virtual network with a subnet address range of /29 has only three usable IP addresses. If you plan to connect a virtual network to a VPN gateway, you must create a gateway subnet. Learn more about specific address range considerations for gateway subnets. You can change the address range after the subnet is created, under specific conditions. To learn how to change a subnet address range, see Manage subnets.

     Create a virtual network using PowerShell

     Use New-AzVirtualNetwork to create a virtual network.

     ## Create myVNet virtual network. ##
     New-AzVirtualNetwork -ResourceGroupName myResourceGroup -Name myVNet -Location eastus -AddressPrefix 10.0.0.0/16


     Create a virtual network using the Azure CLI

     Use az network vnet create to create a virtual network.

     ## Create myVNet virtual network with the default address space: 10.0.0.0/16. ##
     az network vnet create --resource-group myResourceGroup --name myVNet


View virtual networks and settings using the Azure portal

1. In the search box at the top of the portal, enter Virtual networks. Select Virtual networks in the search results.

2. From the list of virtual networks, select the virtual network that you want to view settings for.

3. The following settings are listed for the virtual network you selected:

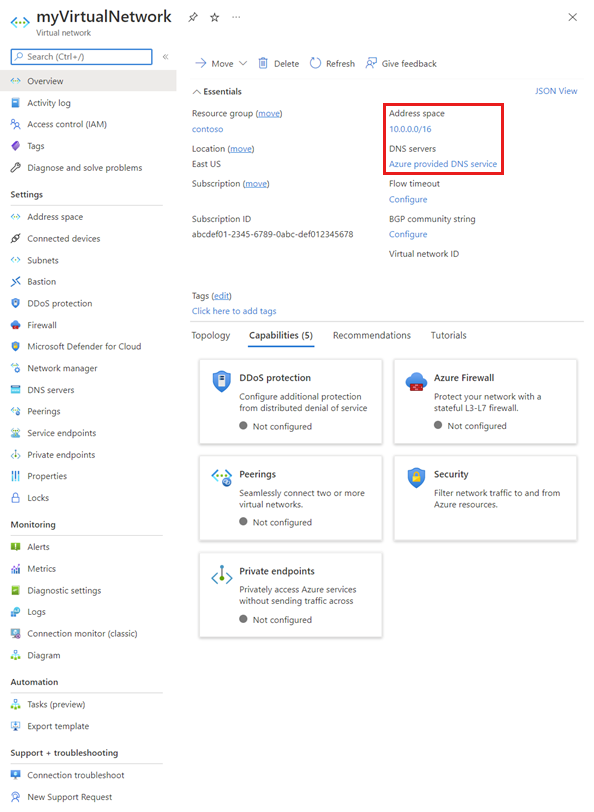

   • Overview: Provides information about the virtual network, including address space and DNS servers. The following screenshot shows the overview settings for a virtual network named MyVNet:



     You can move a virtual network to a different subscription, region, or resource group by selecting Move next to Resource group, Location, or Subscription. To learn how to move a virtual network, see Move resources to a different resource group or subscription. The article lists prerequisites, and how to move resources by using the Azure portal, PowerShell, and Azure CLI. All resources that are connected to the virtual network must move with the virtual network.

   • Address space: The address spaces that are assigned to the virtual network are listed. To learn how to add and remove an address range to the address space, complete the steps in Add or remove an address range.

   • Connected devices: Any resources that are connected to the virtual network are listed. Any new resources that you create and connect to the virtual network are added to the list. If you delete a resource that was connected to the virtual network, it no longer appears in the list.

   • Subnets: A list of subnets that exist within the virtual network is shown. To learn how to add and remove a subnet, see Manage subnets.

   • DNS servers: You can specify whether the Azure internal DNS server or a custom DNS server provides name resolution for devices that are connected to the virtual network. When you create a virtual network by using the Azure portal, Azure's DNS servers are used for name resolution within a virtual network, by default. To learn how to modify the DNS servers, see the steps in Change DNS servers in this article.

   • Peerings: If there are existing peerings in the subscription, they're listed here. You can view settings for existing peerings, or create, change, or delete peerings. To learn more about peerings, see Virtual network peering and Manage virtual network peerings.

   • Properties: Displays settings about the virtual network, including the virtual network's resource ID and Azure subscription.

   • Diagram: Provides a visual representation of all devices that are connected to the virtual network. The diagram has some key information about the devices. To manage a device in this view, in the diagram, select the device.

   • Common Azure settings: To learn more about common Azure settings, see the following information:

     • Activity log
     • Access control (IAM)
     • Tags
     • Locks
     • Automation script

   View virtual networks and settings using PowerShell

   Use Get-AzVirtualNetwork to list all virtual networks in a resource group.

   Get-AzVirtualNetwork -ResourceGroupName myResourceGroup | format-table Name, ResourceGroupName, Location


   Use Get-AzVirtualNetwork to view the settings of a virtual network.

   Get-AzVirtualNetwork -ResourceGroupName myResourceGroup -Name myVNet


   View virtual networks and settings using the Azure CLI

   Use az network vnet list to list all virtual networks in a resource group.

   az network vnet list --resource-group myResourceGroup


   Use az network vnet show to view the settings of a virtual network.

   az network vnet show --resource-group myResourceGroup --name myVNet


You can add and remove address ranges for a virtual network. An address range must be specified in CIDR notation, and can't overlap with other address ranges within the same virtual network. The address ranges you define can be public or private (RFC 1918). Whether you define the address range as public or private, the address range is reachable only from within the virtual network, from interconnected virtual networks, and from any on-premises networks that you've connected to the virtual network.

You can decrease the address range for a virtual network as long as it still includes the ranges of any associated subnets. Additionally, you can extend the address range, for example, changing a /16 to /8.

You can't add the following address ranges:

• 224.0.0.0/4 (Multicast)
• 255.255.255.255/32 (Broadcast)
• 127.0.0.0/8 (Loopback)
• 169.254.0.0/16 (Link-local)
• 168.63.129.16/32 (Internal DNS, DHCP, and Azure Load Balancer health probe)

Add or remove an address range using the Azure portal

1. In the search box at the top of the portal, enter Virtual networks. Select Virtual networks in the search results.

2. From the list of virtual networks, select the virtual network for which you want to add or remove an address range.

3. Select Address space, under Settings.

4. Complete one of the following options:

   • Add an address range: Enter the new address range. The address range can't overlap with an existing address range that is defined for the virtual network.

   • Modify an address range: Modify an existing address range. You can change the address range prefix to decrease or increase the address range. You can decrease the address range as long as it still includes the ranges of any associated subnets. Additionally, you can extend the address range as long as it doesn't overlap with an existing address range that is defined for the virtual network.

   • Remove an address range: On the right of the address range you want to remove, select Delete. If a subnet exists in the address range, you can't remove the address range. To remove an address range, you must first delete any subnets (and any resources in the subnets) that exist in the address range.

5. Select Save.

   Add or remove an address range using PowerShell

   Use Set-AzVirtualNetwork to update the address space of a virtual network.

   ## Place the virtual network configuration into a variable. ##
   $virtualNetwork = Get-AzVirtualNetwork -ResourceGroupName myResourceGroup -Name myVNet
   ## Remove the old address range. ##
   $virtualNetwork.AddressSpace.AddressPrefixes.Remove("10.0.0.0/16")
   ## Add the new address range. ##
   $virtualNetwork.AddressSpace.AddressPrefixes.Add("10.1.0.0/16")
   ## Update the virtual network. ##
   Set-AzVirtualNetwork -VirtualNetwork $virtualNetwork


   Add or remove an address range using the Azure CLI

   Use az network vnet update to update the address space of a virtual network.

   ## Update the address space of myVNet virtual network with 10.1.0.0/16 address range (10.1.0.0/16 overrides any previous address ranges set in this virtual network). ##
   az network vnet update --resource-group myResourceGroup --name myVNet --address-prefixes 10.1.0.0/16


All VMs that are connected to the virtual network register with the DNS servers that you specify for the virtual network. They also use the specified DNS server for name resolution. Each network interface (NIC) in a VM can have its own DNS server settings. If a NIC has its own DNS server settings, they override the DNS server settings for the virtual network. To learn more about NIC DNS settings, see Network interface tasks and settings. To learn more about name resolution for VMs and role instances in Azure Cloud Services, see Name resolution for VMs and role instances. To add, change, or remove a DNS server:

Change DNS servers of a virtual network using the Azure portal

1. In the search box at the top of the portal, enter Virtual networks. Select Virtual networks in the search results.

2. From the list of virtual networks, select the virtual network for which you want to change DNS servers.

3. Select DNS servers, under Settings.

4. Select one of the following options:

   • Default (Azure-provided): All resource names and private IP addresses are automatically registered to the Azure DNS servers. You can resolve names between any resources that are connected to the same virtual network. You can't use this option to resolve names across virtual networks. To resolve names across virtual networks, you must use a custom DNS server.

   • Custom: You can add one or more servers, up to the Azure limit for a virtual network. To learn more about DNS server limits, see Azure limits. You have the following options:

     • Add an address: Adds the server to your virtual network DNS servers list. This option also registers the DNS server with Azure. If you've already registered a DNS server with Azure, you can select that DNS server in the list.

     • Remove an address: Next to the server that you want to remove, select Delete. Deleting the server removes the server only from this virtual network list. The DNS server remains registered in Azure for your other virtual networks to use.

     • Reorder DNS server addresses: It's important to verify that you list your DNS servers in the correct order for your environment. DNS servers are used in the order that they're specified in the list. They don't work as a round-robin setup. If the first DNS server in the list can be reached, the client uses that DNS server, regardless of whether the DNS server is functioning properly. Remove all the DNS servers that are listed, and then add them back in the order that you want.

     • Change an address: Highlight the DNS server in the list, and then enter the new address.

5. Select Save.

6. Restart the VMs that are connected to the virtual network, so they're assigned the new DNS server settings. VMs continue to use their current DNS settings until they're restarted.

   Change DNS servers of a virtual network using PowerShell

   Use Set-AzVirtualNetwork to update a virtual network with new address space.

   ## Place the virtual network configuration into a variable. ##
   $virtualNetwork = Get-AzVirtualNetwork -ResourceGroupName myResourceGroup -Name myVNet
   ## Add the IP address of the DNS server. ##
   $virtualNetwork.DhcpOptions.DnsServers.Add("10.0.0.10")
   ## Update the virtual network. ##
   Set-AzVirtualNetwork -VirtualNetwork $virtualNetwork


   Change DNS servers of a virtual network using the Azure CLI

   Use az network vnet update to update the address space of a virtual network.

   ## Update the virtual network with IP address of the DNS server. ##
   az network vnet update --resource-group myResourceGroup --name myVNet --dns-servers 10.0.0.10


You can delete a virtual network only if there are no resources connected to it. If there are resources connected to any subnet within the virtual network, you must first delete the resources that are connected to all subnets within the virtual network. The steps you take to delete a resource vary depending on the resource. To learn how to delete resources that are connected to subnets, read the documentation for each resource type you want to delete. To delete a virtual network:

Delete a virtual network using the Azure portal

1. In the search box at the top of the portal, enter Virtual networks. Select Virtual networks in the search results.

2. From the list of virtual networks, select the virtual network you want to delete.

3. Confirm that there are no devices connected to the virtual network by selecting Connected devices, under Settings. If there are connected devices, you must delete them before you can delete the virtual network. If there are no connected devices, select Overview.

4. Select Delete.

5. To confirm the deletion of the virtual network, select Yes.

   Delete a virtual network using PowerShell

   Use Remove-AzVirtualNetwork to delete a virtual network.

   Remove-AzVirtualNetwork -ResourceGroupName myResourceGroup -Name myVNet


   Delete a virtual network using the Azure CLI

   Use az network vnet delete to delete a virtual network.

   az network vnet delete --resource-group myResourceGroup --name myVNet


   Permissions

   To perform tasks on virtual networks, your account must be assigned to the network contributor role or to a custom role that is assigned the appropriate actions listed in the following table:

   Action	Name
   Microsoft.Network/virtualNetworks/read	Read a virtual Network
   Microsoft.Network/virtualNetworks/write	Create or update a virtual network
   Microsoft.Network/virtualNetworks/delete	Delete a virtual network
