Use SQL Server Connector with SQL encryption features

Applies to: SQL Server

Common SQL Server encryption activities that use an asymmetric key protected by Azure Key Vault fall into the following three areas:

  • Transparent data encryption (TDE) by using an asymmetric key from Azure Key Vault.
  • Encrypting backups by using an asymmetric key from the key vault.
  • Column level encryption by using an asymmetric key from the key vault.

Complete steps 1 through 4 of Set up Transparent Data Encryption with Azure Key Vault for SQL Server before you follow the steps in this article.

Note

Versions 1.0.0.440 and earlier are replaced and are no longer supported in production environments. Upgrade to version 1.0.1.0 or later. Download the current version from the Microsoft Download Center, and follow the instructions in the "Upgrade of SQL Server Connector" section of SQL Server Connector maintenance and troubleshooting.

Note

Microsoft Entra ID was previously known as Azure Active Directory (Azure AD).

Transparent data encryption by using an asymmetric key from Azure Key Vault

After you complete steps 1 through 4 of Set up Transparent Data Encryption with Azure Key Vault for SQL Server, use the Azure Key Vault key to encrypt the database encryption key with TDE. For more information about rotating keys by using PowerShell, see Rotate the Transparent Data Encryption (TDE) protector using PowerShell.

Important

Don't delete previous versions of the key after a rollover. When keys roll over, some data is still encrypted with the previous keys, such as older database backups, backed-up log files, and transaction log files.

You need to create a credential and a login, and create a database encryption key that encrypts the data and logs in the database. Encrypting a database requires CONTROL permission on the database. The following graphic shows the hierarchy of the encryption key when you use Azure Key Vault.

Diagram showing the hierarchy of the encryption key when using the Azure Key Vault.

  1. Create a SQL Server credential for the Database Engine to use for TDE

    The Database Engine uses the Microsoft Entra application credentials to access the key vault during database load. To limit the key vault permissions that you grant, create another Client ID and Secret, as described in Step 1: Set up the authentication model, for the Database Engine.

    Modify the Transact-SQL script below in the following ways:

    • Edit the IDENTITY argument (ContosoDevKeyVault) to point to your Azure Key Vault.

      • If you're using global Azure, replace the IDENTITY argument with the name of your Azure Key Vault from Step 2: Create a key vault.
      • If you're using a private Azure cloud, for example Azure Government, Azure operated by 21Vianet, or Azure Germany, replace the IDENTITY argument with the Vault URI returned in Create a key vault and key by using PowerShell. Don't include https:// in the key vault URI.

    • Replace the first part of the SECRET argument with the Microsoft Entra application Client ID from Step 1: Set up the authentication model. In this example, the Client ID is EF5C8E094D2A4A769998D93440D8115D.

      Important

      You must remove the hyphens from the Client ID.

    • Complete the second part of the SECRET argument with the Client Secret from step 1. In this example, the Client Secret is ReplaceWithAADClientSecret.

    • The final string for the SECRET argument is a long sequence of letters and numbers, with no hyphens.

    USE master;
CREATE CREDENTIAL Azure_EKM_TDE_cred
    WITH IDENTITY = 'ContosoDevKeyVault', -- for global Azure
    -- WITH IDENTITY = 'ContosoDevKeyVault.vault.usgovcloudapi.net', -- for Azure Government
    -- WITH IDENTITY = 'ContosoDevKeyVault.vault.azure.cn', -- for Microsoft Azure operated by 21Vianet
    -- WITH IDENTITY = 'ContosoDevKeyVault.vault.microsoftazure.de', -- for Azure Germany
    SECRET = 'EF5C8E094D2A4A769998D93440D8115DReplaceWithAADClientSecret'
FOR CRYPTOGRAPHIC PROVIDER AzureKeyVault_EKM_Prov;

  2. Create a SQL Server login for the Database Engine for TDE

    Create a SQL Server login and add the credential from Step 1 to it. This Transact-SQL example uses the same key that was imported earlier.

    USE master;
-- Create a SQL Server login associated with the asymmetric key
-- for the Database engine to use when it loads a database
-- encrypted by TDE.
CREATE LOGIN TDE_Login
FROM ASYMMETRIC KEY CONTOSO_KEY;
GO

-- Alter the TDE Login to add the credential for use by the
-- Database Engine to access the key vault
ALTER LOGIN TDE_Login
ADD CREDENTIAL Azure_EKM_TDE_cred ;
GO

  3. Create the database encryption key (DEK)

    The DEK encrypts your data and log files in the database instance, and in turn is encrypted by the Azure Key Vault asymmetric key. You can create the DEK by using any algorithm or key length that SQL Server supports.

    USE ContosoDatabase;
GO

CREATE DATABASE ENCRYPTION KEY
WITH ALGORITHM = AES_256
ENCRYPTION BY SERVER ASYMMETRIC KEY CONTOSO_KEY;
GO

  4. Turn on TDE

    -- Alter the database to enable transparent data encryption.
ALTER DATABASE ContosoDatabase
SET ENCRYPTION ON;
GO

    Using Management Studio, verify that TDE is turned on by connecting to your database with Object Explorer. Right-click your database, point to Tasks, and then select Manage Database Encryption.

    Screenshot showing Object Explorer with Tasks > Manage Database Encryption selected.

    In the Manage Database Encryption dialog box, confirm that TDE is on, and what asymmetric key is encrypting the DEK.

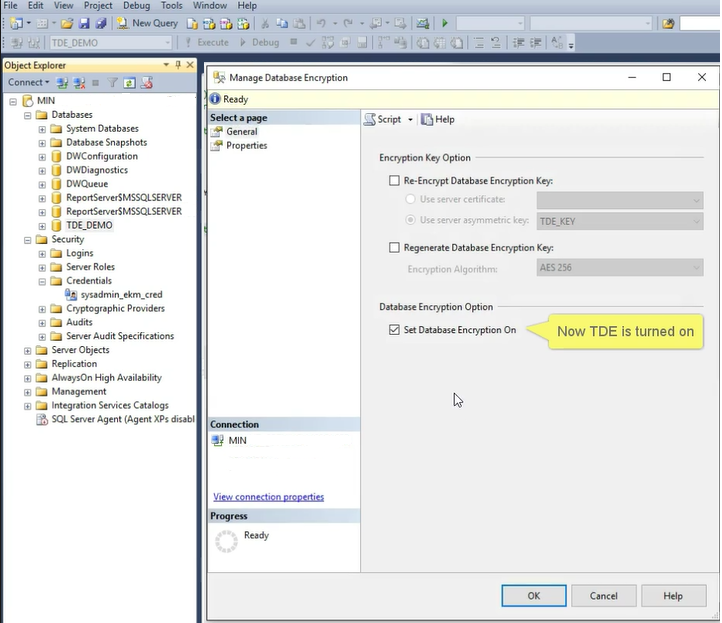

    Screenshot of the Manage Database Encryption dialog box with the Set Database Encryption On option selected and a yellow banner that says Now TDE is turned on.

    Alternatively, you can execute the following Transact-SQL script. An encryption state of 3 indicates an encrypted database.

    USE MASTER
SELECT * FROM sys.asymmetric_keys

-- Check which databases are encrypted using TDE
SELECT d.name, dek.encryption_state
FROM sys.dm_database_encryption_keys AS dek
JOIN sys.databases AS d
     ON dek.database_id = d.database_id;

    Note

    The tempdb database is automatically encrypted whenever any database enables TDE.

Encrypting backups by using an asymmetric key from the key vault

Encrypted backups are supported starting with SQL Server 2014 (12.x). The following example creates and restores a backup encrypted with a data encryption key that the asymmetric key in the key vault protects.

The Database Engine uses the Microsoft Entra application credentials to access the key vault during database load. To limit the key vault permissions that you grant, create another Client ID and Secret, as described in Step 1: Set up the authentication model, for the Database Engine.

  1. Create a SQL Server credential for the Database Engine to use for backup encryption

    Modify the Transact-SQL script below in the following ways:

    • Edit the IDENTITY argument (ContosoDevKeyVault) to point to your Azure Key Vault.

      • If you're using global Azure, replace the IDENTITY argument with the name of your Azure Key Vault from Step 2: Create a key vault.
      • If you're using a private Azure cloud, for example Azure Government, Microsoft Azure operated by 21Vianet, or Azure Germany, replace the IDENTITY argument with the Vault URI returned in Create a key vault and key by using PowerShell. Don't include https:// in the key vault URI.

    • Replace the first part of the SECRET argument with the Microsoft Entra application Client ID from Step 1: Set up the authentication model. In this example, the Client ID is EF5C8E094D2A4A769998D93440D8115D.

      Important

      You must remove the hyphens from the Client ID.

    • Complete the second part of the SECRET argument with the Client Secret from step 1. In this example, the Client Secret is Replace-With-AAD-Client-Secret. The final string for the SECRET argument is a long sequence of letters and numbers, with no hyphens.

      USE master;

CREATE CREDENTIAL Azure_EKM_Backup_cred
    WITH IDENTITY = 'ContosoDevKeyVault', -- for global Azure
    -- WITH IDENTITY = 'ContosoDevKeyVault.vault.usgovcloudapi.net', -- for Azure Government
    -- WITH IDENTITY = 'ContosoDevKeyVault.vault.azure.cn', -- for Microsoft Azure operated by 21Vianet
    -- WITH IDENTITY = 'ContosoDevKeyVault.vault.microsoftazure.de', -- for Azure Germany
    SECRET = 'EF5C8E094D2A4A769998D93440D8115DReplace-With-AAD-Client-Secret'
FOR CRYPTOGRAPHIC PROVIDER AzureKeyVault_EKM_Prov;

  2. Create a SQL Server login for the Database Engine for backup encryption

    Create a SQL Server login to be used by the Database Engine for encryption backups, and add the credential from Step 1 to it. This Transact-SQL example uses the same key that was imported earlier.

    Important

    You can't use the same asymmetric key for backup encryption if you already used that key for TDE (the preceding example), or column level encryption (the following example).

    This example uses the CONTOSO_KEY_BACKUP asymmetric key stored in the key vault, which you can import or create earlier for the master database, as described in Step 2: Create a key vault.

    USE master;

-- Create a SQL Server login associated with the asymmetric key
-- for the Database engine to use when it is encrypting the backup.
CREATE LOGIN Backup_Login
FROM ASYMMETRIC KEY CONTOSO_KEY_BACKUP;
GO

-- Alter the Encrypted Backup Login to add the credential for use by
-- the Database Engine to access the key vault
ALTER LOGIN Backup_Login
ADD CREDENTIAL Azure_EKM_Backup_cred ;
GO

  3. Back up the database

    Back up the database, specifying encryption with the asymmetric key stored in the key vault.

    In the following example, note that if the database was already encrypted with TDE, and the asymmetric key CONTOSO_KEY_BACKUP is different from the TDE asymmetric key, the backup is encrypted by both the TDE asymmetric key and CONTOSO_KEY_BACKUP. The target SQL Server instance needs both keys to decrypt the backup.

    USE master;

BACKUP DATABASE [DATABASE_TO_BACKUP]
TO DISK = N'[PATH TO BACKUP FILE]'
WITH FORMAT, INIT, SKIP, NOREWIND, NOUNLOAD,
ENCRYPTION(ALGORITHM = AES_256,
SERVER ASYMMETRIC KEY = [CONTOSO_KEY_BACKUP]);
GO

  4. Restore the database

    To restore a database backup that is encrypted with TDE, the target SQL Server instance must first have a copy of the asymmetric key vault key used for encryption. To provide that copy:

    • If the original asymmetric key used for TDE is no longer in the key vault, restore the key vault key backup or reimport the key from a local HSM. For the key's thumbprint to match the thumbprint recorded on the database backup, the key must use the same key vault key name it had originally.

    • Apply steps 1 and 2 on the target SQL Server instance.

    • After the target SQL Server instance has access to the asymmetric keys used to encrypt the backup, restore the database on the server.

    Sample restore code:

    RESTORE DATABASE [DATABASE_TO_BACKUP]
FROM DISK = N'[PATH TO BACKUP FILE]'
    WITH FILE = 1, NOUNLOAD, REPLACE;
GO

    For more information about backup options, see BACKUP (Transact-SQL).

Column level encryption by using an asymmetric key from the key vault

The following example creates a symmetric key protected by the asymmetric key in the key vault. The symmetric key then encrypts data in the database.

Important

You can't use the same asymmetric key for column level encryption if you already used that key for backup encryption.

This example uses the CONTOSO_KEY_COLUMNS asymmetric key stored in the key vault, which you can import or create earlier, as described in Step 2: Create a key vault. To use this asymmetric key in the ContosoDatabase database, run the CREATE ASYMMETRIC KEY statement again to give the ContosoDatabase database a reference to the key.

USE [ContosoDatabase];
GO

-- Create a reference to the key in the key vault
CREATE ASYMMETRIC KEY CONTOSO_KEY_COLUMNS
FROM PROVIDER [AzureKeyVault_EKM_Prov]
WITH PROVIDER_KEY_NAME = 'ContosoDevRSAKey2',
CREATION_DISPOSITION = OPEN_EXISTING;

-- Create the data encryption key.
-- The data encryption key can be created using any SQL Server
-- supported algorithm or key length.
-- The DEK will be protected by the asymmetric key in the key vault

CREATE SYMMETRIC KEY DATA_ENCRYPTION_KEY
    WITH ALGORITHM=AES_256
    ENCRYPTION BY ASYMMETRIC KEY CONTOSO_KEY_COLUMNS;

DECLARE @DATA VARBINARY(MAX);

--Open the symmetric key for use in this session
OPEN SYMMETRIC KEY DATA_ENCRYPTION_KEY
DECRYPTION BY ASYMMETRIC KEY CONTOSO_KEY_COLUMNS;

--Encrypt syntax
SELECT @DATA = ENCRYPTBYKEY
    (
    KEY_GUID('DATA_ENCRYPTION_KEY'),
    CONVERT(VARBINARY,'Plain text data to encrypt')
    );

-- Decrypt syntax
SELECT CONVERT(VARCHAR, DECRYPTBYKEY(@DATA));

--Close the symmetric key
CLOSE SYMMETRIC KEY DATA_ENCRYPTION_KEY;
