如何使用“使用必应搜索提供事实依据”功能

2025-06-17

按照本文查找“使用必应搜索提供事实依据”的分步说明和代码示例。

先决条件

一个已连接的“使用必应搜索提供事实依据”资源。
连接 ID 需要采用以下格式： /subscriptions/<subscription_id>/resourceGroups/<resource_group_name>/providers/Microsoft.CognitiveServices/accounts/<ai_service_name>/projects/<project_name>/connections/<connection_name>

重要

需要满足一定的要求才能显示“使用必应搜索提供事实依据”结果。有关详细信息，请参阅概述文章。

在 Azure AI Foundry 门户中，导航到代理的“代理”屏幕，向下滚动“知识”右侧的“设置”窗格。然后选择“添加”。

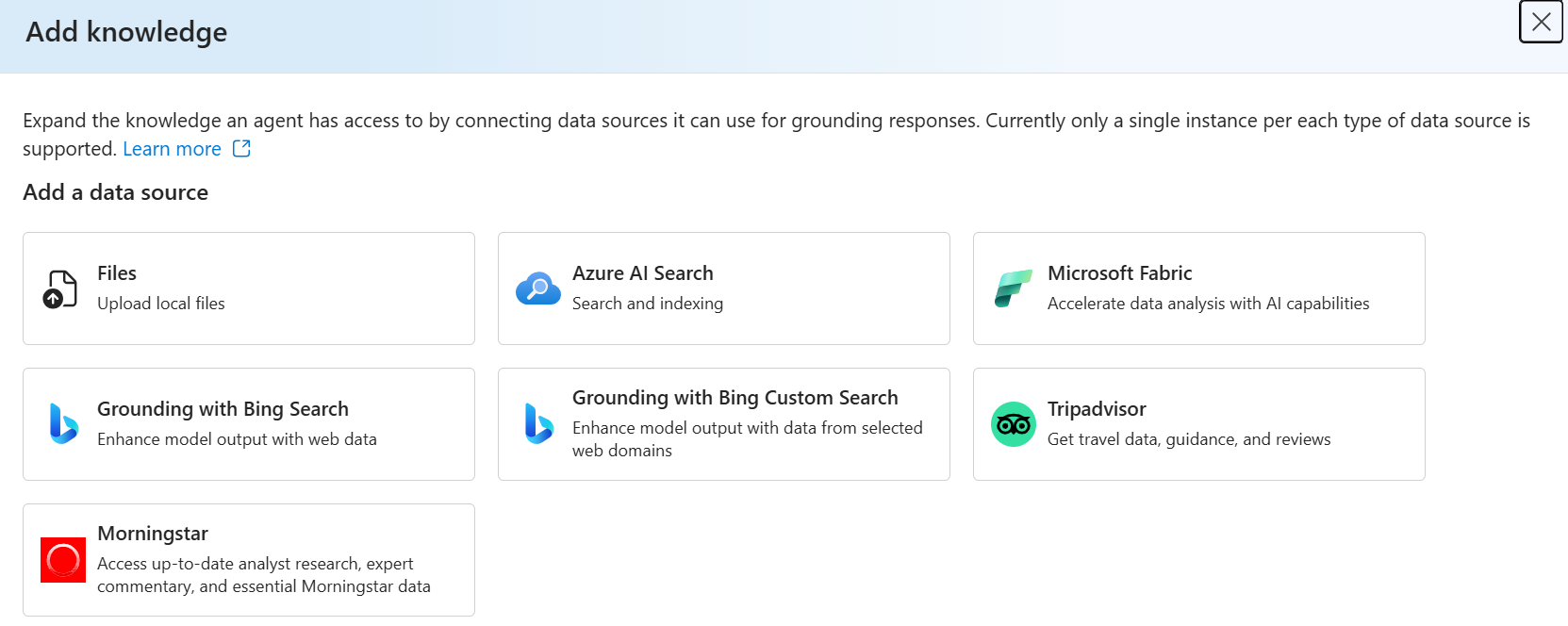

选择“使用必应搜索查找事实依据”，然后按照提示添加该工具。请注意，每个代理只能添加一个。

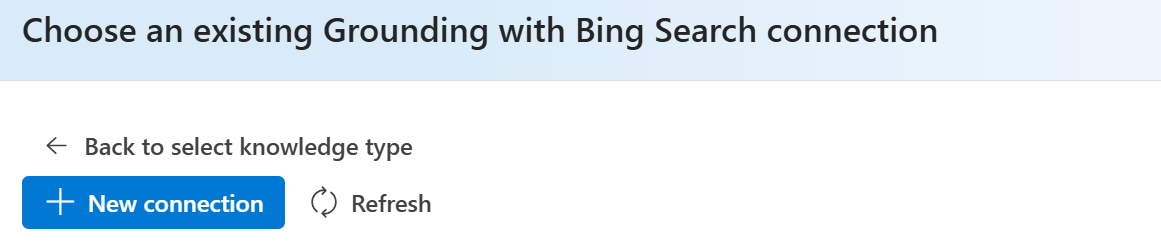

单击可添加新连接。添加连接后，可以直接从现有列表中选择。

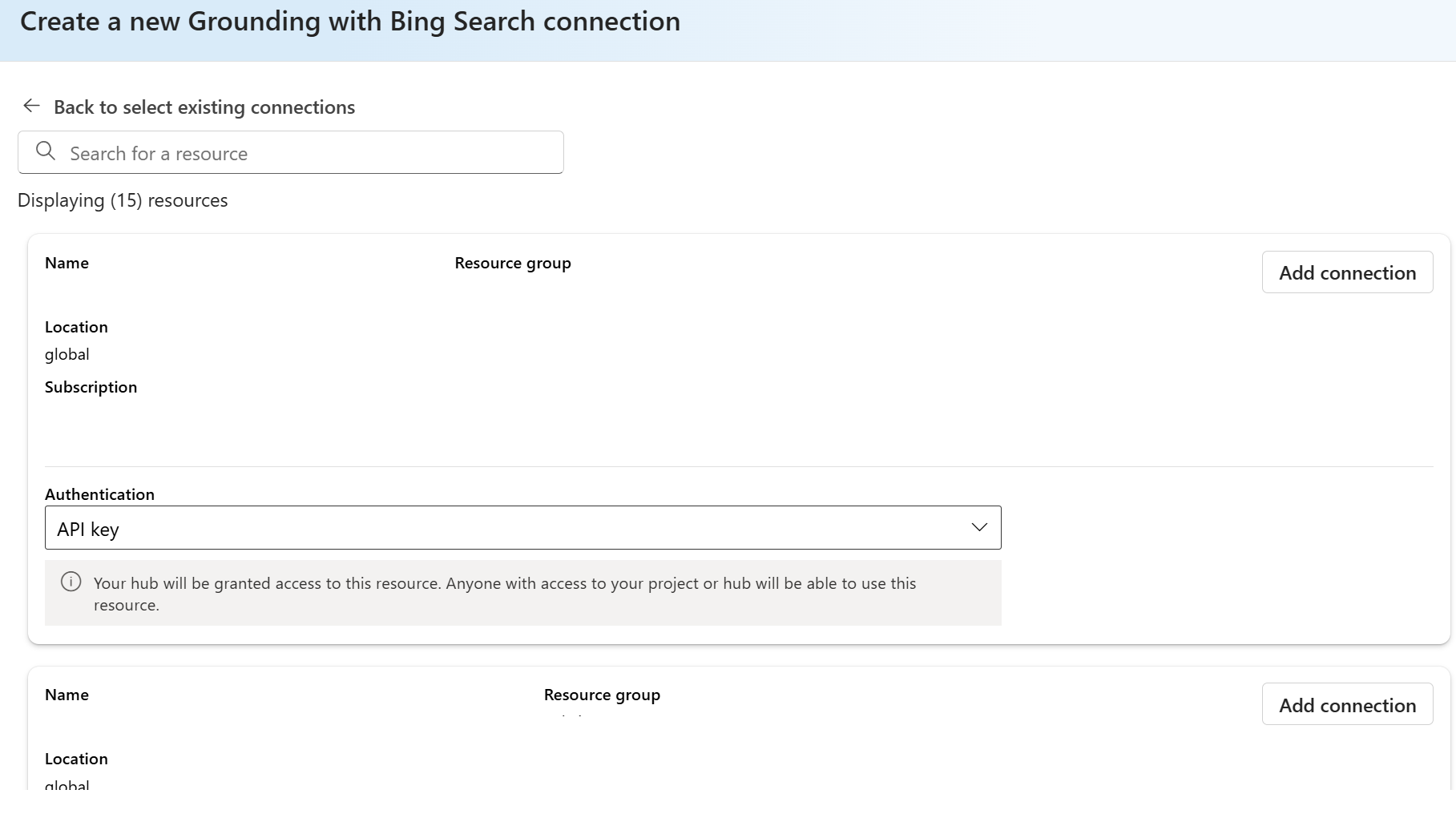

选择要使用的“使用必应搜索查找事实依据”资源，然后单击以添加连接。

创建项目客户端

创建一个客户端对象，该对象将包含用于连接到 AI 项目和其他资源的终端点。

import os
from azure.ai.projects import AIProjectClient
from azure.identity import DefaultAzureCredential
from azure.ai.agents.models import BingGroundingTool

# Create an Azure AI Client from an endpoint, copied from your Azure AI Foundry project.
# You need to login to Azure subscription via Azure CLI and set the environment variables
project_endpoint = os.environ["PROJECT_ENDPOINT"]  # Ensure the PROJECT_ENDPOINT environment variable is set

# Create an AIProjectClient instance
project_client = AIProjectClient(
    endpoint=project_endpoint,
    credential=DefaultAzureCredential(),  # Use Azure Default Credential for authentication
    api_version="latest",
)

创建已启用“使用必应搜索提供事实依据”工具的代理

要使“使用必应搜索查找事实依据”工具可供代理使用，请使用连接来初始化该工具并将其附加到代理。可以在 Azure AI Foundry 门户中项目的“已连接资源”部分找到连接。

conn_id = os.environ["BING_CONNECTION_NAME"]  # Ensure the BING_CONNECTION_NAME environment variable is set

# Initialize the Bing Grounding tool
bing = BingGroundingTool(connection_id=conn_id)

with project_client:
    # Create an agent with the Bing Grounding tool
    agent = project_client.agents.create_agent(
        model=os.environ["MODEL_DEPLOYMENT_NAME"],  # Model deployment name
        name="my-agent",  # Name of the agent
        instructions="You are a helpful agent",  # Instructions for the agent
        tools=bing.definitions,  # Attach the Bing Grounding tool
    )
    print(f"Created agent, ID: {agent.id}")

创建线程

# Create a thread for communication
thread = project_client.agents.threads.create()
print(f"Created thread, ID: {thread.id}")

# Add a message to the thread
message = project_client.agents.messages.create(
    thread_id=thread.id,
    role="user",  # Role of the message sender
    content="What is the weather in Seattle today?",  # Message content
)
print(f"Created message, ID: {message['id']}")

创建运行并检查输出

创建运行并观察模型是否使用“使用必应搜索查找事实依据”工具来响应用户的问题。

# Create and process an agent run
run = project_client.agents.runs.create_and_process(
    thread_id=thread.id,
    agent_id=agent.id,
    # tool_choice={"type": "bing_grounding"}  # optional, you can force the model to use Grounding with Bing Search tool
)
print(f"Run finished with status: {run.status}")

# Check if the run failed
if run.status == "failed":
    print(f"Run failed: {run.last_error}")

# Fetch and log all messages
messages = project_client.agents.messages.list(thread_id=thread.id)
for message in messages:
    print(f"Role: {message.role}, Content: {message.content}")

（可选）输出代理使用的运行步骤

run_steps = project_client.agents.run_steps.list(thread_id=thread.id, run_id=run.id)
for step in run_steps:
    print(f"Step {step['id']} status: {step['status']}")

    # Check if there are tool calls in the step details
    step_details = step.get("step_details", {})
    tool_calls = step_details.get("tool_calls", [])

    if tool_calls:
        print("  Tool calls:")
        for call in tool_calls:
            print(f"    Tool Call ID: {call.get('id')}")
            print(f"    Type: {call.get('type')}")

            function_details = call.get("function", {})
            if function_details:
                print(f"    Function name: {function_details.get('name')}")
    print()  # add an extra newline between steps

完成后删除代理

project_client.agents.delete_agent(agent.id)
print("Deleted agent")

创建项目客户端

创建一个客户端对象，其中包含用于连接到 AI 项目和其他资源的项目终结点。

using Azure;
using Azure.AI.Agents.Persistent;
using Azure.Identity;
using Microsoft.Extensions.Configuration;
using System;
using System.Threading;

// Get Connection information from app configuration
IConfigurationRoot configuration = new ConfigurationBuilder()
    .SetBasePath(AppContext.BaseDirectory)
    .AddJsonFile("appsettings.json", optional: false, reloadOnChange: true)
    .Build();

var projectEndpoint = configuration["ProjectEndpoint"];
var modelDeploymentName = configuration["ModelDeploymentName"];
var bingConnectionId = configuration["BingConnectionId"];

// Create the Agent Client
PersistentAgentsClient agentClient = new(projectEndpoint, new DefaultAzureCredential());

创建已启用“使用必应搜索提供事实依据”工具的代理

BingGroundingSearchConfiguration searchConfig = new BingGroundingSearchConfiguration(bingConnectionId)
{
    Count = 5,
    Freshness = "Week"
};

// Create the BingGroundingToolDefinition object used when creating the agent
BingGroundingToolDefinition bingGroundingTool = new BingGroundingToolDefinition(
    new BingGroundingSearchToolParameters(
        [
            searchConfig
        ]
    )
);

// Create the Agent
PersistentAgent agent = agentClient.Administration.CreateAgent(
    model: modelDeploymentName,
    name: "my-agent",
    instructions: "Use the bing grounding tool to answer questions.",
    tools: [bingGroundingTool]
);

创建线程并运行

PersistentAgentThread thread = agentClient.Threads.CreateThread();

// Create message and run the agent
PersistentThreadMessage message = agentClient.Messages.CreateMessage(
    thread.Id,
    MessageRole.User,
    "How does wikipedia explain Euler's Identity?");
ThreadRun run = agentClient.Runs.CreateRun(thread, agent);

等待代理完成并打印输出

首先，通过轮询代理的状态，等待代理完成运行。观察模型是否使用“使用必应搜索提供事实依据”工具来响应用户的问题。

// Wait for the agent to finish running
do
{
    Thread.Sleep(TimeSpan.FromMilliseconds(500));
    run = agentClient.Runs.GetRun(thread.Id, run.Id);
}
while (run.Status == RunStatus.Queued
    || run.Status == RunStatus.InProgress);

// Confirm that the run completed successfully
if (run.Status != RunStatus.Completed)
{
    throw new Exception("Run did not complete successfully, error: " + run.LastError?.Message);
}

然后，从已完成的运行中检索和处理消息。

// Retrieve all messages from the agent client
Pageable<PersistentThreadMessage> messages = agentClient.Messages.GetMessages(
    threadId: thread.Id,
    order: ListSortOrder.Ascending
);

// Process messages in order
foreach (PersistentThreadMessage threadMessage in messages)
{
    Console.Write($"{threadMessage.CreatedAt:yyyy-MM-dd HH:mm:ss} - {threadMessage.Role,10}: ");
    foreach (MessageContent contentItem in threadMessage.ContentItems)
    {
        if (contentItem is MessageTextContent textItem)
        {
            string response = textItem.Text;

            // If we have Text URL citation annotations, reformat the response to show title & URL for citations
            if (textItem.Annotations != null)
            {
                foreach (MessageTextAnnotation annotation in textItem.Annotations)
                {
                    if (annotation is MessageTextUriCitationAnnotation urlAnnotation)
                    {
                        response = response.Replace(urlAnnotation.Text, $" [{urlAnnotation.UriCitation.Title}]({urlAnnotation.UriCitation.Uri})");
                    }
                }
            }
            Console.Write($"Agent response: {response}");
        }
        else if (contentItem is MessageImageFileContent imageFileItem)
        {
            Console.Write($"<image from ID: {imageFileItem.FileId}");
        }
        Console.WriteLine();
    }
}

（可选）输出代理使用的运行步骤

// Retrieve the run steps used by the agent and print those to the console
Console.WriteLine("Run Steps used by Agent:");
Pageable<RunStep> runSteps = agentClient.Runs.GetRunSteps(run);

foreach (var step in runSteps)
{
    Console.WriteLine($"Step ID: {step.Id}, Total Tokens: {step.Usage.TotalTokens}, Status: {step.Status}, Type: {step.Type}");

    if (step.StepDetails is RunStepMessageCreationDetails messageCreationDetails)
    {
        Console.WriteLine($"   Message Creation Id: {messageCreationDetails.MessageCreation.MessageId}");
    }
    else if (step.StepDetails is RunStepToolCallDetails toolCallDetails)
    {
        // We know this agent only has the Bing Grounding tool, so we can cast it directly
        foreach (RunStepBingGroundingToolCall toolCall in toolCallDetails.ToolCalls)
        {
            Console.WriteLine($"   Tool Call Details: {toolCall.GetType()}");

            foreach (var result in toolCall.BingGrounding)
            {
                Console.WriteLine($"      {result.Key}: {result.Value}");
            }
        }
    }
}

清理资源

请清理此示例中的资源。

// Delete thread and agent
agentClient.Threads.DeleteThread(threadId: thread.Id);
agentClient.Administration.DeleteAgent(agentId: agent.Id);

创建项目客户端

创建一个客户端对象，该对象将包含用于连接到 AI 项目和其他资源的终端点。

const { AgentsClient, ToolUtility, isOutputOfType } = require("@azure/ai-agents");
const { delay } = require("@azure/core-util");
const { DefaultAzureCredential } = require("@azure/identity");

require("dotenv/config");

const projectEndpoint = process.env["PROJECT_ENDPOINT"];

// Create an Azure AI Client
const client = new AgentsClient(projectEndpoint, new DefaultAzureCredential());

创建已启用“使用必应搜索提供事实依据”工具的代理


const connectionId = process.env["AZURE_BING_CONNECTION_ID"] || "<connection-name>";
// Initialize agent bing tool with the connection id
const bingTool = ToolUtility.createBingGroundingTool([{ connectionId: connectionId }]);

// Create agent with the bing tool and process assistant run
const agent = await client.createAgent("gpt-4o", {
  name: "my-agent",
  instructions: "You are a helpful agent",
  tools: [bingTool.definition],
});
console.log(`Created agent, agent ID : ${agent.id}`);

创建线程

// Create thread for communication
const thread = await client.threads.create();
console.log(`Created thread, thread ID: ${thread.id}`);

// Create message to thread
const message = await client.messages.create(
  thread.id,
  "user",
  "How does wikipedia explain Euler's Identity?",
);
console.log(`Created message, message ID : ${message.id}`);

创建运行并检查输出

创建运行并观察模型是否使用“使用必应搜索查找事实依据”工具来响应用户的问题。


// Create and process agent run in thread with tools
let run = await client.runs.create(thread.id, agent.id);
while (run.status === "queued" || run.status === "in_progress") {
  await delay(1000);
  run = await client.runs.get(thread.id, run.id);
}
if (run.status === "failed") {
  console.log(`Run failed: ${run.lastError?.message}`);
}
console.log(`Run finished with status: ${run.status}`);

// Delete the assistant when done
await client.deleteAgent(agent.id);
console.log(`Deleted agent, agent ID: ${agent.id}`);

// Fetch and log all messages
const messagesIterator = client.messages.list(thread.id);
console.log(`Messages:`);

// Get the first message
const firstMessage = await messagesIterator.next();
if (!firstMessage.done && firstMessage.value) {
  const agentMessage = firstMessage.value.content[0];
  if (isOutputOfType(agentMessage, "text")) {
    const textContent = agentMessage;
    console.log(`Text Message Content - ${textContent.text.value}`);
  }
}

重要

此 REST API 允许开发人员通过 Azure AI Foundry 代理服务调用必应搜索工具中的 Grounding 功能。它不会直接通过必应搜索 API 向 Grounding 发送请求。

请按照 REST API 快速入门为环境变量 AGENT_TOKEN、AZURE_AI_FOUNDRY_PROJECT_ENDPOINT 和 API_VERSION 设置正确的值。

创建已启用“使用必应搜索提供事实依据”工具的代理

curl --request POST \
  --url $AZURE_AI_FOUNDRY_PROJECT_ENDPOINT/assistants?api-version=$API_VERSION \
  -H "Authorization: Bearer $AGENT_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
        "instructions": "You are a helpful agent.",
        "name": "my-agent",
        "model": "gpt-4o",
        "tools": [
          {
            "type": "bing_grounding",
            "bing_grounding": {
                "search_configurations": [
                    {
                        "connection_id": "<your_connection_id>",
                        "count": 7,
                        "market": "en-US",
                        "set_lang": "en",
                        "freshness": "7d",
                    }
                ]
            }
          }
        ]
      }'

创建线程

curl --request POST \
  --url $AZURE_AI_FOUNDRY_PROJECT_ENDPOINT/threads?api-version=$API_VERSION \
  -H "Authorization: Bearer $AGENT_TOKEN" \
  -H "Content-Type: application/json" \
  -d ''

将用户问题添加到线程

curl --request POST \
  --url $AZURE_AI_FOUNDRY_PROJECT_ENDPOINT/threads/thread_abc123/messages?api-version=$API_VERSION \
  -H "Authorization: Bearer $AGENT_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
      "role": "user",
      "content": "What is the weather in Seattle?"
    }'

创建运行并检查输出

创建运行并观察模型是否使用“使用必应搜索查找事实依据”工具来响应用户的问题。

curl --request POST \
  --url $AZURE_AI_FOUNDRY_PROJECT_ENDPOINT/threads/thread_abc123/runs?api-version=$API_VERSION \
  -H "Authorization: Bearer $AGENT_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "assistant_id": "asst_abc123",
  }'

获取运行状态

curl --request GET \
  --url $AZURE_AI_FOUNDRY_PROJECT_ENDPOINT/threads/thread_abc123/runs/run_abc123?api-version=$API_VERSION \
  -H "Authorization: Bearer $AGENT_TOKEN"

检索代理响应

curl --request GET \
  --url $AZURE_AI_FOUNDRY_PROJECT_ENDPOINT/threads/thread_abc123/messages?api-version=$API_VERSION \
  -H "Authorization: Bearer $AGENT_TOKEN"

后续步骤

请参阅有关“使用必应搜索查找事实依据”的完整示例。

通过

如何使用“使用必应搜索提供事实依据”功能

先决条件

创建项目客户端

创建已启用“使用必应搜索提供事实依据”工具的代理

创建线程

创建运行并检查输出

（可选）输出代理使用的运行步骤

完成后删除代理

创建项目客户端

创建已启用“使用必应搜索提供事实依据”工具的代理

创建线程并运行

等待代理完成并打印输出

（可选）输出代理使用的运行步骤

清理资源

创建项目客户端

创建已启用“使用必应搜索提供事实依据”工具的代理

创建线程

创建运行并检查输出

创建已启用“使用必应搜索提供事实依据”工具的代理

创建线程

将用户问题添加到线程

创建运行并检查输出

获取运行状态

检索代理响应

后续步骤

反馈

其他资源
