MB eSIM 操作

eSIM 体系结构

Windows 操作系统的本地配置文件 assitant (LPA) 组件是 LPA 服务，而低级别的 UICC 访问则通过 WWAN 服务公开。 LPA 服务处理配置文件发现、下载配置文件和配置文件管理。

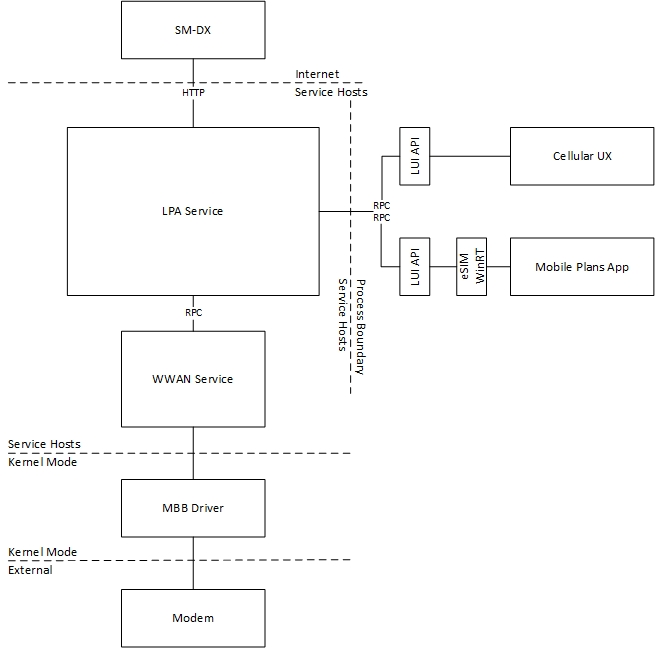

显示具有 LPA 服务和 WWAN 服务组件的 eSIM 体系结构的关系图。

eSIM 操作的 MB 接口更新

调制解调器需要支持以下 MB 低级别 UICC 访问 CID 才能 使用 eSIM 功能。

 MBIM_CID_MS_UICC_ATR
 MBIM_CID_MS_UICC_OPEN_CHANNEL
 MBIM_CID_MS_UICC_CLOSE_CHANNEL
 MBIM_CID_MS_UICC_APDU
 MBIM_CID_MS_UICC_TERMINAL_CAPABILITY
 MBIM_CID_MS_UICC_RESET

eSIM 服务初始化

说明 eSIM 服务初始化过程的流程图。

eSIM 配置文件下载和安装

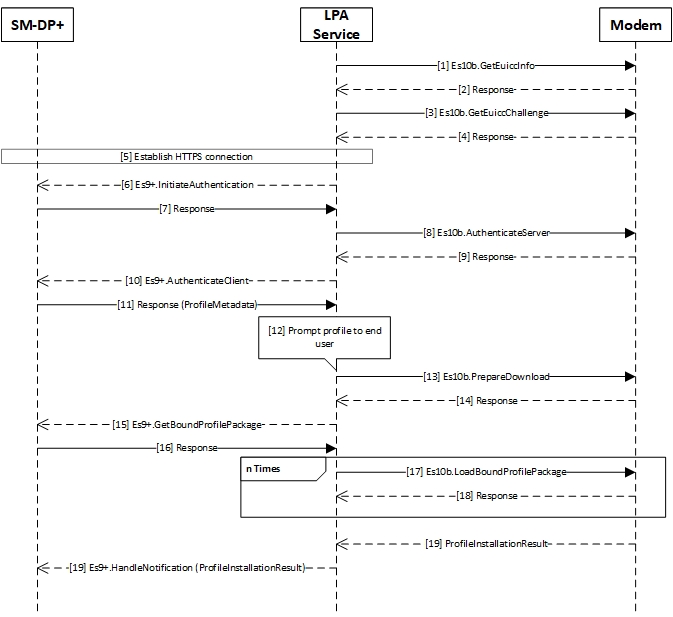

描述 eSIM 配置文件下载和安装过程的流程图。

eSIM 配置文件操作

eSIM 配置文件操作包括：

Enable Profile
Disable Profile
Delete Profile
Wipe eSIM
Update NickName

下面是“启用配置文件”操作的示例流。 其他配置文件操作遵循类似的流程，只不过MBIM_CID_MS_UICC_APDU将包含相应操作的 Es10c 命令。

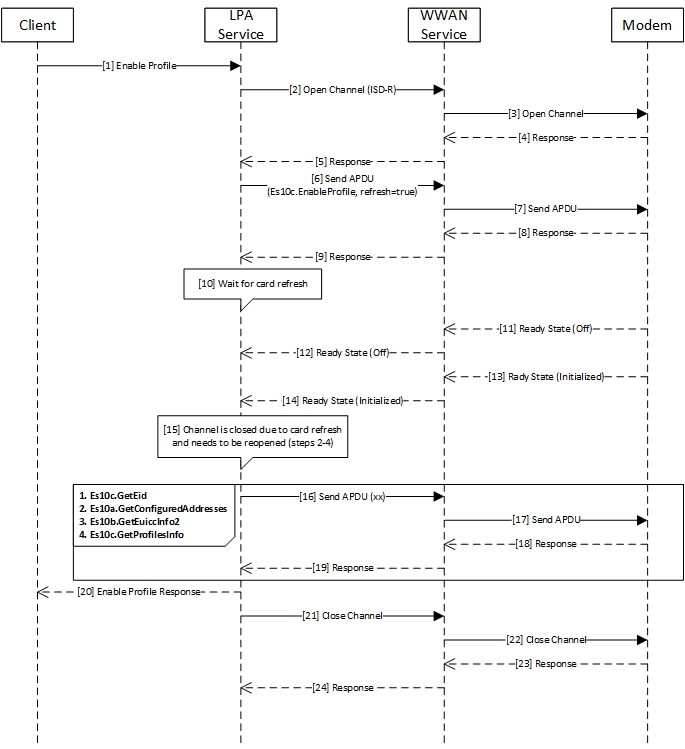

使用示例命令演示 eSIM 启用配置文件操作的流程图。

卡片刷新

eSIM 配置文件操作预期会根据 MB eSIM MBIM 就绪状态指南执行卡刷新，然后执行就绪状态更改。

硬件实验室工具包 (HLK) 测试

HLK 中的以下测试可用于验证 eSIM 功能：

TestLowLevelUiccAccess

TestReadyInfo

TestResetPassthrough

通过 netsh，我们可以运行 TestLowLevelUiccAccess HLK 测试列表。 有关使用 netsh 工具的详细信息，请参阅 netsh-mbn 和 netsh-mbn-test-installation。

netsh mbn test feature=esim testpath="C:\data\test\bin" taefpath="C:\data\test\bin" param="AccessString=internet"

显示 HLK 测试结果的文件应在运行“netsh mbn test”命令的目录中生成： TestLowLevelUiccAccess.htm。

手动测试

测试 eSIM 配置文件管理

  1. 所需资源：eSIM 和激活码或用于下载配置文件的 QR 码。 配置文件需要确认代码才能下载。
  2. 打开“设置->网络 & Internet -> 手机网络”。
  3. 单击“ 管理 eSIM 配置文件”。
  4. 单击“ 添加新配置文件”。
  5. 选择 “让我输入我的移动运营商提供的激活码 ”，然后单击“ 下一步”。
  6. 扫描 QR 码或键入激活码。
  7. 等待确认页显示。 填写确认代码并单击“ 下一步”。
  8. 关闭对话框，然后启用配置文件。
  9. 更改配置文件的名称。 应显示配置文件的新名称。
  10. 删除配置文件。
  11. 再次安装配置文件 (重复步骤 4-7) ，但这次确认代码错误。 例如，扫描 QR 码时，代码哈希会在联系服务器之前显示一秒钟。 快速单击其内部的任意位置，并点击后退键以删除单个字符，然后它与服务器通信。
  12. 你应该会看到一条错误消息，最终会再次进入确认页面。 这次键入正确的确认代码，然后单击“ 下一步”。
  13. 关闭对话框并删除配置文件。

在重新启动后测试自动连接

  1. 确保拔下以太网并关闭 Wi-Fi。 如果设备的物理 eSIM 上存在已知的良好 eSIM 配置文件，请浏览到“设置”-> “网络 & Internet”-> “手机网络”-> “管理 eSIM 配置文件”-> eSIM 配置文件，选择配置文件，然后单击“ 使用”。 验证浏览 Internet 是否正常工作。
  2. 重新启动计算机、登录并浏览到“设置”-> “网络 & Internet”-> “手机网络”-> “管理 eSIM 配置文件”-“> eSIM 配置文件”。 配置文件应显示为“活动”，systray 应显示“手机网络连接栏”，浏览 Internet 应正常工作。
  3. 返回“管理 eSIM 配置文件”，选择配置文件，然后单击“ 停止使用”。 配置文件应断开数据连接。

MB eSIM 故障排除指南

按照本指南调试 eSIM 问题。

配置文件下载和安装失败

  1. 按照 MB 收集日志中的说明 收集和解码日志
  2. 打开 TextAnalysisTool 中生成的 .txt 文件
  3. 加载 eSIM 下载和安装筛选器

下面是配置文件下载和安装的成功日志示例：

 37 24515    None    2020-03-04T08:54:48.6922406    0.0000922    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForLpaNotifications,ulTransactionId=1
 47 25637    None    2020-03-04T08:54:48.7058023    0.0000081    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForEsimNotifications,ulTransactionId=2
 48 25638    None    2020-03-04T08:54:48.7058116    0.0000093    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForAllProfileNotifications,ulTransactionId=3
 87 42955    None    2020-03-04T08:54:50.8459033    0.0000357    8820    3524    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForLpaNotifications,ulTransactionId=1
 96 43009    None    2020-03-04T08:54:50.8470189    0.0000401    8820    3524    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForEsimNotifications,ulTransactionId=2
104 43039    None    2020-03-04T08:54:50.8473061    0.0000092    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::OnLuiRpcRegisterForAllProfileNotifications,ulTransactionId=3
110 43856    None    2020-03-04T08:55:10.1453397    19.2978242    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    RpcDownloadProfile: Component=LuiApiServer,esimId=89033023**********************06,hr=0,Location=LuiApiProcessActivationCode,luicontext=2,strActivation=1$*******************************,ulTransactionId=4
113 43861    None    2020-03-04T08:55:10.1459912    0.0000161    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnInitiateCommonMutualAuthentication,fsmevent=3,Location=LPA::Lpd::DownloadInstance::InitiateCommonMutualAuthentication,task=2,taskId=6
115 43863    None    2020-03-04T08:55:10.1461554    0.0000022    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=ProcessActivation,fsmevent=1,Location=LPA::Lpd::DownloadInstance::ProcessActivationCode,task=3,taskId=6
130 44745    None    2020-03-04T08:55:10.1901431    0.0000464    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bGetEuiccChallenge,fsmevent=4,Location=LPA::Lpd::DownloadInstance::OnEs10bGetChallengeComplete,task=2,taskId=6
134 45589    None    2020-03-04T08:55:10.2226549    0.0000204    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bGetUiccInfo1,fsmevent=5,Location=LPA::Lpd::DownloadInstance::OnEs10bGetUiccInfo1Complete,task=2,taskId=6
146 46509    None    2020-03-04T08:55:11.7773024    0.0002176    8820    3524    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9OrEs11InitiateAuthentication,fsmevent=6,Location=LPA::Lpd::DownloadInstance::OnEs9OrEs11InitiateAuthentication,task=2,taskId=6
153 50421    None    2020-03-04T08:55:12.9320399    0.0008653    8820    3524    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bAuthenticateServer,fsmevent=7,Location=LPA::Lpd::DownloadInstance::OnEs10bAuthenticateServerComplete,task=2,taskId=6
164 51032    None    2020-03-04T08:55:13.3763368    0.0001906    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9AuthenticateClient,fsmevent=8,Location=LPA::Lpd::DownloadInstance::OnEs9AuthenticateClient,task=2,taskId=6
176 51183    None    2020-03-04T08:55:14.9352658    0.0000603    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnInstallProfile,fsmevent=11,Location=LPA::Lpd::DownloadInstance::DownloadAndInstallProfile,task=4,taskId=6
190 54213    None    2020-03-04T08:55:18.1904783    0.0000651    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bPrepareDownload,fsmevent=14,Location=LPA::Lpd::DownloadInstance::OnEs10bPrepareDownloadComplete,task=4,taskId=11
197 54784    None    2020-03-04T08:55:19.5200686    0.0013163    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9BoundProfileDownloaded,fsmevent=15,Location=LPA::Lpd::DownloadInstance::OnEs9BoundProfileDownloaded,task=4,taskId=11
407 257461    None    2020-03-04T08:55:36.3645723    0.0001640    8820    7812    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bLoadBoundProfilePackage,fsmevent=16,Location=LPA::Lpd::DownloadInstance::OnEs10bLoadBoundProfilePackageComplete,task=4,taskId=11
412 258044    None    2020-03-04T08:55:36.6932923    0.3206194    8820    7812    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9HandleNotification,fsmevent=17,Location=LPA::Lpd::DownloadInstance::OnEs9HandleNotification,task=4,taskId=11
416 258628    None    2020-03-04T08:55:37.6234007    0.0000315    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bRemoveNotificationFromListComplete,fsmevent=18,Location=LPA::Lpd::DownloadInstance::OnEs10bRemoveNotificationFromListComplete,task=4,taskId=11
426 258790    None    2020-03-04T08:55:37.6239355    0.0000168    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::CompleteLuiRpcOperation,ulTransactionId=4
449 261202    None    2020-03-04T08:55:37.6883598    0.0000121    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::CompleteLuiRpcOperation,ulTransactionId=5
509 326884    None    2020-03-04T08:55:45.5722501    0.0000155    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::CompleteLuiRpcOperation,ulTransactionId=6
522 329627    None    2020-03-04T08:55:45.8306288    0.0000257    8820    1044    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bGetUiccInfo1,fsmevent=5,Location=LPA::Lpd::DownloadInstance::OnEs10bGetUiccInfo1Complete,task=2,taskId=27
524 330152    None    2020-03-04T08:55:46.6963292    0.8655163    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs9HandleNotification,fsmevent=17,Location=LPA::Lpd::DownloadInstance::OnEs9HandleNotification,task=4,taskId=27
528 330865    None    2020-03-04T08:55:46.7211677    0.0000375    8820    10356    Microsoft_Windows_Cellcore_LPA_Service    DownloadSequenceEvent: Component=LpaServiceLpd,error=0,eventlabel=OnEs10bRemoveNotificationFromListComplete,fsmevent=18,Location=LPA::Lpd::DownloadInstance::OnEs10bRemoveNotificationFromListComplete,task=4,taskId=27

分析操作失败

  1. 按照 MB 收集日志中的说明 收集和解码日志
  2. 打开 TextAnalysisTool 中生成的 .txt 文件
  3. 加载 eSIM 配置文件操作筛选器

下面是“启用配置文件”操作的成功日志示例：

 2 39    None    2020-03-04T09:06:12.6782819        11720    2720    Microsoft_Windows_Cellcore_LPA_Service    RpcEnableProfile: Component=LuiApiServer,esimId=89033023**********************06,hr=0,Location=LuiApiEnableProfile,luicontext=2,profileId=8935401************6,ulTransactionId=5
12 209    None    2020-03-04T09:06:12.6937921    0.0152614    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    OpenChannel: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OpenChannelOperation::Execute
17 1003    None    2020-03-04T09:06:12.7248172    0.0309320    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    ChannelOpened: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OnChannelOperationOpenChannelComplete,ulChannel=1
18 1343    None    2020-03-04T09:06:12.7271141    0.0022969    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,20,191,49,17,160,12,90,10,152,83,4,1,0,0,0,0,85,101,129,1,255,0],vCommandApdu.data().Count=26
19 2067    None    2020-03-04T09:06:12.7489842    0.0218701    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,49,3,128,1,0],pApduCompleteInfo->ApduInfo.Response.Count=6
20 2445    None    2020-03-04T09:06:12.7505212    0.0015370    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,16,191,45,13,92,11,90,79,159,112,144,145,146,147,148,149,153,0],vCommandApdu.data().Count=22
23 4341    None    2020-03-04T09:06:12.7651848    0.0000718    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    WwapiEsimUpdate: Component=LpaServiceEsimManager,fIsEsimInterface=True,fIsInterfaceRemoved=False,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::EsimManager::ProcessWwapiSimUpdate,readyState=0
24 6343    None    2020-03-04T09:06:12.7870313    0.0218465    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    WwapiAsyncResponseFailure: Component=LpaApduHelper,hr=-1073479677,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete
27 11067    None    2020-03-04T09:06:13.1843659    0.0000080    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    WwapiEsimUpdate: Component=LpaServiceEsimManager,fIsEsimInterface=True,fIsInterfaceRemoved=False,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::EsimManager::ProcessWwapiSimUpdate,readyState=6
28 11070    None    2020-03-04T09:06:13.1843928    0.0000269    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    CardResetComplete: Component=LpaServiceEsimManager,count=0,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,hr=0,Location=LPA::EsimManager::ProcessWwapiSimUpdate,midoperation=True,readyState=6
29 13752    None    2020-03-04T09:06:13.2040341    0.0196413    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    OpenChannel: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OpenChannelOperation::Execute
31 17057    None    2020-03-04T09:06:13.2232087    0.0133736    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    WwapiEsimUpdate: Component=LpaServiceEsimManager,fIsEsimInterface=True,fIsInterfaceRemoved=False,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::EsimManager::ProcessWwapiSimUpdate,readyState=6
33 33469    None    2020-03-04T09:06:13.3307557    0.0000034    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    WwapiEsimUpdate: Component=LpaServiceEsimManager,fIsEsimInterface=True,fIsInterfaceRemoved=False,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::EsimManager::ProcessWwapiSimUpdate,readyState=6
34 36738    None    2020-03-04T09:06:13.3658938    0.0351381    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    ChannelOpened: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OnChannelOperationOpenChannelComplete,ulChannel=1
35 37169    None    2020-03-04T09:06:13.3699437    0.0040499    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,6,191,62,3,92,1,90,0],vCommandApdu.data().Count=12
36 41856    None    2020-03-04T09:06:13.4055017    0.0355580    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,62,18,90,16,137,3,48,35,66,67,32,0,0,0,0,4,86,35,54,6],pApduCompleteInfo->ApduInfo.Response.Count=21
37 42027    None    2020-03-04T09:06:13.4073896    0.0018879    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,60,0,0],vCommandApdu.data().Count=9
38 44071    None    2020-03-04T09:06:13.4249377    0.0175481    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,60,17,129,15,108,112,97,46,100,115,46,103,115,109,97,46,99,111,109],pApduCompleteInfo->ApduInfo.Response.Count=20
39 44341    None    2020-03-04T09:06:13.4353474    0.0104097    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,34,0,0],vCommandApdu.data().Count=9
40 45644    None    2020-03-04T09:06:13.4574746    0.0221272    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,34,129,134,129,3,2,1,0,130,3,2,2,0,131,3,3,2,0,132,15,129,1,0,130,4,0,13,186,0,131,4,0,0,105,233,133,4,5,127,50,224,134,3,9,2,0,135,3,2,3,0,136,2,4,208,169,22,4,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251,170,22,4,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251,139,1,2,153,2,6,64,4,3,0,0,2,12,20,71,79,45,80,65,45,48,52,49,57,32,32,32,32,32,32,32,32,32,32],pApduCompleteInfo->ApduInfo.Response.Count=138
41 45763    None    2020-03-04T09:06:13.4628539    0.0053793    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,16,191,45,13,92,11,90,79,159,112,144,145,146,147,148,149,153,0],vCommandApdu.data().Count=22
42 47274    None    2020-03-04T09:06:13.5033394    0.0404855    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,45,130,1,143,160,130,1,139,227,73,90,10,152,16,66,7,0,0,0,0,0,249,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,0,16,0,159,112,1,0,145,9,83,80,71,116,111,69,122,67,120,146,23,69,90,32,67,111,110,110,101,99,116,32,80,114,111,118,105,115,105,111,110,105,110,103,149,1,1,227,78,90,10,152,16,0,0,0,0,0,0,0,6,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,160,0,0,159,112,1,0,145,9,77,105,99,114,111,115,111,102,116,146,28,78,101,116,119,111,114,107,32,83,105,109,117,108,97,116,111,114,32,45,32,77,105,108,101,110,97,103,101,149,1,0,227,76,90,10,152,16,0,0,0,0,0,0,0,135,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,160,1,0,159,112,1,0,145,9,77,105,99,114,111,115,111,102,116,146,26,78,101,116,119,111,114,107,32,83,105,109,117,108,97,116,111,114,32,45,32,88,79,82,32,54,52,149,1,0,227,77,90,10,152,16,0,0,0,0,0,0,0,104,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,160,2,0,159,112,1,0,145,9,77,105,99,114,111,115,111,102,116,146,27,78,101,116,119,111,114,107,32,83,105,109,117,108,97,116,111,114,32,45,32,88,79,82,32,49,50,56,149,1,0,227,81,90,10,152,83,4,1,0,0,0,0,85,101,79,16,160,0,0,5,89,16,16,255,255,255,255,137,0,0,17,0,159,112,1,1,145,4,101,67,84,67,146,36,101,67,84,67,32,80,114,111,102,105,108,101,32,102,111,114,32,68,117,109,109,121,32,83,117,98,115,99,114,105,112,116,105,111,110,115,149,1,2],pApduCompleteInfo->ApduInfo.Response.Count=404
57 47329    None    2020-03-04T09:06:13.5038992    0.0000179    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    LuiAsyncResult: Component=LpaServiceLui,error=Dynamic: baseType=LPA_ERROR_DETAILS,dwParams=0,error=0,violation=0,hrResult=0,Location=LPA::Lui::CompleteLuiRpcOperation,ulTransactionId=5
58 47419    None    2020-03-04T09:06:13.5057078    0.0018086    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,43,0,0],vCommandApdu.data().Count=9
74 50078    None    2020-03-04T09:06:13.7457319    0.2395537    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,43,130,5,15,160,130,5,11,48,130,5,7,191,47,63,128,1,53,129,2,6,64,12,42,101,99,116,99,45,108,105,118,101,108,97,98,46,112,114,111,100,46,111,110,100,101,109,97,110,100,99,111,110,110,101,99,116,105,118,105,116,121,46,99,111,109,90,10,152,83,4,1,0,0,0,0,85,101,95,55,64,42,56,96,255,201,144,175,106,113,19,175,113,18,210,3,109,79,148,57,237,59,174,37,216,33,105,134,155,220,172,95,224,174,24,219,51,85,61,97,207,2,255,147,95,163,16,82,210,218,197,4,207,189,214,187,212,199,133,250,29,52,5,42,72,48,130,1,221,48,130,1,132,160,3,2,1,2,2,17,0,128,80,86,187,39,45,44,80,66,120,232,145,219,50,27,96,48,10,6,8,42,134,72,206,61,4,3,2,48,50,49,19,48,17,6,3,85,4,10,12,10,71,69,77,65,76,84,79,32,83,65,49,27,48,25,6,3,85,4,3,12,18,71,69,77,65,76,84,79,32,69,85,77,32,67,69,32,80,65,85,48,32,23,13,49,57,48,51,50,53,48,48,48,48,48,48,90,24,15,57,57,57,57,49,50,51,49,50,51,53,57,53,57,90,48,64,49,19,48,17,6,3,85,4,10,12,10,71,69,77,65,76,84,79,32,83,65,49,41,48,39,6,3,85,4,5,19,32,56,57,48,51,51,48,50,51,52,50,52,51,50,48,48,48,48,48,48,48,48,48,48,52,53,54,50,51,51,54,48,54,48,89,48,19,6,7,42,134,72,206,61,2,1,6,8,42,134,72,206,61,3,1,7,3,66,0,4,220,59,239,236,155,254,120,18,18,152,140,158,193,12,233,47,93,241,4,164,84,133,39,169,12,11,226,18,112,94,39,144,174,227,237,242,37,73,25,64,210,4,184,60,17,114,103,226,235,246,229,229,226,54,4,208,245,174,180,198,239,7,98,176,163,107,48,105,48,31,6,3,85,29,35,4,24,48,22,128,20,220,222,26,105,31,233,175,117,221,161,187,146,153,49,139,41,177,212,22,178,48,29,6,3,85,29,14,4,22,4,20,200,220,224,111,237,248,116,35,250,198,112,246,190,164,149,129,214,2,198,159,48,14,6,3,85,29,15,1,1,255,4,4,3,2,0,128,48,23,6,3,85,29,32,1,1,255,4,13,48,11,48,9,6,7,103,129,18,1,2,1,1,48,10,6,8,42,134,72,206,61,4,3,2,3,71,0,48,68,2,32,63,48,8,73,147,118,41,144,127,5,77,200,133,217,208,20,34,133,6,19,182,144,58,15,70,229,67,72,111,167,73,240,2,32,37,234,11,51,98,141,182,118,16,21,38,167,115,14,72,111,47,143,45,213,157,184,236,156,11,34,63,177,207,73,42,251,48,130,2,157,48,130,2,67,160,3,2,1,2,2,16,38,116,211,243,157,55,39,121,8,126,27,89,53,236,251,82,48,10,6,8,42,134,72,206,61,4,3,2,48,68,49,24,48,22,6,3,85,4,10,19,15,71,83,77,32,65,115,115,111,99,105,97,116,105,111,110,49,40,48,38,6,3,85,4,3,19,31,71,83,77,32,65,115,115,111,99,105,97,116,105,111,110,32,45,32,82,83,80,50,32,82,111,111,116,32,67,73,49,48,30,23,13,49,55,48,53,50,53,48,48,48,48,48,48,90,23,13,52,55,48,53,50,52,50,51,53,57,53,57,90,48,50,49,19,48,17,6,3,85,4,10,12,10,71,69,77,65,76,84,79,32,83,65,49,27,48,25,6,3,85,4,3,12,18,71,69,77,65,76,84,79,32,69,85,77,32,67,69,32,80,65,85,48,89,48,19,6,7,42,134,72,206,61,2,1,6,8,42,134,72,206,61,3,1,7,3,66,0,4,178,83,182,218,149,17,229,225,138,112,30,182,68,55,158,224,64,192,174,31,121,186,38,129,24,66,117,75,251,252,97,44,56,126,103,229,223,178,243,184,125,24,62,148,245,200,21,56,225,114,221,60,21,125,154,123,136,205,30,47,187,198,82,182,163,130,1,39,48,130,1,35,48,18,6,3,85,29,19,1,1,255,4,8,48,6,1,1,255,2,1,0,48,23,6,3,85,29,32,1,1,255,4,13,48,11,48,9,6,7,103,129,18,1,2,1,2,48,77,6,3,85,29,31,4,70,48,68,48,66,160,64,160,62,134,60,104,116,116,112,58,47,47,103,115,109,97,45,99,114,108,46,115,121,109,97,117,116,104,46,99,111,109,47,111,102,102,108,105,110,101,99,97,47,103,115,109,97,45,114,115,112,50,45,114,111,111,116,45,99,105,49,46,99,114,108,48,14,6,3,85,29,15,1,1,255,4,4,3,2,1,6,48,60,6,3,85,29,30,1,1,255,4,50,48,48,160,46,48,44,164,42,48,40,49,19,48,17,6,3,85,4,10,12,10,71,69,77,65,76,84,79,32,83,65,49,17,48,15,6,3,85,4,5,19,8,56,57,48,51,51,48,50,51,48,23,6,3,85,29,17,4,16,48,14,136,12,43,6,1,4,1,129,248,2,135,106,4,3,48,29,6,3,85,29,14,4,22,4,20,220,222,26,105,31,233,175,117,221,161,187,146,153,49,139,41,177,212,22,178,48,31,6,3,85,29,35,4,24,48,22,128,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251,48,10,6,8,42,134,72,206,61,4,3,2,3,72,0,48,69,2,32,66,41,14,233,224,150,13,19,243,91,225,69,204,238,251,34,51,242,209,112,206,71,158,159,79,106,47,210,84,210,156,187,2,33,0,205,238,69,205,202,163,47,35,70,41,24,250,125,165,233,16,22,196,115,13,165,10,153,178,254,108,220,88,138,37,17,163],pApduCompleteInfo->ApduInfo.Response.Count=1300
76 50290    None    2020-03-04T09:06:13.7503562    0.0032197    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,32,0,0],vCommandApdu.data().Count=9
77 51346    None    2020-03-04T09:06:13.7754287    0.0250725    11720    4992    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,32,53,130,3,2,2,0,169,22,4,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251,170,22,4,20,129,55,15,81,37,208,177,212,8,212,195,178,50,230,210,94,121,91,235,251],pApduCompleteInfo->ApduInfo.Response.Count=56
82 51796    None    2020-03-04T09:06:14.9911183    0.0020754    11720    7520    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,6,191,48,3,128,1,53,0],vCommandApdu.data().Count=12
83 52474    None    2020-03-04T09:06:15.0374406    0.0463223    11720    7520    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,48,3,128,1,0],pApduCompleteInfo->ApduInfo.Response.Count=6
86 52736    None    2020-03-04T09:06:15.0451263    0.0076479    11720    7520    Microsoft_Windows_Cellcore_LPA_Service    SendApdu: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::SendApdu,m_ulChannel=1,vCommandApdu.data()=[129,226,145,0,3,191,43,0,0],vCommandApdu.data().Count=9
87 53507    None    2020-03-04T09:06:15.0622867    0.0171604    11720    7520    Microsoft_Windows_Cellcore_LPA_Service    SendApduResponse: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::ApduOperation::OnWwapiSendApduComplete,pApduCompleteInfo->ApduInfo.Response=[191,43,2,160,0],pApduCompleteInfo->ApduInfo.Response.Count=5
90 54169    None    2020-03-04T09:06:45.0792254    0.0166565    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    CloseChannel: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::CloseChannelOperation::Execute,ulChannel=1
91 54435    None    2020-03-04T09:06:45.0965610    0.0173356    11720    2720    Microsoft_Windows_Cellcore_LPA_Service    ChannelClosed: Component=LpaApduHelper,guidInterface=a549349a-2a86-4703-bebe-6f0d034f0ff3,Location=LPA::ApduHelper::OnChannelOperationCloseChannelComplete

另请参阅

MB eSIM MBIM Ready-State 指南
