使用 Azure PowerShell 以建立包含 URL 路徑型重新導向的應用程式閘道

您可以使用 Azure PowerShell,在建立應用程式閘道時設定 URL 型路由規則。 在本文中,您可以使用虛擬機器擴展集來建立後端集區。 然後,您可以建立 URL 路由規則,確保 Web 流量會重新導向到適當的後端集區。

在本文中,您將學會如何:

  • 設定網路
  • 建立應用程式閘道
  • 新增接聽程式和路由規則
  • 為後端集區建立虛擬機器擴展集

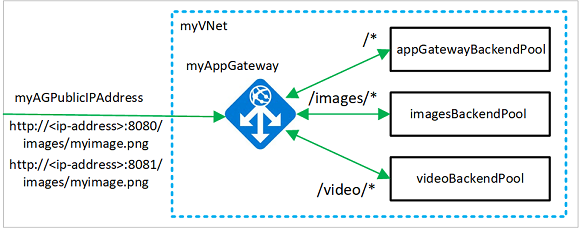

以下範例會顯示來自連接埠 8080 和 8081 並導向至相同後端集區的網站流量:

URL 路由範例

如果您想要的話,可以使用 Azure CLI 完成此程序。

如尚未擁有 Azure 訂用帳戶,請在開始之前先建立免費帳戶

注意

建議您使用 Azure Az PowerShell 模組來與 Azure 互動。 若要開始使用,請參閱安裝 Azure PowerShell (部分機器翻譯)。 若要了解如何移轉至 Az PowerShell 模組,請參閱將 Azure PowerShell 從 AzureRM 移轉至 Az

Azure Cloud Shell

Azure Cloud Shell 是裝載於 Azure 中的互動式殼層環境,可在瀏覽器中使用。 您可以使用 Bash 或 PowerShell 搭配 Cloud Shell,與 Azure 服務共同使用。 您可以使用 Cloud Shell 預先安裝的命令,執行本文提到的程式碼,而不必在本機環境上安裝任何工具。

要啟動 Azure Cloud Shell:

選項 範例/連結
選取程式碼或命令區塊右上角的 [試試看]。 選取 [試試看] 並不會自動將程式碼或命令複製到 Cloud Shell 中。 Azure Cloud Shell 的「試試看」範例螢幕擷取畫面。
請前往 https://shell.azure.com,或選取 [啟動 Cloud Shell] 按鈕,在瀏覽器中開啟 Cloud Shell。 用於啟動 Azure Cloud Shell 的按鈕。
選取 Azure 入口網站右上方功能表列上的 [Cloud Shell] 按鈕。 顯示 Azure 入口網站中 Cloud Shell 按鈕的螢幕擷取畫面

若要使用 Azure Cloud Shell:

  1. 啟動 Cloud Shell。

  2. 選取程式碼區塊 (或命令區塊) 上的 [複製] 按鈕以複製程式碼或命令。

  3. 透過在 Windows 和 Linux 上選取 Ctrl+Shift+V;或在 macOS 上選取 Cmd+Shift+V,將程式碼或命令貼到 Cloud Shell 工作階段中。

  4. 選取 Enter 鍵執行程式碼或命令。

如果您選擇在本機安裝並使用 PowerShell,此程序會要求使用 Azure PowerShell 模組 1.0.0 版或更新版本。 若要尋找版本,請執行 Get-Module -ListAvailable Az。 如果您需要升級,請參閱安裝 Azure PowerShell 模組。 如果正在本機執行 PowerShell,也需要執行 Connect-AzAccount,以建立與 Azure 的連線。

建立資源群組

資源群組是在其中部署與管理 Azure 資源的邏輯容器。 使用 New-AzResourceGroup 來建立 Azure 資源群組。

New-AzResourceGroup -Name myResourceGroupAG -Location eastus

建立網路資源

使用 New-AzVirtualNetworkSubnetConfig 來建立 myBackendSubnetmyAGSubnet 的子網路設定。 使用 New-AzVirtualNetwork 搭配子網路設定來建立名為 myVNet 的虛擬網路。 最後,使用 New-AzPublicIpAddress 來建立名為 myAGPublicIPAddress 的公用 IP 位址。 這些資源可用來為應用程式閘道及其相關聯的資源提供網路連線。

$backendSubnetConfig = New-AzVirtualNetworkSubnetConfig `
  -Name myBackendSubnet `
  -AddressPrefix 10.0.1.0/24

$agSubnetConfig = New-AzVirtualNetworkSubnetConfig `
  -Name myAGSubnet `
  -AddressPrefix 10.0.2.0/24

New-AzVirtualNetwork `
  -ResourceGroupName myResourceGroupAG `
  -Location eastus `
  -Name myVNet `
  -AddressPrefix 10.0.0.0/16 `
  -Subnet $backendSubnetConfig, $agSubnetConfig

New-AzPublicIpAddress `
  -ResourceGroupName myResourceGroupAG `
  -Location eastus `
  -Name myAGPublicIPAddress `
  -AllocationMethod Dynamic

建立應用程式閘道

在本節中,您會建立支援應用程式閘道的資源,並在最後建立應用程式閘道。 您所建立的資源包括:

  • IP 組態和前端連接埠 - 將您先前建立的子網路與應用程式閘道產生關聯,並且指派用來存取它的連接埠。
  • 預設集區 - 所有應用程式閘道都必須具有至少一個伺服器後端集區。
  • 預設接聽程式和規則 - 預設接聽程式會接聽所指派連接埠上的流量,而預設規則會將流量傳送到預設集區。

建立 IP 設定與前端連接埠

使用 New-AzApplicationGatewayIPConfiguration,讓先前建立的 myAGSubnet 與應用程式閘道產生關聯。 使用 New-AzApplicationGatewayFrontendIPConfig,將 myAGPublicIPAddress 指派給應用程式閘道。 然後,您可以使用 New-AzApplicationGatewayFrontendPort 來建立 HTTP 連接埠。

$vnet = Get-AzVirtualNetwork `
  -ResourceGroupName myResourceGroupAG `
  -Name myVNet

$subnet=$vnet.Subnets[0]

$pip = Get-AzPublicIpAddress `
  -ResourceGroupName myResourceGroupAG `
  -Name myAGPublicIPAddress

$gipconfig = New-AzApplicationGatewayIPConfiguration `
  -Name myAGIPConfig `
  -Subnet $subnet

$fipconfig = New-AzApplicationGatewayFrontendIPConfig `
  -Name myAGFrontendIPConfig `
  -PublicIPAddress $pip

$frontendport = New-AzApplicationGatewayFrontendPort `
  -Name myFrontendPort `
  -Port 80

建立預設集區和設定

使用 New-AzApplicationGatewayBackendAddressPool 為應用程式閘道建立名為 appGatewayBackendPool 的預設後端集區。 使用 New-AzApplicationGatewayBackendHttpSettings 來設定後端集區的設定。

$defaultPool = New-AzApplicationGatewayBackendAddressPool `
  -Name appGatewayBackendPool

$poolSettings = New-AzApplicationGatewayBackendHttpSettings `
  -Name myPoolSettings `
  -Port 80 `
  -Protocol Http `
  -CookieBasedAffinity Enabled `
  -RequestTimeout 120

建立預設接聽程式和規則

需要有接聽程式,才能讓應用程式閘道將流量適當地路由到後端集區。 在本文中,您將建立多個接聽程式。 第一個基本的接聽程式會預期位於根 URL 的流量。 其他接聽程式則會預期特定 URL 的流量,例如 http://52.168.55.24:8080/images/http://52.168.55.24:8081/video/

使用 New-AzApplicationGatewayHttpListener 搭配您先前建立的前端設定和前端連接埠,來建立名為 defaultListener 的接聽程式。 接聽程式需要規則以便知道要針對連入流量使用哪個後端集區。 使用 New-AzApplicationGatewayRequestRoutingRule 來建立名為 rule1 的基本規則。

$defaultlistener = New-AzApplicationGatewayHttpListener `
  -Name defaultListener `
  -Protocol Http `
  -FrontendIPConfiguration $fipconfig `
  -FrontendPort $frontendport

$frontendRule = New-AzApplicationGatewayRequestRoutingRule `
  -Name rule1 `
  -RuleType Basic `
  -HttpListener $defaultlistener `
  -BackendAddressPool $defaultPool `
  -BackendHttpSettings $poolSettings

建立應用程式閘道

既然您已建立必要的支援資源,接著請使用 New-AzApplicationGatewaySku 為名為 myAppGateway 的應用程式閘道指定參數,然後使用 New-AzApplicationGateway 來建立它。

$sku = New-AzApplicationGatewaySku `
  -Name Standard_Medium `
  -Tier Standard `
  -Capacity 2

New-AzApplicationGateway `
  -Name myAppGateway `
  -ResourceGroupName myResourceGroupAG `
  -Location eastus `
  -BackendAddressPools $defaultPool `
  -BackendHttpSettingsCollection $poolSettings `
  -FrontendIpConfigurations $fipconfig `
  -GatewayIpConfigurations $gipconfig `
  -FrontendPorts $frontendport `
  -HttpListeners $defaultlistener `
  -RequestRoutingRules $frontendRule `
  -Sku $sku

新增後端集區和連接埠

您可以使用 Add-AzApplicationGatewayBackendAddressPool 將後端集區新增至您的應用程式閘道。 在此範例中,會建立 imagesBackendPoolvideoBackendPool。 您需使用 Add-AzApplicationGatewayFrontendPort 來新增集區的前端連接埠。 然後使用 Set-AzApplicationGateway 來提交對應用程式閘道進行的變更。

$appgw = Get-AzApplicationGateway `
  -ResourceGroupName myResourceGroupAG `
  -Name myAppGateway

Add-AzApplicationGatewayBackendAddressPool `
  -ApplicationGateway $appgw `
  -Name imagesBackendPool

Add-AzApplicationGatewayBackendAddressPool `
  -ApplicationGateway $appgw `
  -Name videoBackendPool

Add-AzApplicationGatewayFrontendPort `
  -ApplicationGateway $appgw `
  -Name bport `
  -Port 8080

Add-AzApplicationGatewayFrontendPort `
  -ApplicationGateway $appgw `
  -Name rport `
  -Port 8081

Set-AzApplicationGateway -ApplicationGateway $appgw

新增接聽程式和規則

新增接聽程式

使用 Add-AzApplicationGatewayHttpListener 來新增路由傳送流量時所需、名為 backendListenerredirectedListener 的接聽程式。

$appgw = Get-AzApplicationGateway `
  -ResourceGroupName myResourceGroupAG `
  -Name myAppGateway

$backendPort = Get-AzApplicationGatewayFrontendPort `
  -ApplicationGateway $appgw `
  -Name bport

$redirectPort = Get-AzApplicationGatewayFrontendPort `
  -ApplicationGateway $appgw `
  -Name rport

$fipconfig = Get-AzApplicationGatewayFrontendIPConfig `
  -ApplicationGateway $appgw

Add-AzApplicationGatewayHttpListener `
  -ApplicationGateway $appgw `
  -Name backendListener `
  -Protocol Http `
  -FrontendIPConfiguration $fipconfig `
  -FrontendPort $backendPort

Add-AzApplicationGatewayHttpListener `
  -ApplicationGateway $appgw `
  -Name redirectedListener `
  -Protocol Http `
  -FrontendIPConfiguration $fipconfig `
  -FrontendPort $redirectPort

Set-AzApplicationGateway -ApplicationGateway $appgw

新增預設 URL 路徑對應

URL 路徑對應可確保特定 URL 會路由傳送到特定的後端集區。 您可以使用 New-AzApplicationGatewayPathRuleConfigAdd-AzApplicationGatewayUrlPathMapConfig 來建立名為 imagePathRulevideoPathRule 的 URL 路徑對應。

$appgw = Get-AzApplicationGateway `
  -ResourceGroupName myResourceGroupAG `
  -Name myAppGateway

$poolSettings = Get-AzApplicationGatewayBackendHttpSettings `
  -ApplicationGateway $appgw `
  -Name myPoolSettings

$imagePool = Get-AzApplicationGatewayBackendAddressPool `
  -ApplicationGateway $appgw `
  -Name imagesBackendPool

$videoPool = Get-AzApplicationGatewayBackendAddressPool `
  -ApplicationGateway $appgw `
  -Name videoBackendPool

$defaultPool = Get-AzApplicationGatewayBackendAddressPool `
  -ApplicationGateway $appgw `
  -Name appGatewayBackendPool

$imagePathRule = New-AzApplicationGatewayPathRuleConfig `
  -Name imagePathRule `
  -Paths "/images/*" `
  -BackendAddressPool $imagePool `
  -BackendHttpSettings $poolSettings

$videoPathRule = New-AzApplicationGatewayPathRuleConfig `
  -Name videoPathRule `
  -Paths "/video/*" `
  -BackendAddressPool $videoPool `
  -BackendHttpSettings $poolSettings

Add-AzApplicationGatewayUrlPathMapConfig `
  -ApplicationGateway $appgw `
  -Name urlpathmap `
  -PathRules $imagePathRule, $videoPathRule `
  -DefaultBackendAddressPool $defaultPool `
  -DefaultBackendHttpSettings $poolSettings

Set-AzApplicationGateway -ApplicationGateway $appgw

新增重新導向設定

您可以使用 Add-AzApplicationGatewayRedirectConfiguration,為接聽程式設定重新導向。

$appgw = Get-AzApplicationGateway `
  -ResourceGroupName myResourceGroupAG `
  -Name myAppGateway

$backendListener = Get-AzApplicationGatewayHttpListener `
  -ApplicationGateway $appgw `
  -Name backendListener

$redirectConfig = Add-AzApplicationGatewayRedirectConfiguration `
  -ApplicationGateway $appgw `
  -Name redirectConfig `
  -RedirectType Found `
  -TargetListener $backendListener `
  -IncludePath $true `
  -IncludeQueryString $true

Set-AzApplicationGateway -ApplicationGateway $appgw

新增重新導向 URL 路徑對應

$appgw = Get-AzApplicationGateway `
  -ResourceGroupName myResourceGroupAG `
  -Name myAppGateway

$poolSettings = Get-AzApplicationGatewayBackendHttpSettings `
  -ApplicationGateway $appgw `
  -Name myPoolSettings

$defaultPool = Get-AzApplicationGatewayBackendAddressPool `
  -ApplicationGateway $appgw `
  -Name appGatewayBackendPool

$redirectConfig = Get-AzApplicationGatewayRedirectConfiguration `
  -ApplicationGateway $appgw `
  -Name redirectConfig

$redirectPathRule = New-AzApplicationGatewayPathRuleConfig `
  -Name redirectPathRule `
  -Paths "/images/*" `
  -RedirectConfiguration $redirectConfig

Add-AzApplicationGatewayUrlPathMapConfig `
  -ApplicationGateway $appgw `
  -Name redirectpathmap `
  -PathRules $redirectPathRule `
  -DefaultBackendAddressPool $defaultPool `
  -DefaultBackendHttpSettings $poolSettings

Set-AzApplicationGateway -ApplicationGateway $appgw

新增路由規則

路由規則會讓 URL 對應與您所建立的接聽程式產生關聯。 您可以使用 Add-AzApplicationGatewayRequestRoutingRule 來新增名為 defaultRuleredirectedRule 的規則。

$appgw = Get-AzApplicationGateway `
  -ResourceGroupName myResourceGroupAG `
  -Name myAppGateway

$backendlistener = Get-AzApplicationGatewayHttpListener `
  -ApplicationGateway $appgw `
  -Name backendListener

$redirectlistener = Get-AzApplicationGatewayHttpListener `
  -ApplicationGateway $appgw `
  -Name redirectedListener

$urlPathMap = Get-AzApplicationGatewayUrlPathMapConfig `
  -ApplicationGateway $appgw `
  -Name urlpathmap

$redirectPathMap = Get-AzApplicationGatewayUrlPathMapConfig `
  -ApplicationGateway $appgw `
  -Name redirectpathmap

Add-AzApplicationGatewayRequestRoutingRule `
  -ApplicationGateway $appgw `
  -Name defaultRule `
  -RuleType PathBasedRouting `
  -HttpListener $backendlistener `
  -UrlPathMap $urlPathMap

Add-AzApplicationGatewayRequestRoutingRule `
  -ApplicationGateway $appgw `
  -Name redirectedRule `
  -RuleType PathBasedRouting `
  -HttpListener $redirectlistener `
  -UrlPathMap $redirectPathMap

Set-AzApplicationGateway -ApplicationGateway $appgw

建立虛擬機器擴展集

在此範例中,您要建立三個虛擬機器擴展集,以支援您所建立的三個後端集區。 您所建立的擴展集名為 myvmss1、myvmss2 和 myvmss3。 每個擴展集都會包含兩個您安裝 IIS 的虛擬機器執行個體。 當您設定 IP 設定時,要將擴展集指派給後端集區。

在執行指令碼之前,請將 <username> 和 <password> 取代為您的值。

$vnet = Get-AzVirtualNetwork `
  -ResourceGroupName myResourceGroupAG `
  -Name myVNet

$appgw = Get-AzApplicationGateway `
  -ResourceGroupName myResourceGroupAG `
  -Name myAppGateway

$backendPool = Get-AzApplicationGatewayBackendAddressPool `
  -Name appGatewayBackendPool `
  -ApplicationGateway $appgw

$imagesPool = Get-AzApplicationGatewayBackendAddressPool `
  -Name imagesBackendPool `
  -ApplicationGateway $appgw

$videoPool = Get-AzApplicationGatewayBackendAddressPool `
  -Name videoBackendPool `
  -ApplicationGateway $appgw

for ($i=1; $i -le 3; $i++)
{
  if ($i -eq 1)
  {
     $poolId = $backendPool.Id
  }
  if ($i -eq 2)
  {
    $poolId = $imagesPool.Id
  }
  if ($i -eq 3)
  {
    $poolId = $videoPool.Id
  }

  $ipConfig = New-AzVmssIpConfig `
    -Name myVmssIPConfig$i `
    -SubnetId $vnet.Subnets[1].Id `
    -ApplicationGatewayBackendAddressPoolsId $poolId

  $vmssConfig = New-AzVmssConfig `
    -Location eastus `
    -SkuCapacity 2 `
    -SkuName Standard_DS2 `
    -UpgradePolicyMode Automatic

  Set-AzVmssStorageProfile $vmssConfig `
    -ImageReferencePublisher MicrosoftWindowsServer `
    -ImageReferenceOffer WindowsServer `
    -ImageReferenceSku 2016-Datacenter `
    -ImageReferenceVersion latest `
    -OsDiskCreateOption FromImage

  Set-AzVmssOsProfile $vmssConfig `
    -AdminUsername <username> `
    -AdminPassword "<password>" `
    -ComputerNamePrefix myvmss$i

  Add-AzVmssNetworkInterfaceConfiguration `
    -VirtualMachineScaleSet $vmssConfig `
    -Name myVmssNetConfig$i `
    -Primary $true `
    -IPConfiguration $ipConfig

  New-AzVmss `
    -ResourceGroupName myResourceGroupAG `
    -Name myvmss$i `
    -VirtualMachineScaleSet $vmssConfig
}

安裝 IIS

$publicSettings = @{ "fileUris" = (,"https://raw.githubusercontent.com/Azure/azure-docs-powershell-samples/master/application-gateway/iis/appgatewayurl.ps1");
  "commandToExecute" = "powershell -ExecutionPolicy Unrestricted -File appgatewayurl.ps1" }

for ($i=1; $i -le 3; $i++)
{
  $vmss = Get-AzVmss -ResourceGroupName myResourceGroupAG -VMScaleSetName myvmss$i

  Add-AzVmssExtension -VirtualMachineScaleSet $vmss `
    -Name "customScript" `
    -Publisher "Microsoft.Compute" `
    -Type "CustomScriptExtension" `
    -TypeHandlerVersion 1.8 `
    -Setting $publicSettings

  Update-AzVmss `
    -ResourceGroupName myResourceGroupAG `
    -Name myvmss$i `
    -VirtualMachineScaleSet $vmss
}

測試應用程式閘道

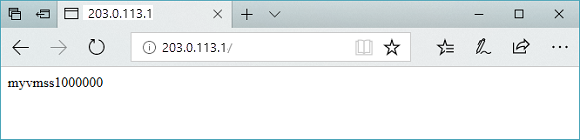

您可使用 Get-AzPublicIPAddress 來取得應用程式閘道的公用 IP 位址。 將公用 IP 位址複製並貼到您瀏覽器的網址列。 例如 http://52.168.55.24http://52.168.55.24:8080/images/test.htmhttp://52.168.55.24:8080/video/test.htmhttp://52.168.55.24:8081/images/test.htm

Get-AzPublicIPAddress -ResourceGroupName myResourceGroupAG -Name myAGPublicIPAddress

在應用程式閘道中測試基底 URL

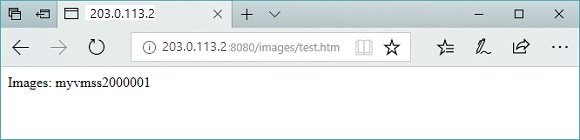

將 URL 變更為 http://<ip-address>:8080/images/test.html,使用您的 IP 位址取代 <ip-address>,然後您就應該會看到類似下列的範例:

在應用程式閘道中測試影像 URL

將 URL 變更為 http://<ip-address>:8080/video/test.htm、使用您的 IP 位址取代 <ip-address>,就應該會看到類似下列的範例:

在應用程式閘道中測試影片 URL

現在,請將 URL 變更為 http://<ip-address>:8081/images/test.htm、使用您的 IP 位址取代 <ip-address>,然後就會看到流量重新導向回位於 http://<ip-address>:8080/images 的影像後端集區。

清除資源

當不再需要資源群組、應用程式閘道及所有相關資源時,請使用 Remove-AzResourceGroup 來將其移除。

Remove-AzResourceGroup -Name myResourceGroupAG

下一步
