使用 Azure CLI 來建立完整的 Linux 虛擬機器

發行項
03/30/2023

適用於：✔️ Linux VM

若要在 Azure 中快速建立虛擬機器 (VM)，您可以使用單一的 Azure CLI 命令，此命令會使用預設值來建立任何必要的支援資源。系統會自動建立虛擬網路、公用 IP 位址及網路安全性群組規則等資源。若要在生產環境使用案例中對您的環境進行更多控制，您可以預先建立這些資源，然後再將 VM 新增到這些資源中。本文將引導您了解如何建立 VM 及逐一建立每個支援資源。

請確定您已安裝最新的 Azure CLI 並使用 az login 登入 Azure 帳戶。

在下列範例中，請以您自己的值取代範例參數名稱。範例參數名稱包含 myResourceGroup、myVnet 和 myVM。

建立資源群組

Azure 資源群組是在其中部署與管理 Azure 資源的邏輯容器。您必須在建立虛擬機器和支援虛擬網路支援之前，先建立資源群組。使用 az group create 建立資源群組。下列範例會在 eastus 位置建立名為 myResourceGroup 的資源群組：

az group create --name myResourceGroup --location eastus

Azure CLI 命令的輸出預設是採用 JSON (JavaScript 物件標記法) 格式。舉例來說，若要將預設輸出變更為清單或資料表，請使用 az config set core.output=table。您也可以將 --output 新增到任何命令，以輸出格式進行一次變更。下列範例顯示來自 az group create 命令的 JSON 輸出：

{
  "id": "/subscriptions/guid/resourceGroups/myResourceGroup",
  "location": "eastus",
  "name": "myResourceGroup",
  "properties": {
    "provisioningState": "Succeeded"
  },
  "tags": null
}

建立虛擬網路和子網路

接著，您需在 Azure 中建立一個虛擬網路，以及一個可供您建立 VM 的子網路。請使用 az network vnet create 來建立一個名為 myVnet 且位址首碼為 192.168.0.0/16 的虛擬網路。您還需新增一個名為 mySubnet 且位址首碼為 192.168.1.0/24 的子網路：

az network vnet create \
    --resource-group myResourceGroup \
    --name myVnet \
    --address-prefix 192.168.0.0/16 \
    --subnet-name mySubnet \
    --subnet-prefix 192.168.1.0/24

輸出會將子網路顯示為以邏輯方式建立在虛擬網路內︰

{
  "addressSpace": {
    "addressPrefixes": [
      "192.168.0.0/16"
    ]
  },
  "dhcpOptions": {
    "dnsServers": []
  },
  "etag": "W/\"e95496fc-f417-426e-a4d8-c9e4d27fc2ee\"",
  "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/virtualNetworks/myVnet",
  "location": "eastus",
  "name": "myVnet",
  "provisioningState": "Succeeded",
  "resourceGroup": "myResourceGroup",
  "resourceGuid": "ed62fd03-e9de-430b-84df-8a3b87cacdbb",
  "subnets": [
    {
      "addressPrefix": "192.168.1.0/24",
      "etag": "W/\"e95496fc-f417-426e-a4d8-c9e4d27fc2ee\"",
      "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/virtualNetworks/myVnet/subnets/mySubnet",
      "ipConfigurations": null,
      "name": "mySubnet",
      "networkSecurityGroup": null,
      "provisioningState": "Succeeded",
      "resourceGroup": "myResourceGroup",
      "resourceNavigationLinks": null,
      "routeTable": null
    }
  ],
  "tags": {},
  "type": "Microsoft.Network/virtualNetworks",
  "virtualNetworkPeerings": null
}

建立公用 IP 位址

現在，讓我們使用 az network public-ip create 來建立公用 IP 位址。此公用 IP 位址可讓您從網際網路連線至 VM。由於預設位址是動態位址，請使用 --domain-name-label 參數來建立具名的 DNS 項目。下列範例會建立名為 myPublicIP 的公用 IP，其 DNS 名稱為 mypublicdns。由於 DNS 名稱必須是唯一的，因此請提供您自己的唯一 DNS 名稱︰

az network public-ip create \
    --resource-group myResourceGroup \
    --name myPublicIP \
    --dns-name mypublicdns

輸出：

{
  "publicIp": {
    "dnsSettings": {
      "domainNameLabel": "mypublicdns",
      "fqdn": "mypublicdns.eastus.cloudapp.azure.com",
      "reverseFqdn": null
    },
    "etag": "W/\"2632aa72-3d2d-4529-b38e-b622b4202925\"",
    "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/publicIPAddresses/myPublicIP",
    "idleTimeoutInMinutes": 4,
    "ipAddress": null,
    "ipConfiguration": null,
    "location": "eastus",
    "name": "myPublicIP",
    "provisioningState": "Succeeded",
    "publicIpAddressVersion": "IPv4",
    "publicIpAllocationMethod": "Dynamic",
    "resourceGroup": "myResourceGroup",
    "resourceGuid": "4c65de38-71f5-4684-be10-75e605b3e41f",
    "tags": null,
    "type": "Microsoft.Network/publicIPAddresses"
  }
}

建立網路安全性群組

若要控制進出 VM 的流量，請將網路安全性群組套用至虛擬 NIC 或子網路。下列範例會使用 az network nsg create 來建立名為 myNetworkSecurityGroup 的網路安全性群組：

az network nsg create \
    --resource-group myResourceGroup \
    --name myNetworkSecurityGroup

您需定義允許或拒絕特定流量的規則。若要允許連接埠 22 上的輸入連線 (以支援 SSH 存取)，請使用 az network nsg rule create 建立輸入規則。下列範例會建立名為 myNetworkSecurityGroupRuleSSH 的規則：

az network nsg rule create \
    --resource-group myResourceGroup \
    --nsg-name myNetworkSecurityGroup \
    --name myNetworkSecurityGroupRuleSSH \
    --protocol tcp \
    --priority 1000 \
    --destination-port-range 22 \
    --access allow

若要允許連接埠 80 上的輸入連線 (Web 流量)，請新增另一個網路安全性群組規則。下列範例會建立一個名為 myNetworkSecurityGroupRuleHTTP 的規則：

az network nsg rule create \
    --resource-group myResourceGroup \
    --nsg-name myNetworkSecurityGroup \
    --name myNetworkSecurityGroupRuleWeb \
    --protocol tcp \
    --priority 1001 \
    --destination-port-range 80 \
    --access allow

使用 az network nsg show 檢查網路安全性群組及規則：

az network nsg show --resource-group myResourceGroup --name myNetworkSecurityGroup

輸出：

{
  "defaultSecurityRules": [
    {
      "access": "Allow",
      "description": "Allow inbound traffic from all VMs in VNET",
      "destinationAddressPrefix": "VirtualNetwork",
      "destinationPortRange": "*",
      "direction": "Inbound",
      "etag": "W/\"3371b313-ea9f-4687-a336-a8ebdfd80523\"",
      "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/networkSecurityGroups/myNetworkSecurityGroup/defaultSecurityRules/AllowVnetInBound",
      "name": "AllowVnetInBound",
      "priority": 65000,
      "protocol": "*",
      "provisioningState": "Succeeded",
      "resourceGroup": "myResourceGroup",
      "sourceAddressPrefix": "VirtualNetwork",
      "sourcePortRange": "*"
    },
    {
      "access": "Allow",
      "description": "Allow inbound traffic from azure load balancer",
      "destinationAddressPrefix": "*",
      "destinationPortRange": "*",
      "direction": "Inbound",
      "etag": "W/\"3371b313-ea9f-4687-a336-a8ebdfd80523\"",
      "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/networkSecurityGroups/myNetworkSecurityGroup/defaultSecurityRules/AllowAzureLoadBalancerInBou",
      "name": "AllowAzureLoadBalancerInBound",
      "priority": 65001,
      "protocol": "*",
      "provisioningState": "Succeeded",
      "resourceGroup": "myResourceGroup",
      "sourceAddressPrefix": "AzureLoadBalancer",
      "sourcePortRange": "*"
    },
    {
      "access": "Deny",
      "description": "Deny all inbound traffic",
      "destinationAddressPrefix": "*",
      "destinationPortRange": "*",
      "direction": "Inbound",
      "etag": "W/\"3371b313-ea9f-4687-a336-a8ebdfd80523\"",
      "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/networkSecurityGroups/myNetworkSecurityGroup/defaultSecurityRules/DenyAllInBound",
      "name": "DenyAllInBound",
      "priority": 65500,
      "protocol": "*",
      "provisioningState": "Succeeded",
      "resourceGroup": "myResourceGroup",
      "sourceAddressPrefix": "*",
      "sourcePortRange": "*"
    },
    {
      "access": "Allow",
      "description": "Allow outbound traffic from all VMs to all VMs in VNET",
      "destinationAddressPrefix": "VirtualNetwork",
      "destinationPortRange": "*",
      "direction": "Outbound",
      "etag": "W/\"3371b313-ea9f-4687-a336-a8ebdfd80523\"",
      "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/networkSecurityGroups/myNetworkSecurityGroup/defaultSecurityRules/AllowVnetOutBound",
      "name": "AllowVnetOutBound",
      "priority": 65000,
      "protocol": "*",
      "provisioningState": "Succeeded",
      "resourceGroup": "myResourceGroup",
      "sourceAddressPrefix": "VirtualNetwork",
      "sourcePortRange": "*"
    },
    {
      "access": "Allow",
      "description": "Allow outbound traffic from all VMs to Internet",
      "destinationAddressPrefix": "Internet",
      "destinationPortRange": "*",
      "direction": "Outbound",
      "etag": "W/\"3371b313-ea9f-4687-a336-a8ebdfd80523\"",
      "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/networkSecurityGroups/myNetworkSecurityGroup/defaultSecurityRules/AllowInternetOutBound",
      "name": "AllowInternetOutBound",
      "priority": 65001,
      "protocol": "*",
      "provisioningState": "Succeeded",
      "resourceGroup": "myResourceGroup",
      "sourceAddressPrefix": "*",
      "sourcePortRange": "*"
    },
    {
      "access": "Deny",
      "description": "Deny all outbound traffic",
      "destinationAddressPrefix": "*",
      "destinationPortRange": "*",
      "direction": "Outbound",
      "etag": "W/\"3371b313-ea9f-4687-a336-a8ebdfd80523\"",
      "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/networkSecurityGroups/myNetworkSecurityGroup/defaultSecurityRules/DenyAllOutBound",
      "name": "DenyAllOutBound",
      "priority": 65500,
      "protocol": "*",
      "provisioningState": "Succeeded",
      "resourceGroup": "myResourceGroup",
      "sourceAddressPrefix": "*",
      "sourcePortRange": "*"
    }
  ],
  "etag": "W/\"3371b313-ea9f-4687-a336-a8ebdfd80523\"",
  "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/networkSecurityGroups/myNetworkSecurityGroup",
  "location": "eastus",
  "name": "myNetworkSecurityGroup",
  "networkInterfaces": null,
  "provisioningState": "Succeeded",
  "resourceGroup": "myResourceGroup",
  "resourceGuid": "47a9964e-23a3-438a-a726-8d60ebbb1c3c",
  "securityRules": [
    {
      "access": "Allow",
      "description": null,
      "destinationAddressPrefix": "*",
      "destinationPortRange": "22",
      "direction": "Inbound",
      "etag": "W/\"9e344b60-0daa-40a6-84f9-0ebbe4a4b640\"",
      "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/networkSecurityGroups/myNetworkSecurityGroup/securityRules/myNetworkSecurityGroupRuleSSH",
      "name": "myNetworkSecurityGroupRuleSSH",
      "priority": 1000,
      "protocol": "Tcp",
      "provisioningState": "Succeeded",
      "resourceGroup": "myResourceGroup",
      "sourceAddressPrefix": "*",
      "sourcePortRange": "*"
    },
    {
      "access": "Allow",
      "description": null,
      "destinationAddressPrefix": "*",
      "destinationPortRange": "80",
      "direction": "Inbound",
      "etag": "W/\"9e344b60-0daa-40a6-84f9-0ebbe4a4b640\"",
      "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/networkSecurityGroups/myNetworkSecurityGroup/securityRules/myNetworkSecurityGroupRuleWeb",
      "name": "myNetworkSecurityGroupRuleWeb",
      "priority": 1001,
      "protocol": "Tcp",
      "provisioningState": "Succeeded",
      "resourceGroup": "myResourceGroup",
      "sourceAddressPrefix": "*",
      "sourcePortRange": "*"
    }
  ],
  "subnets": null,
  "tags": null,
  "type": "Microsoft.Network/networkSecurityGroups"
}

建立虛擬 NIC

虛擬網路介面卡 (NIC) 可透過程式設計方式供您使用，因為您可以將規則套用到 NIC 的使用上。視 VM 大小而定，您可以將多個虛擬 NIC 附加至 VM。在下列 az network nic create 命令中，您會建立一個名為 myNic 的 NIC，並將它與網路安全性群組建立關聯。公用 IP 位址 myPublicIP 也會與虛擬 NIC 建立關聯。

az network nic create \
    --resource-group myResourceGroup \
    --name myNic \
    --vnet-name myVnet \
    --subnet mySubnet \
    --public-ip-address myPublicIP \
    --network-security-group myNetworkSecurityGroup

輸出：

{
  "NewNIC": {
    "dnsSettings": {
      "appliedDnsServers": [],
      "dnsServers": [],
      "internalDnsNameLabel": null,
      "internalDomainNameSuffix": "brqlt10lvoxedgkeuomc4pm5tb.bx.internal.cloudapp.net",
      "internalFqdn": null
    },
    "enableAcceleratedNetworking": false,
    "enableIpForwarding": false,
    "etag": "W/\"04b5ab44-d8f4-422a-9541-e5ae7de8466d\"",
    "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/networkInterfaces/myNic",
    "ipConfigurations": [
      {
        "applicationGatewayBackendAddressPools": null,
        "etag": "W/\"04b5ab44-d8f4-422a-9541-e5ae7de8466d\"",
        "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/networkInterfaces/myNic/ipConfigurations/ipconfig1",
        "loadBalancerBackendAddressPools": null,
        "loadBalancerInboundNatRules": null,
        "name": "ipconfig1",
        "primary": true,
        "privateIpAddress": "192.168.1.4",
        "privateIpAddressVersion": "IPv4",
        "privateIpAllocationMethod": "Dynamic",
        "provisioningState": "Succeeded",
        "publicIpAddress": {
          "dnsSettings": null,
          "etag": null,
          "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/publicIPAddresses/myPublicIP",
          "idleTimeoutInMinutes": null,
          "ipAddress": null,
          "ipConfiguration": null,
          "location": null,
          "name": null,
          "provisioningState": null,
          "publicIpAddressVersion": null,
          "publicIpAllocationMethod": null,
          "resourceGroup": "myResourceGroup",
          "resourceGuid": null,
          "tags": null,
          "type": null
        },
        "resourceGroup": "myResourceGroup",
        "subnet": {
          "addressPrefix": null,
          "etag": null,
          "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/virtualNetworks/myVnet/subnets/mySubnet",
          "ipConfigurations": null,
          "name": null,
          "networkSecurityGroup": null,
          "provisioningState": null,
          "resourceGroup": "myResourceGroup",
          "resourceNavigationLinks": null,
          "routeTable": null
        }
      }
    ],
    "location": "eastus",
    "macAddress": null,
    "name": "myNic",
    "networkSecurityGroup": {
      "defaultSecurityRules": null,
      "etag": null,
      "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Network/networkSecurityGroups/myNetworkSecurityGroup",
      "location": null,
      "name": null,
      "networkInterfaces": null,
      "provisioningState": null,
      "resourceGroup": "myResourceGroup",
      "resourceGuid": null,
      "securityRules": null,
      "subnets": null,
      "tags": null,
      "type": null
    },
    "primary": null,
    "provisioningState": "Succeeded",
    "resourceGroup": "myResourceGroup",
    "resourceGuid": "b3dbaa0e-2cf2-43be-a814-5cc49fea3304",
    "tags": null,
    "type": "Microsoft.Network/networkInterfaces",
    "virtualMachine": null
  }
}

建立可用性設定組

可用性設定組可協助將 VM 分散到容錯網域和更新網域。儘管您目前只建立一個 VM，但最佳做法是使用可用性設定組，這可讓您在未來更容易進行擴充。

容錯網域定義一個虛擬機器群組，且群組內的虛擬機器會共用通用電源和網路交換器。根據預設，可用性設定組內設定的虛擬機器最多可分散到三個容錯網域。其中一個容錯網域中的硬體問題並不會影響每個執行您應用程式的 VM。

更新網域表示虛擬機器群組和可同時重新啟動的基礎實體硬體。在計劃性維護期間，可能不會循序重新啟動更新網域，而只會一次重新啟動一個更新網域。

將多個 VM 放在一個可用性設定組中時，Azure 會自動將它們分散到容錯和更新網域。如需詳細資訊，請參閱管理 VM 的可用性。

請使用 az vm availability-set create 來建立 VM 的可用性設定組。下列範例會建立名為 myAvailabilitySet 的可用性設定組：

az vm availability-set create \
    --resource-group myResourceGroup \
    --name myAvailabilitySet

輸出會指出容錯網域和更新網域：

{
  "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Compute/availabilitySets/myAvailabilitySet",
  "location": "eastus",
  "managed": null,
  "name": "myAvailabilitySet",
  "platformFaultDomainCount": 2,
  "platformUpdateDomainCount": 5,
  "resourceGroup": "myResourceGroup",
  "sku": {
    "capacity": null,
    "managed": true,
    "tier": null
  },
  "statuses": null,
  "tags": {},
  "type": "Microsoft.Compute/availabilitySets",
  "virtualMachines": []
}

建立 VM

您已建立網路資源來支援可存取網際網路的 VM。現在，請建立 VM 並使用 SSH 金鑰來保護它。在此範例中，我們根據最新的 LTS 建立 Ubuntu VM。您可以使用 az vm image list 來找出其他映像，如尋找 Azure VM 映像所述。

指定要用於驗證的 SSH 金鑰。如果您沒有 SSH 公開金鑰組，則可以建立 SSH 公開金鑰組，或使用 --generate-ssh-keys 參數來為您建立這些金鑰組。如果您已經有金鑰組，此參數就會使用 ~/.ssh 中的現有金鑰。

請使用 az vm create 命令將我們的所有資源和資訊結合在一起來建立 VM。下列範例會建立名為 myVM 的 VM。

az vm create \
    --resource-group myResourceGroup \
    --name myVM \
    --location eastus \
    --availability-set myAvailabilitySet \
    --nics myNic \
    --image Ubuntu2204 \
    --admin-username azureuser \
    --generate-ssh-keys

請使用您在建立公用 IP 位址時所提供的 DNS 項目，透過 SSH 連線到 VM。當您建立 VM 時，輸出中會顯示這個 fqdn：

{
  "fqdns": "mypublicdns.eastus.cloudapp.azure.com",
  "id": "/subscriptions/guid/resourceGroups/myResourceGroup/providers/Microsoft.Compute/virtualMachines/myVM",
  "location": "eastus",
  "macAddress": "00-0D-3A-13-71-C8",
  "powerState": "VM running",
  "privateIpAddress": "192.168.1.5",
  "publicIpAddress": "13.90.94.252",
  "resourceGroup": "myResourceGroup"
}

ssh azureuser@mypublicdns.eastus.cloudapp.azure.com

輸出：

The authenticity of host 'mypublicdns.eastus.cloudapp.azure.com (13.90.94.252)' can't be established.
ECDSA key fingerprint is SHA256:SylINP80Um6XRTvWiFaNz+H+1jcrKB1IiNgCDDJRj6A.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'mypublicdns.eastus.cloudapp.azure.com,13.90.94.252' (ECDSA) to the list of known hosts.
Welcome to Ubuntu 16.04.3 LTS (GNU/Linux 4.11.0-1016-azure x86_64)

 * Documentation:  https://help.ubuntu.com
 * Management:     https://landscape.canonical.com
 * Support:        https://ubuntu.com/advantage

  Get cloud support with Ubuntu Advantage Cloud Guest:
    https://www.ubuntu.com/business/services/cloud

0 packages can be updated.
0 updates are security updates.


The programs included with the Ubuntu system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Ubuntu comes with ABSOLUTELY NO WARRANTY, to the extent permitted by
applicable law.

To run a command as administrator (user "root"), use "sudo <command>".
See "man sudo_root" for details.

azureuser@myVM:~$

您可以安裝 NGINX，然後查看傳送到 VM 的流量。請依下列方式安裝 NGINX：

sudo apt-get install -y nginx

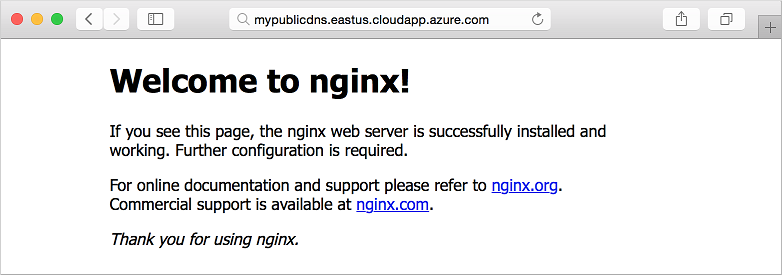

若要查看預設 NGINX 站台的實際運作情況，請開啟您的網頁瀏覽器，然後輸入 FQDN：

Default NGINX site on your VM

以範本形式匯出

如果您現在想要使用相同的參數來建立其他開發環境，或想要建立與其相符的生產環境，該怎麼辦？ Resource Manager 可使用定義了所有環境參數的 JSON 範本。您可以藉由參考此 JSON 範本來建置整個環境。您可以手動建立 JSON 範本，或將現有的環境匯出來為您建立 JSON 範本。使用 az group export 來匯出您的資源群組，如下所示︰

az group export --name myResourceGroup > myResourceGroup.json

此命令會在您目前的工作目錄中建立 myResourceGroup.json 檔案。當您從這個範本建立環境時，系統會提示您輸入所有資源名稱。您可以藉由將 --include-parameter-default-value 參數新增到 az group export 命令中，在您的範本檔案中填入這些名稱。請編輯您的 JSON 範本以指定資源名稱，或建立 parameters.json 檔案來指定資源名稱。

若要從您的範本建立環境，請使用 az deployment group create，如下所示︰

az deployment group create \
    --resource-group myNewResourceGroup \
    --template-file myResourceGroup.json

您可以深入了解如何從範本進行部署。請了解如何以累加方式更新環境、使用參數檔案，以及從單一儲存體位置存取範本。

下一步

現在您已準備好開始使用多個網路元件和 VM。您可以利用這裡介紹的核心元件，使用這個範例環境來建置您的應用程式。
