Configure Jamf Pro for Single sign-on with Microsoft Entra ID

In this article, you learn how to integrate Jamf Pro with Microsoft Entra ID. When you integrate Jamf Pro with Microsoft Entra ID, you can:

• Use Microsoft Entra ID to control who has access to Jamf Pro.
• Automatically sign in your users to Jamf Pro with their Microsoft Entra accounts.
• Manage your accounts in one central location: the Azure portal.

Prerequisites

The scenario outlined in this article assumes that you already have the following prerequisites:

• A Microsoft Entra user account with an active subscription. If you don't already have one, you can Create an account for free.
• One of the following roles:
  • Application Administrator
  • Cloud Application Administrator
  • Application Owner.

• A Jamf Pro subscription that's single sign-on (SSO) enabled.

Scenario description

In this article, you configure and test Microsoft Entra SSO in a test environment.

• Jamf Pro supports SP-initiated and IdP-initiated SSO.

Add Jamf Pro from the gallery

To configure the integration of Jamf Pro into Microsoft Entra ID, you need to add Jamf Pro from the gallery to your list of managed SaaS apps.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Entra ID > Enterprise apps > New application.
3. In the Add from the gallery section, enter Jamf Pro in the search box.
4. Select Jamf Pro from results panel, and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, and walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test SSO in Microsoft Entra ID for Jamf Pro

Configure and test Microsoft Entra SSO with Jamf Pro by using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Jamf Pro.

In this section, you configure and test Microsoft Entra SSO with Jamf Pro.

1. Configure SSO in Microsoft Entra ID so that your users can use this feature.
   1. Create a Microsoft Entra test user to test Microsoft Entra SSO with the B.Simon account.
   2. Assign the Microsoft Entra test user so that B.Simon can use SSO in Microsoft Entra ID.
2. Configure SSO in Jamf Pro to configure the SSO settings on the application side.
   1. Create a Jamf Pro test user to have a counterpart of B.Simon in Jamf Pro that's linked to the Microsoft Entra representation of the user.
3. Test the SSO configuration to verify that the configuration works.

Configure SSO in Microsoft Entra ID

In this section, you enable Microsoft Entra SSO.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

2. Browse to Entra ID > Enterprise apps > Jamf Pro application integration page, find the Manage section and select Single Sign-On.

3. On the Select a Single Sign-On Method page, select SAML.

4. On the Set up Single Sign-On with SAML page, select the pencil icon for Basic SAML Configuration to edit the settings.



5. On the Basic SAML Configuration section, if you want to configure the application in IdP-initiated mode, enter the values for the following fields:

   a. In the Identifier text box, enter a URL that uses the following formula: https://<subdomain>.jamfcloud.com/saml/metadata

   b. In the Reply URL text box, enter a URL that uses the following formula: https://<subdomain>.jamfcloud.com/saml/SSO

6. Select Set additional URLs. If you want to configure the application in SP-initiated mode, in the Sign-on URL text box, enter a URL that uses the following formula: https://<subdomain>.jamfcloud.com

   Note

   These values aren't real. Update these values with the actual identifier, reply URL, and sign-on URL. You'll get the actual identifier value from the Single Sign-On section in Jamf Pro portal, which is explained later in the article. You can extract the actual subdomain value from the identifier value and use that subdomain information as your sign-on URL and reply URL. You can also refer to the formulas shown in the Basic SAML Configuration section.

7. On the Set up Single Sign-On with SAML page, go to the SAML Signing Certificate section, select the copy button to copy App Federation Metadata URL, and then save it to your computer.



Create and assign Microsoft Entra test user

Follow the guidelines in the create and assign a user account quickstart to create a test user account called B.Simon.

Configure SSO in Jamf Pro

1. To automate the configuration within Jamf Pro, install the My Apps Secure Sign-in browser extension by selecting Install the extension.



2. After adding the extension to the browser, select Set up Jamf Pro. When the Jamf Pro application opens, provide the administrator credentials to sign in. The browser extension will automatically configure the application and automate steps 3 through 7.



3. To set up Jamf Pro manually, open a new web browser window and sign in to your Jamf Pro company site as an administrator. Then, take the following steps.

4. Select the Settings icon from the upper-right corner of the page.

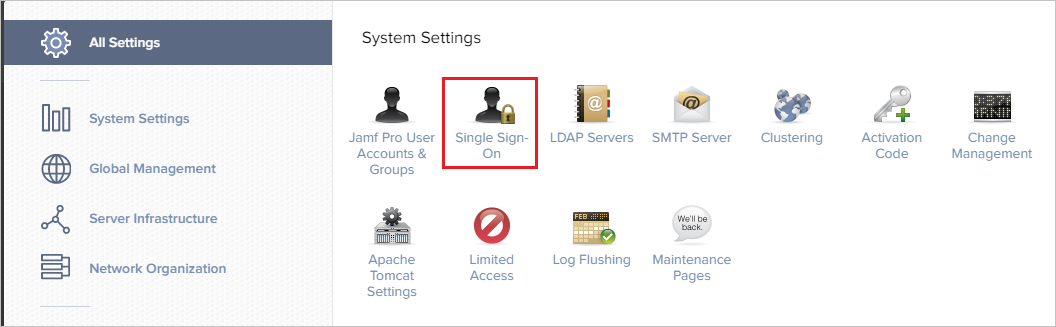

5. Select Single Sign-On.

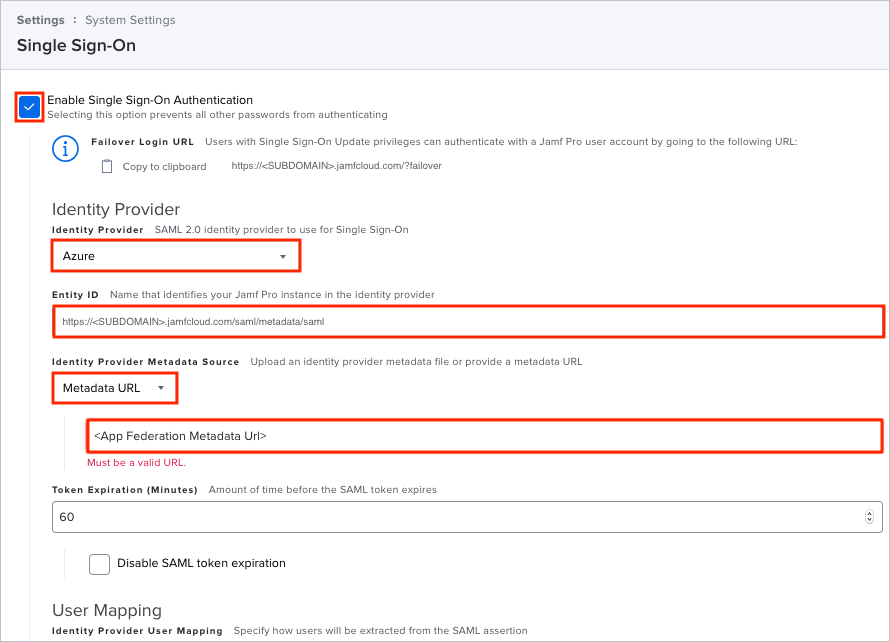

6. On the Single Sign-On page, take the following steps.



   a. Select Edit.

   b. Select the Enable Single Sign-On Authentication check box.

   c. Select Azure as an option from the Identity Provider drop-down menu.

   d. Copy the ENTITY ID value and paste it into the Identifier (Entity ID) field in the Basic SAML Configuration section.

   Note

   Use the value in the <SUBDOMAIN> field to complete the sign-on URL and reply URL in the Basic SAML Configuration section.

   e. Select Metadata URL from the Identity Provider Metadata Source drop-down menu. In the field that appears, paste the App Federation Metadata Url value that you've copied.

   f. (Optional) Edit the token expiration value or select "Disable SAML token expiration".

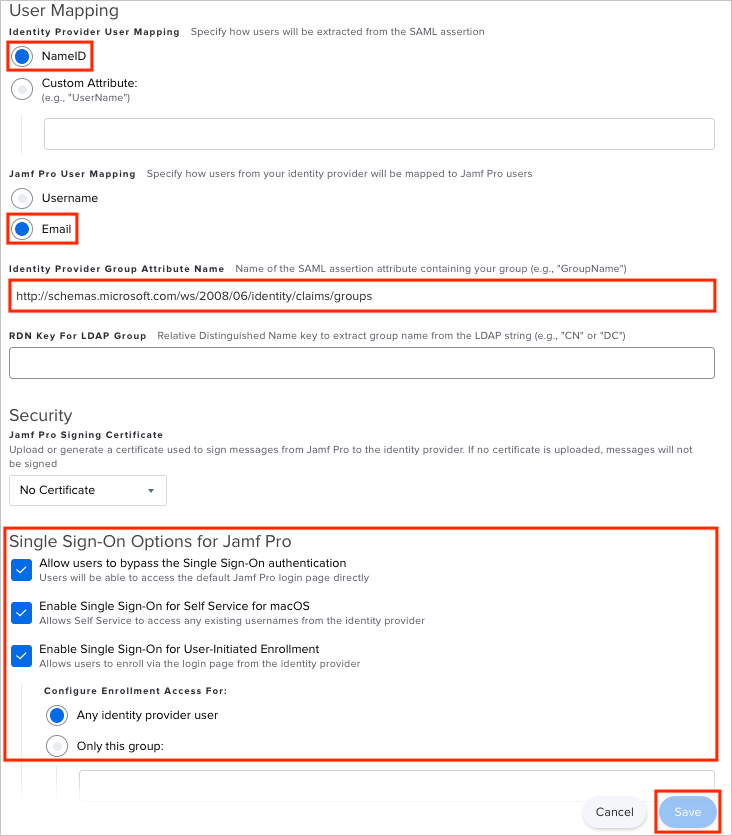

7. On the same page, scroll down to the User Mapping section. Then, take the following steps.



   a. Select the NameID option for Identity Provider User Mapping. By default, this option is set to NameID, but you can define a custom attribute.

   b. Select Email for Jamf Pro User Mapping. Jamf Pro maps SAML attributes sent by the IdP first by users and then by groups. When a user tries to access Jamf Pro, Jamf Pro gets information about the user from the Identity Provider and matches it against all Jamf Pro user accounts. If the incoming user account isn't found, then Jamf Pro attempts to match it by group name.

   c. Paste the value http://schemas.microsoft.com/ws/2008/06/identity/claims/groups in the IDENTITY PROVIDER GROUP ATTRIBUTE NAME field.

   d. On the same page, scroll down to the Security section and select Allow users to bypass the Single Sign-On authentication. As a result, users won't be redirected to the Identity Provider sign-in page for authentication and can sign in to Jamf Pro directly instead. When a user tries to access Jamf Pro via the Identity Provider, IdP-initiated SSO authentication and authorization occurs.

   e. Select Save.

Create a Jamf Pro test user

In order for Microsoft Entra users to sign in to Jamf Pro, they must be provisioned in to Jamf Pro. Provisioning in Jamf Pro is a manual task.

To provision a user account, take the following steps:

1. Sign in to your Jamf Pro company site as an administrator.

2. Select the Settings icon in the upper-right corner of the page.

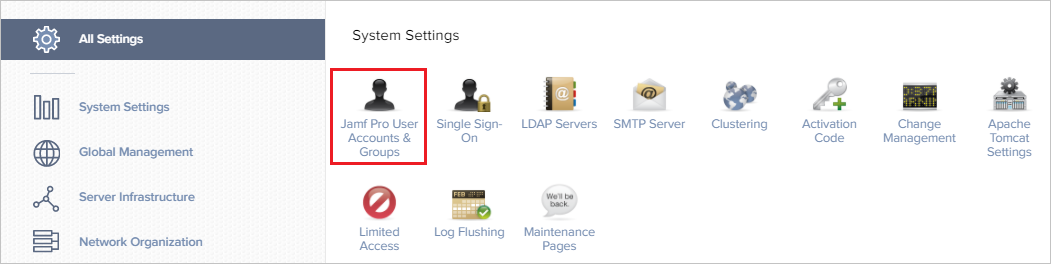

3. Select Jamf Pro User Accounts & Groups.



4. Select New.

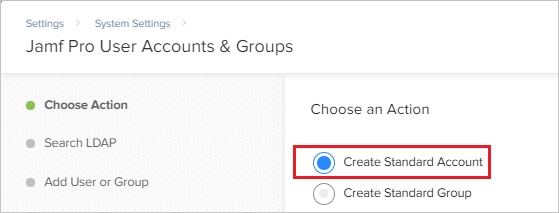

5. Select Create Standard Account.

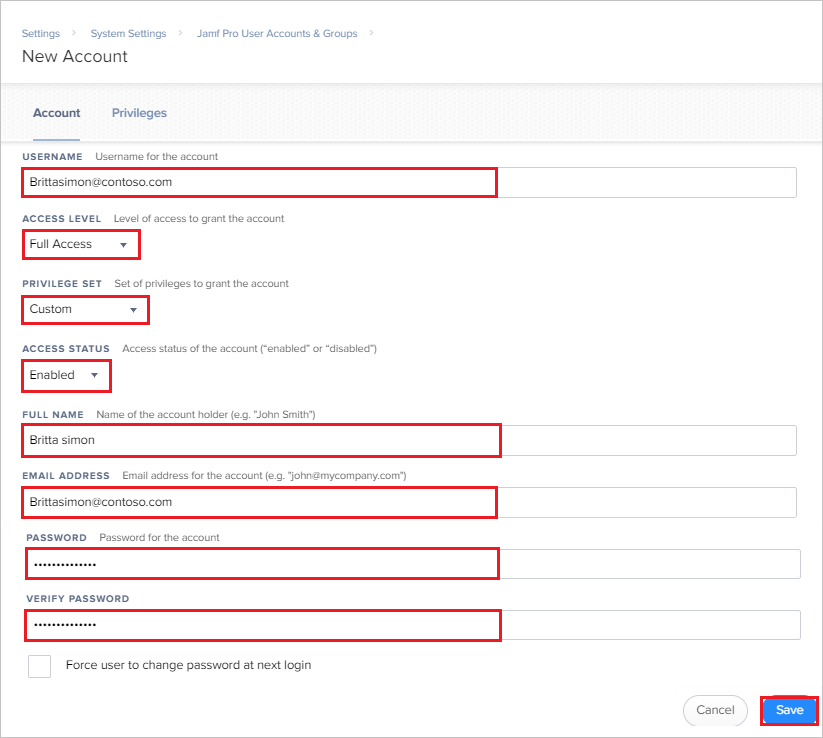

6. On the New Account dialog box, perform the following steps:



   a. In the USERNAME field, enter Britta Simon, the full name of the test user.

   b. Select the options for ACCESS LEVEL, PRIVILEGE SET, and ACCESS STATUS that are in accordance with your organization.

   c. In the FULL NAME field, enter Britta Simon.

   d. In the EMAIL ADDRESS field, enter the email address of Britta Simon's account.

   e. In the PASSWORD field, enter the user's password.

   f. In the VERIFY PASSWORD field, enter the user's password again.

   g. Select Save.

Test the SSO configuration

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

• Select Test this application, this option redirects to Jamf Pro Sign on URL where you can initiate the login flow.

• Go to Jamf Pro Sign-on URL directly and initiate the login flow from there.

IDP initiated:

• Select Test this application, and you should be automatically signed in to the Jamf Pro for which you set up the SSO

You can also use Microsoft My Apps to test the application in any mode. When you select the Jamf Pro tile in the My Apps, if configured in SP mode you would be redirected to the application sign on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Jamf Pro for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Related content

Once you configure Jamf Pro you can enforce Session Control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session Control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
