Copy data from Google Ads using Azure Data Factory or Synapse Analytics

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

This article outlines how to use the Copy Activity in an Azure Data Factory or Synapse Analytics pipeline to copy data from Google Ads. It builds on the copy activity overview article that presents a general overview of copy activity.

Important

Please kindly upgrade your Google Ads driver version before February 18, 2024. If not, connection will start to fail with an error because of the deprecation of the legacy driver.

Supported capabilities

This Google Ads connector is supported for the following capabilities:

Supported capabilities	IR
Copy activity (source/-)	① ②
Lookup activity	① ②

① Azure integration runtime ② Self-hosted integration runtime

For a list of data stores that are supported as sources/sinks, see the Supported data stores table.

The service provides a built-in driver to enable connectivity, therefore you don't need to manually install any driver using this connector.

Getting started

To perform the Copy activity with a pipeline, you can use one of the following tools or SDKs:

• The Copy Data tool
• The Azure portal
• The .NET SDK
• The Python SDK
• Azure PowerShell
• The REST API
• The Azure Resource Manager template

Create a linked service to Google Ads using UI

Use the following steps to create a linked service to Google Ads in the Azure portal UI.

1. Browse to the Manage tab in your Azure Data Factory or Synapse workspace and select Linked Services, then click New:

   Azure Data Factory



   Azure Synapse

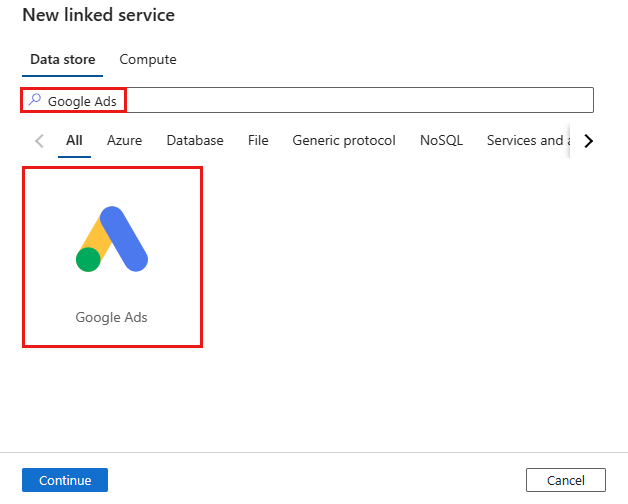

2. Search for Google Ads and select the Google Ads connector.

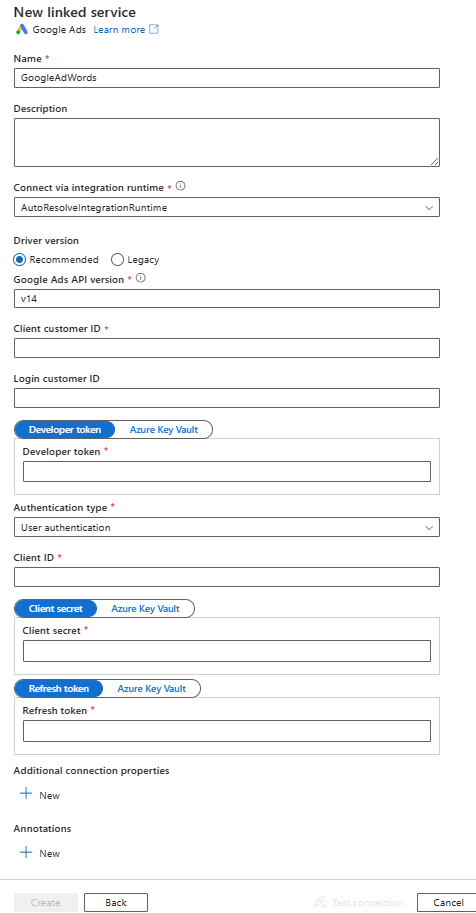

3. Configure the service details, test the connection, and create the new linked service.



Connector configuration details

The following sections provide details about properties that are used to define Data Factory entities specific to Google Ads connector.

Linked service properties

The following properties are supported for Google Ads linked service:

Property	Description	Required
type	The type property must be set to: GoogleAdWords	Yes
googleAdsApiVersion	The Google Ads API version that you use when you select the recommended driver version. You can refer this article for API version information.	Yes
clientCustomerID	The Client customer ID of the Ads account that you want to fetch report data for.	Yes
loginCustomerID	The customer ID of the Google Ads manager account through which you want to fetch report data of specific customer.	No
developerToken	The developer token associated with the manager account that you use to grant access to the Ads API. You can choose to mark this field as a SecureString to store it securely, or store password in Azure Key Vault and let the copy activity pull from there when performing data copy - learn more from Store credentials in Key Vault.	Yes
authenticationType	The OAuth 2.0 authentication mechanism used for authentication. Allowed values are: ServiceAuthentication, UserAuthentication. ServiceAuthentication can only be used on self-hosted IR.	Yes
For UserAuthentication:
refreshToken	The refresh token obtained from Google for authorizing access to Ads for UserAuthentication. You can choose to mark this field as a SecureString to store it securely, or store password in Azure Key Vault and let the copy activity pull from there when performing data copy - learn more from Store credentials in Key Vault.	No
clientId	The client ID of the Google application used to acquire the refresh token. You can choose to mark this field as a SecureString to store it securely, or store password in Azure Key Vault and let the copy activity pull from there when performing data copy - learn more from Store credentials in Key Vault.	No
clientSecret	The client secret of the google application used to acquire the refresh token. You can choose to mark this field as a SecureString to store it securely, or store password in Azure Key Vault and let the copy activity pull from there when performing data copy - learn more from Store credentials in Key Vault.	No
For ServiceAuthentication:
email	The service account email ID that is used for ServiceAuthentication and can only be used on self-hosted IR.	No
privateKey	The service private key that is used for ServiceAuthentication for recommended driver version and can only be used on self-hosted IR. You can choose to mark this field as a SecureString to store it securely, or store password in Azure Key Vault and let the copy activity pull from there when performing data copy - learn more from Store credentials in Key Vault.	No
For ServiceAuthentication using the legacy driver version:
email	The service account email ID that is used for ServiceAuthentication and can only be used on self-hosted IR.	No
keyFilePath	The full path to the .p12 or .json key file that is used to authenticate the service account email address and can only be used on self-hosted IR.	No
trustedCertPath	The full path of the .pem file containing trusted CA certificates for verifying the server when connecting over TLS. This property can only be set when using TLS on self-hosted IR. The default value is the cacerts.pem file installed with the IR.	No
useSystemTrustStore	Specifies whether to use a CA certificate from the system trust store or from a specified PEM file. The default value is false.	No

Example:

JSON

{
    "name": "GoogleAdsLinkedService",
    "properties": {
        "type": "GoogleAdWords",
        "typeProperties": {
            "clientCustomerID": "<clientCustomerID>",
            "loginCustomerID": "<loginCustomerID>",
            "developerToken": {
                "type": "SecureString",
                "value": "<developerToken>"
            },
            "authenticationType": "UserAuthentication",
            "refreshToken": {
                "type": "SecureString",
                "value": "<refreshToken>"
            },
            "clientId": {
                "type": "SecureString",
                "value": "<clientId>"
            },
            "clientSecret": {
                "type": "SecureString",
                "value": "<clientSecret>"
            },
            "googleAdsApiVersion": "v14"
        }
    }
}

Dataset properties

For a full list of sections and properties available for defining datasets, see the datasets article. This section provides a list of properties supported by Google Ads dataset.

To copy data from Google Ads, set the type property of the dataset to GoogleAdWordsObject. The following properties are supported:

Property	Description	Required
type	The type property of the dataset must be set to: GoogleAdWordsObject	Yes
tableName	Name of the table. Specify this property when you use the legacy driver version.	No (if "query" in activity source is specified)

Example

JSON

{
    "name": "GoogleAdsDataset",
    "properties": {
        "type": "GoogleAdWordsObject",
        "typeProperties": {},
        "schema": [],
        "linkedServiceName": {
            "referenceName": "<GoogleAds linked service name>",
            "type": "LinkedServiceReference"
        }
    }
}

Copy activity properties

For a full list of sections and properties available for defining activities, see the Pipelines article. This section provides a list of properties supported by Google Ads source.

Google Ads as source

To copy data from Google Ads set the source type in the copy activity to GoogleAdWordsSource. The following properties are supported in the copy activity source section:

Property	Description	Required
type	The type property of the copy activity source must be set to: GoogleAdWordsSource	Yes
query	Use the GAQL query to read data. For example: SELECT campaign.id FROM campaign.	No (if "tableName" in dataset is specified)

Example:

JSON

"activities":[
    {
        "name": "CopyFromGoogleAds",
        "type": "Copy",
        "inputs": [
            {
                "referenceName": "<GoogleAds input dataset name>",
                "type": "DatasetReference"
            }
        ],
        "outputs": [
            {
                "referenceName": "<output dataset name>",
                "type": "DatasetReference"
            }
        ],
        "typeProperties": {
            "source": {
                "type": "GoogleAdWordsSource",
                "query": "SELECT campaign.id FROM campaign"
            },
            "sink": {
                "type": "<sink type>"
            }
        }
    }
]

Lookup activity properties

To learn details about the properties, check Lookup activity.

Upgrade the Google Ads driver version

To upgrade your Google Ads driver version, you need update your linked service and learn how to migrate from SQL to Google Ads Query Language (GAQL).

Update the linked service configuration

In Edit linked service page, select Recommended under Driver version and configure the linked service by referring to Linked service properties.

Migrate from SQL to GAQL

Convert your query statements and field names when migrating from SQL to GAQL.

Query statements

If you use SQL query in the copy activity source or the lookup activity that refers to the legacy Google Ads linked service, you need to update them to GAQL query.

In contrast to SQL, the query in GAQL is made up of six kinds of clauses:

• SELECT
• FROM
• WHERE
• ORDER BY
• LIMIT
• PARAMETERS

Go to Google Ads Query Language Grammar for the introduction of GAQL.

Take the following SQL statement as an example:

SELECT *|FieldName FROM ResourceName WHERE FieldName Operator Value

You can follow the guidance below to convert the SQL statement to the corresponding GAQL statement:

1. If * (asterisk) is used after the SELECT clause, then you need to specify all the required fields in place of the asterisk as GAQL doesn't support SELECT *. Go to this article to see all the selectable fields in the specific resource.
2. If the field name is used after the SELECT clause, then you need to convert the name to the corresponding field name in GAQL as they have different naming conventions. For example, the field name campaign_id in SQL query statement should be converted to campaign.id in GAQL. See Field name for more details on field name conversion.
3. The resource name can be left as it is unless its case is inconsistent with what is specified here.
4. WHERE clause should be updated according to the GAQL grammar as the operators supported by GAQL are not consistent with SQL, and field name should also be converted as described in the second point.

Here are two very useful tools offered by Google and they are highly recommended when building the corresponding GAQL query statements:

• Interactive GAQL query builder
• GAQL query validator

Field name

The field name used in SQL is not aligned with GAQL. You also need to learn the conversion rules from field names in SQL to field names in GAQL. The conversion rule can be summarized as follows:

• If the field name belongs to a resource, the underscore (_) in SQL will be changed to dot (.) in GAQL. And for the words between the dot, the camelCase type statement used in SQL will be changed to standalone words with added underscores in between. The first string of type PascalCase in SQL will be changed to the corresponding resource name in GAQL.

• If the field name belongs to segments or metrics, the prefix segments. or metrics. should be added in GAQL, then follow the same rule as described in the first point to convert the name.

Here are the concrete examples of the field name conversion:

Category	Field names in SQL	Field names in GAQL
Resource fields	Campaign_startDate	campaign.start_date
Resource fields	Customer_conversionTrackingSetting_conversionTrackingStatus	customer.conversion_tracking_setting.conversion_tracking_status
Segments	DayOfWeek	segments.day_of_week
Metrics	VideoViews	metrics.video_views

Differences between Google Ads using the recommended and the legacy driver version

The table below shows the feature differences between Google Ads using the recommended and the legacy driver version.

Recommended driver version	Legacy driver version
Specifying Google Ads API version is supported.	Specifying Google Ads API version is not supported.
ServiceAuthentication supports two properties:   • email   • privateKey	ServiceAuthentication supports four properties:   • email   • keyFilePath   • trustedCertPath   • useSystemTrustStore
Selecting a table in a dataset is not supported.	Support selecting a table in a dataset and querying the table in copy activities.
Support GAQL syntax as the query language.	Support SQL syntax as the query language.
The output column names are the same as the field names defined in Google Ads.	The output column names don't match the field names defined in Google Ads.
The following mappings are used from Google Ads data types to interim data types used by the service internally. float -> float int32 -> int int64 -> long	The following mappings are used from Google Ads data types to interim data types used by the service internally. float -> string int32 -> string int64 -> string

Upgrade Google AdWords connector to Google Ads connector

Upgrade your Google AdWords linked service to the latest Google Ads linked service following the steps below:

1. Select Recommended as driver version to create a new Google Ads linked service and configure it by referring to Linked service properties.

2. Update your pipelines that refer to the legacy Google AdWords linked service. Considering that the Google Ads linked service only supports using query to copy data, so:

   1. If your pipeline is directly retrieving data from the report of Google AdWords, find the corresponding resource name of Google Ads in the table below and use this tool to build the query.

      Google AdWords report	Google Ads resource
      ACCOUNT_PERFORMANCE_REPORT	customer
      AD_PERFORMANCE_REPORT	ad_group_ad
      ADGROUP_PERFORMANCE_REPORT	ad_group
      AGE_RANGE_PERFORMANCE_REPORT	age_range_view
      AUDIENCE_PERFORMANCE_REPORT	campaign_audience_view,ad_group_audience_view
      AUTOMATIC_PLACEMENTS_PERFORMANCE_REPORT	group_placement_view
      BID_GOAL_PERFORMANCE_REPORT	bidding_strategy
      BUDGET_PERFORMANCE_REPORT	campaign_budget
      CALL_METRICS_CALL_DETAILS_REPORT	call_view
      CAMPAIGN_AD_SCHEDULE_TARGET_REPORT	ad_schedule_view
      CAMPAIGN_CRITERIA_REPORT	campaign_criterion
      CAMPAIGN_PERFORMANCE_REPORT	campaign
      CAMPAIGN_SHARED_SET_REPORT	campaign_shared_set
      CAMPAIGN_LOCATION_TARGET_REPORT	location_view
      CLICK_PERFORMANCE_REPORT	click_view
      DISPLAY_KEYWORD_PERFORMANCE_REPORT	display_keyword_view
      DISPLAY_TOPICS_PERFORMANCE_REPORT	topic_view
      GENDER_PERFORMANCE_REPORT	gender_view
      GEO_PERFORMANCE_REPORT	geographic_view,user_location_view
      KEYWORDLESS_QUERY_REPORT	dynamic_search_ads_search_term_view
      KEYWORDS_PERFORMANCE_REPORT	keyword_view
      LABEL_REPORT	label
      LANDING_PAGE_REPORT	landing_page_view,expanded_landing_page_view
      PAID_ORGANIC_QUERY_REPORT	paid_organic_search_term_view
      PARENTAL_STATUS_PERFORMANCE_REPORT	parental_status_view
      PLACEHOLDER_FEED_ITEM_REPORT	feed_item,feed_item_target
      PLACEHOLDER_REPORT	feed_placeholder_view
      PLACEMENT_PERFORMANCE_REPORT	managed_placement_view
      PRODUCT_PARTITION_REPORT	product_group_view
      SEARCH_QUERY_PERFORMANCE_REPORT	search_term_view
      SHARED_SET_CRITERIA_REPORT	shared_criterion
      SHARED_SET_REPORT	shared_set
      SHOPPING_PERFORMANCE_REPORT	shopping_performance_view
      TOP_CONTENT_PERFORMANCE_REPORT	No longer available in the Google Ads API.
      URL_PERFORMANCE_REPORT	detail_placement_view
      USER_AD_DISTANCE_REPORT	distance_view
      VIDEO_PERFORMANCE_REPORT	video

3. Be aware that there are certain limitations with this upgrade:

   1. Not all report types from AWQL are supported in GAQL.
   2. Not all AWQL queries are cleanly translated to GAQL queries.

Related content

For a list of data stores supported as sources and sinks by the copy activity, see supported data stores.
