Azure Virtual Network

Question

How do I setup a virtual network?

Answer 1

Hei @Anonymous ,

Thank you for contacting Microsoft Q and A.

As I understand you want to know how to create an Azure Virtual network.

Here is a tutorial with instructions and prerequisites to create an Azure Virtual network. Quickstart: Use the Azure portal to create a virtual network

Additionally, here is a link to understanding what is an Azure virtual network is and how can be used. What is Azure Virtual Network and how to use it effectively?

Please mark it as an answer if helped.

Answer 2

@Abdi, Sohail

You can set up a virtual network in Azure using the Azure portal. Here are the steps:

Sign into the Azure portal: Go to the Azure portal (https://portal.azure.com/) and sign in with your Azure account.

Create a new virtual network: In the Azure portal, click "Create a resource" and search for "Virtual network". Select "Virtual network" from the search results and click "Create".

Configure the virtual network: In the "Basics" tab, enter a name for the virtual network and select the subscription and resource group where you want to create the virtual network. Choose the region where you want to deploy the virtual network.

Configure the address space: In the "Address space" section, enter the IP address range for the virtual network. This is the range of IP addresses that will be used by virtual machines and other resources in the virtual network.

Configure the subnet: In the "Subnet" section, enter a name for the subnet and specify the IP address range for the subnet. This is the range of IP addresses that will be used by the virtual machines and other resources in the subnet.

Configure the security: In the "Security" section, configure the network security group (NSG) for the virtual network. An NSG is a set of firewall rules that control inbound and outbound traffic to and from the virtual network.

Review and create the virtual network: Review the settings for the virtual network and click "Create" to create the virtual network.

Once you've created the virtual network, you can add virtual machines and other resources to the network. You can also configure peering between virtual networks to allow resources in different virtual networks to communicate with each other.

If this does answer your question, please accept it as the answer as a token of appreciation.

Answer 3

Hi,

i am not sure if the original question is related to exactly my issue but i am unable to create a virtual machine in the sandbox for the "Describe the core architectural components of Azure" module.

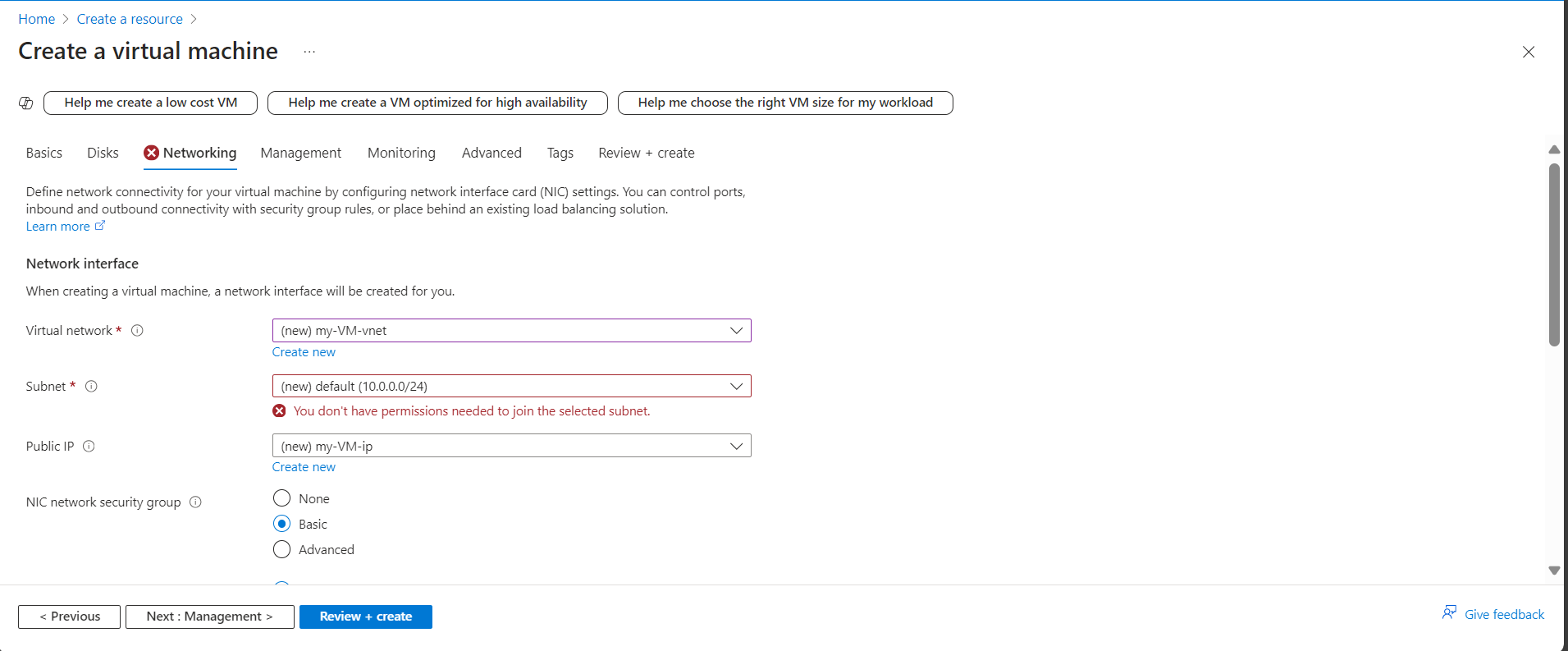

On step 7/9 Exercise "Exercise - Create an Azure resource" you do net get all the information needed to complete the task. I found this thread https://learn.microsoft.com/en-us/answers/questions/1276849/validation-failed-creating-virtual-machine which shows some additional information for configuring the Networking tab but when i tried it, i got the following error.

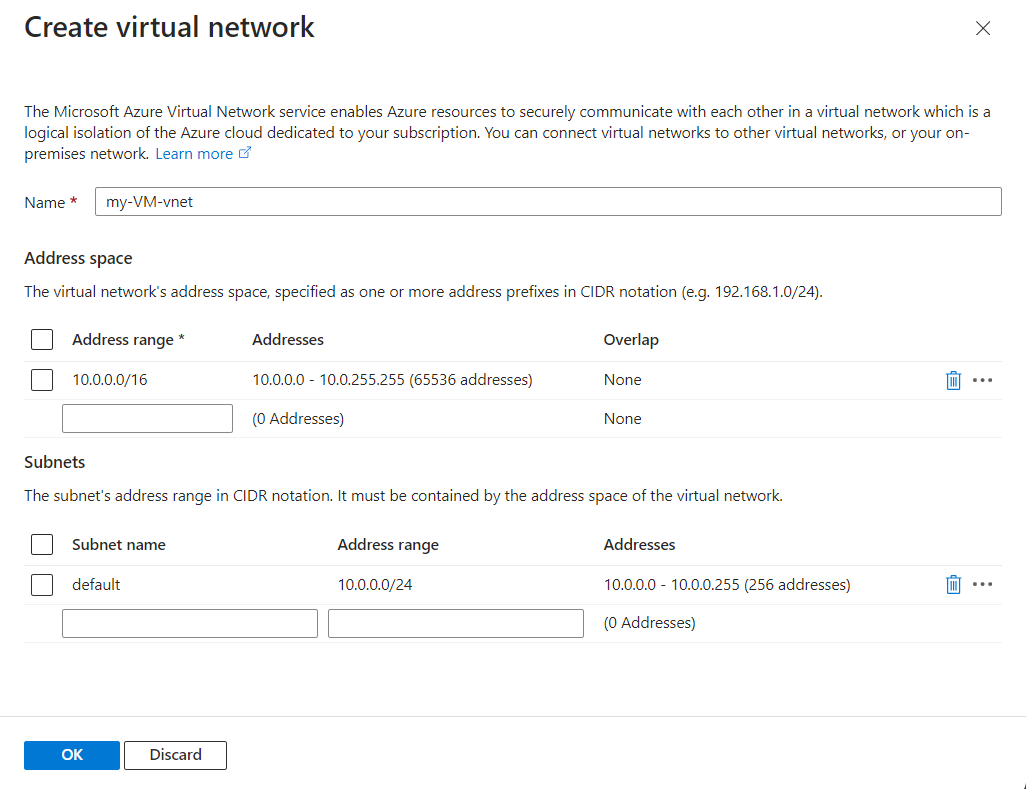

Since i didnt have a vitual network i clicked the Create new which opened the following side panel:

If you need any additional information feel free to tell me and i will try to provide it otherwise thanks in advance.
