ResourceDeploymentFailure deploying Virtual Network Gateway

Question

ResourceDeploymentFailure deploying Virtual Network Gateway

Marcin van de Ven 110

I am trying to deploy a Virtual Netwerk Gateway on the West-Europe region. However the operation fails. The operation gives the following error code:

{
  "code": "VmssGatewayDeploymentFailed",
  "message": "The gateway deployment operation failed due to an intermittent error. Please try again.",
  "details": []
}

The error notification doesn't give more context, except for pointing at the deployment resources:

{
  "code": "DeploymentFailed",
  "target": "/subscriptions/<subscriptionID>/resourceGroups/<resourceGroupID>/providers/Microsoft.Resources/deployments/Microsoft.VirtualNetworkGateway-20231212120304",
  "message": "At least one resource deployment operation failed. Please list deployment operations for details. Please see https://aka.ms/arm-deployment-operations for usage details.",
  "details": [
    {
      "code": "ResourceDeploymentFailure",
      "target": "/subscriptions/<subscriptionID>/resourceGroups/<resourceGroupID>/providers/Microsoft.Network/virtualNetworkGateways/<gatewayName>",
      "message": "The resource write operation failed to complete successfully, because it reached terminal provisioning state 'Failed'."
    }
  ]
}

It only states: "reached terminal provisioning state 'Failed'." Unfortunately this does not give any context at all why it reached this state.

The Virtual Gateway does appear on the resource list with a "failed" indication above the toolbars. Going into the activity log I manage to find that only the "provisioningState" of the "ipConfigurations" is changed from "updating" to "failed".

Deploying the Virtual Network Gateway on another Virtual Network in the Central West Germany region does seem to work. Searching on the internet only gives a GitHub-issue from 2022 mentioning this is an internal server error at the specific Azure region. However, the West Europe region seems to be completely healthy when looking into the status pages and health dashboards.

How can I solve this error?

KapilAnanth 49,866 Reputation points Moderator

2023-12-12T12:04:27.01+00:00
@Marcin van de Ven

Can you please try this again and let us know if the issue prevails? (using the same VNET)

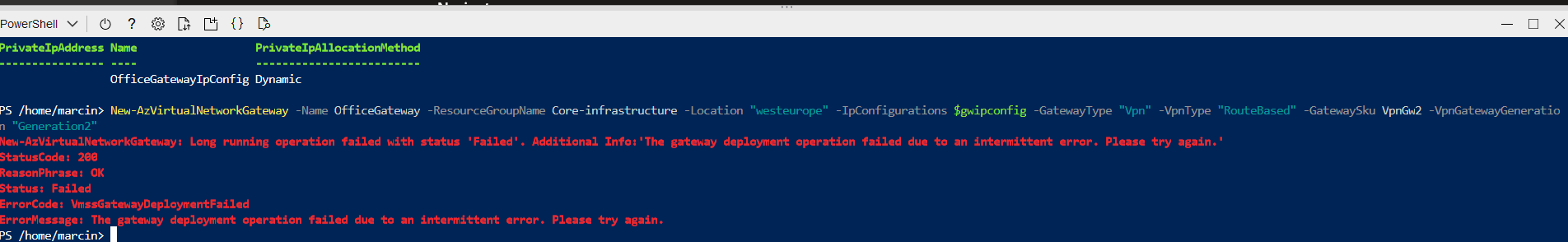

Can you try deploying using Azure Powershell or Azure CLI and let us know if that works.

Cheers,

Kapil
Marcin van de Ven 110 Reputation points

2023-12-12T12:52:48.78+00:00

Unfortunately, both suggestions did not help, and are giving the same error. Please can you check that "West Europe" is indeed healthy as stated, since it did work in another zone this morning.
KapilAnanth 49,866 Reputation points Moderator

2023-12-14T04:55:05.29+00:00

@Marcin van de Ven

I checked this internally and I could find any emerging issue.

In case the issue prevails, we will need a specialized 1:1 session, where a support engineer can have a screen share session to pinpoint the issue.

If you have a support plan you may file a support ticket, else please do let us know, we will try and help you get a one-time free technical support.

Cheers,

Kapil
Torben Udengaard 0 Reputation points

2023-12-15T13:07:23.01+00:00

I have the same issue in West Europe. It works in North Europe. Any solution for the issue?
KapilAnanth 49,866 Reputation points Moderator

2023-12-15T13:10:09.2566667+00:00

Torben Udengaard

Chances are it was failing due to capacity issue in West Europe.

However, it will depend on your subscription.

So if you are facing such issues, please file a support ticket.

Cheers,

Kapil
Torben Udengaard 0 Reputation points

2023-12-15T13:23:58.0566667+00:00

Thanks for reply, I will contact support
Atul Patel 0 Reputation points

2024-01-09T11:47:36.3366667+00:00

Same issue here deploying in West Europe. Will test out a less popular region to see if that works.
Ivan Atov 0 Reputation points

2024-01-12T11:37:54.5266667+00:00

We are having the same issue in West Europe.
KapilAnanth 49,866 Reputation points Moderator

2024-01-12T17:08:59.0166667+00:00

Atul Patel, Ivan Atov As mentioned above, this could be because of Quota exhaustion for your subscriptions. Please reach out to Azure Support to check this. Cheers, Kapil
Torben Udengaard 0 Reputation points

2024-01-16T08:28:24.11+00:00

Have raised a ticket to our CSP partner and they returned that there is a capacity issues in WEU. When do you expect that to be solved?
KapilAnanth 49,866 Reputation points Moderator

2024-01-16T09:46:19.23+00:00

Torben Udengaard , The Azure Support Team would have given an approximate RCA to the CSP admin that opened the support incident. Please follow up with Azure Support to increase quota for your subscription. Cheers, Kapil
Torben Udengaard 0 Reputation points

2024-01-16T09:58:12.86+00:00

Thanks - I will try that Br Torben
JansenJoost-4391 0 Reputation points

2024-01-18T08:58:20.92+00:00

We are facing the same issues. According to support there are capacity issues in West Europe. No ETA is known when it will be fixed. Workaround is to deploy in different region, but that is unacceptable in our case.

1 answer

Your answer

KapilAnanth 49,866 Reputation points Moderator

2023-12-12T12:04:27.01+00:00

@Marcin van de Ven

Can you please try this again and let us know if the issue prevails? (using the same VNET)

Can you try deploying using Azure Powershell or Azure CLI and let us know if that works.

Cheers,

Kapil
Marcin van de Ven 110 Reputation points

2023-12-12T12:52:48.78+00:00

Unfortunately, both suggestions did not help, and are giving the same error. Please can you check that "West Europe" is indeed healthy as stated, since it did work in another zone this morning.
KapilAnanth 49,866 Reputation points Moderator

2023-12-14T04:55:05.29+00:00

@Marcin van de Ven

I checked this internally and I could find any emerging issue.

In case the issue prevails, we will need a specialized 1:1 session, where a support engineer can have a screen share session to pinpoint the issue.

If you have a support plan you may file a support ticket, else please do let us know, we will try and help you get a one-time free technical support.

Cheers,

Kapil
Torben Udengaard 0 Reputation points

2023-12-15T13:07:23.01+00:00

I have the same issue in West Europe. It works in North Europe. Any solution for the issue?
KapilAnanth 49,866 Reputation points Moderator

2023-12-15T13:10:09.2566667+00:00

Torben Udengaard

Chances are it was failing due to capacity issue in West Europe.

However, it will depend on your subscription.

So if you are facing such issues, please file a support ticket.

Cheers,

Kapil
Torben Udengaard 0 Reputation points

2023-12-15T13:23:58.0566667+00:00

Thanks for reply, I will contact support
Atul Patel 0 Reputation points

2024-01-09T11:47:36.3366667+00:00

Same issue here deploying in West Europe. Will test out a less popular region to see if that works.
Ivan Atov 0 Reputation points

2024-01-12T11:37:54.5266667+00:00

We are having the same issue in West Europe.
KapilAnanth 49,866 Reputation points Moderator

2024-01-12T17:08:59.0166667+00:00

Atul Patel, Ivan Atov As mentioned above, this could be because of Quota exhaustion for your subscriptions. Please reach out to Azure Support to check this. Cheers, Kapil
Torben Udengaard 0 Reputation points

2024-01-16T08:28:24.11+00:00

Have raised a ticket to our CSP partner and they returned that there is a capacity issues in WEU. When do you expect that to be solved?
KapilAnanth 49,866 Reputation points Moderator

2024-01-16T09:46:19.23+00:00

Torben Udengaard , The Azure Support Team would have given an approximate RCA to the CSP admin that opened the support incident. Please follow up with Azure Support to increase quota for your subscription. Cheers, Kapil
Torben Udengaard 0 Reputation points

2024-01-16T09:58:12.86+00:00

Thanks - I will try that Br Torben
JansenJoost-4391 0 Reputation points

2024-01-18T08:58:20.92+00:00

We are facing the same issues. According to support there are capacity issues in West Europe. No ETA is known when it will be fixed. Workaround is to deploy in different region, but that is unacceptable in our case.

Answer 1

I am getting this when using the portal

{

"code": "DeploymentFailed",

"target": "/subscriptions/0110ecd5-a1a1-4913-a99e-c845b99a6a19/resourceGroups/VirtualNetworksRG/providers/Microsoft.Resources/deployments/test-1771264570727",

"message": "At least one resource deployment operation failed. Please list deployment operations for details. Please see https://aka.ms/arm-deployment-operations for usage details.",

"details": [

{

  "code": "BadRequest",

  "message": "<!DOCTYPE HTML PUBLIC \"-//W3C//DTD HTML 4.01//EN\"\"http://www.w3.org/TR/html4/strict.dtd\">\r\n<HTML><HEAD><TITLE>Bad Request</TITLE>\r\n<META HTTP-EQUIV=\"Content-Type\" Content=\"text/html; charset=us-ascii\"></HEAD>\r\n<BODY><h2>Bad Request - Request Too Long</h2>\r\n<hr><p>HTTP Error 400. The size of the request headers is too long.</p>\r\n</BODY></HTML>\r\n"

}

]

}
