REAGENTC.EXE: Unable to update Boot Configuration Data.

Question

I am unable to enable WindowsRE?

Answer 1

(1) You've got two System partitions each with its own BCD. C partition is doubling as a System partition, & EFI is a System partition...

That is likely what is confusing ReagentC. It needs to find the BCD in order to enable the Recovery partition. We need to tell Windows that EFI is to be used -- not C. Let's try this...

DiskPart<<<Enter DiskPart

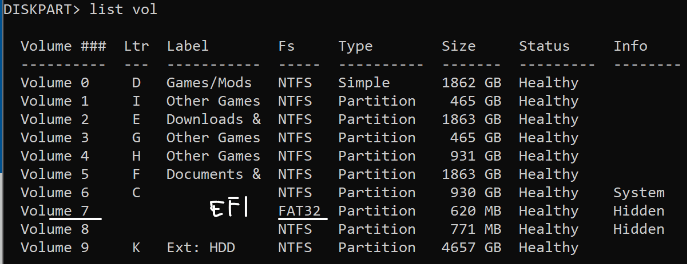

List  Vol<<<List the volumes & letters

Select  Vol  7           <<<Select EFI -- I guess it's still Volume 7

Assign  Letter=S     <<<Give it letter S -- unless List Vol shows it's already there

Exit<<<Exit Diskpart

BCDBoot  C:\Windows  /s  S:  /f  UEFI <<< **** Rebuild the BCD in EFI & all other boot files.

A reboot will be necessary to inform the rest of Windows of the change.

(a) I'm unsure that actually tells Windows to use EFI.

(b) I'm unsure whether that will also remove the System attribute from C.

(c) I'm unsure exactly what would remove it.

(d) So, maybe try this before the reboot...

REN C:\EFI EFI_unwanted <<<Rename the folder

..........................................................................

Then -- if it turns out it can't reboot -- you'll have to rename it back in the recovery environment, thus...

(a) At the Choose an Option screen, click "Troubleshoot > Advanced Options > Command Prompt".

(b) Enter the following commands...

DiskPart

List Vol

Exit

The Windows partition may have a different letter here. Use it instead of C in the following command...

REN C:\EFI_unwanted EFI <<<Rename it back

......................................................................

(2) After the reboot (presuming it did)...

Does BCDEdit /Enum {fwbootmgr} now show {bootmgr} on top?

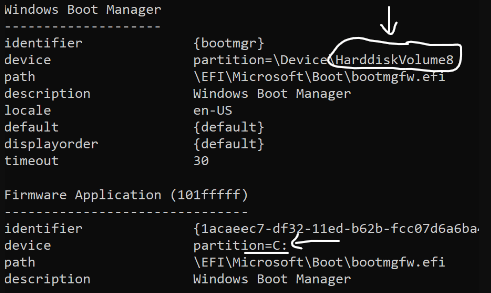

Does BCDEdit /Enum {Bootmgr} name either HarddiskVolume9 or S: as the Device?

If so, try again...

ReagentC /Disable <<<Moves WinRE.wim to staging area

ReagentC /Enable <<<Moves it to the Recovery partition

ReagentC /Info <<<Show whether it is enabled

If it isn't enabled, let's see C:\Windows\Logs\ReAgent\Reagent.log. Just copy/paste the output of those three commands from the bottom of the log.

(3) A volume is a partition that has a file system on it. The Volume numbers enumerated by DiskPart are not the same as the HarddiskVolume numbers enumerated in the BCD. The BCD counts all partitions (with or without a file system) starting from Disk 0. Disk Management won't show them all. DiskPart will show them, this way...

DiskPart <<<Enter DiskPart

List Disk <<<List your 8 disks

Select Disk 0 <<<Focus on Disk 0

List Part <<<List its partitions

Select Disk 1

List Part

=== Continue with Disks 2 through 7 ===

Exit <<<Leave DiskPart

Looking at your prior listings, I now think the 8th partition down will be C. And EFI will be partition 9. Disks 0-5 will have 1 partition each, then Disk 6 shows...

So -- HarddiskVolume8 is the Windows partition. (EFI is HarddiskVolume9). Yep, the BCD that is on C (shown with /Store) shows the letter...

The one that is on EFI (S:) shows...

We want the one on EFI (S:) to be the only one. Windows gets confused when there is more than one System partition.

Answer 2

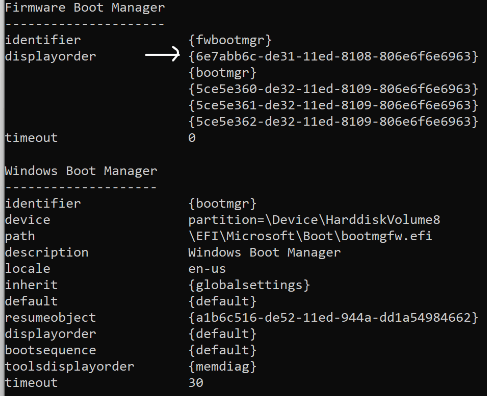

(1) Now that you've got a new BCD, show us: BCDEdit /Enum {fwbootmgr}

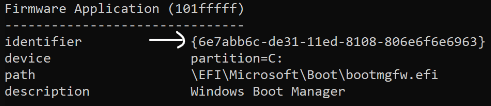

That is a window to the BIOS Boot Order screen. The earlier BCD showed BIOS was set to boot directly to C instead of to the Windows Boot Manager (bootmgr). A UEFI installation should always boot to the boot manager.

If it still looks like that, move {bootmgr} to the top of the Displayorder this way...

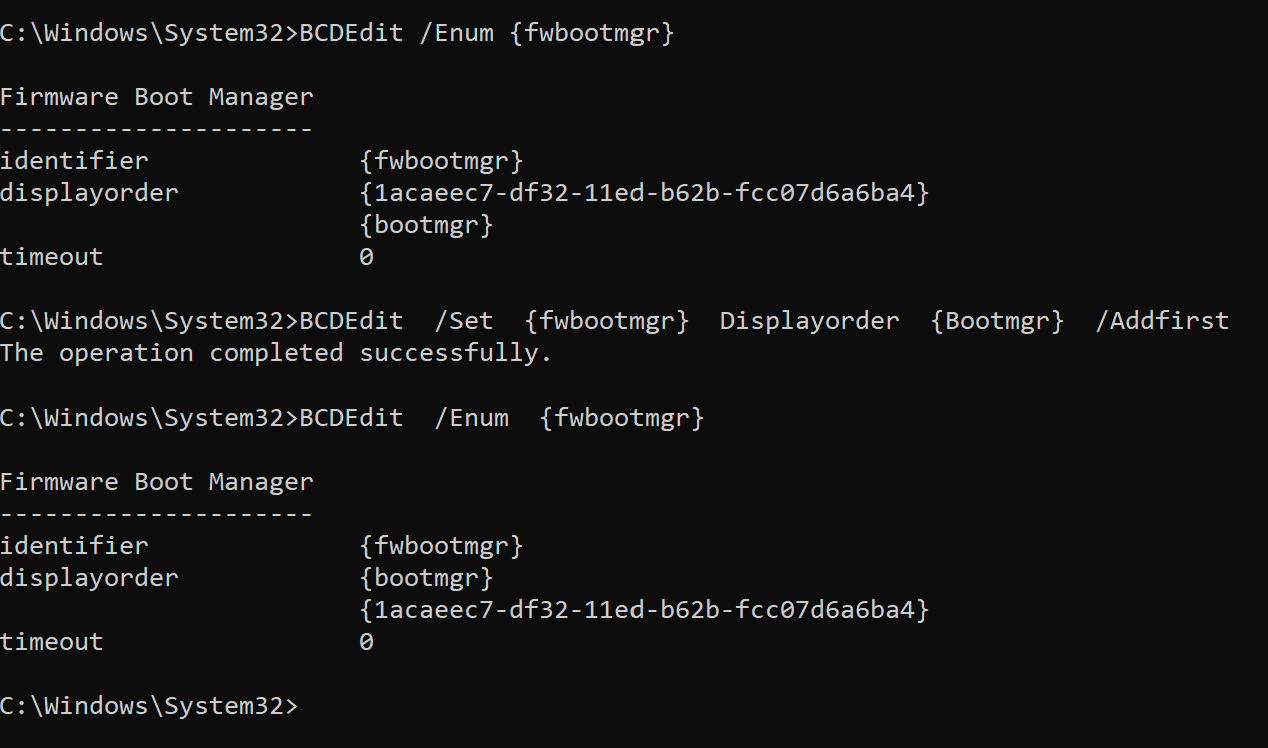

BCDEdit /Set {fwbootmgr} Displayorder {Bootmgr} /Addfirst

BCDEdit /Enum {fwbootmgr} <<<Confirm it has moved to the top

Reboot to put it into effect. It will automatically change in BIOS. Then show us the full BCD...

BCDEdit /Enum All

(2) Now try...

ReagentC /Disable <<<Moves WinRE.wim to staging area

ReagentC /Enable <<<Moves it to the Recovery partition

ReagentC /Info <<<Show whether it is enabled

If it isn't enabled, let's see C:\Windows\Logs\ReAgent\Reagent.log. Just copy/paste the output of those three commands from the bottom of the log.

Answer 3

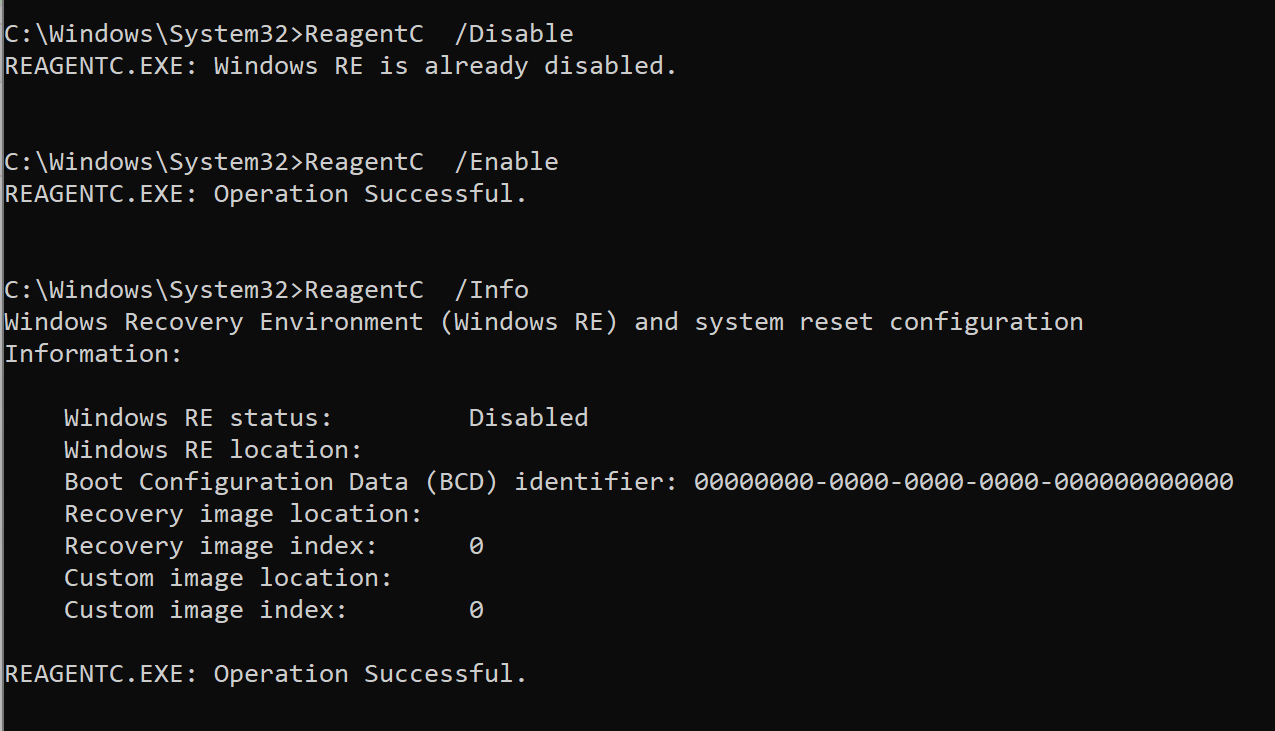

The above is before a reboot with those commands.
Below is after a reboot

Here is the log
https://gofile.io/d/h0wBxV
Edit- I feel like the identifier for the BCD shouldnt be all zeros? Is that a sign of something being broken?>

Answer 4

(1) No, the zero GUID /Info reported means none was found in the BCD for the Recovery partition.

(2) The log isn't at gofile that I can find. And I'm leery of connecting to a strange cloud storage other than OneDrive anyhow. Just copy/paste C:\Windows\Logs\ReAgent\Reagent.log into the Search bar. Copy out the three command's output from the bottom, then paste it here.

(3) That BCD /Set command moved {bootmgr} to the top of Displayorder where it does belong. I'm puzzled that it didn't remain there after a reboot.

(a) Are you sure it was a reboot -- not a shutdown, then boot? Those are normally different.

(b) I'm thinking (not really sure) you've got two BCDs. One is on HarddiskVolume8 which the {bootmgr} would use. That should be the EFI partition. The other is on C: which the direct boot to C: uses...

I think HarddiskVolume8 is indeed the EFI partition, otherwise {bootmgr} would also say C: is the device. Let's put a letter on EFI to access its BCD directly. EFI is the FAT32 partition...

DiskPart <<<Enter DiskPart

List Vol <<<Show the volume numbers & letters

Select Vol 7 <<<Focus on EFI -- IF it's still volume 7

Assign Letter=S <<<Give it letter S

Exit <<<Leave DiskPart

DIR C:\EFI\Microsoft\Boot\BCD /a <<<Is there one on C?

DIR S:\EFI\Microsoft\Boot\BCD /a <<<Is there one on S?

BCDEdit /Store C:\EFI\Microsoft\Boot\BCD /Enum {fwbootmgr} <<Show fwbootmgr

BCDEdit /Store C:\EFI\Microsoft\Boot\BCD <<<Show the boot manager & loader

BCDEdit /Store S:\EFI\Microsoft\Boot\BCD /Enum {fwbootmgr}

BCDEdit /Store S:\EFI\Microsoft\Boot\BCD

Let's do that investigation, then decide how to fix it.

Answer 5

2023-04-20 06:47:22, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:47:29, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:47:29, Info [ReAgentc.exe] -----Executing command line: reagentc /disable-----
2023-04-20 06:47:29, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:47:29, Info [ReAgentc.exe] Enter WinReUnInstall
2023-04-20 06:47:29, Info [ReAgentc.exe] Update enhanced config info is enabled.
2023-04-20 06:47:29, Warning [ReAgentc.exe] winreGetWinReGuid BcdOpenObject failed: 0xc0000034
2023-04-20 06:47:29, Info [ReAgentc.exe] winreGetWinReGuid returning 0X2
2023-04-20 06:47:29, Info [ReAgentc.exe] ReAgentConfig::ReadBcdAndUpdateEnhancedConfigInfo WinRE disabled, WinRE Guid could not be determined (0x2)
2023-04-20 06:47:29, Error [ReAgentc.exe] IOCTL_STORAGE_QUERY_PROPERTY failed: 0x1
2023-04-20 06:47:29, Info [ReAgentc.exe] Winre is already disabled, nothing to do here
2023-04-20 06:47:29, Warning [ReAgentc.exe] WinReUnInstall failed to uninstall (0x2) in file base\diagnosis\srt\reagent2\reagent\reagent.cpp line 1750
2023-04-20 06:47:29, Info [ReAgentc.exe] Exit WinReUnInstall returns 0 with last error: 0x2
2023-04-20 06:47:29, Error [ReAgentc.exe] WinReUnInstall failed: : 0x2
2023-04-20 06:47:29, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:47:29, Info [ReAgentc.exe] -----Exiting command line: reagentc /disable, Error: 2-----
2023-04-20 06:47:29, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:47:34, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:47:34, Info [ReAgentc.exe] -----Executing command line: reagentc /enable-----
2023-04-20 06:47:34, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:47:34, Info [ReAgentc.exe] Enter WinRECheckGuid
2023-04-20 06:47:34, Info [ReAgentc.exe] Parameter: TargetOsGuid: : NULL
2023-04-20 06:47:34, Warning [ReAgentc.exe] winreGetOSGuidOrDefault GetCurrentOsGuid returned 0x2
2023-04-20 06:47:34, Warning [ReAgentc.exe] (WinRE)WinRECheckGuid() winreGetOSGuidOrDefault failed
2023-04-20 06:47:34, Info [ReAgentc.exe] Exit WinRECheckGuid return error code: 0x0
2023-04-20 06:47:34, Info [ReAgentc.exe] Enter WinReInstall
2023-04-20 06:47:34, Info [ReAgentc.exe] Parameter: ReInstallBecauseOfBitlocker: 0
2023-04-20 06:47:34, Info [ReAgentc.exe] --Install on target OS step 1: collect info like partition list, loading reagent.xml, source winre.wim and partition
2023-04-20 06:47:34, Error [ReAgentc.exe] IOCTL_STORAGE_QUERY_PROPERTY failed: 0x1
2023-04-20 06:47:34, Info [ReAgentc.exe] Enumerate and log all fixed partitions:
2023-04-20 06:47:34, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:47:34, Info [ReAgentc.exe] VolumeName: \?\Volume{6b1db9e0-e0cd-4b3c-bda7-7209191abc88}, PartitionName:
2023-04-20 06:47:34, Info [ReAgentc.exe] Partition number: 0, offset: 135266304, free space: 0, total space: 0
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskNumber:3, DiskSignature:0, NTFS:0, Mbr:0, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:47:34, Info [ReAgentc.exe] GPT partition GUID:: {00000000-0000-0000-0000-000000000000}
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskId: {00000000-0000-0000-0000-000000000000}
2023-04-20 06:47:34, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:47:34, Info [ReAgentc.exe] VolumeName: \?\Volume{3571fbbf-bac7-49b4-a9ef-f70d3359b39e}, PartitionName: \?\GLOBALROOT\device\harddisk6\partition3
2023-04-20 06:47:34, Info [ReAgentc.exe] Partition number: 3, offset: 998743474176, free space: 612810752, total space: 645922816
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskNumber:6, DiskSignature:0, NTFS:0, Mbr:0, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:47:34, Info [ReAgentc.exe] GPT partition GUID:: {C12A7328-F81F-11D2-BA4B-00A0C93EC93B}
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskId: {866B2729-4C6F-48B5-A501-61B04E6D6D23}
2023-04-20 06:47:34, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:47:34, Info [ReAgentc.exe] VolumeName: \?\Volume{60e8794a-9b00-918f-c9b3-e53fdd507489}, PartitionName: \?\GLOBALROOT\device\harddisk8\partition1
2023-04-20 06:47:34, Info [ReAgentc.exe] Partition number: 1, offset: 16384, free space: 0, total space: 6311936
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskNumber:8, DiskSignature:0, NTFS:1, Mbr:0, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:47:34, Info [ReAgentc.exe] GPT partition GUID:: {EBD0A0A2-B9E5-4433-87C0-68B6B72699C7}
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskId: {6AE96F95-20AA-DC74-422C-ADBDE915273B}
2023-04-20 06:47:34, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:47:34, Info [ReAgentc.exe] VolumeName: \?\Volume{10e2292e-545c-461d-b757-29e6d301a847}, PartitionName: \?\GLOBALROOT\device\harddisk7\partition2
2023-04-20 06:47:34, Info [ReAgentc.exe] Partition number: 2, offset: 16777216, free space: 4026781859840, total space: 5000928423936
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskNumber:7, DiskSignature:0, NTFS:1, Mbr:0, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:47:34, Info [ReAgentc.exe] GPT partition GUID:: {EBD0A0A2-B9E5-4433-87C0-68B6B72699C7}
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskId: {11D92676-230A-47A0-A355-2F81A86F3ECF}
2023-04-20 06:47:34, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:47:34, Info [ReAgentc.exe] VolumeName: \?\Volume{98742bc3-3a5f-4ad5-bba7-88c203eef8dd}, PartitionName: \?\GLOBALROOT\device\harddisk6\partition4
2023-04-20 06:47:34, Info [ReAgentc.exe] Partition number: 4, offset: 999393591296, free space: 92938240, total space: 808448000
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskNumber:6, DiskSignature:0, NTFS:1, Mbr:0, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:47:34, Info [ReAgentc.exe] GPT partition GUID:: {DE94BBA4-06D1-4D40-A16A-BFD50179D6AC}
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskId: {866B2729-4C6F-48B5-A501-61B04E6D6D23}
2023-04-20 06:47:34, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:47:34, Info [ReAgentc.exe] VolumeName: \?\Volume{2f72fe48-bd38-418e-b5ac-4af859a680b6}, PartitionName: \?\GLOBALROOT\device\harddisk6\partition2
2023-04-20 06:47:34, Info [ReAgentc.exe] Partition number: 2, offset: 17825792, free space: 263238090752, total space: 998724931584
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskNumber:6, DiskSignature:0, NTFS:1, Mbr:0, Active:0, Boot:1, BitlockerEnabled:0
2023-04-20 06:47:34, Info [ReAgentc.exe] GPT partition GUID:: {EBD0A0A2-B9E5-4433-87C0-68B6B72699C7}
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskId: {866B2729-4C6F-48B5-A501-61B04E6D6D23}
2023-04-20 06:47:34, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:47:34, Info [ReAgentc.exe] VolumeName: \?\Volume{1dddd0b0-0000-0000-0000-100000000000}, PartitionName: \?\GLOBALROOT\device\harddisk5\partition1
2023-04-20 06:47:34, Info [ReAgentc.exe] Partition number: 1, offset: 1048576, free space: 967488057344, total space: 2000396742656
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskNumber:5, DiskSignature:501076144, NTFS:1, Mbr:1, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:47:34, Info [ReAgentc.exe] MBR partition id: 0x7
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskId: {00000000-0000-0000-0000-000000000000}
2023-04-20 06:47:34, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:47:34, Info [ReAgentc.exe] VolumeName: \?\Volume{28f5cdd4-4bd5-4265-b7fb-028f521e9def}, PartitionName: \?\GLOBALROOT\device\harddisk4\partition1
2023-04-20 06:47:34, Info [ReAgentc.exe] Partition number: 1, offset: 1048576, free space: 155485822976, total space: 1000203087872
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskNumber:4, DiskSignature:0, NTFS:1, Mbr:0, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:47:34, Info [ReAgentc.exe] GPT partition GUID:: {EBD0A0A2-B9E5-4433-87C0-68B6B72699C7}
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskId: {832502A8-60A0-11E7-AA13-F8461C8CD045}
2023-04-20 06:47:34, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:47:34, Info [ReAgentc.exe] VolumeName: \?\Volume{75fe20c6-0000-0000-0000-100000000000}, PartitionName: \?\GLOBALROOT\device\harddisk2\partition1
2023-04-20 06:47:34, Info [ReAgentc.exe] Partition number: 1, offset: 1048576, free space: 325269426176, total space: 500105736192
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskNumber:2, DiskSignature:1979588806, NTFS:1, Mbr:1, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:47:34, Info [ReAgentc.exe] MBR partition id: 0x7
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskId: {00000000-0000-0000-0000-000000000000}
2023-04-20 06:47:34, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:47:34, Info [ReAgentc.exe] VolumeName: \?\Volume{c09000af-a309-49ad-9c39-61a67c9da321}, PartitionName: \?\GLOBALROOT\device\harddisk1\partition2
2023-04-20 06:47:34, Info [ReAgentc.exe] Partition number: 2, offset: 16777216, free space: 138438397952, total space: 2000381014016
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskNumber:1, DiskSignature:0, NTFS:1, Mbr:0, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:47:34, Info [ReAgentc.exe] GPT partition GUID:: {EBD0A0A2-B9E5-4433-87C0-68B6B72699C7}
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskId: {79F7FFF8-BDA4-46FD-BD6D-87EE1B31C115}
2023-04-20 06:47:34, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:47:34, Info [ReAgentc.exe] VolumeName: \?\Volume{d891bdd1-0000-0000-0000-100000000000}, PartitionName: \?\GLOBALROOT\device\harddisk0\partition1
2023-04-20 06:47:34, Info [ReAgentc.exe] Partition number: 1, offset: 1048576, free space: 367921131520, total space: 500105736192
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskNumber:0, DiskSignature:-661537327, NTFS:1, Mbr:1, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:47:34, Info [ReAgentc.exe] MBR partition id: 0x7
2023-04-20 06:47:34, Info [ReAgentc.exe] DiskId: {00000000-0000-0000-0000-000000000000}
2023-04-20 06:47:34, Info [ReAgentc.exe] Get downlevel ReAgent config
2023-04-20 06:47:34, Info [ReAgentc.exe] Downlevel config file path: \Recovery\ReAgentOld.xml
2023-04-20 06:47:34, Info [ReAgentc.exe] Checking for downlevel WinRE installation.
2023-04-20 06:47:34, Info [ReAgentc.exe] DisableUpdateEnhancedConfigInfo
2023-04-20 06:47:34, Info [ReAgentc.exe] First round search
2023-04-20 06:47:34, Info [ReAgentc.exe] Get ReAgent config
2023-04-20 06:47:34, Info [ReAgentc.exe] GetReAgentConfig Config file path: C:\windows\system32\Recovery\ReAgent.xml
2023-04-20 06:47:34, Info [ReAgentc.exe] CheckRegKey test hook (SystemSetupInProgress) present and disabled
2023-04-20 06:47:34, Info [ReAgentc.exe] Update enhanced config info is enabled.
2023-04-20 06:47:34, Warning [ReAgentc.exe] winreGetWinReGuid BcdOpenObject failed: 0xc0000034
2023-04-20 06:47:34, Info [ReAgentc.exe] winreGetWinReGuid returning 0X2
2023-04-20 06:47:34, Info [ReAgentc.exe] ReAgentConfig::ReadBcdAndUpdateEnhancedConfigInfo WinRE disabled, WinRE Guid could not be determined (0x2)
2023-04-20 06:47:34, Info [ReAgentc.exe] FindWinReSourceImageAndPartition No source winre.wim was specified. Checking for a staged winre.wim.
2023-04-20 06:47:34, Info [ReAgentc.exe] FindWinReSourceImageAndPartition using winre.wim from \?\GLOBALROOT\device\harddisk6\partition2\Recovery\WindowsRE
2023-04-20 06:47:34, Info [ReAgentc.exe] --Install on target OS step 2: detect and fix if there is any issue for winre settings
2023-04-20 06:47:34, Info [ReAgentc.exe] DetectAndFixWinReIssues nothing to do because winre is not enabled.
2023-04-20 06:47:34, Info [ReAgentc.exe] --Install on target OS step 3: check if we can keep winre.wim in the same partition if it is staged.
2023-04-20 06:47:34, Info [ReAgentc.exe] CanKeepWinReOnSamePartitionIfStaged WinRE is staged. Checking that the staged partition is valid for WinRE.
2023-04-20 06:47:34, Info [ReAgentc.exe] MeetPartitionRequirements Partition details: {Offset: 17825792, Free space: 263238090752, Total space: 998724931584}
2023-04-20 06:47:34, Info [ReAgentc.exe] MeetPartitionRequirements WinRE WIM size: 700508256
2023-04-20 06:47:34, Info [ReAgentc.exe] MeetPartitionRequirements Required free space: 356515840
2023-04-20 06:47:34, Info [ReAgentc.exe] NOTE: Find target partition: source partition will used
2023-04-20 06:47:34, Info [ReAgentc.exe] --Install on target OS step 5: set WinRE settings and restore system to a good state when hitting any errors
2023-04-20 06:47:34, Info [ReAgentc.exe] Enter SetWinRESettings
2023-04-20 06:47:34, Info [ReAgentc.exe] RegLoadKey $OFFLINE$SYSTEM failed. Error: 0x522.
2023-04-20 06:47:34, Info [ReAgentc.exe] OEM partition, copying boot.sdi
2023-04-20 06:47:34, Info [ReAgentc.exe] boot.sdi copied
2023-04-20 06:47:34, Info [ReAgentc.exe] Creating BCD entry
2023-04-20 06:47:34, Error [ReAgentc.exe] BcdOpenObject failed: 0xc0000034
2023-04-20 06:47:34, Info [ReAgentc.exe] WinRE created BCD entry: : {00000000-0000-0000-0000-000000000000}
2023-04-20 06:47:34, Info [ReAgentc.exe] Updating reagent.xml
2023-04-20 06:47:34, Info [ReAgentc.exe] Set WinRE location path to: \Recovery\WindowsRE
2023-04-20 06:47:34, Info [ReAgentc.exe] Set recovery guid
2023-04-20 06:47:34, Info [ReAgentc.exe] Set scheduled operation: WinReNoOperation
2023-04-20 06:47:34, Info [ReAgentc.exe] Set OS build version: 22621.1.amd64fre.ni_release.220506-1250
2023-04-20 06:47:34, Info [ReAgentc.exe] Set Wimboot state: 0
2023-04-20 06:47:34, Info [ReAgentc.exe] Set install state to: enabled
2023-04-20 06:47:34, Info [ReAgentc.exe] Setting the recovery sequence for the target OS.
2023-04-20 06:47:34, Error [ReAgentc.exe] BcdOpenObject failed: 0xc0000034
2023-04-20 06:47:34, Warning [ReAgentc.exe] winreSetRecoverySequence failed to get id for current os (0xc0000034) in file base\diagnosis\srt\reagent2\reagent\bcdutil.cpp line 681
2023-04-20 06:47:34, Warning [ReAgentc.exe] winreSetRecoverySequencewinreSetRecoverySequence failed: 0xc0000034
2023-04-20 06:47:34, Info [ReAgentc.exe] BCD could not be set, Copying Winre.wim from to staging location
2023-04-20 06:47:34, Info [ReAgentc.exe] DisableUpdateEnhancedConfigInfo
2023-04-20 06:47:34, Info [ReAgentc.exe] winreCopyWIMBack moved WIM file from \?\GLOBALROOT\device\harddisk6\partition2\Recovery\WindowsRE\ to \?\GLOBALROOT\device\harddisk6\partition2\Recovery\WindowsRE\ successfully!
2023-04-20 06:47:34, Info [ReAgentc.exe] WinRE uninstall step 1 succeeded: copy WIM file back to its staging location
2023-04-20 06:47:34, Info [ReAgentc.exe] WinRE uninstall step 2 succeeded: update agent config for BCD id, install state, schedule operation.
2023-04-20 06:47:34, Error [ReAgentc.exe] BcdOpenStore failed for \Device\HarddiskVolume8\EFI\Microsoft\Recovery\BCD: 0xc000000f
2023-04-20 06:47:34, Error [ReAgentc.exe] Failed to open recovery BCD: 0x2
2023-04-20 06:47:34, Warning [ReAgentc.exe] Failed to unregister Winre.wim from recovery BCD: 0x2, not critical error and will be ignored.
2023-04-20 06:47:34, Info [ReAgentc.exe] WinRE uninstall step 3 succeeded: unregister winre.wim from recovery BCD.
2023-04-20 06:47:34, Error [ReAgentc.exe] BcdOpenObject filed: 0xc0000034
2023-04-20 06:47:34, Error [ReAgentc.exe] winreRemoveRecoveryEntryFromBCD failed: 0xc0000034
2023-04-20 06:47:34, Error [ReAgentc.exe] Failed to remove recovery entry from BCD: 0x0
2023-04-20 06:47:34, Info [ReAgentc.exe] WinRE uninstall step 4 succeeded: remove recovery related sequence from BCD.
2023-04-20 06:47:34, Info [ReAgentc.exe] Failed to clear WIM file trusted state: 0x2
2023-04-20 06:47:34, Info [ReAgentc.exe] Failed to clear WIM file hash: 0x2
2023-04-20 06:47:34, Info [ReAgentc.exe] WinRE uninstall step 5 completed with return value TRUE: remove validation task.
2023-04-20 06:47:34, Info [ReAgentc.exe] SetWinRESettings return with error code 0x0
2023-04-20 06:47:34, Info [ReAgentc.exe] WinReInstallOnTargetOSInternal WinRE installation completed successfully.
2023-04-20 06:47:34, Info [ReAgentc.exe] Exit WinReInstall return value: 1, last error: 0x0
2023-04-20 06:47:34, Info [ReAgentc.exe] Enter WinReSetConfig
2023-04-20 06:47:34, Info [ReAgentc.exe] Parameters: configWinDir: NULL
2023-04-20 06:47:34, Info [ReAgentc.exe] Update enhanced config info is enabled.
2023-04-20 06:47:34, Warning [ReAgentc.exe] winreGetWinReGuid BcdOpenObject failed: 0xc0000034
2023-04-20 06:47:34, Info [ReAgentc.exe] winreGetWinReGuid returning 0X2
2023-04-20 06:47:34, Info [ReAgentc.exe] ReAgentConfig::ReadBcdAndUpdateEnhancedConfigInfo WinRE disabled, WinRE Guid could not be determined (0x2)
2023-04-20 06:47:34, Error [ReAgentc.exe] IOCTL_STORAGE_QUERY_PROPERTY failed: 0x1
2023-04-20 06:47:34, Info [ReAgentc.exe] WinRE is not installed, nothing to back up
2023-04-20 06:47:34, Info [ReAgentc.exe] Exit WinReSetConfig return value: 1, last error: 0x0
2023-04-20 06:47:34, Info [ReAgentc.exe] Clear non critical error when enabling auto repair
2023-04-20 06:47:34, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:47:34, Info [ReAgentc.exe] -----Exiting command line: reagentc /enable, Error: 0-----
2023-04-20 06:47:34, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:47:38, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:47:38, Info [ReAgentc.exe] -----Executing command line: reagentc /info-----
2023-04-20 06:47:38, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:47:38, Info [ReAgentc.exe] Enter WinReGetConfig
2023-04-20 06:47:38, Info [ReAgentc.exe] Parameters: configWinDir: NULL
2023-04-20 06:47:38, Info [ReAgentc.exe] WinRE config file path: C:\windows\system32\Recovery\ReAgent.xml
2023-04-20 06:47:38, Info [ReAgentc.exe] Update enhanced config info is enabled.
2023-04-20 06:47:38, Warning [ReAgentc.exe] winreGetWinReGuid BcdOpenObject failed: 0xc0000034
2023-04-20 06:47:38, Info [ReAgentc.exe] winreGetWinReGuid returning 0X2
2023-04-20 06:47:38, Info [ReAgentc.exe] ReAgentConfig::ReadBcdAndUpdateEnhancedConfigInfo WinRE disabled, WinRE Guid could not be determined (0x2)
2023-04-20 06:47:38, Error [ReAgentc.exe] IOCTL_STORAGE_QUERY_PROPERTY failed: 0x1
2023-04-20 06:47:38, Info [ReAgentc.exe] WinRE is staged
2023-04-20 06:47:38, Info [ReAgentc.exe] Wim dir location: \?\GLOBALROOT\device\harddisk6\partition2\Recovery\WindowsRE
2023-04-20 06:47:38, Info [ReAgentc.exe] System is WimBoot: FALSE
2023-04-20 06:47:38, Info [ReAgentc.exe] Exit WinReGetConfig return value: 1, last error: 0x0
2023-04-20 06:47:38, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:47:38, Info [ReAgentc.exe] -----Exiting command line: reagentc /info, Error: 0-----
2023-04-20 06:47:38, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:53:16, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:53:16, Info [ReAgentc.exe] -----Executing command line: ReagentC /Disable-----
2023-04-20 06:53:16, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:53:16, Info [ReAgentc.exe] Enter WinReUnInstall
2023-04-20 06:53:16, Info [ReAgentc.exe] Update enhanced config info is enabled.
2023-04-20 06:53:16, Warning [ReAgentc.exe] winreGetWinReGuid BcdOpenObject failed: 0xc0000034
2023-04-20 06:53:16, Info [ReAgentc.exe] winreGetWinReGuid returning 0X2
2023-04-20 06:53:16, Info [ReAgentc.exe] ReAgentConfig::ReadBcdAndUpdateEnhancedConfigInfo WinRE disabled, WinRE Guid could not be determined (0x2)
2023-04-20 06:53:16, Error [ReAgentc.exe] IOCTL_STORAGE_QUERY_PROPERTY failed: 0x1
2023-04-20 06:53:16, Info [ReAgentc.exe] Winre is already disabled, nothing to do here
2023-04-20 06:53:16, Warning [ReAgentc.exe] WinReUnInstall failed to uninstall (0x2) in file base\diagnosis\srt\reagent2\reagent\reagent.cpp line 1750
2023-04-20 06:53:16, Info [ReAgentc.exe] Exit WinReUnInstall returns 0 with last error: 0x2
2023-04-20 06:53:16, Error [ReAgentc.exe] WinReUnInstall failed: : 0x2
2023-04-20 06:53:16, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:53:16, Info [ReAgentc.exe] -----Exiting command line: ReagentC /Disable, Error: 2-----
2023-04-20 06:53:16, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:53:21, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:53:21, Info [ReAgentc.exe] -----Executing command line: ReagentC /Enable-----
2023-04-20 06:53:21, Info [ReAgentc.exe] ------------------------------------------------------
2023-04-20 06:53:21, Info [ReAgentc.exe] Enter WinRECheckGuid
2023-04-20 06:53:21, Info [ReAgentc.exe] Parameter: TargetOsGuid: : NULL
2023-04-20 06:53:21, Warning [ReAgentc.exe] winreGetOSGuidOrDefault GetCurrentOsGuid returned 0x2
2023-04-20 06:53:21, Warning [ReAgentc.exe] (WinRE)WinRECheckGuid() winreGetOSGuidOrDefault failed
2023-04-20 06:53:21, Info [ReAgentc.exe] Exit WinRECheckGuid return error code: 0x0
2023-04-20 06:53:21, Info [ReAgentc.exe] Enter WinReInstall
2023-04-20 06:53:21, Info [ReAgentc.exe] Parameter: ReInstallBecauseOfBitlocker: 0
2023-04-20 06:53:21, Info [ReAgentc.exe] --Install on target OS step 1: collect info like partition list, loading reagent.xml, source winre.wim and partition
2023-04-20 06:53:21, Error [ReAgentc.exe] IOCTL_STORAGE_QUERY_PROPERTY failed: 0x1
2023-04-20 06:53:21, Info [ReAgentc.exe] Enumerate and log all fixed partitions:
2023-04-20 06:53:21, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:53:21, Info [ReAgentc.exe] VolumeName: \?\Volume{6b1db9e0-e0cd-4b3c-bda7-7209191abc88}, PartitionName:
2023-04-20 06:53:21, Info [ReAgentc.exe] Partition number: 0, offset: 135266304, free space: 0, total space: 0
2023-04-20 06:53:21, Info [ReAgentc.exe] DiskNumber:3, DiskSignature:0, NTFS:0, Mbr:0, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:53:21, Info [ReAgentc.exe] GPT partition GUID:: {00000000-0000-0000-0000-000000000000}
2023-04-20 06:53:21, Info [ReAgentc.exe] DiskId: {00000000-0000-0000-0000-000000000000}
2023-04-20 06:53:21, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:53:21, Info [ReAgentc.exe] VolumeName: \?\Volume{3571fbbf-bac7-49b4-a9ef-f70d3359b39e}, PartitionName: \?\GLOBALROOT\device\harddisk6\partition3
2023-04-20 06:53:21, Info [ReAgentc.exe] Partition number: 3, offset: 998743474176, free space: 612810752, total space: 645922816
2023-04-20 06:53:21, Info [ReAgentc.exe] DiskNumber:6, DiskSignature:0, NTFS:0, Mbr:0, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:53:21, Info [ReAgentc.exe] GPT partition GUID:: {C12A7328-F81F-11D2-BA4B-00A0C93EC93B}
2023-04-20 06:53:21, Info [ReAgentc.exe] DiskId: {866B2729-4C6F-48B5-A501-61B04E6D6D23}
2023-04-20 06:53:21, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:53:21, Info [ReAgentc.exe] VolumeName: \?\Volume{60e8794a-9b00-918f-c9b3-e53fdd507489}, PartitionName: \?\GLOBALROOT\device\harddisk8\partition1
2023-04-20 06:53:21, Info [ReAgentc.exe] Partition number: 1, offset: 16384, free space: 0, total space: 6311936
2023-04-20 06:53:21, Info [ReAgentc.exe] DiskNumber:8, DiskSignature:0, NTFS:1, Mbr:0, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:53:21, Info [ReAgentc.exe] GPT partition GUID:: {EBD0A0A2-B9E5-4433-87C0-68B6B72699C7}
2023-04-20 06:53:21, Info [ReAgentc.exe] DiskId: {6AE96F95-20AA-DC74-422C-ADBDE915273B}
2023-04-20 06:53:21, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:53:21, Info [ReAgentc.exe] VolumeName: \?\Volume{10e2292e-545c-461d-b757-29e6d301a847}, PartitionName: \?\GLOBALROOT\device\harddisk7\partition2
2023-04-20 06:53:21, Info [ReAgentc.exe] Partition number: 2, offset: 16777216, free space: 4026781859840, total space: 5000928423936
2023-04-20 06:53:21, Info [ReAgentc.exe] DiskNumber:7, DiskSignature:0, NTFS:1, Mbr:0, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:53:21, Info [ReAgentc.exe] GPT partition GUID:: {EBD0A0A2-B9E5-4433-87C0-68B6B72699C7}
2023-04-20 06:53:21, Info [ReAgentc.exe] DiskId: {11D92676-230A-47A0-A355-2F81A86F3ECF}
2023-04-20 06:53:21, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:53:21, Info [ReAgentc.exe] VolumeName: \?\Volume{98742bc3-3a5f-4ad5-bba7-88c203eef8dd}, PartitionName: \?\GLOBALROOT\device\harddisk6\partition4
2023-04-20 06:53:21, Info [ReAgentc.exe] Partition number: 4, offset: 999393591296, free space: 92938240, total space: 808448000
2023-04-20 06:53:21, Info [ReAgentc.exe] DiskNumber:6, DiskSignature:0, NTFS:1, Mbr:0, Active:0, Boot:0, BitlockerEnabled:0
2023-04-20 06:53:21, Info [ReAgentc.exe] GPT partition GUID:: {DE94BBA4-06D1-4D40-A16A-BFD50179D6AC}
2023-04-20 06:53:21, Info [ReAgentc.exe] DiskId: {866B2729-4C6F-48B5-A501-61B04E6D6D23}
2023-04-20 06:53:21, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:53:21, Info [ReAgentc.exe] VolumeName: \?\Volume{2f72fe48-bd38-418e-b5ac-4af859a680b6}, PartitionName: \?\GLOBALROOT\device\harddisk6\partition2
2023-04-20 06:53:21, Info [ReAgentc.exe] Partition number: 2, offset: 17825792, free space: 263297245184, total space: 998724931584
2023-04-20 06:53:21, Info [ReAgentc.exe] DiskNumber:6, DiskSignature:0, NTFS:1, Mbr:0, Active:0, Boot:1, BitlockerEnabled:0
2023-04-20 06:53:21, Info [ReAgentc.exe] GPT partition GUID:: {EBD0A0A2-B9E5-4433-87C0-68B6B72699C7}
2023-04-20 06:53:21, Info [ReAgentc.exe] DiskId: {866B2729-4C6F-48B5-A501-61B04E6D6D23}
2023-04-20 06:53:21, Info [ReAgentc.exe] --Partition info--
2023-04-20 06:53:21, Info [ReAgentc.exe] VolumeName: \?\Volume{1dddd0b0-0000-0000-0000-100000000000}, PartitionName: \?\GLOBALROOT\device\harddisk5\partition1
2023-04-20 06:53:21, Info [ReAgentc.exe] Partition number: 1, offset: 1048576, free space: 967488057344, total space: 2000396742656
2023-04-20 06:53:21, Info [ReAgentc.exe] DiskNumber:5, DiskSignature:501076144,
