Stop Code: Kernel_Security_Check_Failure

Anonymous
2022-12-28T15:02:21+00:00

Hello,

I have a Dell XPS 8930 running windows 11 upgrade from Windows 10. I am trying to clone the 2tb NVME drive to a 4tb NVME drive. I have tried several makes of cloning software and they all say the clone was successful, but the clone will not boot. I keep getting the Stop Code: Kernel_Security_Check_Failure. Then a quick screen shows "ROM Image is not loaded and ROM Image update denied. Then it goes through the Automatic repair process but says there are no hardware issues. All drivers and software are up to date. Virus scans are clean.

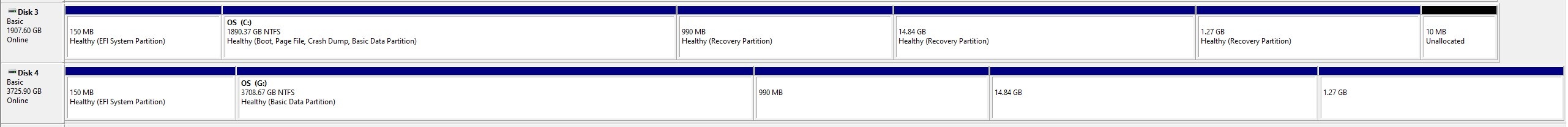

If I look at the drives in Disk Management, the OS cloned partition does not show Boot, Page File and Crash Dump as shown on the screen grab.

As stated above, I have tried different cloning software and they all give the same result. BSOD Kernel Security Check Failure.

I have tried to repair with a recovery usb. Nothing works and I have not found any solutions through Google :-(

Thank you in advance for your help.

Windows for home | Windows 11 | Install and upgrade

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments

19 answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Anonymous
    2023-01-14T18:11:41+00:00

    Hello Igor,

    I want to thank you again for your help in resolving my issue. This was not as easy as it should have been but that's how it goes when you don't know what you're doing...lol.

    It turns out, the issue was in the BIOS setting for SATA. I guess DELL defaults to RAID configuration and a DELL community member suggested to change that to AHCI. Before I made the BIOS change, I had returned the Gen4 drive and replaced it with a Gen3 as we had spoken about that possibly being an issue but, I ended up with the same error. Once I changed the BIOS to AHCI, I was able to do the clean install of Windows 11 and now all is good in the world...lol.

    Thanks again Igor!!!

    Best Regards,

    TZ

    Was this answer helpful?

    3 people found this answer helpful.
    0 comments
  2. Igor Leyko 111K Reputation points Independent Advisor
    2022-12-28T15:52:21+00:00

    Hi Toby,

    My name is Igor, it's a pleasure for me to help others and I'll do all my best to help you.

    What tool did you use for a cloning? Please try another tool.

    Was this answer helpful?

    1 person found this answer helpful.
    0 comments
  3. Anonymous
    2022-12-28T16:10:37+00:00

    Hi Igor,

    Thank you for your rapid response. The programs I used are Acronis Cyber Protect, both free and paid versions, Macrium Reflect (free) and AOMEI Backupper. They all returned the same result.

    Best Regards,

    Toby

    Was this answer helpful?

    0 comments
  4. Igor Leyko 111K Reputation points Independent Advisor
    2022-12-28T15:56:50+00:00

    And please tell what the new SSD model is and is it listed in Dell compatibility list or not.

    Was this answer helpful?

    0 comments
  5. Igor Leyko 111K Reputation points Independent Advisor
    2022-12-28T15:52:51+00:00

    Please share memory dump to OneDrive for analysis.

    https://answers.microsoft.com/en-us/windows/for...

    Was this answer helpful?

    0 comments
