VBA Macro for MS Project (Color Coded WBS)

Question

Hi,

Can someone help me with a code for color my WBS Font in MS Project similar to Primavera P6?

WBS Level 0-10

Regards

Fredrik

Answer 1

Fredrik,

Here's the updated macro and what it produces.

Sub HighlightSummaries_P6()
'Summary line color emulation P6 > Project
'macro written by John-Project 12/21/22
' Changed color sequence so first summary level is Project Summary Task 1/4/23
Dim i As Integer
ActiveProject.DisplayProjectSummaryTask = True
SelectAll
EditClearFormats
'set colors for Project Summary Task
SelectRow Row:=0
Font32Ex Color:=16777215, CellColor:=11892014 'R46.G117,B181
'Set colors for summary levels
For i = 1 To 19
FilterEdit Name:="OLX", Taskfilter:=True, create:=True, overwriteexisting:=True, _
FieldName:="summary", test:="equals", Value:="yes", ShowInMenu:=False
FilterEdit Name:="OLX", Taskfilter:=True, Operation:="and", _
NewFieldName:="outline level", test:="equals", Value:=CStr(i)
FilterApply Name:="OLX"
SelectAll
If ActiveSelection > 0 Then
'Note: Font32EX does not work with hex values
If i = 1 Then Font32Ex CellColor:=14062212 'R132,B146,B214
If i = 2 Then Font32Ex CellColor:=16354179 'R131,G139,B249
If i = 3 Then Font32Ex CellColor:=16776960 'R0,G255,B255
If i = 4 Then Font32Ex CellColor:=15058378 'R202.G197,B229
If i = 5 Then Font32Ex CellColor:=16119719 'R167,G247,B245
If i = 6 Then Font32Ex CellColor:=15048173 'R237,G157,B229
If i = 7 Then Font32Ex CellColor:=10223101 'R253,G253,B155
If i = 8 Then Font32Ex Color:=16777215, CellColor:=0 'R0,G0,B0
If i = 9 Then Font32Ex CellColor:=14211288 'R216,G216,B216
If i = 10 Then Font32Ex CellColor:=4690227 'R51,G145,B71
If i = 11 Then Font32Ex Color:=16777215, CellColor:=16260866 'R22,G22,B250
If i = 12 Then Font32Ex Color:=16777215, CellColor:=3497611 'R127,G84,B49
If i = 13 Then Font32Ex Color:=16777215, CellColor:=10027161 'R153,G0,B153
If i = 14 Then Font32Ex Color:=16777215, CellColor:=39423 'R255,G153,B0
If i = 15 Then Font32Ex Color:=16777215, CellColor:=12033691 'R163,G163,B193
If i = 16 Then Font32Ex Color:=16777215, CellColor:=42152 'R168,G164,B0
If i = 17 Then Font32Ex Color:=16777215, CellColor:=9211036 'R156,G140,B140
If i = 18 Then Font32Ex Color:=16777215, CellColor:=8689730 'R66,G153,B132
If i = 19 Then Font32Ex Color:=16777215, CellColor:=11701388 'R140,G140,B178
Else
Exit For
End If
Next i
FilterApply Name:="all tasks"
End Sub

John

Answer 2

Hi John,

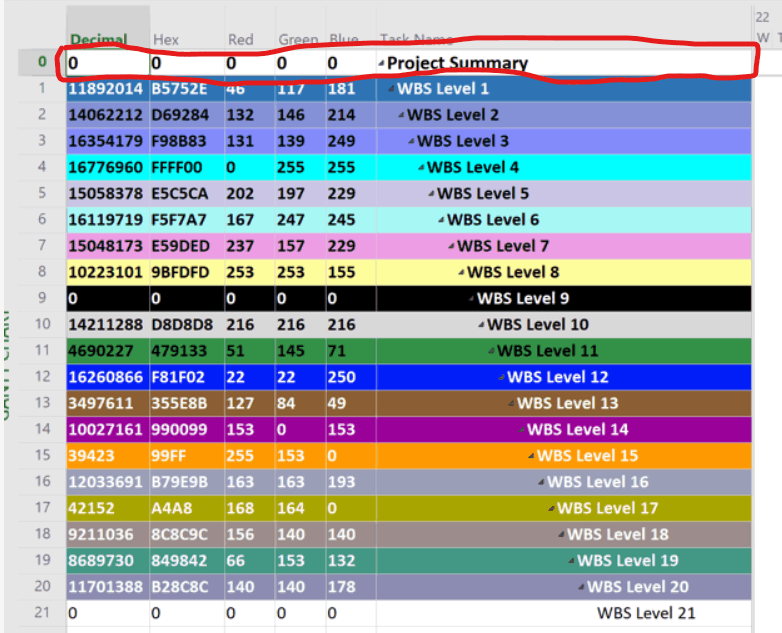

Is it possible to get WBS Level 0 also in colour?

I tried to explain this before that in Primavera the first activity starts with 1 and in MS Project start with 0. That means that your code doesn’t apply the first WBS Level (project name) so it’s white like activity’s are.

Br

Fredrik

Answer 3

Hedin Fredrik,

I'll be honest, when I saw your latest response it minded me of charitable contributions. We give to a charity and they send us a thank you along with a envelope asking us for more. Or, a line from the lyrics in John Fogerty's song "Favorite Son"

And when you ask 'em, "How much should we give?"

Ooh, they only answer, "more, more, more more!"

Are you saying the color scheme is simply shifted by one outline level?

John

Answer 4

Hi John,

Is it possible to include "Project Summary" with colour in the code?

Or make "Project Summary" as WBS and then include this row in the code?

Answer 5

Hedin Fredrik,

Yes

No

Now, how about answering my question. Let me even re-state it to be more clear. Should the current color scheme be shifted up one level such that, for example, the current color (R46, G117, B181) for WBS Level 1 be used for the Project Summary Task and all other colors shifted up one row? If not, then I don't know what you want.

John
