Pivot Table causing spill error on one machine but overwrite prompt on another (same Excel version)

Question

I’m facing an issue with Pivot Table behavior in Excel that differs from my colleague’s machine, even though we are using the same version. Our application depends on the overwrite warning popup, but on my system, I get a spill error instead.

Steps to reproduce:

1. Select a data source range (e.g., A1:D18).
2. Go to Insert → Pivot Table.
3. Choose Existing Worksheet and set the location as cell A1.

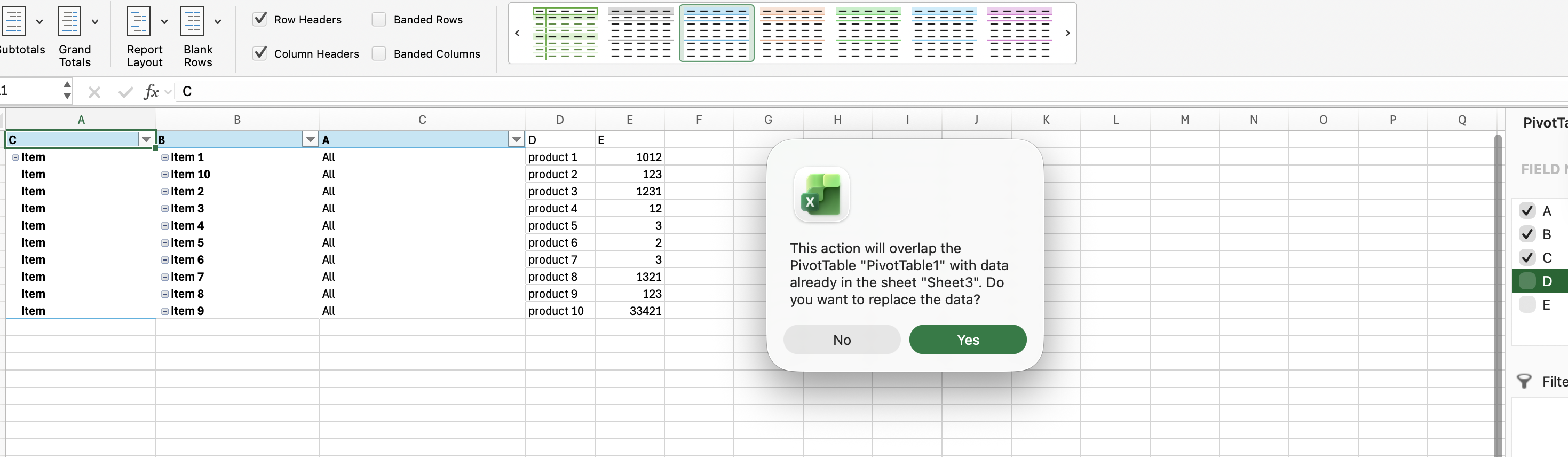

4. Excel prompts that it will overwrite existing data — click Yes.
5. Change layout to Tabular Form and apply formatting.
6. Add fields to the Rows area.
7. When selecting the 4th field, the issue occurs.

Observed behavior (my machine):

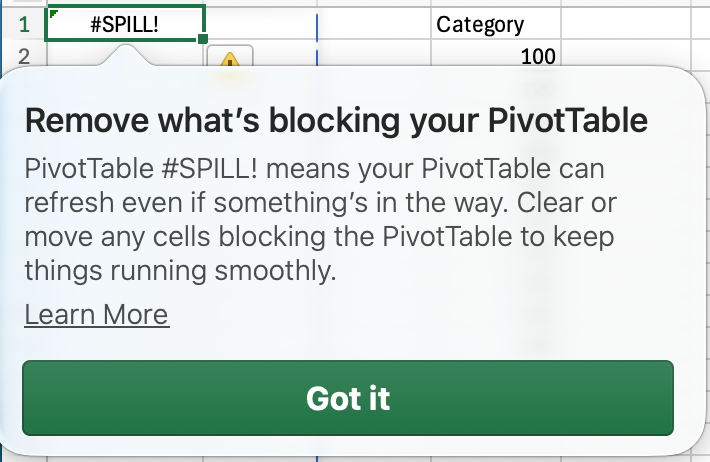

• Excel throws a #SPILL! error instead of showing an overwrite warning.
• The Pivot Table does not expand as expected.

Expected behavior (required):

• Excel should show an overwrite warning popup when the Pivot Table expands.
• On confirming “Yes,” the Pivot Table should expand normally without any spill error.

Impact:

• Our application workflow relies on the overwrite confirmation popup.
• The spill error disrupts the expected behavior and blocks usage.

Question:

How can I force Excel to show the overwrite warning popup instead of triggering a spill error?

Is this controlled by any setting, feature (e.g., dynamic arrays), or configuration difference?

Answer 1

Hi Ritesh Virulkar

Thank you for reaching out to the Microsoft Q&A Forum and sharing your issue.

Please review the response provided by Q&A Assist above for some initial guidance.

Based on Microsoft documentation, this is expected behavior. The #SPILL! error replaces the previous pop-up dialog, allowing you to resolve the error on your own time, and aligns PivotTable errors with the familiar experience of dynamic array formulas and spilled arrays. When a Pivot Table attempts to expand into a range that is not completely empty, Excel may return a #SPILL! error instead of showing an overwrite warning.

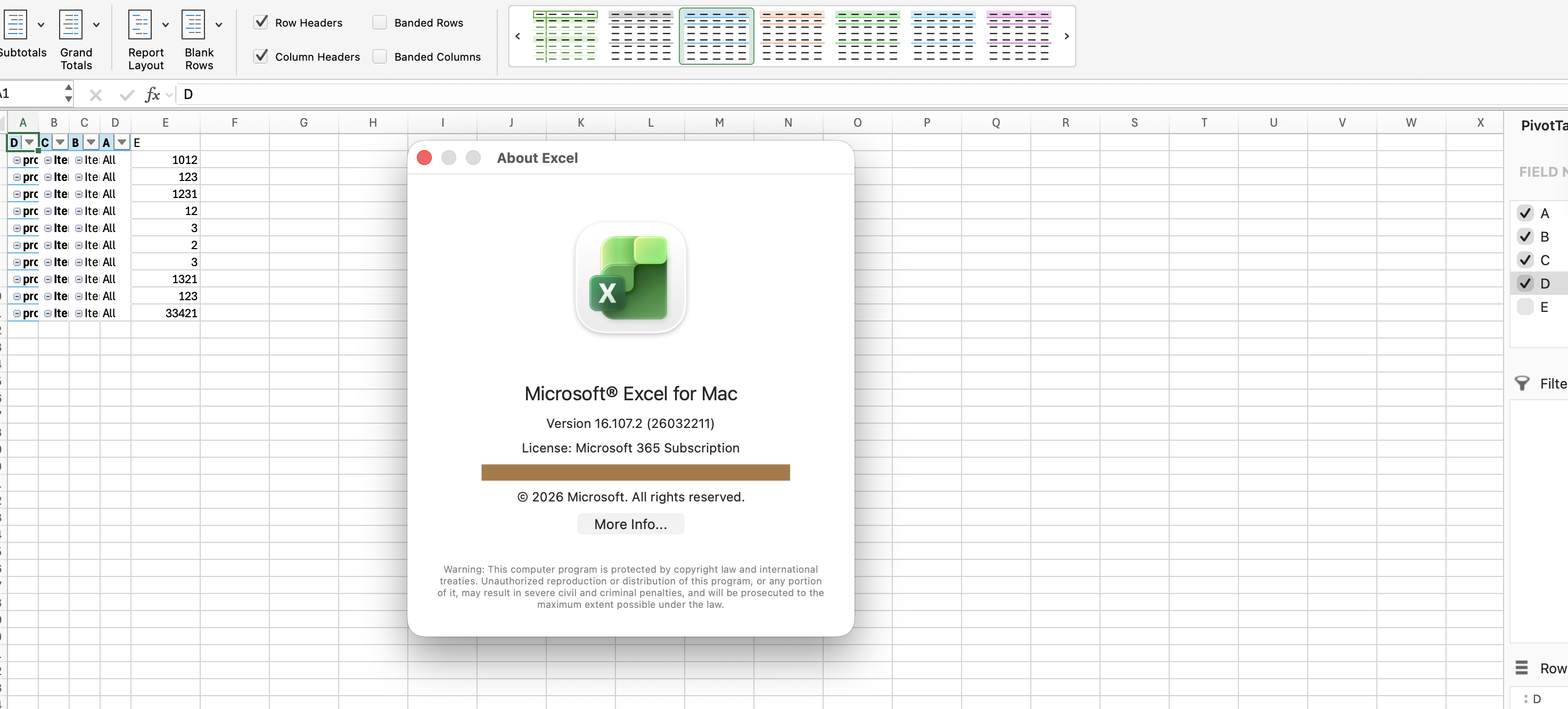

I have also tested this scenario in my environment using Excel version 16.107.2 (26032211), and the behavior is consistent. When there is any content in the destination area, Excel returns a #SPILL! error, similar to what you are experiencing. I was not able to reproduce the overwrite warning behavior observed on your colleague’s machine.

At the moment, there is no setting available to force Excel to display the overwrite warning instead of the #SPILL! error. I understand this may not be the outcome you were expecting, but I hope this helps clarify the behavior.

Thank you for your understanding.

---

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 2

Excel no longer always uses the old overwrite-warning popup for PivotTables. In current builds, when a PivotTable cannot expand because something is in the way, Excel shows a PivotTable #SPILL! error instead of the legacy dialog.

This behavior is by design and aligns PivotTables with dynamic array “spill” behavior. There is no documented setting to switch back to the overwrite-warning popup. On machines where the #SPILL! experience is enabled (for example, Microsoft 365 Insider builds), the PivotTable will show #SPILL! rather than the overwrite prompt whenever expansion is blocked.

To work with this behavior, the only supported options are:

1. Ensure the PivotTable’s expansion area is clear so it can grow without conflict:
   • Remove or move any data, formulas, tables, or other PivotTables in the intended expansion range.
   • Unmerge any merged cells in that range.
   • Make sure the PivotTable does not need to extend beyond the worksheet edge.
2. Use the built-in obstruction tools instead of the overwrite prompt:
   • Click the cell showing #SPILL!.
   • Use the error-checking dropdown and choose Select Obstructing Cells to jump to the blocking cells.
   • Clear or move those cells; the PivotTable will then expand automatically.
3. Move or resize the PivotTable to an area with enough free space so expansion will not collide with existing content.

Because the #SPILL! behavior is feature-based and not exposed as a user option, there is no supported way to “force” Excel back to the overwrite-warning popup on a specific machine. Any workflow that depends on the popup needs to be updated to handle the PivotTable #SPILL! error state and the “Select Obstructing Cells” mechanism instead.

---

References:

• How to correct a PivotTable #SPILL! error
• How to correct a #SPILL! error
• #SPILL! error - Unrecognized/Fallback
• SPILL errors are returned when a formula returns multiple results or a PivotTable range is not blank, and Excel cannot return the results to the grid. For more details on these error types, see the following help topics:
