Add Google as an identity provider for B2B guest users

By setting up federation with Google, you can allow invited users to sign in to your shared apps and resources with their own Gmail accounts, without having to create Microsoft accounts. After you've added Google as one of your application's sign-in options, on the Sign in page, a user can simply enter the Gmail address they use to sign in to Google.

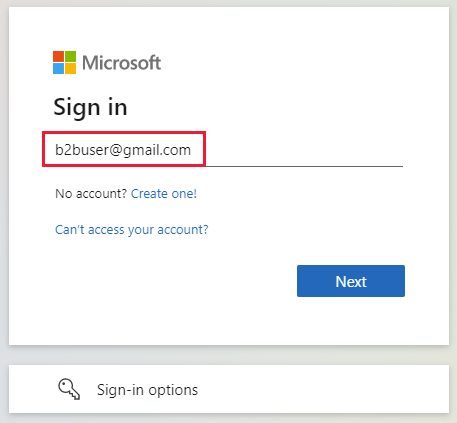

Sign in options for Google users


Google federation is designed specifically for Gmail users. To federate with Google Workspace domains, use SAML/WS-Fed identity provider federation.


  • Starting July 12, 2021, if Azure AD B2B customers set up new Google integrations for use with self-service sign-up or for inviting external users for their custom or line-of-business applications, authentication could be blocked for Gmail users (with the error screen shown below in What to expect). This issue occurs only if you create Google integration for self-service sign-up user flows or invitations after July 12, 2021 and Gmail authentications in your custom or line-of-business applications haven’t been moved to system web-views. Because system web-views are enabled by default, most apps will not be affected. To avoid the issue, we strongly advise you to move Gmail authentications to system browsers before creating any new Google integrations for self-service sign-up. Please refer to Action needed for embedded web-views.
  • Starting September 30, 2021, Google is deprecating web-view sign-in support. If your apps authenticate users with an embedded web-view and you're using Google federation with Azure AD B2C or Azure AD B2B for external user invitations or self-service sign-up, Google Gmail users won't be able to authenticate. Learn more.

What is the experience for the Google user?

You can invite a Google user to B2B collaboration in various ways. For example, you can add them to your directory via the Azure portal. When they redeem your invitation, their experience varies depending on whether they're already signed in to Google:

  • Guest users who aren't signed in to Google will be prompted to do so.
  • Guest users who are already signed in to Google will be prompted to choose the account they want to use. They must choose the account you used to invite them.

Guest users who see a "header too long" error can clear their cookies or open a private or incognito window and try to sign in again.

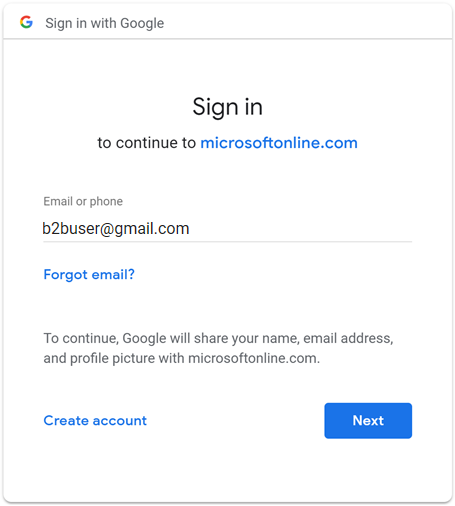

Screenshot that shows the Google sign-in page.

endpoints

Google guest users can now sign in to your multi-tenant or Microsoft first-party apps by using a common endpoint (in other words, a general app URL that doesn't include your tenant context). During the sign-in process, the guest user chooses Sign-in options, and then selects Sign in to an organization. The user then types the name of your organization and continues signing in using their Google credentials.

Google guest users can also use application endpoints that include your tenant information, for example:

  •<your tenant ID>
  •<your verified domain>
  •<your tenant ID>

You can also give Google guest users a direct link to an application or resource by including your tenant information, for example<application ID?tenantId=<your tenant ID>.

Deprecation of web-view sign-in support

Starting September 30, 2021, Google is deprecating embedded web-view sign-in support. If your apps authenticate users with an embedded web-view and you're using Google federation with Azure AD B2C or Azure AD B2B for external user invitations or self-service sign-up, Google Gmail users won't be able to authenticate.

The following are known scenarios that will impact Gmail users:

  • Microsoft apps (e.g. Teams and Power Apps) on Windows
  • Windows apps that use the WebView control, WebView2, or the older WebBrowser control, for authentication. These apps should migrate to using the Web Account Manager (WAM) flow.
  • Android applications using the WebView UI element
  • iOS applications using UIWebView/WKWebview
  • Apps using ADAL

This change does not affect:

  • Web apps
  • Microsoft 365 services that are accessed through a website (for example, SharePoint Online, Office web apps, and Teams web app)
  • Mobile apps using system web-views for authentication (SFSafariViewController on iOS, Custom Tabs on Android).
  • Google Workspace identities, for example when you’re using SAML-based federation with Google Workspace
  • Windows apps that use the Web Account Manager (WAM) or Web Authentication Broker (WAB).

Action needed for embedded web-views

Modify your apps to use the system browser for sign-in. For details, see Embedded vs System Web UI in the MSAL.NET documentation. All MSAL SDKs use the system web-view by default.

What to expect

Starting September 30, Microsoft will globally roll out a device sign-in flow that serves as a workaround for apps still using embedded web-views to ensure that authentication isn’t blocked.

How to sign in with the device sign-in flow

The device sign-in flow prompts users who sign in with a Gmail account in an embedded web-view to enter a code in a separate browser before they can finish signing in. If users are signing in with their Gmail account for the first time with no active sessions in the browser, they'll see the following sequence of screens. If an existing Gmail account is already signed in, some of these steps might be eliminated.

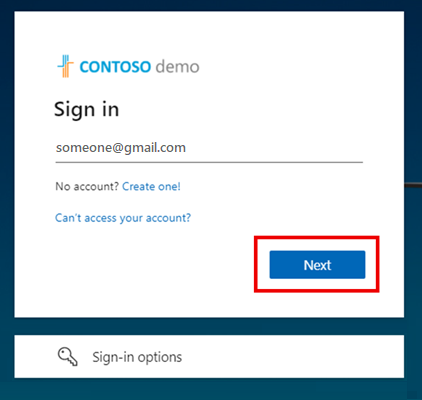

  1. On the Sign in screen, the user enters their Gmail address and selects Next.

    Screenshot showing the sign-in screen

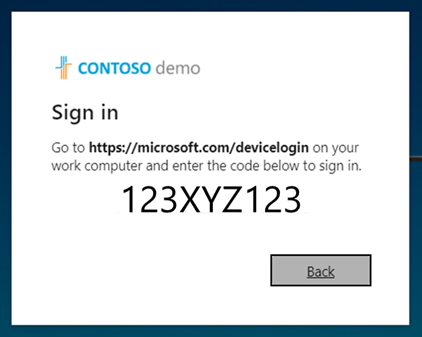

  2. The following screen appears, prompting the user to open a new window, navigate to, and enter the 9-digit alphanumeric code displayed.

    Screenshot showing the 9-digit code

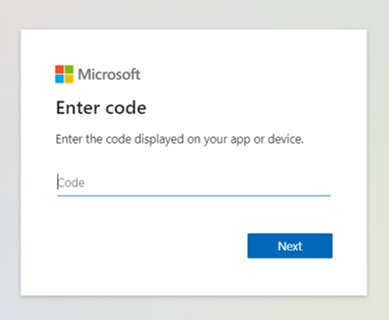

  3. The device sign-in page opens, where the user can enter the code.

    Screenshot showing the device sign-in page

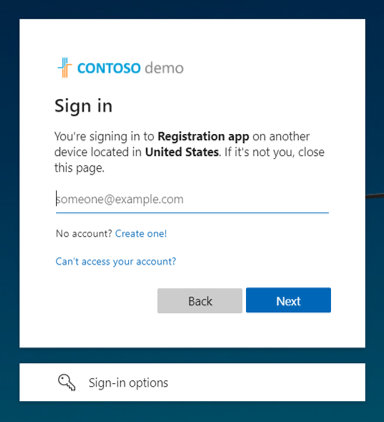

  4. If the codes match, for security purposes the user is asked to reenter their email to confirm their app and sign-in location.

    Screenshot showing the screen for reentering email

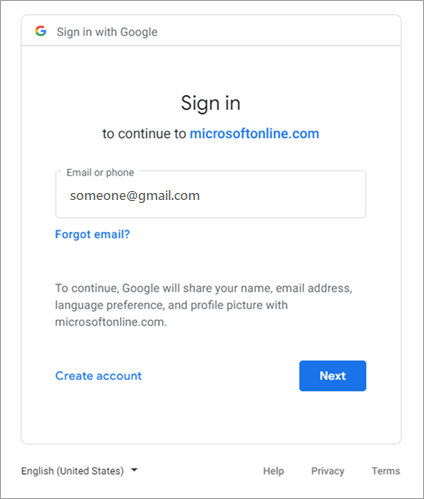

  5. The user signs in to Google with their email and password.

    Screenshot showing the Google sign-in screen

  6. Once again, they're asked to confirm the app they're signing into.

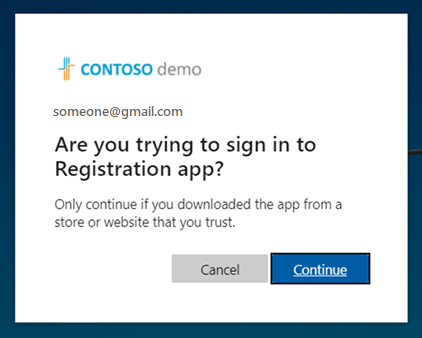

    Screenshot showing application confirmation screen

  7. The user selects Continue. A prompt confirms that they’re signed in. The user closes the tab or window and is returned to the first screen, where they're now signed in to the app.

    Screenshot showing sign-in confirmation

Alternatively, you can have your existing and new Gmail users sign in with email one-time passcode. To have your Gmail users use email one-time passcode:

  1. Enable email one-time passcode.
  2. Remove Google Federation.
  3. Reset redemption status of your Gmail users so they can use email one-time passcode going forward.

If you want to request an extension, impacted customers with affected OAuth client ID(s) should have received an email from Google Developers with the following information regarding a one-time policy enforcement extension, which must be completed by Jan 31, 2022:

  • "If necessary, you may request a one-time policy enforcement extension for embedded webviews for each listed OAuth client ID until January 31, 2022. For clarity, the policy for embedded webviews will be enforced on February 1, 2022 with no exceptions or extensions."

Applications that are migrated to an allowed web-view for authentication won't be affected, and users will be allowed to authenticate via Google as usual.

If applications are not migrated to an allowed web-view for authentication, then affected Gmail users will see the following screen.

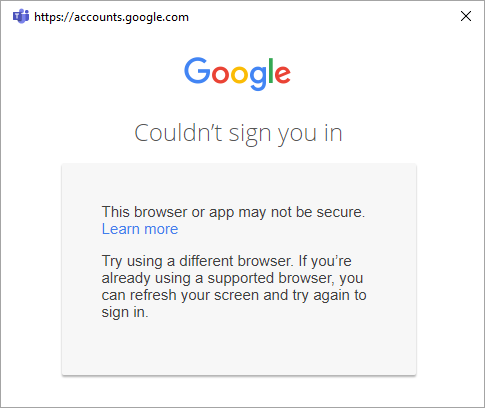

Google sign-in error if apps are not migrated to system browsers

Distinguishing between CEF/Electron and embedded web-views

In addition to the deprecation of embedded web-view and framework sign-in support, Google is also deprecating Chromium Embedded Framework (CEF) based Gmail authentication. For applications built on CEF, such as Electron apps, Google will disable authentication on June 30, 2021. Impacted applications have received notice from Google directly, and are not covered in this documentation. This document pertains to the embedded web-views described above, which Google will restrict at a separate date on September 30, 2021.

Action needed for embedded frameworks

Follow Google’s guidance to determine if your apps are affected.

Step 1: Configure a Google developer project

First, create a new project in the Google Developers Console to obtain a client ID and a client secret that you can later add to Azure Active Directory (Azure AD).

  1. Go to the Google APIs at, and sign in with your Google account. We recommend that you use a shared team Google account.

  2. Accept the terms of service if you're prompted to do so.

  3. Create a new project: At the top of the page, select the project menu to open the Select a project page. Choose New Project.

  4. On the New Project page, give the project a name (for example, MyB2BApp), and then select Create:

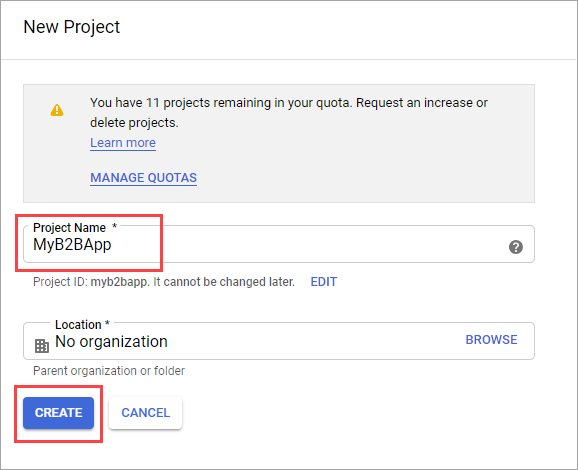

    Screenshot that shows a New Project page.

  5. Open the new project by selecting the link in the Notifications message box or by using the project menu at the top of the page.

  6. In the left menu, select APIs & Services, and then select OAuth consent screen.

  7. Under User Type, select External, and then select Create.

  8. On the OAuth consent screen, under App information, enter an App name.

  9. Under User support email, select an email address.

  10. Under Authorized domains, select Add domain, and then add the domain.

  11. Under Developer contact information, enter an email address.

  12. Select Save and continue.

  13. In the left menu, select Credentials.

  14. Select Create credentials, and then select OAuth client ID.

  15. In the Application type menu, select Web application. Give the application a suitable name, like Azure AD B2B. Under Authorized redirect URIs, add the following URIs:

    •<tenant ID>/oauth2/authresp
      (where <tenant ID> is your tenant ID)
    •<tenant name>
      (where <tenant name> is your tenant name)


    To find your tenant ID, go to the Azure portal. Under Azure Active Directory, select Properties and copy the Tenant ID.

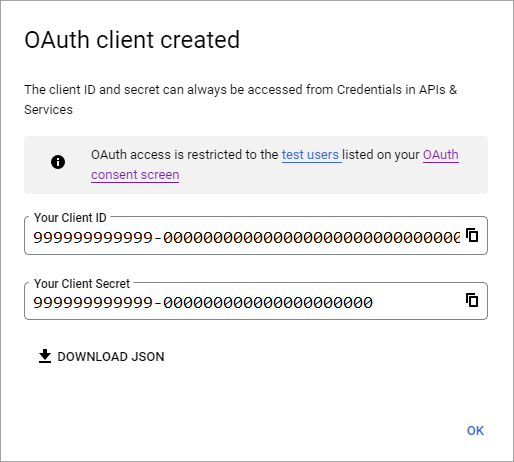

  16. Select Create. Copy your client ID and client secret. You'll use them when you add the identity provider in the Azure portal.

    Screenshot that shows the OAuth client ID and client secret.

  17. You can leave your project at a publishing status of Testing and add test users to the OAuth consent screen. Or you can select the Publish app button on the OAuth consent screen to make the app available to any user with a Google Account.


    In some cases, your app might require verification by Google (for example, if you update the application logo). For more information, see Google's verification status help.

Step 2: Configure Google federation in Azure AD

You'll now set the Google client ID and client secret. You can use the Azure portal or PowerShell to do so. Be sure to test your Google federation configuration by inviting yourself. Use a Gmail address and try to redeem the invitation with your invited Google account.

To configure Google federation in the Azure portal

  1. Sign in to the Azure portal as an External Identity Provider Administrator or a Global Administrator.

  2. In the left pane, select Azure Active Directory.

  3. Select External Identities.

  4. Select All identity providers, and then select the Google button.

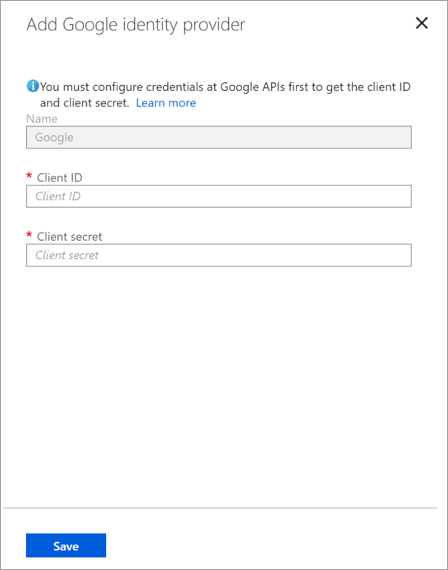

  5. Enter the client ID and client secret you obtained earlier. Select Save:

    Screenshot that shows the Add Google identity provider page.

To configure Google federation by using PowerShell

  1. Install the latest version of the Azure AD PowerShell for Graph module (AzureADPreview).

  2. Run this command: Connect-AzureAD

  3. At the sign-in prompt, sign in with the managed Global Administrator account.

  4. Run the following command:

    New-AzureADMSIdentityProvider -Type Google -Name Google -ClientId <client ID> -ClientSecret <client secret>


    Use the client ID and client secret from the app you created in "Step 1: Configure a Google developer project." For more information, see New-AzureADMSIdentityProvider.

How do I remove Google federation?

You can delete your Google federation setup. If you do so, Google guest users who have already redeemed their invitation won't be able to sign in. But you can give them access to your resources again by resetting their redemption status.

To delete Google federation in the Azure portal

  1. Go to the Azure portal. On the left pane, select Azure Active Directory.

  2. Select External Identities.

  3. Select All identity providers.

  4. On the Google line, select the ellipsis button (...) and then select Delete.

    Screenshot that shows the Delete button for the social identity provider.

  5. Select Yes to confirm the deletion.

To delete Google federation by using PowerShell

  1. Install the latest version of the Azure AD PowerShell for Graph module (AzureADPreview).

  2. Run Connect-AzureAD.

  3. In the sign-in prompt, sign in with the managed Global Administrator account.

  4. Enter the following command:

    Remove-AzureADMSIdentityProvider -Id Google-OAUTH


    For more information, see Remove-AzureADMSIdentityProvider.
