Tutorial: Connect an App Service app to SQL Database on behalf of the signed-in user

This tutorial shows you how to enable built-in authentication in an App Service app using the Azure Active Directory authentication provider, then extend it by connecting it to a back-end Azure SQL Database by impersonating the signed-in user (also known as the on-behalf-of flow). This is a more advanced connectivity approach to Tutorial: Access data with managed identity and has the following advantages in enterprise scenarios:

  • Eliminates connection secrets to back-end services, just like the managed identity approach.
  • Gives the back-end database (or any other Azure service) more control over who or how much to grant access to its data and functionality.
  • Lets the app tailor its data presentation to the signed-in user.

In this tutorial, you add Azure Active Directory authentication to the sample web app you deployed in one of the following tutorials:

When you're finished, your sample app will authenticate users connect to SQL Database securely on behalf of the signed-in user.

Architecture diagram for tutorial scenario.


The steps covered in this tutorial support the following versions:

  • .NET Framework 4.8 and higher
  • .NET 6.0 and higher

What you will learn:

  • Enable built-in authentication for Azure SQL Database
  • Disable other authentication options in Azure SQL Database
  • Enable App Service authentication
  • Use Azure Active Directory as the identity provider
  • Access Azure SQL Database on behalf of the signed-in Azure AD user


Azure AD authentication is different from Integrated Windows authentication in on-premises Active Directory (AD DS). AD DS and Azure AD use completely different authentication protocols. For more information, see Azure AD Domain Services documentation.

If you don't have an Azure subscription, create an Azure free account before you begin.


This article continues where you left off in either one of the following tutorials:

If you haven't already, follow one of the two tutorials first. Alternatively, you can adapt the steps for your own .NET app with SQL Database.

Prepare your environment for the Azure CLI.

Azure hosts Azure Cloud Shell, an interactive shell environment that you can use through your browser. You can use either Bash or PowerShell with Cloud Shell to work with Azure services. You can use the Cloud Shell preinstalled commands to run the code in this article, without having to install anything on your local environment.

To start Azure Cloud Shell:

Option Example/Link
Select Try It in the upper-right corner of a code or command block. Selecting Try It doesn't automatically copy the code or command to Cloud Shell. Screenshot that shows an example of Try It for Azure Cloud Shell.
Go to https://shell.azure.com, or select the Launch Cloud Shell button to open Cloud Shell in your browser. Screenshot that shows how to launch Cloud Shell in a new window.
Select the Cloud Shell button on the menu bar at the upper right in the Azure portal. Screenshot that shows the Cloud Shell button in the Azure portal

To use Azure Cloud Shell:

  1. Start Cloud Shell.

  2. Select the Copy button on a code block (or command block) to copy the code or command.

  3. Paste the code or command into the Cloud Shell session by selecting Ctrl+Shift+V on Windows and Linux, or by selecting Cmd+Shift+V on macOS.

  4. Select Enter to run the code or command.

1. Configure database server with Azure AD authentication

First, enable Azure Active Directory authentication to SQL Database by assigning an Azure AD user as the admin of the server. This user is different from the Microsoft account you used to sign up for your Azure subscription. It must be a user that you created, imported, synced, or invited into Azure AD. For more information on allowed Azure AD users, see Azure AD features and limitations in SQL Database.

  1. If your Azure AD tenant doesn't have a user yet, create one by following the steps at Add or delete users using Azure Active Directory.

  2. Find the object ID of the Azure AD user using the az ad user list and replace <user-principal-name>. The result is saved to a variable.

    azureaduser=$(az ad user list --filter "userPrincipalName eq '<user-principal-name>'" --query [].id --output tsv)


    To see the list of all user principal names in Azure AD, run az ad user list --query [].userPrincipalName.

  3. Add this Azure AD user as an Active Directory admin using az sql server ad-admin create command in the Cloud Shell. In the following command, replace <server-name> with the server name (without the .database.windows.net suffix).

    az sql server ad-admin create --resource-group <group-name> --server-name <server-name> --display-name ADMIN --object-id $azureaduser
  4. Restrict the database server authentication to Active Directory authentication. This step effectively disables SQL authentication.

    az sql server ad-only-auth enable --resource-group <group-name> --server-name <server-name>

For more information on adding an Active Directory admin, see Provision Azure AD admin (SQL Database).

2. Enable user authentication for your app

You enable authentication with Azure Active Directory as the identity provider. For more information, see Configure Azure Active Directory authentication for your App Services application.

  1. In the Azure portal menu, select Resource groups or search for and select Resource groups from any page.

  2. In Resource groups, find and select your resource group, then select your app.

  3. In your app's left menu, select Authentication, and then select Add identity provider.

  4. In the Add an identity provider page, select Microsoft as the Identity provider to sign in Microsoft and Azure AD identities.

  5. Accept the default settings and select Add.

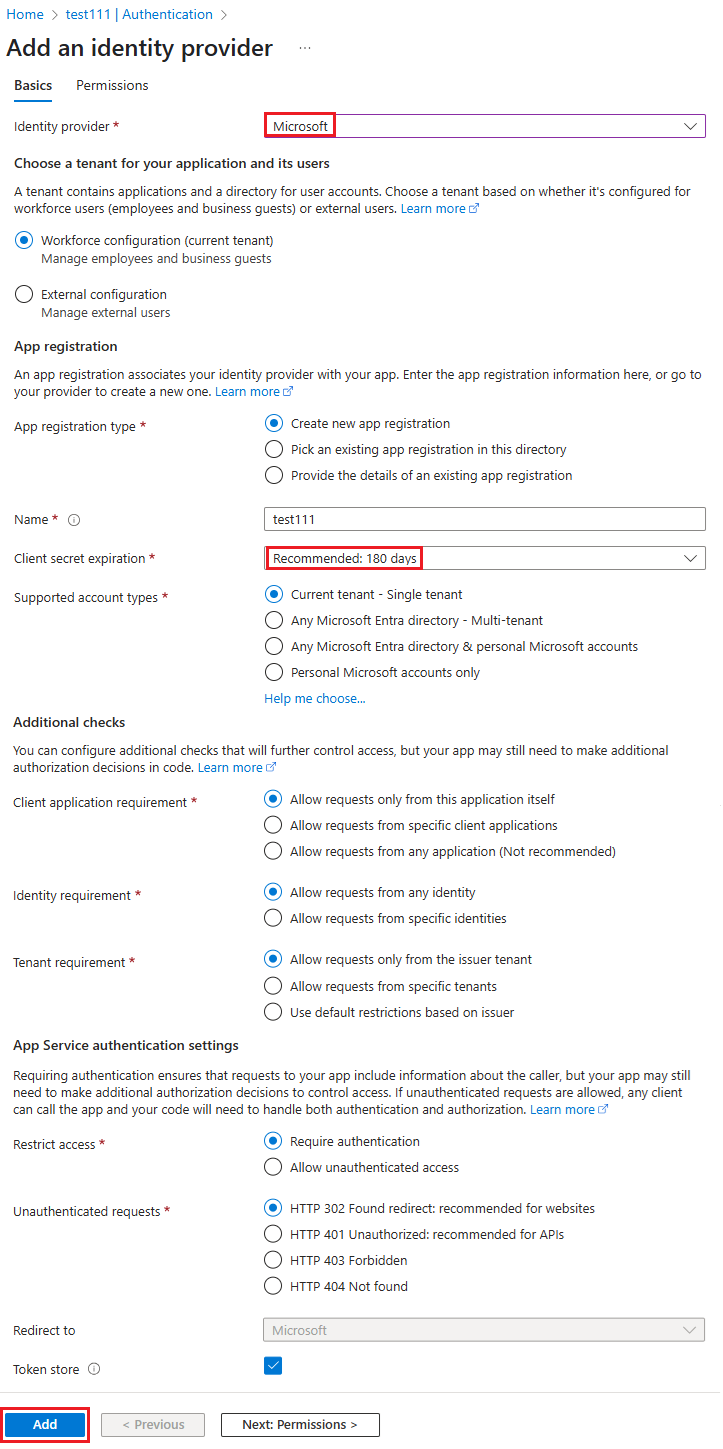

    Screenshot showing the add identity provider page.


If you run into errors and reconfigure your app's authentication settings, the tokens in the token store may not be regenerated from the new settings. To make sure your tokens are regenerated, you need to sign out and sign back in to your app. An easy way to do it is to use your browser in private mode, and close and reopen the browser in private mode after changing the settings in your apps.

3. Configure user impersonation to SQL Database

Currently, your Azure app connects to SQL Database uses SQL authentication (username and password) managed as app settings. In this step, you give the app permissions to access SQL Database on behalf of the signed-in Azure AD user.

  1. In the Authentication page for the app, select your app name under Identity provider. This app registration was automatically generated for you. Select API permissions in the left menu.

  2. Select Add a permission, then select APIs my organization uses.

  3. Type Azure SQL Database in the search box and select the result.

  4. In the Request API permissions page for Azure SQL Database, select Delegated permissions and user_impersonation, then select Add permissions.

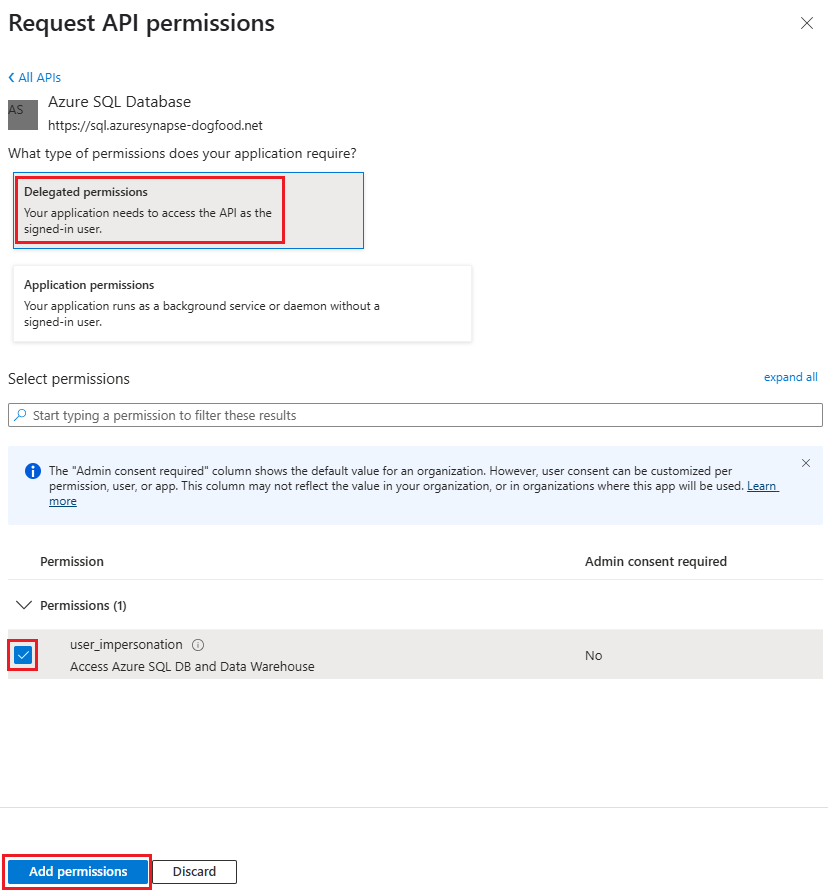

    Screenshot of the Request API permissions page showing Delegated permissions, user_impersonation, and the Add permission button selected.

4. Configure App Service to return a usable access token

The app registration in Azure Active Directory now has the required permissions to connect to SQL Database by impersonating the signed-in user. Next, you configure your App Service app to give you a usable access token.

In the Cloud Shell, run the following commands on the app to add the scope parameter to the authentication setting identityProviders.azureActiveDirectory.login.loginParameters.

authSettings=$(az webapp auth show --resource-group <group-name> --name <app-name>)
authSettings=$(echo "$authSettings" | jq '.properties' | jq '.identityProviders.azureActiveDirectory.login += {"loginParameters":["scope=openid profile email offline_access https://database.windows.net/user_impersonation"]}')
az webapp auth set --resource-group <group-name> --name <app-name> --body "$authSettings"

The commands effectively add a loginParameters property with extra custom scopes. Here's an explanation of the requested scopes:

  • openid, profile, and email are requested by App Service by default already. For information, see OpenID Connect Scopes.
  • https://database.windows.net/user_impersonation refers to Azure SQL Database. It's the scope that gives you a JWT token that includes SQL Database as a token audience.
  • offline_access is included here for convenience (in case you want to refresh tokens).


To configure the required scopes using a web interface instead, see the Microsoft steps at Refresh auth tokens.

Your apps are now configured. The app can now generate a token that SQL Database accepts.

5. Use the access token in your application code

The steps you follow for your project depends on whether you're using Entity Framework (default for ASP.NET) or Entity Framework Core (default for ASP.NET Core).

  1. In Visual Studio, open the Package Manager Console and update Entity Framework:

    Update-Package EntityFramework
  2. In your DbContext object (in Models/MyDbContext.cs), add the following code to the default constructor.

    var conn = (System.Data.SqlClient.SqlConnection)Database.Connection;
    conn.AccessToken = System.Web.HttpContext.Current.Request.Headers["X-MS-TOKEN-AAD-ACCESS-TOKEN"];


The code adds the access token supplied by App Service authentication to the connection object.

This code change doesn't work locally. For more information, see How do I debug locally when using App Service authentication?.

6. Publish your changes

  1. If you came from Tutorial: Build an ASP.NET app in Azure with SQL Database, you set a connection string in App Service using SQL authentication, with a username and password. Use the following command to remove the connection secrets, but replace <group-name>, <app-name>, <db-server-name>, and <db-name> with yours.

    az webapp config connection-string set --resource-group <group-name> --name <app-name> --type SQLAzure --settings MyDbConnection="server=tcp:<db-server-name>.database.windows.net;database=<db-name>;"
  2. Publish your changes in Visual Studio. In the Solution Explorer, right-click your DotNetAppSqlDb project and select Publish.

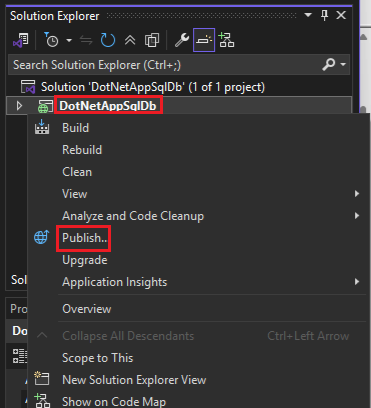

    Screenshot showing how to publish from the Solution Explorer in Visual Studio.

  3. In the publish page, select Publish.

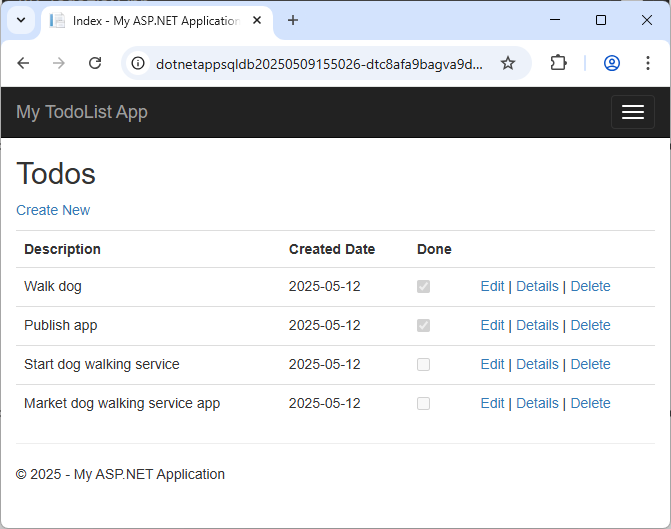

When the new webpage shows your to-do list, your app is connecting to the database on behalf of the signed-in Azure AD user.

Azure app after Code First Migration

You should now be able to edit the to-do list as before.

7. Clean up resources

In the preceding steps, you created Azure resources in a resource group. If you don't expect to need these resources in the future, delete the resource group by running the following command in the Cloud Shell:

az group delete --name <group-name>

This command may take a minute to run.

Frequently asked questions

Why do I get a Login failed for user '<token-identified principal>'. error?

The most common causes of this error are:

How do I add other Azure AD users or groups in Azure SQL Database?

  1. Connect to your database server, such as with sqlcmd or SSMS.

  2. Create contained users mapped to Azure AD identities in SQL Database documentation.

    The following Transact-SQL example adds an Azure AD identity to SQL Server and gives it some database roles:

    CREATE USER [<user-or-group-name>] FROM EXTERNAL PROVIDER;
    ALTER ROLE db_datareader ADD MEMBER [<user-or-group-name>];
    ALTER ROLE db_datawriter ADD MEMBER [<user-or-group-name>];
    ALTER ROLE db_ddladmin ADD MEMBER [<user-or-group-name>];

How do I debug locally when using App Service authentication?

Because App Service authentication is a feature in Azure, it's not possible for the same code to work in your local environment. Unlike the app running in Azure, your local code doesn't benefit from the authentication middleware from App Service. You have a few alternatives:

  • Connect to SQL Database from your local environment with Active Directory Interactive. The authentication flow doesn't sign in the user to the app itself, but it does connect to the back-end database with the signed-in user, and allows you to test database authorization locally.
  • Manually copy the access token from https://<app-name>.azurewebsites.net/.auth/me into your code, in place of the X-MS-TOKEN-AAD-ACCESS-TOKEN request header.
  • If you deploy from Visual Studio, use remote debugging of your App Service app.

What happens when access tokens expire?

Your access token expires after some time. For information on how to refresh your access tokens without requiring users to reauthenticate with your app, see Refresh identity provider tokens.

Next steps

What you learned:

  • Enable built-in authentication for Azure SQL Database
  • Disable other authentication options in Azure SQL Database
  • Enable App Service authentication
  • Use Azure Active Directory as the identity provider
  • Access Azure SQL Database on behalf of the signed-in Azure AD user
