Preserve the original HTTP host name between a reverse proxy and its back-end web application

We recommend that you preserve the original HTTP host name when you use a reverse proxy in front of a web application. Having a different host name at the reverse proxy than the one that's provided to the back-end application server can lead to cookies or redirect URLs that don't work properly. For example, session state can get lost, authentication can fail, or back-end URLs can inadvertently be exposed to end users. You can avoid these problems by preserving the host name of the initial request so that the application server sees the same domain as the web browser.

This guidance applies especially to applications that are hosted in platform as a service (PaaS) offerings like Azure App Service and Azure Spring Apps. This article provides specific implementation guidance for Azure Application Gateway, Azure Front Door, and Azure API Management, which are commonly used reverse proxy services.

If you require end-to-end TLS/SSL (the connection between the reverse proxy and the back-end service uses HTTPS), the back-end service also needs a matching TLS certificate for the original host name. This requirement adds operational complexity when you deploy and renew certificates, but many PaaS services offer free TLS certificates that are fully managed.

Context

The host of an HTTP request

In many cases, the application server or some component in the request pipeline needs the internet domain name that was used by the browser to access it. This is the host of the request. It can be an IP address, but usually it's a name like contoso.com (which the browser then resolves to an IP address by using DNS). The host value is typically determined from the host component of the request URI, which the browser sends to the application as the Host HTTP header.

In some scenarios, especially when there's an HTTP reverse proxy in the request chain, the original host header can get changed before it reaches the application server. A reverse proxy closes the client network session and sets up a new connection to the back end. In this new session, it can either carry over the original host name of the client session or set a new one. In the latter case, the proxy often still sends the original host value in other HTTP headers, like Forwarded or X-Forwarded-Host. This value allows applications to determine the original host name, but only if they're coded to read these headers.

Why web platforms use the host name

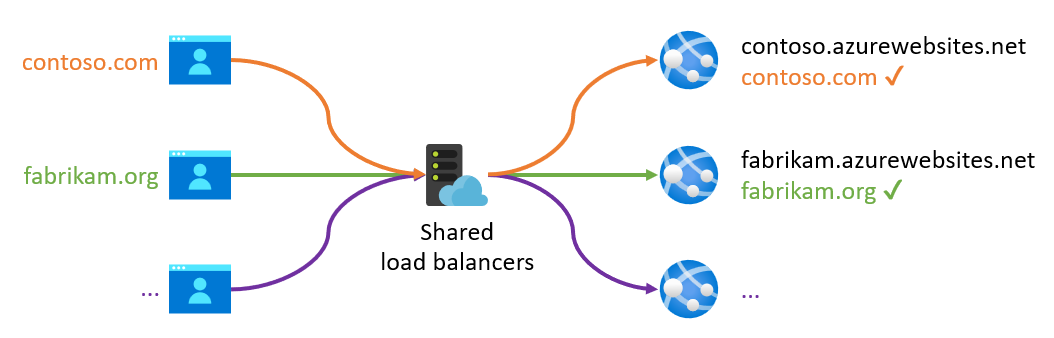

Multitenant PaaS services often require a registered and validated host name in order to route an incoming request to the appropriate tenant's back-end server. This is because there's typically a shared pool of load balancers that accept incoming requests for all tenants. The tenants commonly use the incoming host name to look up the correct back end for the customer tenant.

To make it easy to get started, these platforms typically provide a default domain that's preconfigured to route traffic to your deployed instance. For App Service, this default domain is azurewebsites.net. Each web app that you create gets its own subdomain, for example, contoso.azurewebsites.net. Similarly, the default domain is azuremicroservices.io for Azure Spring Apps and azure-api.net for API Management.

For production deployments, you don't use these default domains. You instead provide your own domain to align with your organization or application's brand. For example, contoso.com could resolve behind the scenes to the contoso.azurewebsites.net web app on App Service, but this domain shouldn't be visible to an end user visiting the website. This custom contoso.com host name has to be registered with the PaaS service, however, so the platform can identify the back-end server that should respond to the request.

Why applications use the host name

Two common reasons that an application server needs the host name are to construct absolute URLs and to issue cookies for a specific domain. For example, when the application code needs to:

• Return an absolute rather than a relative URL in its HTTP response (although generally websites tend to render relative links when possible).
• Generate a URL to be used outside of its HTTP response where relative URLs can't be used, like for emailing a link to the website to a user.
• Generate an absolute redirect URL for an external service. For example, to an authentication service like Microsoft Entra ID to indicate where it should return the user after successful authentication.
• Issue HTTP cookies that are restricted to a certain host, as defined in the cookie's Domain attribute.

You can meet all these requirements by adding the expected host name to the application's configuration and using that statically defined value instead of the incoming host name on the request. However, this approach complicates application development and deployment. Also, a single installation of the application can serve multiple hosts. For example, a single web app can be used for multiple application tenants that all have their own unique host names (like tenant1.contoso.com and tenant2.contoso.com).

And sometimes the incoming host name is used by components outside of the application code or in middleware on the application server over which you don't have full control. Here are some examples:

• In App Service, you can enforce HTTPS for your web app. Doing so causes any HTTP requests that aren't secure to redirect to HTTPS. In this case, the incoming host name is used to generate the absolute URL for the HTTP redirect's Location header.
• Azure Spring Apps uses a similar feature to enforce HTTPS. It also uses the incoming host to generate the HTTPS URL.
• App Service has an ARR affinity setting to enable sticky sessions, so that requests from the same browser instance are always served by the same back-end server. This is performed by the App Service front ends, which add a cookie to the HTTP response. The cookie's Domain is set to the incoming host.
• App Service provides authentication and authorization capabilities to easily allow users to sign in and access data in APIs.
  • The incoming host name is used to construct the redirect URL to which the identity provider needs to return the user after successful authentication.
  • Enabling this feature by default also turns on HTTP-to-HTTPS redirection. Again, the incoming host name is used to generate the redirect location.

Why you might be tempted to override the host name

Say you create a web application in App Service that has a default domain of contoso.azurewebsites.net. (Or in another service like Azure Spring Apps.) You haven't configured a custom domain on App Service. To put a reverse proxy like Application Gateway (or any similar service) in front of this application, you set the DNS record for contoso.com to resolve to the IP address of Application Gateway. It therefore receives the request for contoso.com from the browser and is configured to forward that request to the IP address that contoso.azurewebsites.net resolves to: this is the final back-end service for the requested host. In this case, however, App Service doesn't recognize the contoso.com custom domain and rejects all incoming requests for this host name. It can't determine where to route the request.

It might seem like the easy way to make this configuration work is to override or rewrite the Host header of the HTTP request in Application Gateway and set it to the value of contoso.azurewebsites.net. If you do, the outgoing request from Application Gateway makes it seem like the original request was really intended for contoso.azurewebsites.net instead of contoso.com:

At this point, App Service does recognize the host name, and it accepts the request without requiring that a custom domain name be configured. In fact, Application Gateway makes it easy to override the host header with the host of the back-end pool. Azure Front Door even does so by default.

The problem with this solution, however, is that it can result in various problems when the app doesn't see the original host name.

Potential problems

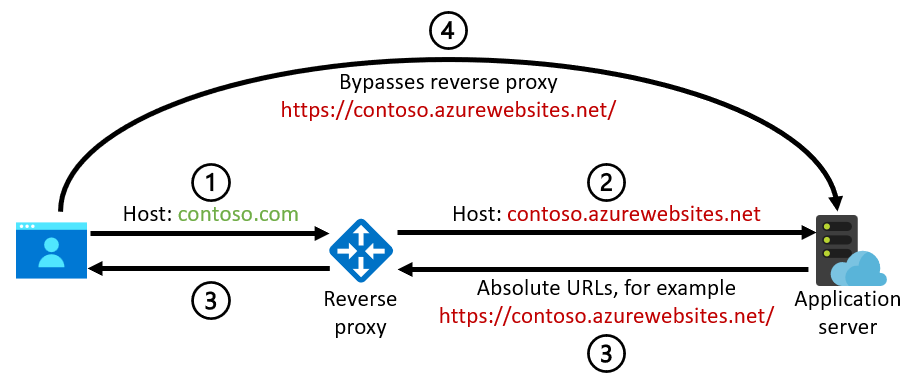

Incorrect absolute URLs

If the original host name isn't preserved and the application server uses the incoming host name to generate absolute URLs, the back-end domain might be disclosed to an end user. These absolute URLs could be generated by the application code or, as noted earlier, by platform features like the support for HTTP-to-HTTPS redirection in App Service and Azure Spring Apps. This diagram illustrates the problem:

1. The browser sends a request for contoso.com to the reverse proxy.
2. The reverse proxy rewrites the host name to contoso.azurewebsites.net in the request to the back-end web application (or to a similar default domain for another service).
3. The application generates an absolute URL that's based on the incoming contoso.azurewebsites.net host name, for example, https://contoso.azurewebsites.net/.
4. The browser follows this URL, which goes directly to the back-end service rather than back to the reverse proxy at contoso.com.

This might even pose a security risk in the common case where the reverse proxy also serves as a web application firewall. The user receives a URL that goes straight to the back-end application and bypasses the reverse proxy.

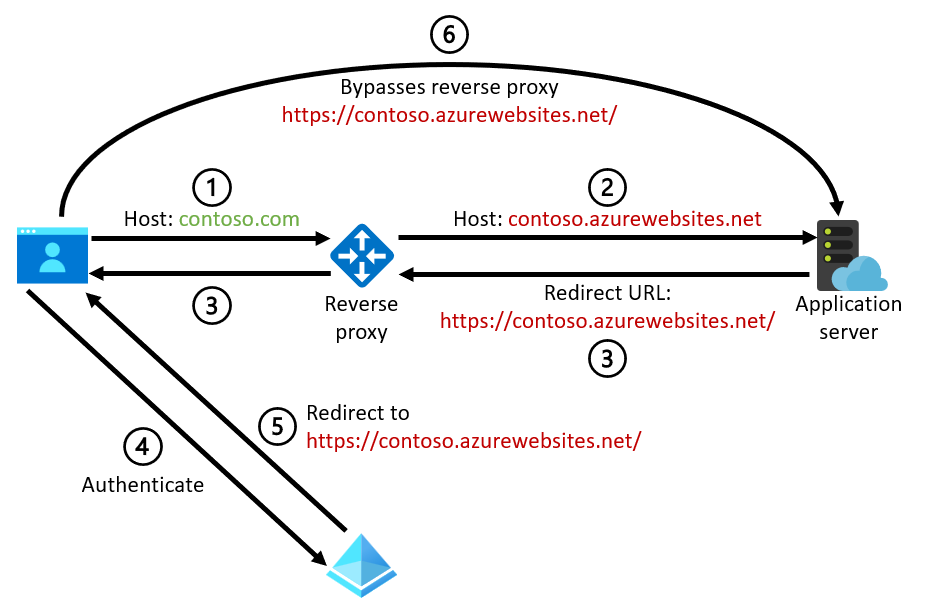

Incorrect redirect URLs

A common and more specific case of the previous scenario occurs when absolute redirect URLs are generated. These URLs are required by identity services like Microsoft Entra ID when you use browser-based identity protocols like OpenID Connect, Open Authorization (OAuth) 2.0, or Security Assertion Markup Language (SAML) 2.0. These redirect URLs could be generated by the application server or middleware itself, or, as noted earlier, by platform features like the app service authentication and authorization capabilities. This diagram illustrates the problem:

1. The browser sends a request for contoso.com to the reverse proxy.
2. The reverse proxy rewrites the host name to contoso.azurewebsites.net on the request to the back-end web application (or to a similar default domain for another service).
3. The application generates an absolute redirect URL that's based on the incoming contoso.azurewebsites.net host name, for example, https://contoso.azurewebsites.net/.
4. The browser goes to the identity provider to authenticate the user. The request includes the generated redirect URL to indicate where to return the user after successful authentication.
5. Identity providers typically require redirect URLs to be registered up front, so at this point the identity provider should reject the request because the provided redirect URL isn't registered. (It wasn't supposed to be used.) If for some reason the redirect URL is registered, however, the identity provider redirects the browser to the redirect URL that's specified in the authentication request. In this case, the URL is https://contoso.azurewebsites.net/.
6. The browser follows this URL, which goes directly to the back-end service rather than back to the reverse proxy.

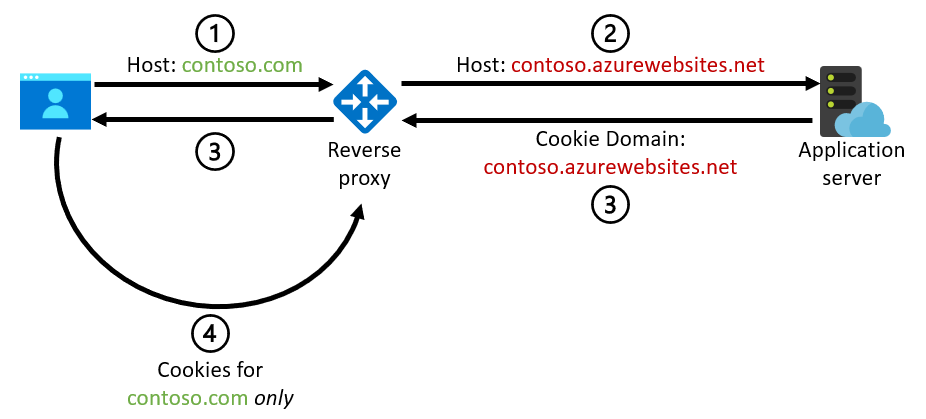

Broken cookies

A host name mismatch can also lead to problems when the application server issues cookies and uses the incoming host name to construct the Domain attribute of the cookie. The Domain attribute ensures that the cookie will be used only for that specific domain. These cookies can be generated by the application code or, as noted earlier, by platform features like the app service ARR affinity setting. This diagram illustrates the problem:

1. The browser sends a request for contoso.com to the reverse proxy.
2. The reverse proxy rewrites the host name to be contoso.azurewebsites.net in the request to the back-end web application (or to a similar default domain for another service).
3. The application generates a cookie that uses a domain based on the incoming contoso.azurewebsites.net host name. The browser stores the cookie for this specific domain rather than the contoso.com domain that the user is actually using.
4. The browser doesn't include the cookie on any subsequent request for contoso.com because the cookie's contoso.azurewebsites.net domain doesn't match the domain of the request. The application doesn't receive the cookie it issued earlier. As a consequence, the user might lose state that's supposed to be in the cookie, or features like ARR affinity don't work. Unfortunately, none of these problems generate an error or are directly visible to the end user. That makes them difficult to troubleshoot.

Implementation guidance for common Azure services

To avoid the potential problems discussed here, we recommend that you preserve the original host name in the call between the reverse proxy and the back-end application server:

Back-end configuration

Many web hosting platforms require that you explicitly configure the allowed incoming host names. The following sections describe how to implement this configuration for the most common Azure services. Other platforms usually provide similar methods for configuring custom domains.

If you host your web application in App Service, you can attach a custom domain name to the web app and avoid using the default azurewebsites.net host name toward the back end. You don't need to change your DNS resolution when you attach a custom domain to the web app: you can verify the domain by using a TXT record without affecting your regular CNAME or A records. (These records will still resolve to the IP address of the reverse proxy.) If you require end-to-end TLS/SSL, you can import an existing certificate from Key Vault or use an App Service Certificate for your custom domain. (Note that the free App Service managed certificate can't be used in this case, as it requires the domain's DNS record to resolve directly to App Service, not the reverse proxy.)

Similarly, if you're using Spring Apps, you can use a custom domain for your app to avoid using the azuremicroservices.io host name. You can import an existing or self-signed certificate if you require end-to-end TLS/SSL.

If you have a reverse proxy in front of API Management (which itself also acts as a reverse proxy), you can configure a custom domain on your API Management instance to avoid using the azure-api.net host name. You can import an existing or free managed certificate if you require end-to-end TLS/SSL. As noted previously, however, APIs are less sensitive to the problems caused by host name mismatches, so this configuration might not be as important.

If you host your applications on other platforms, like on Kubernetes or directly on virtual machines, there's no built-in functionality that depends on the incoming host name. You're responsible for how the host name is used in the application server itself. The recommendation to preserve the host name typically still applies for any components in your application that depend on it, unless you specifically make your application aware of reverse proxies and respect the forwarded or X-Forwarded-Host headers, for example.

Reverse proxy configuration

When you define the back ends within the reverse proxy, you can still use the default domain of the back-end service, for example, https://contoso.azurewebsites.net/. This URL is used by the reverse proxy to resolve the correct IP address for the back-end service. If you use the platform's default domain, the IP address is always guaranteed to be correct. You typically can't use the public-facing domain, like contoso.com, because it should resolve to the IP address of the reverse proxy itself. (Unless you use more advanced DNS resolution techniques, like Split-horizon DNS).

Most reverse proxies allow you to configure which host name is passed to the back-end service. The following information explains how to ensure, for the most common Azure services, that the original host name of the incoming request is used.

Application Gateway

If you use Application Gateway as the reverse proxy, you can ensure that the original host name is preserved by disabling Override with new host name on the back-end HTTP setting. Doing so disables both Pick host name from back-end address and Override with specific domain name. (Both of these settings override the host name.) In the Azure Resource Manager properties for Application Gateway, this configuration corresponds to setting the hostName property to null and pickHostNameFromBackendAddress to false.

Because health probes are sent outside the context of an incoming request, they can't dynamically determine the correct host name. Instead, you have to create a custom health probe, disable Pick host name from backend HTTP settings, and explicitly specify the host name. For this host name, you should also use an appropriate custom domain, for consistency. (You could, however, use the default domain of the hosting platform here, because health probes ignore incorrect cookies or redirect URLs in the response.)

Azure Front Door

If you use Azure Front Door, you can avoid overriding the host name by leaving the back-end host header blank in the back-end pool definition. In the Resource Manager definition of the back-end pool, this configuration corresponds to setting backendHostHeader to null.

If you use Azure Front Door Standard or Premium, you can preserve the host name by leaving the origin host header blank in the origin definition. In the Resource Manager definition of the origin, this configuration corresponds to setting originHostHeader to null.

API Management

By default, API Management overrides the host name that's sent to the back end with the host component of the API's web service URL (which corresponds to the serviceUrl value of the Resource Manager definition of the API).

You can force API Management to instead use the host name of the incoming request by adding an inbound Set HTTP header policy, as follows:

<inbound>
  <base />
  <set-header name="Host" exists-action="override">
    <value>@(context.Request.OriginalUrl.Host)</value>
  </set-header>
</inbound>

As noted previously, however, APIs are less sensitive to the problems caused by host name mismatches, so this configuration might not be as important.
