Resource limits for Azure NetApp Files
Understanding resource limits for Azure NetApp Files helps you manage your volumes.
The following table describes resource limits for Azure NetApp Files:
|Resource||Default limit||Adjustable via support request|
|Regional capacity quota per subscription||25 TiB||Yes|
|Number of NetApp accounts per Azure region per subscription||10||Yes|
|Number of capacity pools per NetApp account||25||Yes|
|Number of volumes per subscription||500||Yes|
|Number of volumes per capacity pool||500||Yes|
|Number of snapshots per volume||255||No|
|Number of IPs in a virtual network (including immediately peered VNets) accessing volumes in an Azure NetApp Files hosting VNet||
|Minimum size of a single capacity pool||2 TiB*||No|
|Maximum size of a single capacity pool||500 TiB||Yes|
|Minimum size of a single regular volume||100 GiB||No|
|Maximum size of a single regular volume||100 TiB||No|
|Minimum size of a single large volume||102,401 GiB||No|
|Maximum size of a single large volume||500 TiB||No|
|Maximum size of a single file||16 TiB||No|
|Maximum size of directory metadata in a single directory||320 MB||No|
|Maximum number of files in a single directory||Approximately 4 million.
See Determine if a directory is approaching the limit size.
|Maximum number of files
|Maximum number of export policy rules per volume||5||No|
|Maximum number of quota rules per volume||100||Yes|
|Minimum assigned throughput for a manual QoS volume||1 MiB/s||No|
|Maximum assigned throughput for a manual QoS volume||4,500 MiB/s||No|
|Number of cross-region replication data protection volumes (destination volumes)||10||Yes|
|Number of cross-zone replication data protection volumes (destination volumes)||10||Yes|
|Maximum numbers of policy-based (scheduled) backups per volume||
The maximum hourly, daily, weekly, and monthly backup retention counts combined is 1019.
|Maximum size of protected volume||100 TiB||N|
|Maximum number of volumes that can be backed up per subscription||5||Y|
|Maximum number of manual backups per volume per day||5||Y|
* 2-TiB capacity pool sizing is currently in preview. You can only take advantage of the 2-TiB minimum if all the volumes in the capacity pool are using Standard network features. If any volume is using Basic network features, the minimum size is 4 TiB.
For more information, see Capacity management FAQs.
For limits and constraints related to Azure NetApp Files network features, see Guidelines for Azure NetApp Files network planning.
Determine if a directory is approaching the limit size
You can use the
stat command from a client to see whether a directory is approaching the maximum size limit for directory metadata (320 MB). If you reach the maximum size limit for a single directory for Azure NetApp Files, the error
No space left on device occurs.
For a 320-MB directory, the number of blocks is 655360, with each block size being 512 bytes. (That is, 320x1024x1024/512.) This number translates to approximately 4 million files maximum for a 320-MB directory. However, the actual number of maximum files might be lower, depending on factors such as the number of files with non-ASCII characters in the directory. As such, you should use the
stat command as follows to determine whether your directory is approaching its limit.
[makam@cycrh6rtp07 ~]$ stat bin File: 'bin' Size: 4096 Blocks: 8 IO Block: 65536 directory [makam@cycrh6rtp07 ~]$ stat tmp File: 'tmp' Size: 12288 Blocks: 24 IO Block: 65536 directory [makam@cycrh6rtp07 ~]$ stat tmp1 File: 'tmp1' Size: 4096 Blocks: 8 IO Block: 65536 directory
Azure NetApp Files volumes have a limit called
maxfiles limit is the number of files a volume can contain. Linux file systems refer to the limit as inodes. The
maxfiles limit for an Azure NetApp Files volume is indexed based on the size (quota) of the volume. The
maxfiles limit for a volume increases or decreases at the rate of 21,251,126 files per TiB of provisioned volume size.
The service dynamically adjusts the
maxfiles limit for a volume based on its provisioned size. For example, a volume configured initially with a size of 1 TiB would have a
maxfiles limit of 21,251,126. Subsequent changes to the size of the volume would result in an automatic readjustment of the
maxfiles limit based on the following rules:
For volumes up to 100 TiB in size:
|Volume size (quota)||Automatic readjustment of the
|<= 1 TiB||21,251,126|
|> 1 TiB but <= 2 TiB||42,502,252|
|> 2 TiB but <= 3 TiB||63,753,378|
|> 3 TiB but <= 4 TiB||85,004,504|
|> 4 TiB but <= 100 TiB||106,255,630|
If your volume has a volume size (quota) of more than 4 TiB and you want to increase the
maxfiles limit, you must initiate a support request.
For volumes 100 TiB or under, if you've allocated at least 5 TiB of quota for a volume, you can initiate a support request to increase the
maxfiles (inodes) limit beyond 106,255,630. For every 106,255,630 files you increase (or a fraction thereof), you need to increase the corresponding volume quota by 5 TiB. For example, if you increase the
maxfiles limit from 106,255,630 files to 212,511,260 files (or any number in between), you need to increase the volume quota from 5 TiB to 10 TiB.
For volumes 100 TiB or under, you can increase the
maxfiles limit up to 531,278,150 if your volume quota is at least 25 TiB.
Once a volume has exceeded a
maxfiles limit, you cannot reduce volume size below the quota corresponding to that
maxfiles limit even if you have reduced the actual used file count. For example, if you have crossed the 63,753,378
maxfiles limit, the volume quota cannot be reduced below its corresponding index of 2 TiB.
For large volumes:
|Volume size (quota)||Automatic readjustment of the
|> 100 TiB||2,550,135,120|
You can increase the
maxfiles limit beyond 2,550,135,120 using a support request. For every 2,550,135,120 files you increase (or a fraction thereof), you need to increase the corresponding volume quota by 120 TiB. For example, if you increase
maxfiles limit from 2,550,135,120 to 5,100,270,240 files (or any number in between), you need to increase the volume quota to at least 240 TiB.
maxfiles value for a 500 TiB volume is 10,625,563,000 files.
You cannot set
maxfiles limits for data protection volumes via a quota request. Azure NetApp Files automatically increases the
maxfiles limit of a data protection volume to accommodate the number of files replicated to the volume. When a failover happens to a data protection volume, the
maxfiles limit remains the last value before the failover. In this situation, you can submit a
maxfiles quota request for the volume.
Request limit increase
You can create an Azure support request to increase the adjustable limits from the Resource Limits table.
Depending on available resources in the region and the limit increase requested, Azure support may require additional information in order to determine the feasibility of the request.

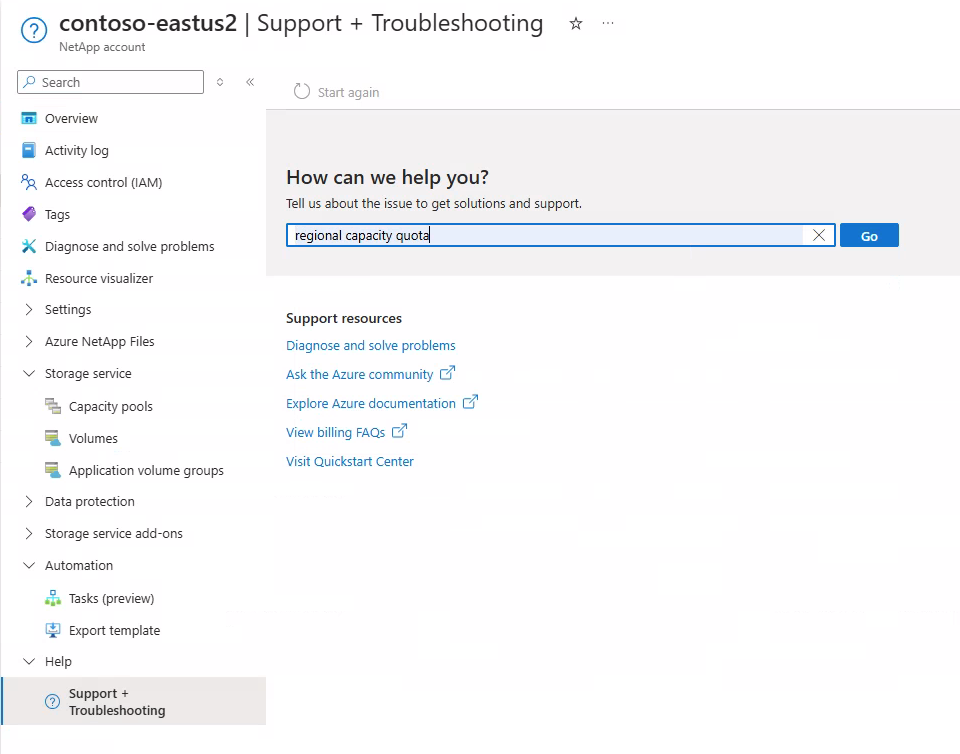

Go to New Support Request under Support + troubleshooting.

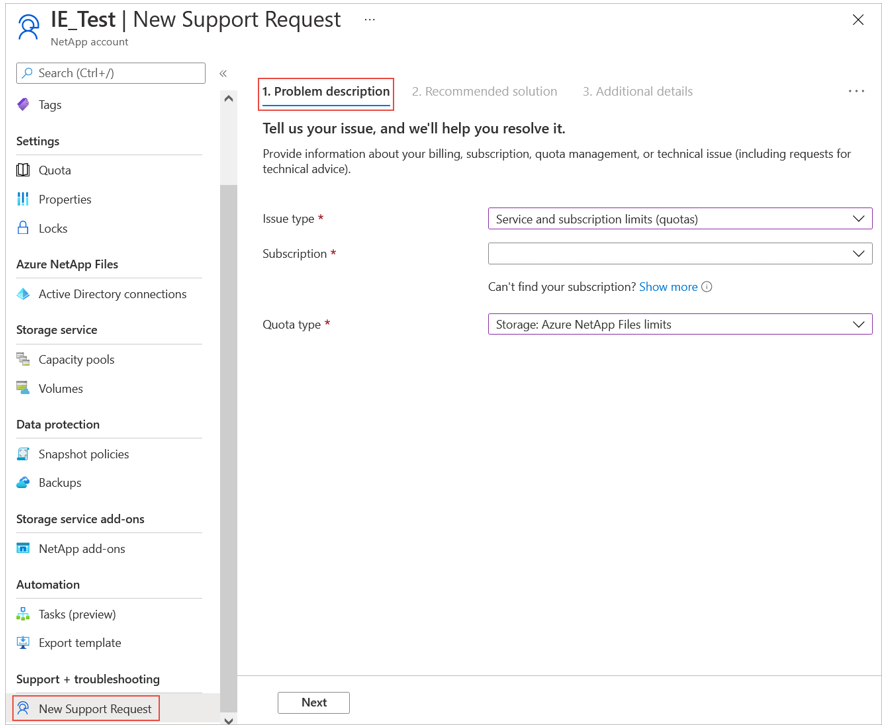

Under the Problem description tab, provide the required information:
- For Issue Type, select Service and Subscription Limits (Quotas).
- For Subscription, select your subscription.
- For Quota Type, select Storage: Azure NetApp Files limits.

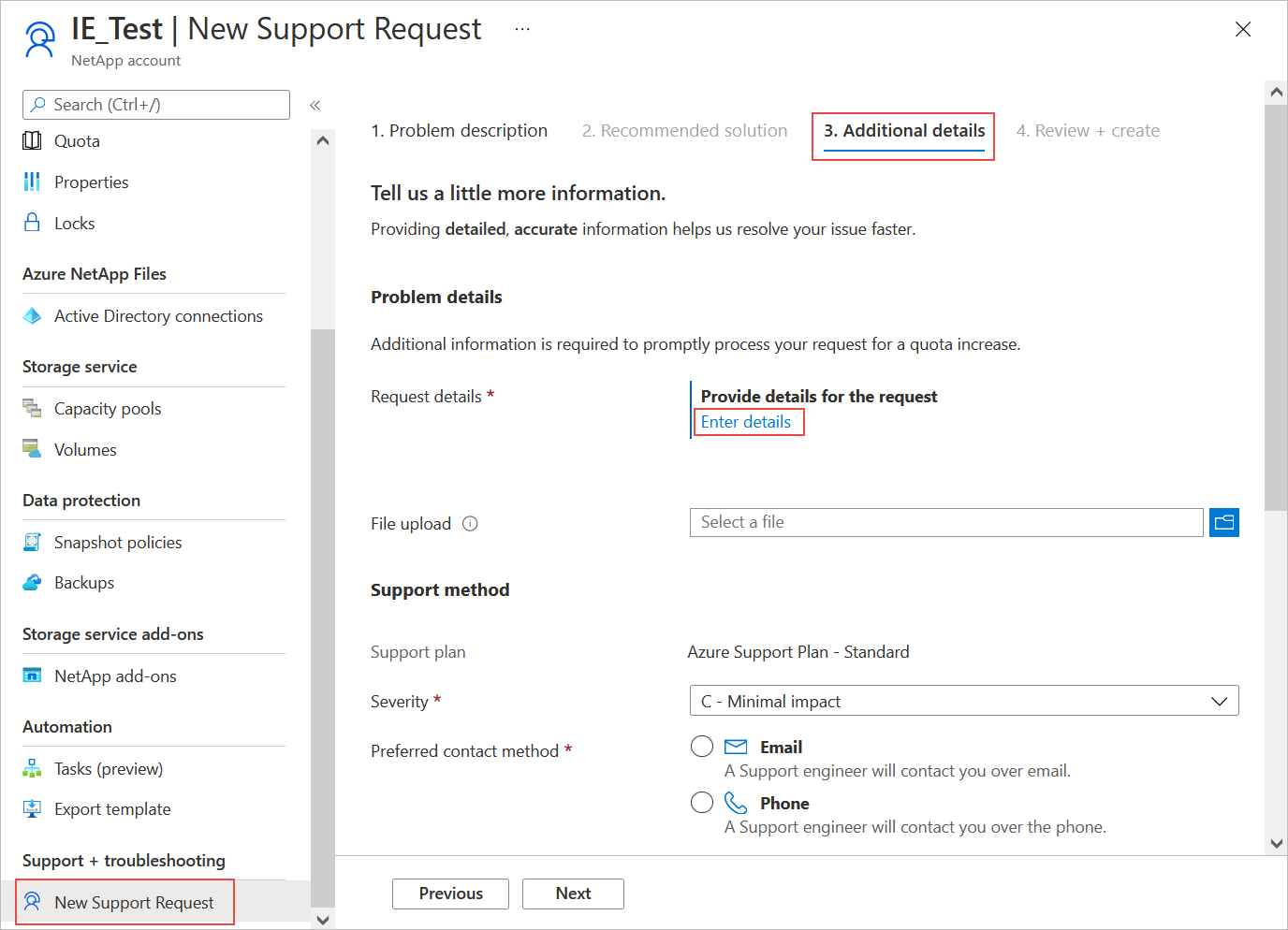

Under the Additional details tab, select Enter details in the Request Details field.

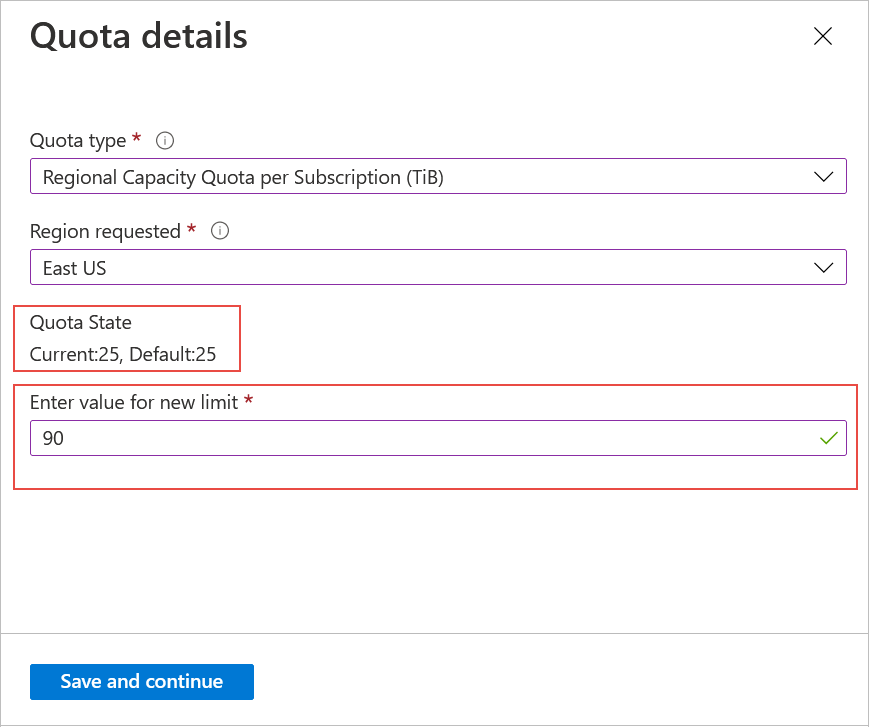

To request limit increase, provide the following information in the Quota Details window that appears:
In Quota Type, select the type of resource you want to increase.
- Regional Capacity Quota per Subscription (TiB)
- Number of NetApp accounts per Azure region per subscription
- Number of volumes per subscription
In Region Requested, select your region.
The current and default sizes are displayed under Quota State.
Enter a value to request an increase for the quota type you specified.
Select Save and continue. Select Review + create to create the request.
