Restore a file from a snapshot using a client with Azure NetApp Files

  • Article

Snapshots enable point-in-time recovery of volumes. If you do not want to restore the entire snapshot to a volume, you have the option to restore a file from a snapshot by using a client that has the volume mounted.

The mounted volume contains a snapshot directory named .snapshot (in NFS clients) or ~snapshot (in SMB clients) that is accessible to the client. The snapshot directory contains subdirectories corresponding to the snapshots of the volume. Each subdirectory contains the files of the snapshot. If you accidentally delete or overwrite a file, you can restore the file to the parent read-write directory by copying the file from a snapshot subdirectory to the read-write directory.

You can control access to the snapshot directories by using the Hide Snapshot Path option. This option controls whether the directory should be hidden from the clients. Therefore, it also controls access to files and folders in the snapshots.

NFSv4.1 does not show the .snapshot directory (ls -la). However, when the Hide Snapshot Path option is not set, you can still access the .snapshot directory via NFSv4.1 by using the cd <snapshot-path> command from the client command line.

Restore a file by using a Linux NFS client

  1. Use the ls Linux command to list the file that you want to restore from the .snapshot directory.

    For example:

    $ ls my.txt
    ls: my.txt: No such file or directory

    $ ls .snapshot
    daily.2020-05-14_0013/ hourly.2020-05-15_1106/
    daily.2020-05-15_0012/ hourly.2020-05-15_1206/
    hourly.2020-05-15_1006/ hourly.2020-05-15_1306/

    $ ls .snapshot/hourly.2020-05-15_1306/my.txt
    my.txt

  2. Use the cp command to copy the file to the parent directory.

    For example:

    $ cp .snapshot/hourly.2020-05-15_1306/my.txt .

    $ ls my.txt
    my.txt

Restore a file by using a Windows client

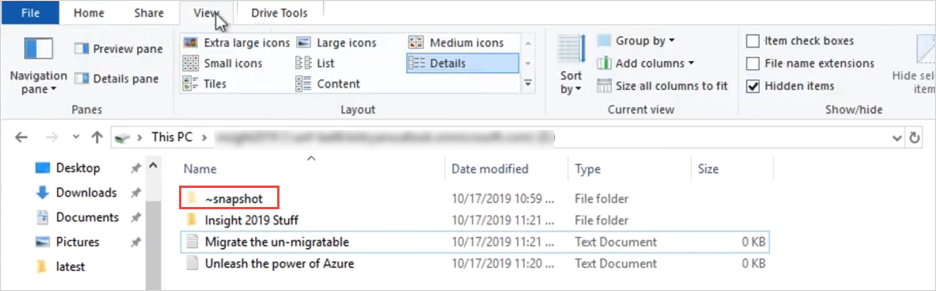

  1. If the ~snapshot directory of the volume is hidden, show hidden items in the parent directory to display ~snapshot.

    Screenshot that shows hidden items of a directory.

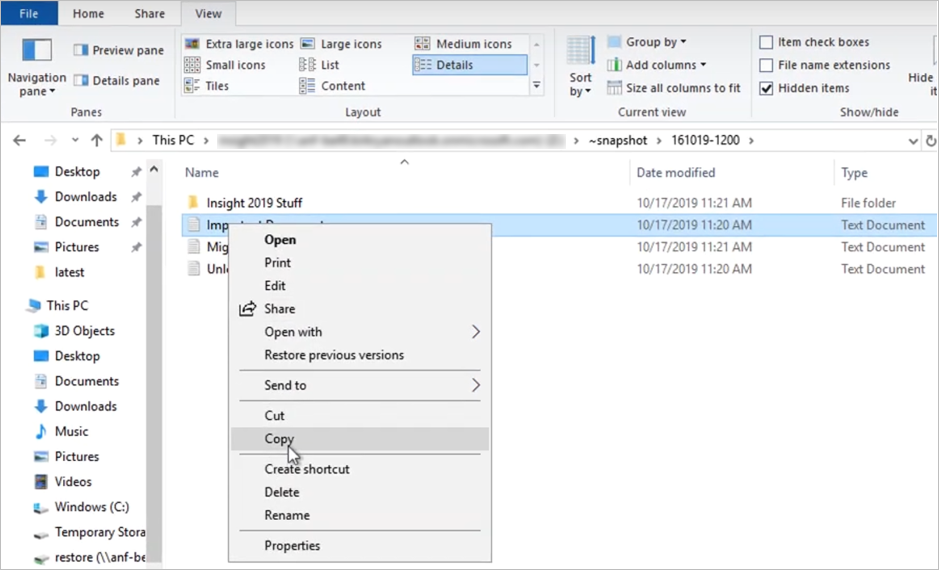

  2. Navigate to the subdirectory within ~snapshot to find the file you want to restore. Right-click the file. Select Copy.

    Screenshot that shows how to copy a file to restore.

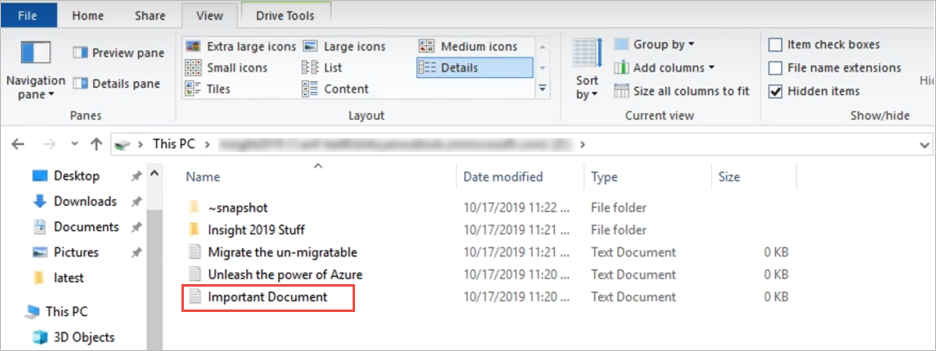

  3. Return to the parent directory. Right-click in the parent directory and select Paste to paste the file to the directory.

    Screenshot that shows how to paste a file to restore.

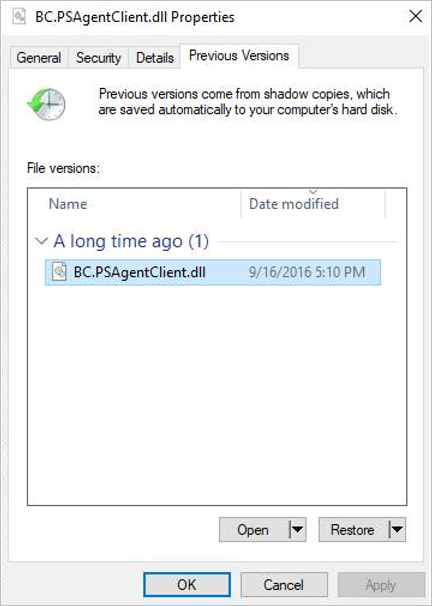

  4. You can also right-click the parent directory, select Properties, click the Previous Versions tab to see the list of snapshots, and select Restore to restore a file.

    Screenshot that shows the properties previous versions.
