Azure SQL Database and Azure Synapse Analytics network access controls

  • Article

Applies to: Azure SQL Database Azure Synapse Analytics (dedicated SQL pools only)

When you create a logical server from the Azure portal for Azure SQL Database and Azure Synapse Analytics, the result is a public endpoint in the format, yourservername.database.windows.net.

You can use the following network access controls to selectively allow access to a database via the public endpoint:

  • Allow Azure services and resources to access this server: When enabled, other resources within the Azure boundary, for example an Azure Virtual Machine, can access SQL Database
  • IP firewall rules: Use this feature to explicitly allow connections from a specific IP address, for example from on-premises machines

You can also allow private access to the database from virtual networks via:

  • Virtual network firewall rules: Use this feature to allow traffic from a specific virtual network within the Azure boundary
  • Private Link: Use this feature to create a private endpoint for logical server in Azure within a specific virtual network

Important

This article does not apply to SQL Managed Instance. For more information about the networking configuration, see connecting to Azure SQL Managed Instance .

See the below video for a high-level explanation of these access controls and what they do:

Allow Azure services

By default during creation of a new logical server from the Azure portal, Allow Azure services and resources to access this server is unchecked and not enabled. This setting appears when connectivity is allowed using public service endpoint.

You can also change this setting via the Networking setting after the logical server is created as follows:

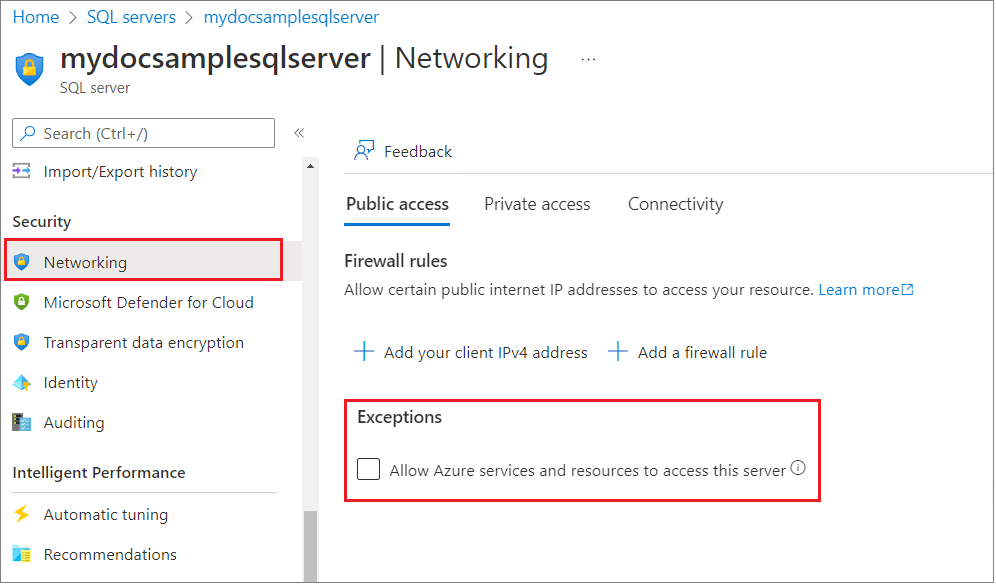

Screenshot of manage server firewall

When Allow Azure services and resources to access this server is enabled, your server allows communications from all resources inside the Azure boundary, that may or may not be part of your subscription.

In many cases, enabling the setting is more permissive than what most customers want. You may want to uncheck this setting and replace it with more restrictive IP firewall rules or virtual network firewall rules.

However, doing so affects the following features that run on virtual machines in Azure that aren't part of your virtual network and hence connect to the database via an Azure IP address:

Import Export Service

Import Export Service doesn't work when Allow Azure services and resources to access this server is not enabled. However you can work around the problem by manually running SqlPackage from an Azure VM or performing the export directly in your code by using the DACFx API.

Data Sync

To use the Data sync feature with Allow Azure services and resources to access this server not enabled, you need to create individual firewall rule entries to add IP addresses from the Sql service tag for the region hosting the Hub database. Add these server-level firewall rules to the servers hosting both Hub and Member databases (which may be in different regions)

Use the following PowerShell script to generate IP addresses corresponding to the SQL service tag for West US region

PS C:\>  $serviceTags = Get-AzNetworkServiceTag -Location eastus2
PS C:\>  $sql = $serviceTags.Values | Where-Object { $_.Name -eq "Sql.WestUS" }
PS C:\> $sql.Properties.AddressPrefixes.Count
70
PS C:\> $sql.Properties.AddressPrefixes
13.86.216.0/25
13.86.216.128/26
13.86.216.192/27
13.86.217.0/25
13.86.217.128/26
13.86.217.192/27

Tip

Get-AzNetworkServiceTag returns the global range for SQL Service Tag despite specifying the Location parameter. Be sure to filter it to the region that hosts the Hub database used by your sync group

Note that the output of the PowerShell script is in Classless Inter-Domain Routing (CIDR) notation. This needs to be converted to a format of Start and End IP address using Get-IPrangeStartEnd.ps1 like this:

PS C:\> Get-IPrangeStartEnd -ip 52.229.17.93 -cidr 26
start        end
-----        ---
52.229.17.64 52.229.17.127

You can use this additional PowerShell script to convert all the IP addresses from CIDR to Start and End IP address format.

PS C:\>foreach( $i in $sql.Properties.AddressPrefixes) {$ip,$cidr= $i.split('/') ; Get-IPrangeStartEnd -ip $ip -cidr $cidr;}
start          end
-----          ---
13.86.216.0    13.86.216.127
13.86.216.128  13.86.216.191
13.86.216.192  13.86.216.223

You can now add these as distinct firewall rules and then disable the setting Allow Azure services and resources to access this server.

IP firewall rules

Ip based firewall is a feature of the logical server in Azure that prevents all access to your server until you explicitly add IP addresses of the client machines.

Virtual network firewall rules

In addition to IP rules, the server firewall allows you to define virtual network rules. To learn more, see Virtual network service endpoints and rules for Azure SQL Database.

Azure Networking terminology

Be aware of the following Azure Networking terms as you explore Virtual network firewall rules

Virtual network: You can have virtual networks associated with your Azure subscription

Subnet: A virtual network contains subnets. Any Azure virtual machines (VMs) that you have are assigned to subnets. One subnet can contain multiple VMs or other compute nodes. Compute nodes that are outside of your virtual network can't access your virtual network unless you configure your security to allow access.

Virtual network service endpoint: A Virtual network service endpoint is a subnet whose property values include one or more formal Azure service type names. In this article we're interested in the type name of Microsoft.Sql, which refers to the Azure service named SQL Database.

Virtual network rule: A virtual network rule for your server is a subnet that is listed in the access control list (ACL) of your server. To be in the ACL for your database in SQL Database, the subnet must contain the Microsoft.Sql type name. A virtual network rule tells your server to accept communications from every node that is on the subnet.

IP vs. Virtual network firewall rules

The Azure SQL Database firewall allows you to specify IP address ranges from which communications are accepted into SQL Database. This approach is fine for stable IP addresses that are outside the Azure private network. However, virtual machines (VMs) within the Azure private network are configured with dynamic IP addresses. Dynamic IP addresses can change when your VM is restarted and in turn invalidate the IP-based firewall rule. It would be folly to specify a dynamic IP address in a firewall rule, in a production environment.

You can work around this limitation by obtaining a static IP address for your VM. For details, see Create a virtual machine with a static public IP address using the Azure portal. However, the static IP approach can become difficult to manage, and it's costly when done at scale.

Virtual network rules are easier alternative to establish and to manage access from a specific subnet that contains your VMs.

Note

You cannot yet have SQL Database on a subnet. If your server was a node on a subnet in your virtual network, all nodes within the virtual network could communicate with your SQL Database. In this case, your VMs could communicate with SQL Database without needing any virtual network rules or IP rules.

Private Link allows you to connect to a server via a private endpoint. A private endpoint is a private IP address within a specific virtual network and Subnet.
