Manage call recording on the client

Article
05/30/2023

Important

Functionality described in this document is currently in public preview. This preview version is provided without a service-level agreement, and we don't recommend it for production workloads. Certain features might not be supported or might have constrained capabilities. For more information, see Supplemental Terms of Use for Microsoft Azure Previews.

Call recording, lets your users record their calls made with Azure Communication Services. Here we learn how to manage recording on the client side. Before this can work, you'll need to set up server side recording.

Prerequisites

An Azure account with an active subscription. Create an account for free.
A deployed Communication Services resource. Create a Communication Services resource.
A user access token to enable the calling client. For more information, see Create and manage access tokens.
Optional: Complete the quickstart to add voice calling to your application

Install the SDK

Use the npm install command to install the Azure Communication Services calling and common SDKs for JavaScript.

npm install @azure/communication-common --save
npm install @azure/communication-calling --save

Initialize required objects

A CallClient, instance is required for most call operations. Let's create a new CallClient instance. You can configure it with custom options like a Logger instance.

When you have a CallClient instance, you can create a CallAgent instance by calling the createCallAgent method on the CallClient instance. This method asynchronously returns a CallAgent instance object.

The createCallAgent method uses CommunicationTokenCredential as an argument. It accepts a user access token.

You can use the getDeviceManager method on the CallClient instance to access deviceManager.

const { CallClient } = require('@azure/communication-calling');
const { AzureCommunicationTokenCredential} = require('@azure/communication-common');
const { AzureLogger, setLogLevel } = require("@azure/logger");

// Set the logger's log level
setLogLevel('verbose');

// Redirect log output to wherever desired. To console, file, buffer, REST API, etc...
AzureLogger.log = (...args) => {
    console.log(...args); // Redirect log output to console
};

const userToken = '<USER_TOKEN>';
callClient = new CallClient(options);
const tokenCredential = new AzureCommunicationTokenCredential(userToken);
const callAgent = await callClient.createCallAgent(tokenCredential, {displayName: 'optional Azure Communication Services user name'});
const deviceManager = await callClient.getDeviceManager()

Record calls

Note

This API is provided as a preview for developers and may change based on feedback that we receive. Do not use this API in a production environment. To use this api please use 'beta' release of Azure Communication Services Calling Web SDK.

Call recording is an extended feature of the core Call API. You first need to import calling Features from the Calling SDK:

import { Features} from "@azure/communication-calling";

Then you can get the recording feature API object from the call instance:

const callRecordingApi = call.feature(Features.Recording);

Then, to check if the call is being recorded, inspect the isRecordingActive property of callRecordingApi. It returns Boolean.

const isRecordingActive = callRecordingApi.isRecordingActive;

You can also subscribe to recording changes:

const isRecordingActiveChangedHandler = () => {
    console.log(callRecordingApi.isRecordingActive);
};

callRecordingApi.on('isRecordingActiveChanged', isRecordingActiveChangedHandler);

Install the SDK

Locate your project level build.gradle and make sure to add mavenCentral() to the list of repositories under buildscript and allprojects

buildscript {
    repositories {
    ...
        mavenCentral()
    ...
    }
}

allprojects {
    repositories {
    ...
        mavenCentral()
    ...
    }
}

Then, in your module level build.gradle add the following lines to the dependencies section

dependencies {
    ...
    implementation 'com.azure.android:azure-communication-calling:1.0.0'
    ...
}

Initialize the required objects

To create a CallAgent instance you have to call the createCallAgent method on a CallClient instance. This asynchronously returns a CallAgent instance object. The createCallAgent method takes a CommunicationUserCredential as an argument, which encapsulates an access token. To access the DeviceManager, a callAgent instance must be created first, and then you can use the CallClient.getDeviceManager method to get the DeviceManager.

String userToken = '<user token>';
CallClient callClient = new CallClient();
CommunicationTokenCredential tokenCredential = new CommunicationTokenCredential(userToken);
android.content.Context appContext = this.getApplicationContext(); // From within an Activity for instance
CallAgent callAgent = callClient.createCallAgent(appContext, tokenCredential).get();
DeviceManager deviceManager = callClient.getDeviceManager(appContext).get();

To set a display name for the caller, use this alternative method:

String userToken = '<user token>';
CallClient callClient = new CallClient();
CommunicationTokenCredential tokenCredential = new CommunicationTokenCredential(userToken);
android.content.Context appContext = this.getApplicationContext(); // From within an Activity for instance
CallAgentOptions callAgentOptions = new CallAgentOptions();
callAgentOptions.setDisplayName("Alice Bob");
DeviceManager deviceManager = callClient.getDeviceManager(appContext).get();
CallAgent callAgent = callClient.createCallAgent(appContext, tokenCredential, callAgentOptions).get();

Record calls

Warning

Up until version 1.1.0 and beta release version 1.1.0-beta.1 of the Azure Communication Services Calling Android SDK has the isRecordingActive and addOnIsRecordingActiveChangedListener are part of the Call object. For new beta releases, those APIs have been moved as an extended feature of Call just like described below.

Note

Call recording is an extended feature of the core Call object. You first need to obtain the recording feature object:

RecordingCallFeature callRecordingFeature = call.feature(Features.RECORDING);

Then, to check if the call is being recorded, inspect the isRecordingActive property of callRecordingFeature. It returns boolean.

boolean isRecordingActive = callRecordingFeature.isRecordingActive();

You can also subscribe to recording changes:

private void handleCallOnIsRecordingChanged(PropertyChangedEvent args) {
	boolean isRecordingActive = callRecordingFeature.isRecordingActive();
}

callRecordingFeature.addOnIsRecordingActiveChangedListener(handleCallOnIsRecordingChanged);

If you want to start recording from your application, please first follow Calling Recording overview for the steps to set up call recording.

Once you have the call recording setup on your server, from your Android application you need to obtain the ServerCallId value from the call and then send it to your server to start the recording process. The ServerCallId value can be found using getServerCallId() from the CallInfo class, which can be found in the class object using getInfo().

try {
    String serverCallId = call.getInfo().getServerCallId().get();
    // Send serverCallId to your recording server to start the call recording.
} catch (ExecutionException | InterruptedException e) {

} catch (UnsupportedOperationException unsupportedOperationException) {

}

When recording is started from the server, the event handleCallOnIsRecordingChanged will trigger and the value of callRecordingFeature.isRecordingActive() will be true.

Just like starting the call recording, if you want to stop the call recording you need to get the ServerCallId and send it to your recording server so that it can stop the call recording.

try {
    String serverCallId = call.getInfo().getServerCallId().get();
    // Send serverCallId to your recording server to stop the call recording.
} catch (ExecutionException | InterruptedException e) {

} catch (UnsupportedOperationException unsupportedOperationException) {

}

When recording is stopped from the server, the event handleCallOnIsRecordingChanged will trigger and the value of callRecordingFeature.isRecordingActive() will be false.

Set up your system

Create the Xcode project

In Xcode, create a new iOS project and select the Single View App template. This quickstart uses the SwiftUI framework, so you should set the Language to Swift and User Interface to SwiftUI.

You're not going to create unit tests or UI tests during this quickstart. Feel free to clear the Include Unit Tests and Include UI Tests text boxes.

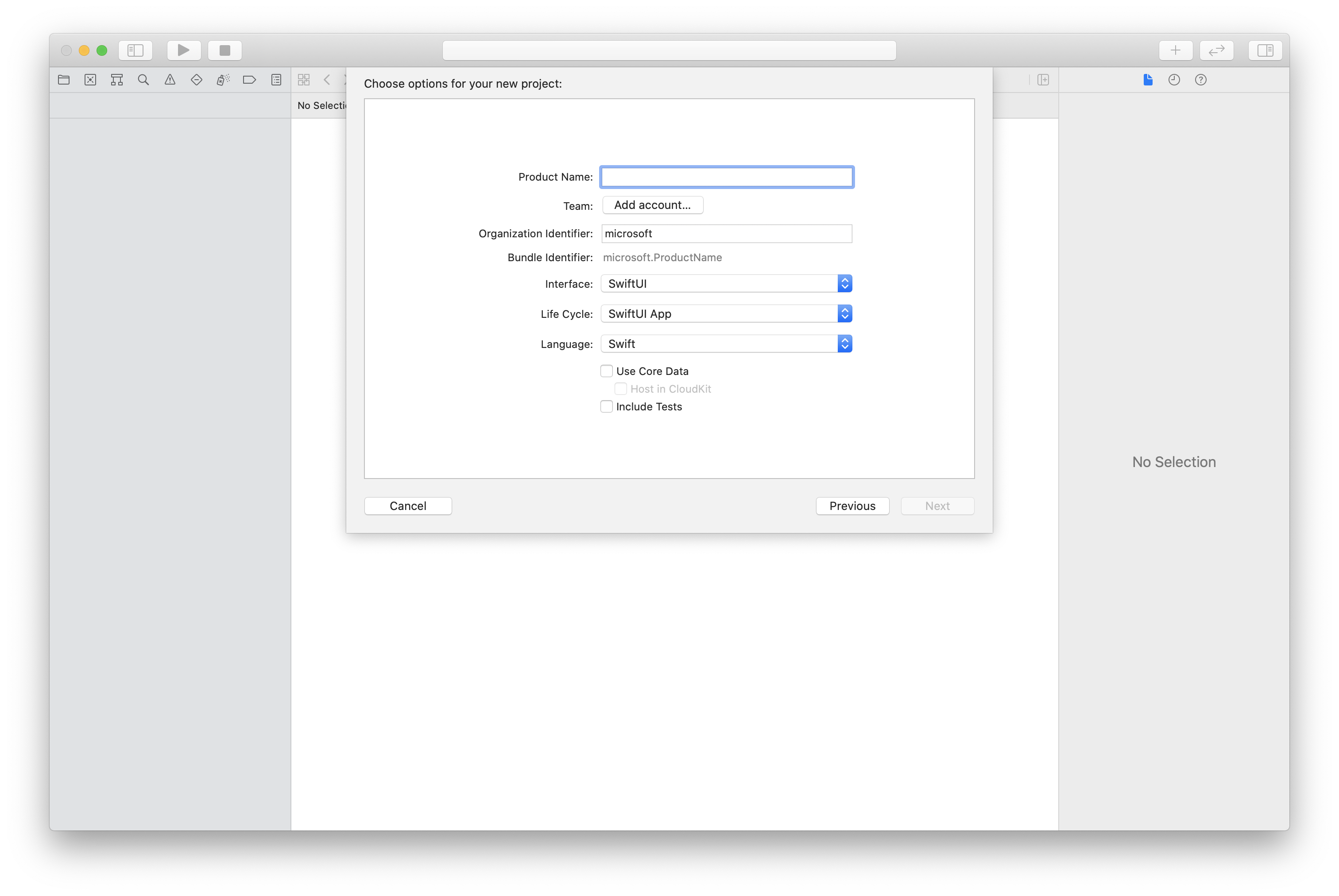

Screenshot that shows the window for creating a project within Xcode.

Install the package and dependencies with CocoaPods

Create a Podfile for your application, like this:

platform :ios, '13.0'
use_frameworks!
target 'AzureCommunicationCallingSample' do
    pod 'AzureCommunicationCalling', '~> 1.0.0'
end

Run pod install.
Open .xcworkspace with Xcode.

Request access to the microphone

To access the device's microphone, you need to update your app's information property list with NSMicrophoneUsageDescription. You set the associated value to a string that will be included in the dialog that the system uses to request access from the user.

Right-click the Info.plist entry of the project tree and select Open As > Source Code. Add the following lines in the top-level <dict> section, and then save the file.

<key>NSMicrophoneUsageDescription</key>
<string>Need microphone access for VOIP calling.</string>

Set up the app framework

Open your project's ContentView.swift file and add an import declaration to the top of the file to import the AzureCommunicationCalling library. In addition, import AVFoundation. You'll need it for audio permission requests in the code.

import AzureCommunicationCalling
import AVFoundation

Initialize CallAgent

To create a CallAgent instance from CallClient, you have to use a callClient.createCallAgent method that asynchronously returns a CallAgent object after it's initialized.

To create a call client, you have to pass a CommunicationTokenCredential object.

import AzureCommunication

let tokenString = "token_string"
var userCredential: CommunicationTokenCredential?
do {
    let options = CommunicationTokenRefreshOptions(initialToken: token, refreshProactively: true, tokenRefresher: self.fetchTokenSync)
    userCredential = try CommunicationTokenCredential(withOptions: options)
} catch {
    updates("Couldn't created Credential object", false)
    initializationDispatchGroup!.leave()
    return
}

// tokenProvider needs to be implemented by Contoso, which fetches a new token
public func fetchTokenSync(then onCompletion: TokenRefreshOnCompletion) {
    let newToken = self.tokenProvider!.fetchNewToken()
    onCompletion(newToken, nil)
}

Pass the CommunicationTokenCredential object that you created to CallClient, and set the display name.

self.callClient = CallClient()
let callAgentOptions = CallAgentOptions()
options.displayName = " iOS Azure Communication Services User"

self.callClient!.createCallAgent(userCredential: userCredential!,
    options: callAgentOptions) { (callAgent, error) in
        if error == nil {
            print("Create agent succeeded")
            self.callAgent = callAgent
        } else {
            print("Create agent failed")
        }
})

Record calls

Warning

Up until version 1.1.0 and beta release version 1.1.0-beta.1 of the Azure Communication Services Calling iOS SDK has the isRecordingActive as part of the Call object and didChangeRecordingState is part of CallDelegate delegate. For new beta releases, those APIs have been moved as an extended feature of Call just like described below.

Note

Call recording is an extended feature of the core Call object. You first need to obtain the recording feature object:

let callRecordingFeature = call.feature(Features.recording)

Then, to check if the call is being recorded, inspect the isRecordingActive property of callRecordingFeature. It returns Bool.

let isRecordingActive = callRecordingFeature.isRecordingActive;

You can also subscribe to recording changes by implementing RecordingCallFeatureDelegate delegate on your class with the event didChangeRecordingState:

callRecordingFeature.delegate = self

// didChangeRecordingState is a member of RecordingCallFeatureDelegate
public func recordingCallFeature(_ recordingCallFeature: RecordingCallFeature, didChangeRecordingState args: PropertyChangedEventArgs) {
    let isRecordingActive = recordingFeature.isRecordingActive
}

If you want to start recording from your application, please first follow Calling Recording overview for the steps to set up call recording.

Once you have the call recording setup on your server, from your iOS application you need to obtain the ServerCallId value from the call and then send it to your server to start the recording process. The ServerCallId value can be found using getServerCallId() from the CallInfo class, which can be found in the class object using getInfo().

// Send serverCallId to your recording server to start the call recording.
let serverCallId = call.info.getServerCallId(){ (serverId, error) in }

When recording is started from the server, the event didChangeRecordingState will trigger and the value of recordingFeature.isRecordingActive will be true.

Just like starting the call recording, if you want to stop the call recording you need to get the ServerCallId and send it to your recording server so that it can stop the call recording.

// Send serverCallId to your recording server to stop the call recording.
let serverCallId = call.info.getServerCallId(){ (serverId, error) in }

When recording is stopped from the server, the event didChangeRecordingState will trigger and the value of recordingFeature.isRecordingActive will be false.

Setting up

Creating the Visual Studio project

For UWP app, in Visual Studio 2022, create a new Blank App (Universal Windows) project. After entering the project name, feel free to pick any Windows SDK greater than 10.0.17763.0.

For WinUI 3 app, create a new project with the Blank App, Packaged (WinUI 3 in Desktop) template to set up a single-page WinUI 3 app. Windows App SDK version 1.3 and above is required.

Install the package and dependencies with NuGet Package Manager

The Calling SDK APIs and libraries are publicly available via a NuGet package. The following steps exemplify how to find, download, and install the Calling SDK NuGet package.

Open NuGet Package Manager (Tools -> NuGet Package Manager -> Manage NuGet Packages for Solution)
Click on Browse and then type Azure.Communication.Calling.WindowsClient in the search box.
Make sure that Include prerelease check box is selected.
Click on the Azure.Communication.Calling.WindowsClient package, select Azure.Communication.Calling.WindowsClient 1.4.0-beta.1 or newer version.
Select the checkbox corresponding to the CS project on the right-side tab.
Click on the Install button.

Record calls

Call recording is an extended feature of the core Call object. You first need to obtain the recording feature object:

RecordingCallFeature recordingFeature = call.Features.Recording;

Then, to check if the call is being recorded, inspect the IsRecordingActive property of recordingFeature. It returns boolean.

boolean isRecordingActive = recordingFeature.IsRecordingActive;

You can also subscribe to recording changes:

private async void Call__OnIsRecordingActiveChanged(object sender, PropertyChangedEventArgs args)
	boolean isRecordingActive = recordingFeature.IsRecordingActive;
}

recordingFeature.IsRecordingActiveChanged += Call__OnIsRecordingActiveChanged;
