DAB Visualize extension

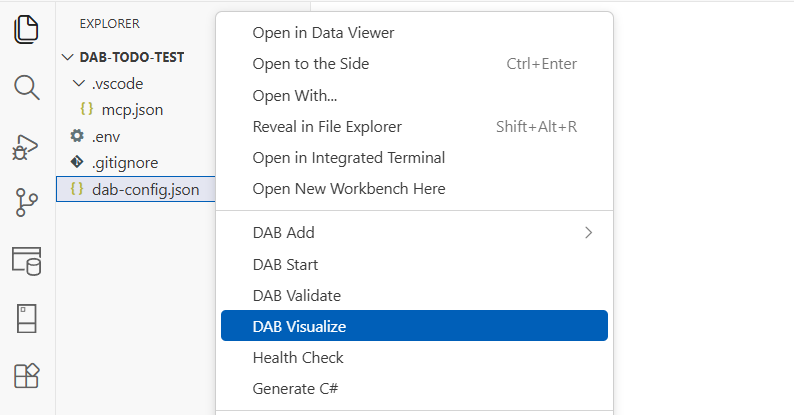

Use the DAB Visualize extension to generate a Mermaid ER diagram from your configuration file.

Command

Command	Command ID
DAB Visualize	dabExtension.visualizeDab

Behavior

The extension parses configured entities and relationships, emits Mermaid ER syntax into a Markdown file, and opens the preview so you can inspect shape and cardinality quickly.

Installation

Every extension for Data API builder (DAB) is included in the Omnibus extension, which itself has no functionality other than delivering each subextension in a single package.
