View and manage alerts from the Azure portal

Microsoft Defender for IoT alerts enhance your network security and operations with real-time details about events logged in your network. This article describes how to manage Microsoft Defender for IoT alerts on the Azure portal, including alerts generated by OT and Enterprise IoT network sensors.

Important

The Alerts page is currently in PREVIEW. See the Supplemental Terms of Use for Microsoft Azure Previews for additional legal terms that apply to Azure features that are in beta, preview, or otherwise not yet released into general availability.

Prerequisites

For more information, see Azure user roles and permissions for Defender for IoT.

View alerts on the Azure portal

  1. In Defender for IoT on the Azure portal, select the Alerts page on the left. By default, the following details are shown in the grid:

    Column Description
    Severity A predefined alert severity assigned by the sensor that you can modify as needed.
    Name The alert title.
    Site The site associated with the sensor that detected the alert, as listed on the Sites and sensors page.
    Engine The Defender for IoT detection engine that detected the activity and triggered the alert.

    Note: A value of Micro-agent indicates that the event was triggered by the Defender for IoT Device Builder platform.
    Last detection The last time the alert was detected.

    - If an alert's status is New, and the same traffic is seen again, the Last detection time is updated for the same alert.
    - If the alert's status is Closed and traffic is seen again, the Last detection time is not updated, and a new alert is triggered.
    Status The alert status: New, Active, Closed

    For more information, see Alert statuses and triaging options.
    Source device The IP address, MAC address, or the name of the device where the traffic that triggered the alert originated.
    Tactics The MITRE ATT&CK stage.
    1. To view more details, select the Edit columns button.

      In the Edit columns pane on the right, select Add Column and any of the following extra columns:

      Column Description
      Source device address The IP address of the source device.
      Destination device address The IP address of the destination device.
      Destination device The destination IP or MAC address, or the destination device name.
      First detection The first time the alert was detected in the network.
      ID The unique alert ID.
      Last activity The last time the alert was changed, including manual updates for severity or status, or automated changes for device updates or device/alert de-duplication
      Protocol The protocol detected in the network traffic for the alert.
      Sensor The sensor that detected the alert.
      Zone The zone assigned to the sensor that detected the alert.
      Category The category associated with the alert, such as operational issues, custom alerts, or illegal commands.
      Type The internal name of the alert.

Filter alerts displayed

Use the Search box, Time range, and Add filter options to filter the alerts displayed by specific parameters or to help locate a specific alert.

For example, filter alerts by Category:

Screenshot of the Category filter option in Alerts page in the Azure portal.

Group alerts displayed

Use the Group by menu at the top-right to collapse the grid into subsections according to specific parameters.

For example, while the total number of alerts appears above the grid, you may want more specific information about alert count breakdown, such as the number of alerts with a specific severity, protocol, or site.

Supported grouping options include Engine, Name, Sensor, Severity, and Site.

View details and remediate a specific alert

  1. On the Alerts page, select an alert in the grid to display more details in the pane on the right. The alert details pane includes the alert description, traffic source and destination, and more.

    Select View full details to drill down further. For example:

    Screenshot of an alert selected from Alerts page in the Azure portal.

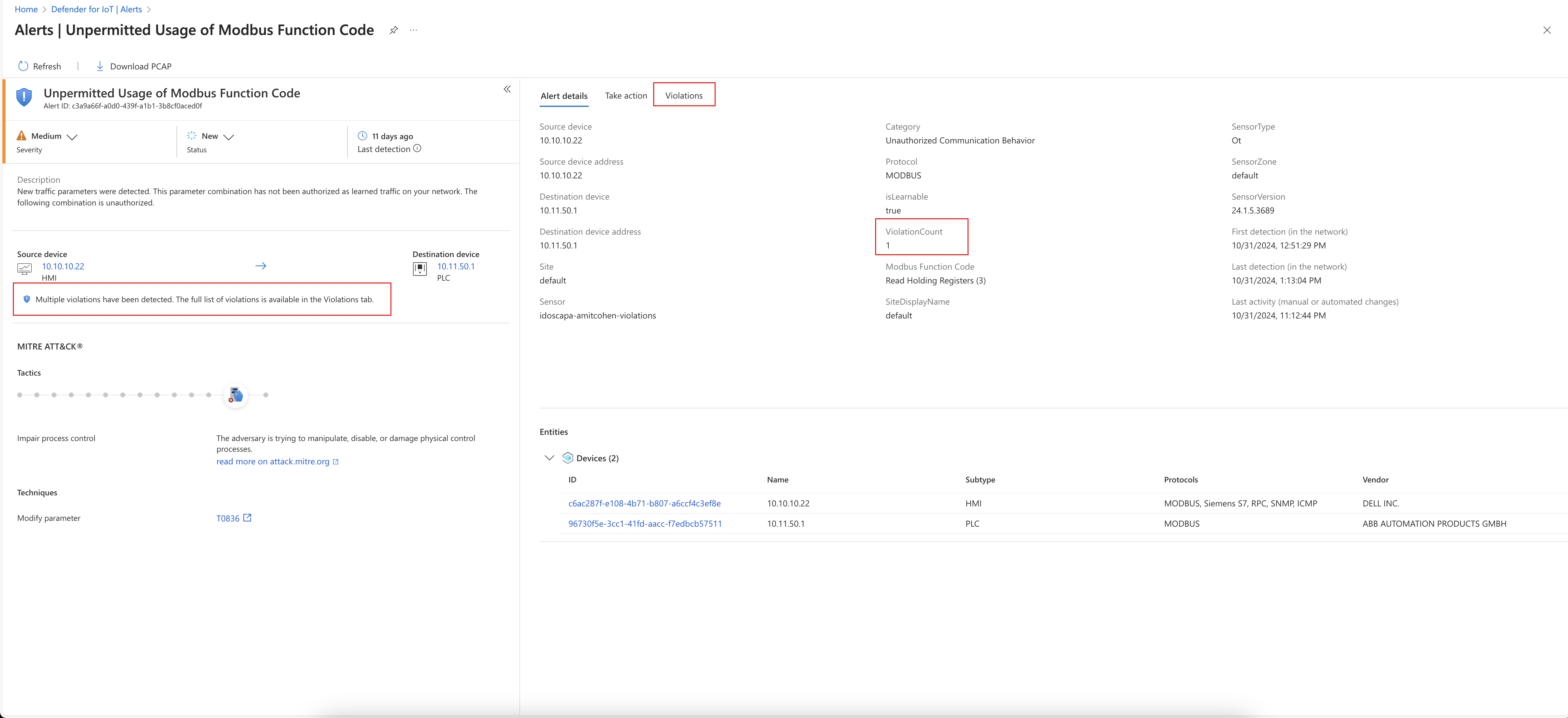

  2. The alert details page provides more details about the alert, and a set of remediation steps on the Take action tab. For example:

    Screenshot of the alert details page on the Azure portal.

Manage alert severity and status

We recommend that you update alert severity as soon as you've triaged an alert so that you can prioritize the riskiest alerts as soon as possible. Make sure to update your alert status once you've taken remediation steps so that the progress is recorded.

You can update both severity and status for a single alert or for a selection of alerts in bulk.

Learn an alert to indicate to Defender for IoT that the detected network traffic is authorized. Learned alerts aren't triggered again the next time the same traffic is detected on your network. Learning is supported only for selected alerts, and unlearning is supported only from the OT network sensor.

For more information, see Alert statuses and triaging options.

  • To manage a single alert:

    1. In Defender for IoT in the Azure portal, select the Alerts page on the left, and then select an alert in the grid.
    2. Either on the details pane on the right, or in an alert details page itself, select the new status and/or severity.
  • To manage multiple alerts in bulk:

    1. In Defender for IoT in the Azure portal, select the Alerts page on the left, and then select the alerts in the grid that you want to modify.
    2. Use the Change status and/or Change severity options in the toolbar to update the status and/or the severity for all the selected alerts.
  • To learn one or more alerts:

    In Defender for IoT in the Azure portal, select the Alerts page on the left, and then do one of the following:

    • Select one or more learnable alerts in the grid and then select Learn in the toolbar.
    • On an alert details page for a learnable alert, in the Take Action tab, select Learn.

Access alert PCAP data

You might want to access raw traffic files, also known as packet capture files or PCAP files as part of your investigation. If you're a SOC or OT security engineer, access PCAP files directly from the Azure portal to help you investigate faster.

To access raw traffic files for your alert, select Download PCAP in the top-left corner of your alert details page.

For example:

Screenshot of the Download PCAP button.

The portal requests the file from the sensor that detected the alert and downloads it to your Azure storage.

Downloading the PCAP file can take several minutes, depending on the quality of your sensor connectivity.

Export alerts to a CSV file

You may want to export a selection of alerts to a CSV file for offline sharing and reporting.

  1. In Defender for IoT on the Azure portal, select the Alerts page on the left.

  2. Use the search box and filter options to show only the alerts you want to export.

  3. In the toolbar above the grid, select Export > Confirm.

The file is generated, and you're prompted to save it locally.
