Deliver events to Azure Active Directory protected endpoints
This article describes how to use Azure Active Directory (Azure AD) to secure the connection between your event subscription and your webhook endpoint. It uses the Azure portal for demonstration, however the feature can also be enabled using CLI, PowerShell, or the SDKs.
Important
Additional access check has been introduced as part of create or update of event subscription on March 30, 2021 to address a security vulnerability. The subscriber client's service principal needs to be either an owner or have a role assigned on the destination application service principal. Reconfigure your Azure AD Application following the new instructions below.For an overview of Azure AD applications and service principals, see Microsoft identity platform (v2.0) overview.
Scenarios
This article explains how to implement the following two scenarios in detail:
Delivering events to a webhook that is in the same Azure AD tenant as the event subscription. You can use either an Azure AD user or an Azure AD application as the event subscription writer in this scenario.
Delivering events to a webhook that is in a different Azure AD tenant from the event subscription. You can only use an Azure AD application as an event subscription writer in this scenario.
In the first scenario, you run all the steps or scripts in a single tenant that has both the event subscription and the webhook. And, in the second scenario, you run some steps in the tenant that has the event subscription and some steps in the tenant that has the webhook.
Deliver events to a Webhook in the same Azure AD tenant

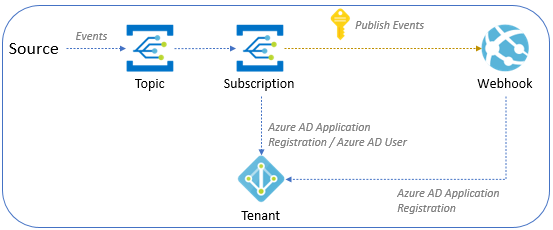

The following diagram depicts how Event Grid events are delivered to a webhook in the same tenant as the event subscription.
There are two subsections in this section. Read through both the scenarios or the one that you're interested in.
- Configure the event subscription by using an Azure AD user
- Configure the event subscription by using an Azure AD application
Configure the event subscription by using an Azure AD user
This section shows how to configure the event subscription by using an Azure AD user.
Create an Azure AD application for the webhook configured to work with the Microsoft directory (single tenant).
Open the Azure Shell in the tenant and select the PowerShell environment.
Modify the value of $webhookAadTenantId to connect to the tenant.
- Variables:
- $webhookAadTenantId: Azure tenant ID
PS /home/user>$webhookAadTenantId = "[REPLACE_WITH_YOUR_TENANT_ID]" PS /home/user>Connect-AzureAD -TenantId $webhookAadTenantId
- Variables:
Open the following script and update the values of $webhookAppObjectId and $eventSubscriptionWriterUserPrincipalName with your identifiers, then continue to run the script.
- Variables:
- $webhookAppObjectId: Azure AD application ID created for the webhook
- $eventSubscriptionWriterUserPrincipalName: Azure user principal name of the user who will create event subscription
Note
You don't need to modify the value of $eventGridAppId. In this script, AzureEventGridSecureWebhookSubscriber is set for the $eventGridRoleName. Remember, you must be a member of the Azure AD Application Administrator role or be an owner of the service principal of webhook app in Azure AD to execute this script.
If you see the following error message, you need to elevate to the service principal. An additional access check has been introduced as part of create or update of event subscription on March 30, 2021 to address a security vulnerability. The subscriber client's service principal needs to be either an owner or have a role assigned on the destination application service principal.
New-AzureADServiceAppRoleAssignment: Error occurred while executing NewServicePrincipalAppRoleAssignment Code: Authorization_RequestDenied Message: Insufficient privileges to complete the operation.
- Variables:
In the portal, when creating an event subscription, follow these steps:

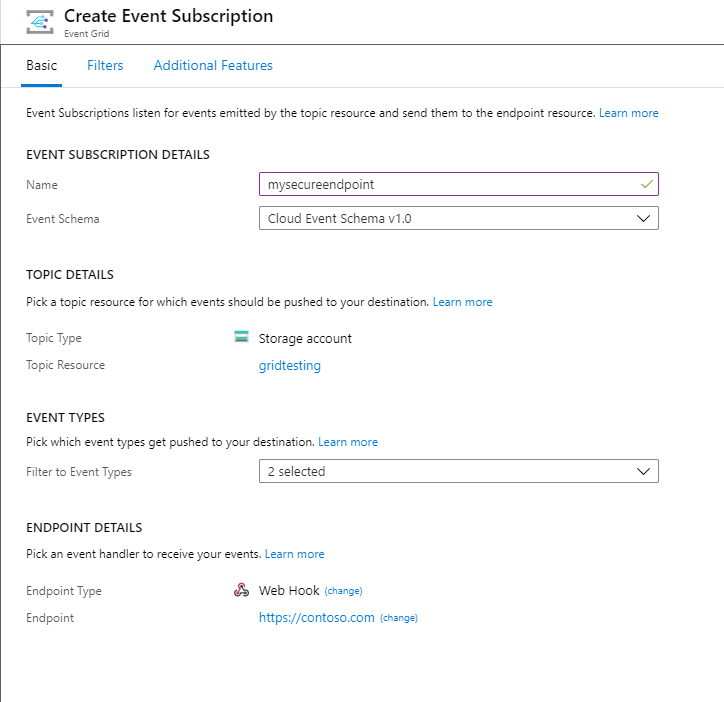

Select the endpoint type as Web Hook.
Specify the endpoint URI.
Select the Additional features tab at the top of the Create Event Subscriptions page.
On the Additional features tab, do these steps:

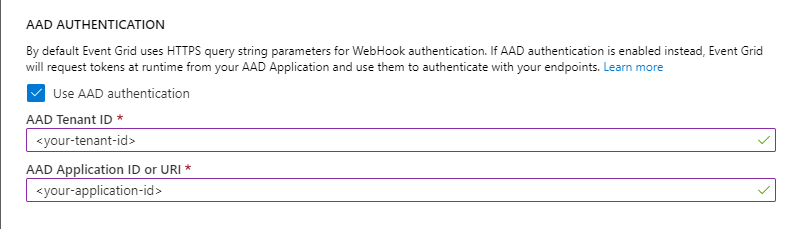

Select Use AAD authentication, and configure the tenant ID and application ID:
Copy the Azure AD tenant ID from the output of the script and enter it in the AAD Tenant ID field.
Copy the Azure AD application ID from the output of the script and enter it in the AAD Application ID field. You can use the AAD Application ID URI instead of using the application ID. For more information about application ID URI, see this article.
Configure the event subscription by using an Azure AD application
This section shows how to configure the event subscription by using an Azure AD application.
Create an Azure AD application for the Event Grid subscription writer configured to work with the Microsoft directory (Single tenant).
Create a secret for the Azure AD application and save the value (you'll need this value later).
Go to the Access control (IAM) page for the Event Grid topic and assign Event Grid Contributor role to the Event Grid subscription writer app. This step will allow you to have access to the Event Grid resource when you logged-in into Azure with the Azure AD application by using Azure CLI.
Create an Azure AD application for the webhook configured to work with the Microsoft directory (Single tenant).
Open the Azure Shell in the tenant and select the PowerShell environment.
Modify the value of $webhookAadTenantId to connect to the tenant.
- Variables:
- $webhookAadTenantId: Azure tenant ID
PS /home/user>$webhookAadTenantId = "[REPLACE_WITH_YOUR_TENANT_ID]" PS /home/user>Connect-AzureAD -TenantId $webhookAadTenantId
- Variables:
Open the following script and update the values of $webhookAppObjectId and $eventSubscriptionWriterAppId with your identifiers, then continue to run the script.
- Variables:
- $webhookAppObjectId: Azure AD application ID created for the webhook
- $eventSubscriptionWriterAppId: Azure AD application ID for Event Grid subscription writer app.
Note
You don't need to modify the value of
$eventGridAppId
. In this script, AzureEventGridSecureWebhookSubscriber as set for the$eventGridRoleName
. Remember, you must be a member of the Azure AD Application Administrator role or be an owner of the service principal of webhook app in Azure AD to execute this script.- Variables:
Log in as the Event Grid subscription writer Azure AD Application by running the command.
PS /home/user>az login --service-principal -u [REPLACE_WITH_EVENT_GRID_SUBSCRIPTION_WRITER_APP_ID] -p [REPLACE_WITH_EVENT_GRID_SUBSCRIPTION_WRITER_APP_SECRET_VALUE] --tenant [REPLACE_WITH_TENANT_ID]
Create your subscription by running the command.
PS /home/user>az eventgrid system-topic event-subscription create --name [REPLACE_WITH_SUBSCRIPTION_NAME] -g [REPLACE_WITH_RESOURCE_GROUP] --system-topic-name [REPLACE_WITH_SYSTEM_TOPIC] --endpoint [REPLACE_WITH_WEBHOOK_ENDPOINT] --event-delivery-schema [REPLACE_WITH_WEBHOOK_EVENT_SCHEMA] --azure-active-directory-tenant-id [REPLACE_WITH_TENANT_ID] --azure-active-directory-application-id-or-uri [REPLACE_WITH_APPLICATION_ID_FROM_SCRIPT] --endpoint-type webhook
Note
This scenario uses a system topic. If you want to create a subscription for custom topics or domains by using Azure CLI, see CLI reference.
If everything was correctly configured, you can successfully create the webhook subscription in your Event Grid topic.
Note
At this point, Event Grid is now passing the Azure AD bearer token to the webhook client in every message. You'll need to validate the authorization token in your webhook.
Deliver events to a Webhook in a different Azure AD tenant

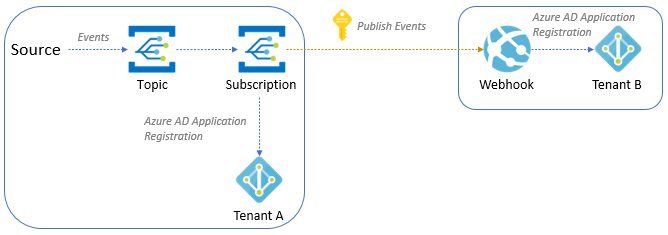

To secure the connection between your event subscription and your webhook endpoint that are in different Azure AD tenants, you'll need to use an Azure AD application as shown in this section. Currently, it's not possible to secure this connection by using an Azure AD user in the Azure portal.
Based on the diagram above, follow next steps to configure both tenants.
Tenant A
Do the following steps in Tenant A:
Create an Azure AD application for the Event Grid subscription writer configured to work with any Azure AD directory (Multi-tenant).
Create a secret for the Azure AD application, and save the value (you'll need this value later).
Navigate to the Access control (IAM) page for the Event Grid topic. Assign the Event Grid Contributor role to Azure AD application of the Event Grid subscription writer. This step allows the application to have access to the Event Grid resource when you sign in into Azure with the Azure AD application by using Azure CLI.
Tenant B
Do the following steps in Tenant B:
Create an Azure AD Application for the webhook configured to work with the Microsoft directory (single tenant).
Open the Azure Shell, and select the PowerShell environment.
Modify the $webhookAadTenantId value to connect to the Tenant B.
Variables:
- $webhookAadTenantId: Azure Tenant ID for the Tenant B
PS /home/user>$webhookAadTenantId = "[REPLACE_WITH_YOUR_TENANT_ID]" PS /home/user>Connect-AzureAD -TenantId $webhookAadTenantId
Open the following script, and update values of $webhookAppObjectId and $eventSubscriptionWriterAppId with your identifiers, then continue to run the script.
- Variables:
$webhookAppObjectId: Azure AD application ID created for the webhook
$eventSubscriptionWriterAppId: Azure AD application ID for Event Grid subscription writer
Note
You don't need to modify the value of
$eventGridAppId
. In this script, AzureEventGridSecureWebhookSubscriber is set for$eventGridRoleName
. Remember, you must be a member of the Azure AD Application Administrator role or be an owner of the service principal of webhook app in Azure AD to execute this script.
If you see the following error message, you need to elevate to the service principal. An additional access check has been introduced as part of create or update of event subscription on March 30, 2021 to address a security vulnerability. The subscriber client's service principal needs to be either an owner or have a role assigned on the destination application service principal.
New-AzureADServiceAppRoleAssignment: Error occurred while executing NewServicePrincipalAppRoleAssignment Code: Authorization_RequestDenied Message: Insufficient privileges to complete the operation.
- Variables:
Tenant A
Back in Tenant A, do the following steps:
Open the Azure Shell, and sign in as the Event Grid subscription writer Azure AD Application by running the command.
PS /home/user>az login --service-principal -u [REPLACE_WITH_APP_ID] -p [REPLACE_WITH_SECRET_VALUE] --tenant [REPLACE_WITH_TENANT_ID]
Create your subscription by running the command.
PS /home/user>az eventgrid system-topic event-subscription create --name [REPLACE_WITH_SUBSCRIPTION_NAME] -g [REPLACE_WITH_RESOURCE_GROUP] --system-topic-name [REPLACE_WITH_SYSTEM_TOPIC] --endpoint [REPLACE_WITH_WEBHOOK_ENDPOINT] --event-delivery-schema [REPLACE_WITH_WEBHOOK_EVENT_SCHEMA] --azure-active-directory-tenant-id [REPLACE_WITH_TENANT_B_ID] --azure-active-directory-application-id-or-uri [REPLACE_WITH_APPLICATION_ID_FROM_SCRIPT] --endpoint-type webhook
Note
In this scenario we are using an Event Grid System Topic. See here, if you want to create a subscription for custom topics or Event Grid domains by using the Azure CLI.
If everything was correctly configured, you can successfully create the webhook subscription in your Event Grid topic.
Note
At this point, Event Grid is now passing the Azure AD Bearer token to the webhook client in every message. You'll need to validate the Authorization token in your webhook.
Next steps
- For conceptual information, see WebHook event delivery.
- For information about monitoring event deliveries, see Monitor Event Grid message delivery.
- For more information about the authentication key, see Event Grid security and authentication.
- For more information about creating an Azure Event Grid subscription, see Event Grid subscription schema.
