Tutorial: Create production machine learning pipelines

APPLIES TO: Python SDK azure-ai-ml v2 (current)


For a tutorial that uses SDK v1 to build a pipeline, see Tutorial: Build an Azure Machine Learning pipeline for image classification

The core of a machine learning pipeline is to split a complete machine learning task into a multistep workflow. Each step is a manageable component that can be developed, optimized, configured, and automated individually. Steps are connected through well-defined interfaces. The Azure Machine Learning pipeline service automatically orchestrates all the dependencies between pipeline steps. The benefits of using a pipeline are standardized the MLOps practice, scalable team collaboration, training efficiency and cost reduction. To learn more about the benefits of pipelines, see What are Azure Machine Learning pipelines.

In this tutorial, you use Azure Machine Learning to create a production ready machine learning project, using Azure Machine Learning Python SDK v2.

This means you will be able to leverage the Azure Machine Learning Python SDK to:

  • Get a handle to your Azure Machine Learning workspace
  • Create Azure Machine Learning data assets
  • Create reusable Azure Machine Learning components
  • Create, validate and run Azure Machine Learning pipelines

During this tutorial, you create an Azure Machine Learning pipeline to train a model for credit default prediction. The pipeline handles two steps:

  1. Data preparation
  2. Training and registering the trained model

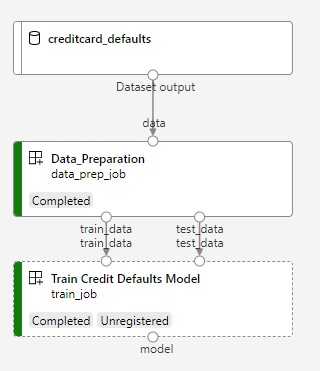

The next image shows a simple pipeline as you'll see it in the Azure studio once submitted.

The two steps are first data preparation and second training.

Diagram shows overview of the pipeline.

This video shows how to get started in Azure Machine Learning studio so that you can follow the steps in the tutorial. The video shows how to create a notebook, create a compute instance, and clone the notebook. The steps are also described in the following sections.


  1. To use Azure Machine Learning, you'll first need a workspace. If you don't have one, complete Create resources you need to get started to create a workspace and learn more about using it.

  2. Sign in to the studio and select your workspace if it's not already open.

  3. Complete the tutorial Upload, access and explore your data to create the data asset you need in this tutorial. Make sure you run all the code to create the initial data asset. Explore the data and revise it if you wish, but you'll only need the initial data in this tutorial.

  4. Open or create a notebook in your workspace:

    • Create a new notebook, if you want to copy/paste code into cells.
    • Or, open tutorials/get-started-notebooks/pipeline.ipynb from the Samples section of studio. Then select Clone to add the notebook to your Files. (See where to find Samples.)

Set your kernel

  1. On the top bar above your opened notebook, create a compute instance if you don't already have one.

    Screenshot shows how to create a compute instance.

  2. If the compute instance is stopped, select Start compute and wait until it is running.

    Screenshot shows how to start compute if it is stopped.

  3. Make sure that the kernel, found on the top right, is Python 3.10 - SDK v2. If not, use the dropdown to select this kernel.

    Screenshot shows how to set the kernel.

  4. If you see a banner that says you need to be authenticated, select Authenticate.


The rest of this tutorial contains cells of the tutorial notebook. Copy/paste them into your new notebook, or switch to the notebook now if you cloned it.

Set up the pipeline resources

The Azure Machine Learning framework can be used from CLI, Python SDK, or studio interface. In this example, you use the Azure Machine Learning Python SDK v2 to create a pipeline.

Before creating the pipeline, you need the following resources:

  • The data asset for training
  • The software environment to run the pipeline
  • A compute resource to where the job runs

Create handle to workspace

Before we dive in the code, you need a way to reference your workspace. You'll create ml_client for a handle to the workspace. You'll then use ml_client to manage resources and jobs.

In the next cell, enter your Subscription ID, Resource Group name and Workspace name. To find these values:

  1. In the upper right Azure Machine Learning studio toolbar, select your workspace name.
  2. Copy the value for workspace, resource group and subscription ID into the code.
  3. You'll need to copy one value, close the area and paste, then come back for the next one.
from azure.ai.ml import MLClient
from azure.identity import DefaultAzureCredential

# authenticate
credential = DefaultAzureCredential()

# Get a handle to the workspace
ml_client = MLClient(


Creating MLClient will not connect to the workspace. The client initialization is lazy, it will wait for the first time it needs to make a call (this will happen in the next code cell).

Verify the connection by making a call to ml_client. Since this is the first time that you're making a call to the workspace, you might be asked to authenticate.

# Verify that the handle works correctly.
# If you ge an error here, modify your SUBSCRIPTION, RESOURCE_GROUP, and WS_NAME in the previous cell.
ws = ml_client.workspaces.get(WS_NAME)
print(ws.location,":", ws.resource_group)

Access the registered data asset

Start by getting the data that you previously registered in Tutorial: Upload, access and explore your data in Azure Machine Learning.

  • Azure Machine Learning uses a Data object to register a reusable definition of data, and consume data within a pipeline.
# get a handle of the data asset and print the URI
credit_data = ml_client.data.get(name="credit-card", version="initial")
print(f"Data asset URI: {credit_data.path}")

Create a job environment for pipeline steps

So far, you've created a development environment on the compute instance, your development machine. You also need an environment to use for each step of the pipeline. Each step can have its own environment, or you can use some common environments for multiple steps.

In this example, you create a conda environment for your jobs, using a conda yaml file. First, create a directory to store the file in.

import os

dependencies_dir = "./dependencies"
os.makedirs(dependencies_dir, exist_ok=True)

Now, create the file in the dependencies directory.

%%writefile {dependencies_dir}/conda.yaml
name: model-env
  - conda-forge
  - python=3.8
  - numpy=1.21.2
  - pip=21.2.4
  - scikit-learn=0.24.2
  - scipy=1.7.1
  - pandas>=1.1,<1.2
  - pip:
    - inference-schema[numpy-support]==1.3.0
    - xlrd==2.0.1
    - mlflow== 2.4.1
    - azureml-mlflow==1.51.0

The specification contains some usual packages, that you use in your pipeline (numpy, pip), together with some Azure Machine Learning specific packages (azureml-mlflow).

The Azure Machine Learning packages aren't mandatory to run Azure Machine Learning jobs. However, adding these packages let you interact with Azure Machine Learning for logging metrics and registering models, all inside the Azure Machine Learning job. You use them in the training script later in this tutorial.

Use the yaml file to create and register this custom environment in your workspace:

from azure.ai.ml.entities import Environment

custom_env_name = "aml-scikit-learn"

pipeline_job_env = Environment(
    description="Custom environment for Credit Card Defaults pipeline",
    tags={"scikit-learn": "0.24.2"},
    conda_file=os.path.join(dependencies_dir, "conda.yaml"),
pipeline_job_env = ml_client.environments.create_or_update(pipeline_job_env)

    f"Environment with name {pipeline_job_env.name} is registered to workspace, the environment version is {pipeline_job_env.version}"

Build the training pipeline

Now that you have all assets required to run your pipeline, it's time to build the pipeline itself.

Azure Machine Learning pipelines are reusable ML workflows that usually consist of several components. The typical life of a component is:

  • Write the yaml specification of the component, or create it programmatically using ComponentMethod.
  • Optionally, register the component with a name and version in your workspace, to make it reusable and shareable.
  • Load that component from the pipeline code.
  • Implement the pipeline using the component's inputs, outputs and parameters.
  • Submit the pipeline.

There are two ways to create a component, programmatic and yaml definition. The next two sections walk you through creating a component both ways. You can either create the two components trying both options or pick your preferred method.


In this tutorial for simplicity we are using the same compute for all components. However, you can set different computes for each component, for example by adding a line like train_step.compute = "cpu-cluster". To view an example of building a pipeline with different computes for each component, see the Basic pipeline job section in the cifar-10 pipeline tutorial.

Create component 1: data prep (using programmatic definition)

Let's start by creating the first component. This component handles the preprocessing of the data. The preprocessing task is performed in the data_prep.py Python file.

First create a source folder for the data_prep component:

import os

data_prep_src_dir = "./components/data_prep"
os.makedirs(data_prep_src_dir, exist_ok=True)

This script performs the simple task of splitting the data into train and test datasets. Azure Machine Learning mounts datasets as folders to the computes, therefore, we created an auxiliary select_first_file function to access the data file inside the mounted input folder.

MLFlow is used to log the parameters and metrics during our pipeline run.

%%writefile {data_prep_src_dir}/data_prep.py
import os
import argparse
import pandas as pd
from sklearn.model_selection import train_test_split
import logging
import mlflow

def main():
    """Main function of the script."""

    # input and output arguments
    parser = argparse.ArgumentParser()
    parser.add_argument("--data", type=str, help="path to input data")
    parser.add_argument("--test_train_ratio", type=float, required=False, default=0.25)
    parser.add_argument("--train_data", type=str, help="path to train data")
    parser.add_argument("--test_data", type=str, help="path to test data")
    args = parser.parse_args()

    # Start Logging

    print(" ".join(f"{k}={v}" for k, v in vars(args).items()))

    print("input data:", args.data)

    credit_df = pd.read_csv(args.data, header=1, index_col=0)

    mlflow.log_metric("num_samples", credit_df.shape[0])
    mlflow.log_metric("num_features", credit_df.shape[1] - 1)

    credit_train_df, credit_test_df = train_test_split(

    # output paths are mounted as folder, therefore, we are adding a filename to the path
    credit_train_df.to_csv(os.path.join(args.train_data, "data.csv"), index=False)

    credit_test_df.to_csv(os.path.join(args.test_data, "data.csv"), index=False)

    # Stop Logging

if __name__ == "__main__":

Now that you have a script that can perform the desired task, create an Azure Machine Learning Component from it.

Use the general purpose CommandComponent that can run command line actions. This command line action can directly call system commands or run a script. The inputs/outputs are specified on the command line via the ${{ ... }} notation.

from azure.ai.ml import command
from azure.ai.ml import Input, Output

data_prep_component = command(
    display_name="Data preparation for training",
    description="reads a .xl input, split the input to train and test",
        "data": Input(type="uri_folder"),
        "test_train_ratio": Input(type="number"),
        train_data=Output(type="uri_folder", mode="rw_mount"),
        test_data=Output(type="uri_folder", mode="rw_mount"),
    # The source folder of the component
    command="""python data_prep.py \
            --data ${{inputs.data}} --test_train_ratio ${{inputs.test_train_ratio}} \
            --train_data ${{outputs.train_data}} --test_data ${{outputs.test_data}} \

Optionally, register the component in the workspace for future reuse.

# Now we register the component to the workspace
data_prep_component = ml_client.create_or_update(data_prep_component.component)

# Create (register) the component in your workspace
    f"Component {data_prep_component.name} with Version {data_prep_component.version} is registered"

Create component 2: training (using yaml definition)

The second component that you create consumes the training and test data, train a tree based model and return the output model. Use Azure Machine Learning logging capabilities to record and visualize the learning progress.

You used the CommandComponent class to create your first component. This time you use the yaml definition to define the second component. Each method has its own advantages. A yaml definition can actually be checked-in along the code, and would provide a readable history tracking. The programmatic method using CommandComponent can be easier with built-in class documentation and code completion.

Create the directory for this component:

import os

train_src_dir = "./components/train"
os.makedirs(train_src_dir, exist_ok=True)

Create the training script in the directory:

%%writefile {train_src_dir}/train.py
import argparse
from sklearn.ensemble import GradientBoostingClassifier
from sklearn.metrics import classification_report
import os
import pandas as pd
import mlflow

def select_first_file(path):
    """Selects first file in folder, use under assumption there is only one file in folder
        path (str): path to directory or file to choose
        str: full path of selected file
    files = os.listdir(path)
    return os.path.join(path, files[0])

# Start Logging

# enable autologging

os.makedirs("./outputs", exist_ok=True)

def main():
    """Main function of the script."""

    # input and output arguments
    parser = argparse.ArgumentParser()
    parser.add_argument("--train_data", type=str, help="path to train data")
    parser.add_argument("--test_data", type=str, help="path to test data")
    parser.add_argument("--n_estimators", required=False, default=100, type=int)
    parser.add_argument("--learning_rate", required=False, default=0.1, type=float)
    parser.add_argument("--registered_model_name", type=str, help="model name")
    parser.add_argument("--model", type=str, help="path to model file")
    args = parser.parse_args()

    # paths are mounted as folder, therefore, we are selecting the file from folder
    train_df = pd.read_csv(select_first_file(args.train_data))

    # Extracting the label column
    y_train = train_df.pop("default payment next month")

    # convert the dataframe values to array
    X_train = train_df.values

    # paths are mounted as folder, therefore, we are selecting the file from folder
    test_df = pd.read_csv(select_first_file(args.test_data))

    # Extracting the label column
    y_test = test_df.pop("default payment next month")

    # convert the dataframe values to array
    X_test = test_df.values

    print(f"Training with data of shape {X_train.shape}")

    clf = GradientBoostingClassifier(
        n_estimators=args.n_estimators, learning_rate=args.learning_rate
    clf.fit(X_train, y_train)

    y_pred = clf.predict(X_test)

    print(classification_report(y_test, y_pred))

    # Registering the model to the workspace
    print("Registering the model via MLFlow")

    # Saving the model to a file
        path=os.path.join(args.model, "trained_model"),

    # Stop Logging

if __name__ == "__main__":

As you can see in this training script, once the model is trained, the model file is saved and registered to the workspace. Now you can use the registered model in inferencing endpoints.

For the environment of this step, you use one of the built-in (curated) Azure Machine Learning environments. The tag azureml, tells the system to use look for the name in curated environments. First, create the yaml file describing the component:

%%writefile {train_src_dir}/train.yml
# <component>
name: train_credit_defaults_model
display_name: Train Credit Defaults Model
# version: 1 # Not specifying a version will automatically update the version
type: command
    type: uri_folder
    type: uri_folder
    type: number
    type: string
    type: uri_folder
code: .
  # for this step, we'll use an AzureML curate environment
command: >-
  python train.py
  --train_data ${{inputs.train_data}}
  --test_data ${{inputs.test_data}}
  --learning_rate ${{inputs.learning_rate}}
  --registered_model_name ${{inputs.registered_model_name}}
  --model ${{outputs.model}}
# </component>

Now create and register the component. Registering it allows you to re-use it in other pipelines. Also, anyone else with access to your workspace can use the registered component.

# importing the Component Package
from azure.ai.ml import load_component

# Loading the component from the yml file
train_component = load_component(source=os.path.join(train_src_dir, "train.yml"))

# Now we register the component to the workspace
train_component = ml_client.create_or_update(train_component)

# Create (register) the component in your workspace
    f"Component {train_component.name} with Version {train_component.version} is registered"

Create the pipeline from components

Now that both your components are defined and registered, you can start implementing the pipeline.

Here, you use input data, split ratio and registered model name as input variables. Then call the components and connect them via their inputs/outputs identifiers. The outputs of each step can be accessed via the .outputs property.

The Python functions returned by load_component() work as any regular Python function that we use within a pipeline to call each step.

To code the pipeline, you use a specific @dsl.pipeline decorator that identifies the Azure Machine Learning pipelines. In the decorator, we can specify the pipeline description and default resources like compute and storage. Like a Python function, pipelines can have inputs. You can then create multiple instances of a single pipeline with different inputs.

Here, we used input data, split ratio and registered model name as input variables. We then call the components and connect them via their inputs/outputs identifiers. The outputs of each step can be accessed via the .outputs property.

# the dsl decorator tells the sdk that we are defining an Azure Machine Learning pipeline
from azure.ai.ml import dsl, Input, Output

    compute="serverless",  # "serverless" value runs pipeline on serverless compute
    description="E2E data_perp-train pipeline",
def credit_defaults_pipeline(
    # using data_prep_function like a python call with its own inputs
    data_prep_job = data_prep_component(

    # using train_func like a python call with its own inputs
    train_job = train_component(
        train_data=data_prep_job.outputs.train_data,  # note: using outputs from previous step
        test_data=data_prep_job.outputs.test_data,  # note: using outputs from previous step
        learning_rate=pipeline_job_learning_rate,  # note: using a pipeline input as parameter

    # a pipeline returns a dictionary of outputs
    # keys will code for the pipeline output identifier
    return {
        "pipeline_job_train_data": data_prep_job.outputs.train_data,
        "pipeline_job_test_data": data_prep_job.outputs.test_data,

Now use your pipeline definition to instantiate a pipeline with your dataset, split rate of choice and the name you picked for your model.

registered_model_name = "credit_defaults_model"

# Let's instantiate the pipeline with the parameters of our choice
pipeline = credit_defaults_pipeline(
    pipeline_job_data_input=Input(type="uri_file", path=credit_data.path),

Submit the job

It's now time to submit the job to run in Azure Machine Learning. This time you use create_or_update on ml_client.jobs.

Here you also pass an experiment name. An experiment is a container for all the iterations one does on a certain project. All the jobs submitted under the same experiment name would be listed next to each other in Azure Machine Learning studio.

Once completed, the pipeline registers a model in your workspace as a result of training.

# submit the pipeline job
pipeline_job = ml_client.jobs.create_or_update(
    # Project's name

You can track the progress of your pipeline, by using the link generated in the previous cell. When you first select this link, you might see that the pipeline is still running. Once it's complete, you can examine each component's results.

Double-click the Train Credit Defaults Model component.

There are two important results you'll want to see about training:

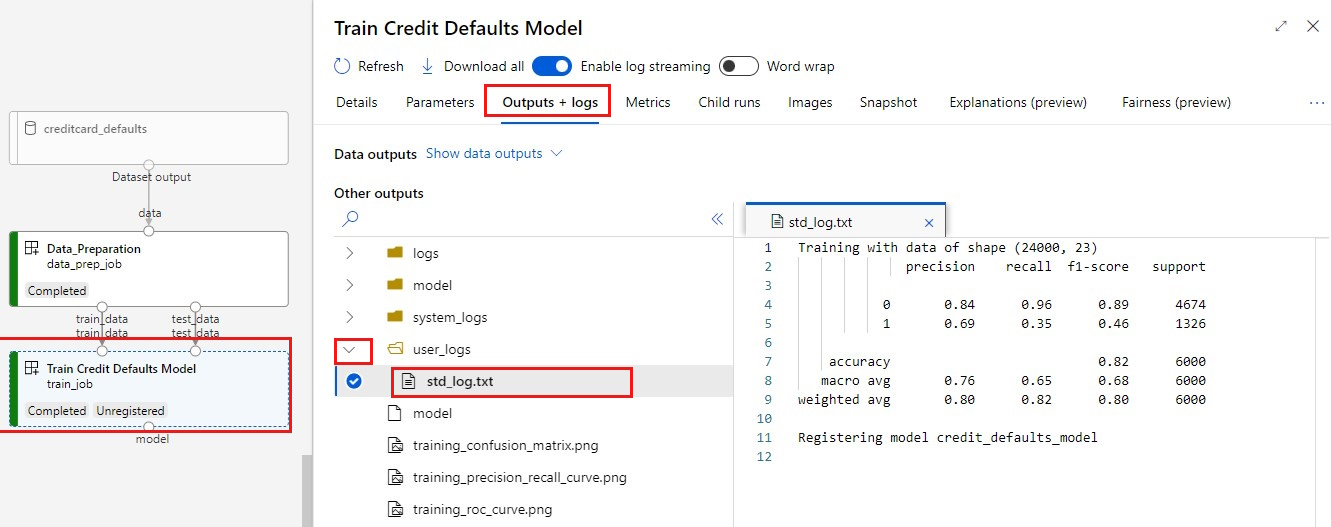

  • View your logs:

    1. Select the Outputs+logs tab.
    2. Open the folders to user_logs > std_log.txt This section shows the script run stdout. Screenshot of std_log.txt.

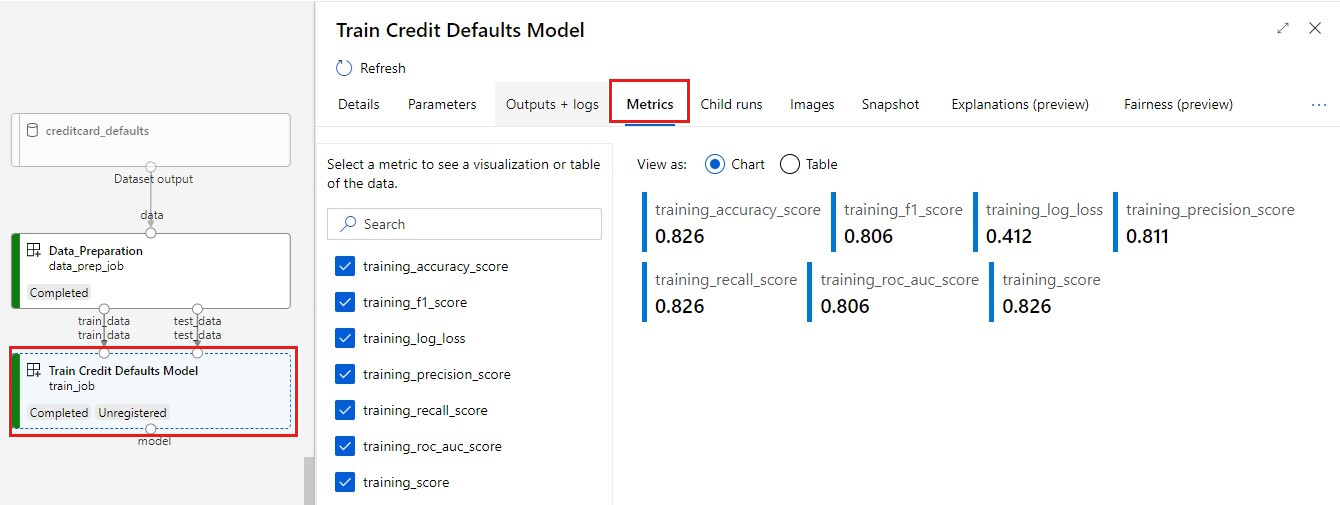

  • View your metrics: Select the Metrics tab. This section shows different logged metrics. In this example. mlflow autologging, has automatically logged the training metrics.

    Screenshot shows logged metrics.txt.

Deploy the model as an online endpoint

To learn how to deploy your model to an online endpoint, see Deploy a model as an online endpoint tutorial.

Clean up resources

If you plan to continue now to other tutorials, skip to Next steps.

Stop compute instance

If you're not going to use it now, stop the compute instance:

  1. In the studio, in the left navigation area, select Compute.
  2. In the top tabs, select Compute instances
  3. Select the compute instance in the list.
  4. On the top toolbar, select Stop.

Delete all resources


The resources that you created can be used as prerequisites to other Azure Machine Learning tutorials and how-to articles.

If you don't plan to use any of the resources that you created, delete them so you don't incur any charges:

  1. In the Azure portal, select Resource groups on the far left.

  2. From the list, select the resource group that you created.

  3. Select Delete resource group.

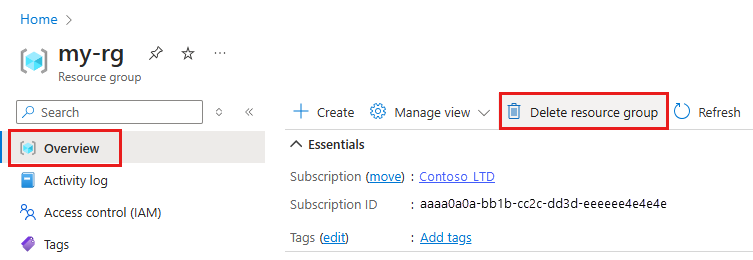

    Screenshot of the selections to delete a resource group in the Azure portal.

  4. Enter the resource group name. Then select Delete.

Next steps
