Tutorial: Connect to Azure Storage in AKS using Service Connector with workload identity

In this tutorial, you learn how to use Service Connector to connect an Azure Storage account to a pod in an Azure Kubernetes Service (AKS) cluster using workload identity. You complete the following tasks:

• Create an AKS cluster and an Azure Storage account.
• Create a connection between the AKS cluster and the Azure Storage account using Service Connector.
• Clone a sample application that connects to the Azure Storage account from the AKS cluster.
• Deploy the application to a pod in the AKS cluster and test the connection.
• Clean up resources.

Prerequisites

• Basic understanding of containers, workload identity, and AKS. For more information, see Tutorial: Prepare an application for Azure Kubernetes Service (AKS).
• An Azure subscription where you have Azure resource write permissions, in an Azure region that supports Service Connector and has sufficient AKS support and compute quota to run the tutorial. Create an account for free.
• The Microsoft.ServiceLinker, Microsoft.ContainerService, Microsoft.ContainerRegistry, and Microsoft.ManagedIdentity resource providers registered in the Azure subscription. You can run az provider register -n Microsoft.[service] to register the providers.
• Git to access and clone the sample repo.
• Docker and kubectl installed to manage container image and Kubernetes resources. Install kubectl locally by running az aks install-cli.
• Azure CLI installed.

Create Azure resources

1. Sign in to Azure by running az login and following the prompts.

2. Create an Azure resource group to use for this tutorial, replacing the <region> placeholder with a valid value. The location must be an Azure region where your subscription has sufficient compute quota for the Azure resources and no restrictions on any of the services.

   az group create \
       --name MyResourceGroup \
       --location <region>


3. Create an AKS cluster to contain the service connection, pod definition, and sample application by running the following command. For more information, see Quickstart: Deploy an Azure Kubernetes Service (AKS) cluster using Azure CLI.

   az aks create \
       --resource-group MyResourceGroup \
       --name MyAKSCluster \
       --enable-managed-identity \
       --node-count 1


4. Connect to the cluster by running the following command.

   az aks get-credentials \
       --resource-group MyResourceGroup \
       --name MyAKSCluster


5. Create an Azure Storage account to be the target service that the AKS cluster connects to and the sample application interacts with. For more information, see Create an Azure storage account. Run the following command, replacing <storageaccountname> with a name that is 3-24 lowercase or numeric characters and is unique across Azure.

   az storage account create \
       --resource-group MyResourceGroup \
       --name <storageaccountname> \
       --sku Standard_LRS


6. Create an Azure container registry to host the application container image consumed by the AKS pod definition. For more information, see Quickstart: Create an Azure container registry by using the Azure portal. Run the following command, replacing <registryname> with a name that is 5-50 lowercase or numeric characters and is unique across Azure.

   az acr create \
       --resource-group MyResourceGroup \
       --name <registryname> \
       --sku Standard


7. Enable anonymous pull so the AKS cluster can consume the registry images. Replace the <registryname> placeholder with your registry name.

   az acr update \
       --resource-group MyResourceGroup \
       --name <registryname> \
       --anonymous-pull-enabled


8. Run the following command to create a user-assigned managed identity that the service connection creation can use to enable workload identity for AKS workloads. For more information, see Manage user-assigned managed identities using the Azure portal.

   az identity create \
       --resource-group MyResourceGroup \
       --name MyIdentity


Create a service connection using Service Connector

Create a service connection between the AKS cluster and the Azure Storage account by using Azure CLI or the Azure portal.

Azure CLI

Run the following Azure CLI command to create a service connection to the Azure storage account. Replace <storageaccountname> with your storage account name and <user-identity-resource-id> with your user-assigned managed identity resource ID.

You can get your user-assigned managed identity resource ID from the output of the preceding az identity create command, or use the format /subscriptions/<subscription-id>/resourceGroups/MyResourceGroup/providers/Microsoft.ManagedIdentity/userAssignedIdentities/MyIdentity.

az aks connection create storage-blob \
  --resource-group MyResourceGroup \
  --name MyAKSCluster \
  --target-resource-group MyResourceGroup \
  --account <storageaccountname> \
  --workload-identity <user-identity-resource-id>

Portal

1. On your MyAKSCluster page in the Azure portal, select Service Connector under Settings in the left navigation menu.
2. On the Service Connector page, select Create.
3. On the Create connection form, complete the following settings. You can leave other settings at their default values.
   • Service type: Select Storage - Blob.
   • Connection name: Accept the autogenerated name, or supply another name.
   • Subscription: Select your subscription if not already selected.
   • Storage account: Select the storage account you want to use.
   • Client type: Select Python.
4. Select Next: Authentication.
5. On the Authentication tab, select Workload Identity.
6. For User assigned managed identity, select MyIdentity.
7. Select Next: Networking, and then select Next: Review + Create.
8. When the connection passes validation, select Create.

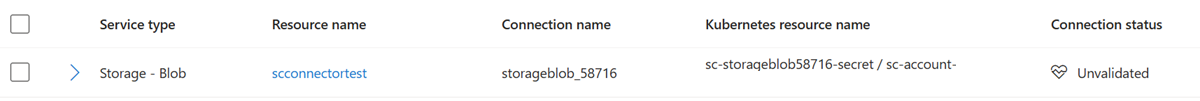

Once the connection is created, the Azure portal Service Connector page shows information about the new connection. You can use this information when you edit the pod.yaml file later in this tutorial.

Create the sample application

1. Clone the sample repository, and then change to the directory that contains the sample app. Run the remaining commands from this folder.

   git clone https://github.com/Azure-Samples/serviceconnector-aks-samples.git
   cd serviceconnector-aks-samples/azure-storage-workload-identity


2. Build and push the images to your container registry using the az acr build command. Replace the <registryname> placeholder with your registry name.

   az acr build --registry <registryname> --image sc-demo-storage-identity:latest ./


3. View the image in your container registry using the az acr repository list command. Replace the <registryname> placeholder with your registry name.

   az acr repository list --name <registryname> --output table


Run application and test connection

1. Replace the following placeholders in the pod.yaml file in your local app folder:

   • <YourContainerImage>: Replace with the image name in your container registry, for example <registryname>.azurecr.io/sc-demo-storage-identity:latest.
   • <ServiceAccountCreatedByServiceConnector>: Replace with the service account Service Connector created after connection creation. You can check the service account name on your AKS cluster Service Connector page in the Azure portal.
   • <SecretCreatedByServiceConnector>: Replace with the secret Service Connector created after connection creation. You can check the service account name on your AKS cluster Service Connector page in the Azure portal.

2. Deploy the pod to your cluster using kubectl apply. The command creates a pod named sc-demo-storage-identity in the default namespace of your AKS cluster.

   kubectl apply -f pod.yaml


3. Check that the deployment is successful by viewing the pod using kubectl.

   kubectl get pod/sc-demo-storage-identity


4. Check that the connection is established by viewing the logs using kubectl.

   kubectl logs pod/sc-demo-storage-identity


Clean up resources

If you no longer need the Azure resources you created for this tutorial, you can delete them by deleting the MyResourceGroup resource group.

az group delete \
  --resource-group MyResourceGroup
