Inspect the configured ER component to prevent runtime issues

  • Article

Every configured Electronic reporting (ER) format and model mapping component can be validated at design time. During this validation, a consistency check runs to help prevent runtime issues that might occur, such as execution errors and performance degradation. For every issue that is found, the check provides the path of a problematic element. For some issues, an automatic fix is available.

By default, the validation is automatically applied in the following cases for an ER configuration that contains the previously mentioned ER components:

  • You import a new version of an ER configuration into your instance of Microsoft Dynamics 365 Finance.
  • You change the status of the editable ER configuration from Draft to Completed.
  • You rebase an editable ER configuration by applying a new base version.

You can explicitly run this validation. Select one of the following three options, and follow the steps that are provided:

  • Option 1:

    1. Go to Organization administration > Electronic reporting > Configurations.
    2. In the configurations tree in the left pane, select the desired ER configuration that contains the ER format or ER model mapping component.
    3. On the Versions FastTab, select the desired version of the selected ER configuration.
    4. On the Action Pane, select Validate.

  • Option 2, for an ER format:

    1. Go to Organization administration > Electronic reporting > Configurations.
    2. In the configurations tree in the left pane, select the desired ER configuration that contains the ER format component.
    3. On the Versions FastTab, select the desired version of the selected ER configuration.
    4. On the Action Pane, select Designer.
    5. On the Format designer page, on the Action Pane, select Validate.

  • Option 3, for an ER model mapping:

    1. Go to Organization administration > Electronic reporting > Configurations.
    2. In the configurations tree in the left pane, select the desired ER configuration that contains the ER model mapping component.
    3. On the Versions FastTab, select the desired version of the selected ER configuration.
    4. On the Action Pane, select Designer.
    5. On the Model to datasource mapping page, on the Action Pane, select Designer.
    6. On the Model mapping designer page, on the Action Pane, select Validate.

To skip the validation when the configuration is imported, follow these steps.

  1. Go to Organization administration > Electronic reporting > Configurations.
  2. On the Configurations page, on the Action Pane, on the Configurations tab, in the Advanced settings group, select User parameters.
  3. Set the Validate the configuration after importing option to No.

To skip the validation when you change or rebase the version's status, follow these steps.

  1. Go to Organization administration > Electronic reporting > Configurations.
  2. On the Configurations page, on the Action Pane, on the Configurations tab, in the Advanced settings group, select User parameters.
  3. Set the Skip validation at configuration's status change and rebase option to Yes.

ER uses the following categories to group consistency check inspections:

  • Executability – Inspections that detect critical issues that might occur at runtime. These issues are mostly at an Error level.
  • Performance – Inspections that detect issues that might cause inefficient execution of configured ER components. These issues are mostly at a Warning level.
  • Data integrity – Inspections that detect issues that might cause data loss or runtime issues. These issues are mostly at a Warning level.

List of inspections

The following table provides an overview of the inspections that ER provides. For more information about these inspections, use the links in the first column to go to the relevant sections of this article. Those sections explain the types of components that ER provides inspections for and how you can reconfigure ER components to help prevent issues.

Name Category Level Message
Type conversion Executability Error

Cannot convert expression of type <type> to field of type <type>.

Runtime error: Exception for type
Type compatibility Executability Error

The configured expression cannot be used as the binding of the current format element to a data source as this expression returns value of the data type <type> that is beyond the scope of data types that are supported by the current format element of type <type>.

Runtime error: Exception of type
Missing configuration element Executability Error

Path not found <path>.

Runtime error: Element of the configuration <path> not found
Executability of an expression with FILTER function Executability Error

The list expression of FILTER function is not queryable.

Runtime error: Filtering is not supported. Validate the configuration to get more details about this.
Executability of a GROUPBY data source Executability Error Path <path> does not support querying.
Executability Error

Group by function cannot be executed with query.

Runtime error: Group by function can't be executed with query.
Executability of a JOIN data source Executability Error

Cannot join a list <path> that is not a filter in query.

Runtime error: Function Joined datasource should be a filter expression calculated field has been incorrectly called.
Preferability of FILTER vs WHERE function Performance Warning Using FILTER function for the expression is preferable than WHERE from the performance perspective. Select Fix to replace it automatically.
Preferability of ALLITEMSQUERY vs ALLITEMS function Performance Warning Using ALLITEMSQUERY function for the expression is preferable than ALLITEMS from the performance perspective. Select Fix to replace it automatically.
Consideration of empty list cases Executability Warning

List <path> does not have any check for empty list case, it can result an error at run time. Add a check for empty list case.

Runtime error: List is empty at <path>

Potential issue: Line is getting populated once while a data source it is populated from contains multiple records
Executability of an expression with FILTER function (caching) Executability Error

FILTER function cannot be applied to the selected type of data source. A data source of the Table records type is applicable only when it is not cached and has no manually added nested data sources.

Runtime error: Filtering is not supported. Validate the configuration to get more details about this.

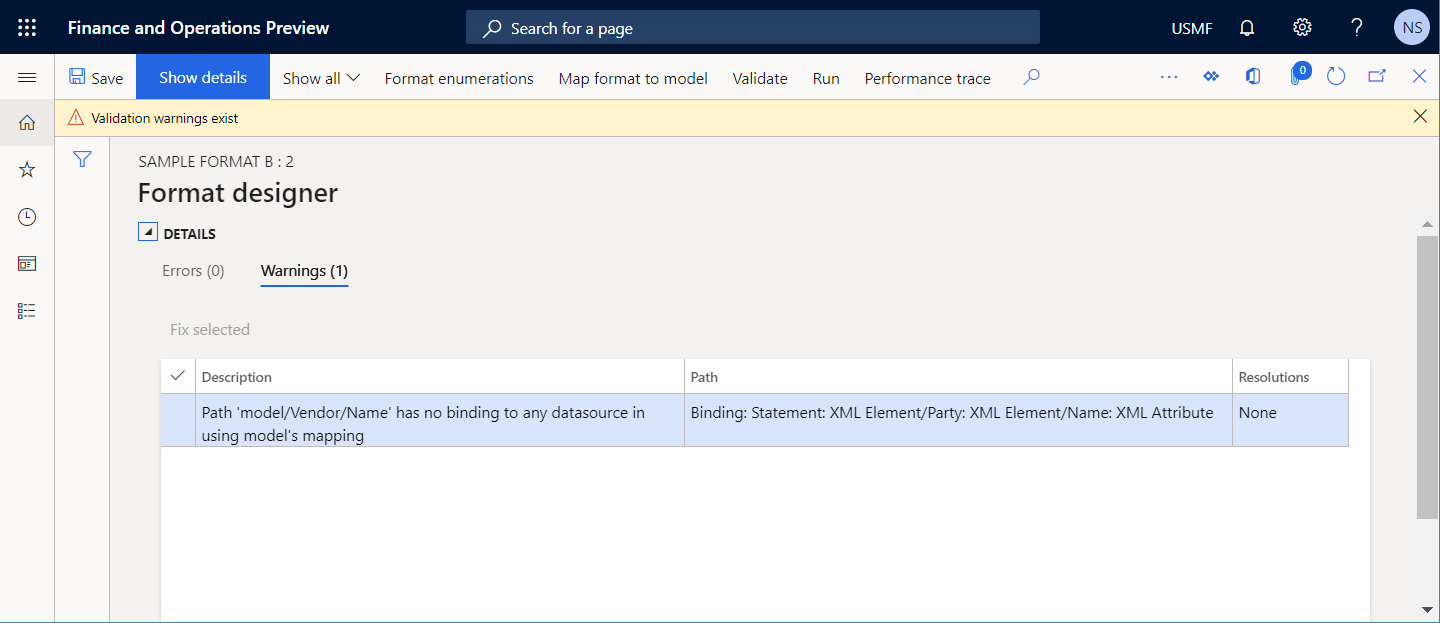

Missing binding Executability Warning

Path <path> has no binding to any datasource in using model's mapping.

Runtime error: Path <path> is not bound
Not linked template Data integrity Warning File <name> is linked to no file components and will be removed after changing status of configuration version.
Not synced format Data integrity Warning Defined name <component name> does not exist in Excel sheet <sheet name>
Not synced format Data integrity Warning

<Tagged Word content control> tag does not exist in Word template file

Runtime error: <Tagged Word content control> tag does not exist in Word template file.
No default mapping Data integrity Error

More than one model mapping exists for the <model name (root descriptor)> data model in the configurations <configuration names separated by comma>. Set one of the configurations as default

Runtime error: More than one model mapping exists for the <model name (root descriptor)> data model in the configurations <configuration names separated by comma>. Set one of the configurations as default.
Inconsistent setting of Header or Footer components Data integrity Error

Headers/footers (<component type: Header or Footer>) are inconsistent

Runtime: The last configured component is used at runtime if the draft version of the configured ER format is executed.
Inconsistent setting of Page component Data integrity Error There are more than two range components without replication. Please, remove unnecessary components.
Executability of an expression with ORDERBY function Executability Error

The list expression of ORDERBY function is not queryable.

Runtime error: Sorting is not supported. Validate the configuration to get more details about this.
Obsolete application artifact Data integrity Warning

The element <path> is marked as obsolete.
or
The element <path> is marked as obsolete with message <message text>.

Runtime error sample: Class '<path>' not found.

Type conversion

ER checks whether the data type of a data model field is compatible with the data type of an expression that is configured as the binding of that field. If the data types are incompatible, a validation error occurs in the ER model mapping designer. The message that you receive states that ER can't convert an expression of type A to a field of type B.

The following steps show how this issue might occur.

  1. Start to configure the ER data model and the ER model mapping components simultaneously.

  2. In the data model tree, add a field that is named X, and select Integer as the data type.

    X field and Integer data type added to the data mode tree on the Data model page.

  3. In the model mapping designer, in the Data sources pane, add a data source of the Calculated field type.

  4. Name the new data source Y, and configure it so that it contains the expression INTVALUE(100).

  5. Bind X to Y.

  6. In the data model designer, change the data type of the X field from Integer to Int64.

  7. Select Validate to inspect the editable model mapping component on the Model mapping designer page.

    Validating the editable model mapping component on the Model mapping designer page.

  8. Select Validate to inspect the model mapping component of the selected ER configuration on the Configurations page.

    Inspecting the model mapping component on the Configurations page.

  9. Notice that a validation error occurs. The message states that the value of the Integer type that the INTVALUE(100) expression of the Y data source returns can't be stored in the X data model field of the Int64 type.

The following illustration shows the runtime error that occurs if you ignore the warning and select Run to run a format that is configured to use the model mapping.

Runtime errors on the Format designer page.

Automatic resolution

No option to automatically fix this issue is available.

Manual resolution

Option 1

Update the data model structure by changing the data type of the data model field so that it matches the data type of the expression that is configured for the binding of that field. For the preceding example, the data type of the X field must be changed back to Integer.

Option 2

Update the model mapping by changing the expression of the data source that is bound with the data model field. For the preceding example, the expression of the Y data source must be changed to INT64VALUE(100).

Type compatibility

ER checks whether the data type of a format element is compatible with the data type of an expression that is configured as the binding of that format element. If the data types are incompatible, a validation error occurs in the ER Operations designer. The message that you receive states that the configured expression can't be used as the binding of the current format element to a data source, because the expression returns a value of data type A that is beyond the scope of the data types that are supported by the current format element of type B.

The following steps show how this issue might occur.

  1. Start to configure the ER data model and the ER format components simultaneously.

  2. In the data model tree, add a field that is named X, and select Integer as the data type.

  3. In the format structure tree, add a format element of the Numeric type.

  4. Name the new format element Y. In the Numeric type field, select Integer as the data type.

  5. Bind X to Y.

  6. In the format structure tree, change the data type of the Y format element from Integer to Int64.

  7. Select Validate to inspect the editable format component on the Format designer page.

    Validating type compatibility on the Format designer page.

  8. Notice that a validation error occurs. The message states that the configured expression can accept only Int64 values. Therefore, the value of the X data model field of the Integer type can't be entered in the Y format element.

Automatic resolution

No option to automatically fix this issue is available.

Manual resolution

Option 1

Update the format structure by changing the data type of the Numeric format element so that it matches the data type of the expression that you configured for the binding of that element. In the preceding example, the Numeric type value of the X format element must be changed back to Integer.

Option 2

Update the format mapping of the X format element by changing the expression from model.X to INT64VALUE(model.X).

Missing configuration element

ER checks whether the binding expressions contain only data sources that are configured in the editable ER component. For every binding that contains a data source that is missing in the editable ER component, a validation error occurs in the ER Operations designer or the ER model mapping designer.

The following steps show how this issue might occur.

  1. Start to configure the ER data model and the ER model mapping components simultaneously.

  2. In the data model tree, add a field that is named X, and select Integer as the data type.

    Data model tree with X field and Integer data type on the Data model page.

  3. In the model mapping designer, in the Data sources pane, add a data source of the Calculated field type.

  4. Name the new data source Y, and configure it so that it contains the expression INTVALUE(100).

  5. Bind X to Y.

  6. In the model mapping designer, in the Data sources pane, delete the Y data source.

  7. Select Validate to inspect the editable model mapping component on the Model mapping designer page.

    Inspecting the editable ER model mapping component on the Model mapping designer page.

  8. Notice that a validation error occurs. The message states that the binding of the X data model field contains the path that refers to the Y data source, but this data source isn't found.

Automatic resolution

Select Unbind to automatically fix this issue by removing the missing data source binding.

Manual resolution

Option 1

Unbind the X data model field to stop referring to the nonexistent Y data source.

Option 2

In the model mapping designer, in the Data sources pane, add the Y data source again.

Executability of an expression with FILTER function

The built-in FILTER ER function is used to access application tables, views, or data entities by placing a single SQL call to get the required data as a list of records. A data source of the Record list type is used as an argument of this function and specifies the application source for the call. ER checks whether a direct SQL query can be established to a data source that is referred to in the FILTER function. If a direct query can't be established, a validation error occurs in the ER model mapping designer. The message that you receive states that the ER expression that includes the FILTER function can't be run at runtime.

The following steps show how this issue might occur.

  1. Start to configure the ER model mapping component.

  2. Add a data source of the Dynamics 365 for Operations \ Table records type.

  3. Name the new data source Vendor. In the Table field, select VendTable to specify that this data source will request the VendTable table.

  4. Add a data source of the Calculated field type.

  5. Name the new data source FilteredVendor, and configure it so that it contains the expression FILTER(Vendor, Vendor.AccountNum="US-101").

  6. Select Validate to inspect the editable model mapping component on the Model mapping designer page and verify that the FILTER(Vendor, Vendor.AccountNum="US-101") expression in the Vendor data source can be queried.

  7. Modify the Vendor data source by adding a nested field of the Calculated field type to get the trimmed vendor account number.

  8. Name the new nested field $AccNumber, and configure it so that it contains the expression TRIM(Vendor.AccountNum).

  9. Select Validate to inspect the editable model mapping component on the Model mapping designer page and verify that the FILTER(Vendor, Vendor.AccountNum="US-101") expression in the Vendor data source can be queried.

    Verifying that the expression that has the FILTER function can be queried on the Model mapping designer page.

  10. Notice that a validation error occurs, because the Vendor data source contains a nested field of the Calculated field type that doesn't allow the expression of the FilteredVendor data source to be translated to the direct SQL statement.

The following illustration shows the runtime error that occurs if you ignore the warning and select Run to run a format that is configured to use the model mapping.

Runtime errors that occur when you run the editable format on the Format designer page.

Automatic resolution

No option to automatically fix this issue is available.

Manual resolution

Option 1

Instead of adding a nested field of the Calculated field type to the Vendor data source, add the $AccNumber nested field to the FilteredVendor data source, and configure it so that it contains the expression TRIM(FilteredVendor.AccountNum). In this way, the FILTER(Vendor, Vendor.AccountNum="US-101") expression can be run at the SQL level and calculate the $AccNumber nested field afterward.

Option 2

Change the expression of the FilteredVendor data source from FILTER(Vendor, Vendor.AccountNum="US-101") to WHERE(Vendor, Vendor.AccountNum="US-101"). We don't recommend that you change the expression for a table that has a large volume of data (transactional table), because all records will be fetched, and selection of the required records will be done in memory. Therefore, this approach can cause poor performance. For more information, see WHERE ER function.

Executability of a GROUPBY data source

The GROUPBY data source divides the query result into groups of records, usually for the purpose of doing one or more aggregations on each group. Every GROUPBY data source can be configured so that it's run either at the database level or in memory. When a GROUPBY data source is configured so that it's run at the database level, ER checks whether a direct SQL query can be established to a data source that is referred to in that data source. If a direct query can't be established, a validation error occurs in the ER model mapping designer. The message that you receive states that the configured GROUPBY data source can't be run at runtime.

The following steps show how this issue might occur.

  1. Start to configure the ER model mapping component.

  2. Add a data source of the Dynamics 365 for Operations \ Table records type.

  3. Name the new data source Trans. In the Table field, select VendTrans to specify that this data source will request the VendTrans table.

  4. Add a data source of the Group by type.

  5. Name the new data source GroupedTrans, and configure it in the following way:

    • Select the Trans data source as the source of records that should be grouped.
    • In the Execution location field, select Query to specify that you want to run this data source at the database level.

    Configuring the data source on the Edit 'Group By' parameters page.

  6. Select Validate to inspect the editable model mapping component on the Model mapping designer page and verify that the configured GroupedTrans data source can be queried.

  7. Modify the Trans data source by adding a nested field of the Calculated field type to get the trimmed vendor account number.

  8. Name the new data source $AccNumber, and configure it so that it contains the expression TRIM(Trans.AccountNum).

    Configuring the data source on the Model mapping designer page.

  9. Select Validate to inspect the editable model mapping component on the Model mapping designer page and verify that the configured GroupedTrans data source can be queried.

    Validating the ER model mapping component and verifing that the GroupedTrans data source can be queried on the Model mapping designer page.

  10. Notice that a validation error occurs, because the Trans data source contains a nested field of the Calculated field type that doesn't allow the call for the GroupedTrans data source to be translated to the direct SQL statement.

The following illustration shows the runtime error that occurs if you ignore the warning and select Run to run a format that is configured to use the model mapping.

Runtime errors that occur when the warning is ignored on the Format designer page.

Automatic resolution

No option to automatically fix this issue is available.

Manual resolution

Option 1

Instead of adding a nested field of the Calculated field type to the Trans data source, add the $AccNumber nested field for the GroupedTrans.lines item of the GroupedTrans data source, and configure it so that it contains the expression TRIM(GroupedTrans.lines.AccountNum). In this way, the GroupedTrans data source can be run at the SQL level and calculate the $AccNumber nested field afterward.

Option 2

Change the value of the Execution location field for the GroupedTrans data source from Query to In memory. We don't recommend that you change the value for a table that has a large volume of data (transactional table), because all records will be fetched, and grouping and aggregation will be done in memory. Therefore, this approach can cause poor performance.

Executability of a JOIN data source

The JOIN data source combines records from two or more database tables, based on related fields. Every JOIN data source can be configured so that it's run either at the database level or in memory. When a JOIN data source is configured so that it's run at the database level, ER checks whether a direct SQL query can be established to data sources that are referred to in that data source. If a direct SQL query can't be established with at least one referenced data source, a validation error occurs in the ER model mapping designer. The message that you receive states that the configured JOIN data source can't be run at runtime.

The following steps show how this issue might occur.

  1. Start to configure the ER model mapping component.

  2. Add a data source of the Dynamics 365 for Operations \ Table records type.

  3. Name the new data source Vendor. In the Table field, select VendTable to specify that this data source will request the VendTable table.

  4. Add a data source of the Dynamics 365 for Operations \ Table records type.

  5. Name the new data source Trans. In the Table field, select VendTrans to specify that this data source will request the VendTrans table.

  6. Add a data source of the Calculated field type as the nested field of the Vendor data source.

  7. Name the new data source FilteredTrans, and configure it so that it contains the expression FILTER(Trans, Trans.AccountNum=Vendor.AccountNum).

  8. Add a data source of the Join type.

  9. Name the new data source JoinedList, and configure it in the following way:

    1. Add the Vendor data source as the first set of records to join.
    2. Add the Vendor.FilteredTrans data source as the second set of records to join. Select INNER as the type.
    3. In the Execute field, select Query to specify that you want to run this data source at the database level.

    Configuring the data source on the Join designer page.

  10. Select Validate to inspect the editable model mapping component on the Model mapping designer page and verify that the configured JoinedList data source can be queried.

  11. Change the expression of the Vendor.FilteredTrans data source from FILTER(Trans, Trans.AccountNum=Vendor.AccountNum) to WHERE(Trans, Trans.AccountNum=Vendor.AccountNum).

  12. Select Validate to inspect the editable model mapping component on the Model mapping designer page and verify that the configured JoinedList data source can be queried.

    Validating the editable model mapping componenent and verifying that the JoinedList data source can be queried on the Model mapping designer page.

  13. Notice that a validation error occurs, because the expression of the Vendor.FilteredTrans data source can't be translated to the direct SQL call. Additionally, the direct SQL call doesn't allow the call for the JoinedList data source to be translated to the direct SQL statement.

    Runtime errors from the failed validation of the JoinedList data source on the Model mapping designer page.

The following illustration shows the runtime error that occurs if you ignore the warning and select Run to run a format that is configured to use the model mapping.

Run the editable format on the Format designer page.

Automatic resolution

No option to automatically fix this issue is available.

Manual resolution

Option 1

Change the expression of the Vendor.FilteredTrans data source from WHERE(Trans, Trans.AccountNum=Vendor.AccountNum) back to FILTER(Trans, Trans.AccountNum=Vendor.AccountNum), as the warning advised.

Updated expression of data source on the Model mapping designer page.

Option 2

Change the value of the Execute field for the JoinedList data source from Query to In memory. We don't recommend that you change the value for a table that has a large volume of data (transactional table), because all records will be fetched, and the join occurs in memory. Therefore, this approach can cause poor performance. A validation warning is shown to inform you about this risk.

Preferability of FILTER vs WHERE function

The built-in FILTER ER function is used to access application tables, views, or data entities by placing a single SQL call to get the required data as a list of records. The WHERE function fetches all records from the given source and does record selection in memory. A data source of the Record list type is used as an argument of both functions and specifies a source for getting records. ER checks whether a direct SQL call can be established to a data source that is referred to in the WHERE function. If a direct call can be established, a validation warning occurs in the ER model mapping designer. The message that you receive recommends that you use the FILTER function instead of the WHERE function to help improve efficiency.

The following steps show how this issue might occur.

  1. Start to configure the ER model mapping component.

  2. Add a data source of the Dynamics 365 for Operations \ Table records type.

  3. Name the new data source Trans. In the Table field, select VendTrans to specify that this data source will request the VendTrans table.

  4. Add a data source of the Calculated field type as the nested field of the Vendor data source.

  5. Name the new data source FilteredTrans, and configure it so that it contains the expression WHERE(Trans, Trans.AccountNum="US-101").

  6. Add a data source of the Dynamics 365 for Operations \ Table records type.

  7. Name the new data source Vendor. In the Table field, select VendTable to specify that this data source will request the VendTable table.

  8. Add a data source of the Calculated field type.

  9. Name the new data source FilteredVendor, and configure it so that it contains the expression WHERE(Vendor, Vendor.AccountNum="US-101").

  10. Select Validate to inspect the editable model mapping component on the Model mapping designer page.

    Inspect the editable model mapping component on the Model mapping designer page.

  11. Notice that validation warnings recommend that you use the FILTER function instead of the WHERE function for the FilteredVendor and FilteredTrans data sources.

    Recommendation to use the FILTER function instead of the WHERE function on the Model mapping designer page.

Automatic resolution

Select Fix to automatically replace the WHERE function with the FILTER function in the expression of all data sources that appear in the grid on the Warnings tab for this type of inspection.

Alternatively, you can select the row for a single warning in the grid and then select Fix selected. In this case, the expression is automatically changed only in the data source that is mentioned in the selected warning.

Selecting Fix to automatically replace the WHERE function with the FILTER function on the Model mapping designer page.

Manual resolution

You can manually adjust the expressions of all the data sources in the validation grid by replacing the WHERE function with the FILTER function.

Preferability of ALLITEMSQUERY vs ALLITEMS function

The built-in ALLITEMS and ALLITEMSQUERY ER functions return a flattened Record list value that consists of a list of records that represent all items that match the specified path. ER checks whether a direct SQL call can be established to a data source that is referred to in the ALLITEMS function. If a direct call can be established, a validation warning occurs in the ER model mapping designer. The message that you receive recommends that you use the ALLITEMSQUERY function instead of the ALLITEMS function to help improve efficiency.

The following steps show how this issue might occur.

  1. Start to configure the ER model mapping component.

  2. Add a data source of the Dynamics 365 for Operations \ Table records type.

  3. Name the new data source Vendor. In the Table field, select VendTable to specify that this data source will request the VendTable table.

  4. Add a data source of the Calculated field type to get records for several vendors.

  5. Name the new data source FilteredVendor, and configure it so that it contains the expression FILTER(Vendor, OR(Vendor.AccountNum="US-101",Vendor.AccountNum="US-102")).

  6. Add a data source of the Calculated field type to get the transactions of all filtered vendors.

  7. Name the new data source FilteredVendorTrans, and configure it so that it contains the expression ALLITEMS(FilteredVendor.'<Relations'.'VendTrans.VendTable_AccountNum').

  8. Select Validate to inspect the editable model mapping component on the Model mapping designer page.

    Inspecting the editable model mapping component on the Model mapping designer page.

  9. Notice that a validation warning occurs. The message recommends that you use the ALLITEMSQUERY function instead of the ALLITEMS function for the FilteredVendorTrans data source.

    Recommendation to use the ALLITEMSQUERY function instead of the ALLITEMS function on the Model mapping designer page.

Automatic resolution

Select Fix to automatically replace the ALLITEMS function with the ALLITEMSQUERY function in the expression of all data sources that appear in the grid on the Warnings tab for this type of inspection.

Alternatively, you can select the row for a single warning in the grid and then select Fix selected. In this case, the expression is automatically changed only in the data source that is mentioned in the selected warning.

Selecting Fix selected on the Model mapping designer page.

Manual resolution

You can manually adjust the expressions of all the data sources that are mentioned in the validation grid by replacing the ALLITEMS function with the ALLITEMSQUERY function.

Consideration of empty list cases

You can configure your ER format or model mapping component to get the field value of a data source of the Record list type. ER checks whether your design considers the case where a data source that is called contains no records (that is, it's empty), to prevent runtime errors when a value is fetched from a field of a nonexistent record.

The following steps show how this issue might occur.

  1. Start to configure the ER data model, the ER model mapping, and the ER format components simultaneously.

  2. In the data model tree, add a root item that is named Root3.

  3. Modify the Root3 item by adding a nested item of the Record list type.

  4. Name the new nested item Vendor.

  5. Modify the Vendor item in the following way:

    • Add a nested field of the String type, and name it Name.
    • Add a nested field of the String type, and name it AccountNumber.

    Adding nested fields on the Data model page.

  6. In the model mapping designer, in the Data sources pane, add a data source of the Dynamics 365 for Operations \ Table records type.

  7. Name the new data source Vendor. In the Table field, select VendTable to specify that this data source will request the VendTable table.

  8. Add a data source of the General \ User input parameter type to search for a vendor account in the runtime dialog box.

  9. Name the new data source RequestedAccountNum. In the Label field, enter Vendor account number. In the Operations data type name field, leave the default value, Description.

  10. Add a data source of the Calculated field type to filter a vendor that is inquired about.

  11. Name the new data source FilteredVendor, and configure it so that it contains the expression FILTER(Vendor, Vendor.AccountNum=RequestedAccountNum).

  12. Bind the data model items to configured data sources in the following way:

    • Bind FilteredVendor to Vendor.
    • Bind FilteredVendor.AccountNum to Vendor.AccountNumber.
    • Bind FilteredVendor.'name()' to Vendor.Name.

    Binding data model items on the Model mapping designer page.

  13. In the format structure tree, add the following items to generate an outbound document in XML format that contains the vendor details:

    1. Add the Statement root XML element.

    2. For the Statement XML element, add the nested Party XML element.

    3. For the Party XML element, add the following nested XML attributes:

      • Name
      • AccountNum

  14. Bind format elements to provided data sources in the following way:

    • Bind the Statement\Party\Name format element to the model.Vendor.Name data source field.
    • Bind the Statement\Party\AccountNum format element to the model.Vendor.AccountNumber data source field.

  15. Select Validate to inspect the editable format component on the Format designer page.

    Validating the format elements that you bound to data sources on the Format designer page.

  16. Notice that a validation error occurs. The message states that an error might be thrown for the configured Statement\Party\Name and Statement\Party\AccountNum format components at runtime if the model.Vendor list is empty.

    Validation error about a potential error for the configured format compontents.

The following illustration shows the runtime error that occurs if you ignore the warning, select Run to run the format, and select the account number of a nonexistent vendor. Because the requested vendor doesn't exist, the model.Vendor list will be empty (that is, it will contain no records).

Runtime errors that occur during the format mapping run.

Automatic resolution

For the selected row in the grid on the Warnings tab, you can select Unbind. The binding that is pointed to in the Path column is automatically removed from the format elements.

Manual resolution

Option 1

You can bind the Statement\Party\Name format element to the model.Vendor data source item. At runtime, this binding calls the model.Vendor data source first. When model.Vendor returns an empty record list, the nested format elements aren't run. Therefore, no validation warnings occur for this format configuration.

Binding the format element to the data source item on the Format designer page.

Option 2

Change the binding of the Statement\Party\Name format element from model.Vendor.Name to FIRSTORNULL(model.Vendor).Name. The updated binding conditionally converts the first record of the model.Vendor data source of the Record list type to a new data source of the Record type. This new data source contains the same set of fields.

  • If at least one record is available in the model.Vendor data source, the fields of that record are filled with the values of the fields of the first record of the model.Vendor data source. In this case, the updated binding returns the vendor name.
  • Otherwise, every field of the record that is created is filled with the default value for the data type of that field. In this case, the blank string is returned as the default value of the String data type.

Therefore, no validation warnings occur for the Statement\Party\Name format element when it's bound to the FIRSTORNULL(model.Vendor).Name expression.

Changed binding resolves validation warnings on the Format designer page.

Option 3

If you want to explicitly specify the data that is entered in a generated document when the model.Vendor data source of the Record list type returns no records (the text Not available in this example), change the binding of the Statement\Party\Name format element from model.Vendor.Name to IF(NOT(ISEMPTY(model.Vendor)), model.Vendor.Name, "Not available"). You can also use the expression IF(COUNT(model.Vendor)=0, model.Vendor.Name, "Not available").

Additional consideration

The inspection also warns you about another potential issue. By default, as you bind the Statement\Party\Name and Statement\Party\AccountNum format elements to the appropriate fields of the model.Vendor data source of the Record list type, those bindings will be run and will take the values of the appropriate fields of the first record of the model.Vendor data source, if that list isn't empty.

Because you haven't bound the Statement\Party format element with the model.Vendor data source, the Statement\Party element won't be iterated for every record of the model.Vendor data source during format execution. Instead, a generated document will be filled with information from only the first record of the record list, if that list contains multiple records. Therefore, there might be an issue if the format is intended to fill a generated document with information about all vendors from the model.Vendor data source. To fix this issue, bind the Statement\Party element with the model.Vendor data source.

Executability of an expression with FILTER function (caching)

Several built-in ER functions, including FILTER and ALLITEMSQUERY, are used to access application tables, views, or data entities by placing a single SQL call to get the required data as a list of records. A data source of the Record list type is used as an argument of each of these functions and specifies an application source for the call. ER checks whether a direct SQL call can be established to a data source that is referred to in one of these functions. If a direct call can't be established because the data source was marked as cached, a validation error occurs in the ER model mapping designer. The message that you receive states that the ER expression that contains one of these functions can't be run at runtime.

The following steps show how this issue might occur.

  1. Start to configure the ER model mapping component.

  2. Add a data source of the Dynamics 365 for Operations \ Table records type.

  3. Name the new data source Vendor. In the Table field, select VendTable to specify that this data source will request the VendTable table.

  4. Add a data source of the General \ User input parameter type to search for a vendor account in the runtime dialog box.

  5. Name the new data source RequestedAccountNum. In the Label field, enter Vendor account number. In the Operations data type name field, leave the default value, Description.

  6. Add a data source of the Calculated field type to filter a vendor that is inquired about.

  7. Name the new data source FilteredVendor, and configure it so that it contains the expression FILTER(Vendor, Vendor.AccountNum=RequestedAccountNum).

  8. Mark the configured Vendor data source as cached.

    Configuring the model mapping component on the Model mapping designer page.

  9. Select Validate to inspect the editable model mapping component on the Model mapping designer page.

    Validating the FILTER function that is applied to the cached Vendor data source on the Model mapping designer page.

  10. Notice that a validation error occurs. The message states that the FILTER function can't be applied to the cached Vendor data source.

The following illustration shows the runtime error that occurs if you ignore the warning and select Run to run the format.

Runtime error that occurs during the format mapping run on the Format designer page.

Automatic resolution

No option to automatically fix this issue is available.

Manual resolution

Option 1

Remove the Cache flag from the Vendor data source. The FilteredVendor data source will then become executable, but the Vendor data source that is referred to in the VendTable table will be accessed every time that the FilteredVendor data source is called.

Option 2

Change the expression of the FilteredVendor data source from FILTER(Vendor, Vendor.AccountNum="US-101") to WHERE(Vendor, Vendor.AccountNum="US-101"). In this case, the Vendor data source that is referred to in the VendTable table will be accessed only during the first call of the Vendor data source. However, the selection of records will be done in memory. Therefore, this approach can cause poor performance.

Missing binding

When you configure an ER format component, the base ER data model is offered as a default data source for the ER format. When the configured ER format is run, the default model mapping for the base model is used to fill the data model with application data. The ER format designer shows a warning if you bind a format element to a data model item that isn't bound to any data source in the model mapping that is currently selected as the default model mapping for the editable format. This type of binding can't be run at runtime, because the format that runs can't fill a bound element with application data. Therefore, an error occurs at runtime.

The following steps show how this issue might occur.

  1. Start to configure the ER data model, the ER model mapping, and the ER format components simultaneously.

  2. In the data model tree, add a root item that is named Root3.

  3. Modify the Root3 item by adding a new nested item of the Record list type.

  4. Name the new nested item Vendor.

  5. Modify the Vendor item in the following way:

    • Add a nested field of the String type, and name it Name.
    • Add a nested field of the String type, and name it AccountNumber.

    Adding nested fields to the Vendor item on the Data model page.

  6. In the model mapping designer, in the Data sources pane, add a data source of the Dynamics 365 for Operations \ Table records type.

  7. Name the new data source Vendor. In the Table field, select VendTable to specify that this data source will request the VendTable table.

  8. Add a data source of the General \ User input parameter type to inquire about a vendor account in the runtime dialog box.

  9. Name the new data source RequestedAccountNum. In the Label field, enter Vendor account number. In the Operations data type name field, leave the default value, Description.

  10. Add a data source of the Calculated field type to filter a vendor that is inquired about.

  11. Name the new data source FilteredVendor, and configure it so that it contains the expression FILTER(Vendor, Vendor.AccountNum=RequestedAccountNum).

  12. Bind the data model items to configured data sources in the following way:

    • Bind FilteredVendor to Vendor.
    • Bind FilteredVendor.AccountNum to Vendor.AccountNumber.

    Note

    The Vendor.Name data model field remains unbound.

    Data model items bound to configured data sources and a data mode item that remains unbound on the Model mapping designer page.

  13. In the format structure tree, add the following items to generate an outbound document in XML format that contains the details of the vendors that are inquired about:

    1. Add the Statement root XML element.

    2. For the Statement XML element, add the nested Party XML element.

    3. For the Party XML element, add the following nested XML attributes:

      • Name
      • AccountNum

  14. Bind the format elements to provided data sources in the following way:

    • Bind the Statement\Party format element to the model.Vendor data source item.
    • Bind the Statement\Party\Name format element to the model.Vendor.Name data source field.
    • Bind the Statement\Party\AccountNum format element to the model.Vendor.AccountNumber data source field.

  15. Select Validate to inspect the editable format component on the Format designer page.

    Validate the ER format component on the Format designer page.

  16. Notice that a validation warning occurs. The message states that the model.Vendor.Name data source field isn't bound to any data source in the model mapping that is configured to be used by the format. Therefore, the Statement\Party\Name format element might not be filled at runtime, and a runtime exception might occur.

    Validating the ER format component on the Format designer page.

The following illustration shows the runtime error that occurs if you ignore the warning and select Run to run the format.

Running the editable format on the Format designer page.

Automatic resolution

No option to automatically fix this issue is available.

Manual resolution

Option 1

Modify the configured model mapping by adding a binding for the model.Vendor.Name data source field.

Option 2

Modify the configured format by removing the binding for the Statement\Party\Name format element.

Not linked template

When you manually configure an ER format component to use a template to generate an outbound document, you must manually add the Excel\File element, add the required template as an attachment of the editable component, and select that attachment in the added Excel\File element. In this way, you indicate that the added element will fill the selected template at runtime. When you configure a format component version in Draft status, you might add several templates to the editable component and then select each template in the Excel\File element to run the ER format. In this way, you can see how different templates are filled at runtime. If you have templates that aren't selected in any Excel\File elements, the ER format designer warns you that those templates will be deleted from the editable ER format component version when its status is changed from Draft to Completed.

The following steps show how this issue might occur.

  1. Start to configure the ER format component.

  2. In the format structure tree, add the Excel\File element.

  3. For the Excel\File element that you just added, add an Excel workbook file, A.xlsx, as an attachment. Use the document type that is configured in the ER parameters to specify the storage of ER format templates.

  4. For the Excel\File element, add another Excel workbook file, B.xlsx, as an attachment. Use the same document type that is used for workbook file A.

  5. In the Excel\File element, select workbook file A.

  6. Select Validate to inspect the editable format component on the Format designer page.

    Validating the editable format component of the workbook file on the Format designer page.

  7. Notice that a validation warning occurs. The message states that workbook file B.xlsx isn't linked to any components, and that it will be removed after the status of the configuration version is changed.

Automatic resolution

No option to automatically fix this issue is available.

Manual resolution

Modify the configured format by removing all templates that aren't linked to any Excel\File element.

Not synced format

When you configure an ER format component to use an Excel template to generate an outbound document, you can manually add the Excel\File element, add the required template as an attachment of the editable component, and select that attachment in the added Excel\File element. In this way, you indicate that the added element will fill the selected template at runtime. Because the added Excel template has been externally designed, the editable ER format might contain Excel names that are missing from the added template. The ER format designer warns you about any inconsistencies between the properties of the ER format elements that refer to names that aren't included in the added Excel template.

The following steps show how this issue might occur.

  1. Start to configure the ER format component.

  2. In the format structure tree, add the Excel\File element Report.

  3. For the Excel\File element that you just added, add an Excel workbook file, A.xlsx, as an attachment. Use the document type that is configured in the ER parameters to specify the storage of ER format templates.

    Important

    Make sure that the added Excel workbook doesn't contain the name ReportTitle.

  4. Add the Excel\Cell element Title as a nested element of the Report element. In the Excel range field, enter ReportTitle.

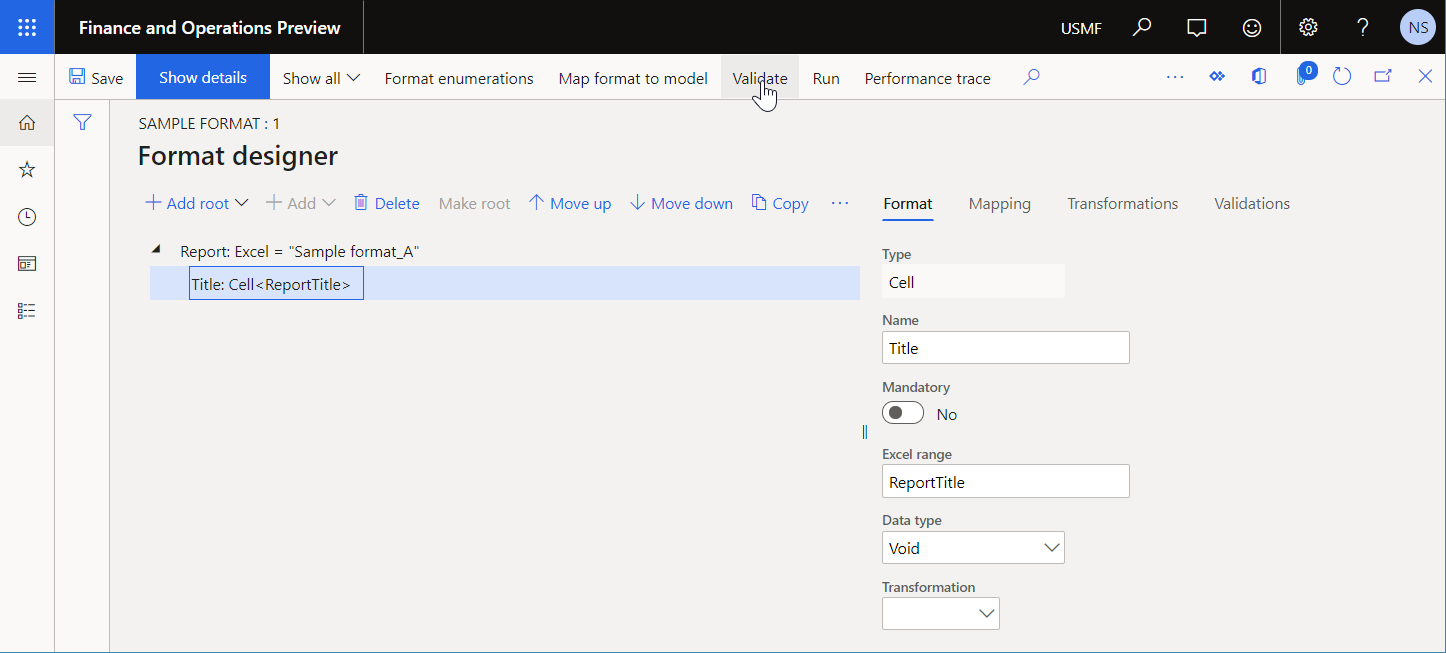

  5. Select Validate to inspect the editable format component on the Format designer page.

    Validating the nested elements and fields on the Format designer page.

  6. Notice that a validation warning occurs. The message states that the name ReportTitle doesn't exist on sheet Sheet1 of the Excel template that you're using.

    Validation warning that the name ReportTitle doesn't exist on Sheet1 of the Excel template.

Automatic resolution

No option to automatically fix this issue is available.

Manual resolution

Option 1

Modify the configured format by removing all elements that refer to Excel names that are missing from the template.

Option 2

Update the editable ER format by importing an Excel template. The structure of the editable ER format will be synced with the structure of the imported Excel template.

Additional consideration

To learn how the format structure can be synced with an ER template in the template editor of Business document management, see Update the structure of a business document template.

Not synced with a Word template format

When you configure an ER format component to use a Word template to generate an outbound document, you can manually add the Excel\File element, add the required Word template as an attachment of the editable component, and select that attachment in the added Excel\File element.

Note

When the Word document is attached, the ER format designer presents the editable element as Word\File.

In this way, you indicate that the added element will fill the selected template at runtime. Because the added Word template has been externally designed, the editable ER format might contain references to Word content controls that are missing from the added template. The ER format designer warns you about any inconsistencies between the properties of the ER format elements that refer to content controls that aren't included in the added Word template.

For an example that shows how this issue might occur, see Configure the editable format to suppress the summary section.

Automatic resolution

No option to automatically fix this issue is available.

Manual resolution

Option 1

Modify the configured format by deleting the Removed formula from the format element that is mentioned in the validation warning.

Option 2

Modify the using Word template by adding the required tag to the relevant Word content control.

No default mapping

When the Missing binding inspection is done, the inspected format bindings are evaluated against the bindings of the relevant model mapping component. Because you can import several ER model mapping configurations to your Finance instance, and each configuration might contain the applicable model mapping component, one configuration must be selected as the default configuration. Otherwise, when you try to run, edit, or validate the inspected ER format, an exception will occur, and you will receive the following message: "More than one model mapping exists for the <model name (root descriptor)> data model in the configurations <configuration names separated by comma>. Set one of the configurations as default."

For an example that shows how this issue might occur and how it can be fixed, see Manage several derived mappings for a single model root.

Inconsistent setting of Header or Footer components

When you configure an ER format component to use an Excel template to generate an outbound document, you can add the Excel\Header component to fill in headers at the top of a worksheet in an Excel workbook. You can also add the Excel\Footer component to fill in footers at the bottom of a worksheet. For every Excel\Header or Excel\Footer component that you add, you must set the Header/footer appearance property to specify the pages that the component is run for. Because you can configure several Excel\Header or Excel\Footer components for a single Sheet component, and you can generate different headers or footers for different type of pages in an Excel worksheet, you must configure a single Excel\Header or Excel\Footer component for a specific value of the Header/footer appearance property. If more than one Excel\Header or Excel\Footer component is configured for a specific value of the Header/footer appearance property, a validation error occurs, and you receive the following error message: "Headers/footers (<component type: Header or Footer>) are inconsistent."

Automatic resolution

No option to automatically fix this issue is available.

Manual resolution

Option 1

Modify the configured format by deleting one of the inconsistent Excel\Header or Excel\Footer components.

Option 2

Modify the value of the Header/footer appearance property for one of the inconsistent Excel\Header or Excel\Footer components.

Inconsistent setting of Page component

When you configure an ER format component to use an Excel template to generate an outbound document, you can add the Excel\Page component to paginate a generated document by using ER formulas. For every Excel\Page component that you add, you can add many nested Range components and still remain compliant with the following structure:

  • The first nested Range component can be configured so that the Replication direction property is set to No replication. This range is used to make page headers in generated documents.
  • You can add many other nested Range components where the Replication direction property is set to Vertical. These ranges are used to fill in generated documents.
  • The last nested Range component can be configured so that the Replication direction property is set to No replication. This range is used to make page footers in generated documents and to add the required page breaks.

If you don't follow this structure for an ER format in the ER format designer at design time, a validation error occurs, and you receive the following error message: "There are more than two range components without replication. Please, remove unnecessary components."

Automatic resolution

No option to automatically fix this issue is available.

Manual resolution

Option 1

Modify the configured format by changing the Replication direction property for all inconsistent Excel\Range components.

Executability of an expression with ORDERBY function

The built-in ORDERBY ER function is used to sort the records of an ER data source of the Record list type that is specified as an argument of the function.

Arguments of the ORDERBY function can be specified to sort records of application tables, views, or data entities by placing a single database call to get the sorted data as a list of records. A data source of the Record list type is used as an argument of the function and specifies the application source for the call.

ER checks whether a direct database query can be established to a data source that is referred to in the ORDERBY function. If a direct query can't be established, a validation error occurs in the ER model mapping designer. The message that you receive states that the ER expression that includes the ORDERBY function can't be run at runtime.

The following steps show how this issue might occur.

  1. Start to configure the ER model mapping component.

  2. Add a data source of the Dynamics 365 for Operations \ Table records type.

  3. Name the new data source Vendor. In the Table field, select VendTable to specify that this data source will request the VendTable table.

  4. Add a data source of the Calculated field type.

  5. Name the new data source OrderedVendors, and configure it so that it contains the expression ORDERBY("Query", Vendor, Vendor.AccountNum).

    Configuring data sources on the Model mapping designer page.

  6. Select Validate to inspect the editable model mapping component on the Model mapping designer page and verify that the expression in the OrderedVendors data source can be queried.

  7. Modify the Vendor data source by adding a nested field of the Calculated field type to get the trimmed vendor account number.

  8. Name the new nested field $AccNumber, and configure it so that it contains the expression TRIM(Vendor.AccountNum).

  9. Select Validate to inspect the editable model mapping component on the Model mapping designer page and verify that the expression in the Vendor data source can be queried.

    Verifying that the expression in the Vendor data source can be queried on the Model mapping designer page.

  10. Notice that a validation error occurs, because the Vendor data source contains a nested field of the Calculated field type that doesn't allow the expression of the OrderedVendors data source to be translated to the direct database statement. The same error occurs at runtime if you ignore the validation error and select Run to run this model mapping.

Automatic resolution

No option to automatically fix this issue is available.

Manual resolution

Option 1

Instead of adding a nested field of the Calculated field type to the Vendor data source, add the $AccNumber nested field to the FilteredVendors data source, and configure the field so that it contains the expression TRIM(FilteredVendor.AccountNum). In this way, the ORDERBY("Query", Vendor, Vendor.AccountNum) expression can be run at the database level, and the calculation of the $AccNumber nested field can be done after.

Option 2

Change the expression of the FilteredVendors data source from ORDERBY("Query", Vendor, Vendor.AccountNum) to ORDERBY("InMemory", Vendor, Vendor.AccountNum). We don't recommend that you change the expression for a table that has a large volume of data (transactional table), because all records will be fetched, and ordering of the required records will be done in memory. Therefore, this approach can cause poor performance.

Obsolete application artifact

When you design an ER model mapping component or an ER format component, you can configure an ER expression to call an application artifact in ER, such as a database table, a method of a class, etc. In Finance version 10.0.30 and later, you can force ER to warn you that the referred application artifact is marked in source code as obsolete. This warning can be useful because usually, obsolete artifacts are eventually removed from source code. Being informed about an artifact’s status can stop you using the obsolete artifact in the editable ER component before its removal from the source code, helping to prevent errors of calling non-existing application artifacts from an ER component at runtime.

Enable the Validate obsolete elements of Electronic Reporting data sources feature in the Feature management workspace to start evaluating the obsolete attribute of application artifacts during the inspection of an editable ER component. The obsolete attribute is currently evaluated for the following types of application artifacts:

  • Database table
    • Field of a table
    • Method of a table
  • Application class
    • Method of a class

Note

A warning occurs during the inspection of the editable ER component for a data source that refers to an obsolete artifact only when this data source is used in at least one binding of this ER component.

Tip

When the SysObsoleteAttribute class is used to notify the compiler to issue warning messages instead of errors, the inspection warning presents the specified in source code warning at design time in the Details FastTab on the Model mapping designer or Format designer page.

The following illustration shows the validation warning that occurs when the obsolete DEL_Email field of the CompanyInfo application table is bound to a data model field by using the configured company data source.

Review the validation warnings in the Details FastTab on the Model mapping designer page.

Automatic resolution

No option to automatically fix this issue is available.

Manual resolution

Modify the configured model mapping or format by removing all bindings to a data source that refers to an obsolete application artifact.

Additional resources

ALLITEMS ER function

ALLITEMSQUERY ER function

INT64VALUE ER function

INTVALUE ER function

FILTER ER function

WHERE ER function

Use JOIN data sources to get data from multiple application tables in ER model mappings

Trace the execution of ER formats to troubleshoot performance issues

Business document management overview

Suppress Word content controls in generated reports

Manage several derived mappings for a single model root
