Using Microsoft Entra application proxy to publish on-premises apps for remote users

Microsoft Entra application proxy provides secure remote access to on-premises web applications. After a single sign-on to Microsoft Entra ID, users can access both cloud and on-premises applications through an external URL or an internal application portal. For example, application proxy can provide remote access and single sign-on to Remote Desktop, SharePoint, Teams, Tableau, Qlik, and line of business (LOB) applications.

Microsoft Entra application proxy is:

  • Simple to use. Users can access your on-premises applications the same way they access Microsoft 365 and other SaaS apps integrated with Microsoft Entra ID. You don't need to change or update your applications to work with application proxy.

  • Secure. On-premises applications can use Azure's authorization controls and security analytics. For example, on-premises applications can use Conditional Access and two-step verification. Application proxy doesn't require you to open inbound connections through your firewall.

  • Cost-effective. On-premises solutions typically require you to setup and maintain demilitarized zones (DMZs), edge servers, or other complex infrastructures. Application proxy runs in the cloud, which makes it easy to use. To use application proxy, you don't need to change the network infrastructure or install more appliances in your on-premises environment.

Tip

If you already have Microsoft Entra ID, you can leverage it as one control plane to allow seamless and secure access to your on-premises applications.

While not comprehensive, the list below illustrates examples of using application proxy in a hybrid coexistence scenario:

  • Publish on-premises web apps externally in a simplified way without a DMZ
  • Support single sign-on (SSO) across devices, resources, and apps in the cloud and on-premises
  • Support multi-factor authentication for apps in the cloud and on-premises
  • Quickly leverage cloud features with the security of the Microsoft Cloud
  • Centralize user account management
  • Centralize control of identity and security
  • Automatically add or remove user access to applications based on group membership

This article explains how Microsoft Entra ID and application proxy give remote users a single sign-on (SSO) experience. Users securely connect to on-premises apps without a VPN or dual-homed servers and firewall rules. This article helps you understand how application proxy brings the capabilities and security advantages of the cloud to your on-premises web applications. It also describes the architecture and topologies that are possible.

Tip

Application proxy includes both the application proxy service, which runs in the cloud, and the private network connector, which runs on an on-premises server. Microsoft Entra ID, the application proxy service, and the private network connector work together to securely pass the user sign-on token from Microsoft Entra ID to the web application.

Application proxy works with:

  • Web applications that use Integrated Windows authentication for authentication
  • Web applications that use form-based or header-based access
  • Web APIs that you want to expose to rich applications on different devices
  • Applications hosted behind a Remote Desktop Gateway
  • Rich client apps that are integrated with the Microsoft Authentication Library (MSAL)

Application proxy supports single sign-on. For more information on supported methods, see Choosing a single sign-on method.

Remote access in the past

Previously, your control plane for protecting internal resources from attackers while facilitating access by remote users was all in the DMZ or perimeter network. But the VPN and reverse proxy solutions deployed in the DMZ used by external clients to access corporate resources aren't suited to the cloud world. They typically suffer from the following drawbacks:

  • Hardware costs
  • Maintaining security (patching, monitoring ports, etc.)
  • Authenticating users at the edge
  • Authenticating users to web servers in the perimeter network
  • Maintaining VPN access for remote users with the distribution and configuration of VPN client software. Also, maintaining domain-joined servers in the DMZ, which can be vulnerable to outside attacks.

In today's cloud-first world, Microsoft Entra ID is best suited to control who and what gets into your network. Microsoft Entra application proxy integrates with modern authentication and cloud-based technologies, like SaaS applications and identity providers. This integration enables users to access apps from anywhere. Not only is application proxy more suited for today's digital workplace, it's more secure than VPN and reverse proxy solutions and easier to implement. Remote users can access your on-premises applications the same way they access Microsoft and other SaaS apps integrated with Microsoft Entra ID. You don't need to change or update your applications to work with application proxy. Furthermore, application proxy doesn't require you to open inbound connections through your firewall. With application proxy, you simply set it and forget it.

The future of remote access

In today's digital workplace, users work anywhere with multiple devices and apps. The only constant is user identity. That's why the first step to a secure network today is to use Microsoft Entra identity management capabilities as your security control plane. A model that uses identity as your control plane is typically comprised of the following components:

  • An identity provider to keep track of users and user-related information.
  • Device directory to maintain a list of devices that have access to corporate resources. This directory includes corresponding device information (for example, type of device, integrity etc.).
  • Policy evaluation service to determine if a user and device conform to the policy set forth by security admins.
  • The ability to grant or deny access to organizational resources.

With application proxy, Microsoft Entra ID keeps track of users who need to access web apps published on-premises and in the cloud. It provides a central management point for those apps. While not required, it's recommended you also enable Microsoft Entra Conditional Access. By defining conditions for how users authenticate and gain access, you further ensure that the right people access your applications.

Note

It's important to understand that Microsoft Entra application proxy is intended as a VPN or reverse proxy replacement for roaming (or remote) users who need access to internal resources. It's not intended for internal users on the corporate network. Internal users who unnecessarily use application proxy can introduce unexpected and undesirable performance issues.

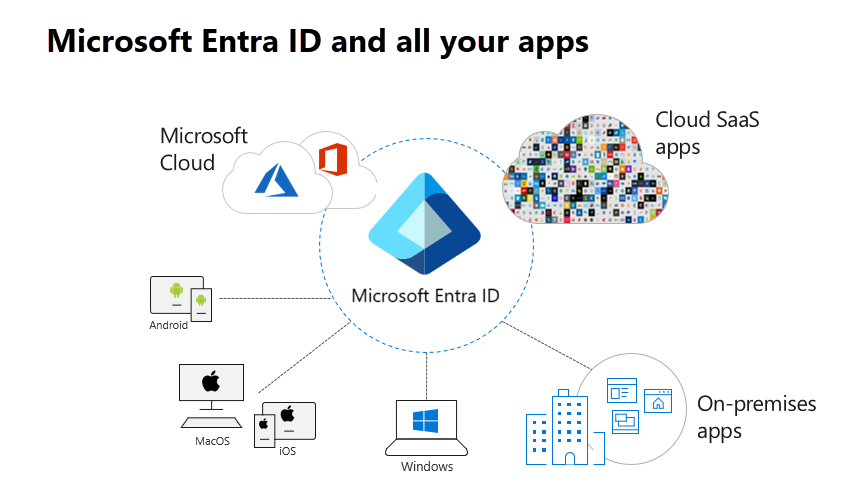

Microsoft Entra ID and all your apps

Overview of how application proxy works

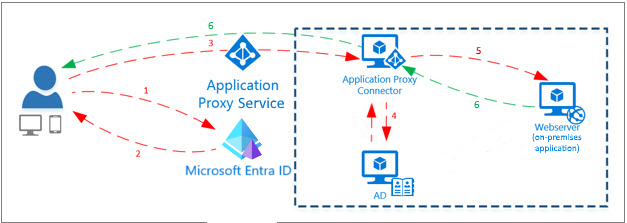

The diagram shows how Microsoft Entra ID and application proxy work together to provide single sign-on to on-premises applications.

Diagram of Microsoft Entra application proxy.

  1. A user is directed to the Microsoft Entra sign-in page after accessing the application through an endpoint.
  2. Microsoft Entra ID sends a token to the user's client device after a successful sign-in.
  3. The client sends the token to the application proxy service. The service retrieves the user principal name (UPN) and security principal name (SPN) from the token. Application proxy then sends the request to the connector.
  4. The connector performs single sign-on (SSO) authentication required on behalf of the user.
  5. The connector sends the request to the on-premises application.
  6. The response is sent through the connector and application proxy service to the user.

Note

Like most Microsoft Entra hybrid agents, the private network connector doesn't require you to open inbound connections through your firewall. User traffic in step 3 terminates at the application proxy Service (in Microsoft Entra ID). The private network connector (on-premises) is responsible for the rest of the communication.

Component Description
Endpoint The endpoint is a URL or an end-user portal. Users can reach applications while outside of your network by accessing an external URL. Users within your network can access the application through a URL or an end-user portal. When users go to one of these endpoints, they authenticate in Microsoft Entra ID and then are routed through the connector to the on-premises application.
Microsoft Entra ID Microsoft Entra ID performs the authentication using the tenant directory stored in the cloud.
Application proxy service This application proxy service runs in the cloud as part of Microsoft Entra ID. It passes the sign-on token from the user to the private network connector. Application proxy forwards any accessible headers on the request and sets the headers as per its protocol, to the client IP address. If the incoming request to the proxy already has that header, the client IP address is added to the end of the comma separated list that is the value of the header.
private network connector The connector is a lightweight agent that runs on a Windows Server inside your network. The connector manages communication between the application proxy service in the cloud and the on-premises application. The connector only uses outbound connections, so you don't have to open inbound ports in Internet facing networks. The connectors are stateless and pull information from the cloud as necessary. For more information about connectors, like how they load-balance and authenticate, see Understand Microsoft Entra private network connectors.
Active Directory (AD) Active Directory runs on-premises to perform authentication for domain accounts. When single sign-on is configured, the connector communicates with AD to perform any extra authentication required.
On-premises application Finally, the user is able to access an on-premises application.

Application proxy is a Microsoft Entra service you configure in the Microsoft Entra admin center. It enables you to publish an external public HTTP/HTTPS URL endpoint in the Azure Cloud, which connects to an internal application server URL in your organization. These on-premises web apps can be integrated with Microsoft Entra ID to support single sign-on. Users can then access on-premises web apps in the same way they access Microsoft 365 and other SaaS apps.

Components of this feature include the application proxy service, which runs in the cloud, the private network connector, which is a lightweight agent that runs on an on-premises server, and Microsoft Entra ID, which is the identity provider. All three components work together to provide the user with a single sign-on experience to access on-premises web applications.

After signing in, external users can access on-premises web applications by using a display URL or My Apps from their desktop or iOS/MAC devices. For example, application proxy can provide remote access and single sign-on to Remote Desktop, SharePoint sites, Tableau, Qlik, Outlook on the web, and line-of-business (LOB) applications.

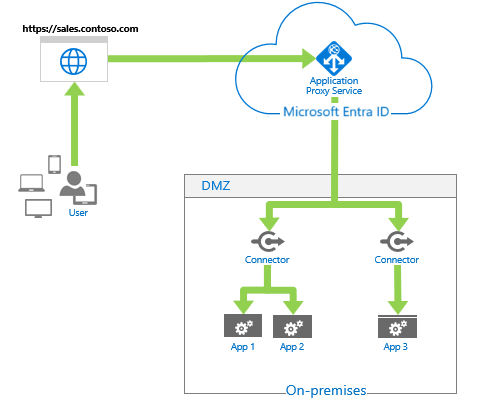

Microsoft Entra application proxy architecture

Authentication

There are several ways to configure an application for single sign-on, and the method you select depends on the authentication your application uses. Application proxy supports the following types of applications:

  • Web applications
  • Web APIs that you want to expose to rich applications on different devices
  • Applications hosted behind a Remote Desktop Gateway
  • Rich client apps that are integrated with the Microsoft Authentication Library (MSAL)

application proxy works with apps that use the following native authentication protocol:

Application proxy also supports the following authentication protocols with third-party integration or in specific configuration scenarios:

  • Header-based authentication. This sign-on method uses a third-party authentication service called PingAccess and is used when the application uses headers for authentication. In this scenario, authentication is handled by PingAccess.
  • Forms- or password-based authentication. With this authentication method, users sign on to the application with a username and password the first time they access it. After the first sign-on, Microsoft Entra ID supplies the username and password to the application. In this scenario, authentication is handled by Microsoft Entra ID.
  • SAML authentication. SAML-based single sign-on is supported for applications that use either SAML 2.0 or WS-Federation protocols. With SAML single sign-on, Microsoft Entra authenticates to the application by using the user's Microsoft Entra account.

For more information on supported methods, see Choosing a single sign-on method.

Security benefits

The remote access solution offered by application proxy and Microsoft Entra ID support several security benefits customers may take advantage of, including:

  • Authenticated access. Application proxy is best suited to publish applications with pre-authentication to ensure that only authenticated connections hit your network. No traffic is allowed to pass through the application proxy service to your on-premises environment without a valid token for applications published with pre-authentication. Pre-authentication, by its very nature, blocks a significant number of targeted attacks, as only authenticated identities can access the backend application.

  • Conditional Access. Richer policy controls can be applied before connections to your network are established. With Conditional Access, you can define restrictions on the traffic that you allow to hit your backend application. You create policies that restrict sign-ins based on location, the strength of authentication, and user risk profile. As Conditional Access evolves, more controls are being added to provide additional security such as integration with Microsoft Defender for Cloud Apps. Defender for Cloud Apps integration enables you to configure an on-premises application for real-time monitoring by leveraging Conditional Access to monitor and control sessions in real-time based on Conditional Access policies.

  • Traffic termination. All traffic to the backend application is terminated at the application proxy service in the cloud while the session is re-established with the backend server. This connection strategy means that your backend servers are not exposed to direct HTTP traffic. They are better protected against targeted DoS (denial-of-service) attacks because your firewall isn't under attack.

  • All access is outbound. The private network connectors only use outbound connections to the application proxy service in the cloud over ports 80 and 443. With no inbound connections, there's no need to open firewall ports for incoming connections or components in the DMZ. All connections are outbound and over a secure channel.

  • Security Analytics and Machine Learning (ML) based intelligence. Because it's part of Microsoft Entra ID, application proxy can leverage Microsoft Entra ID Protection (requires Premium P2 licensing). Microsoft Entra ID Protection combines machine-learning security intelligence with data feeds from Microsoft's Digital Crimes Unit and Microsoft Security Response Center to proactively identify compromised accounts. Identity Protection offers real-time protection from high-risk sign-ins. It takes into consideration factors like accesses from infected devices, through anonymizing networks, or from atypical and unlikely locations to increase the risk profile of a session. This risk profile is used for real-time protection. Many of these reports and events are already available through an API for integration with your SIEM systems.

  • Remote access as a service. You don't have to worry about maintaining and patching on-premises servers to enable remote access. Application proxy is an internet scale service that Microsoft owns, so you always get the latest security patches and upgrades. Unpatched software still accounts for a large number of attacks. According to the Department of Homeland Security, as many as 85 percent of targeted attacks are preventable. With this service model, you don't have to carry the heavy burden of managing your edge servers anymore and scramble to patch them as needed.

  • Intune integration. With Intune, corporate traffic is routed separately from personal traffic. Application proxy ensures that the corporate traffic is authenticated. Application proxy and the Intune Managed Browser capability can also be used together to enable remote users to securely access internal websites from iOS and Android devices.

Roadmap to the cloud

Another major benefit of implementing application proxy is extending Microsoft Entra ID to your on-premises environment. In fact, implementing application proxy is a key step in moving your organization and apps to the cloud. By moving to the cloud and away from on-premises authentication, you reduce your on-premises footprint and use Microsoft Entra identity management capabilities as your control plane. With minimal or no updates to existing applications, you have access to cloud capabilities such as single sign-on, multi-factor authentication, and central management. Installing the necessary components to application proxy is a simple process for establishing a remote access framework. And by moving to the cloud, you have access to the latest Microsoft Entra features, updates, and functionality, such as high availability and the disaster recovery.

To learn more about migrating your apps to Microsoft Entra ID, see the Migrating Your Applications to Microsoft Entra ID.

Architecture

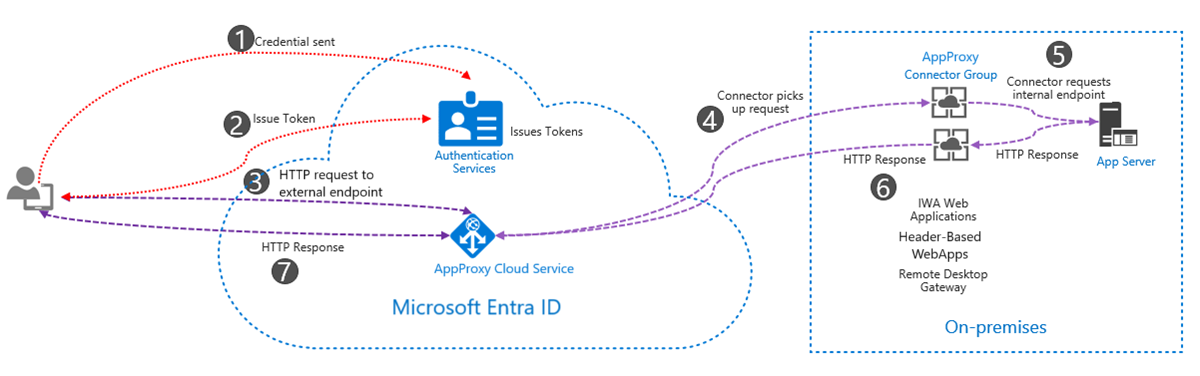

The following diagram illustrates in general how Microsoft Entra authentication services and application proxy work together to provide single sign-on to on-premises applications to users.

Microsoft Entra application proxy authentication flow

  1. After the user has accessed the application through an endpoint, the user is redirected to the Microsoft Entra sign-in page. If you've configured Conditional Access policies, specific conditions are checked at this time to ensure that you comply with your organization's security requirements.
  2. After a successful sign-in, Microsoft Entra ID sends a token to the user's client device.
  3. The client sends the token to the application proxy service, which retrieves the user principal name (UPN) and security principal name (SPN) from the token.
  4. Application proxy forwards the request, which is picked up by the application proxy connector.
  5. The connector performs any additional authentication required on behalf of the user (Optional depending on authentication method), requests the internal endpoint of the application server and sends the request to the on-premises application.
  6. The response from the application server is sent through the connector to the application proxy service.
  7. The response is sent from the application proxy service to the user.
Component Description
Endpoint The endpoint is a URL or an user portal. Users can reach applications while outside of your network by accessing an external URL. Users within your network can access the application through a URL or a user portal. When users go to one of these endpoints, they authenticate in Microsoft Entra ID and then are routed through the connector to the on-premises application.
Microsoft Entra ID Microsoft Entra ID performs the authentication using the tenant directory stored in the cloud.
Application proxy service This application proxy service runs in the cloud as part of Microsoft Entra ID. It passes the sign-on token from the user to the private network connector. Application proxy forwards any accessible headers on the request and sets the headers as per its protocol, to the client IP address. If the incoming request to the proxy already has that header, the client IP address is added to the end of the comma-separated list that is the value of the header.
private network connector The connector is a lightweight agent that runs on a Windows Server inside your network. The connector manages communication between the application proxy service in the cloud and the on-premises application. The connector only uses outbound connections, so you don't have to open any inbound ports or put anything in the DMZ. The connectors are stateless and pull information from the cloud as necessary. For more information about connectors, like how they load-balance and authenticate, see Understand Microsoft Entra private network connectors.
Active Directory (AD) Active Directory runs on-premises to perform authentication for domain accounts. When single sign-on is configured, the connector communicates with AD to perform any additional authentication required.
On-premises application Finally, the user is able to access an on-premises application.

Microsoft Entra application proxy consists of the cloud-based application proxy service and an on-premises connector. The connector listens for requests from the application proxy service and handles connections to the internal applications. It's important to note that all communications occur over TLS, and always originate at the connector to the application proxy service. That is, communications are outbound only. The connector uses a client certificate to authenticate to the application proxy service for all calls. The only exception to the connection security is the initial setup step where the client certificate is established. See the application proxy Under the hood for more details.

private network connectors

private network connectors are lightweight agents deployed on-premises that facilitate the outbound connection to the application proxy service in the cloud. The connectors must be installed on a Windows Server that has access to the backend application. Users connect to the application proxy cloud service that routes their traffic to the apps via the connectors as illustrated below.

Microsoft Entra application proxy network connections

Setup and registration between a connector and the application proxy service is accomplished as follows:

  1. The IT administrator opens ports 80 and 443 to outbound traffic and allows access to several URLs that are needed by the connector, the application proxy service, and Microsoft Entra ID.
  2. The admin signs into the Microsoft Entra admin center and runs an executable to install the connector on an on-premises Windows server.
  3. The connector starts to "listen" to the application proxy service.
  4. The admin adds the on-premises application to Microsoft Entra ID and configures settings such as the URLs users need to connect to their apps.

For more information, see Plan a Microsoft Entra application proxy deployment.

It's recommended that you always deploy multiple connectors for redundancy and scale. The connectors, in conjunction with the service, take care of all the high availability tasks and can be added or removed dynamically. Each time a new request arrives it's routed to one of the connectors that is available. When a connector is running, it remains active as it connects to the service. If a connector is temporarily unavailable, it doesn't respond to this traffic. Unused connectors are tagged as inactive and removed after 10 days of inactivity.

Connectors also poll the server to find out if there is a newer version of the connector. Although you can do a manual update, connectors will update automatically as long as the private network connector Updater service is running. For tenants with multiple connectors, the automatic updates target one connector at a time in each group to prevent downtime in your environment.

Note

You can monitor the application proxy version history page to be notified when updates have been released by subscribing to its RSS feed.

Each private network connector is assigned to a connector group. Connectors in the same connector group act as a single unit for high availability and load balancing. You can create new groups, assign connectors to them in the Microsoft Entra admin center, then assign specific connectors to serve specific applications. It's recommended to have at least two connectors in each connector group for high availability.

Connector groups are useful when you need to support the following scenarios:

  • Geographical app publishing
  • Application segmentation/isolation
  • Publishing web apps running in the cloud or on-premises

For more information about choosing where to install your connectors and optimizing your network, see Network topology considerations when using Microsoft Entra application proxy.

Other use cases

Up to this point, we've focused on using application proxy to publish on-premises apps externally while enabling single sign-on to all your cloud and on-premises apps. However, there are other use cases for application proxy that are worth mentioning. They include:

  • Securely publish REST APIs. When you have business logic or APIs running on-premises or hosted on virtual machines in the cloud, application proxy provides a public endpoint for API access. API endpoint access lets you control authentication and authorization without requiring incoming ports. It provides additional security through Microsoft Entra ID P1 or P2 features such as multi-factor authentication and device-based Conditional Access for desktops, iOS, MAC, and Android devices using Intune. To learn more, see How to enable native client applications to interact with proxy applications and Protect an API by using OAuth 2.0 with Microsoft Entra ID and API Management.
  • Remote Desktop Services (RDS). Standard RDS deployments require open inbound connections. However, the RDS deployment with application proxy has a permanent outbound connection from the server running the connector service. This way, you can offer more applications to users by publishing on-premises applications through Remote Desktop Services. You can also reduce the attack surface of the deployment with a limited set of two-step verification and Conditional Access controls to RDS.
  • Publish applications that connect using WebSockets. Support with Qlik Sense is in Public Preview and will be expanded to other apps in the future.
  • Enable native client applications to interact with proxy applications. You can use Microsoft Entra application proxy to publish web apps, but it also can be used to publish native client applications that are configured with Microsoft Authentication Library (MSAL). Native client applications differ from web apps because they're installed on a device, while web apps are accessed through a browser.

Conclusion

The way we work and the tools we use are changing rapidly. With more employees bringing their own devices to work and the pervasive use of Software-as-a-Service (SaaS) applications, the way organizations manage and secure their data must also evolve. Companies no longer operate solely within their own walls, protected by a moat that surrounds their border. Data travels to more locations than ever before -- across both on-premises and cloud environments. This evolution has helped increase users' productivity and ability to collaborate, but it also makes protecting sensitive data more challenging.

Whether you're currently using Microsoft Entra ID to manage users in a hybrid coexistence scenario or are interested in starting your journey to the cloud, implementing Microsoft Entra application proxy can help reduce the size of your on-premises footprint by providing remote access as a service.

Organizations should begin taking advantage of application proxy today to take advantage of the following benefits:

  • Publish on-premises apps externally without the overhead associated with maintaining traditional VPN or other on-premises web publishing solutions and DMZ approach
  • Single sign-on to all applications, be they Microsoft 365 or other SaaS apps and including on-premises applications
  • Cloud scale security where Microsoft Entra leverages Microsoft 365 telemetry to prevent unauthorized access
  • Intune integration to ensure corporate traffic is authenticated
  • Centralization of user account management
  • Automatic updates to ensure you have the latest security patches
  • New features as they are released; the most recent being support for SAML single sign-on and more granular management of application cookies
