Expression builder with cloud sync

The expression builder is a new function in Azure located under cloud sync. It helps you build complex expressions. You can use it to test these expressions before you apply them to your cloud sync environment.

Use the expression builder

To access the expression builder:

  1. Sign in to the Microsoft Entra admin center as at least a Hybrid Administrator.
  2. Browse to Identity > Hybrid management > Microsoft Entra Connect > Cloud sync. Screenshot of cloud sync home page.
  1. Under Configuration, select your configuration.

  2. Under Manage attributes, select Click to edit mappings.

  3. On the Edit attribute mappings pane, select Add attribute mapping.

  4. Under Mapping type, select Expression.

  5. Select Try the expression builder (Preview).

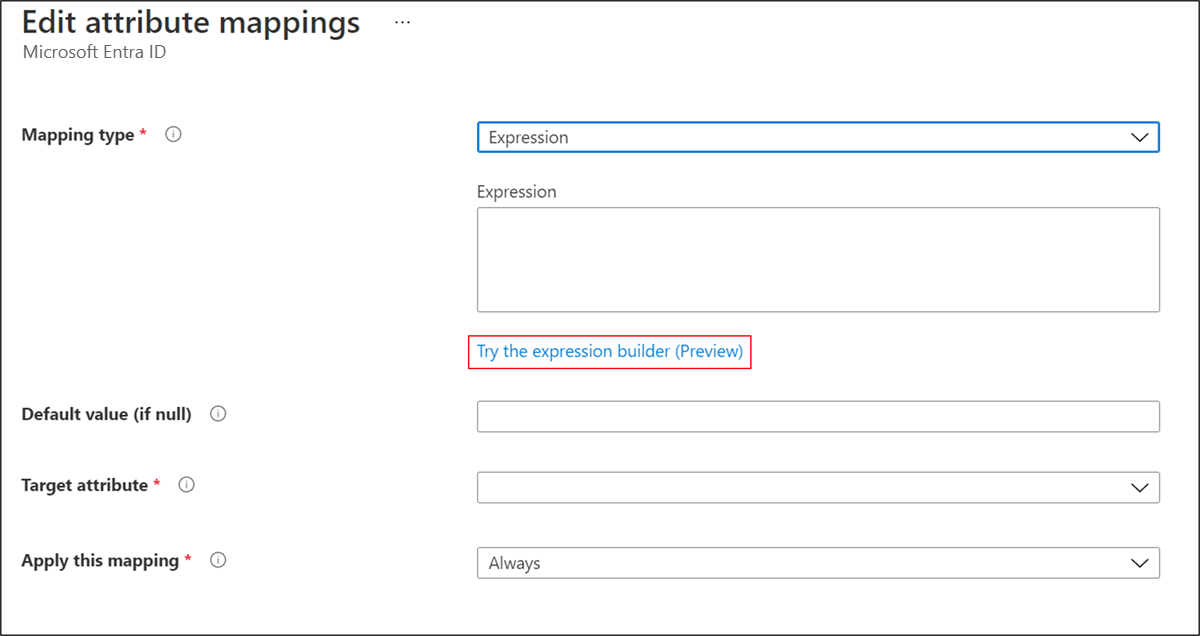

    Screenshot that shows using expression builder.

Build an expression

In this section, you use the dropdown list to select from supported functions. Then you fill in more boxes, depending on the function selected. After you select Apply expression, the syntax appears in the Expression input box.

For example, by selecting Replace from the dropdown list, more boxes are provided. The syntax for the function is displayed in the light blue box. The boxes that are displayed correspond to the syntax of the function you selected. Replace works differently depending on the parameters provided.

For this example, when oldValue and replacementValue are provided, all occurrences of oldValue are replaced in the source with replacementValue.

For more information, see Replace.

The first thing you need to do is select the attribute that's the source for the replace function. In this example, the mail attribute is selected.

Next, find the box for oldValue and enter Finally, in the box for replacementValue, fill in the value

The expression basically says, replace the mail attribute on user objects that have a value of with the value. When you select Add expression, you can see the syntax in the Expression input box.


Be sure to place the values in the boxes that would correspond with oldValue and replacementValue based on the syntax that occurs when you've selected Replace.

For more information on supported expressions, see Writing expressions for attribute mappings in Microsoft Entra ID.

Information on expression builder input boxes

Depending on which function you selected, the boxes provided by the expression builder will accept multiple values. For example, the JOIN function will accept strings or the value that's associated with a given attribute. For example, we can use the value contained in the attribute value of [givenName] and join it with a string value of to create an email address.

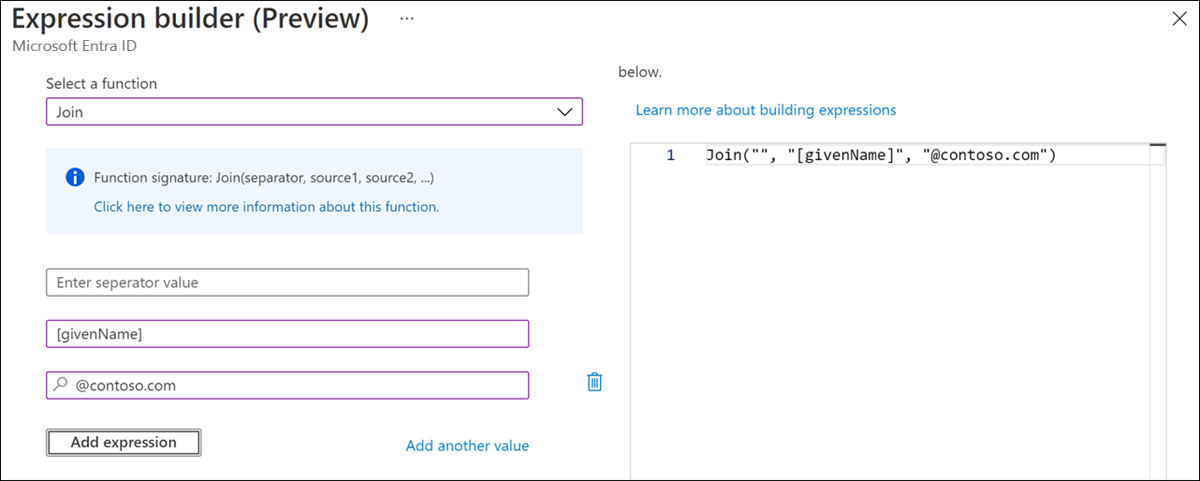

Screenshot that shows input box values.

For more information on acceptable values and how to write expressions, see Writing expressions for attribute mappings in Microsoft Entra ID.

Test an expression

In this section, you can test your expressions. From the dropdown list, select the mail attribute. Fill in the value with, and select Test expression.

The value appears in the View expression output box.

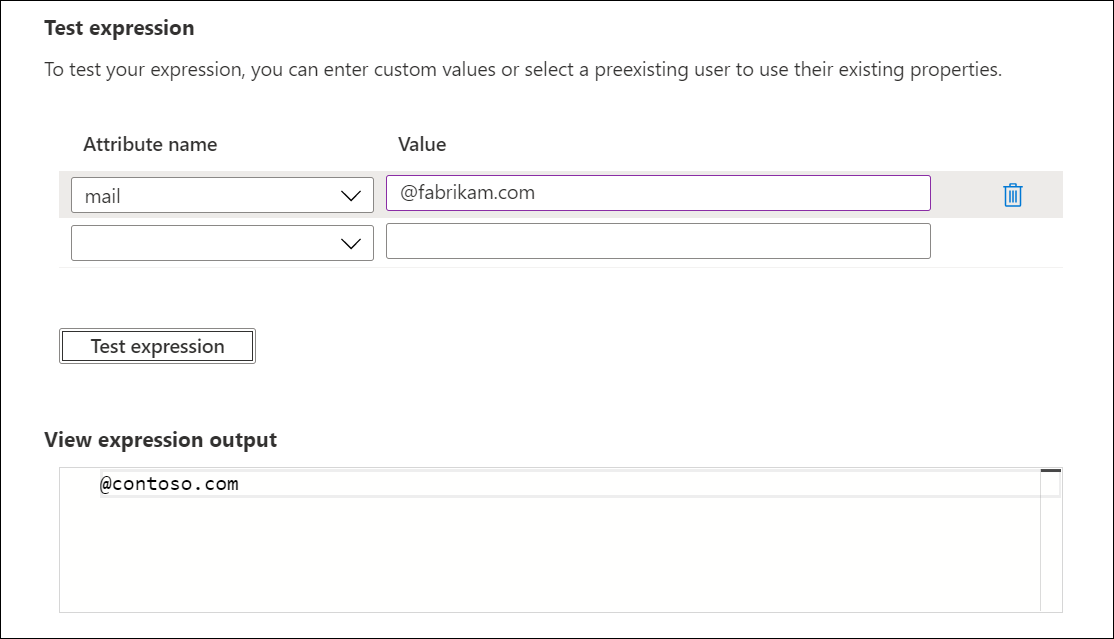

Screenshot that shows testing your expression.

Deploy the expression

After you're satisfied with the expression, select Apply expression.

Screenshot that shows adding your expression.

This action adds the expression to the agent configuration.

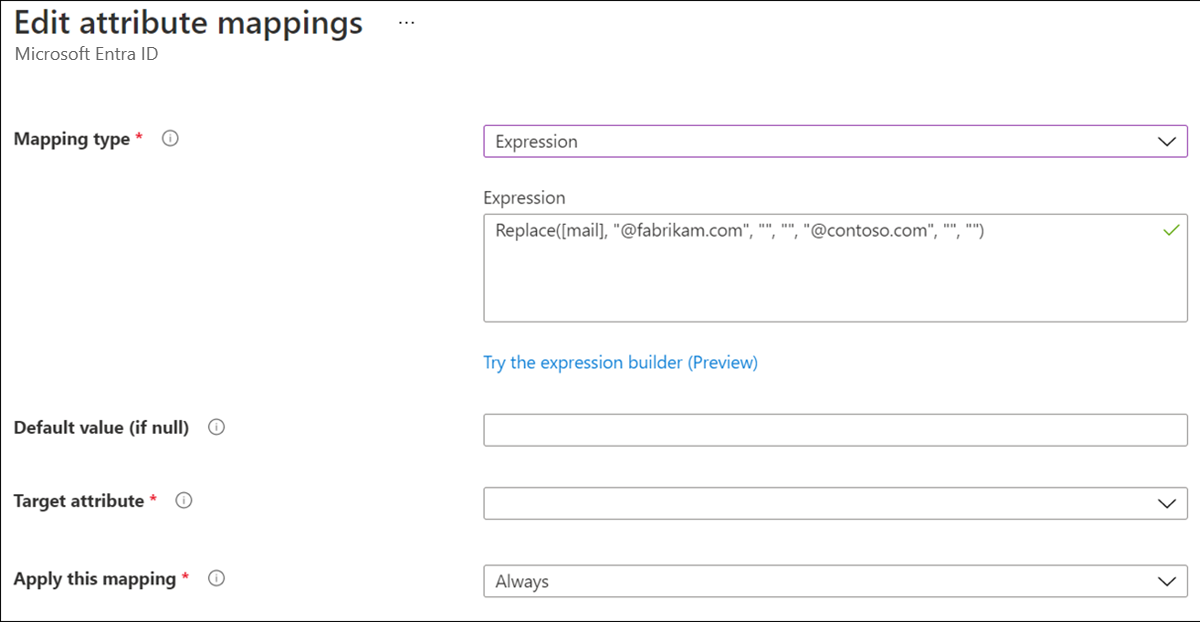

Screenshot that shows agent configuration.

Set a NULL value on an expression

To set an attribute's value to NULL, use an expression with the value of "". This expression will flow the NULL value to the target attribute.

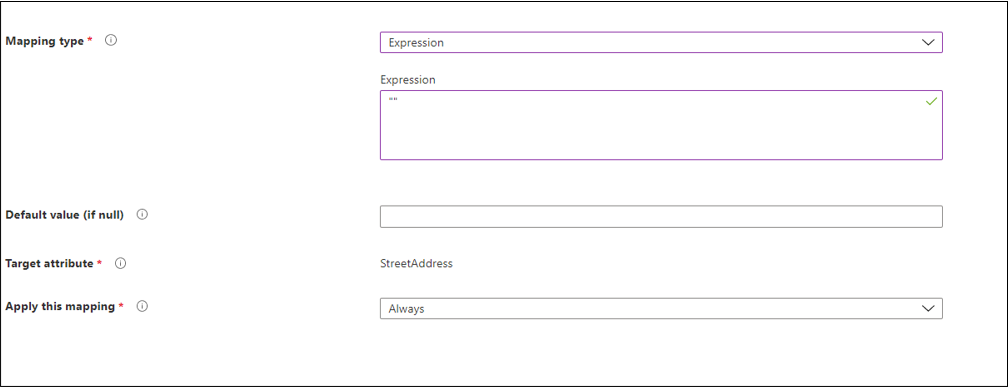

Screenshot that shows a NULL value.
