Use modern themes in canvas apps (preview)
[This article is pre-release document and is subject to change.]
Modern themes, which are pre-established style sets, can transform the look of your app. These themes, based on Microsoft's Fluent design language, modify various style aspects such as color, typography, borders, and shadows, ensuring a visually pleasing and consistent interface. Modern theming streamlines the customization process, enabling creators to effortlessly design an app with a unified and consistent visual appeal.
Important
- This is a preview feature.
- Preview features aren’t meant for production use and may have restricted functionality. These features are available before an official release so that customers can get early access and provide feedback.
Prerequisites
To use modern themes, you need to enable it. More information, see Enable modern controls and themes for your app.
Note
When modern controls and themes is enabled, you won't be able to select classic themes from the command bar. To use retired classic themes, you'll need to enable the Keep classic themes retired app setting.
Create a theme
There's several out-of-the-box themes available to style your app. You can also design your own theme for a more personalized visual aesthetic.
- On the app authoring menu, select >
Themes.

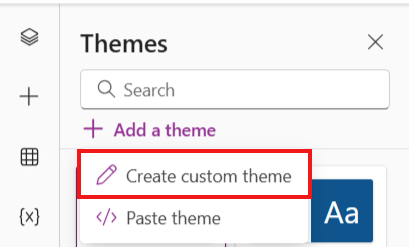

- On the Themes pane, select Add a theme.
- In the Create a theme dialog, enter the following information:
- Theme name: The theme name must be unique.
- Font: Choose the default font that the controls in the app use will use when the theme is applied.
- Seed color: Select the color you want to base your theme on, or manually enter the Hex or RGB representation of the color. The system generates a 16-slot palette that is optimized for accessibility.
- Hue/Vibrancy: Adjust the generation palette, especially the lighter colors, with the Hue and Vibrancy sliders. The Hue impacts the color shade, and vibrancy impacts the muteness or brightness of the palette.
- Optionally, look at the static preview of your new theme. You can interact with the sample controls to see how your theme is applied to the rest state and various interaction states.
- Select Create.
Your new theme is created and applied to your app.
Apply modern theme
- On the app authoring menu, select >
Themes.
- On the Themes pane, select one of the default themes.
When a modern theme is selected, the style of the theme is automatically applied to the controls in your app. This action sets the App.Theme property.
Note
Modern themes do now impact classic controls by setting properties on the classic controls with Power Fx formulas that reference variables from the modern theme.
Edit a theme
You can edit the theme and change one or more parameters of the custom theme.
- On the app authoring menu, select >
Themes.

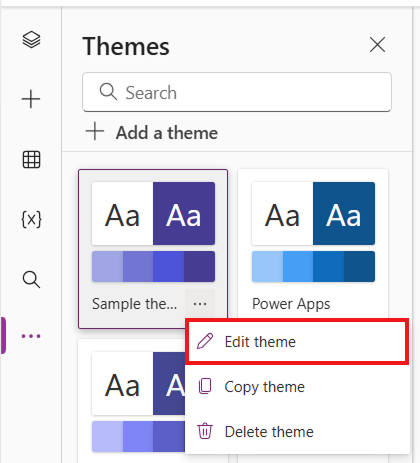

- On the Themes pane, find the tile corresponding to the theme you want to edit and select Options > Edit.
- On the Edit theme pane, adjust the theme as needed.
Note
You can't edit out-of-the-box themes.
Delete a theme
If you decide you no longer need a custom theme in your app, you can delete it.
- On the app authoring menu, select >
Themes.
- On the Themes pane, find theme that you want to edit and then, select (...) Options > Delete.
- On the confirmation dialog box, select Delete theme.
If you have any Power Fx formulas that reference this theme in your app, you need to manually update the formula.
Note
You can't delete out-of-the-box themes.
Use themes with Power Fx
Modern theme objects are available for makers to use through Power Fx. The currently active theme object can be referenced by App.Theme, and any theme loaded into the app can be referenced by its instance name such as RedTheme. We recommend that you reference the theme object using App.Theme to ensure that the color selections adapt to theme changes.
Each theme object includes the following information:
- Name: The name of the theme.
- Colors: A collection of the 16 colors comprising the brand ramp for the theme. Each color in this ramp is individually accessible by name.
The image shows the slot variables inside the Colors collection and, as an example, the corresponding colors for the Steel theme.
Using the theme brand ramp, you can manually style a classic control based on the current modern theme such as Button.Fill = App.Theme.Colors.Primary.
Note
To provide feedback, see: Provide your feedback to Microsoft.
