SharePoint (preview)

The SharePoint (preview) group of actions allows the utilization of the SharePoint connector from within desktop flows, alleviating the need to create a cloud flow in order to use its actions. This connector is the same as the one used across Power Automate cloud flows, PowerApps, and Logic Apps. It uses the same parameters and returns the same type of data.

Prerequisites and limitations

  • During preview, you need an Attended RPA license.

  • Sharing desktop flows with SharePoint cloud actions isn't supported. Co-owners won't be able to run such desktop flows unless they overwrite the connection references with their own. Users with read access are unable to run such flows.

  • Data loss prevention policies (DLP) that include SharePoint cloud actions aren't enforced within desktop flows. During preview, machine administrators can disable the SharePoint actions by modifying the appropriate registry setting.

  • Refrain from modifying a response’s properties directly as it may lead to an erroneous state after future updates. Instead, opt for storing the properties you want to utilize (from the response retrieved) directly into separate variables.

Why should I use SharePoint actions inside desktop flows instead of cloud flows?

Users can still combine SharePoint actions with the Run a flow built with Power Automate for desktop action. However, SharePoint actions inside desktop flows improve performance and ease of use for users who need to loop between cloud and desktop actions.

List of SharePoint actions

Getting started with SharePoint actions in desktop flows

This section presents examples on how to use SharePoint actions in your desktop flows.

How to download the content of a SharePoint folder

Important

Before replicating the following steps, ensure that you are familiar with lists, custom objects, loops, conditionals, and the percentage notation.

  1. Ensure that you've installed the latest version of Power Automate for desktop.

  2. Create a new desktop flow.

  3. If the identifier of the target folder is unknown, use the Get folder metadata using path SharePoint action to retrieve it. This action requires the folder's path and produces a custom object containing the folder's metadata. You can access the identifier using the Id property.

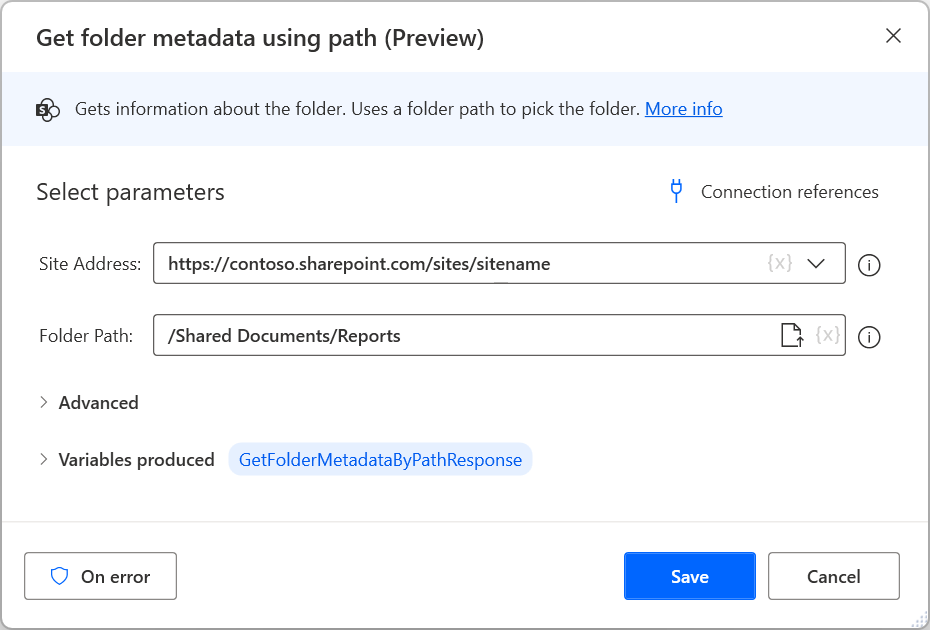

    Screenshot of the Get folder metadata using path action.

  4. Deploy the List folder SharePoint action and populate the appropriate SharePoint URL and the previously retrieved identifier. The produced list contains custom objects representing items in the target folder.

    Screenshot of the List folder action.

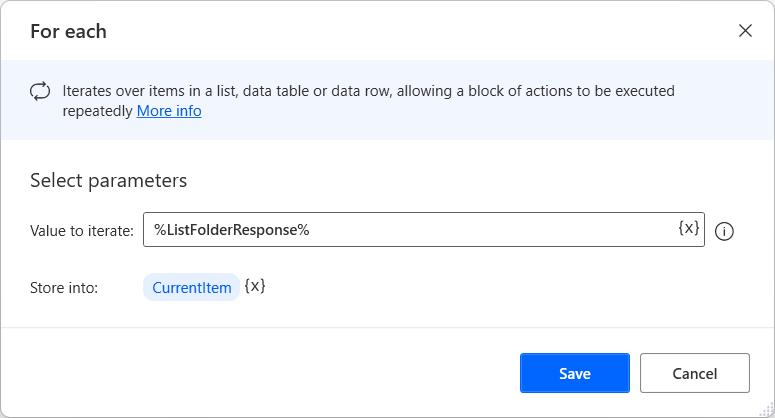

  5. After retrieving the list, use a For each loop to iterate through the objects inside it.

    Screenshot of the For each loop that iterates through the retrieved custom objects.

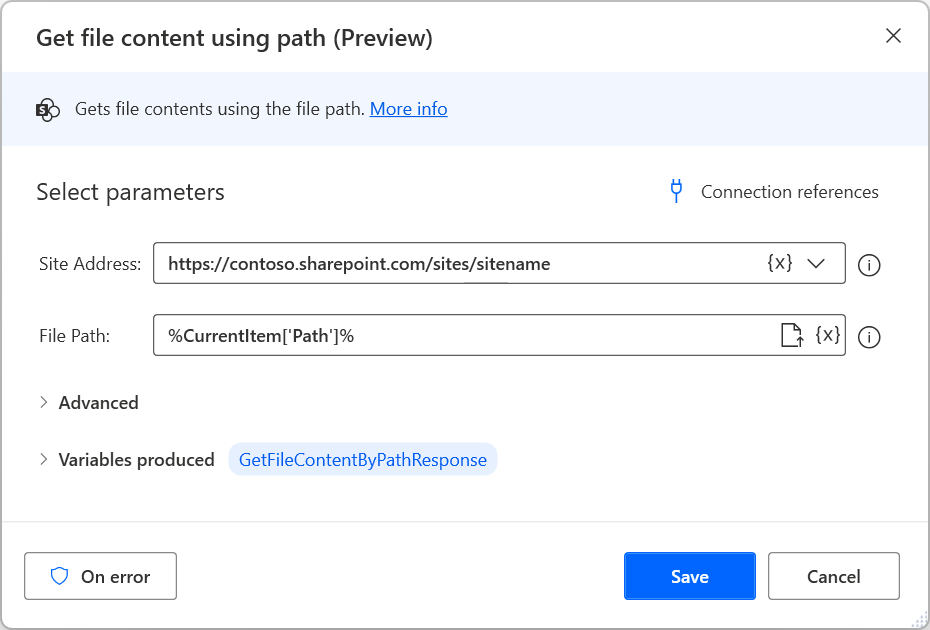

  6. If the items in the target folder are only files, use the Get file content using path action, and the Path property inside the block to retrieve the current file's contents.

    Screenshot of the Get file content using path action.

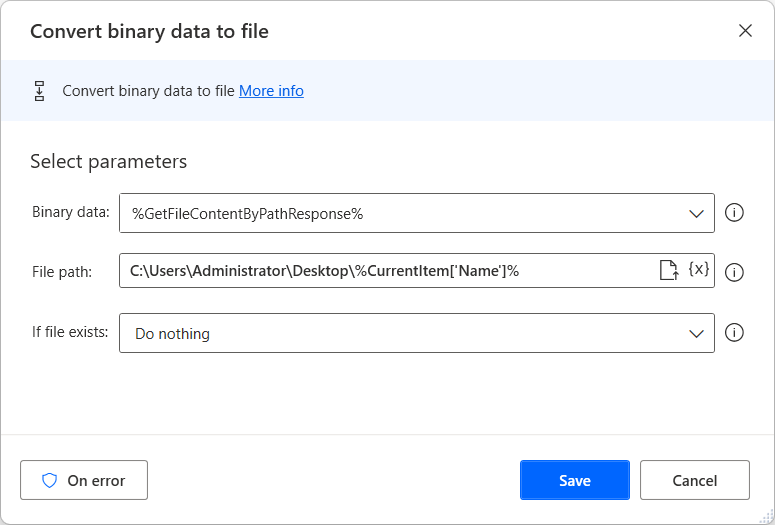

  7. Then, deploy the Convert binary data to file action to store the retrieved data in a local file. You can use the Name property to name the new file with the same name as the original SharePoint file.

    Screenshot of the Convert binary data to file action.

The previous steps cover the case where the target folder contains only files. However, if the folder contains subfolders with files inside them, modify your desktop flow accordingly:

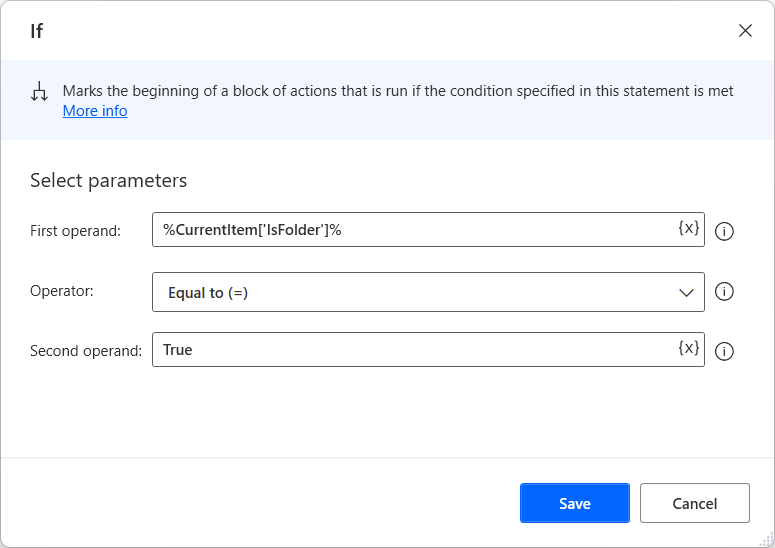

  1. Add an If condition inside the previously deployed loop to check whether the currently selected item is a folder. To perform this check, use the IsFolder property of the current item.

    Screenshot of the if action that checks whether the current item is a folder.

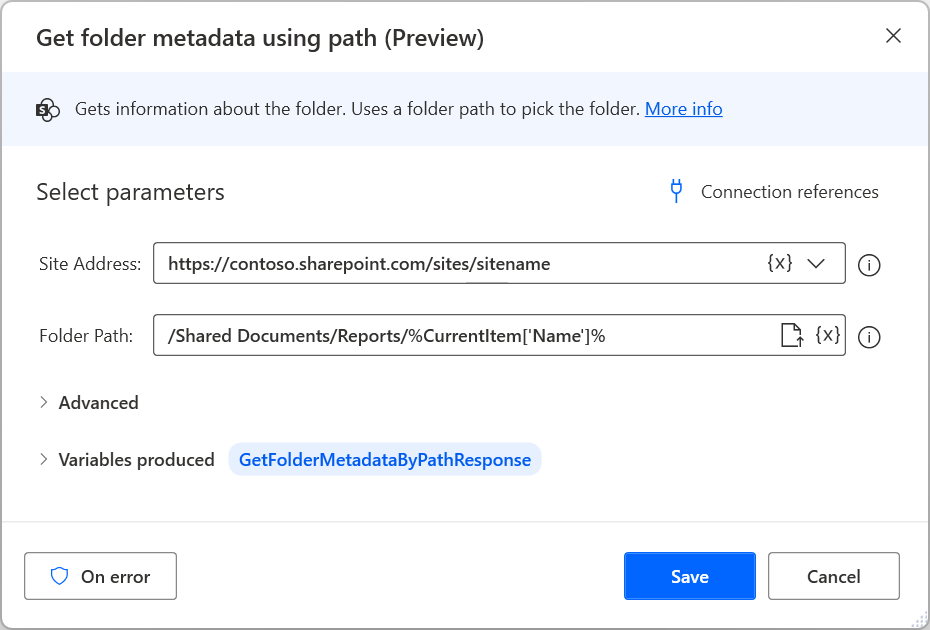

  2. Inside the if-block, use the Get folder metadata using path action to get the identifier of the currently selected folder. The folder path is the same as the one you used at the beginning of the flow, plus the folder's name. You can access the folder using the Name property of the current item.

    Screenshot of the second Get folder metadata using path action.

  3. As you did before, deploy the List folder SharePoint action and populate the appropriate SharePoint URL and the previously retrieved identifier.

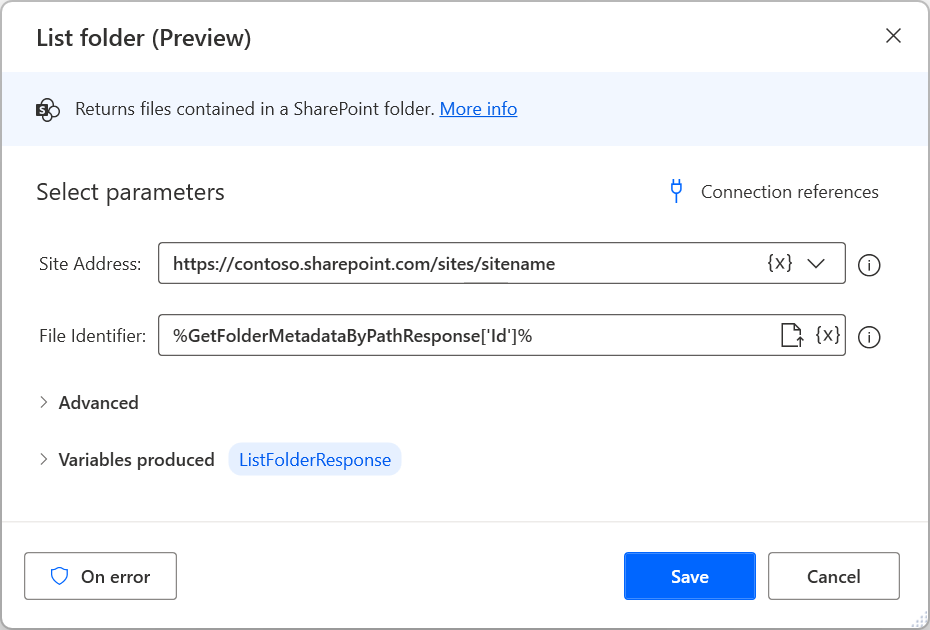

    Screenshot of the second List folder action.

  4. Deploy a For each loop to iterate through the files inside the selected subfolder, and move and modify the previously deployed Get file content using path and Convert binary data to file actions to retrieve and save locally the contents of each file.

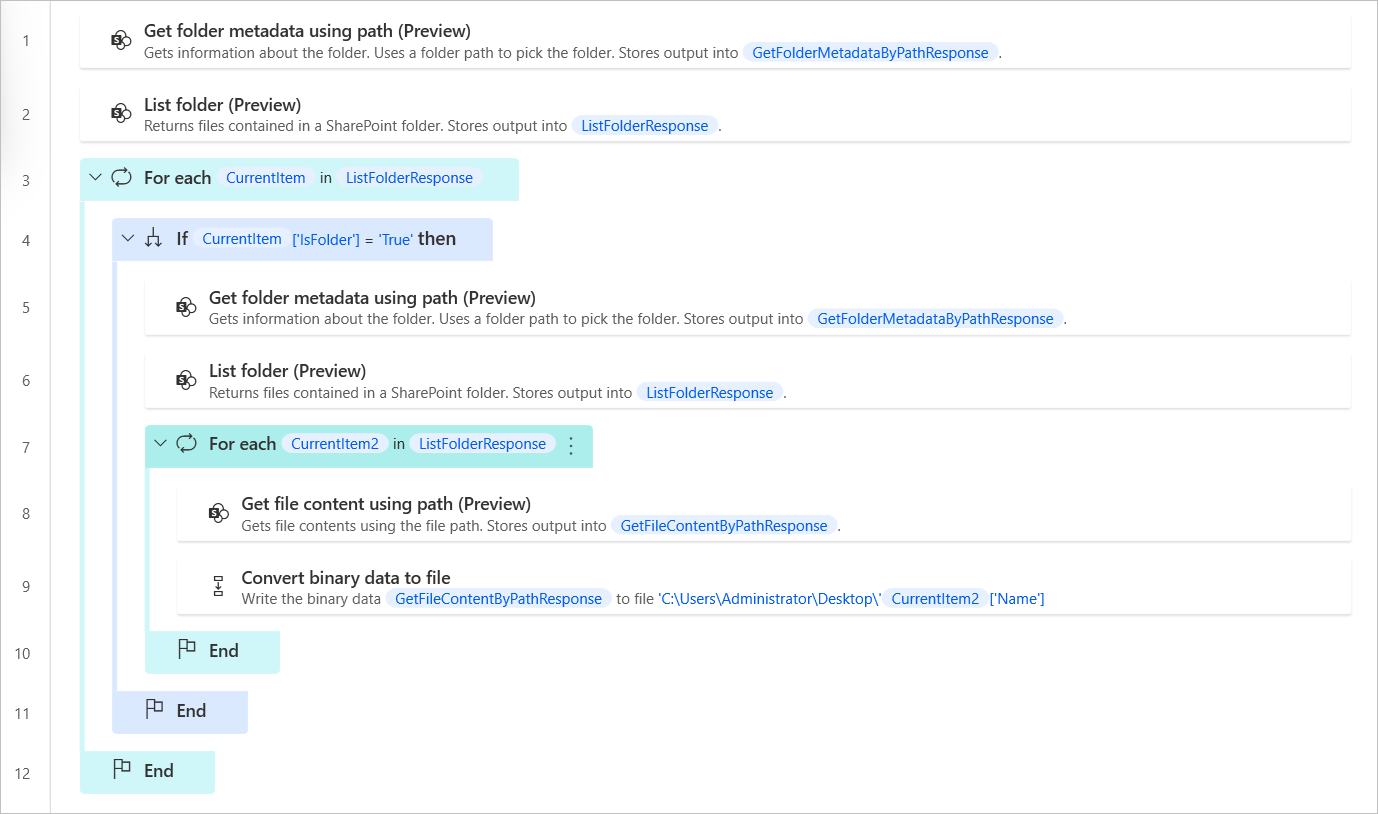

    Screenshot of the final flow.

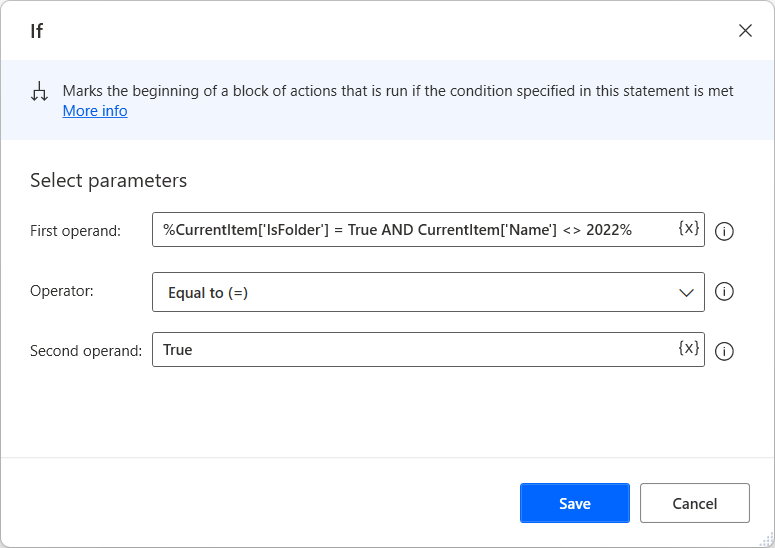

If you want to download files of specific subfolders, modify the previously deployed conditional to check the desired condition. For example, the following condition checks whether the current item's name is any other than 2022.

Note

Although you could use a new nested If action, combining the checks in only one conditional makes the desktop flow less complicated and easier to read.

Screenshot of a conditional that checks the current item's name.

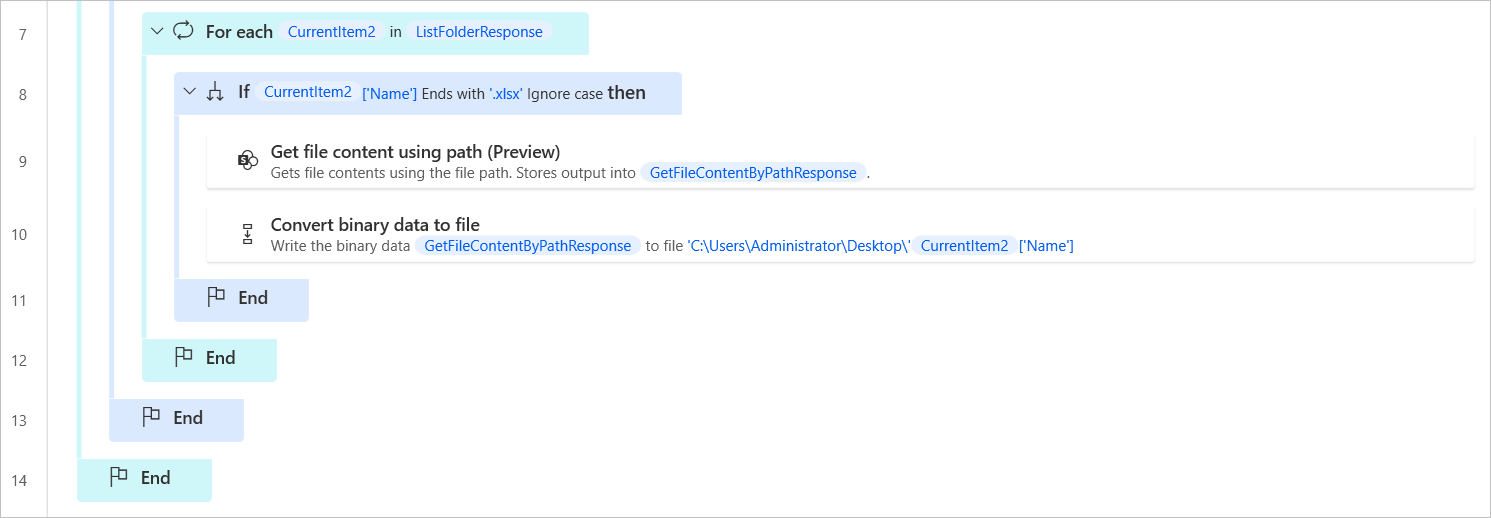

If you want to download only files of a specific type, add a conditional before retrieving the file contents to check whether the file name ends with a particular extension.

Screenshot of a conditional that checks the current item's file type.

How to upload a local file to SharePoint

  1. Ensure that you've installed the latest version of Power Automate for desktop.

  2. Create a new desktop flow.

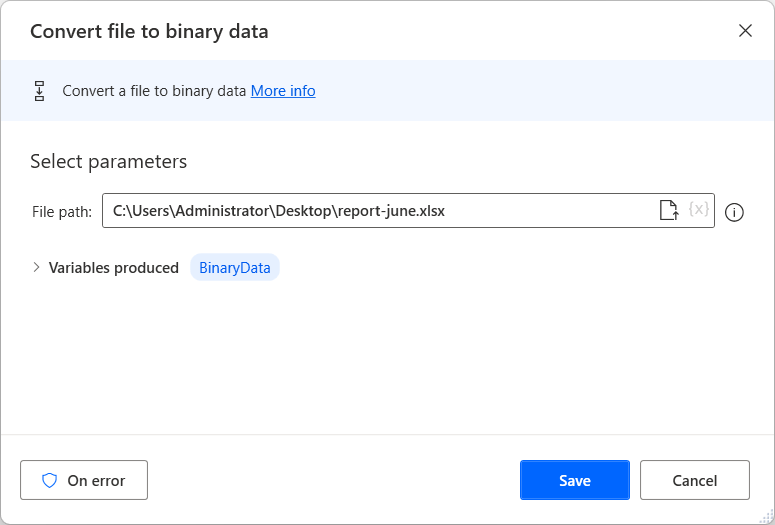

  3. Deploy the Convert file to binary data action and select the desired file on your local drive. The action stores the converted file in the BinaryData variable.

    Screenshot of the Convert file to binary data action.

  4. Find the SharePoint (preview) group of actions in the flow designer and deploy the Create file action in the workspace.

  5. Select an existing connection reference and fill in the required parameters. Here's an example about how to fill the fields:

    Important

    Don't forget to add the appropriate file extension after the file name.

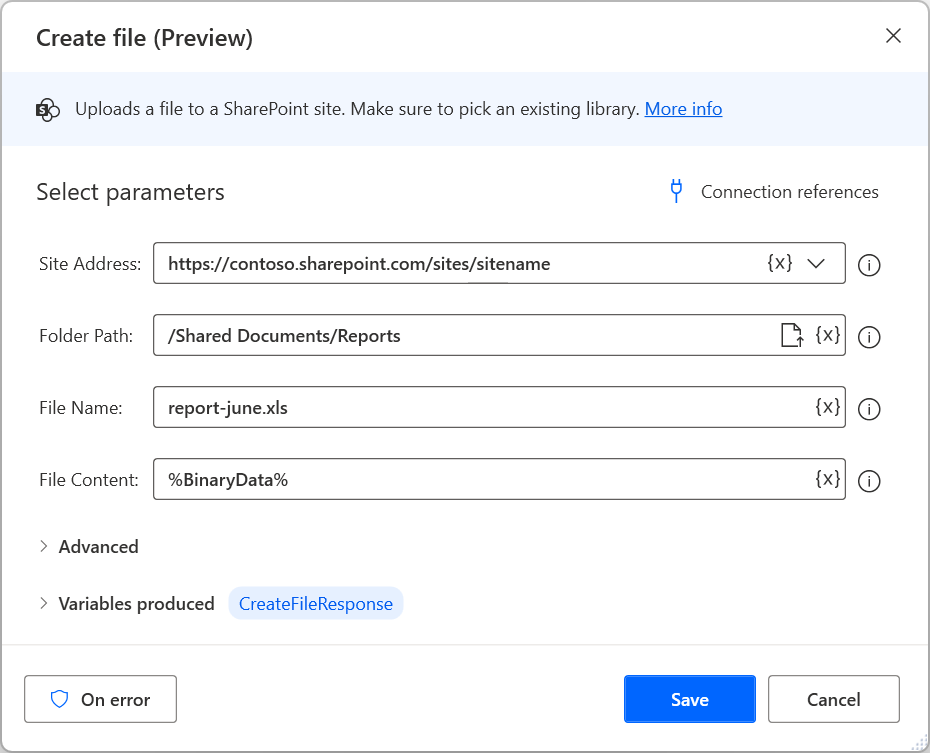

    Screenshot of the Create file Sharepoint action.

How to fill action’s input fields

Until dynamic suggestions of input fields become available, here's guidance on what data to fill in for each action.

Note

Another way to see which properties are expected as input and output is to create a cloud flow with the same action and observe its dynamic data properties. To find more information regarding the SharePoint cloud actions, refer to SharePoint.

Update file

Updates the contents of the file specified by the file identifier.

Parameters

Name Key Required Type Description
Site Address dataset True String The URL of the SharePoint site, for example:
'https://contoso.sharepoint.com/sites/sitename'.
File Identifier id True String The unique ID of the file to select.
File Content body True Binary The content of the file.

Returns

Name Path Type Description
Id Id String The unique ID of the file or folder.
Name Name String The name of the file or folder.
DisplayName DisplayName String The display name of the file or folder.
Path Path String The path of the file or folder.
LastModified LastModified Date-time The date and time the file or folder was last modified.
Size Size Integer The size of the file or folder.
MediaType MediaType String The media type of the file or folder.
IsFolder IsFolder Boolean A boolean value (true, false) to indicate whether the blob is a folder.
ETag ETag String The etag of the file or folder.
FileLocator FileLocator String The file locator of the file or folder.

Delete file

Deletes the file specified by the file identifier.

Parameters

Name Key Required Type Description
Site Address dataset True String The URL of the SharePoint site, for example:
'https://contoso.sharepoint.com/sites/sitename'.
File Identifier id True String The unique ID of the file to select.

Get file content using path

Gets file contents using the file path.

Parameters

Name Key Required Type Description
Site Address dataset True String The URL of the SharePoint site, for example:
'https://contoso.sharepoint.com/sites/sitename'.
File Path path True String The path of the target file, for example: "/Shared Documents/MyFolderName/myfilename.xlsx".
Infer Content Type inferContentType Boolean This parameter isn't needed when using the Get file content using path action in desktop flows, as the maker can define the file extension to use with the Convert binary data to file action.

Returns

Name Path Type Description
File Content FileContent Binary The content of the file in binary format.

Get file content

Get file contents using the file identifier. The contents can be copied somewhere else, or be used as an attachment.

Parameters

Name Key Required Type Description
Site Address dataset True String The URL of the SharePoint site, for example:
'https://contoso.sharepoint.com/sites/sitename'.
File Identifier id True String The unique ID of the file to select.
Infer Content Type inferContentType Boolean This parameter isn't needed when using the Get file content using path action in desktop flows, as the maker can define the file extension to use with the Convert binary data to file action.

Returns

Name Path Type Description
File Content FileContent Binary The content of the file in binary format.

Create file

Uploads a file to a SharePoint site. Make sure to pick an existing library.

Parameters

Name Key Required Type Description
Site Address dataset True String The URL of the SharePoint site, for example:
'https://contoso.sharepoint.com/sites/sitename'.
Folder Path folderPath True String Must start with an existing library. Add folders if needed.
File Name name True String The name of the file.
File Content body True Binary The content of the file.

Returns

Name Path Type Description
ItemId ItemId Integer The value to use to get or update file properties in libraries.
Id Id String The unique ID of the file or folder.
Name Name String The name of the file or folder.
DisplayName DisplayName String The display name of the file or folder.
Path Path String The path of the file or folder.
LastModified LastModified Date-time The date and time the file or folder was last modified.
Size Size Integer The size of the file or folder.
MediaType MediaType String The media type of the file or folder.
IsFolder IsFolder Boolean A boolean value (true, false) to indicate whether the blob is a folder.
ETag ETag String The etag of the file or folder.
FileLocator FileLocator String The file locator of the file or folder.

List folder

Returns files contained in a SharePoint folder.

Parameters

Name Key Required Type Description
Site Address dataset True String The URL of the SharePoint site, for example:
'https://contoso.sharepoint.com/sites/sitename'.
File Identifier id True String The unique ID of the folder.

Returns

Name Path Type Description
Id Id String The unique ID of the file or folder.
Name Name String The name of the file or folder.
DisplayName DisplayName String The display name of the file or folder.
Path Path String The path of the file or folder.
LastModified LastModified Date-time The date and time the file or folder was last modified.
Size Size Integer The size of the file or folder.
MediaType MediaType String The media type of the file or folder.
IsFolder IsFolder Boolean A boolean value (true, false) to indicate whether the blob is a folder.
ETag ETag String The etag of the file or folder.
FileLocator FileLocator String The file locator of the file or folder.

Get all lists and libraries

Get all lists and libraries.

Parameters

Name Key Required Type Description
Site Address dataset True String The URL of the SharePoint site, for example:
'https://contoso.sharepoint.com/sites/sitename'.

Returns

Name Path Type Description
value value array of Tables List of Tables

Get file metadata

Gets information about the file such as size, etag, created date, etc. Uses a file identifier to pick the file. Use Get file properties action to get to the values stored in the columns in the library.

Parameters

Name Key Required Type Description
Site Address dataset True String The URL of the SharePoint site, for example:
'https://contoso.sharepoint.com/sites/sitename'.
File Identifier id True String The unique ID of the folder.

Returns

Name Path Type Description
ItemId ItemId Integer The value to use to get or update file properties in libraries.
Id Id String The unique ID of the file or folder.
Name Name String The name of the file or folder.
DisplayName DisplayName String The display name of the file or folder.
Path Path String The path of the file or folder.
LastModified LastModified Date-time The date and time the file or folder was last modified.
Size Size Integer The size of the file or folder.
MediaType MediaType String The media type of the file or folder.
IsFolder IsFolder Boolean A boolean value (true, false) to indicate whether the blob is a folder.
ETag ETag String The etag of the file or folder.
FileLocator FileLocator String The file locator of the file or folder.

Get file metadata using path

Gets information about the file such as size, etag, created date, etc. Uses a file path to pick the file. Use Get file properties action to get to the values stored in the columns in the library.

Parameters

Name Key Required Type Description
Site Address dataset True String The URL of the SharePoint site, for example:
'https://contoso.sharepoint.com/sites/sitename'.
File Path path True String The path of the target file, for example: "/Shared Documents/MyFolderName/myfilename.xlsx".

Returns

Name Path Type Description
ItemId ItemId Integer The value to use to get or update file properties in libraries.
Id Id String The unique ID of the file or folder.
Name Name String The name of the file or folder.
DisplayName DisplayName String The display name of the file or folder.
Path Path String The path of the file or folder.
LastModified LastModified Date-time The date and time the file or folder was last modified.
Size Size Integer The size of the file or folder.
MediaType MediaType String The media type of the file or folder.
IsFolder IsFolder Boolean A boolean value (true, false) to indicate whether the blob is a folder.
ETag ETag String The etag of the file or folder.
FileLocator FileLocator String The file locator of the file or folder.

Get folder metadata

Gets information about the folder. Uses a file identifier to pick the folder.

Parameters

Name Key Required Type Description
Site Address dataset True String The URL of the SharePoint site, for example:
'https://contoso.sharepoint.com/sites/sitename'.
File Identifier id True String The unique ID of the folder.

Returns

Name Path Type Description
ItemId ItemId Integer The value to use to get or update file properties in libraries.
Id Id String The unique ID of the file or folder.
Name Name String The name of the file or folder.
DisplayName DisplayName String The display name of the file or folder.
Path Path String The path of the file or folder.
LastModified LastModified Date-time The date and time the file or folder was last modified.
Size Size Integer The size of the file or folder.
MediaType MediaType String The media type of the file or folder.
IsFolder IsFolder Boolean A boolean value (true, false) to indicate whether the blob is a folder.
ETag ETag String The etag of the file or folder.
FileLocator FileLocator String The file locator of the file or folder.

Get folder metadata using path

Gets information about the folder. Uses a folder path to pick the folder.

Parameters

Name Key Required Type Description
Site Address dataset True String The URL of the SharePoint site, for example:
'https://contoso.sharepoint.com/sites/sitename'.
Folder Path path True String The path of the target folder, for example: "/Shared Documents/MyFolderName.

Returns

Name Path Type Description
ItemId ItemId Integer The value to use to get or update file properties in libraries.
Id Id String The unique ID of the file or folder.
Name Name String The name of the file or folder.
DisplayName DisplayName String The display name of the file or folder.
Path Path String The path of the file or folder.
LastModified LastModified Date-time The date and time the file or folder was last modified.
Size Size Integer The size of the file or folder.
MediaType MediaType String The media type of the file or folder.
IsFolder IsFolder Boolean A boolean value (true, false) to indicate whether the blob is a folder.
ETag ETag String The etag of the file or folder.
FileLocator FileLocator String The file locator of the file or folder.

List root folder

Returns files in the root SharePoint folder.

Parameters

Name Key Required Type Description
Site Address dataset True String The URL of the SharePoint site, for example:
'https://contoso.sharepoint.com/sites/sitename'.

Returns

Name Path Type Description
ItemId ItemId Integer The value to use to get or update file properties in libraries.
Id Id String The unique ID of the file or folder.
Name Name String The name of the file or folder.
DisplayName DisplayName String The display name of the file or folder.
Path Path String The path of the file or folder.
LastModified LastModified Date-time The date and time the file or folder was last modified.
Size Size Integer The size of the file or folder.
MediaType MediaType String The media type of the file or folder.
IsFolder IsFolder Boolean A boolean value (true, false) to indicate whether the blob is a folder.
ETag ETag String The etag of the file or folder.
FileLocator FileLocator String The file locator of the file or folder.

Extract folder

Extracts an archive file into a SharePoint folder (example: zip).

Name Key Required Type Description
Site Address dataset True String The URL of the SharePoint site, for example:
'https://contoso.sharepoint.com/sites/sitename'.
Source File Path source True String The path of the source file.
Destination Folder Path destination True String The path of the destination folder.
Overwrite Flag overwrite BooleanSpecifies whether to overwrite the destination file if it exists.

Returns

Name Path Type Description
ItemId ItemId Integer The value to use to get or update file properties in libraries.
Id Id String The unique ID of the file or folder.
Name Name String The name of the file or folder.
DisplayName DisplayName String The display name of the file or folder.
Path Path String The path of the file or folder.
LastModified LastModified Date-time The date and time the file or folder was last modified.
Size Size Integer The size of the file or folder.
MediaType MediaType String The media type of the file or folder.
IsFolder IsFolder Boolean A boolean value (true, false) to indicate whether the blob is a folder.
ETag ETag String The etag of the file or folder.
FileLocator FileLocator String The file locator of the file or folder.

Get lists

Gets SharePoint lists from a site.

Parameters

Name Key Required Type Description
Site Address dataset True String The URL of the SharePoint site, for example:
'https://contoso.sharepoint.com/sites/sitename'.

Returns

Name Path Type Description
value value array of Tables List of Tables

Upcoming features

  • Dynamic content for output variables: cloud actions’ output variables can be expanded to show its underlying properties
  • Share to users brings their own connection references upon each run
  • Co-owners can use the same connection references
  • ALM dependencies management (dependency checker upon import, add required objects, show dependencies)
  • Connection references are visible in desktop flows details pages
  • Exponential/manual retry policies in case the connector responds an error
  • DLPs that include SharePoint cloud actions are enforced in desktop flows
  • New SharePoint actions
