Tutorial: Create an R-powered Power BI visual

As a developer you can create your own Power BI visuals. These visuals can be used by you, your organization or by third parties.

This article is a step by step guide for creating an R-powered visual for Power BI.

In this tutorial, you learn how to:

• Create an R-powered visual
• Edit the R-script in Power BI Desktop
• Add libraries to the dependencies file of the visual
• Add a static property

Prerequisites

• A Power BI Pro account. Sign up for a free trial before you begin.
• An R engine. You can download one free from many locations, including the Revolution Open download page and the CRAN Repository. For more information, see Create Power BI visuals using R.
• Power BI Desktop.
• Windows PowerShell version 4 or later for Windows users OR the Terminal for OSX users.

Get started

1. Prepare some sample data for the visual. You can save these values to an Excel database or a .csv file and import it into Power BI Desktop.

   MonthNo	Total Units
   1	2303
   2	2319
   3	1732
   4	1615
   5	1427
   6	2253
   7	1147
   8	1515
   9	2516
   10	3131
   11	3170
   12	2762

2. To create a visual, open PowerShell or Terminal, and run the following command:

   pbiviz new rVisualSample -t rvisual


   This command creates a new folder for the rVisualSample visual. The structure is based on the rvisual template. It creates a file called script.r in the root folder of the visual. This file holds the R-script that is run to generate the image when the visual is rendered. You can create your R-script in Power BI Desktop.

3. From the newly created rVisualSample directory run

   pbiviz start


4. In Power BI Desktop, select R script visual:

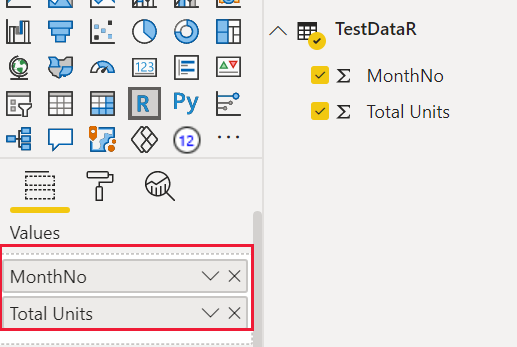

5. Assign data to the developer visual by dragging MonthNo and Total units to Values for the visual.

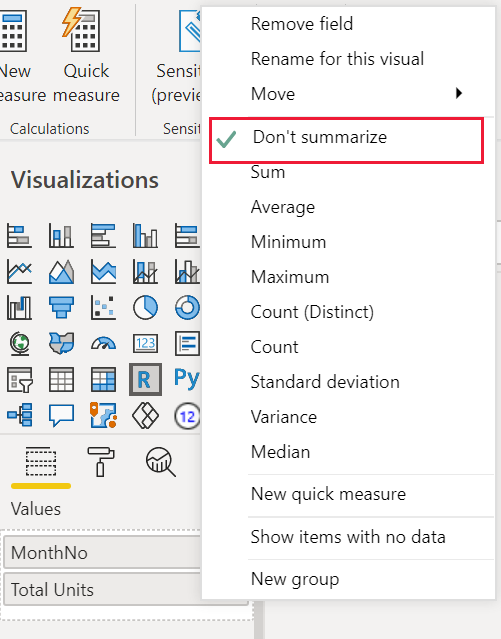

6. Set the aggregation type of Total units to Don't summarize.



7. From the R-script editor in your Power BI Desktop, type the following:

   plot(dataset)


   This command creates a scatter chart using the values in the dataset as input.

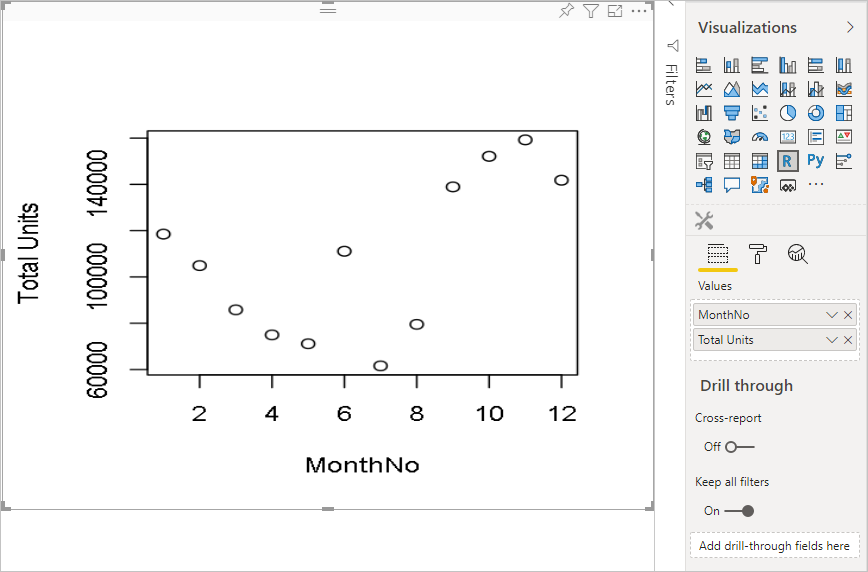

8. Select the Run script icon to see the result.



Edit the R Script

The R-script can be modified to create other types of visuals. Let's create a line chart next.

1. Paste the following R code into the R script editor:

   x <- dataset[,1] # get the first column from dataset
   y <- dataset[,2] # get the second column from dataset

   columnNames = colnames(dataset) # get column names

   plot(x, y, type="n", xlab=columnNames[1], ylab=columnNames[2]) # draw empty plot with axis and labels only
   lines(x, y, col="green") # draw line plot

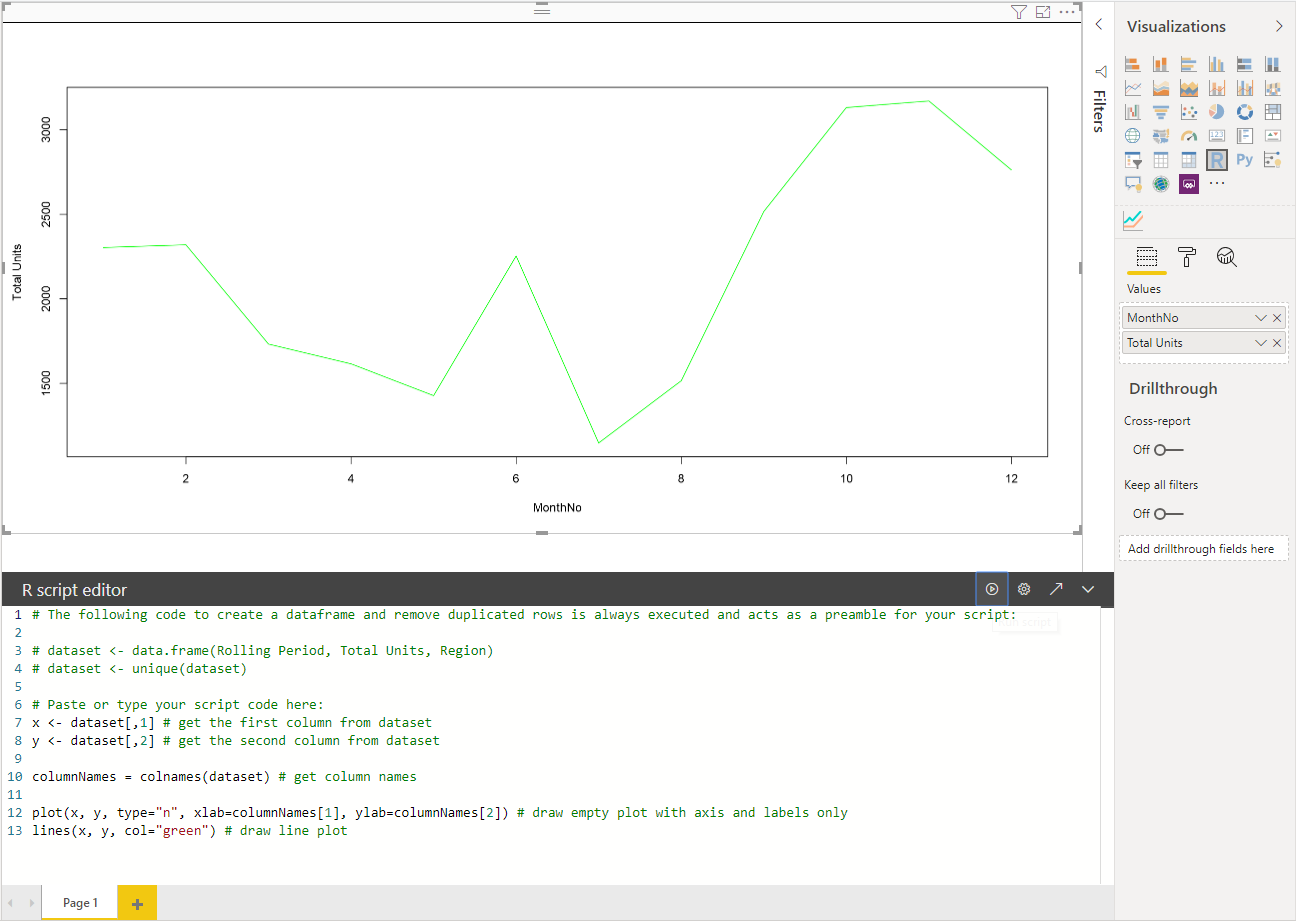

2. Select the Run script icon to see the result.



3. When your R-script is ready, copy it to the script.r file located in the root directory of your visual project.

4. In the capabilities.json file, change the dataRoles: name to dataset, and set the dataViewMappings input to dataset.

   {
     "dataRoles": [
       {
         "displayName": "Values",
         "kind": "GroupingOrMeasure",
         "name": "dataset"
       }
     ],
     "dataViewMappings": [
       {
         "scriptResult": {
           "dataInput": {
             "table": {
               "rows": {
                 "select": [
                   {
                     "for": {
                       "in": "dataset"
                     }
                   }
                 ],
                 "dataReductionAlgorithm": {
                   "top": {}
                 }
               }
             }
           },
           ...
         }
       }
     ],
   }


5. Add the following code to support resizing the image in the src/visual.ts file.

     public onResizing(finalViewport: IViewport): void {
         this.imageDiv.style.height = finalViewport.height + "px";
         this.imageDiv.style.width = finalViewport.width + "px";
         this.imageElement.style.height = finalViewport.height + "px";
         this.imageElement.style.width = finalViewport.width + "px";
     }


Add libraries to visual package

The corrplot package creates a graphical display of a correlation matrix. For more information about corrplot, see An Introduction to corrplot Package.

1. Add the corrplot library dependency to the dependencies.json file. Here is an example of the file content:

   {
     "cranPackages": [
       {
         "name": "corrplot",
         "displayName": "corrplot",
         "url": "https://cran.r-project.org/web/packages/corrplot/"
       }
     ]
   }


2. Now you can start using the corrplot package in your script.r file.

   library(corrplot)
   corr <- cor(dataset)
   corrplot(corr, method="circle", order = "hclust")

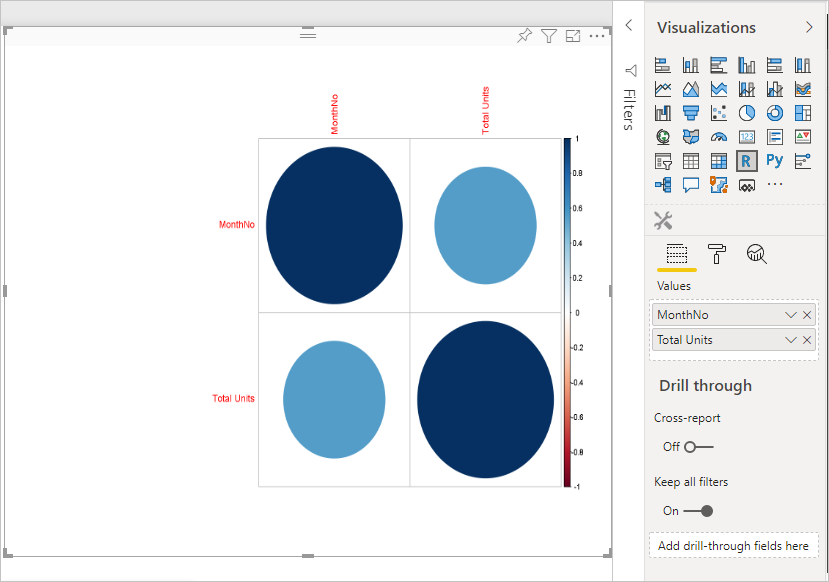

   The result of using corrplot package looks like this example:



Add a static property to the property pane

Now that we have a basic corrplot visual, let's add properties to the property pane that allow the user to change the look and feel to the visual.

We'll use the method argument to configure the shape of the data points. The default script uses a circle. Modify your visual to let the user choose between several options.

1. Define an object called settings in the capabilities.json file and give it the properties shown below. Then use this object name in the enumeration method to get the values from the property pane.

   {
     "settings": {
     "displayName": "Visual Settings",
     "description": "Settings to control the look and feel of the visual",
     "properties": {
       "method": {
         "displayName": "Data Look",
         "description": "Control the look and feel of the data points in the visual",
         "type": {
           "enumeration": [
             {
               "displayName": "Circle",
               "value": "circle"
             },
             {
               "displayName": "Square",
               "value": "square"
             },
             {
               "displayName": "Ellipse",
               "value": "ellipse"
             },
             {
               "displayName": "Number",
               "value": "number"
             },
             {
               "displayName": "Shade",
               "value": "shade"
             },
             {
               "displayName": "Color",
               "value": "color"
             },
             {
               "displayName": "Pie",
               "value": "pie"
             }
           ]
         }
       }
     }
   }


2. Open the src/settings.ts file. Create a CorrPlotSettings class with the public property method. The type is string and the default value is circle. Add the settings property to the VisualSettings class with the default value:

   "use strict";

   import { dataViewObjectsParser } from "powerbi-visuals-utils-dataviewutils";
   import DataViewObjectsParser = dataViewObjectsParser.DataViewObjectsParser;

   export class VisualSettings extends DataViewObjectsParser {
     public rcv_script: rcv_scriptSettings = new rcv_scriptSettings();
     public settings: CorrPlotSettings = new CorrPlotSettings();
   }

   export class CorrPlotSettings {
     public method: string = "circle";
   }

   export class rcv_scriptSettings {
     public provider;
     public source;
   }


   After these steps, you can change the property of the visual.



   Finally, the R-script must have a default property. If the user doesn't change the property value (in this case, the shape setting), the visual uses this value.

   For R runtime variables for the properties, the naming convention is <objectname>_<propertyname>, in this case, settings_method.

3. Run the following R-script:

   library(corrplot)
   corr <- cor(dataset)

   if (!exists("settings_method"))
   {
       settings_method = "circle";
   }

   corrplot(corr, method=settings_method, order = "hclust")


Package and import your visual

Now you can package the visual and import it to any Power BI report.

1. Fill in the displayName, supportUrl, description, author's name and email, and any other important information in the pbivis.json file.

2. If you want to change the visual's icon on the visualization pane, replace the icon.png file in the assets folder.

3. From the root directory of your visual run:

   pbiviz package


   For more information on packaging your visual see Packaging the custom visual

4. Import the visual's pbiviz file to any Power BI report. See Import a visual file from your local computer into Power BI for instructions on how to do this.

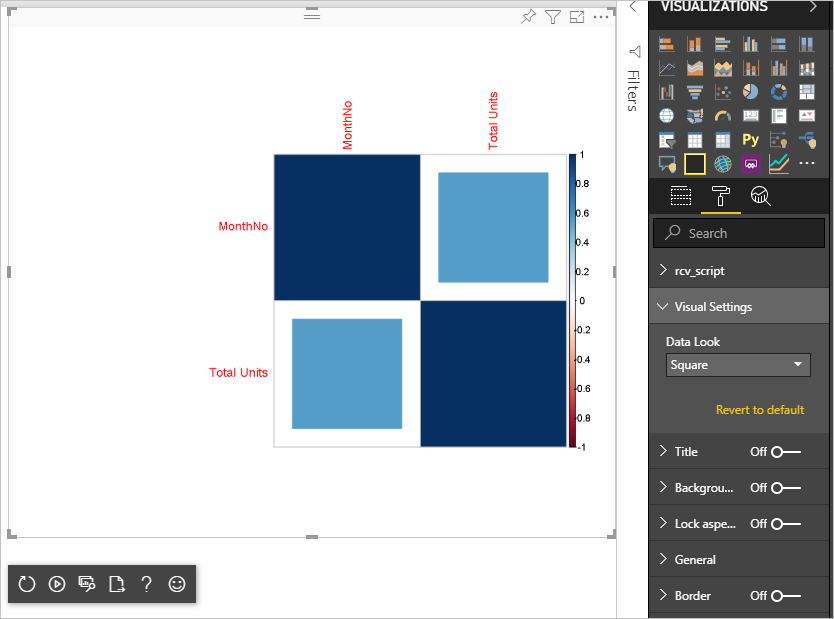

5. Your final visual looks like the following example:
