Tutorial: Add formatting options to the Circle Card visual

When you create a visual, you can add options for customizing its properties. Some of the items that can be to customized formatted include:

  • Title
  • Background
  • Border
  • Shadow
  • Colors

In this tutorial, you learn how to:

  • Add formatting properties to your visual.
  • Package the visual
  • Import the custom visual to a Power BI Desktop or Service report

Prerequisite

This tutorial explains how to add common formatting properties to a visual. We'll use the Circle card visual as an example. We'll add the ability to change the color and thickness of the circle. If you don't have the Circle card project folder that you created in that tutorial, please redo the tutorial before continuing.

Adding formatting options

  1. In PowerShell, Navigate to your circle card project folder and start the circle card visual. Your visual is now running while being hosted on your computer.

    pbiviz start

  2. In Power BI, select the Format page.

    You should see a message that reads - Formatting options are unavailable for this visual.

    Screenshot of formatting paintbrush icon on the visualizations pane.

    If you see formatting options here but can't change them skip to Adding custom formatting options to customize them.

  3. In Visual Studio Code, open the capabilities.json file.

  4. Before the dataViewMappings array, add objects (after line 8).

    "objects": {},

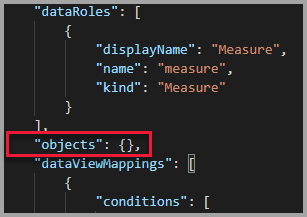

    Screenshot of capabilities file with empty objects array.

  5. Save the capabilities.json file.

  6. In Power BI, review the formatting options again.

    Note

    If you don't see the formatting options change, select Reload Custom Visual.

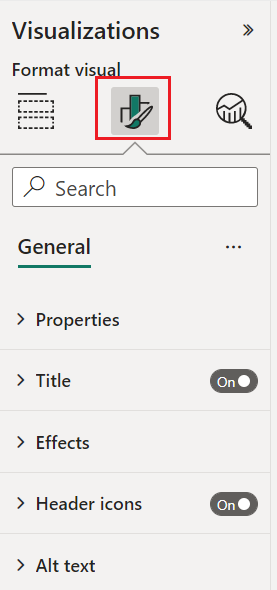

    Screenshot of formatting options on the visualizations pane.

  7. Set the Title option to Off. Notice that the visual no longer displays the measure name at the top-left corner.

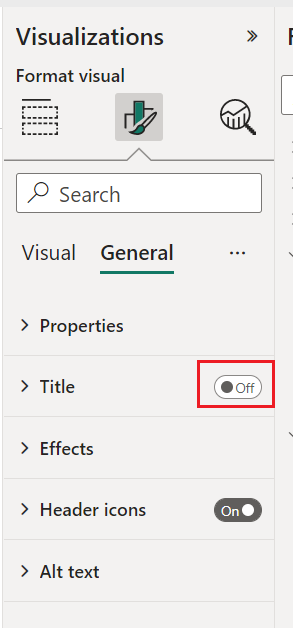

    Screenshot of visualizations pane with the Title switch turned off.

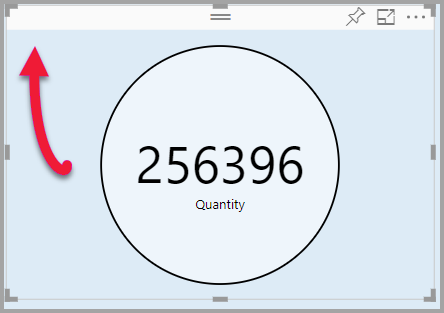

    Screenshot of circle card visual without the title row.

Adding custom formatting options

Now let's add new group called color for configuring the color and width of the circle.

  1. In PowerShell, enter Ctrl+C to stop the custom visual.

  2. In Visual Studio Code, in the capabilities.json file, insert the following JSON fragment into the object labeled objects.

        {
            "circle": {
                "properties": {
                    "circleColor": {
                        "type": {
                            "fill": {
                                "solid": {
                                    "color": true
                                }
                            }
                        }
                    },
                    "circleThickness": {
                        "type": {
                            "numeric": true
                        }
                    }
                }
            }
        }


    The JSON fragment describes a group called circle, which consists of two variables - circleColor and circleThickness.

  3. Save the capabilities.json file.

  4. In the Explorer pane, go to the src folder, and then select settings.ts. This file represents the settings for the starter visual.

  5. In the settings.ts file, replace the two classes with the following code.

    import { formattingSettings } from "powerbi-visuals-utils-formattingmodel";

    import FormattingSettingsCard = formattingSettings.Card;
    import FormattingSettingsSlice = formattingSettings.Slice;
    import FormattingSettingsModel = formattingSettings.Model;

    export class CircleSettings extends FormattingSettingsCard{
        public circleColor = new formattingSettings.ColorPicker({
            name: "circleColor",
            displayName: "Color",
            value: { value: "#ffffff" }
        });

        public circleThickness = new formattingSettings.NumUpDown({
            name: "circleThickness",
            displayName: "Thickness",
            value: 2
        });

        public name: string = "circle";
        public displayName: string = "Circle";
        public slices: FormattingSettingsSlice[] = [this.circleColor, this.circleThickness]
    }

    export class VisualSettingsModel extends FormattingSettingsModel {
        public circle: CircleSettings = new CircleSettings();
        public cards: FormattingSettingsCard[] = [this.circle];
    }


    This module defines the two classes. The CircleSettings class defines two properties with names that match the objects defined in the capabilities.json file (circleColor and circleThickness) and also sets default values.

  6. Save the settings.ts file.

  7. Open the visual.ts file.

  8. In the visual.ts file, import VisualSettings and FormattingSettingsService:

    import { VisualSettings } from "./settings";
    import { FormattingSettingsService } from "powerbi-visuals-utils-formattingmodel";


    and in the Visual class add the following properties:

    private visualSettings: VisualSettings;
    private formattingSettingsService: FormattingSettingsService;



    This property stores a reference to the VisualSettings object, describing the visual settings.

  9. In the Visual class, add the following method after the update method.

    public getFormattingModel(): powerbi.visuals.FormattingModel {
        return this.formattingSettingsService.buildFormattingModel(this.visualSettings);
    }


    This function gets called on every formatting pane render. It allows you to select which of the objects and properties you want to expose to the users in the property pane.

  10. In the update method, after the declaration of the radius variable, add the following code.

    this.visualSettings = this.formattingSettingsService.populateFormattingSettingsModel(VisualSettingsModel, options.dataViews);
    this.visualSettings.circle.circleThickness.value = Math.max(0, this.visualSettings.circle.circleThickness.value);
    this.visualSettings.circle.circleThickness.value = Math.min(10, this.visualSettings.circle.circleThickness.value);


    This code retrieves the format options. It adjusts any value passed into the circleThickness property, and converts it to a number between 0 and 10.

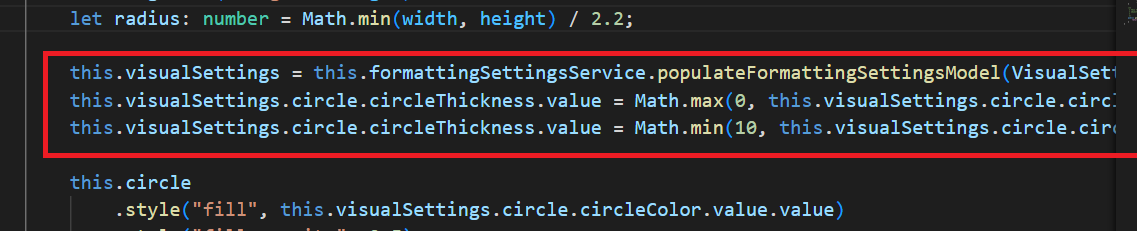

    Screenshot of setting circle thickness to between zero and ten.

  11. In the circle element, modify the values passed to the fill style and stroke-width style as follows:

    .style("fill", this.visualSettings.circle.circleColor.value.value)

    .style("stroke-width", this.visualSettings.circle.circleThickness.value)

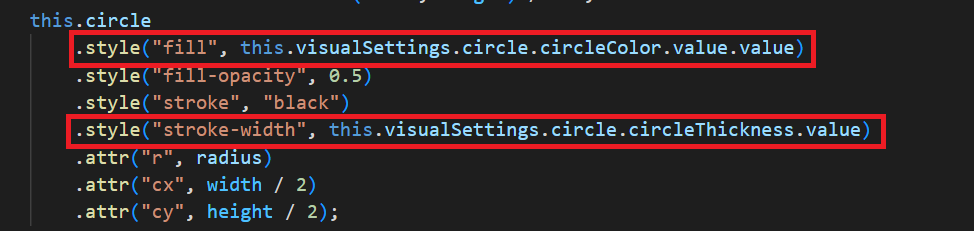

    Screenshot of circle elements.

  12. Save the visual.ts file.

  13. In PowerShell, start the visual.

    pbiviz start

  14. In Power BI, in the toolbar floating above the visual, select Toggle Auto Reload.

    Toggle Auto Reload

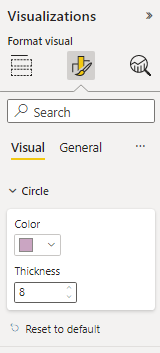

  15. In the visual format options, expand Circle.

    Circle format

    Modify the color and thickness option.

    Modify the thickness option to a value less than zero, and a value higher than 10. Then notice the visual updates the value to a tolerable minimum or maximum.

Packaging the custom visual

Now that the visual is completed and ready to be used, it's time to package it. A packaged visual can be imported to Power BI reports or service to be used and enjoyed by others.

In this section you will learn how to

Edit the property values of the visual

  1. In PowerShell, enter Ctrl+C to stop the custom visual.

  2. Open the pbiviz.json file in Visual Studio Code.

  3. In the visual object, modify the displayName property to Circle Card.

    In the Visualizations pane, hovering over the icon reveals the display name.

    Display Name visual

  4. For the description property, enter the following text.

    Displays a formatted measure value inside a circle

  5. Fill supportUrl and gitHubUrl for the visual.

    Example:

    {
        "supportUrl": "https://community.powerbi.com",
        "gitHubUrl": "https://github.com/microsoft/PowerBI-visuals-circlecard"
    }

  6. Enter your details in the author object.

  7. Save the pbiviz.json file.

Update the icon

  1. In the assets object of the pbiviz.json file, notice that the document defines a path to an icon. The icon is the image that appears in the Visualizations pane. It must be a PNG file, 20 pixels by 20 pixels.

  2. In Windows Explorer, copy the icon.png file, and then paste it to replace the default file located in the assets folder.

  3. In Visual Studio Code, in the Explorer pane, expand the assets folder, and then select the icon.png file.

  4. Review the icon.

    Viz pane image

Package the visual

  1. In Visual Studio Code, ensure that all files are saved.

  2. To package the custom visual, in PowerShell, enter the following command.

    pbiviz package


This command creates a pbiviz file in the dist/ directory of your visual project, and overwrites any previous pbiviz file that might exist.

Dist folder

The package contains everything required to import the custom visual into either the Power BI service or a Power BI Desktop report. You have now packaged the custom visual, and it's ready for use.

Importing the custom visual

Now you are ready to import your Circle Card visual so you can use it in your Power BI reports. Follow the directions in import a visual file from your local computer into Power-BI to import the circleCard.pbiviz file from the dist folder into your Power BI visualization pane.

Debugging

For tips about debugging your custom visual, see the debugging guide.
