Work with Modeling view in Power BI Desktop

With Modeling view in Power BI Desktop, you can view and work with complex datasets that contain many tables.

Use Modeling view

To access Modeling view, select the Model icon found on the left side of Power BI Desktop, as shown in the following image.

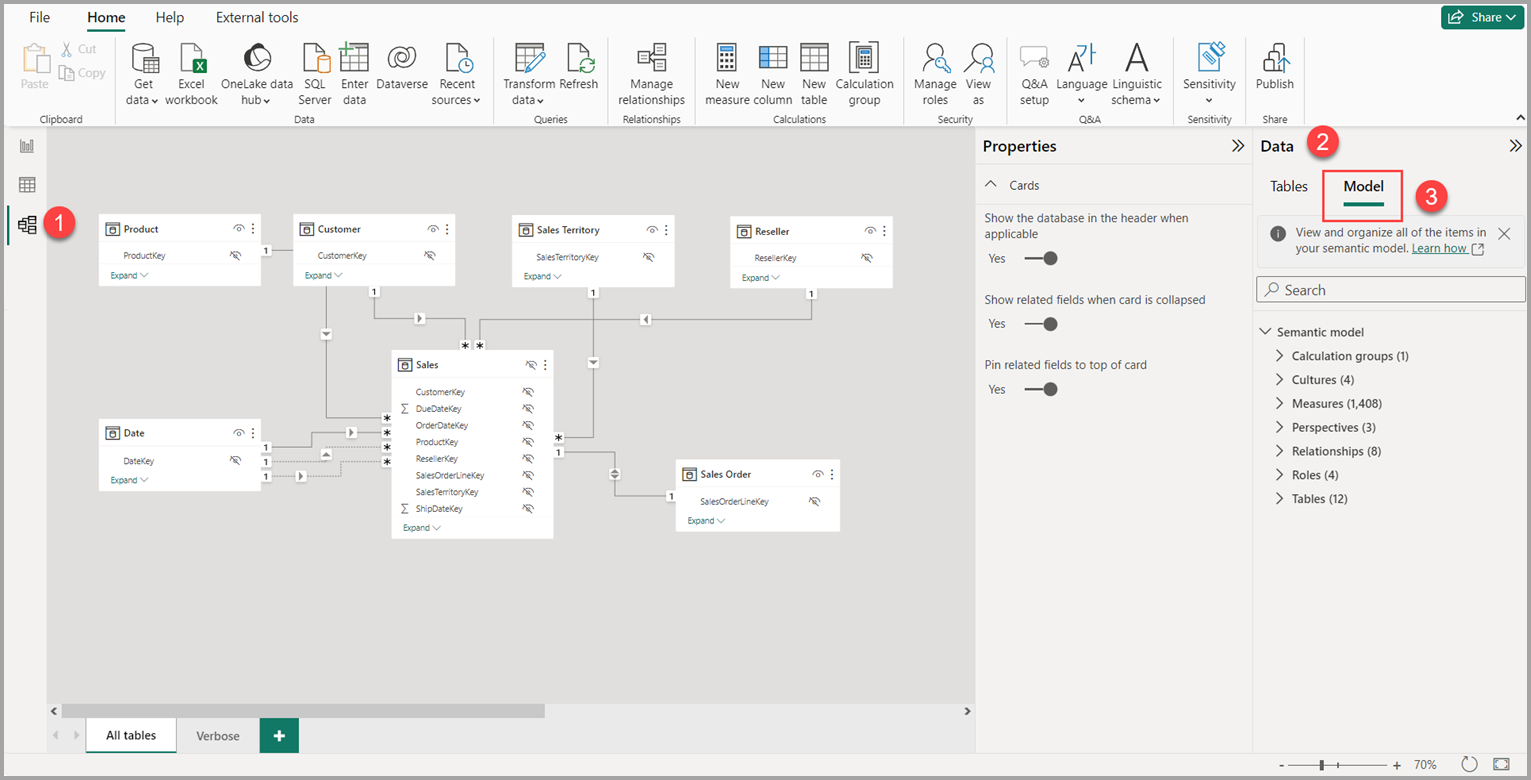

Screenshot of the Modeling view icon in Power BI Desktop.

Create separate diagrams

With Modeling view, you can create diagrams of your model that contain only a subset of the tables in your model. This reorganization can help provide a clearer view into the tables you want to work with, and make working with complex datasets easier. To create a new diagram with only a subset of the tables, select the + button next to the All tables tab along the bottom of the Power BI Desktop window.

Screenshot of the + sign button in the tabs section that creates a new diagram.

You can then drag a table from the Fields list onto the diagram surface. Right-click the table, and then select Add related tables from the menu that appears.

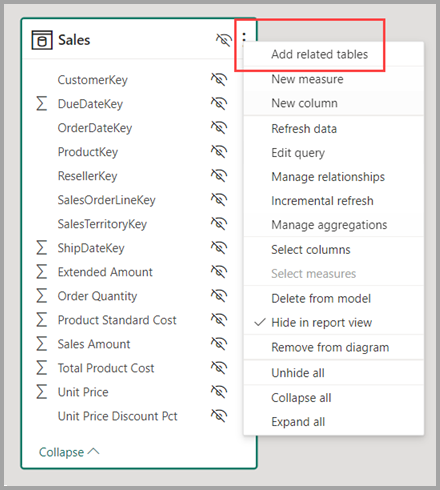

Screenshot of the Add related tables options after right clicking a table.

When you do, tables that are related to the original table are displayed in the new diagram. The following image shows how related tables are displayed after selecting the Add related tables menu option.

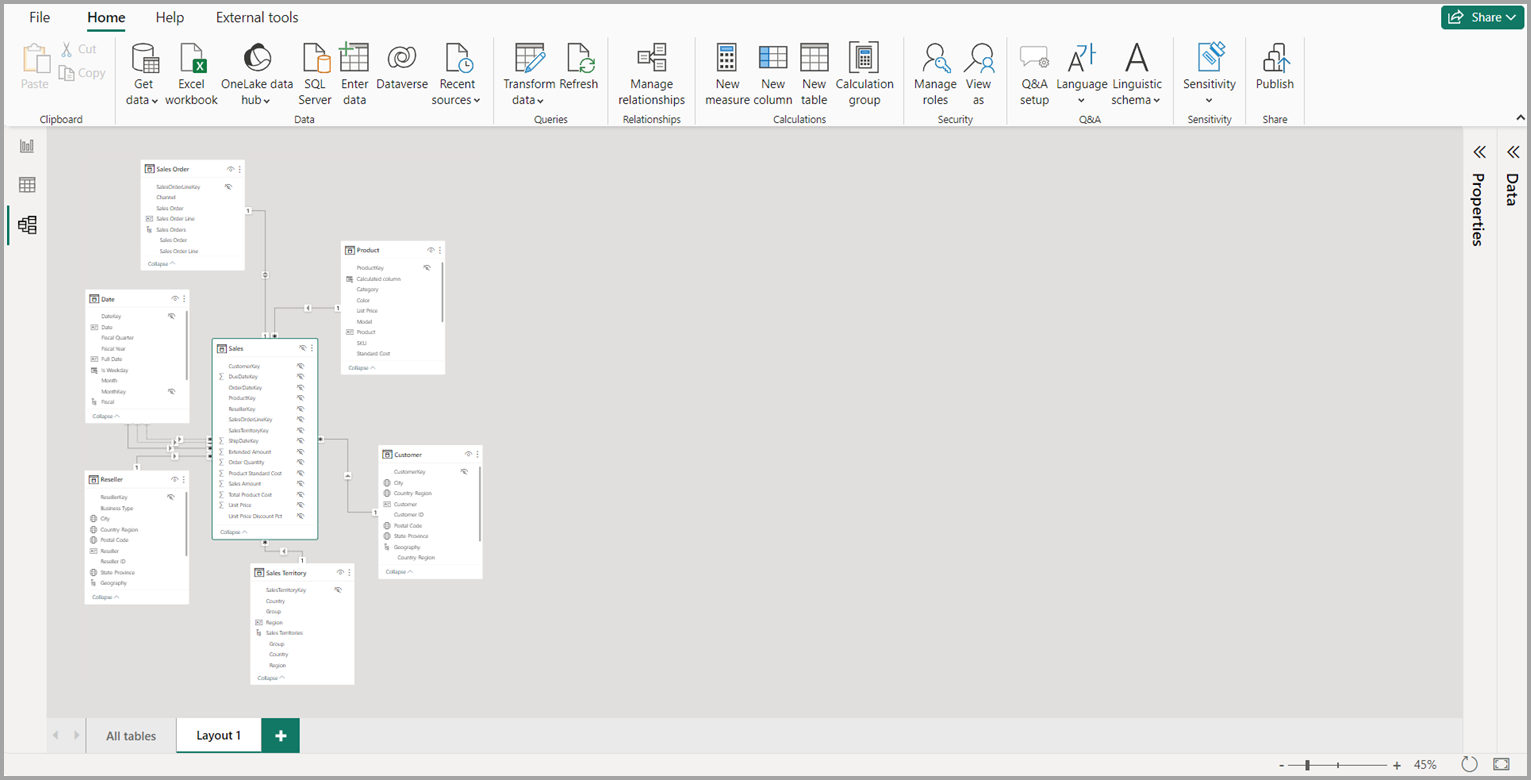

Screenshot of the related tables add in the new Modeling view tab.


You can also find the Add related tables option in the context menu on the background of the model view. When selected, any table that has any relationship to any table already included in the layout will be added to the layout.

Set common properties

You can select multiple objects at once in Modeling view by holding down the Ctrl key and selecting multiple tables. When you select multiple tables, they become highlighted in Modeling view. When multiple tables are highlighted, changes applied in the Properties pane apply to all selected tables.

For example, you could change the storage mode for multiple tables in your diagram view by holding down the Ctrl key, selecting tables, then changing the storage mode setting in the Properties pane.

Screenshot highlighting changing the Storage mode on multiple tables.

Next steps

The following articles describe more about data models, and also describe DirectQuery in detail.

DirectQuery articles:
