Customize x-axis and y-axis properties
APPLIES TO: Power BI Desktop Power BI service
In this tutorial, you'll learn many different ways to customize the X-axis and Y-axis of your visuals. Not all visuals have axes. Pie charts, for example, don't have axes. And customization options vary from visual to visual. There are too many options to cover in a single article, so we'll take a look at some of the most-used customizations and get comfortable using the visual Format pane in the Power BI report canvas.
Watch Amanda customize her X- and Y-axes. She'll also demonstrate the different ways to control concatenation when using drill-down and drill-up options.
This video might use earlier versions of Power BI Desktop or the Power BI service.
Power BI Desktop
Add a new visualization
Before you can customize your visualization, you have to build it.
In Power BI Desktop, open the Retail Analysis sample.
At the bottom, select the yellow plus icon to add a new page.
From the Visualizations pane, select the stacked column chart icon. This adds an empty template to your report canvas.
To set the X-axis values, from the Fields pane, select Time > FiscalMonth.
To set the Y-axis values, from the Fields pane, select Sales > Last Year Sales and Sales > This Year Sales > Value.
Now you can customize your X-axis. Power BI gives you almost limitless options for formatting your visualization.
Customize the X-axis
There are many features that are customizable for the X-axis. You can add and modify the data labels and X-axis title. For categories, you can modify the width, size, and padding of bars, columns, lines, and areas. And for values, you can modify the display units, decimal places, and grid lines. If the primary axis data type is scalar, you can choose between continuous axis (the default for scalar types like numeric and datetime) or categorical. Continuous axes can be linear or log scale, and show all the data without scrolling. Categorical axes show the category label for each data point, and will scroll if content doesn't fit within the plot area.

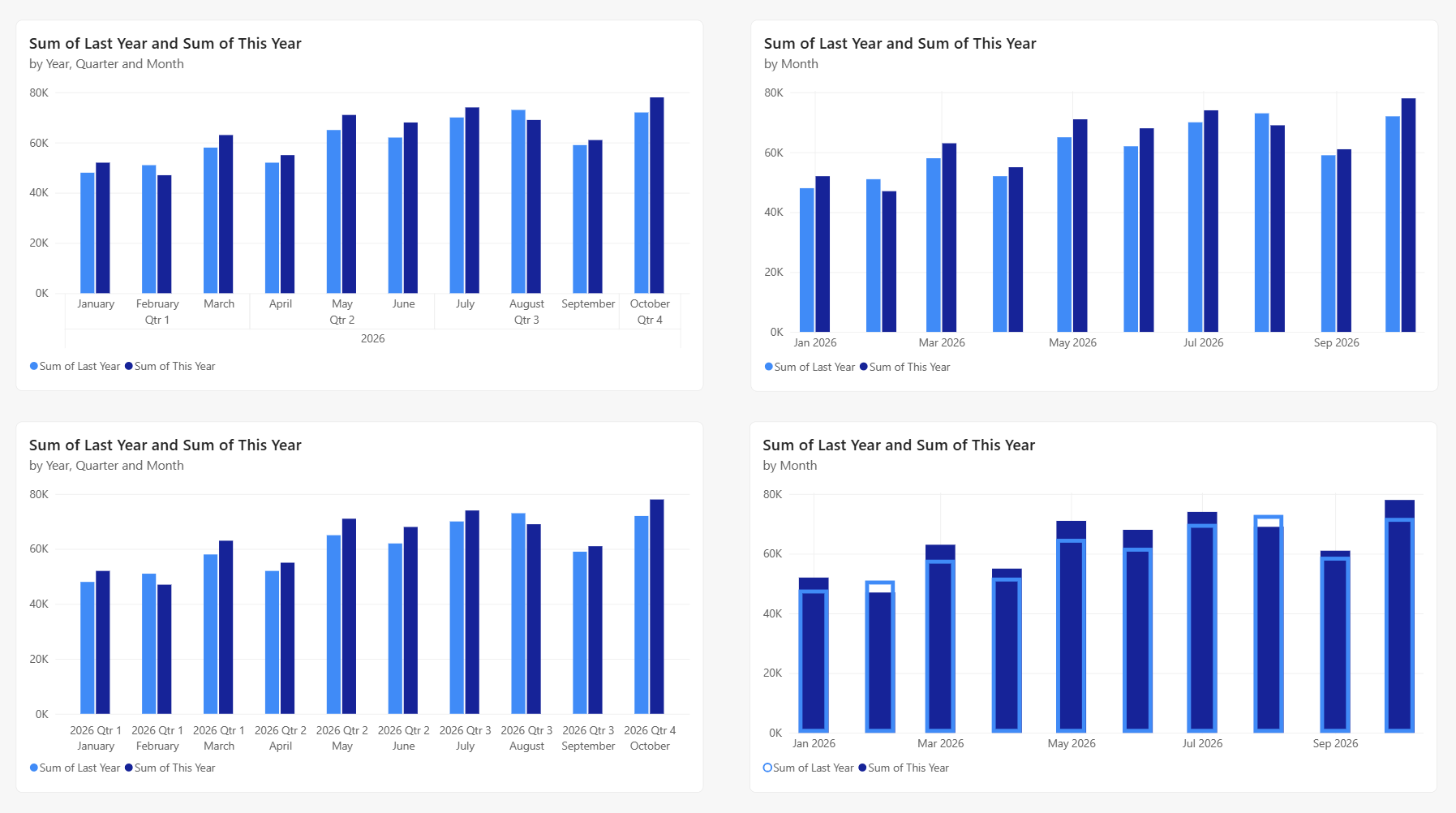

The following example shows customization for a column chart. Let's add a few customizations to get you familiar with the options and then you can explore the rest on your own.
Customize the X-axis labels
The X-axis labels display below the columns in the chart. Right now, they're light grey, small, and difficult to read. Let's change that.
In the Visualizations pane, select Format (the paint brush icon ) to reveal the customization options.
Expand the X-axis options.
Move the X-axis slider to On.
Some reasons you may want to set the X axis to Off, is if the visualization is self-explanatory without labels or if you have a crowded report page and need to make space to display more data.
Format the text color, size, and font:
Color: Select black
Text size: Enter 14
Font family: Select Arial Black
Columns: Open Spacing
Inner padding: Enter 40%
Maybe you don't like the way the X-axis text is displayed on a diagonal. You have several options.
- Change the text size to something smaller than 14.
- Make the visualization larger.
- Display fewer columns and add a scrollbar by increasing Minimum category width.
Here, we've selected the second option and grabbed one of the resize bars to make the visualization wider. It now accommodates the 14-point text without needing to display the text on an angle or with a scrollbar.
Customize the X-axis title
When the X-axis title is On, the X-axis title displays below the X-axis labels.
Start by turning the X-axis title to On.
The first thing you'll notice is that your visualization now has a default X-axis title. In this case, it's FiscalMonth.
Format the title text color, size, and font:
Title color: Select orange
Axis title: Type Fiscal Month (with a space)
Title text size: Enter 18
After you finish the customizations, your stacked column chart looks something like this:
Save the changes you've made and move to the next section. If you ever need to revert all of the changes, select Revert to default at the bottom of the X-Axis customization pane. Next, you'll customize your Y-Axis.
Customize the Y-axis
There are many features that can be customized for the Y-axis. You can add and modify the data labels, Y-axis title, and gridlines. For values, you can modify the display units, decimal places, starting point, and end point. And, for categories, you can modify the width, size, and padding of bars, columns, lines, and areas.
The following example continues our customization of a column chart. Let's make a few changes to get you familiar with the options, and then you can explore the rest on your own.
Customize the Y-axis labels
The Y-axis labels are displayed to the left by default. Right now, they're light grey, small, and difficult to read. Let's change that.
Expand the Y-Axis options.
Move the Y-Axis slider to On.
One reason you might want to turn off the Y-axis, is to save space for more data.
Format the text color, size, and font:
Color: Select black
Text size: Enter 10
Display units: Select Millions
Customize the Y-axis title
When the Y-axis title is On, the Y-axis title displays next to the Y-axis labels. For this visualization, having a Y-Axis title doesn't improve the visual, so leave Title turned Off. We'll add Y-axis titles to a dual-axis visual later in this tutorial.
Customize the gridlines
Let's make the gridlines stand out by changing the color and increasing the stroke:
Expand The Gridlines Tab: Select Horizontal
Color: Select orange
Width: Enter 2
After all these customizations, your column chart should look something like this:
Customizing visualizations with dual Y axes
Some visualizations can benefit from having two Y axes. Combo charts are a good example. Before we can format dual Y axes, we'll create a combo chart that compares trends for sales and gross margin.
Create a chart with two Y-Axes
Select the column chart, and change it to a Line and stacked column chart. This type of visual supports a single line chart value and multiple stackable column values.
Drag Sales > Gross Margin Last Year % from your Fields pane into the Line Values bucket.
Reformat the visualization to remove the angled X-axis labels.
Power BI creates two Y axes, allowing the values to be scaled differently. The left axis measures sales dollars and the right axis measures gross margin percentage.
Format the second Y-Axis
Because we started with a visualization with one formatted Y-axis, Power BI created the second Y-axis using the same settings. But we can change that.
In the Visualizations pane, select the paint brush icon to display the format options.
Expand the secondary Y-Axis options.
Verify that it is On. Our secondary Y axis represents the line chart.
(Optional) Customize the font color, size, and display units for the two axes. If you switch Position for either the column axis or the line axis, then the two axes switch sides.
Add titles to both axes
With a visualization that's complex, it helps to add axes titles. Titles help your colleagues understand the story your visualization is telling.
Toggle Title to On for Y-Axis (Column) and the Y-Axis (Line).
Set Style to Show title only for both.
Your combo chart now shows dual axes, both with titles.
Format the titles. In this example, we've shorted one of the titles and reduced the font size for both.
- Font size: 9
- Shortened the Axis title for the first Y axis (the column chart): Sales last year & this year.
For more information, see Tips and tricks for color formatting in Power BI and Customize visualization titles, legends, and backgrounds.
Invert the y-axis
For line, bar, column, area, and combo charts, you can invert the y-axis, putting positive values going down and negative values going up.
Select the visual. In the Format pane, expand the Y axis section, expand Range section. Slide Invert range to On.
Considerations and limitations
- For continuous axis tick marks, you cannot control the format string. Power BI chooses the best tick interval based on your data range, and creates a minimal format string for this unit interval, to preserve space. Date values will be localized based on your system or browser locale.
