Export the data that was used to create a visualization
APPLIES TO: Power BI Desktop Power BI service
To see the data being used to create a visual, you can display that data in Power BI, or export it to Excel. This article shows you how to export to Excel. Data can be exported to Excel from a Power BI dashboard tile and from a report visual.
Not all data can be viewed or exported by all users. There are safeguards that report designers and administrators use when building dashboards and reports. Some data is restricted, hidden, or confidential, and cannot be seen or exported without special permissions. If you're a designer or admin, select the tab for Admin and designer controls for exporting.
Who can export data
If you do have permissions to the data, you can see, and export the data that Power BI uses to create a visualization.

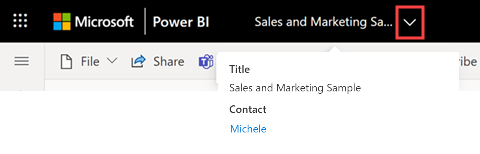

If you don't have permissions to the data, you can't export or open in Excel. Often, data is confidential or limited to specific users. For details, see the Considerations and limitations section at the end of this document. If you're working in the Power BI service, you can contact your Power BI administrator, or you can look up the contact information for the dashboard owner to request export permissions. To find the owner, select the dropdown next to the report title.
Video: View and export data

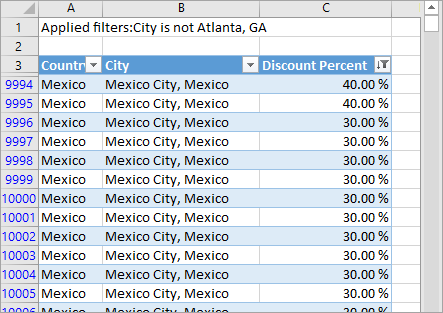

Watch Will export the data from one of the visualizations in a report, save it as an .xlsx file, and open it in Excel. To try it out yourself, follow the step-by-step instructions.
This video might use earlier versions of Power BI Desktop or the Power BI service.
Data is protected when exported out of Power BI
Report owners can classify and label reports using sensitivity labels from Microsoft Purview Information Protection. If the sensitivity label has protection settings, Power BI applies these protection settings when exporting report data to Excel, PowerPoint, or PDF files. Only authorized users are able to open protected files.
Security and Power BI administrators can use Microsoft Defender for Cloud Apps to monitor user access and activity, perform real-time risk analysis, and set label-specific controls. For example, organizations can use Microsoft Defender for Cloud Apps to configure a policy that prevents users from downloading sensitive data from Power BI to unmanaged devices.
Export data from a Power BI dashboard
Open a dashboard in the Power BI service and select a tile with a visual.

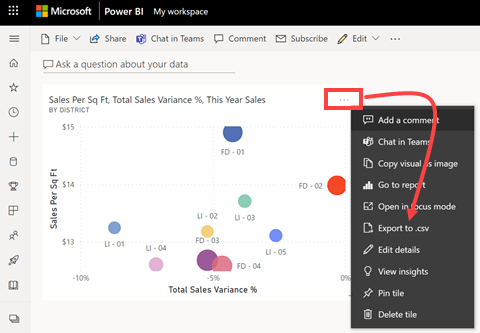

From the upper right corner of the tile, open the More options (...) dropdown and select Export to .csv.

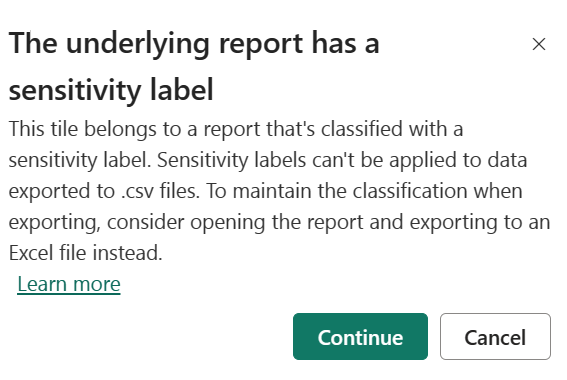

If the tile was pinned from a report with a sensitivity label, you see this warning. Consider the sensitivity of your content before deciding whether to export or not. To export data with a sensitivity label, open the report page that contains the original visual and export the data from there instead.

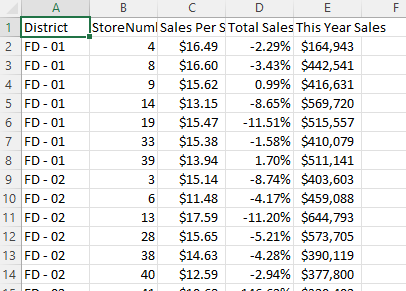

Power BI exports the data to a .csv file. If you filtered the visualization, then the .csv export is filtered as well. Your browser prompts you to save or open the file. By default, your export is saved to your local Downloads folder.
Open the .csv file in Excel.
Export data from a report
Exporting data from a report visual in Power BI Desktop is straightforward. When you export the data, Power BI creates a .csv file with the data.

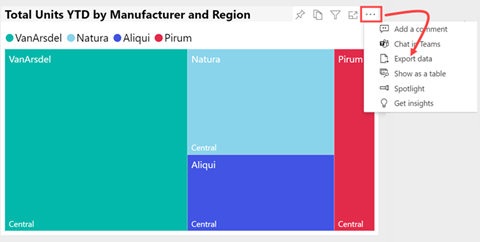

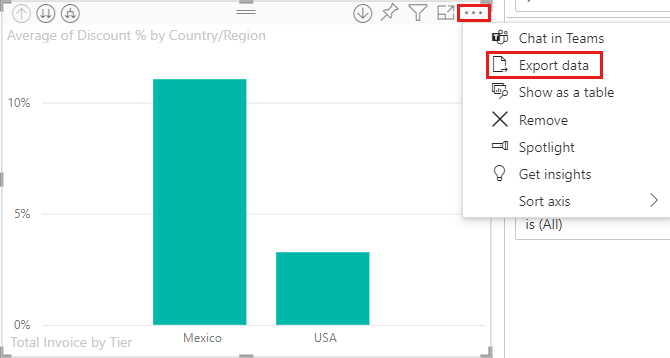

- Select the visual, select More options (...) > Export data.
- In the Save As dialog box, select a location for the .csv file, and edit the file name, if you want.
- Select Save.
Admin and designer controls for exporting
Power BI report designers control the types of data export options that are available for their consumers. The choices are:
Allow end users to export summarized data from the Power BI service or Power BI Report Server.
Allow end users to export both summarized and underlying data from the service or Report Server.
Don't allow end users to export any data from the service or Report Server.
We recommend that report designers revisit old reports and manually reset the export option as needed.
To set these options:
Start in Power BI Desktop.

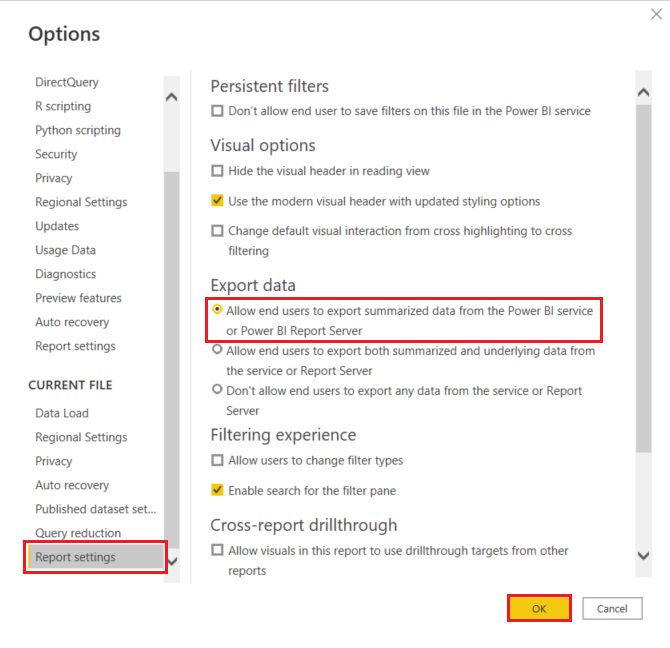

From the upper left corner, select File > Options and Settings > Options.
Under CURRENT FILE, select Report settings.
Make your selection from the Export data section.
You can also update this setting in the Power BI service.
It's important to note that if the Power BI admin portal settings conflict with the report settings for export data, the admin settings override the export data settings.
Considerations and limitations
These considerations and limitations apply to Power BI Desktop and the Power BI service, including Power BI Pro and Premium.
There are many considerations related to exporting to Excel. Exporting is one of those features that report designers and Power BI administrators may disable for individuals or even for an entire organization. They disable it to ensure that private data isn't exposed to the wrong audience.
If you find that you can't use this feature, reach out to the report owner and your administrator. They can explain why you can't export data from a particular visual or from all visuals. It may be that this feature is purposely disabled and perhaps they can enable it for you. Other times, there may be particular reasons an export doesn't work. It could be related to permissions, data contents, data type, visual type, how the designer named the fields, and more. When contacting the report owner or administrator, refer them to these articles: Admin tenant settings, Row level security, and Data protection.
When you're exporting data to Excel, the speed of download of the generated workbook can vary depending on network bandwidth.
The maximum number of rows that Power BI Desktop and Power BI service can export to a .csv file is 30,000.
The maximum number of rows that the applications can export to an .xlsx file is 150,000. The actual number may be lower than 150,000 depending on query limits and visual types.
For export from matrix visuals using Data with current layout, the export limit is 150,000 data intersections. For a table visual, each row has one data intersection. For a matrix visual, each row can have 1 or more data intersections, so the exported rows count can be less than 150,000. (For example, if a matrix visual has three data intersections per row, the maximum row count is 150,000 / 3 = 50,000 rows.) The message "Exported data exceeded the allowed volume. Some data may have been omitted." is added at the footer of the Excel file when the limit is hit. To avoid this scenario, consider limiting the dimensions or filtering the data.
Export using Underlying data doesn't work if:
the version is older than 2016.
the tables in the model don't have a unique key.
an administrator or report designer has disabled this feature.
you enable the Show items with no data option for the visualization Power BI is exporting.
For export from matrix visuals using Data with current layout, consider the following.
Matrices with columns and/or values but no rows are exported as having rows and/or values but no columns.
Matrices with only one row and/or values but no columns are exported as table (no right border separator).
If the Switch values to rows formatting option is set to 'On' in Power BI for a table or matrix visual, the visual format isn't preserved when data is exported to Excel
If the Row subtotals toggle is set to 'Off' in Power BI Desktop for a matrix visual, but the matrix visual has expanded and collapsed sections, exported data contains subtotals for rows. To work around this issue, use the Expand | All command from the visual's context menu.
When you're using DirectQuery, the maximum amount of data that Power BI can export is 16-MB uncompressed data. An unintended result may be that you export less than the maximum number of rows of 150,000. This result can happen if:
There are too many columns. Try reducing the number of columns and exporting again.
There's data that is difficult to compress.
Other factors are at play that increase file size and decrease the number of rows Power BI can export.
If the visualization uses data from more than one data table, and no active relationship exists for those tables in the data model, Power BI only exports data for the first table.

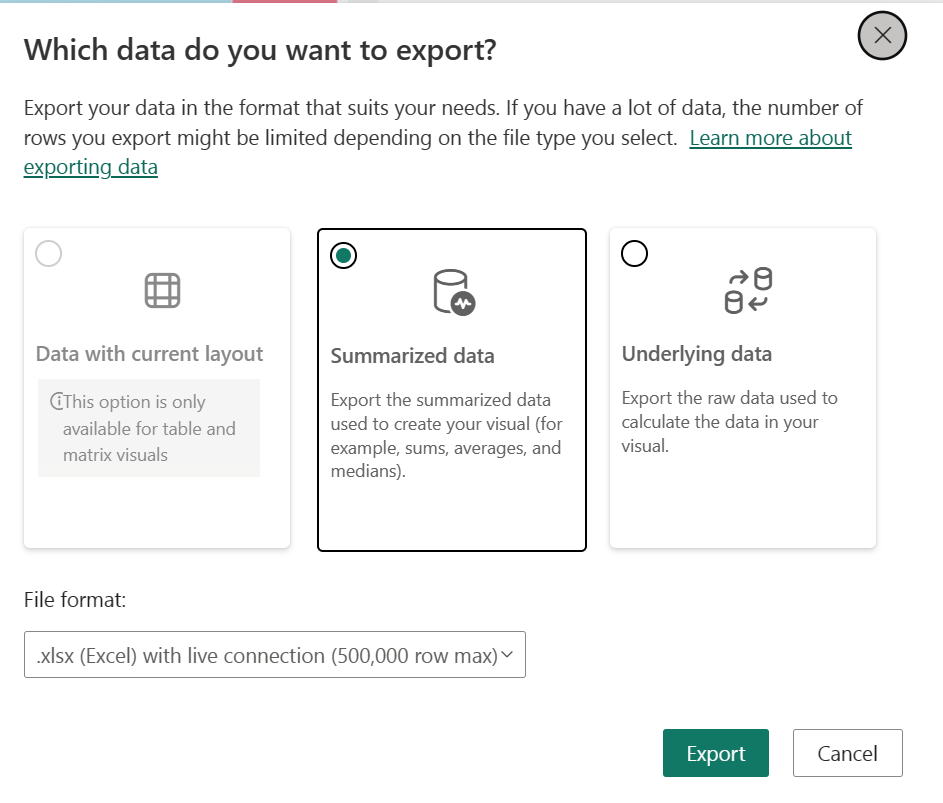

The granularity of data exported to Excel using the Data with current layout and Summarized data options are identical and the only difference between the options is the shape of the data in Excel. For example, in a matrix visual, the Data with current layout preserves the shape of the visual as shown in Power BI when data is exported to Excel while the Summarized data option exports the same data but as a flat table of rows and columns.
When you export datetime data from Power BI, the format of the datetime changes to match the datetime format of your local machine. For example, let's say that the report designer formatted the datetime as DDMMYYYY, which is the default regional format for their locale. When you open that report on your machine and export the data to Excel, the datetime shows as MMDDYY, which is your default regional datetime format.
Power BI custom visuals and R visuals aren't currently supported.
In Power BI, you can rename a field (column) by double-clicking the field and typing a new name. Power BI refers to the new name as an alias. It's possible that a Power BI report can end up with duplicate field names, but Excel doesn't allow duplicates. So when Power BI exports the data to Excel, the field aliases revert to their original field (column) names.
If there are Unicode characters in the .csv file, the text in Excel may not display properly. Examples of Unicode characters are currency symbols and foreign words. You can open the file in Notepad and the Unicode displays correctly. If you want to open the file in Excel, the workaround is to import the .csv. To import the file into Excel:
Go to the Data tab.
Select Get external data > From text.
Go to the local folder where the file is stored and select the .csv.
When you're exporting to .csv, certain characters are escaped with a leading ' to prevent script execution when opened in Excel. This happens when:
- The column is defined as type "text" in the data model, and
- The first character of the text is one of the following: =, @, +, -
Power BI admins can disable the export of data.
If a dynamic format string is applied to a measure, the exported data doesn't preserve this formatting in Excel. Also, visual-specific formatting such as percent of grand total for a measure isn't preserved in Excel.
