Teams App Localization

Browse code

This sample demonstrates a bot for configuring and reconfiguring adaptive cards in team and group chats. It supports static and dynamic type-ahead search, allowing for enhanced interactivity and control customization.

Included Features

  • Bots
  • Adaptive Cards
  • bot reconfiguration
  • Type ahead search

Interaction with app

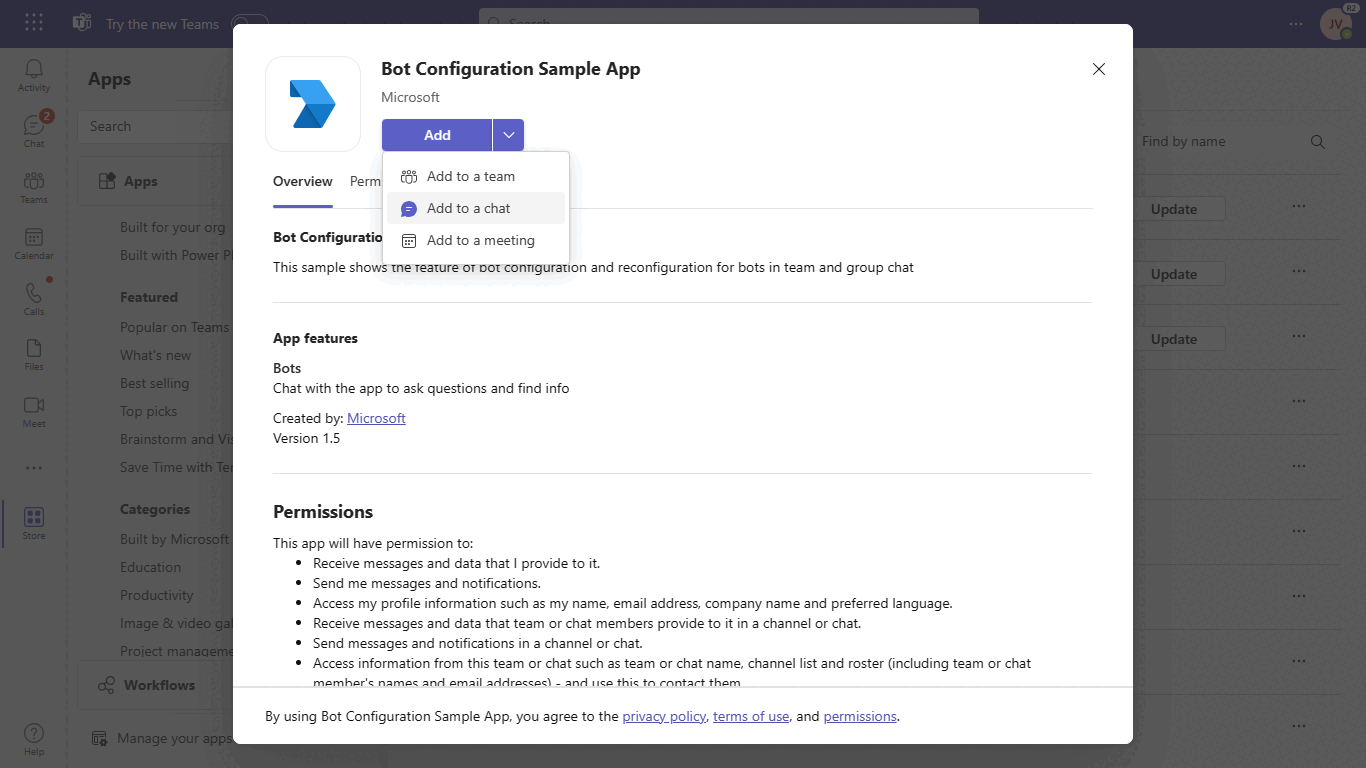

Configuration Bot

Try it yourself - experience the App in your Microsoft Teams client

Please find below demo manifest which is deployed on Microsoft Azure and you can try it yourself by uploading the app package (.zip file link below) to your teams and/or as a personal app. (Uploading must be enabled for your tenant, see steps here).

Bot Configuration: Manifest

Prerequisites

Verify you have the right account for building Teams apps and install some recommended development tools.

Run the app (Using Microsoft 365 Agents Toolkit for Visual Studio)

The simplest way to run this sample in Teams is to use Microsoft 365 Agents Toolkit for Visual Studio.

  1. Install Visual Studio 2022 Version 17.14 or higher Visual Studio
  2. Install Microsoft 365 Agents Toolkit for Visual Studio Microsoft 365 Agents Toolkit extension
  3. In the debug dropdown menu of Visual Studio, select Dev Tunnels > Create A Tunnel (set authentication type to Public) or select an existing public dev tunnel.
  4. Right-click the 'M365Agent' project in Solution Explorer and select Microsoft 365 Agents Toolkit > Select Microsoft 365 Account
  5. Sign in to Microsoft 365 Agents Toolkit with a Microsoft 365 work or school account
  6. Set Startup Item as Microsoft Teams (browser).
  7. Press F5, or select Debug > Start Debugging menu in Visual Studio to start your app
  8. In the opened web browser, select Add button to install the app in Teams

If you do not have permission to upload custom apps (uploading), Microsoft 365 Agents Toolkit will recommend creating and using a Microsoft 365 Developer Program account - a free program to get your own dev environment sandbox that includes Teams.

Setup

  1. Register a new application in the Azure Active Directory – App Registrations portal.

    NOTE: When you create your app registration, you will create an App ID and App password (Secret) - make sure you keep these for later.

  2. Setup for Bot

    • Also, register a bot with Azure Bot Service, following the instructions here
    • Ensure that you've enabled the Teams Channel
    • While registering the bot, use https://<your_tunnel_domain>/api/messages as the messaging endpoint.

  3. Setup NGROK

  • Run ngrok - point to port 3978

    ngrok http 3978 --host-header="localhost:3978"

    Alternatively, you can also use the dev tunnels. Please follow Create and host a dev tunnel and host the tunnel with anonymous user access command as shown below:

    devtunnel host -p 3978 --allow-anonymous
  1. Setup for code

  • Clone the repository

    git clone https://github.com/OfficeDev/Microsoft-Teams-Samples.git

  • Modify the /appsettings.json and fill in the following details:

  • {{MicrosoftAppId}} - Generated from Step 1 while doing AAd app registration in Azure portal.

  • {{ClientSecret}} - Generated from Step 1, also referred to as Client secret

  • Run the bot from a terminal or from Visual Studio:

  1. If you are using Visual Studio
  • Launch Visual Studio
  • File -> Open -> Project/Solution
  • Navigate to Bot configuration\csharp folder
  • Select Bot Configuration.csproj file
  1. This step is related to Microsoft Teams app manifest
    • Edit the manifest.json contained in the appPackage or AppManifest_Hub folder to replace your Microsoft App Id (that was created when you registered your bot earlier) everywhere you see the place holder string {{Microsoft-App-Id}}
    • replace {{domain-name}} with base Url of your domain. E.g. if you are using ngrok it would be https://1234.ngrok-free.app then your domain-name will be 1234.ngrok-free.app and if you are using dev tunnels then your domain will be like: 12345.devtunnels.ms.
    • Zip up the contents of the Manifest or Manifest_hub folder to create a manifest.zip
    • Upload the manifest.zip to Teams (in the Apps view click "Upload a custom app")
    • Add the app to team/groupChat scope (Supported scopes)

Note: If you want to test your app across multi hub like: Outlook/Office.com, please update the manifest.json in the /AppManifest_Hub folder with the required values.

Running the sample

You can interact with this bot in Teams by sending it a message, or selecting a command from the command list. The bot will respond to the following strings.

Configurable Card A configurable card is used to modify data even after the bot has been installed. When the bot is added to a Teams or group chat scope, it utilizes 'config/fetch' and 'config/submit' invoke requests.

  • Result: The bot will send the configurable adaptive card

  • Valid Scopes: group chat, team chat

  • Bot Interactions:

    Adding bot UI: groupChat-AddBot

Added bot UI: groupChat-AddedBot

  • Show configurable card interaction:

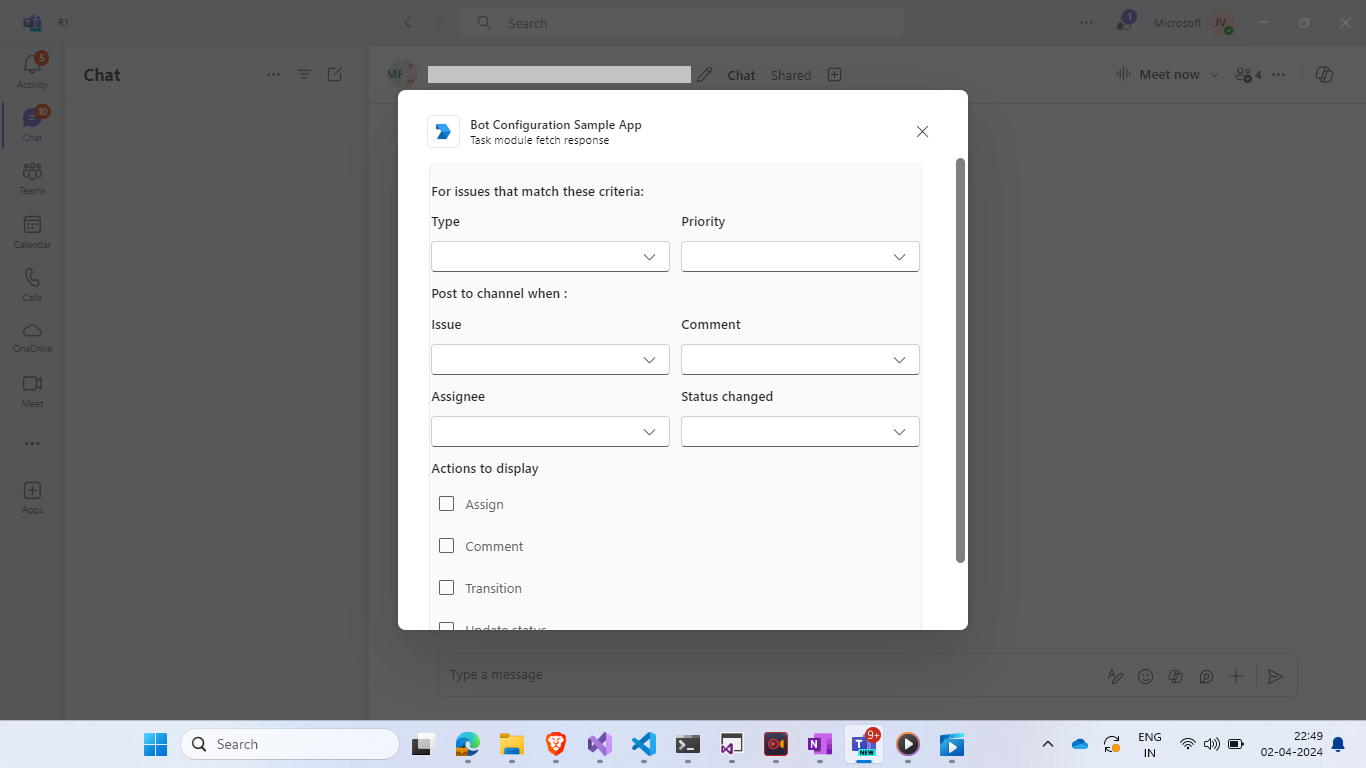

configurable-card-Interaction1

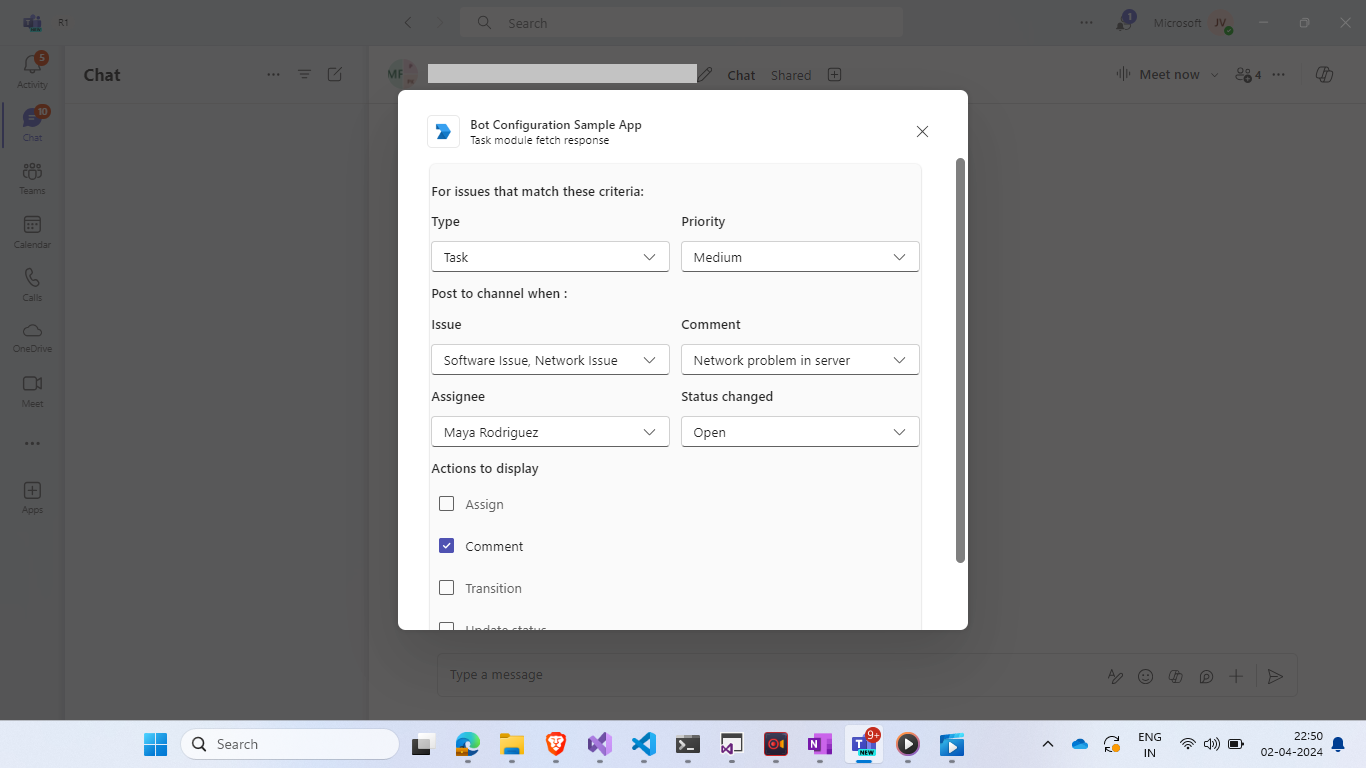

configurable-card-Interaction2

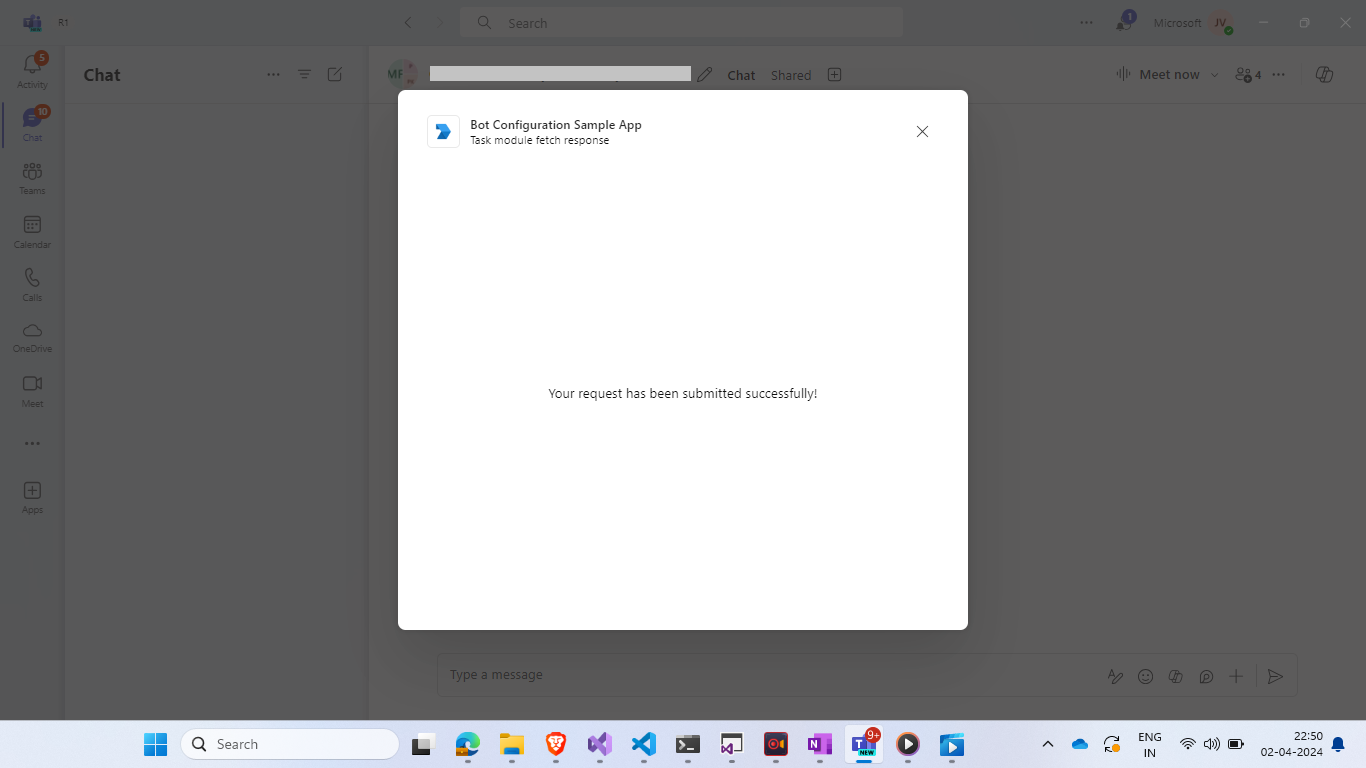

configurable-card-Interaction3

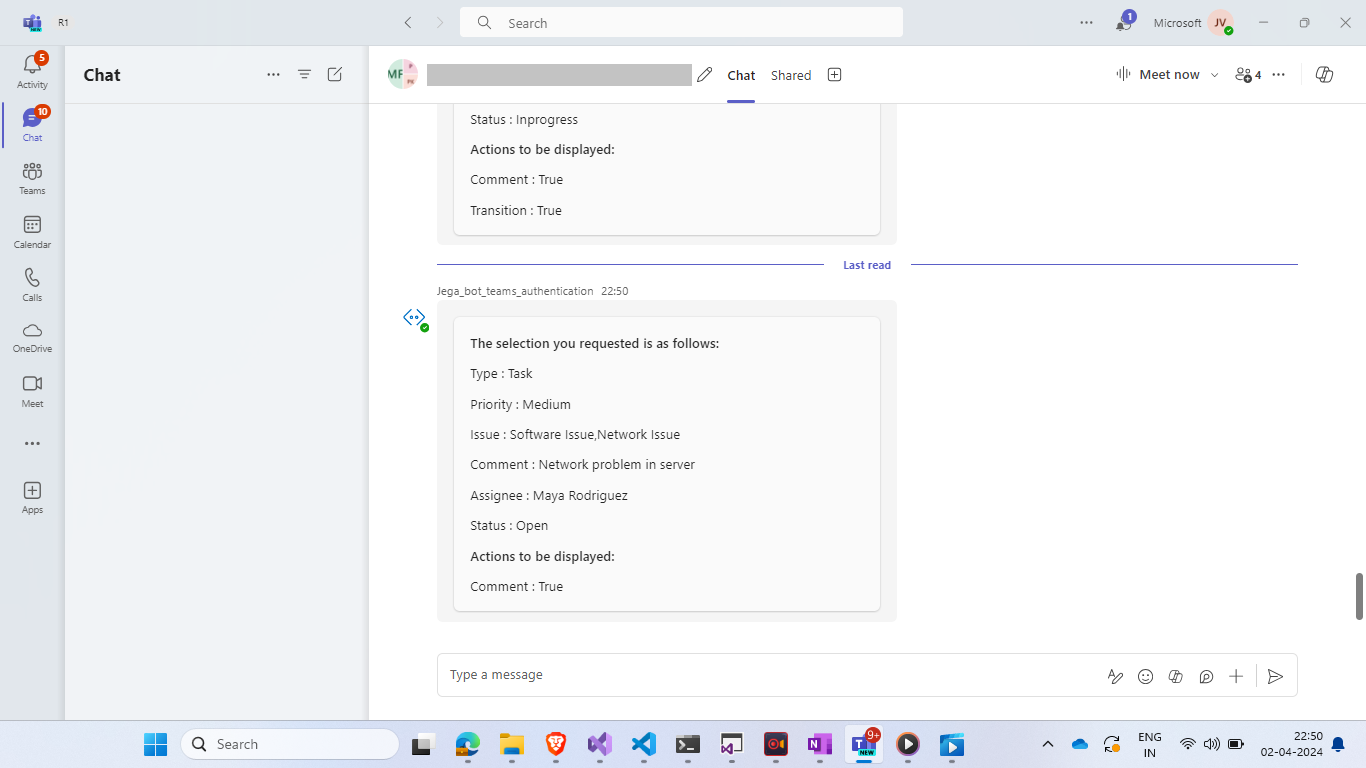

configurable-card-Interaction4

Deploy to Azure

Deploy your project to Azure by following these steps:

From Visual Studio Code From TeamsFx CLI
  • Open Microsoft 365 Agents Toolkit, and sign into Azure by clicking the Sign in to Azure under the ACCOUNTS section from sidebar.
  • After you signed in, select a subscription under your account.
  • Open the Microsoft 365 Agents Toolkit and click Provision from DEPLOYMENT section or open the command palette and select: Teams: Provision.
  • Open the Microsoft 365 Agents Toolkit and click Deploy or open the command palette and select: Teams: Deploy.
  • Run command teamsfx account login azure.
  • Run command teamsfx provision --env dev.
  • Run command: teamsfx deploy --env dev.

Note: Provisioning and deployment may incur charges to your Azure Subscription.
