Bot daily task reminder

Code Sample
10/14/2024

The Daily Task Reminder bot for Microsoft Teams enables users to schedule recurring tasks and receive reminders at designated times. Built with the Bot Framework and leveraging adaptive cards and task modules, this bot provides an efficient way to manage and be reminded of daily tasks directly within Teams. It includes setup instructions for Microsoft Entra ID, Teams integration, and Azure Bot Service, offering seamless scheduling and notification capabilities.

Included Features

Bots
Adaptive Cards
Task Modules
Quartz Scheduler (for scheduling)

Interaction with app

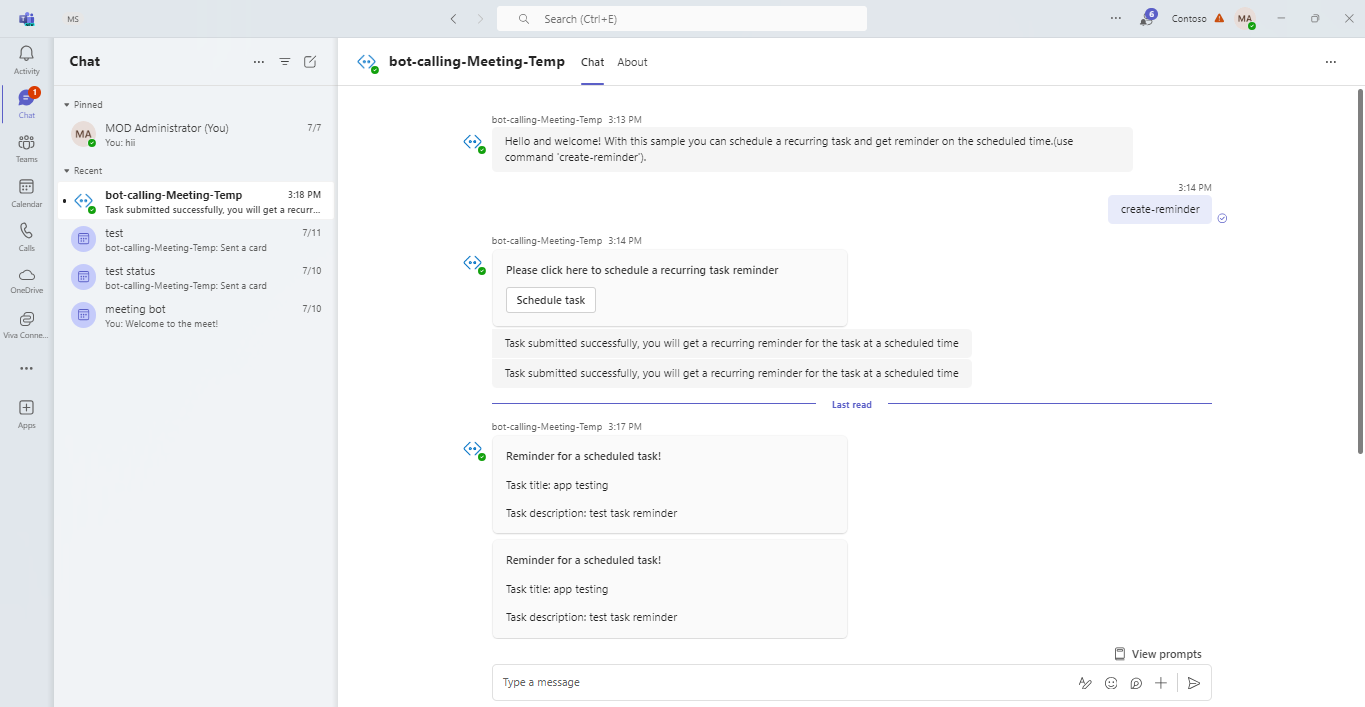

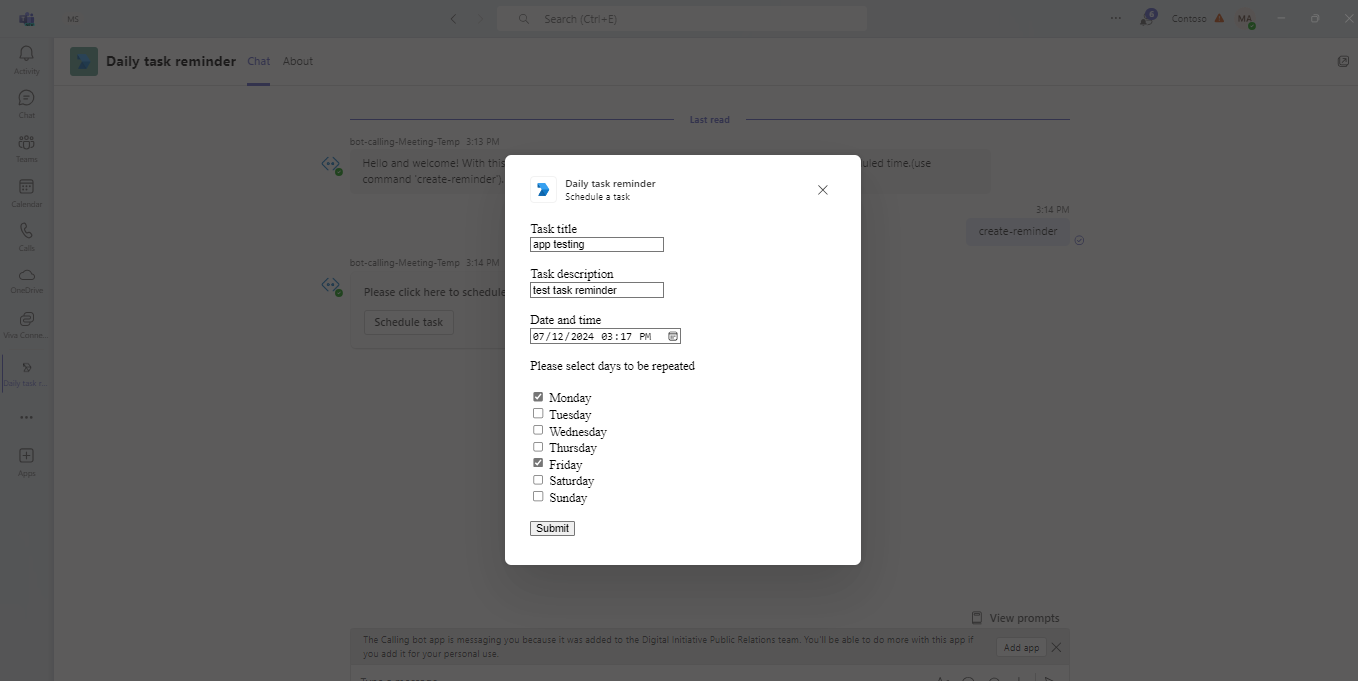

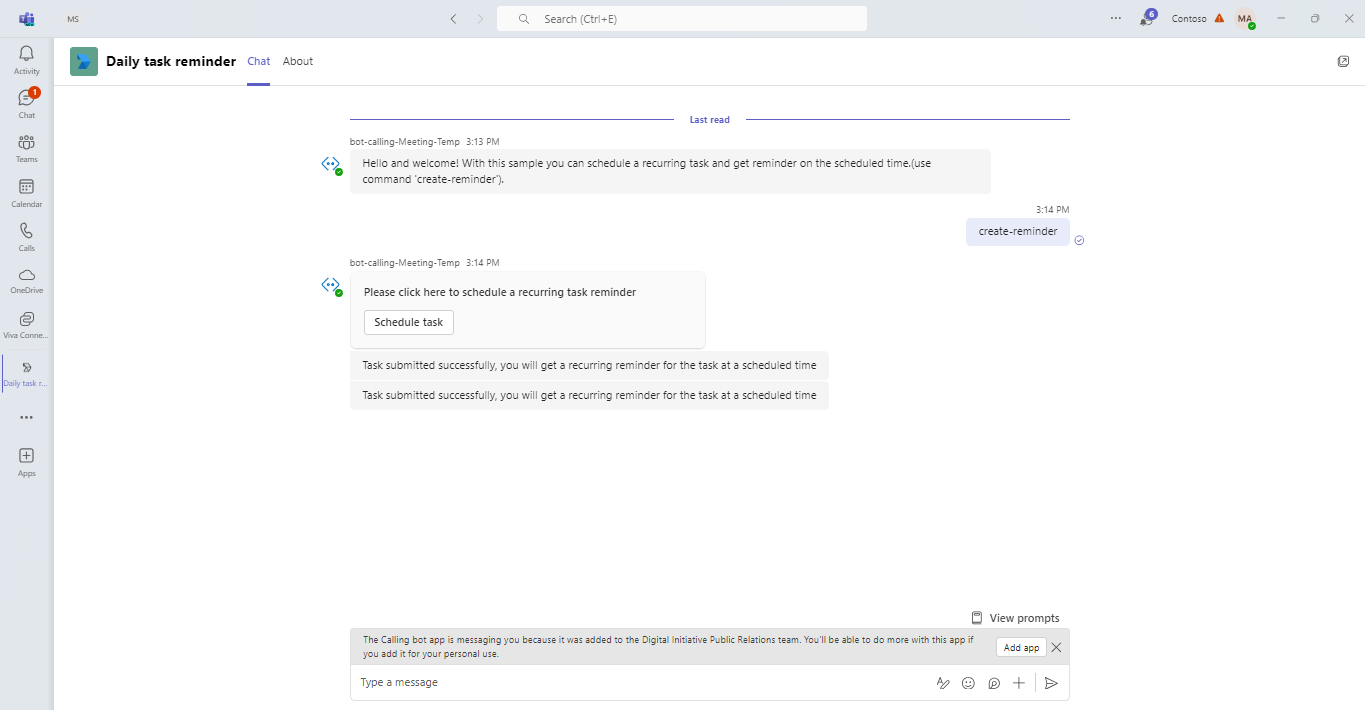

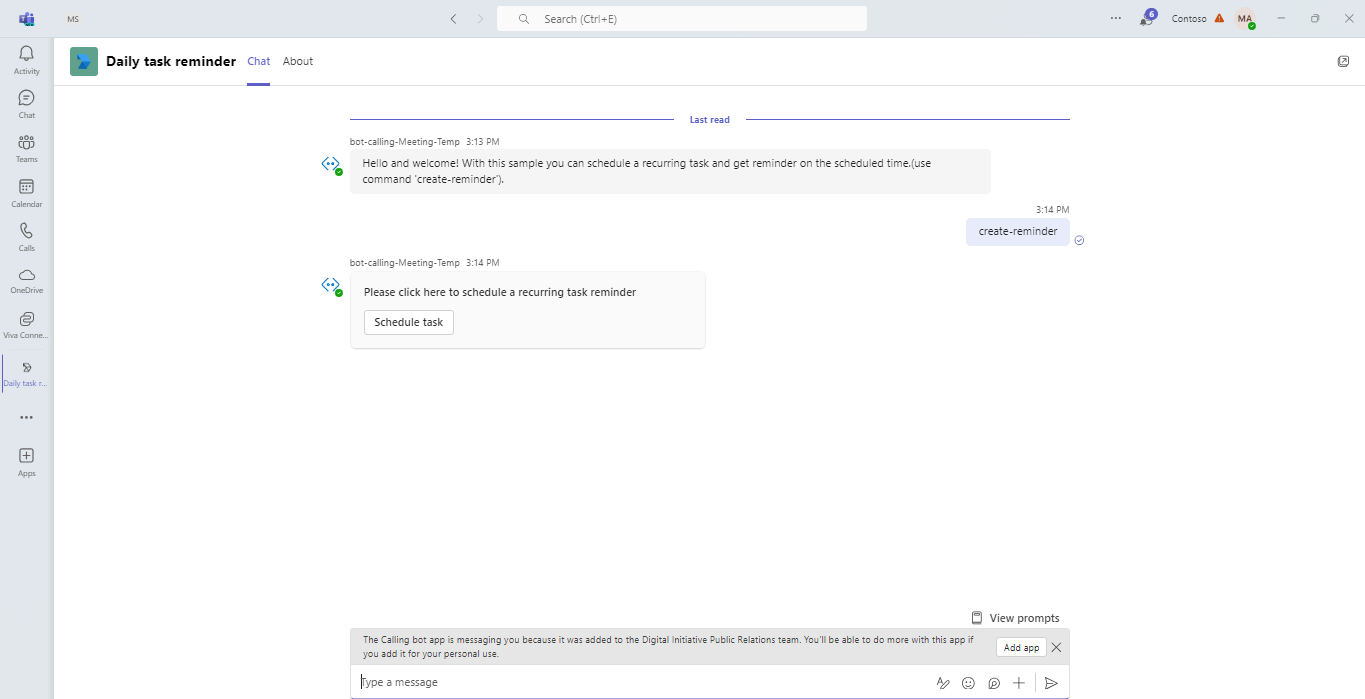

Daily Task Reminder

Try it yourself - experience the App in your Microsoft Teams client

Please find below demo manifest which is deployed on Microsoft Azure and you can try it yourself by uploading the app manifest (.zip file link below) to your teams and/or as a personal app. (Sideloading must be enabled for your tenant, see steps here).

Bot daily task reminder: Manifest

Prerequisites

.NET Core SDK version 6.0

determine dotnet version
```
dotnet --version
```
dev tunnel or Ngrok (For local environment testing) latest version (any other tunneling software can also be used)
Teams Microsoft Teams is installed and you have an account
Teams Toolkit for Visual Studio

Run the app (Using Teams Toolkit for Visual Studio)

The simplest way to run this sample in Teams is to use Teams Toolkit for Visual Studio.

Install Visual Studio 2022 Version 17.10 Preview 4 or higher Visual Studio
Install Teams Toolkit for Visual Studio Teams Toolkit extension
In the debug dropdown menu of Visual Studio, select Dev Tunnels > Create A Tunnel (set authentication type to Public) or select an existing public dev tunnel.
In the debug dropdown menu of Visual Studio, select default startup project > Microsoft Teams (browser)
In Visual Studio, right-click your TeamsApp project and Select Teams Toolkit > Prepare Teams App Dependencies
Using the extension, sign in with your Microsoft 365 account where you have permissions to upload custom apps.
Select Debug > Start Debugging or F5 to run the menu in Visual Studio.
In the browser that launches, select the Add button to install the app to Teams.

If you do not have permission to upload custom apps (sideloading), Teams Toolkit will recommend creating and using a Microsoft 365 Developer Program account - a free program to get your own dev environment sandbox that includes Teams.

Setup

Register a new application in the Microsoft Entra ID – App Registrations portal.
Setup for Bot

Also, register a bot with Azure Bot Service, following the instructions here.
- Ensure that you've enabled the Teams Channel
- While registering the bot, use https://<your_tunnel_domain>/api/messages as the messaging endpoint.

Run ngrok - point to port 3978
```
ngrok http 3978 --host-header="localhost:3978"
```
Alternatively, you can also use the dev tunnels. Please follow Create and host a dev tunnel and host the tunnel with anonymous user access command as shown below:
```
devtunnel host -p 3978 --allow-anonymous
```
Setup for code
- Clone the repository
```
git clone https://github.com/OfficeDev/Microsoft-Teams-Samples.git
```
- Launch Visual Studio
  - File -> Open -> Project/Solution
  - Navigate to folder where repository is cloned then samples/bot-daily-task-reminder/csharp/BotDailyTaskReminder.sln
- Modify the appsettings.json and fill in the following details:
  - {{Microsoft-App-Id}} - Generated from Step 1 is the application app id
  - {{ Microsoft-App-Password}} - Generated from Step 1, also referred to as Client secret
  - {{ Application Base Url }} - Your application's base url. E.g. https://12345.ngrok-free.app if you are using ngrok and if you are using dev tunnels, your URL will be https://12345.devtunnels.ms.
  - Press F5 to run the project
Setup Manifest for Teams
- This step is specific to Teams.
  - Edit the manifest.json contained in the ./appPackage folder to replace your Microsoft App Id (that was created when you registered your app registration earlier) everywhere you see the place holder string {{Microsoft-App-Id}} (depending on the scenario the Microsoft App Id may occur multiple times in the manifest.json)
  - Edit the manifest.json for validDomains and replace {{domain-name}} with base Url of your domain. E.g. if you are using ngrok it would be https://1234.ngrok-free.app then your domain-name will be 1234.ngrok-free.app and if you are using dev tunnels then your domain will be like: 12345.devtunnels.ms.
  - Zip up the contents of the appPackage folder to create a manifest.zip (Make sure that zip file does not contains any subfolder otherwise you will get error while uploading your .zip package)
- Upload the manifest.zip to Teams (in the Apps view click "Upload a custom app")
  - Go to Microsoft Teams. From the lower left corner, select Apps
  - From the lower left corner, choose Upload a custom App
  - Go to your project directory, the ./appPackage folder, select the zip folder, and choose Open.
  - Select Add in the pop-up dialog box. Your app is uploaded to Teams.
