Receive Channel messages with RSC permissions

  • Code Sample
Browse code

Using this C# sample, a bot can receive all channel messages with RSC without @mention.

This feature shown in this sample is currently available in Public Developer Preview only.

Included Features

  • Bots
  • Adaptive Cards
  • RSC Permissions

Interaction with app

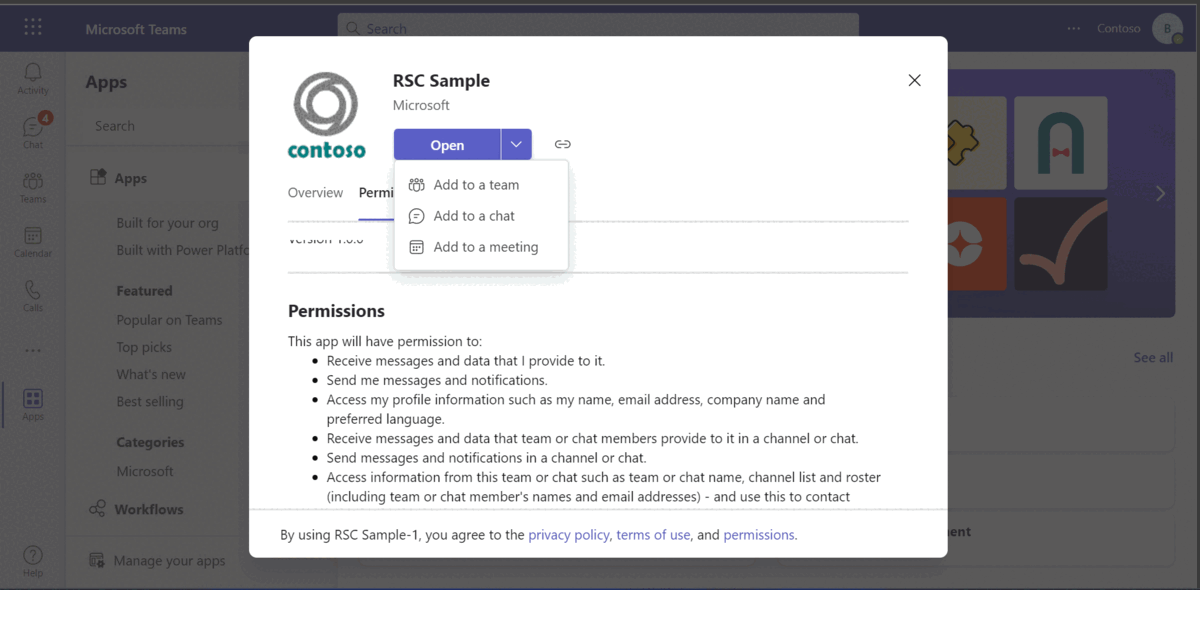

RSC Module

Try it yourself - experience the App in your Microsoft Teams client

Please find below demo manifest which is deployed on Microsoft Azure and you can try it yourself by uploading the app manifest (.zip file link below) to your teams and/or as a personal app. (Sideloading must be enabled for your tenant, see steps here).

Receive Channel messages with RSC permissions: Manifest

Prerequisites

  • .NET Core SDK version 6.0

    determine dotnet version

    dotnet --version

  • dev tunnel or Ngrok (For local environment testing) latest version (any other tunneling software can also be used)

  • Teams Microsoft Teams is installed and you have an account

Run the app (Using Teams Toolkit for Visual Studio)

The simplest way to run this sample in Teams is to use Teams Toolkit for Visual Studio.

  1. Install Visual Studio 2022 Version 17.10 Preview 4 or higher Visual Studio
  2. Install Teams Toolkit for Visual Studio Teams Toolkit extension
  3. In the debug dropdown menu of Visual Studio, select Dev Tunnels > Create A Tunnel (set authentication type to Public) or select an existing public dev tunnel.
  4. In the debug dropdown menu of Visual Studio, select default startup project > Microsoft Teams (browser)
  5. In Visual Studio, right-click your TeamsApp project and Select Teams Toolkit > Prepare Teams App Dependencies
  6. Using the extension, sign in with your Microsoft 365 account where you have permissions to upload custom apps.
  7. Select Debug > Start Debugging or F5 to run the menu in Visual Studio.
  8. In the browser that launches, select the Add button to install the app to Teams.

If you do not have permission to upload custom apps (sideloading), Teams Toolkit will recommend creating and using a Microsoft 365 Developer Program account - a free program to get your own dev environment sandbox that includes Teams.

Setup

  1. Register a new application in the Microsoft Entra ID – App Registrations portal.

  2. Setup for Bot

  • Register a Microsoft Entra ID aap registration in Azure portal.
  • Also, register a bot with Azure Bot Service, following the instructions here.
  • Ensure that you've enabled the Teams Channel
  • While registering the bot, use https://<your_tunnel_domain>/api/messages as the messaging endpoint.
  1. Setup Ngrok

  • Run ngrok - point to port 3978

    ngrok http 3978 --host-header="localhost:3978"

    Alternatively, you can also use the dev tunnels. Please follow Create and host a dev tunnel and host the tunnel with anonymous user access command as shown below:

    devtunnel host -p 3978 --allow-anonymous
  1. Setup for code

  • Clone the repository

    git clone https://github.com/OfficeDev/Microsoft-Teams-Samples.git

  • Modify the /appsettings.json and fill in the following details:

    • {{BOT-ID}} - Generated from Step 1 while doing Microsoft Entra ID app registration in Azure portal.
    • {{BOT-PASSWORD}} -Generated from Step 1, also referred to as Client secret

  • Run in Visual Studio

    • Launch Visual Studio
    • File -> Open -> Project/Solution
    • Navigate to ReceiveMessagesWithRSC folder
    • Select ReceiveMessagesWithRSC.csproj file
    • Press F5 to run the project
  1. This step is specific to Teams.

    • Edit the manifest.json contained in the appPackage folder to replace your Microsoft App Id (that was created when you registered your bot earlier) everywhere you see the place holder string <<YOUR-MICROSOFT-APP-ID>> (depending on the scenario the Microsoft App Id may occur multiple times in the manifest.json) also update the <<DOMAIN-NAME>> with the tunnel URL`

    • Edit the manifest.json for <<MANIFEST-ID>> replace it with any GUID using guid generator.

    • Edit the manifest.json for webApplicationInfo resource "api://botid-{{MicrosoftAppId}}" with MicrosoftAppId. E.g. "api://botid-{{MicrosoftAppId}}".

    • Zip up the contents of the appPackage folder to create a manifest.zip

    • Sideload in a team to test

      • Select or create a team
      • Select the ellipses ... from the left pane. The drop-down menu appears.
      • Select Manage Team, then select Apps
      • Then select Upload a custom app from the lower right corner.
      • Then select the manifest.zip file from appPackage, and then select Add to add the bot to your selected team.

Note: If you are facing any issue in your app, please uncomment this line and put your debugger for local debug.

Interacting with the bot in Teams

Select a channel and enter a message in the channel for your bot.

The bot receives the message without being @mentioned.

Running the sample

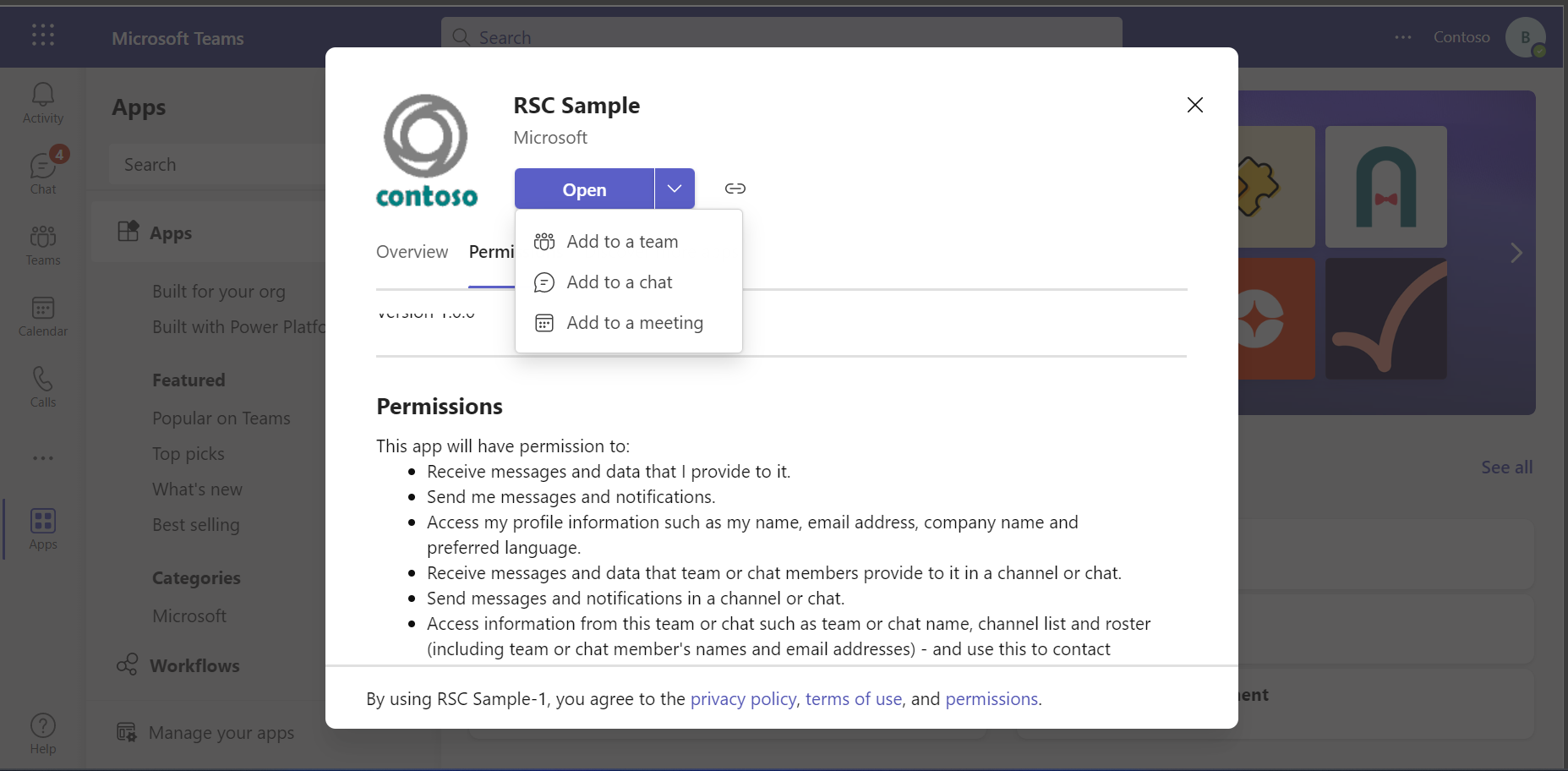

App Installation

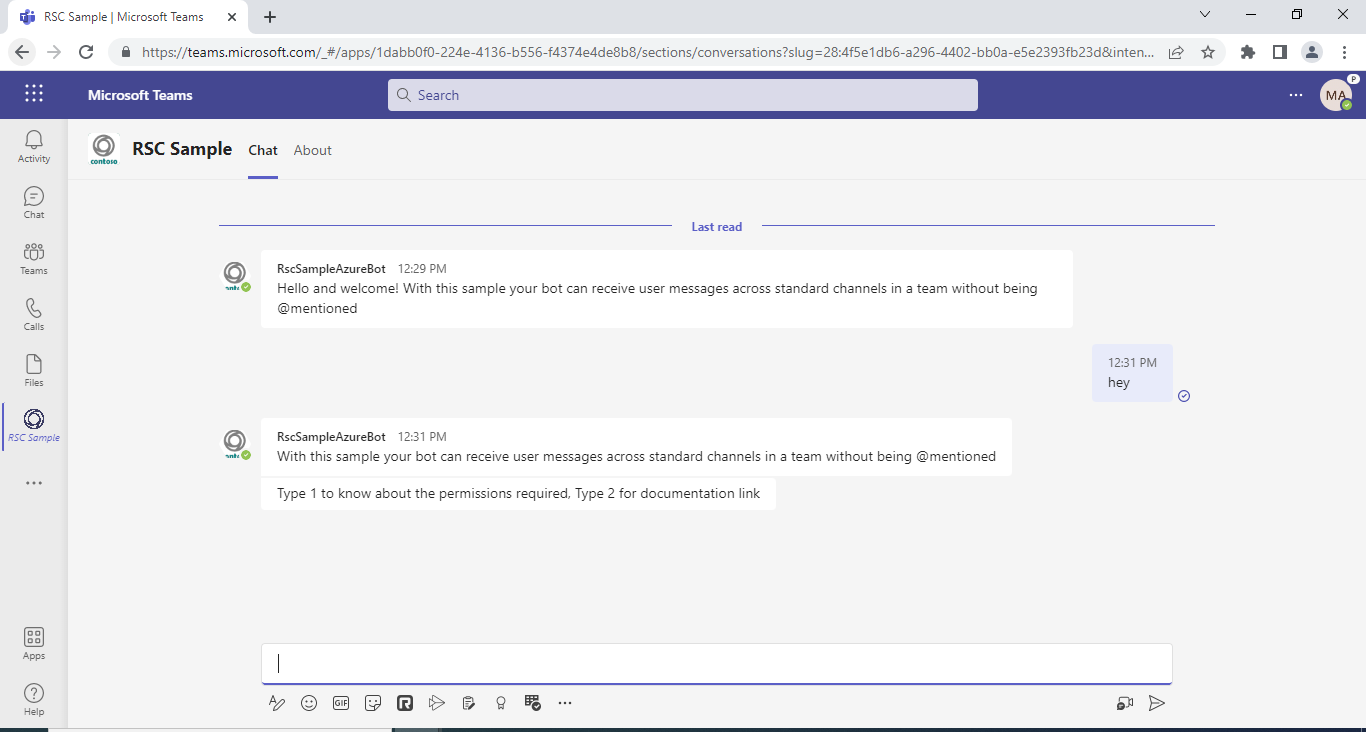

  • Showing Welcome message

Channel messages

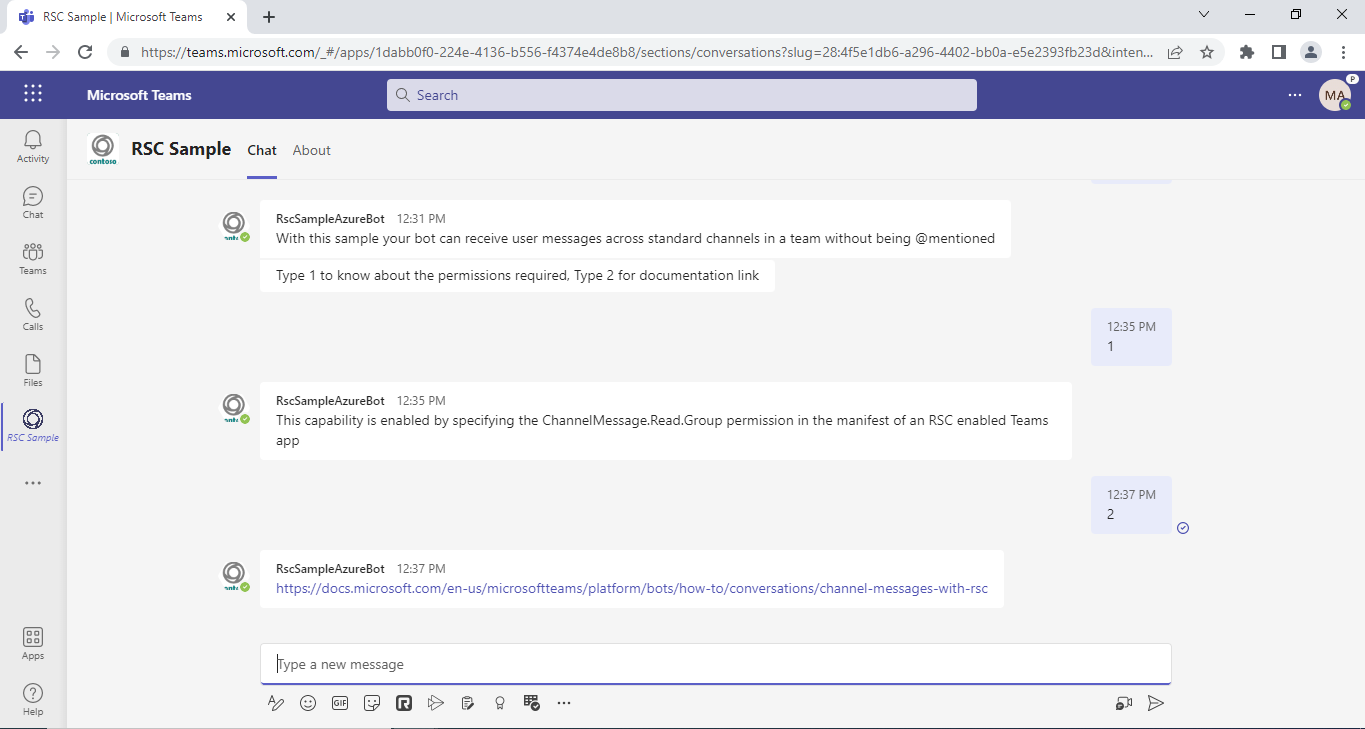

  • Showing messages based on option selected

Channel messages

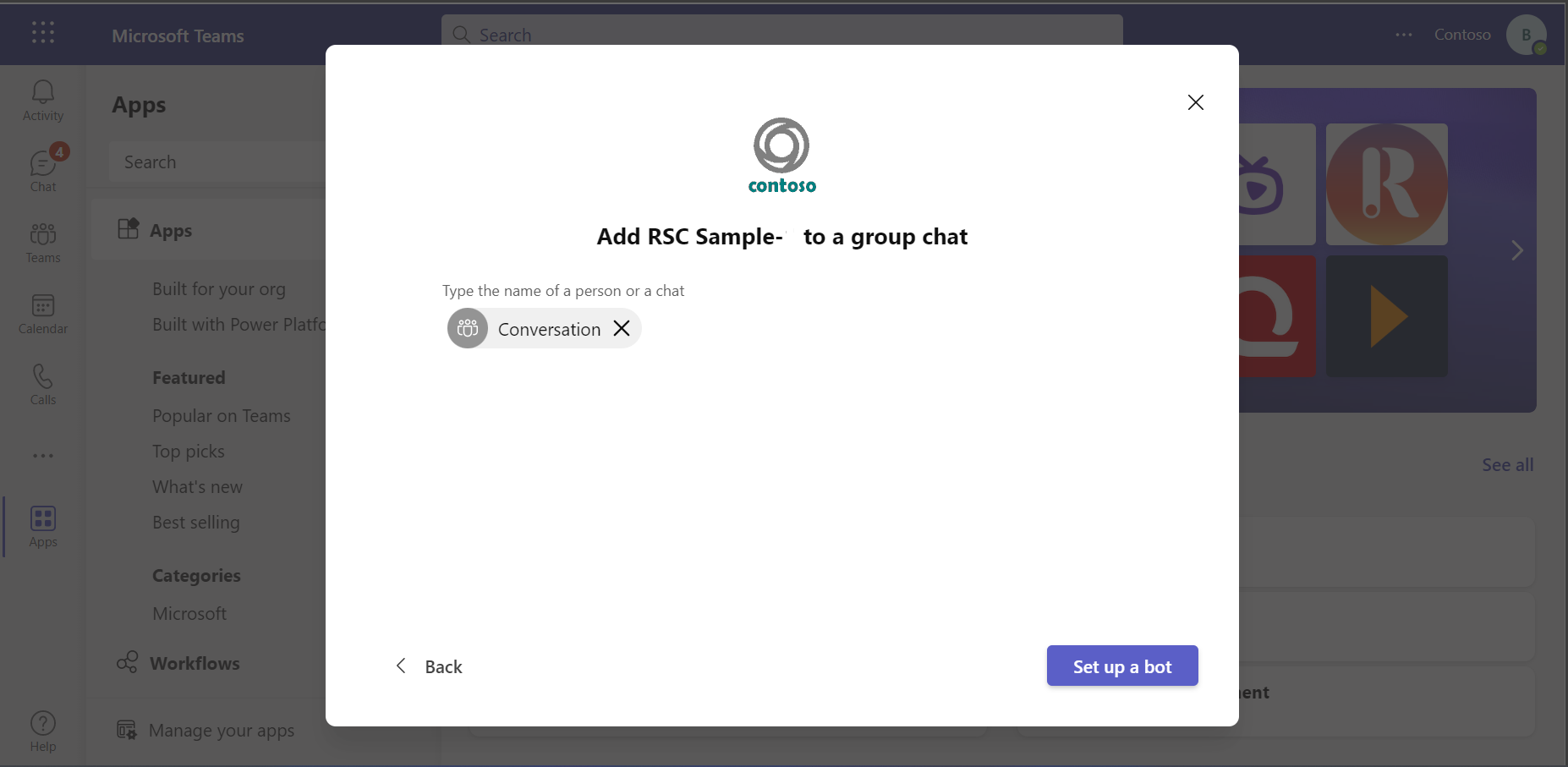

  • Adding to group chat

Add To Group Chat

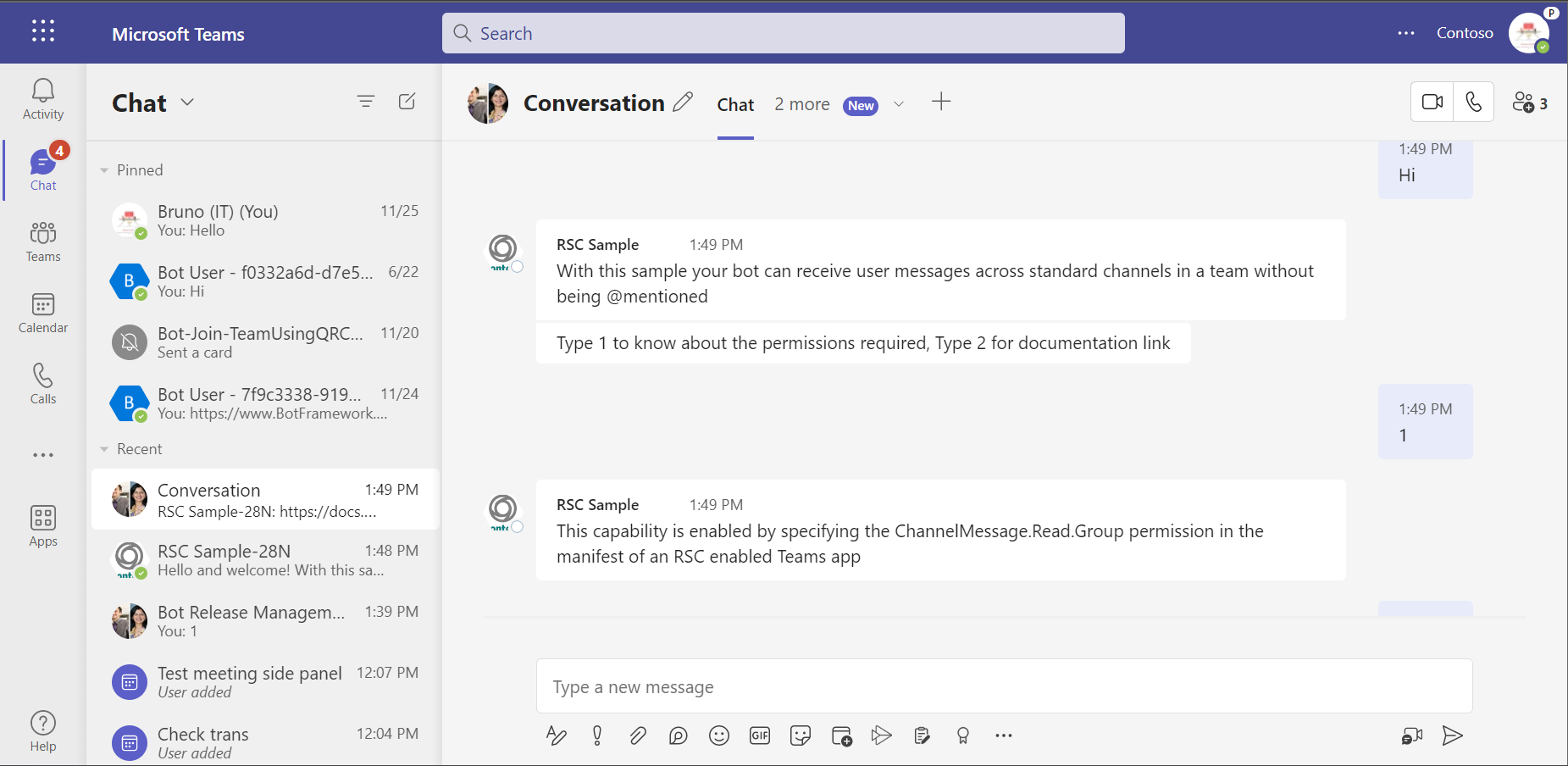

  • Receives messages in group chat without being @mentioned.

Channel messages

Deploy the bot to Azure

To learn more about deploying a bot to Azure, see Deploy your bot to Azure for a complete list of deployment instructions.
