RSC with Graph API

05/29/2025

This sample application showcases how to implement Resource Specific Consent (RSC) for accessing Microsoft Graph APIs within Microsoft Teams. It provides capabilities for requesting permissions, interacting through a Teams tab, and managing user notifications, enhancing the app's integration and usability.

Included Features

Tabs

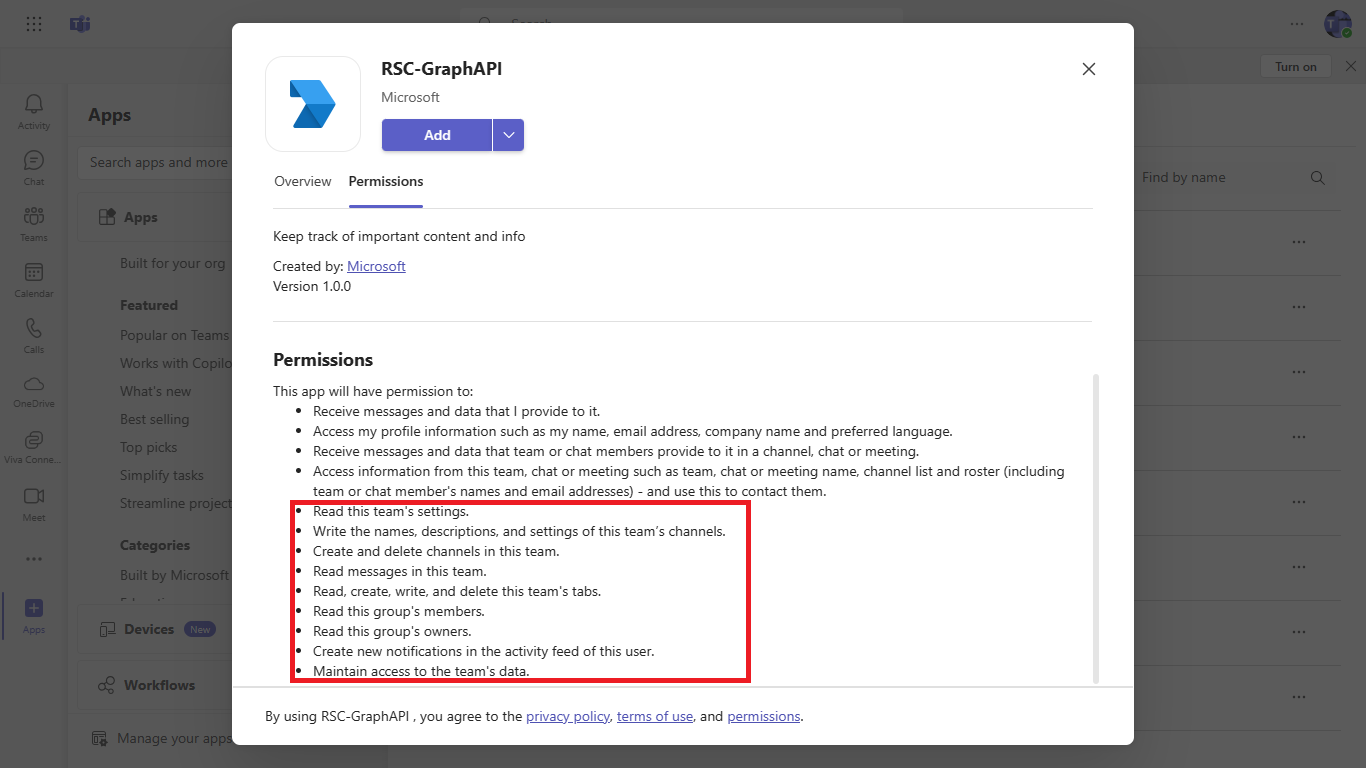

RSC Permissions

Interaction with app

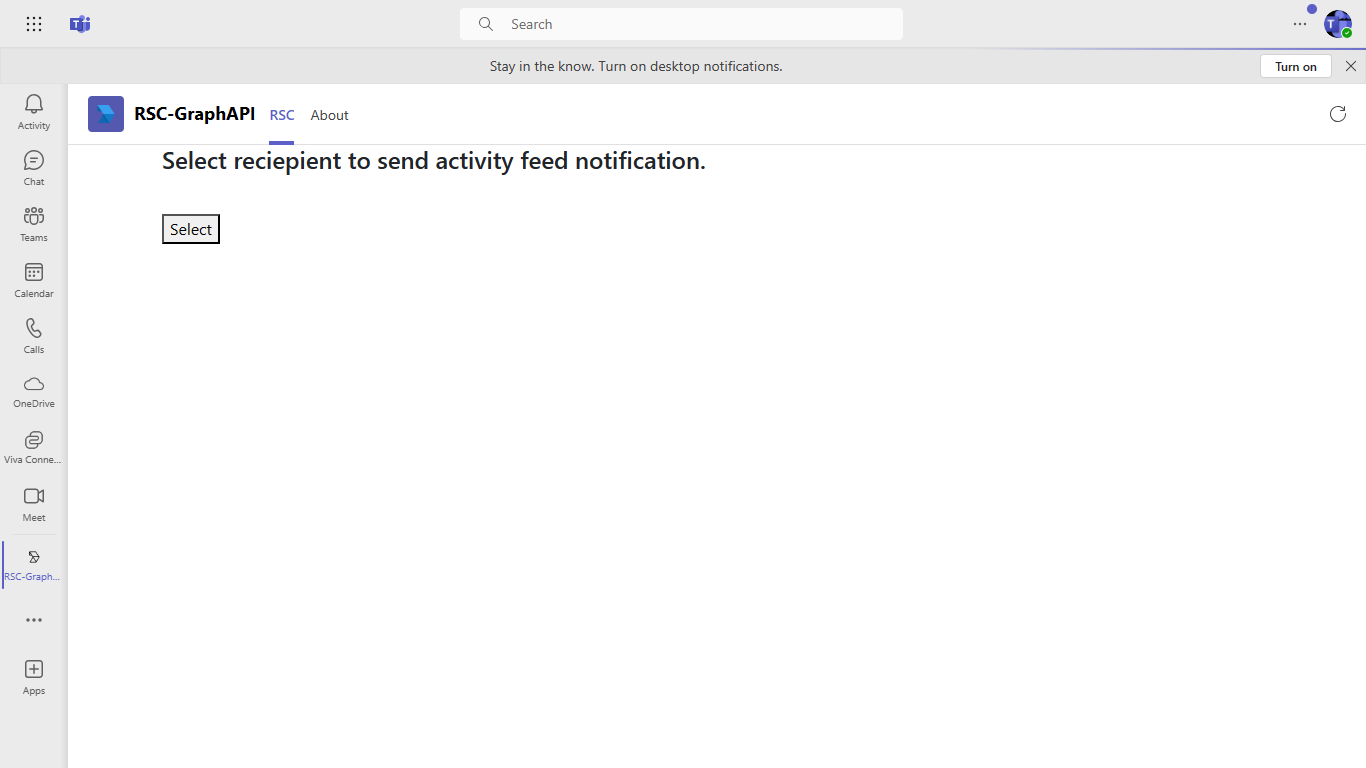

Broadcast from user

Try it yourself - experience the App in your Microsoft Teams client

Please find below demo manifest which is deployed on Microsoft Azure and you can try it yourself by uploading the app manifest (.zip file link below) to your teams and/or as a personal app. (Uploading must be enabled for your tenant, see steps here).

RSC with Graph API: Manifest

Prerequisites

.NET Core SDK version 6.0

# determine dotnet version
dotnet --version

Graph explorer
Teams Toolkit for Visual Studio

Run the app (Using Teams Toolkit for Visual Studio)

The simplest way to run this sample in Teams is to use Teams Toolkit for Visual Studio.

Install Visual Studio 2022 Version 17.14 or higher Visual Studio
Install Teams Toolkit for Visual Studio Teams Toolkit extension
In the debug dropdown menu of Visual Studio, select default startup project > Microsoft Teams (browser)
Right-click the 'M365Agent' project in Solution Explorer and select Microsoft 365 Agents Toolkit > Select Microsoft 365 Account
Sign in to Microsoft 365 Agents Toolkit with a Microsoft 365 work or school account
Set Startup Item as Microsoft Teams (browser).
Press F5, or select Debug > Start Debugging menu in Visual Studio to start your app
In the opened web browser, select Add button to install the app in Teams

If you do not have permission to upload custom apps (uploading), Microsoft 365 Agents Toolkit will recommend creating and using a Microsoft 365 Developer Program account - a free program to get your own dev environment sandbox that includes Teams.

Setup

Register your app with Microsoft identity platform via the Microsoft Entra ID portal (Microsoft Entra ID app registration)
- Your app must be registered in the Microsoft Entra ID portal to integrate with the Microsoft identity platform and call Microsoft Graph APIs. See Register an application with the Microsoft identity platform. Note - Make sure you have added TeamsAppInstallation.ReadForUser.All as Application level

Clone the repository

git clone https://github.com/OfficeDev/microsoft-teams-samples.git

Build your solution
- Launch Visual Studio
- File -> Open -> Project/Solution
- Navigate to samples/graph-rsc folder
- Select RSCDemo.sln file
- Build the solution
Run ngrok - point to port 3978
```
ngrok http 3978 --host-header="localhost:3978"
```
Alternatively, you can also use the dev tunnels. Please follow Create and host a dev tunnel and host the tunnel with anonymous user access command as shown below:
```
devtunnel host -p 3978 --allow-anonymous
```
Update appsettings.json
- Update configuration for <<Client Id>>, <<Client Secret>> and <<Tenant Id>> with the MicrosoftAppId , MicrosoftAppPassword and TenantId which was generated while doing Microsoft Entra ID app registration in your Azure Portal.
Run the bot from Visual Studio:
- Press F5 to run the project
Setup the manifest.json in the /appPackage folder Replace the following details:
- Replace <<Your Microsoft APP Id>> at all the places with your MicrosoftAppId received while doing Microsoft Entra ID app registration in Azure portal
- [Your tunnel Domain] with base Url domain. E.g. if you are using ngrok it would be https://1234.ngrok-free.app then your domain-name will be 1234.ngrok-free.app and if you are using dev tunnels then your domain will be like: 12345.devtunnels.ms.
- Zip up the contents of the appPackage folder to create a manifest.zip
- Upload the manifest.zip to Teams (in the Apps view click "Upload a custom app")
