Bot to show the transcript of the meeting using Microsoft Graph API.

Browse code

The Meeting Transcript Bot uses Microsoft Graph API to fetch and present meeting transcripts within a Teams task module. It features adaptive cards and bot interactions for seamless user engagement during meetings.

Included Features

  • Bots
  • Adaptive Cards
  • Task Modules
  • RSC Permissions

Interaction with app

MeetingsTranscriptionGif

Try it yourself - experience the App in your Microsoft Teams client

Please find below demo manifest which is deployed on Microsoft Azure and you can try it yourself by uploading the app manifest (.zip file link below) to your teams and/or as a personal app. (Sideloading must be enabled for your tenant, see steps here).

Meeting Transcript Bot uses Microsoft Graph API: Manifest

Prerequisites

Run the app (Using Microsoft 365 Agents Toolkit for Visual Studio)

The simplest way to run this sample in Teams is to use Microsoft 365 Agents Toolkit for Visual Studio.

  1. Install Visual Studio 2022 Version 17.14 or higher Visual Studio
  2. Install Microsoft 365 Agents Toolkit for Visual Studio Microsoft 365 Agents Toolkit extension
  3. In the debug dropdown menu of Visual Studio, select Dev Tunnels > Create A Tunnel (set authentication type to Public) or select an existing public dev tunnel.
  4. Right-click the 'M365Agent' project in Solution Explorer and select Microsoft 365 Agents Toolkit > Select Microsoft 365 Account
  5. Sign in to Microsoft 365 Agents Toolkit with a Microsoft 365 work or school account
  6. Set Startup Item as Microsoft Teams (browser).
  7. Press F5, or select Debug > Start Debugging menu in Visual Studio to start your app
  8. In the opened web browser, select Add button to install the app in Teams

If you do not have permission to upload custom apps (uploading), Microsoft 365 Agents Toolkit will recommend creating and using a Microsoft 365 Developer Program account - a free program to get your own dev environment sandbox that includes Teams.

Setup

*NOTE: The feature is only available only be used from the desktop app

  1. Register a new application in the Microsoft Entra ID – App Registrations portal.

  • Register one Azure AD application in your tenant's directory: for the bot and tab app authentication.

  • Log in to the Azure portal from your subscription, and go to the "App registrations" blade here. Ensure that you use a tenant where admin consent for API permissions can be provided.

  • Click on "New registration", and create an Azure AD application.

  • Name: The name of your Teams app - if you are following the template for a default deployment, we recommend "App catalog lifecycle".

  • Supported account types: Select "Accounts in any organizational directory"

  • Leave the "Redirect URL" field blank.

  • Click on the "Register" button.

  • When the app is registered, you'll be taken to the app's "Overview" page. Copy the Application (client) ID; we will need it later. Verify that the "Supported account types" is set to Multiple organizations.

  • On the side rail in the Manage section, navigate to the "Certificates & secrets" section. In the Client secrets section, click on "+ New client secret". Add a description for the secret and select Expires as "Never". Click "Add".

  • Once the client secret is created, copy its Value, please take a note of the secret as it will be required later.

  • At this point you have 3 unique values:

  • Application (client) ID which will be later used during Azure bot creation

  • Client secret for the bot which will be later used during Azure bot creation

  • Directory (tenant) ID We recommend that you copy these values into a text file, using an application like Notepad. We will need these values later.

  • Under left menu, navigate to API Permissions, and make sure to add the following permissions of Microsoft Graph API > Application permissions:

    • OnlineMeetings.Read.All
    • OnlineMeetingTranscript.Read.All

    Click on Add Permissions to commit your changes.

  • If you are logged in as the Global Administrator, click on the Grant admin consent for %tenant-name% button to grant admin consent else, inform your admin to do the same through the portal or follow the steps provided here to create a link and send it to your admin for consent.

  • Global Administrator can grant consent using following link: https://login.microsoftonline.com/common/adminconsent?client_id=<%appId%>

  1. Setup for Bot

  • Register a bot with Azure Bot Service, following the instructions here

  • Ensure that you've enabled the Teams Channel

  • While registering the bot, use https://<your_tunnel_domain>/api/messages as the messaging endpoint.

    NOTE: When you create your bot you will create an App ID and App password - make sure you keep these for later.

  1. Setup NGROK

  1. Run ngrok - point to port 3978

    ngrok http 3978 --host-header="localhost:3978"

    Alternatively, you can also use the dev tunnels. Please follow Create and host a dev tunnel and host the tunnel with anonymous user access command as shown below:

    devtunnel host -p 3978 --allow-anonymous
  • If you are using Ngrok, once started you should see URL https://41ed-abcd-e125.ngrok-free.app. Copy it, this is your baseUrl that will used as endpoint for Azure bot and webhook.
  1. Setup for code

  • Clone the repository

    git clone https://github.com/OfficeDev/Microsoft-Teams-Samples.git

  • Update the appsettings.json configuration for the bot to use the MicrosoftAppId and MicrosoftAppPassword and MicrosoftAppTenantId and AppBaseUrl and UserId (Note that the MicrosoftAppId is the AppId created in step 1 , the MicrosoftAppPassword is referred to as the "client secret" in step 1 and you can always create a new client secret anytime., MicrosoftAppTenantId is reffered to as Directory tenant Id in step 1, AppBaseUrl is the URL that you get in step 3 after running the tunnel, UserId of the user used while granting the policy in step 5).

  • Run the bot from a terminal or from Visual Studio: A) From a terminal, navigate to MeetingTranscription

    # run the bot
dotnet run

    B) Or from Visual Studio

    • Launch Visual Studio
    • File -> Open -> Project/Solution
    • Navigate to samples/meetings-transcription/csharp folder
    • Select MeetingTranscription.csproj file
    • Press F5 to run the project

NOTE: If you are not getting option to start transcript. Make sure it is enabled from Teams Admin center. Under Meetings -> Meeting Policies -> Applied policy(Default is Global)-> Recording & Transcription -> Transcription

*NOTE: The feature is only available only be used from the desktop app

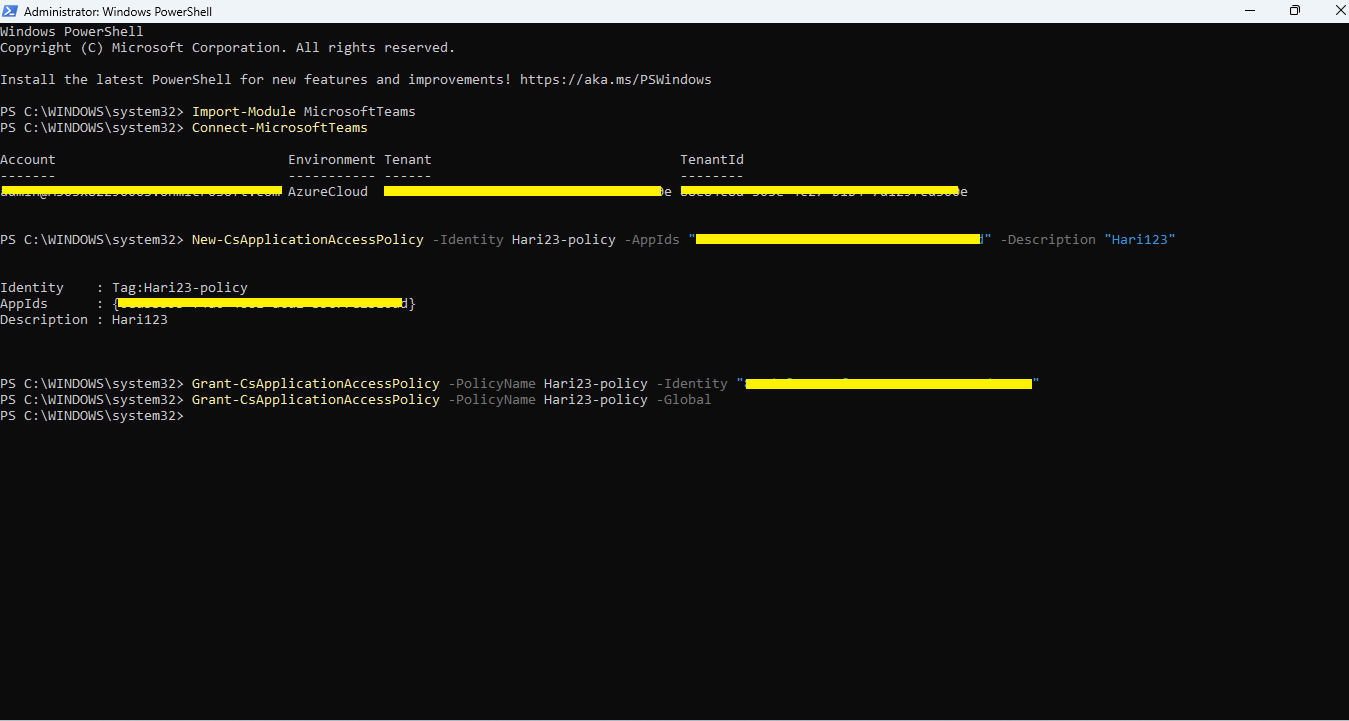

  1. Allow applications to access online meetings on behalf of a user
  1. Setup Manifest for Teams

  • This step is specific to Teams.

    • Edit the manifest.json contained in the ./appPackage folder to replace your Microsoft App Id (that was created when you registered your app registration earlier) everywhere you see the place holder string {{Microsoft-App-Id}} (depending on the scenario the Microsoft App Id may occur multiple times in the manifest.json)
    • Edit the manifest.json for validDomains and replace {{domain-name}} with base Url of your domain. E.g. if you are using ngrok it would be https://1234.ngrok-free.app then your domain-name will be 1234.ngrok-free.app and if you are using dev tunnels then your domain will be like: 12345.devtunnels.ms.
    • Zip up the contents of the appPackage folder to create a manifest.zip (Make sure that zip file does not contains any subfolder otherwise you will get error while uploading your .zip package)

  • Upload the manifest.zip to Teams (in the Apps view click "Upload a custom app")

    • Go to Microsoft Teams. From the lower left corner, select Apps
    • From the lower left corner, choose Upload a custom App
    • Go to your project directory, the ./appPackage folder, select the zip folder, and choose Open.
    • Select Add in the pop-up dialog box. Your app is uploaded to Teams.

Note: If you are facing any issue in your app, please uncomment this line and put your debugger for local debug.

Running the sample.

  1. Schedule the meeting and add Meeting Transcript Bot from Apps section in that particular scheduled meeting. Add Bot

AddMeetingGroup

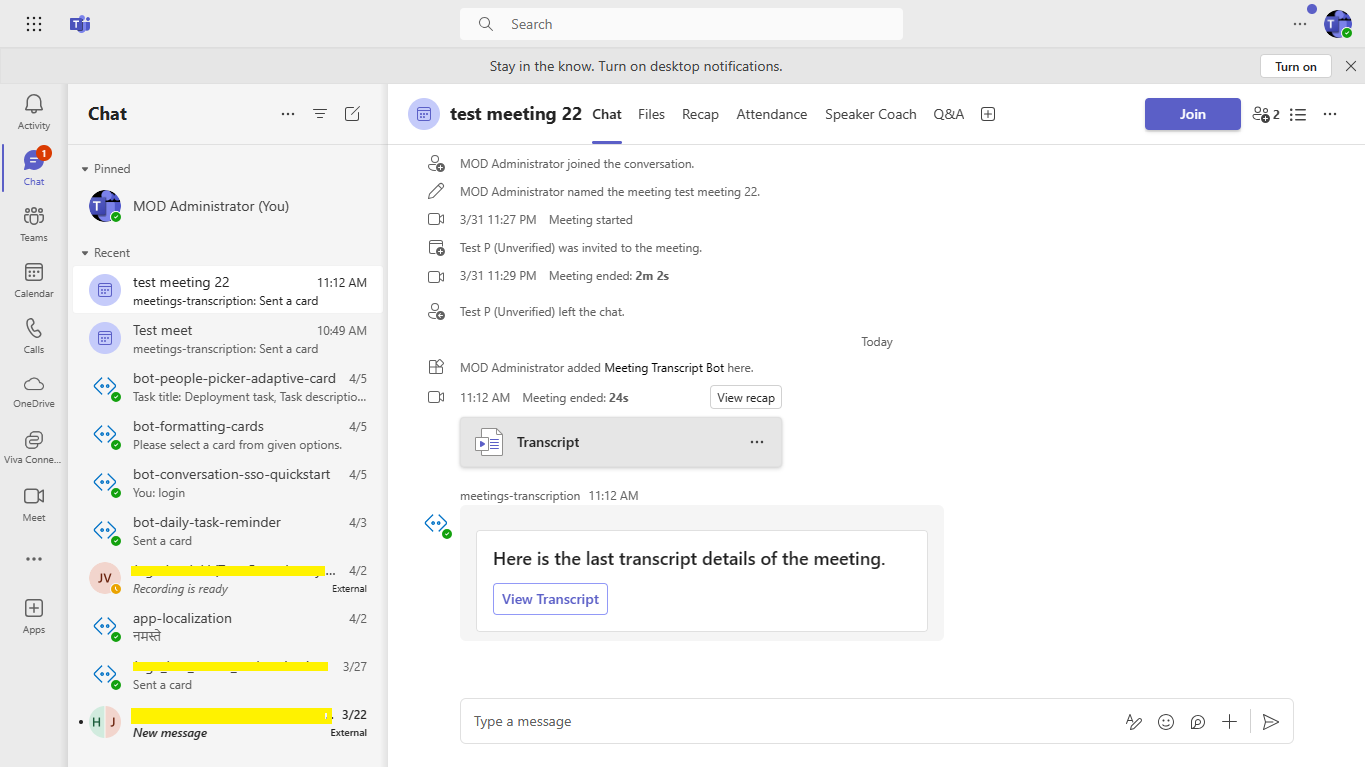

JoinMeeting

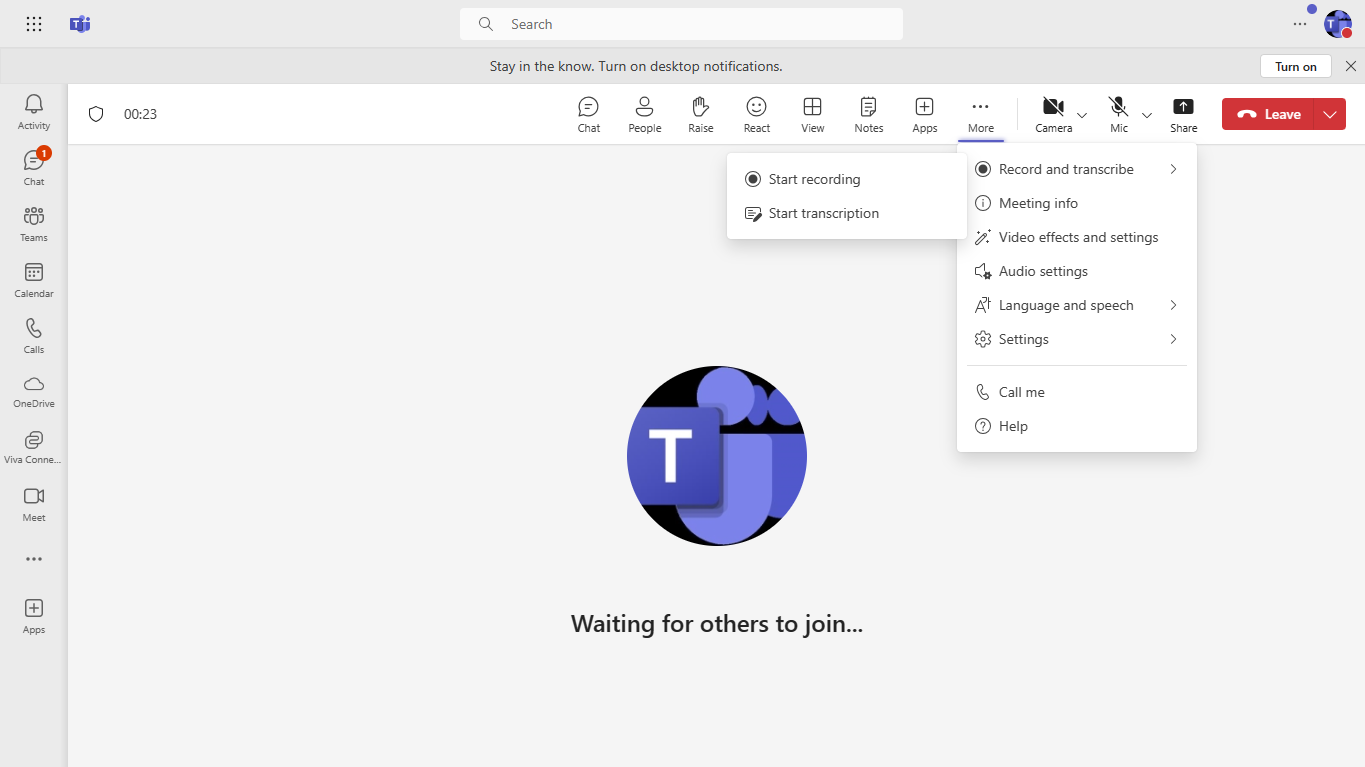

  1. Once meeting started, start the Transcript for the meeting. Start Transcript

  2. Once the transcription has started, you can see the live transcription it the meeting UI. Leave Meeting

  3. Once the Meeting ended, Meeting Transcript Bot will sent a card having a button to open task module. Meeting Transcript Card

  4. After clicking on View Transcript button, you will see the recorded Transcript in the opened Task Module. Transcript Task Module

Interacting with the bot.

  • After uploading the manifest add the bot into meeting.
  • Join meeting and Start Transcript
  • Once done, leave the meeting.
  • You will get the card to open task module and see the transcript created.

Deploy the bot to Azure

To learn more about deploying a bot to Azure, see Deploy your bot to Azure for a complete list of deployment instructions.
