Stage View

Browse code

This sample app illustrates the capabilities of Microsoft Teams tabs in stage view using C#. It demonstrates collaborative features, such as multi-window support and deep linking, allowing users to engage interactively through adaptive cards and links that enhance the overall user experience in Teams. This App talks about the Teams tab in stage view with CSharp. For reference please check Tabs link unfurling and Stage View

Included Features

  • Bots
  • Stage View (tabs)
  • Collaborative Stageview
  • Stageview Multi-window (PopOut)
  • Stageview Modal

Interaction with app

TabStageView Modules

Try it yourself - experience the App in your Microsoft Teams client

Please find below demo manifest which is deployed on Microsoft Azure and you can try it yourself by uploading the app manifest (.zip file link below) to your teams and/or as a personal app. (Uploading must be enabled for your tenant, see steps here).

Stage View: Manifest

Prerequisites

Run the app (Using Microsoft 365 Agents Toolkit for Visual Studio)

The simplest way to run this sample in Teams is to use Microsoft 365 Agents Toolkit for Visual Studio.

  1. Install Visual Studio 2022 Version 17.14 or higher Visual Studio
  2. Install Microsoft 365 Agents Toolkit for Visual Studio Microsoft 365 Agents Toolkit extension
  3. In the debug dropdown menu of Visual Studio, select Dev Tunnels > Create A Tunnel (set authentication type to Public) or select an existing public dev tunnel.
  4. Right-click the 'M365Agent' project in Solution Explorer and select Microsoft 365 Agents Toolkit > Select Microsoft 365 Account
  5. Sign in to Microsoft 365 Agents Toolkit with a Microsoft 365 work or school account
  6. Set Startup Item as Microsoft Teams (browser).
  7. Press F5, or select Debug > Start Debugging menu in Visual Studio to start your app
  8. In the opened web browser, select Add button to install the app in Teams

If you do not have permission to upload custom apps (uploading), Microsoft 365 Agents Toolkit will recommend creating and using a Microsoft 365 Developer Program account - a free program to get your own dev environment sandbox that includes Teams.

Setup

  1. Register a new application in the Microsoft Entra ID – App Registrations portal.

  2. Setup for Bot

  • Register a Microsoft Entra ID aap registration in Azure portal.

  • Also, register a bot with Azure Bot Service, following the instructions here.

  • Ensure that you've enabled the Teams Channel

  • While registering the bot, use https://<your_tunnel_domain>/api/messages as the messaging endpoint.

    NOTE: When you create your app registration, you will create an App ID and App password - make sure you keep these for later.

  1. Setup NGROK

  • Run ngrok - point to port 3978

    ngrok http 3978 --host-header="localhost:3978"

    Alternatively, you can also use the dev tunnels. Please follow Create and host a dev tunnel and host the tunnel with anonymous user access command as shown below:

    devtunnel host -p 3978 --allow-anonymous
  1. Setup for code

  • Clone the repository

    git clone https://github.com/OfficeDev/Microsoft-Teams-Samples.git

  • Modify the /appsettings.json and fill in the following details:

    • {{Bot Id}} - Generated from Step 1 while doing Microsoft Entra ID app registration in Azure portal.
    • {{ Bot Password}} - Generated from Step 1, also referred to as Client secret
    • {{ Application Base URL }} - Your application's base url. E.g. https://12345.ngrok-free.app if you are using ngrok and if you are using dev tunnels, your URL will be like: https://12345.devtunnels.ms.

  • In a terminal, navigate to TabInStageView

    # change into project folder
cd # TabInStageView

  • Run the bot from a terminal or from Visual Studio, choose option A or B.

    A) From a terminal

    # run the bot
dotnet run

    B) Or from Visual Studio

    • Launch Visual Studio
    • File -> Open -> Project/Solution
    • Navigate to TabInStageView folder
    • Select TabInStageView.csproj file
    • Press F5 to run the project
  1. Setup Manifest for Teams

  • This step is specific to Teams.

    • Edit the manifest.json contained in the ./appPackage folder to replace your Microsoft App Id (that was created when you registered your app registration earlier) everywhere you see the place holder string {{Microsoft-App-Id or Bot-id}} (depending on the scenario the Microsoft App Id may occur multiple times in the manifest.json)
    • Edit the manifest.json for validDomains and replace {{domain-name}} with base Url of your domain. E.g. if you are using ngrok it would be https://1234.ngrok-free.app then your domain-name will be 1234.ngrok-free.app and if you are using dev tunnels then your domain will be like: 12345.devtunnels.ms. Note: If you want to test your app across multi hub like: Outlook/Office.com, please update the manifest.json in the TabInStageView\AppManifest_Hub folder with the required values.
    • Zip up the contents of the Manifest folder to create a Manifest.zip or AppManifest_Hub folder to create a AppManifest_Hub.zip (Make sure that zip file does not contains any subfolder otherwise you will get error while uploading your .zip package)

  • Upload the manifest.zip to Teams (in the Apps view click "Upload a custom app")

    • Go to Microsoft Teams. From the lower left corner, select Apps
    • From the lower left corner, choose Upload a custom App
    • Go to your project directory, the ./appPackage folder, select the zip folder, and choose Open.
    • Select Add in the pop-up dialog box. Your app is uploaded to Teams.

Note: If you are facing any issue in your app, please uncomment this line and put your debugger for local debug.

Interacting with the bot in Teams

You can use this tab by following the below steps:
- In the navigation bar located at the far left in Teams, select the ellipses ●●● and choose your app from the list.

Running the sample

  • In the navigation bar located at the far left in Teams, select the ellipses ●●● and choose your app from the list.

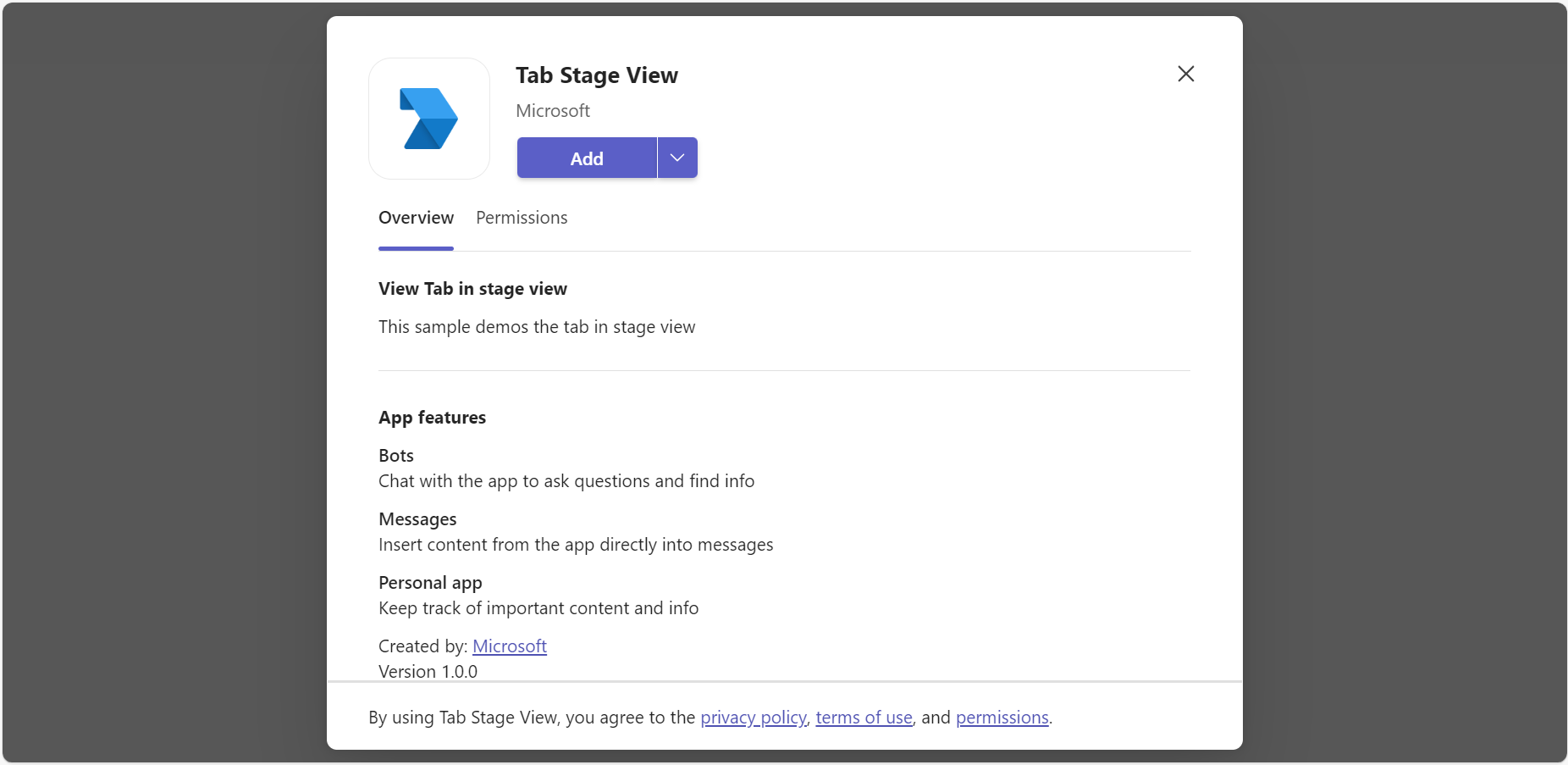

Install App:

InstallApp

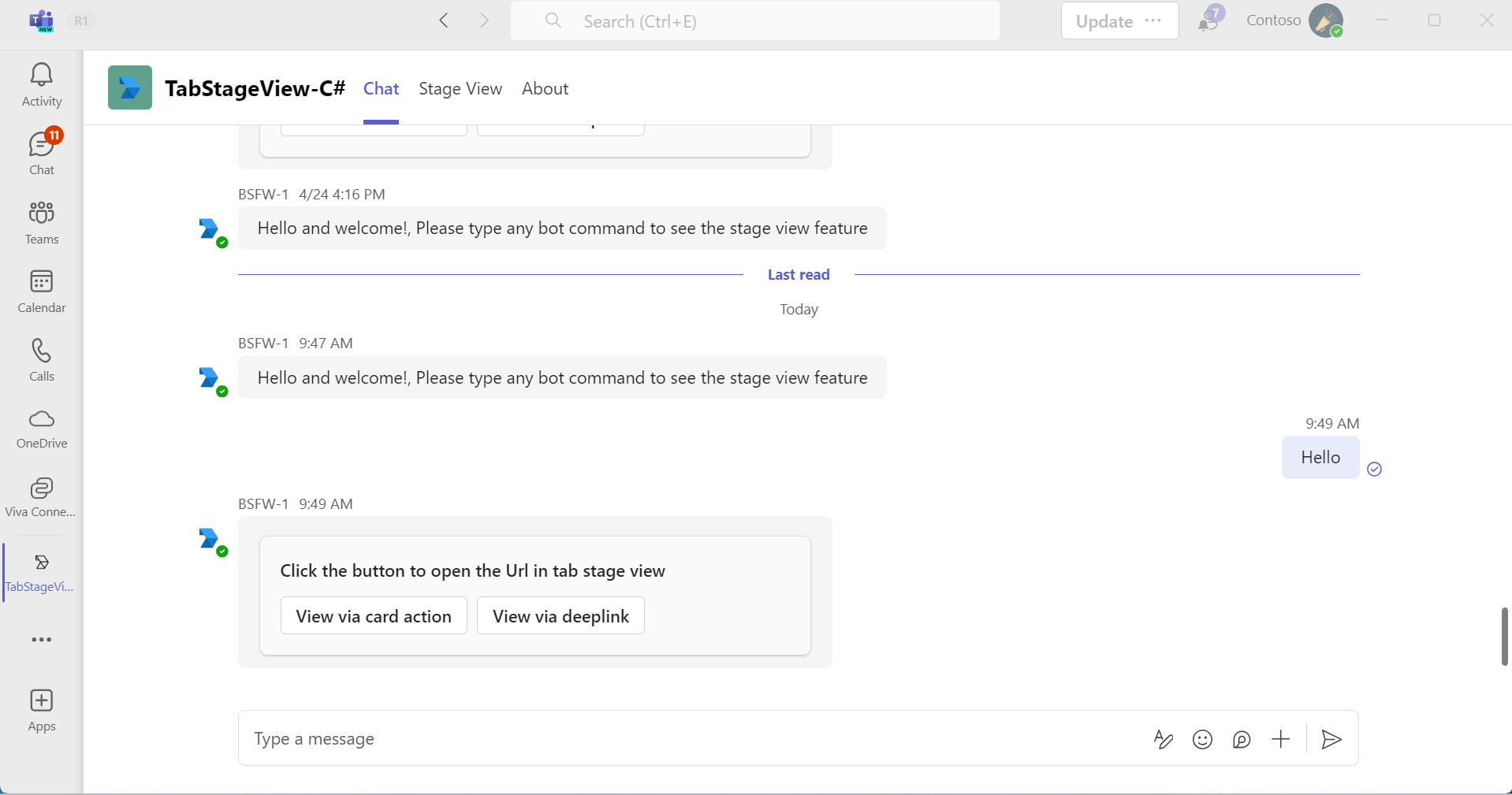

Welcome message with feature explanation and Adaptive Card with actions:

Welcome Message

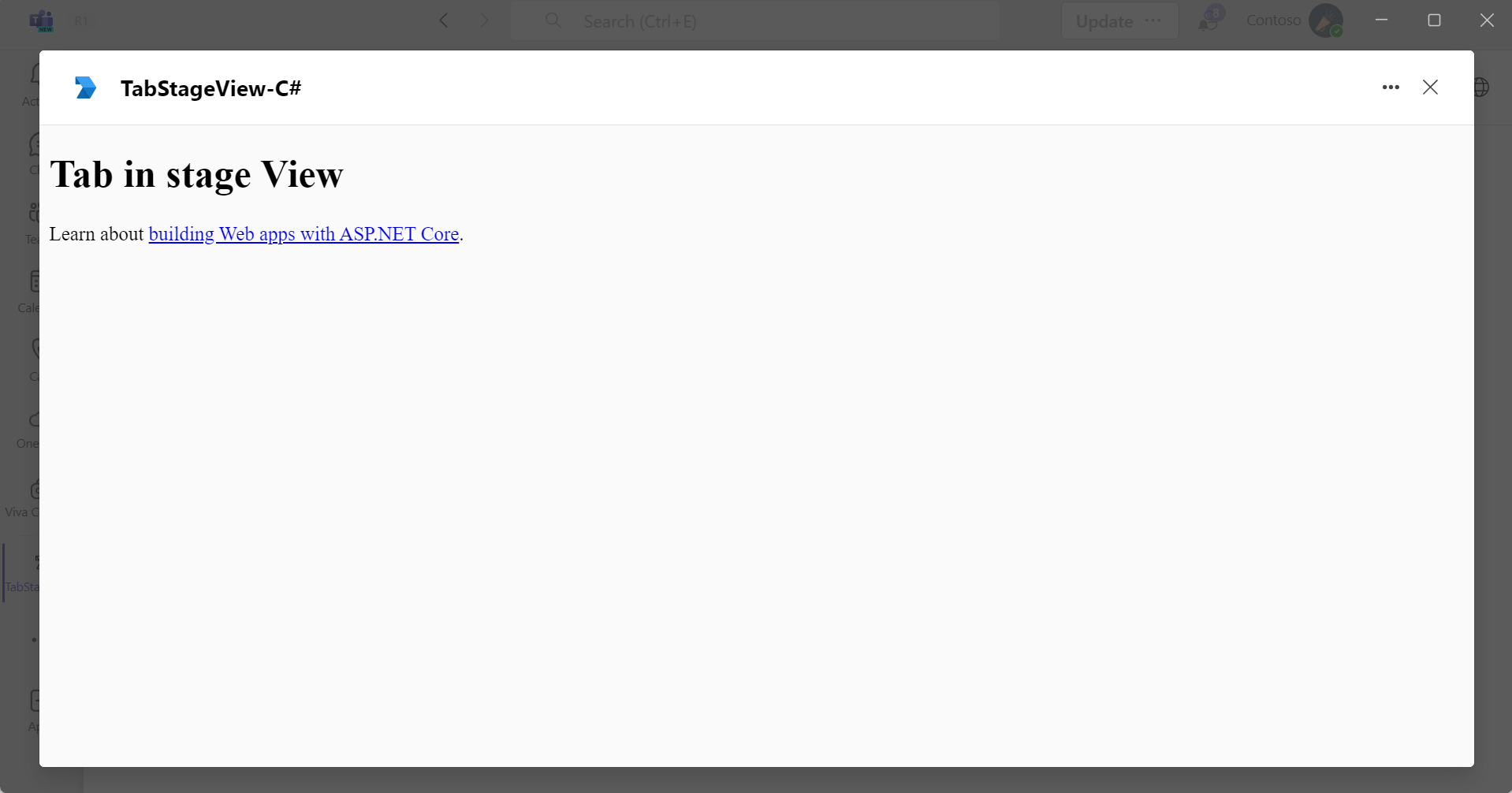

Open the URL in tab stage view:

InstallApp

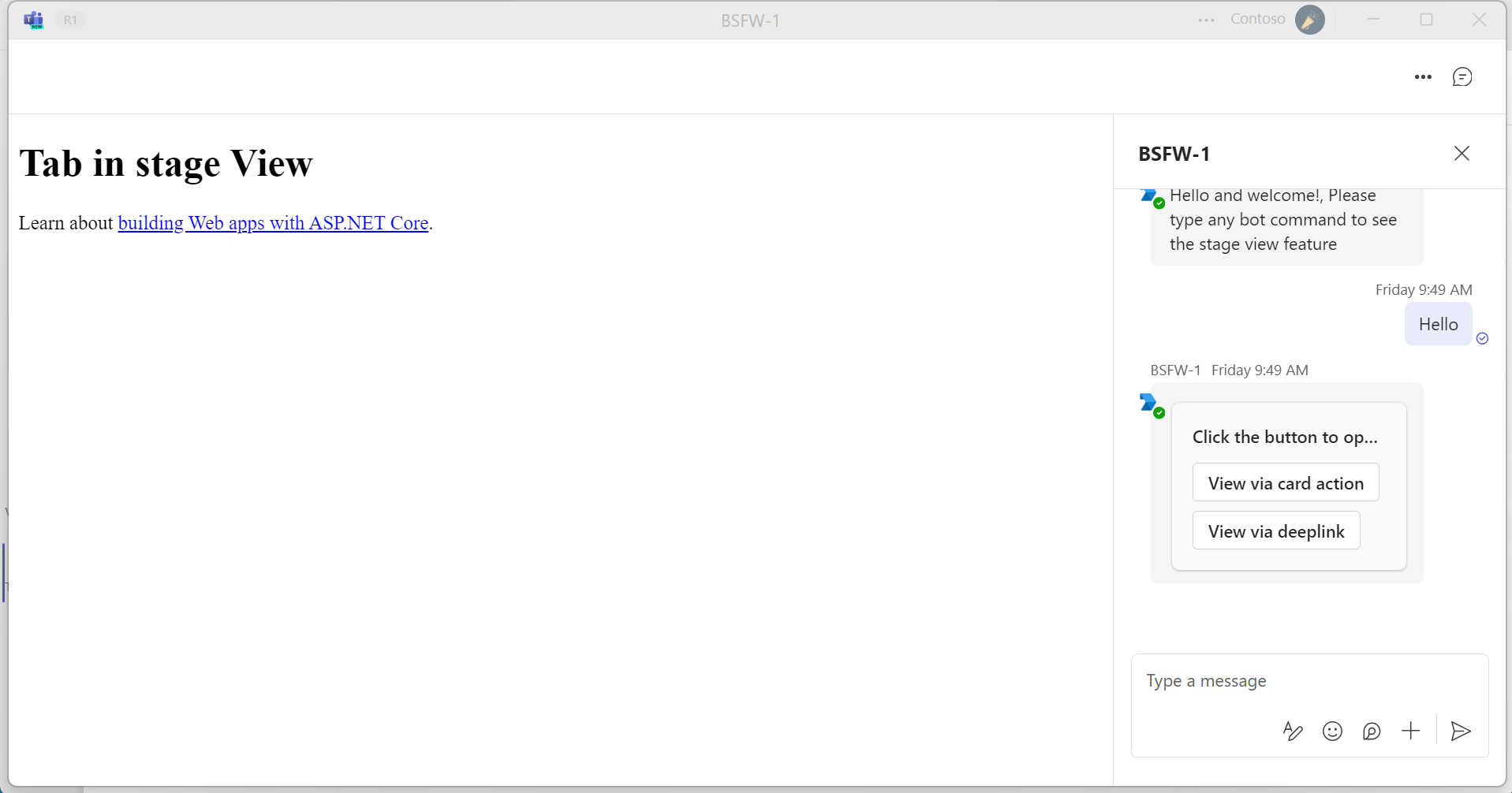

Opening Collaborative Stage View. Please refer Collaborative Stage view for more details

Stage View in tab

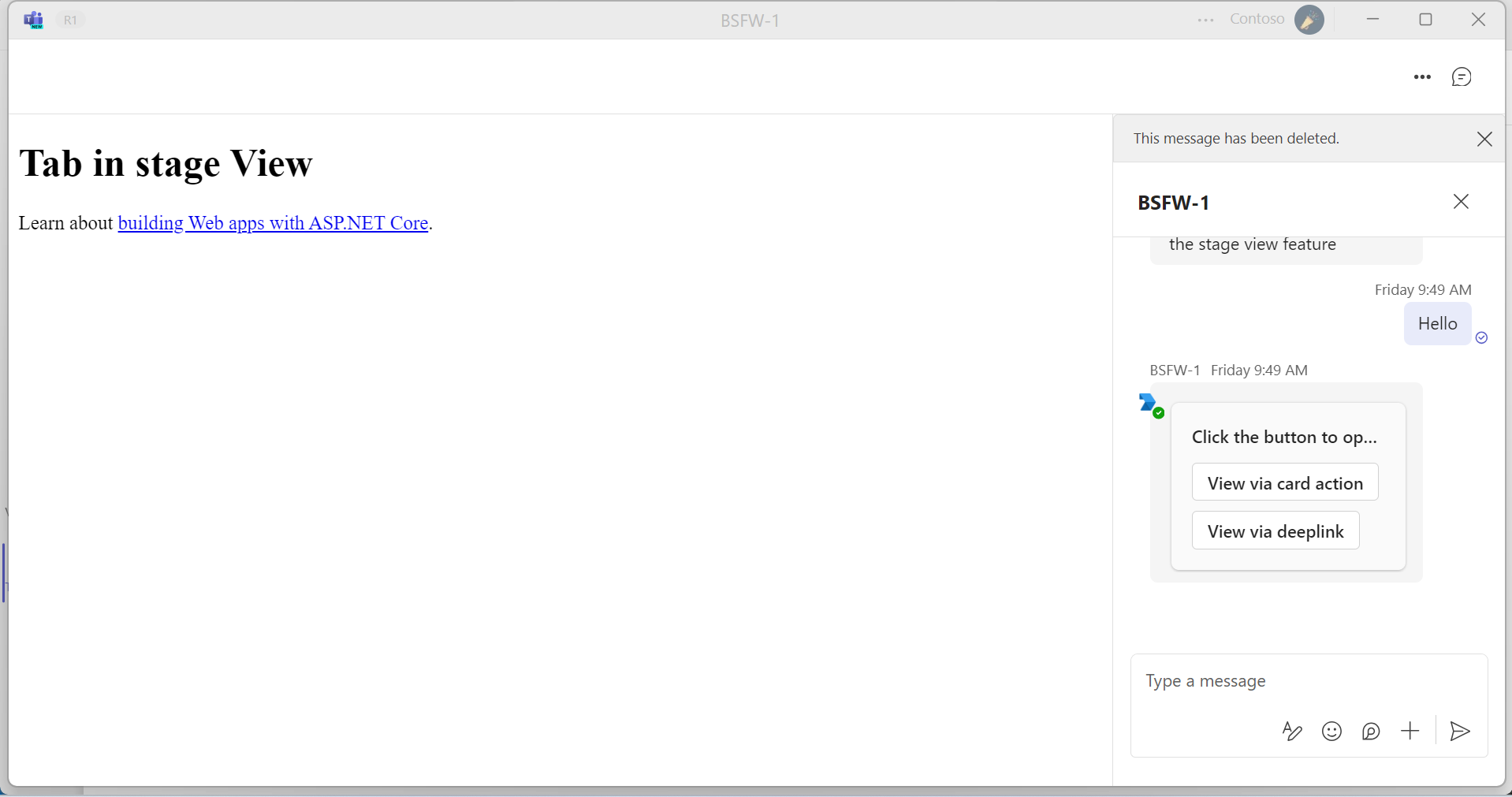

Opening stage view from Adaptive card via deep link:

Stage View Deep Link

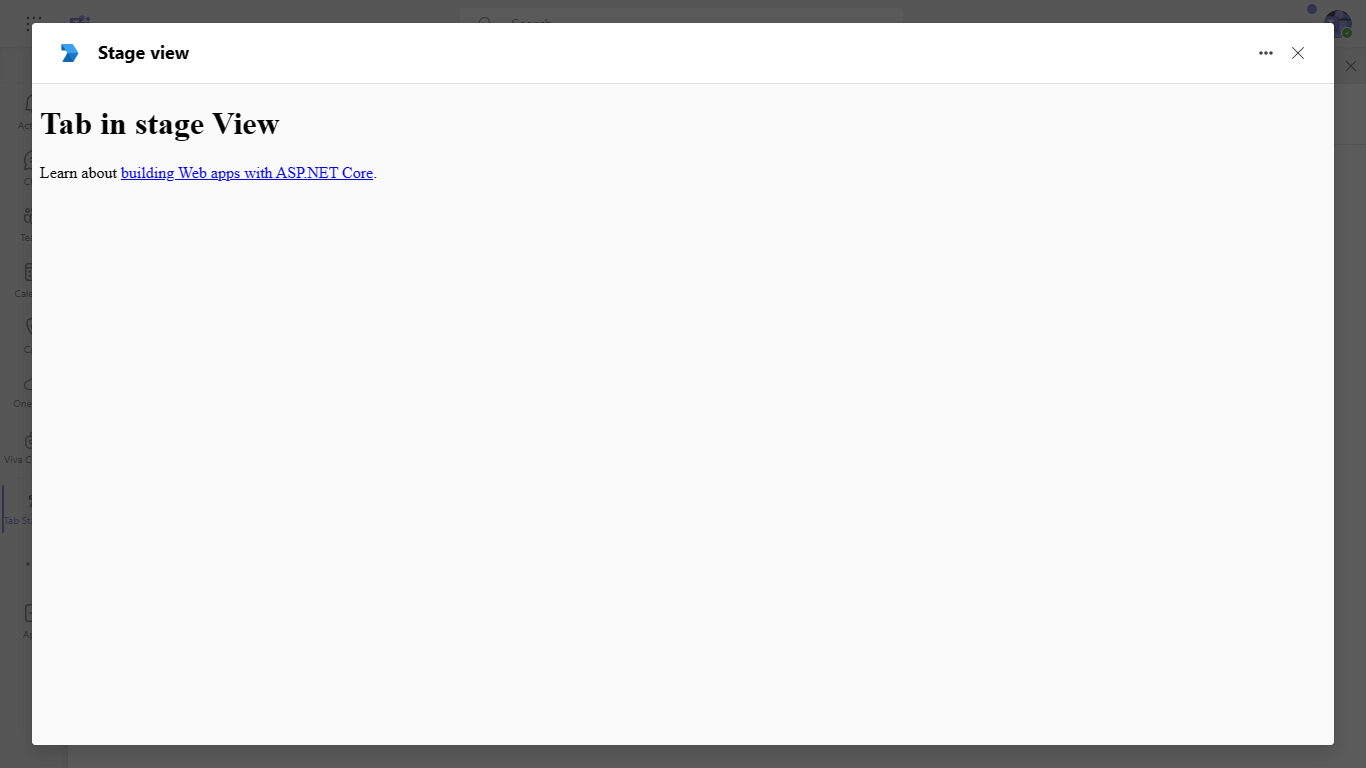

LinkUnfurlingStageView

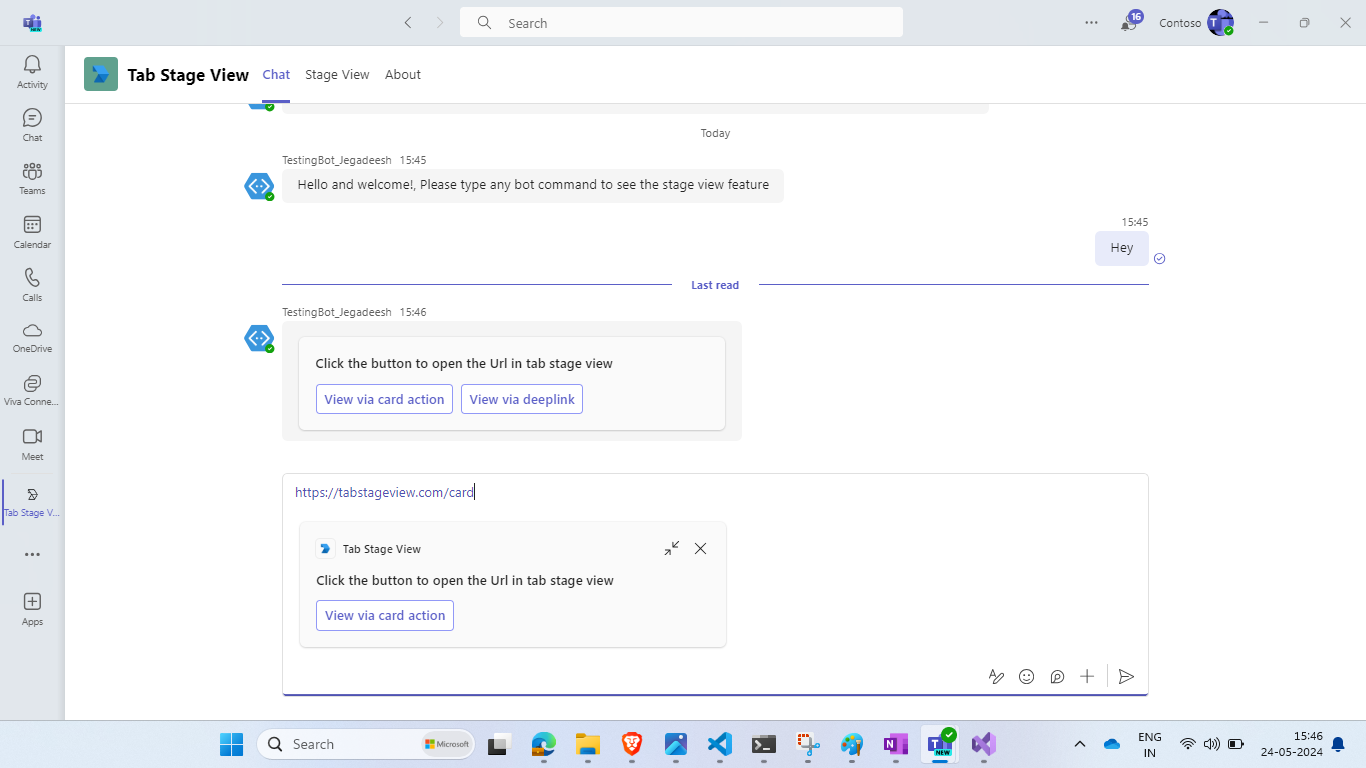

Opening stage view from unfurling link. If you copy and paste a link from https://tabstageview.com/card into the compose message area the link will unfurl.

LinkUnfurlingText

Tab with execute deep link action to open stage view:

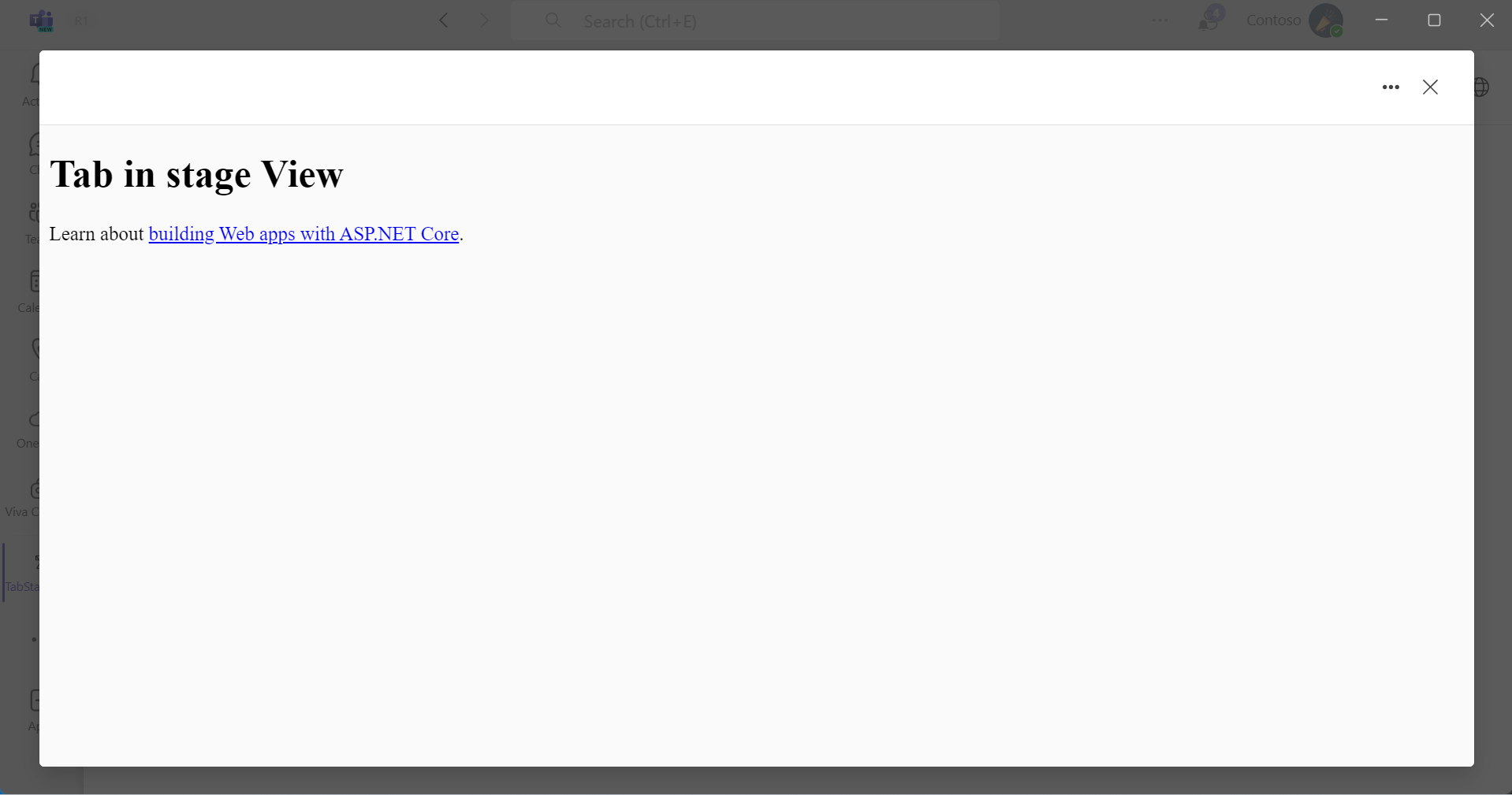

OpenMode Model

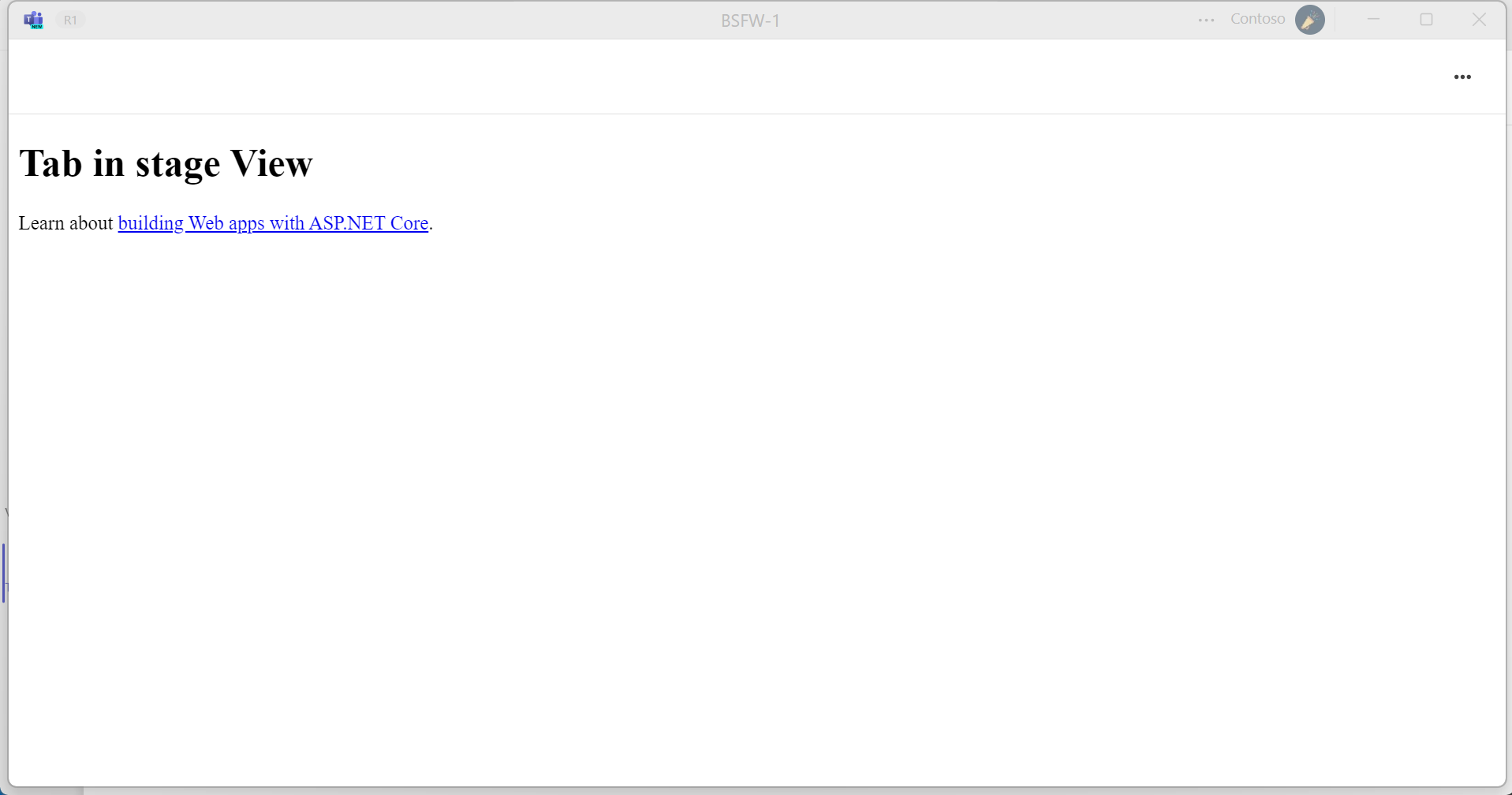

OpenMode PopOut

Outlook on the web

  • To view your app in Outlook on the web.

  • Go to Outlook on the weband sign in using your dev tenant account.

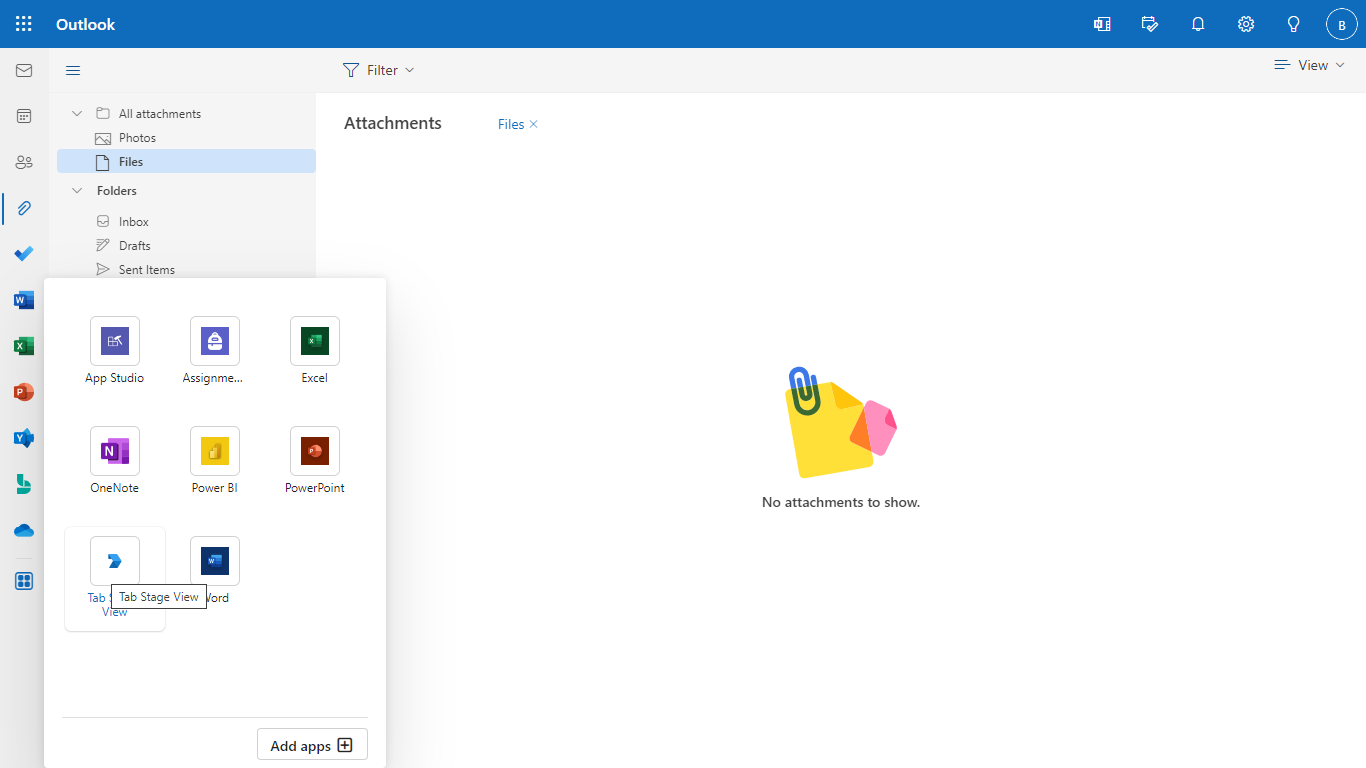

On the side bar, select More Apps. Your uploaded app title appears among your installed apps

InstallOutlook

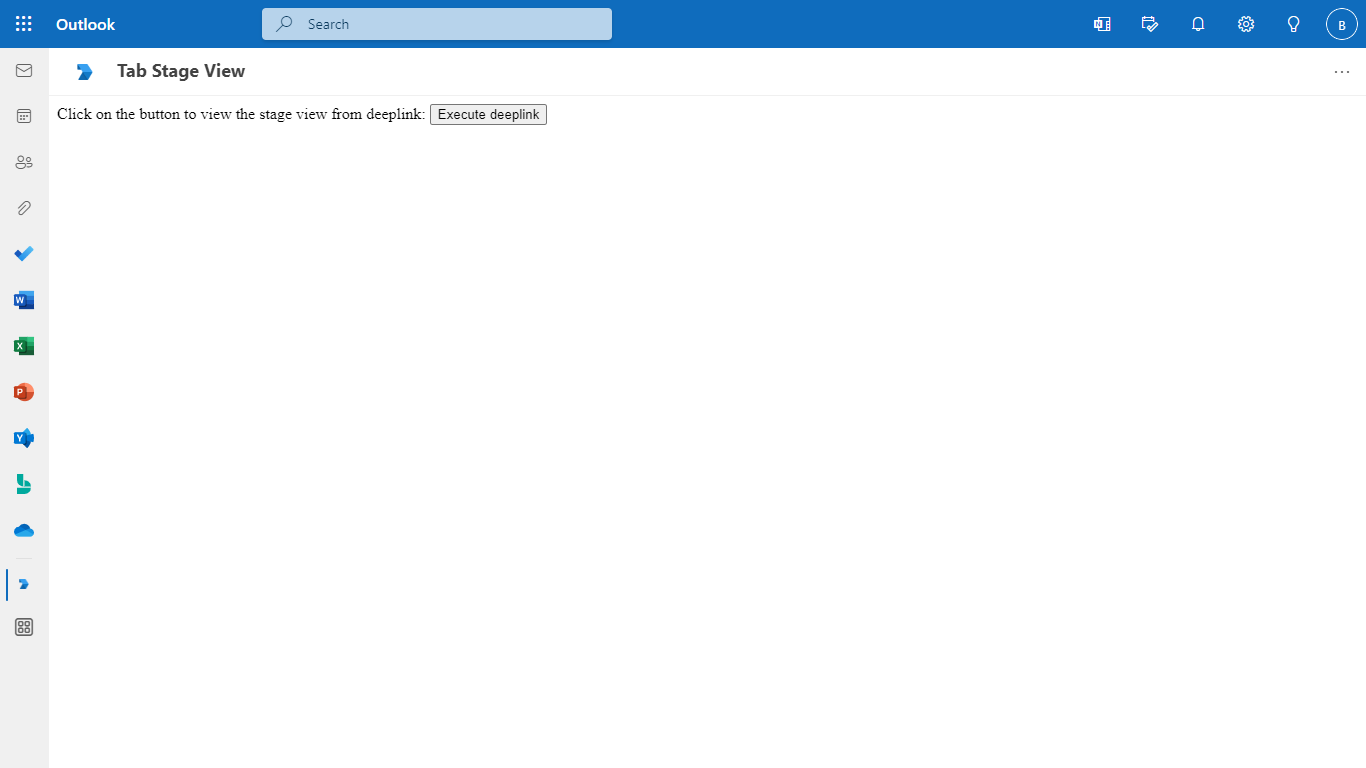

Select your app icon to launch and preview your app running in Outlook on the web

AppOutlook

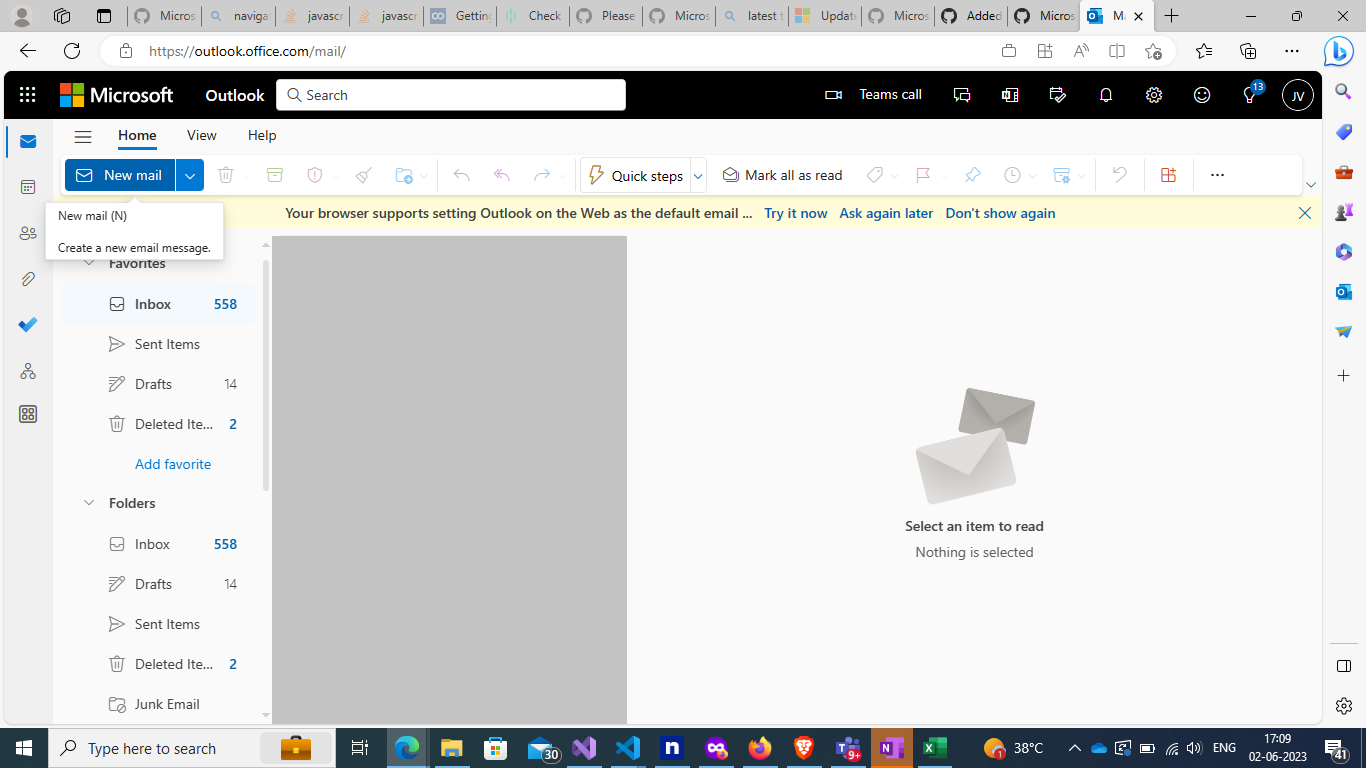

After opening Outlook web, click the "New mail" button.

Open New Mail

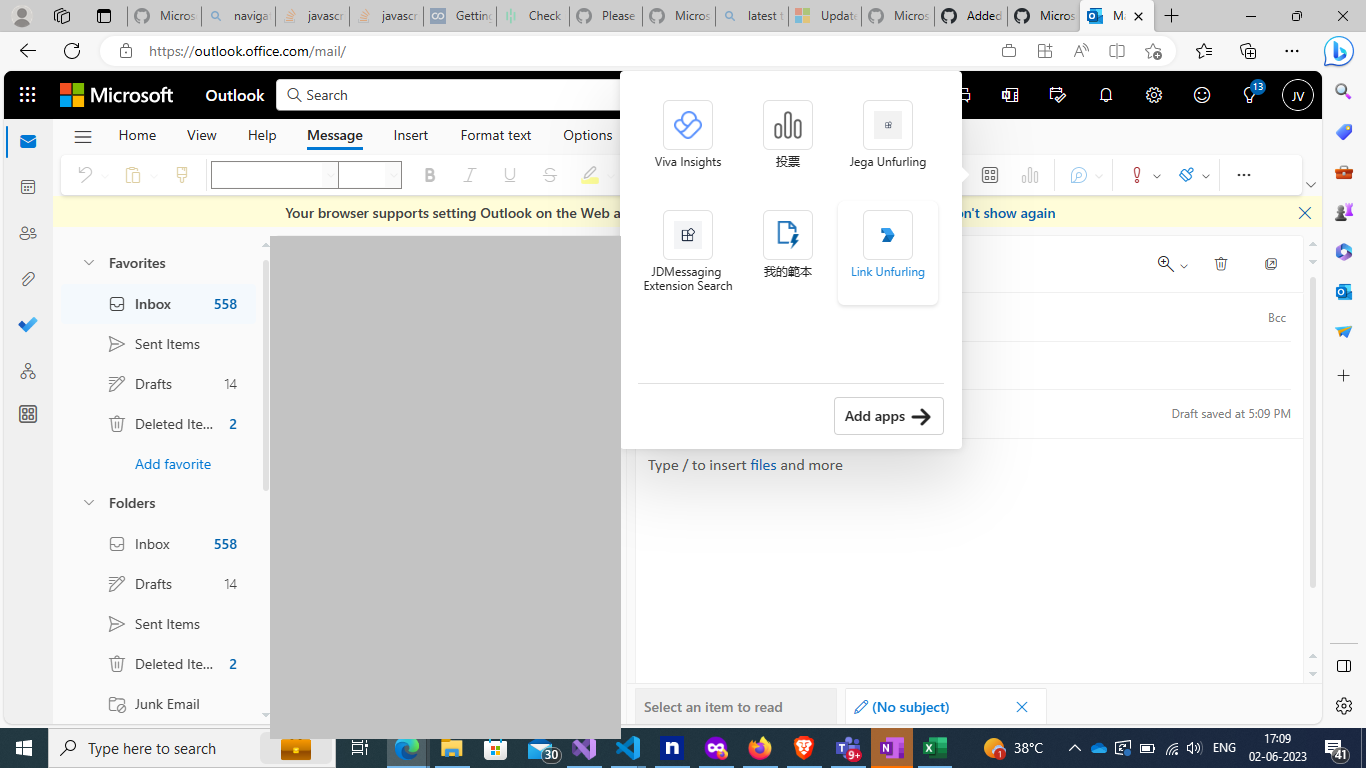

On the tool bar on top, select Apps icon. Your uploaded app title appears among your installed apps

OpenAppIcon

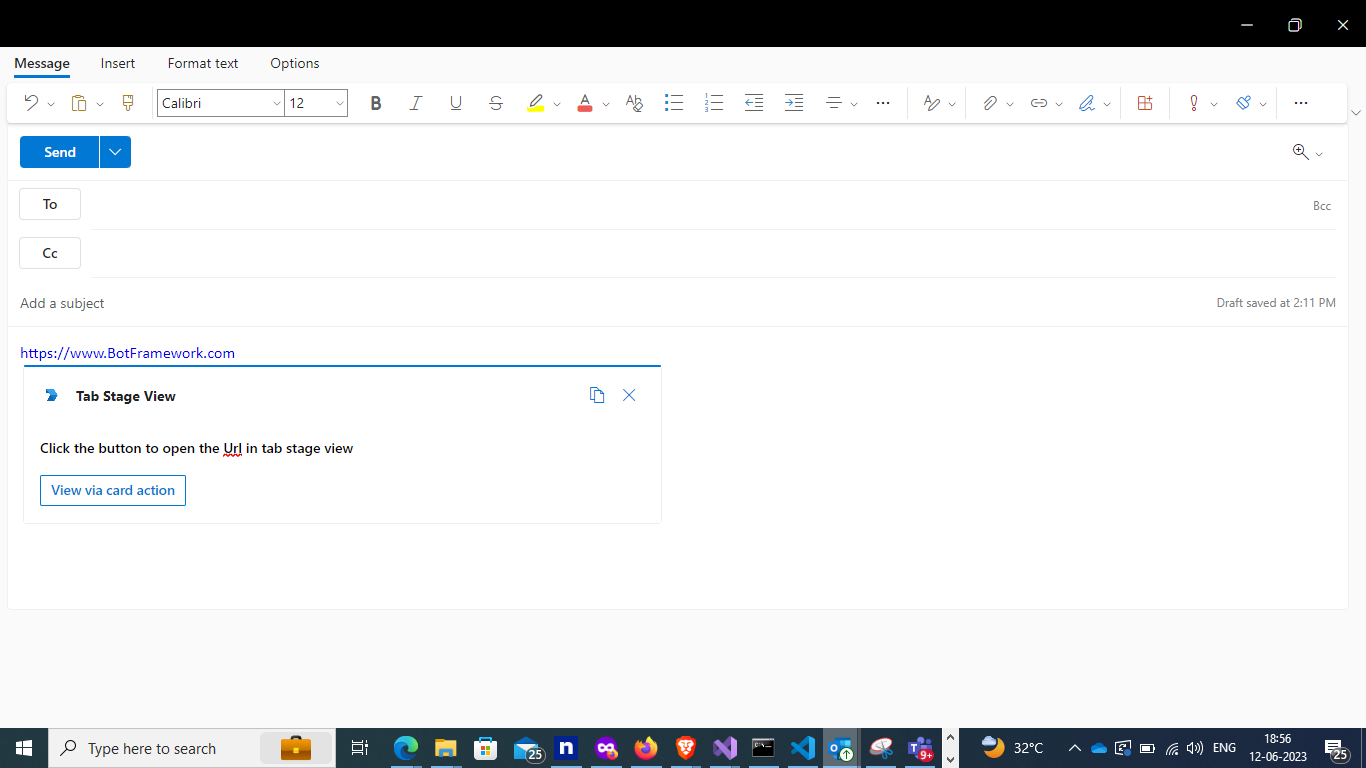

Opening the stage view from unfurling link. If you copy and paste a link from https://tabstageview.com/card into the compose message area the link will unfurl.

Outlook Unfurling

Note: Similarly, you can test your application in the Outlook desktop app as well.

Office on the web

  • To preview your app running in Office on the web.

  • Log into office.com with test tenant credentials

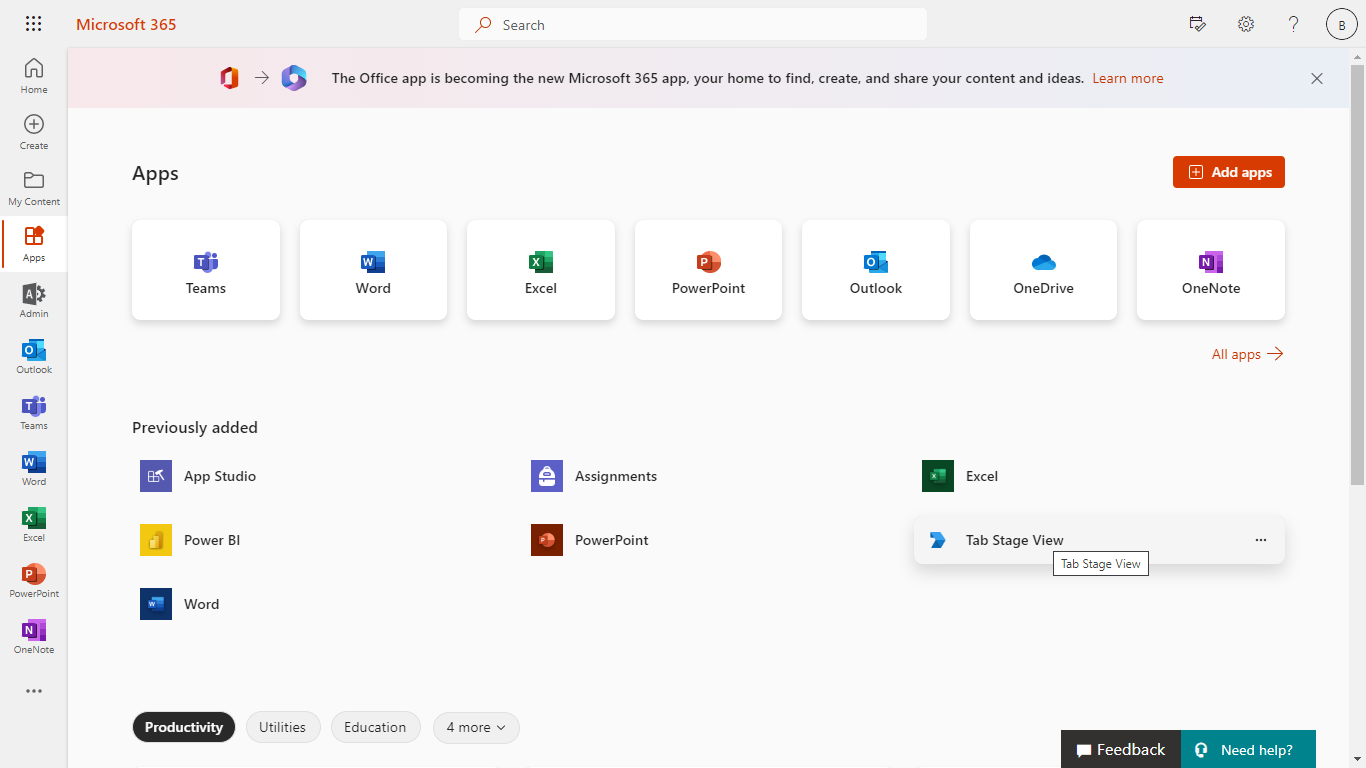

Select the Apps icon on the side bar. Your uploaded app title appears among your installed apps

InstallOffice

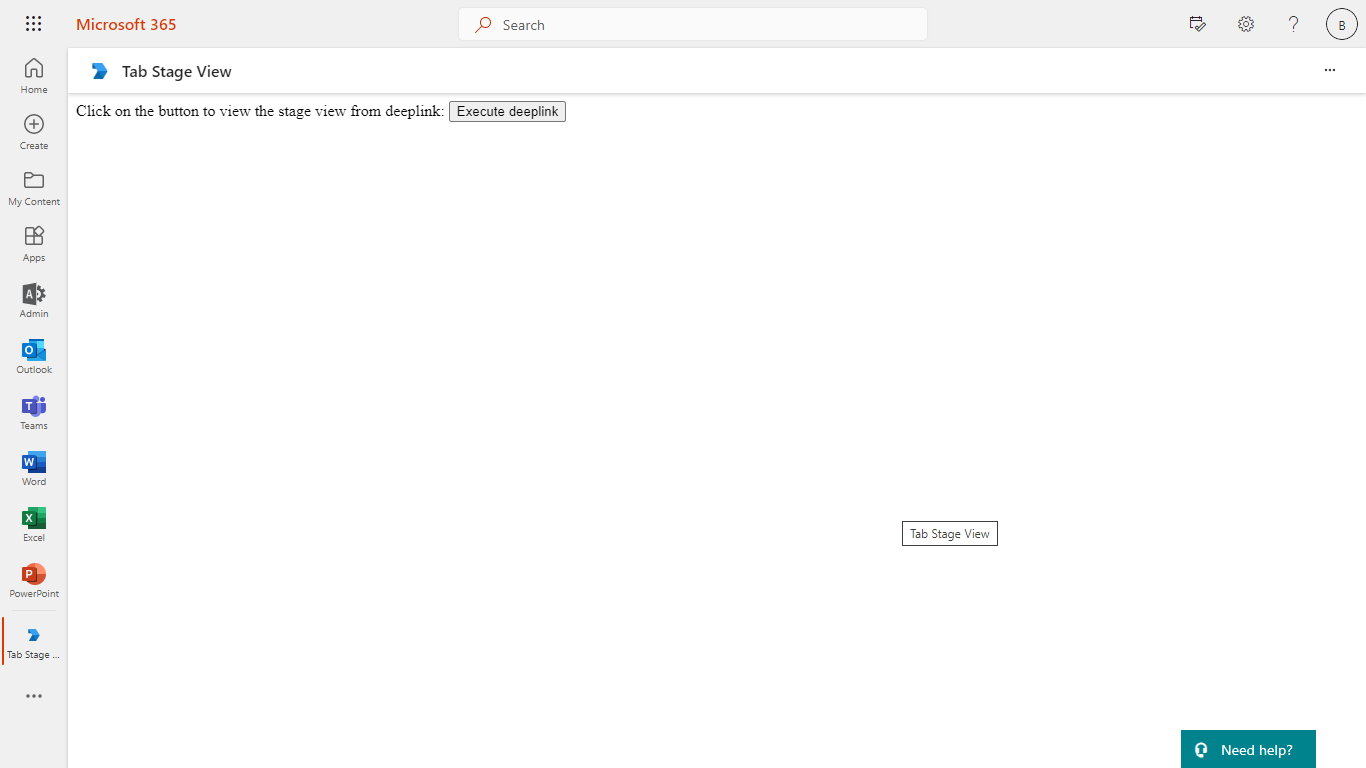

Select your app icon to launch your app in Office on the web

AppOffice

Note: Similarly, you can test your application in the Office 365 desktop app as well.

Deploy the bot to Azure

To learn more about deploying a bot to Azure, see Deploy your bot to Azure for a complete list of deployment instructions.
