Teams Streaming Bot Sample

Browse code

This bot has been created using Bot Framework and Azure Open AI as a secondary/alternative option to using Teams AI SDK.

Its main purpose is to demonstrate how to build a bot connected to an LLM and send messages through Teams.

Included Features

  • Bots
  • Azure Open AI
  • Streaming

Important

This bot doesn't save any context calls. Therefore, each interaction is individual and unique.

Interaction with bot

Conversation Bot

Prerequisites

Run the app (Using Microsoft 365 Agents Toolkit for Visual Studio)

The simplest way to run this sample in Teams is to use Microsoft 365 Agents Toolkit for Visual Studio.

  1. Install Visual Studio 2022 Version 17.14 or higher Visual Studio
  2. Install Microsoft 365 Agents Toolkit for Visual Studio Microsoft 365 Agents Toolkit extension
  3. In the debug dropdown menu of Visual Studio, select Dev Tunnels > Create A Tunnel (set authentication type to Public) or select an existing public dev tunnel.
  4. Right-click the 'M365Agent' project in Solution Explorer and select Microsoft 365 Agents Toolkit > Select Microsoft 365 Account
  5. Sign in to Microsoft 365 Agents Toolkit with a Microsoft 365 work or school account
  6. Set Startup Item as Microsoft Teams (browser).
  7. Press F5, or select Debug > Start Debugging menu in Visual Studio to start your app
  8. In the opened web browser, select Add button to install the app in Teams

If you do not have permission to upload custom apps (uploading), Microsoft 365 Agents Toolkit will recommend creating and using a Microsoft 365 Developer Program account - a free program to get your own dev environment sandbox that includes Teams.

Create an Azure Open AI service

  • In Azure portal, create an Azure Open AI service.
  • Deploy Azure Open AI model: Deploy the gpt-35-turbo model in your created Azure Open AI service for the application to perform translation.
  • Collect AzureOpenAIEndpoint, AzureOpenAIKey, AzureOpenAIDeployment values and save these values to update in .appsettings.json file later.

Setup

Note these instructions are for running the sample on your local machine, the tunnelling solution is required because the Teams service needs to call into the bot.

  1. Run ngrok - point to port 3978

    ngrok http 3978 --host-header="localhost:3978"

    Alternatively, you can also use the dev tunnels. Please follow Create and host a dev tunnel and host the tunnel with anonymous user access command as shown below:

    devtunnel host -p 3978 --allow-anonymous

  2. Setup for Bot

    In Azure portal, create a Azure Bot resource.

    • For bot handle, make up a name.
    • Select "Use existing app registration" (Create the app registration in Microsoft Entra ID beforehand.)
    • If you don't have an Azure account create an Azure free account here

    In the new Azure Bot resource in the Portal,

    • Ensure that you've enabled the Teams Channel
    • In Settings/Configuration/Messaging endpoint, enter the current https URL you were given by running the tunneling application. Append with the path /api/messages

  3. Clone the repository

    git clone https://github.com/OfficeDev/Microsoft-Teams-Samples.git

  4. If you are using Visual Studio

    • Launch Visual Studio
    • File -> Open -> Project/Solution
    • Navigate to samples/bot-streaming/csharp folder
    • Select StreamingBot.csproj or StreamingBot.slnfile

  5. Update the appsettings.json configuration for the bot to use the MicrosoftAppId, MicrosoftAppPassword, MicrosoftAppTenantId generated in Step 2 (App Registration creation). (Note the App Password is referred to as the "client secret" in the azure portal and you can always create a new client secret anytime.)

    • Also, set MicrosoftAppType in the appsettings.json. (Allowed values are: MultiTenant(default), SingleTenant, UserAssignedMSI)

  6. Run your bot, either from Visual Studio with F5 or using dotnet run in the appropriate folder.

  7. This step is specific to Teams.

    • Zip up the contents of the appPackage folder to create a manifest.zip (Make sure that zip file does not contains any subfolder otherwise you will get error while uploading your .zip package)
    • Upload the manifest.zip to Teams (In Teams Apps/Manage your apps click "Upload an app". Browse to and Open the .zip file. At the next dialog, click the Add button.)
    • Add the app to personal scope (Supported scopes)

Note: If you are facing any issue in your app, please uncomment this line and put your debugger for local debug.

Running the sample

Install App in Teams: InstallApp

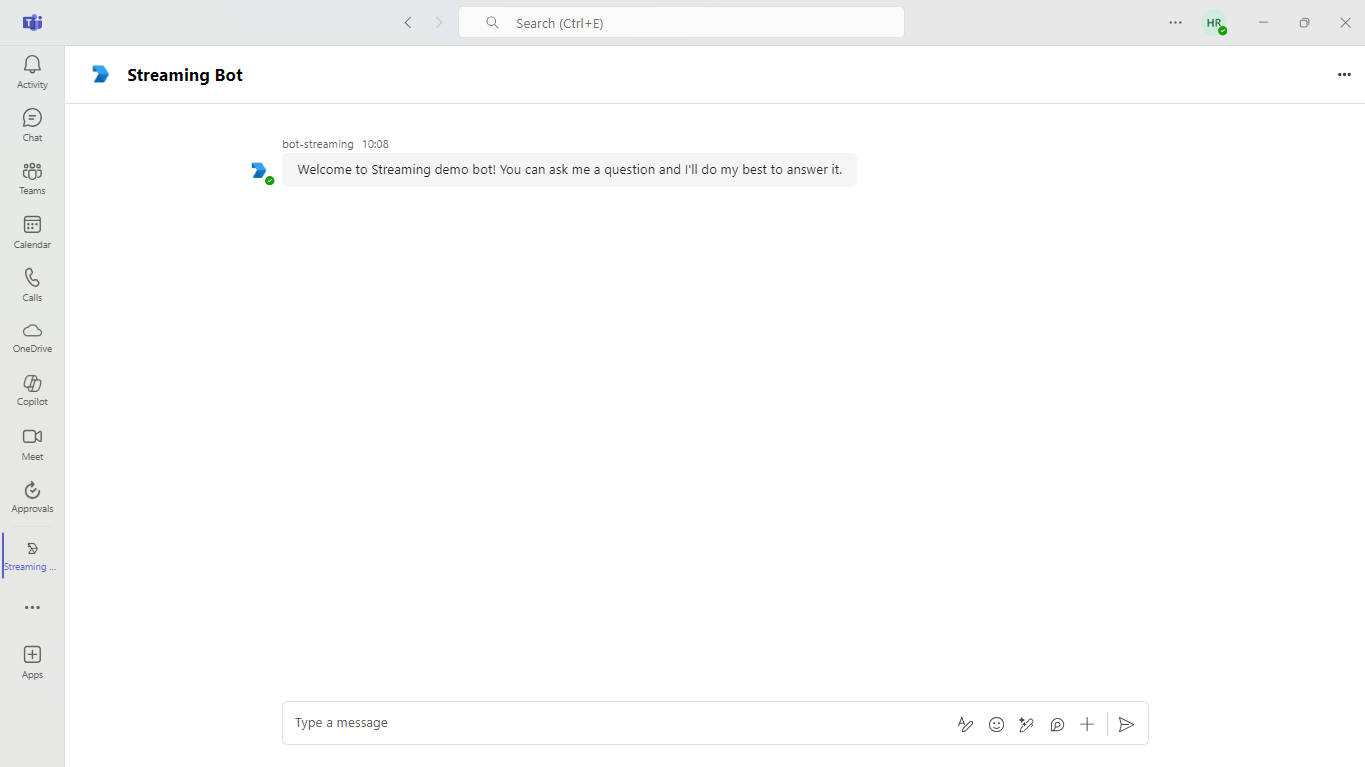

Welcome Streaming Card Displayed in Teams: 2.WelcomeStreaming

User Asking a Question to the Bot: 3.AskQuestion

Streaming Results from the Bot in Teams: 4.AskQuestion1

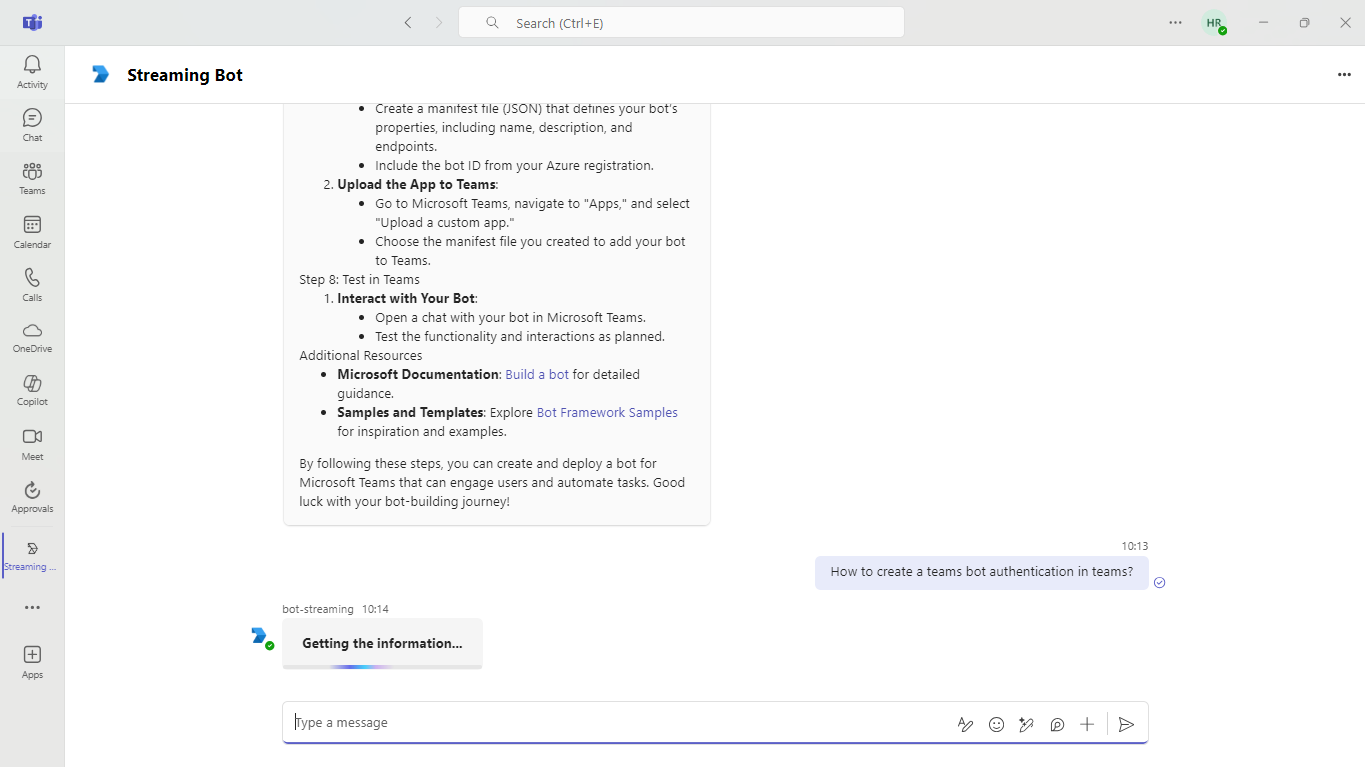

Getting the information: 4.GettingInformation

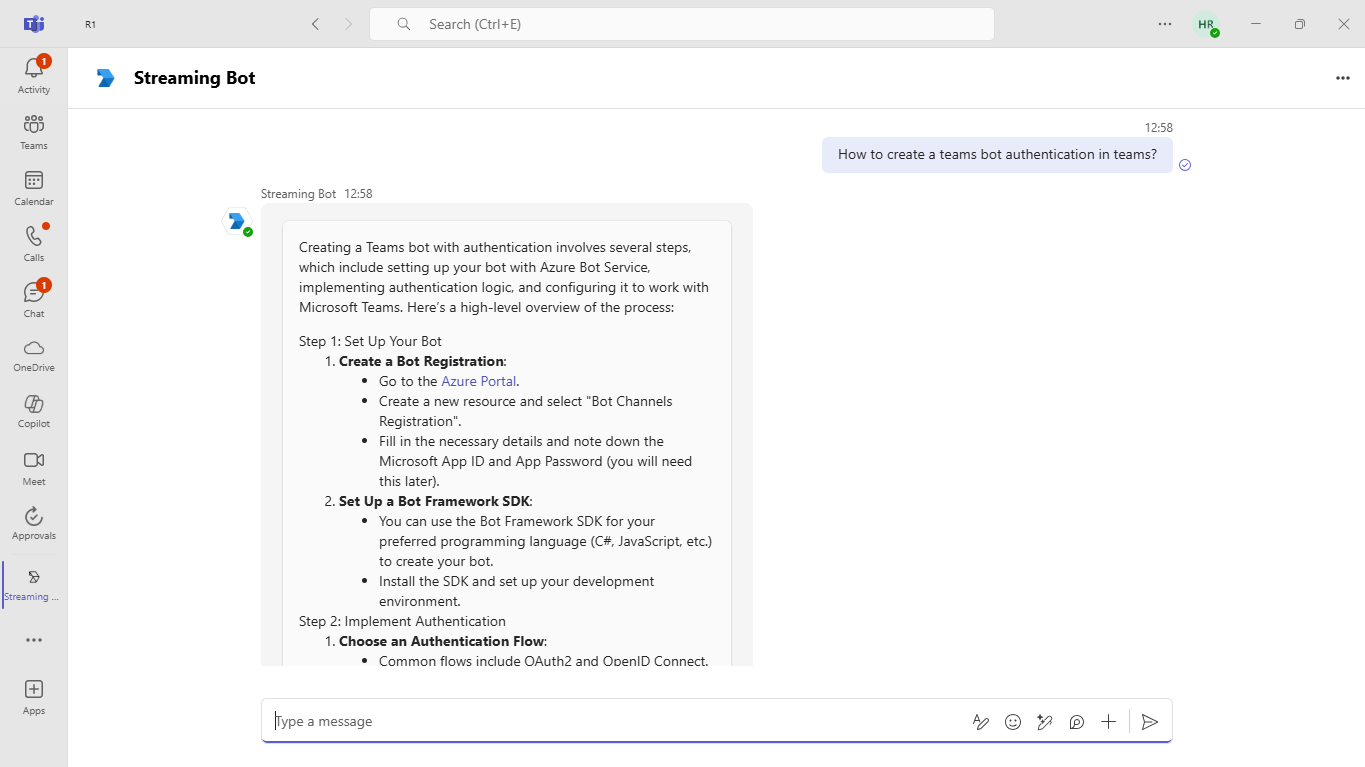

Bot's Response to the User's Question: 5.AskQuestionResults

Deploy the bot to Azure

To learn more about deploying a bot to Azure, see Deploy your bot to Azure for a complete list of deployment instructions.
