Use Azure IoT DPS IP connection filters

Security is an important aspect of any IoT solution. Sometimes you need to explicitly specify the IP addresses from which devices can connect as part of your security configuration. The IP filter feature for an Azure IoT Hub Device Provisioning Service (DPS) enables you to configure rules for rejecting or accepting traffic from specific IPv4 addresses.

When to use

There are two specific use-cases where it is useful to block connections to a DPS endpoint from certain IP addresses:

• Your DPS should receive traffic only from a specified range of IP addresses and reject everything else. For example, you are using your DPS with Azure Express Route to create private connections between a DPS instance and your devices.

• You need to reject traffic from IP addresses that have been identified as suspicious by the DPS administrator.

IP filter rules limitations

Note the following limitations if IP filtering is enabled:

• You might not be able to use the Azure portal to manage enrollments. If this occurs, you can add the IP address of one or more machines to the ipFilterRules and manage enrollments in the DPS instance from those machines with Azure CLI, PowerShell, or service APIs.

  This scenario is most likely to happen when you want to use IP filtering to allow access only to selected IP addresses. In this case, you configure rules to enable certain addresses or address ranges and a default rule that blocks all other addresses (0.0.0.0/0). This default rule will block Azure portal from performing operations like managing enrollments on the DPS instance. For more information, see IP filter rule evaluation later in this article.

How filter rules are applied

The IP filter rules are applied at the DPS instance level. Therefore the IP filter rules apply to all connections from devices and back-end apps using any supported protocol.

Any connection attempt from an IP address that matches a rejecting IP rule in your DPS instance receives an unauthorized 401 status code and description. The response message does not mention the IP rule.

Important

Rejecting IP addresses can prevent other Azure Services from interacting with the DPS instance.

Default setting

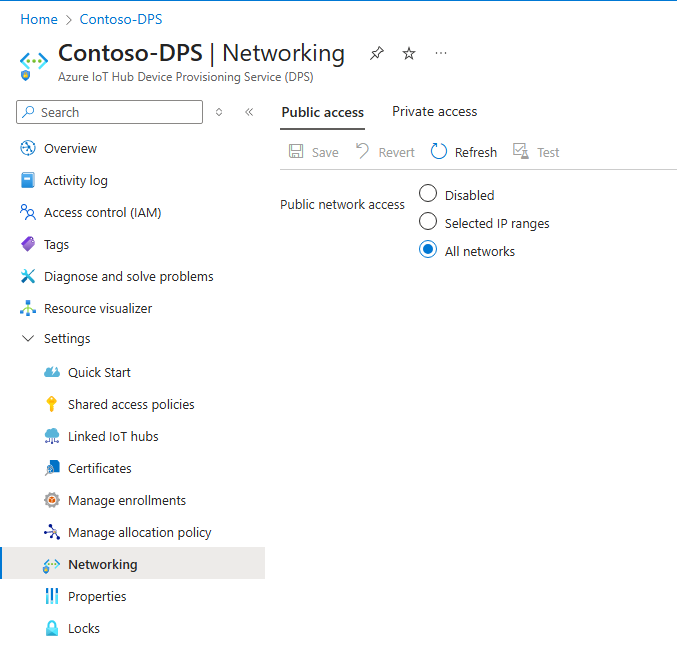

By default, IP filtering is disabled and Public network access is set to All networks. This default setting means that your DPS accepts connections from any IP address, or conforms to a rule that accepts the 0.0.0.0/0 IP address range.

Add an IP filter rule

To add an IP filter rule:

1. Go to the Azure portal.

2. On the left-hand menu or on the portal page, select All resources.

3. Select your Device Provisioning Service.

4. In the Settings menu on the left-side, select Networking.

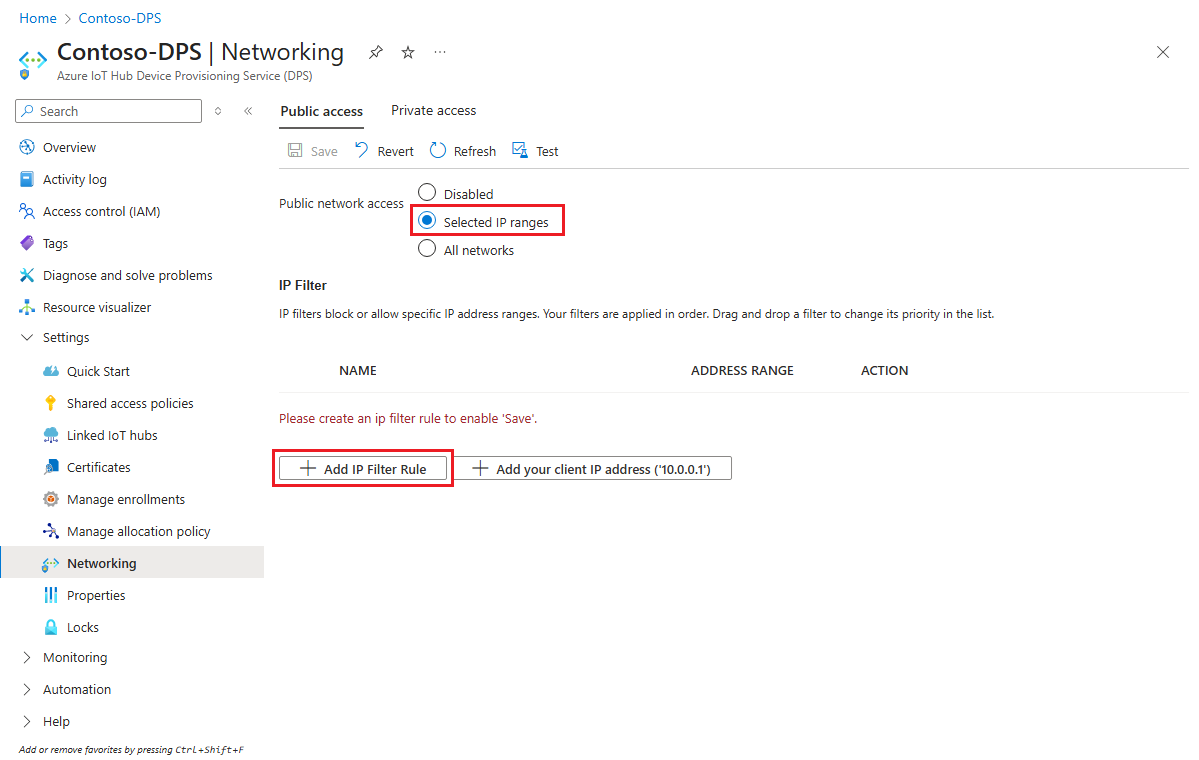

5. Under Public network access, select Selected IP ranges

6. Select + Add IP Filter Rule.

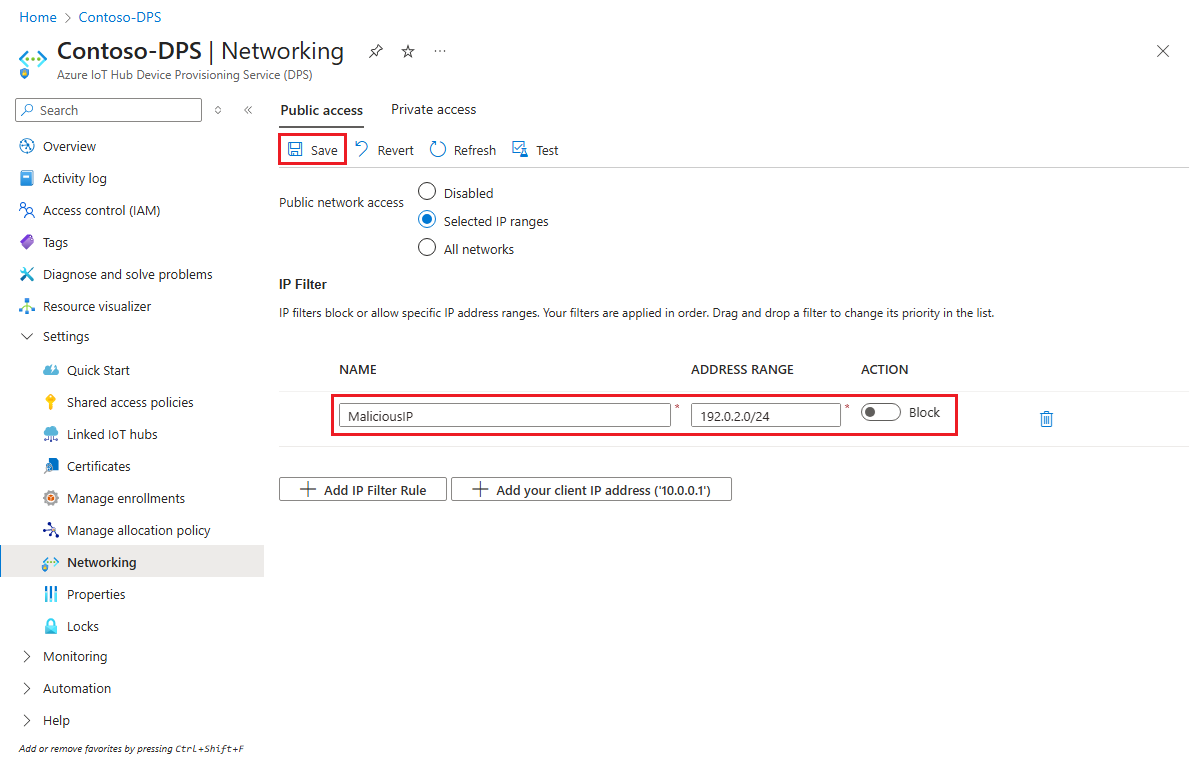

7. Fill in the following fields:

   Field	Description
   Name	A unique, case-insensitive, alphanumeric string up to 128 characters long. Only the ASCII 7-bit alphanumeric characters plus {'-', ':', '/', '\', '.', '+', '%', '_', '#', '*', '?', '!', '(', ')', ',', '=', '@', ';', '''} are accepted.
   Address Range	A single IPv4 address or a block of IP addresses in CIDR notation. For example, in CIDR notation 192.168.100.0/22 represents the 1024 IPv4 addresses from 192.168.100.0 to 192.168.103.255.
   Action	Select either Allow or Block.



8. Select Save. You should see an alert notifying you that the update is in progress.



   Note

   + Add IP Filter Rule is disabled when you reach the maximum of 100 IP filter rules.

Edit an IP filter rule

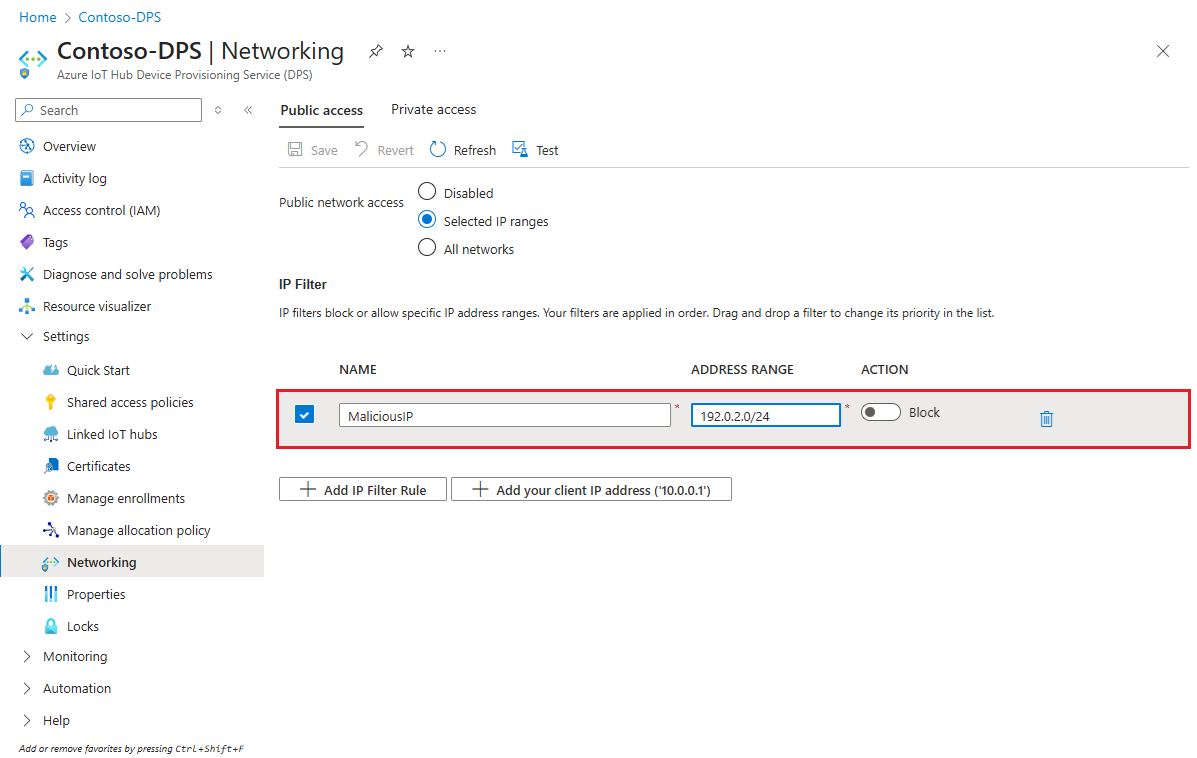

To edit an existing rule:

1. Select the IP filter rule data you want to change.



2. Make the change.

3. Select Save .

Delete an IP filter rule

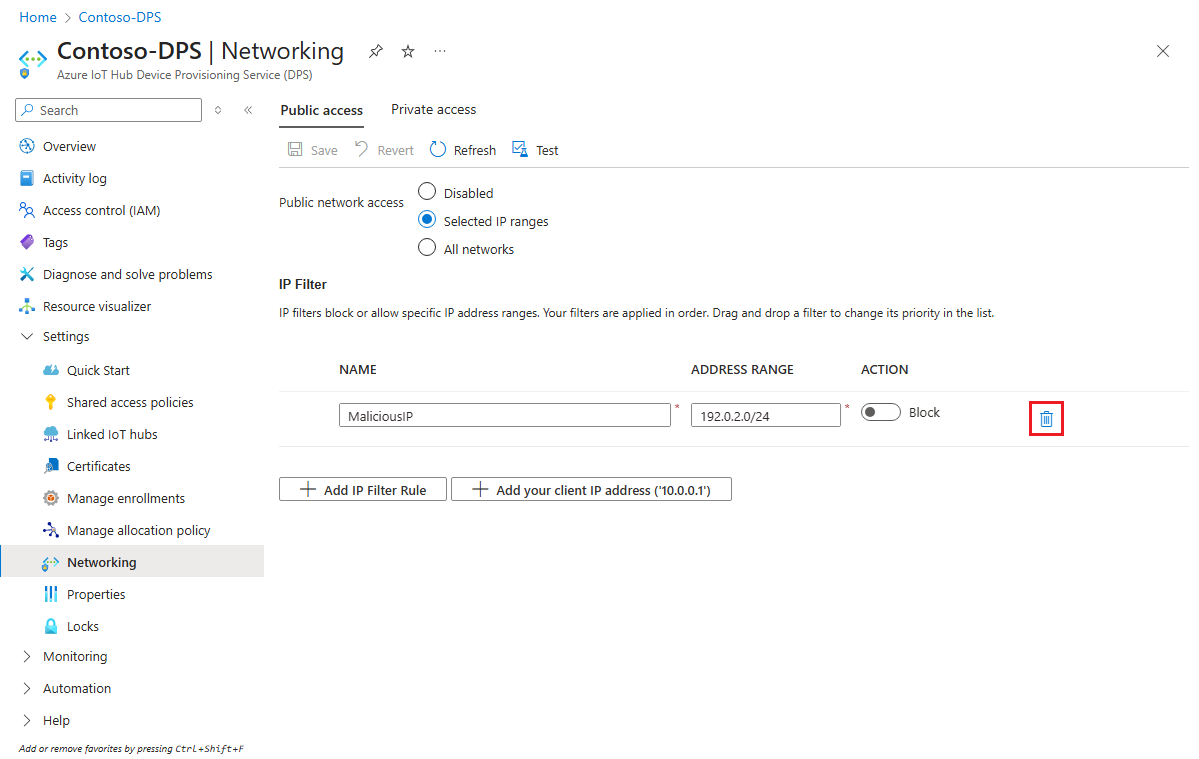

To delete an IP filter rule:

1. Select the delete icon on the row of the IP rule you wish to delete.



2. Select Save.

IP filter rule evaluation

IP filter rules are applied in order. The first rule that matches the IP address determines the accept or reject action.

For example, if you want to accept addresses in the range 192.168.100.0/22 and reject everything else, the first rule in the grid should accept the address range 192.168.100.0/22. The next rule should reject all addresses by using the range 0.0.0.0/0.

To change the order of your IP filter rules:

1. Select the rule you want to move.

2. Drag and drop the rule to the desired location.

3. Select Save.

Update IP filter rules using Azure Resource Manager templates

There are two ways you can update your DPS IP filter:

1. Call the IoT Hub Resource REST API method. To learn how to update your IP filter rules using REST, see IpFilterRule in the Definitions section of the Iot Hub Resource - Update method.

2. Use the Azure Resource Manager templates. For guidance on how to use the Resource Manager templates, see Azure Resource Manager templates. The examples that follow show you how to create, edit, and delete DPS IP filter rules with Azure Resource Manager templates.

   Note

   Azure CLI and Azure PowerShell don't currently support DPS IP filter rules updates.

Add an IP filter rule

The following template example creates a new IP filter rule named "AllowAll" that accepts all traffic.

{
    "$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
        "iotDpsName": {
            "type": "string",
            "defaultValue": "[resourceGroup().name]",
            "minLength": 3,
            "metadata": {
                "description": "Specifies the name of the IoT DPS service."
            }
        },
        "location": {
            "type": "string",
            "defaultValue": "[resourceGroup().location]",
            "metadata": {
                "description": "Location for Iot DPS resource."
            }
        }
    },
    "variables": {
        "iotDpsApiVersion": "2020-01-01"
    },
    "resources": [
        {
            "type": "Microsoft.Devices/provisioningServices",
            "apiVersion": "[variables('iotDpsApiVersion')]",
            "name": "[parameters('iotDpsName')]",
            "location": "[parameters('location')]",
            "sku": {
                "name": "S1",
                "tier": "Standard",
                "capacity": 1
            },
            "properties": {
                "IpFilterRules": [
                    {
                        "FilterName": "AllowAll",
                        "Action": "Accept",
                        "ipMask": "0.0.0.0/0"
                    }
                ]
            }
        }
    ]
}

Update the IP filter rule attributes of the template based on your requirements.

Attribute	Description
FilterName	Provide a name for the IP Filter rule. This must be a unique, case-insensitive, alphanumeric string up to 128 characters long. Only the ASCII 7-bit alphanumeric characters plus {'-', ':', '/', '\', '.', '+', '%', '_', '#', '*', '?', '!', '(', ')', ',', '=', '@', ';', '''} are accepted.
Action	Accepted values are Accept or Reject as the action for the IP filter rule.
ipMask	Provide a single IPv4 address or a block of IP addresses in CIDR notation. For example, in CIDR notation 192.168.100.0/22 represents the 1024 IPv4 addresses from 192.168.100.0 to 192.168.103.255.

Update an IP filter rule

The following template example updates the IP filter rule named "AllowAll", shown previously, to reject all traffic.

{
    "$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#", 
    "contentVersion": "1.0.0.0", 
    "parameters": {
        "iotDpsName": {
            "type": "string",
            "defaultValue": "[resourceGroup().name]",
            "minLength": 3,
            "metadata": {
                "description": "Specifies the name of the IoT DPS service."
            }
        }, 
        "location": {
            "type": "string",
            "defaultValue": "[resourceGroup().location]",
            "metadata": {
                "description": "Location for Iot DPS resource."
            }
        }       
    }, 
    "variables": {
        "iotDpsApiVersion": "2020-01-01"
    }, 
    "resources": [
        {
            "type": "Microsoft.Devices/provisioningServices",
            "apiVersion": "[variables('iotDpsApiVersion')]",
            "name": "[parameters('iotDpsName')]",
            "location": "[parameters('location')]",
            "sku": {
                "name": "S1",
                "tier": "Standard",
                "capacity": 1
            },
            "properties": {
                "IpFilterRules": [
                    {
                        "FilterName": "AllowAll",
                        "Action": "Reject",
                        "ipMask": "0.0.0.0/0"
                    }
                ]
            }            
        }
    ]
}

Delete an IP filter rule

The following template example deletes all IP filter rules for the DPS instance.

{
    "$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#", 
    "contentVersion": "1.0.0.0", 
    "parameters": {
        "iotDpsName": {
            "type": "string",
            "defaultValue": "[resourceGroup().name]",
            "minLength": 3,
            "metadata": {
                "description": "Specifies the name of the IoT DPS service."
            }
        }, 
        "location": {
            "type": "string",
            "defaultValue": "[resourceGroup().location]",
            "metadata": {
                "description": "Location for Iot DPS resource."
            }
        }       
    }, 
    "variables": {
        "iotDpsApiVersion": "2020-01-01"
    }, 
    "resources": [
        {
            "type": "Microsoft.Devices/provisioningServices",
            "apiVersion": "[variables('iotDpsApiVersion')]",
            "name": "[parameters('iotDpsName')]",
            "location": "[parameters('location')]",
            "sku": {
                "name": "S1",
                "tier": "Standard",
                "capacity": 1
            },
            "properties": {
            }            
        }
    ]
}

Next steps

To further explore the managing DPS, see:

• Understanding IoT DPS IP addresses
• Set up DPS using the Azure CLI
• Control access to DPS
