Import an Azure Function App as an API in Azure API Management

APPLIES TO: All API Management tiers

Azure API Management supports importing Azure Function Apps as new APIs or appending them to existing APIs. The process automatically generates a host key in the Azure Function App, which is then assigned to a named value in Azure API Management.

Note

Currently, this feature isn't available in workspaces.

This article walks through importing and testing an Azure Function App as an API in Azure API Management.

You will learn how to:

  • Import an Azure Function App as an API
  • Append an Azure Function App to an API
  • View the new Azure Function App host key and Azure API Management named value
  • Test the API in the Azure portal

Prerequisites

Note

You can use the API Management Extension for Visual Studio Code to import and manage your APIs. Follow the API Management Extension tutorial to install and get started.

Go to your API Management instance

  1. In the Azure portal, search for and select API Management services.

    Select API Management services

  2. On the API Management services page, select your API Management instance.

    Select your API Management instance

Import an Azure Function App as a new API

Follow the steps below to create a new API from an Azure Function App.

  1. Navigate to your API Management service in the Azure portal and select APIs from the menu.

  2. In the Add a new API list, select Function App.

    Screenshot that shows the Function App tile.

  3. Click Browse to select Functions for import.

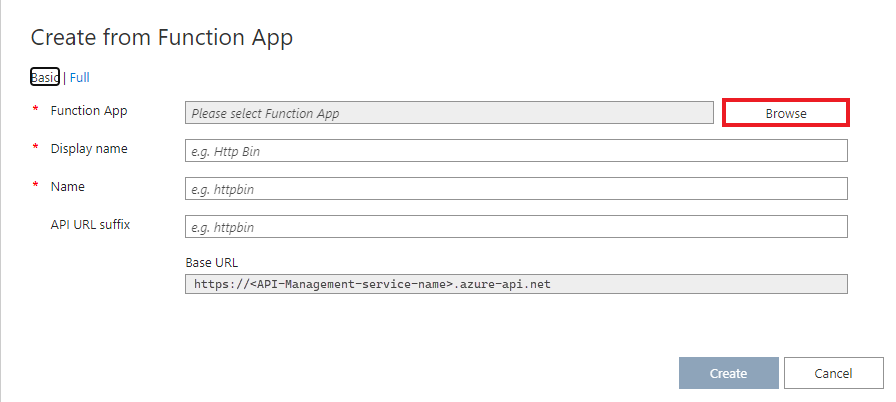

    Screenshot that highlights the Browse button.

  4. Click on the Function App section to choose from the list of available Function Apps.

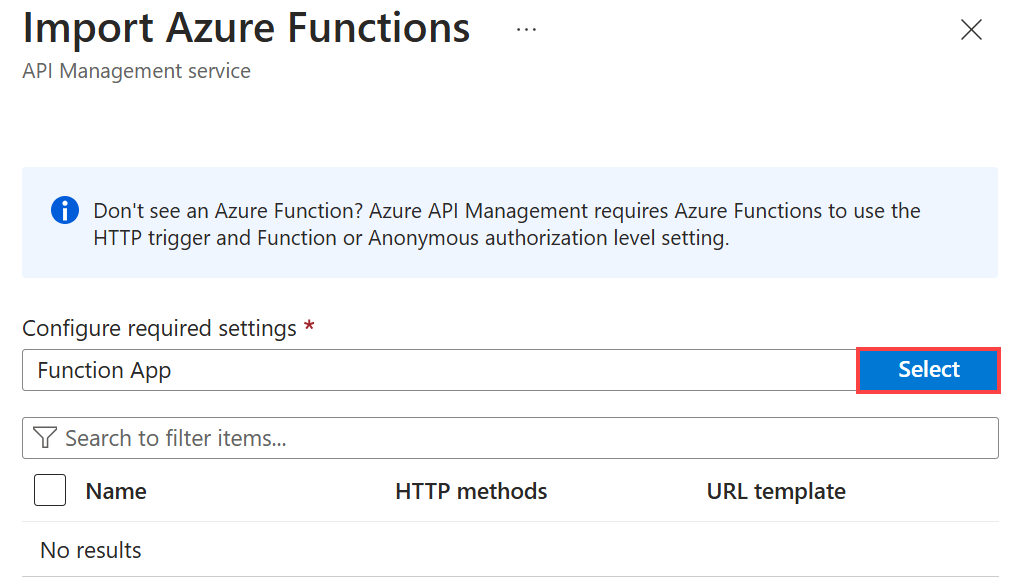

    Screenshot that highlights the Function App section.

  5. Find the Function App you want to import Functions from, click on it and press Select.

    Screenshot that highlights the Function App you want to import Functions from and the Select button.

  6. Select the Functions you would like to import and click Select.

    • You can only import Functions based off HTTP trigger with Anonymous or Function authorization levels.

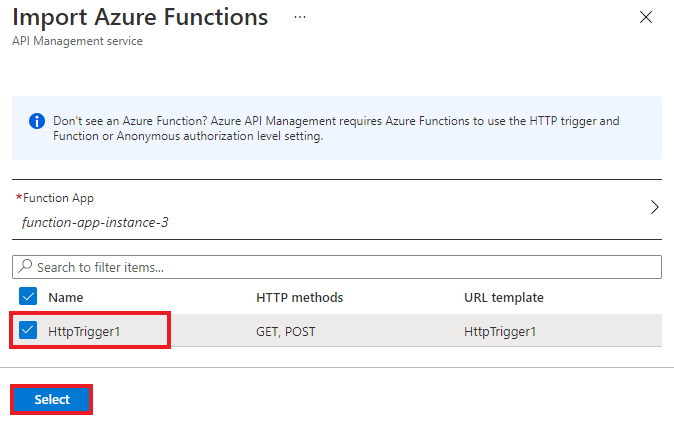

    Screenshot that highlights the Functions to import and the Select button.

  7. Switch to the Full view and assign Product to your new API.

  8. If needed, specify other fields during creation or configure them later via the Settings tab.

    Note

    Products are associations of one or more APIs offered to developers through the developer portal. First, developers must subscribe to a product to get access to the API. Once subscribed, they get a subscription key for any API in that product. As creator of the API Management instance, you are an administrator and are subscribed to every product by default.

    Each API Management instance comes with two default sample products:

    • Starter
    • Unlimited
  9. Click Create.

Append Azure Function App to an existing API

Follow the steps below to append Azure Function App to an existing API.

  1. In your Azure API Management service instance, select APIs from the menu on the left.

  2. Choose an API you want to import an Azure Function App to. Click ... and select Import from the context menu.

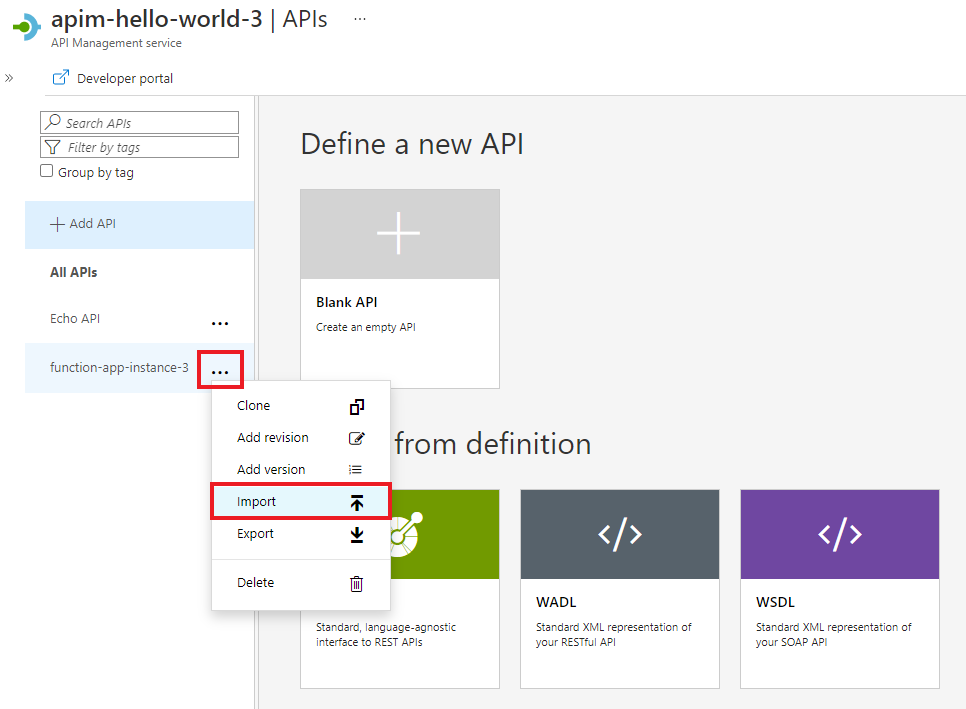

    Screenshot that highlights the Import menu option.

  3. Click on the Function App tile.

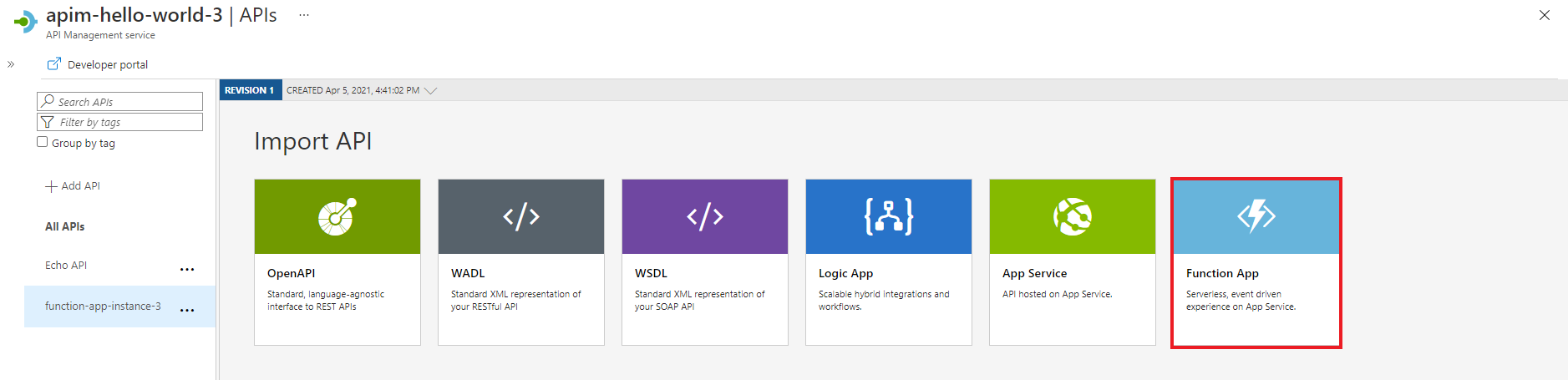

    Screenshot that highlights the Function App tile.

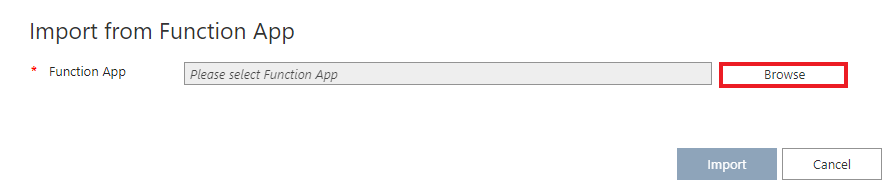

  4. In the pop-up window, click Browse.

    Screenshot that shows the Browse button.

  5. Click on the Function App section to choose from the list of available Function Apps.

    Screenshot that highlights the list of Function Apps.

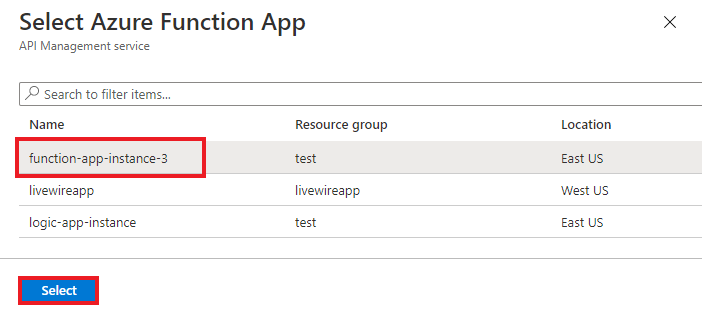

  6. Find the Function App you want to import Functions from, click on it and press Select.

    Screenshot that highlights the Function App you want to import functions from.

  7. Select the Functions you would like to import and click Select.

    Screenshot that highlights the functions you'd like to import.

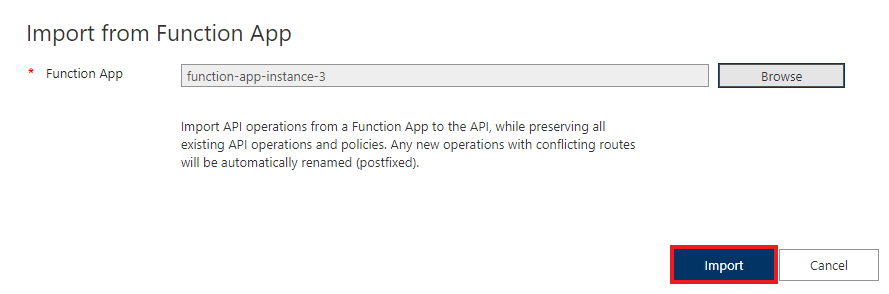

  8. Click Import.

    Append from Function App

Authorization

Import of an Azure Function App automatically generates:

  • Host key inside the Function App with the name apim-{your Azure API Management service instance name},
  • Named value inside the Azure API Management instance with the name {your Azure Function App instance name}-key, which contains the created host key.

For APIs created after April 4th 2019, the host key is passed in HTTP requests from API Management to the Function App in a header. Older APIs pass the host key as a query parameter. You can change this behavior through the PATCH Backend REST API call on the Backend entity associated with the Function App.

Warning

Removing or changing either the Azure Function App host key value or the Azure API Management named value will break the communication between the services. The values do not sync automatically.

If you need to rotate the host key, make sure the named value in Azure API Management is also modified.

Access Azure Function App host key

  1. Navigate to your Azure Function App instance.

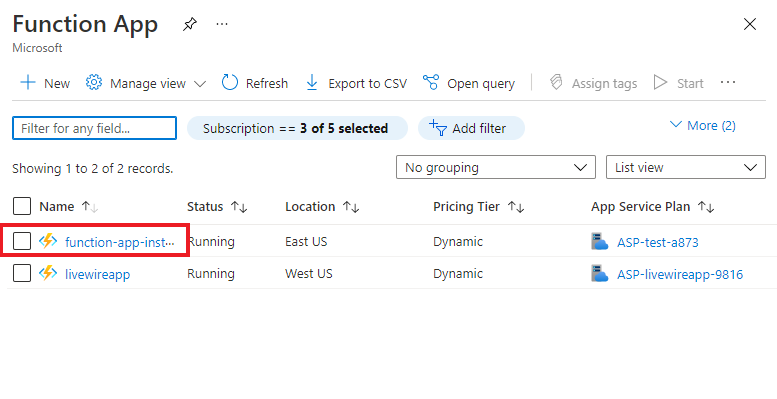

    Screenshot that highlights selecting your Function app instance.

  2. In the Functions section of the side navigation menu, select App keys.

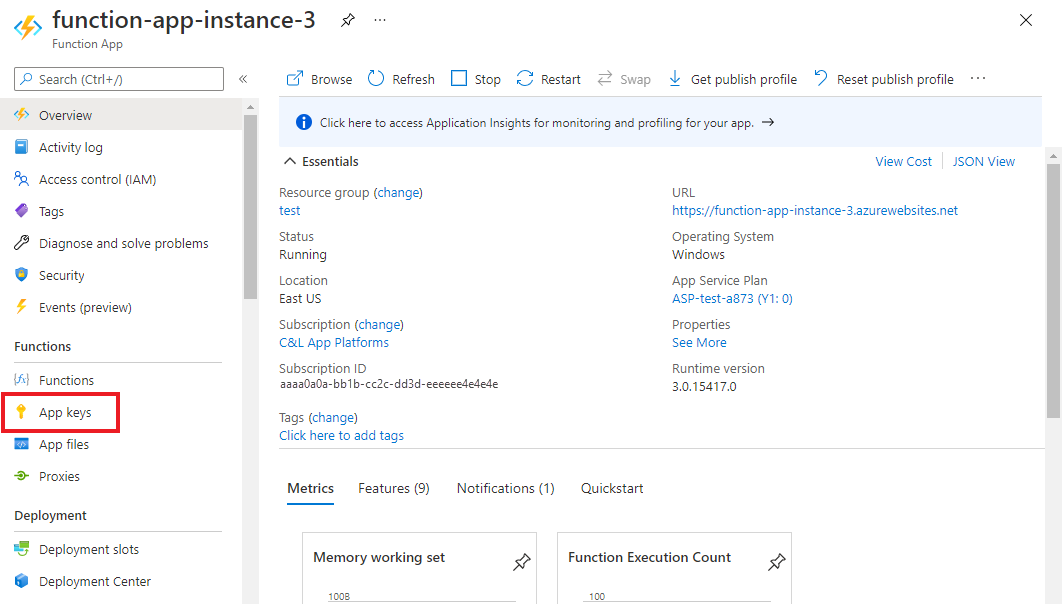

    Screenshot that highlights the Function Apps settings option.

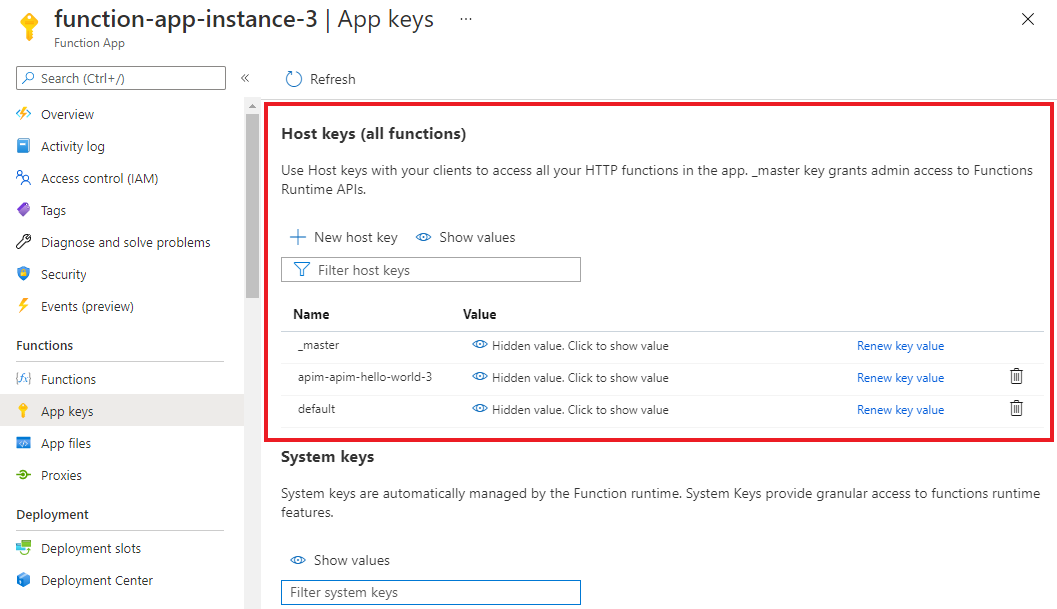

  3. Find the keys under the Host keys section.

    Screenshot that highlights the Host Keys section.

Access the named value in Azure API Management

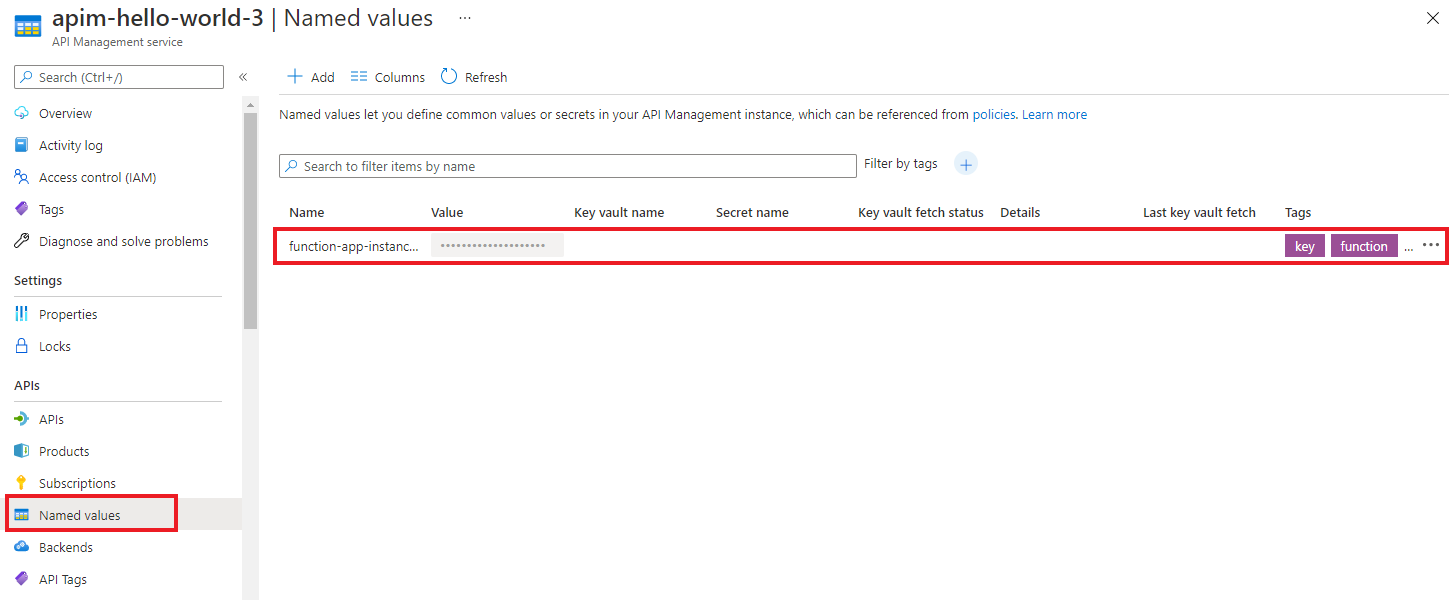

Navigate to your Azure API Management instance and select Named values from the menu on the left. The Azure Function App key is stored there.

Add from Function App

Test the new API in the Azure portal

You can call operations directly from the Azure portal. Using the Azure portal is a convenient way to view and test the operations of an API.

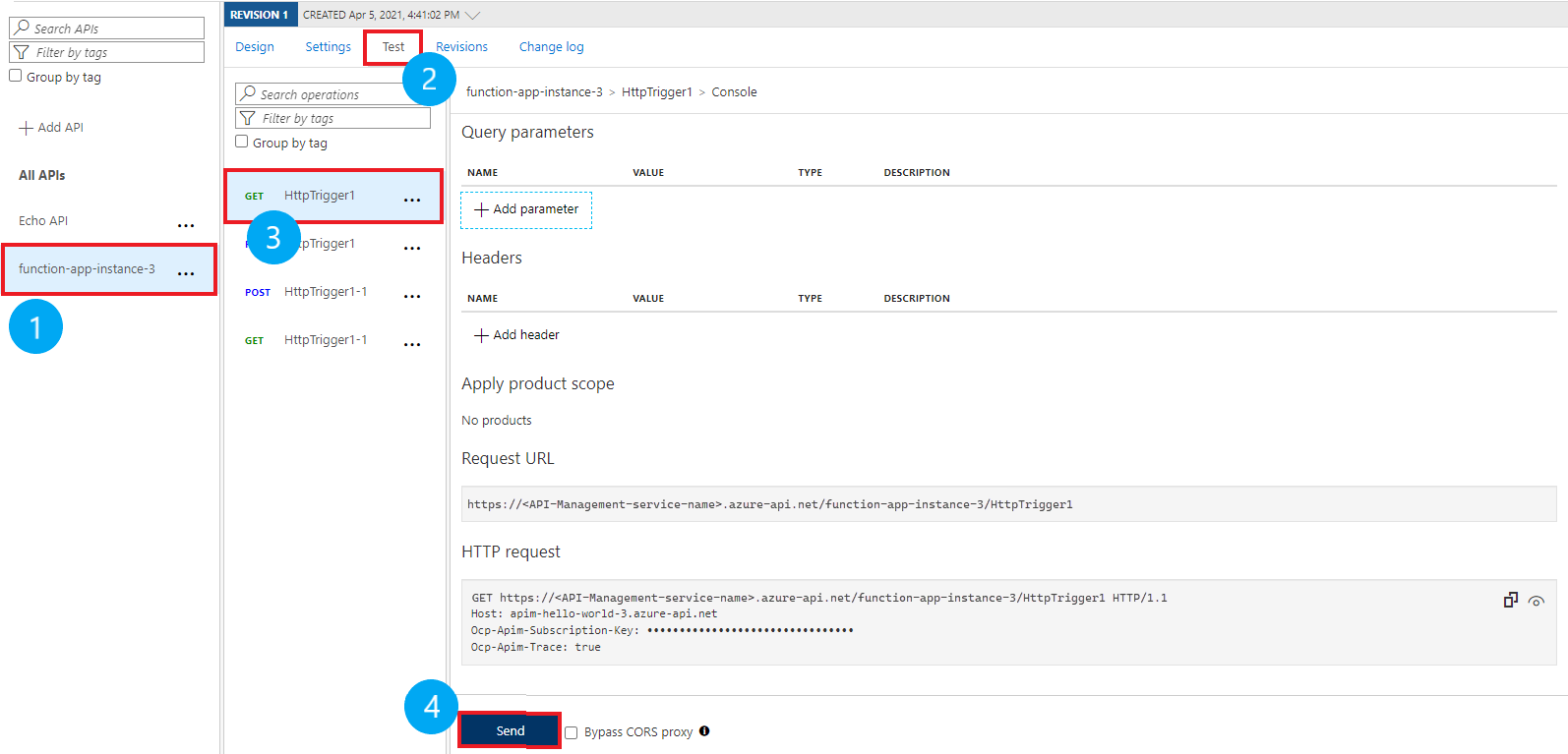

Screenshot that highlights the test procedure.

  1. Select the API that you created in the preceding section.

  2. Select the Test tab.

  3. Select the operation you want to test.

    • The page displays fields for query parameters and headers.
    • One of the headers is "Ocp-Apim-Subscription-Key", for the product subscription key associated with this API.
    • As creator of the API Management instance, you are an administrator already, so the key is filled in automatically.
  4. Select Send.

    • When the test succeeds, the back end responds with 200 OK and some data.
