Secure Azure Digital Twins

  • Artikkeli

This article explains Azure Digital Twins security best practices. It covers roles and permissions, managed identity, private network access with Azure Private Link, service tags, encryption of data at rest, and Cross-Origin Resource Sharing (CORS).

For security, Azure Digital Twins enables precise access control over specific data, resources, and actions in your deployment. It does so through a granular role and permission management strategy called Azure role-based access control (Azure RBAC).

Azure Digital Twins also supports encryption of data at rest.

Roles and permissions with Azure RBAC

Azure RBAC is provided to Azure Digital Twins via integration with Microsoft Entra ID.

You can use Azure RBAC to grant permissions to a security principal, which may be a user, a group, or an application service principal. The security principal is authenticated by Microsoft Entra ID, and receives an OAuth 2.0 token in return. This token can be used to authorize an access request to an Azure Digital Twins instance.

Authentication and authorization

With Microsoft Entra ID, access is a two-step process. When a security principal (a user, group, or application) attempts to access Azure Digital Twins, the request must be authenticated and authorized.

  1. First, the security principal's identity is authenticated, and an OAuth 2.0 token is returned.
  2. Next, the token is passed as part of a request to the Azure Digital Twins service, to authorize access to the specified resource.

The authentication step requires any application request to contain an OAuth 2.0 access token at runtime. If an application is running within an Azure entity such as an Azure Functions app, it can use a managed identity to access the resources. Read more about managed identities in the next section.

The authorization step requires that an Azure role be assigned to the security principal. The roles that are assigned to a security principal determine the permissions that the principal will have. Azure Digital Twins provides Azure roles that encompass sets of permissions for Azure Digital Twins resources. These roles are described later in this article.

To learn more about roles and role assignments supported in Azure, see Understand the different roles in the Azure RBAC documentation.

Authentication with managed identities

Managed identities for Azure resources is a cross-Azure feature that enables you to create a secure identity associated with the deployment where your application code runs. You can then associate that identity with access-control roles, to grant custom permissions for accessing specific Azure resources that your application needs.

With managed identities, the Azure platform manages this runtime identity. You don't need to store and protect access keys in your application code or configuration, either for the identity itself, or for the resources you need to access. An Azure Digital Twins client app running inside an Azure App Service application doesn't need to handle SAS rules and keys, or any other access tokens. The client app only needs the endpoint address of the Azure Digital Twins namespace. When the app connects, Azure Digital Twins binds the managed entity's context to the client. Once it's associated with a managed identity, your Azure Digital Twins client can do all authorized operations. Authorization will then be granted by associating a managed entity with an Azure Digital Twins Azure role (described below).

Authorization: Azure roles for Azure Digital Twins

Azure provides two Azure built-in roles for authorizing access to the Azure Digital Twins data plane APIs. You can refer to the roles either by name or by ID:

Built-in role Description ID
Azure Digital Twins Data Owner Gives full access over Azure Digital Twins resources bcd981a7-7f74-457b-83e1-cceb9e632ffe
Azure Digital Twins Data Reader Gives read-only access to Azure Digital Twins resources d57506d4-4c8d-48b1-8587-93c323f6a5a3

You can assign roles in two ways:

For detailed steps on assigning roles to an Azure Digital Twins instance, see Set up an instance and authentication. For more information about how built-in roles are defined, see Understand role definitions in the Azure RBAC documentation.

You can also create custom Azure roles for your instance. This allows you to grant permission for specific actions in individual data areas, including twins, commands, relationships, event routes, jobs, models, and queries. For more information about custom roles in Azure, see Azure custom roles.

Automating roles

When referring to roles in automated scenarios, it's recommended to refer to them by their IDs rather than their names. The names may change between releases, but the IDs won't, making them a more stable reference in automation.

Tip

If you're assigning roles with a cmdlet, such as New-AzRoleAssignment (reference), you can use the -RoleDefinitionId parameter instead of -RoleDefinitionName to pass an ID instead of a name for the role.

Permission scopes

Before you assign an Azure role to a security principal, determine the scope of access that the security principal should have. Best practices dictate that it's best to grant only the narrowest possible scope.

The following list describes the levels at which you can scope access to Azure Digital Twins resources.

  • Models: The actions for this resource dictate control over models uploaded in Azure Digital Twins.
  • Query Digital Twins Graph: The actions for this resource determine ability to run query operations on digital twins within the Azure Digital Twins graph.
  • Digital Twin: The actions for this resource provide control over CRUD operations on digital twins in the twin graph.
  • Digital Twin relationship: The actions for this resource define control over CRUD operations on relationships between digital twins in the twin graph.
  • Event route: The actions for this resource determine permissions to route events from Azure Digital Twins to an endpoint service like Event Hubs, Event Grid, or Service Bus.

Troubleshoot permissions

If a user attempts to perform an action not allowed by their role, they may receive an error from the service request reading 403 (Forbidden). For more information and troubleshooting steps, see Troubleshoot Azure Digital Twins failed service request: Error 403 (Forbidden).

Managed identity for accessing other resources

Setting up an Microsoft Entra ID managed identity for an Azure Digital Twins instance can allow the instance to easily access other Microsoft Entra protected resources, such as Azure Key Vault. The identity is managed by the Azure platform, and doesn't require you to provision or rotate any secrets. For more about managed identities in Microsoft Entra ID, see Managed identities for Azure resources.

Azure Digital Twins supports both types of managed identities, system-assigned and user-assigned.

You can use either of these managed identity types to authenticate to a custom-defined endpoint. Azure Digital Twins supports identity-based authentication to endpoints for Event Hubs and Service Bus destinations, and to an Azure Storage Container endpoint for dead-letter events. Event Grid endpoints are currently not supported for managed identities.

For instructions on how to enable a managed identity for an Azure Digital Twins endpoint that can be used to route events, see Endpoint options: Identity-based authentication.

Using trusted Microsoft service for routing events to Event Hubs and Service Bus endpoints

Azure Digital Twins can connect to Event Hubs and Service Bus endpoints for sending event data, using those resources' public endpoints. However, if those resources are bound to a VNet, connectivity to the resources are blocked by default. As a result, this configuration prevents Azure Digital Twins from sending event data to your resources.

To resolve this, enable connectivity from your Azure Digital Twins instance to your Event Hubs or Service Bus resources through the trusted Microsoft service option (see Trusted Microsoft services for Event Hubs and Trusted Microsoft services for Service Bus).

You'll need to complete the following steps to enable the trusted Microsoft service connection.

  1. Your Azure Digital Twins instance must use a system-assigned managed identity. This allows other services to find your instance as a trusted Microsoft service. For instructions to set up a system-managed identity on the instance, see Enable managed identity for the instance.
  2. Once a system-assigned managed identity is provisioned, grant permission for your instance's managed identity to access your Event Hubs or Service Bus endpoint (this feature is not supported in Event Grid). For instructions to assign the proper roles, see Assign Azure roles to the identity.
  3. For Event Hubs and Service Bus endpoints that have firewall configurations in place, make sure you enable the Allow trusted Microsoft services to bypass this firewall setting.

Azure Private Link is a service that enables you to access Azure resources (like Azure Event Hubs, Azure Storage, and Azure Cosmos DB) and Azure-hosted customer and partner services over a private endpoint in your Azure Virtual Network (VNet).

Similarly, you can use private access endpoints for your Azure Digital Twins instance to allow clients located in your virtual network to have secure REST API access to the instance over Private Link. Configuring a private access endpoint for your Azure Digital Twins instance enables you to secure your Azure Digital Twins instance and eliminate public exposure. Additionally, it helps avoid data exfiltration from your Azure Virtual Network (VNet).

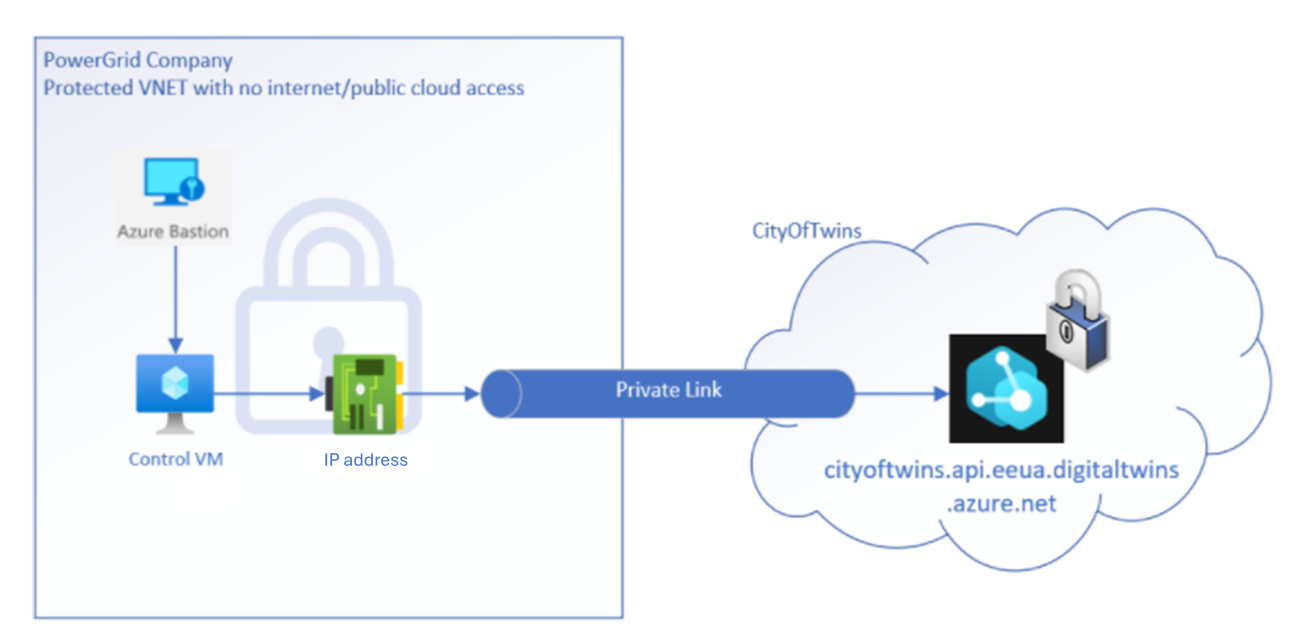

The private access endpoint uses an IP address from your Azure VNet address space. Network traffic between a client on your private network and the Azure Digital Twins instance traverses over the VNet and a Private Link on the Microsoft backbone network, eliminating exposure to the public internet.

Diagram showing a network that is a protected VNET with no public cloud access, connecting through Private Link to an Azure Digital Twins instance.

Configuring a private access endpoint for your Azure Digital Twins instance enables you to secure your Azure Digital Twins instance and eliminate public exposure, as well as avoid data exfiltration from your VNet.

For instructions on how to set up Private Link for Azure Digital Twins, see Enable private access with Private Link.

Note

Private network access with Azure Private Link applies to accessing Azure Digital Twins through its rest APIs. This feature does not apply to egress scenarios using Azure Digital Twins's event routing feature.

Design considerations

When working with Private Link for Azure Digital Twins, here are some factors you may want to consider:

Service tags

A service tag represents a group of IP address prefixes from a given Azure service. Microsoft manages the address prefixes encompassed by the service tag and automatically updates the service tag as addresses change, minimizing the complexity of frequent updates to network security rules. For more information about service tags, see Virtual network tags.

You can use service tags to define network access controls on network security groups or Azure Firewall, by using service tags in place of specific IP addresses when you create security rules. By specifying the service tag name (in this case, AzureDigitalTwins) in the appropriate source or destination field of a rule, you can allow or deny the traffic for the corresponding service.

Below are the details of the AzureDigitalTwins service tag.

Tag Purpose Can use inbound or outbound? Can be regional? Can use with Azure Firewall?
AzureDigitalTwins Azure Digital Twins
Note: This tag or the IP addresses covered by this tag can be used to restrict access to endpoints configured for event routes.		 Inbound No Yes

Using service tags for accessing event route endpoints

Here are the steps to access event route endpoints using service tags with Azure Digital Twins.

  1. First, download this JSON file reference showing Azure IP ranges and service tags: Azure IP Ranges and Service Tags.

  2. Look for "AzureDigitalTwins" IP ranges in the JSON file.

  3. Refer to the documentation of the external resource connected to the endpoint (for example, the Event Grid, Event Hubs, Service Bus, or Azure Storage for dead-letter events) to see how to set IP filters for that resource.

  4. Set IP filters on the external resource(s) using the IP ranges from Step 2.

  5. Update the IP ranges periodically as required. The ranges may change over time, so it's a good idea to check them regularly and refresh them when needed. The frequency of these updates can vary, but it's a good idea to check them once a week.

Encryption of data at rest

Azure Digital Twins provides encryption of data at rest and in-transit as it's written in our data centers, and decrypts it for you as you access it. This encryption occurs using a Microsoft-managed encryption key.

Cross-Origin Resource Sharing (CORS)

Azure Digital Twins doesn't currently support Cross-Origin Resource Sharing (CORS). As a result, if you're calling a REST API from a browser app, an API Management (APIM) interface, or a Power Apps connector, you may see a policy error.

To resolve this error, you can do one of the following actions:

  • Strip the CORS header Access-Control-Allow-Origin from the message. This header indicates whether the response can be shared.
  • Alternatively, create a CORS proxy and make the Azure Digital Twins REST API request through it.
