Deploy OSDU Admin UI on top of Azure Data Manager for Energy

This guide shows you how to deploy the OSDU Admin UI on top of your Azure Data Manager for Energy (ADME) instance.

The OSDU Admin UI enables platform administrators to manage the Azure Data Manager for Energy data partition you connect it to. The management tasks include entitlements (user and group management), legal tags, schemas, reference data, view, and visualize objects on a map.

Prerequisites

• An Azure Data Manager for Energy instance.

• An Microsoft Entra ID App Registration.
  This App Registration can be the same as the one used for the Azure Data Manager for Energy instance. The following API permissions are required on the App Registration for the Admin UI to function properly.

  • Application.Read.All
  • User.Read
  • User.ReadBasic.All

  Upon first sign-in to the Admin UI, it requests the necessary permissions. You can also grant the required permissions in advance. See App Registration API Permission documentation.

Deployment options

There are two deployment options for the OSDU Admin UI:

1. Quick-deploy using Azure Container Apps: One-click deploy using Azure Container Apps. This deployment is the easiest and quickest way to deploy the OSDU Admin UI. It supports both public and private deployments.

2. Custom deployment using Azure Storage Account Static Website: Build and deploy the OSDU Admin UI using Azure Storage Account. This deployment option is more customizable and allows you to configure the deployment to your needs.

Quick-deploy with Azure Container Apps

1. Select the Deploy to Azure button to deploy the OSDU Admin UI using Azure Container Apps.

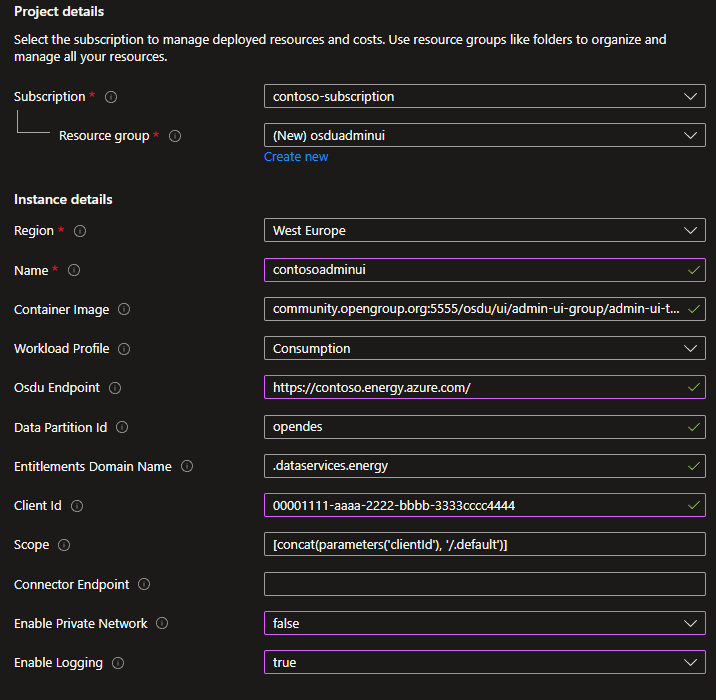

2. Fill in the required parameters in the Azure portal. For more information about the parameters, see the parameters section for more information.



3. Select Review + create and then Create to deploy the OSDU Admin UI.

4. Check the Outputs section for the URL of the deployed OSDU Admin UI.

5. Configure the ADME CORS policy and App Registration SPA redirect URI with the website URL.

6. Open the URL in a browser and validate that it's working correctly and connected to the correct Azure Data Manager for Energy instance.

Parameters

Parameter	Description	Required
Subscription	The Azure subscription to deploy the OSDU Admin UI to.	Yes
Resource group	The resource group to deploy the OSDU Admin UI to.	Yes
Region	The Azure region to deploy the OSDU Admin UI to.	Yes
Name	The name of the OSDU Admin UI instance. Other resources use this name as the base-name and append a service abbreviation	Yes
Container Image	The container image to use for the OSDU Admin UI. See OSDU Forum Admin UI Container Registry for available images.	Yes
Osdu Endpoint	The endpoint of the Azure Data Manager for Energy or OSDU instance to connect to.	Yes
Data Partition ID	The data partition ID of the Azure Data Manager for Energy or OSDU instance to connect to.	Yes
Entitlements Domain Name	The domain name to use for the entitlements service. Keep .dataservices.energy for any ADME deployment, only update if you're using another OSDU implementation.	Yes
Client ID	The client ID of the App Registration to use for the OSDU Admin UI.	Yes
Scope	The scope of the App Registration used by Azure Data Manager for Energy or OSDU. If the Client ID is the ADME App Registration, you can leave this default.	Yes
Connector Endpoint	Optional: The OSDU Admin UI Connector API endpoint to use for the Admin UI.	No
Enable Private Network	Optional: Enable private network access to the OSDU Admin UI.	No
Enable Logging	Optional: Enable logging for the OSDU Admin UI.	No

Custom deployment using Azure Storage Account Static Website

Prepare your computer

• Install Visual Studio Code with Dev Containers. It's possible to deploy the OSDU Admin UI from your local computer using either Linux or Windows Subsystem for Linux (WSL), we recommend using a Dev Container to eliminate potential conflicts of tooling versions, environments etc.

Environment setup

1. Use the Dev Container in Visual Studio Code to deploy the OSDU Admin UI to eliminate conflicts from your local machine.

2. Select Remote - Containers | Open to open a Development Container and clone the OSDU Admin UI repository.

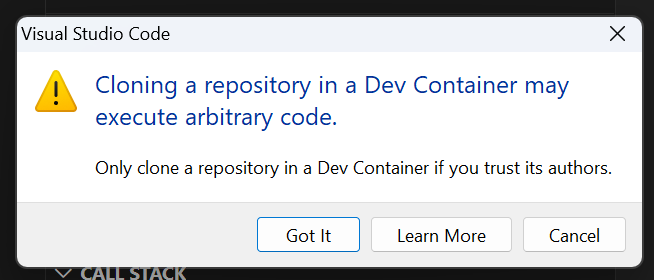

3. Accept the cloning prompt.



4. When prompted for a container configuration template.

   1. Select Ubuntu.
   2. Accept the default version.
   3. Don't add any extra features.

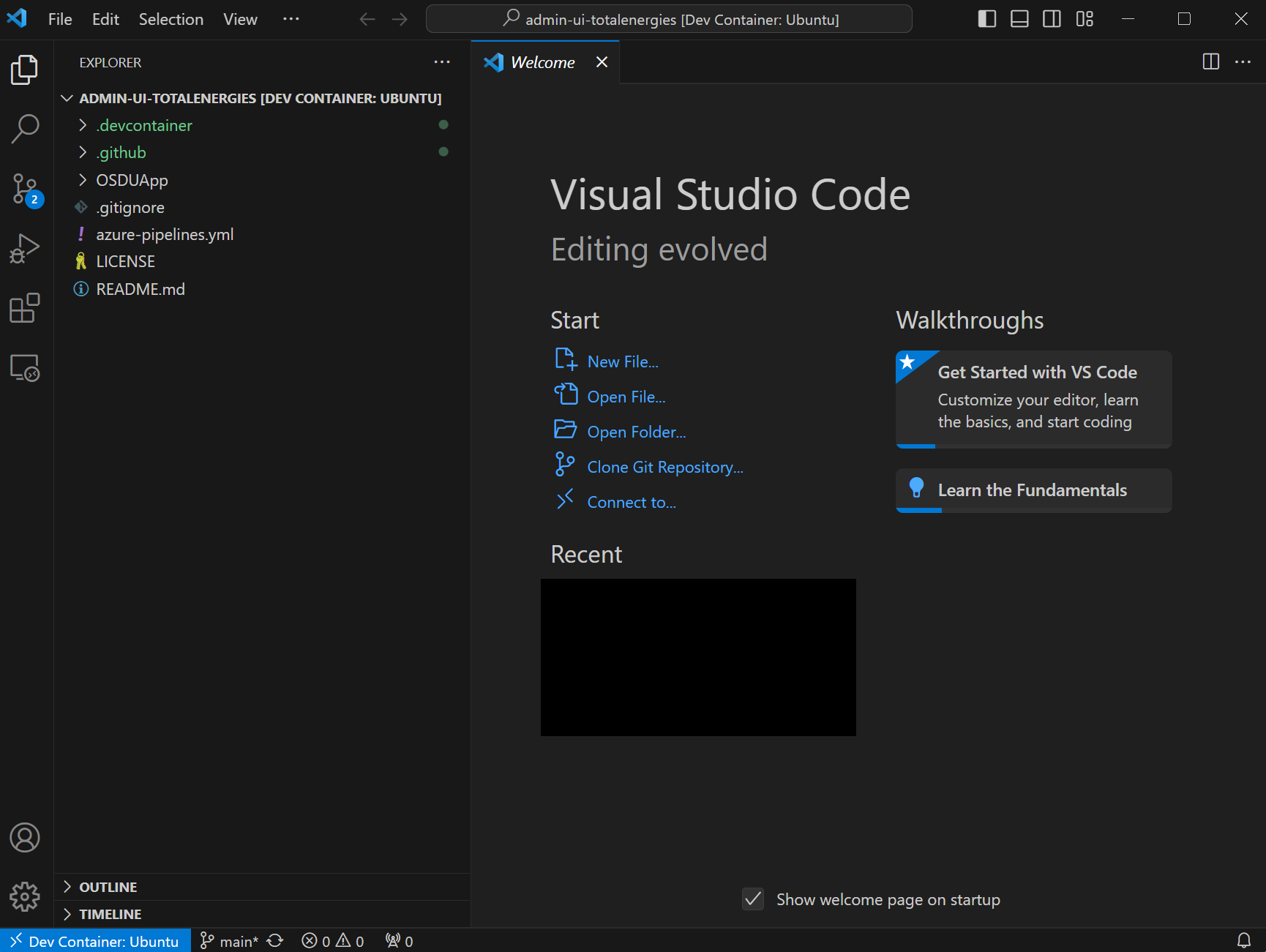

5. After a few minutes, the devcontainer is running.

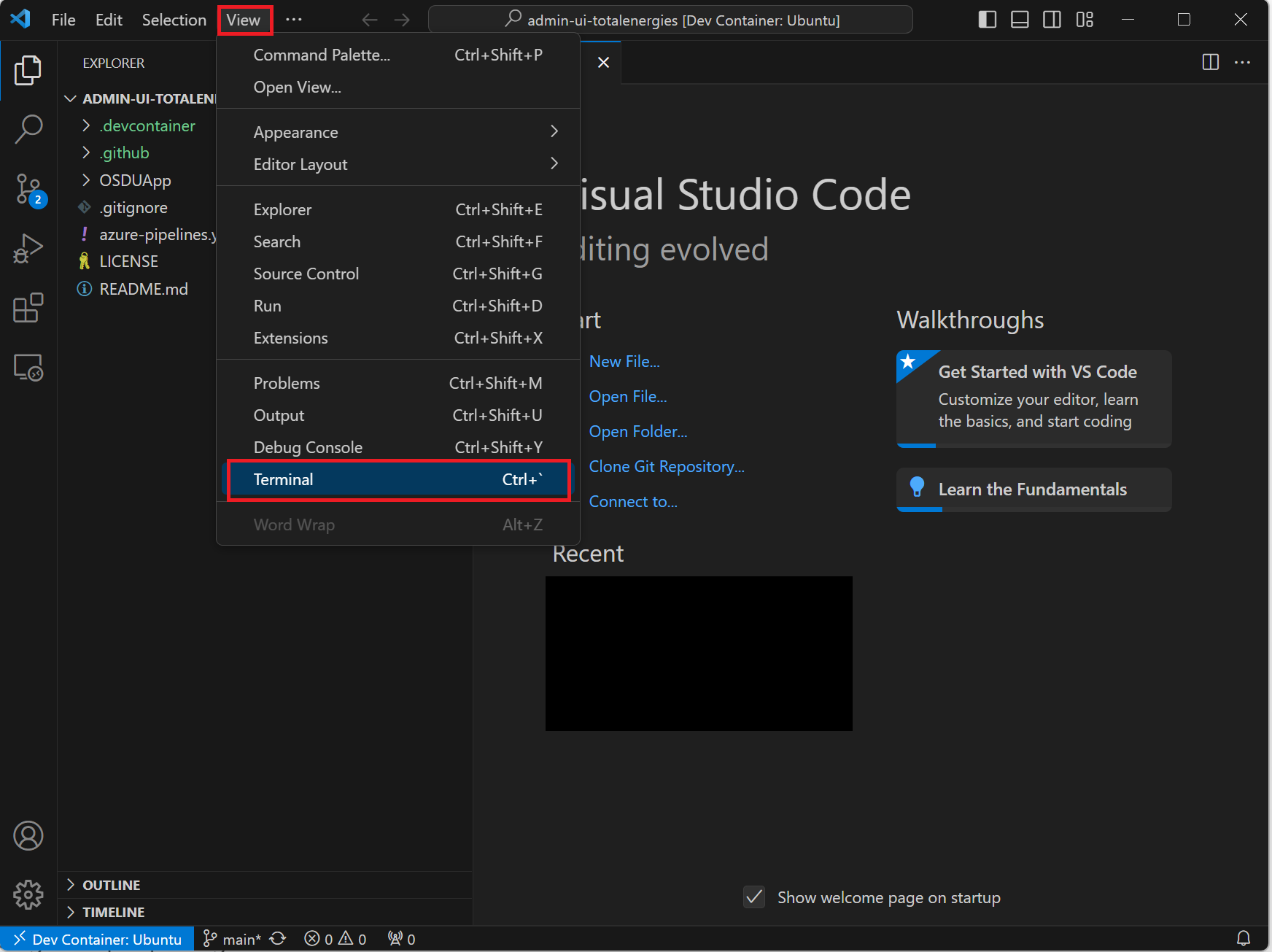

6. Open the terminal.

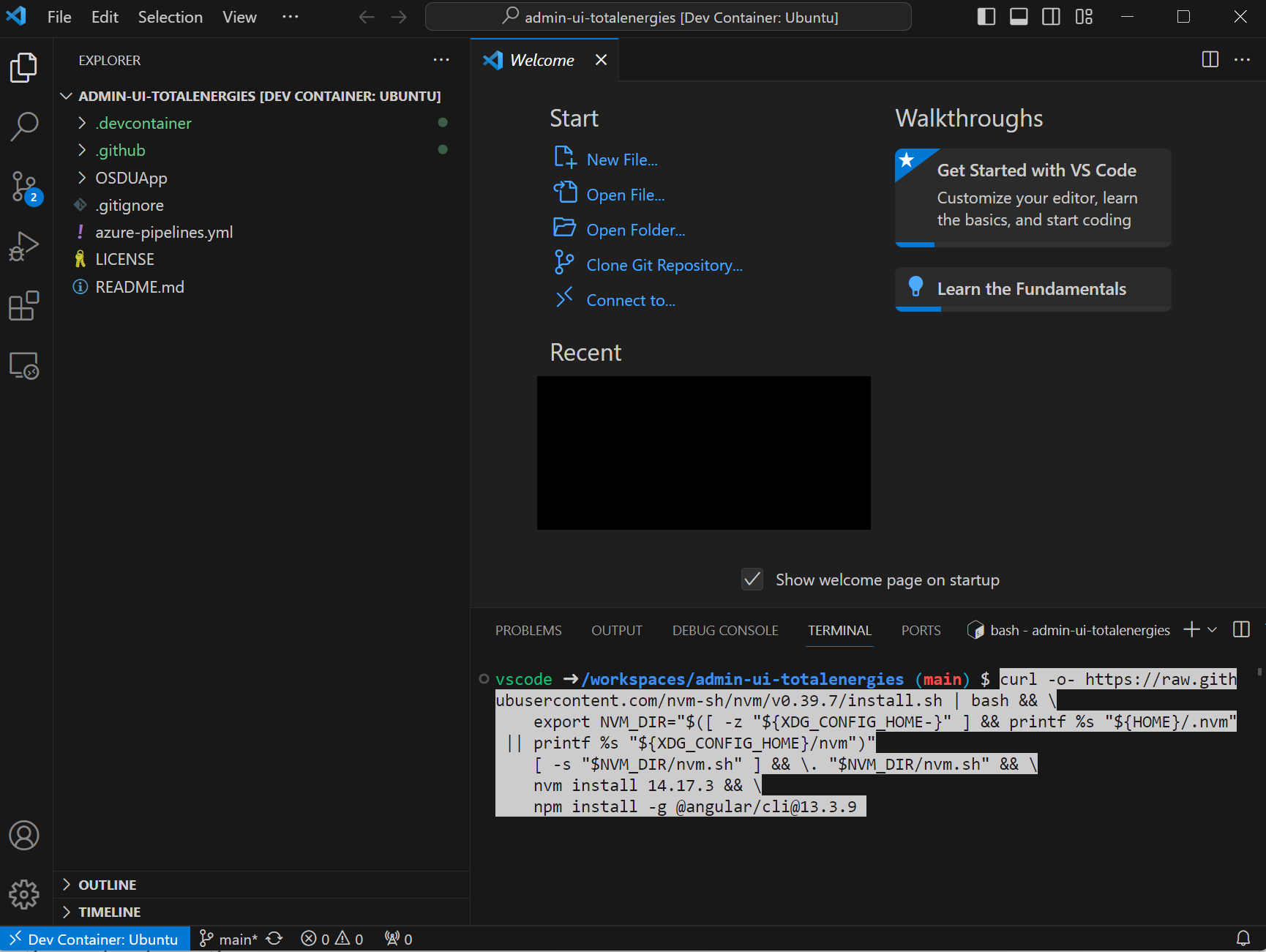

7. Install Angular CLI, Azure CLI, npm, and Node Version Manager (NVM).

   curl -o- https://raw.githubusercontent.com/nvm-sh/nvm/v0.39.7/install.sh | bash && \
   export NVM_DIR="$([ -z "${XDG_CONFIG_HOME-}" ] && printf %s "${HOME}/.nvm" || printf %s "${XDG_CONFIG_HOME}/nvm")"
   [ -s "$NVM_DIR/nvm.sh" ] && \. "$NVM_DIR/nvm.sh" && \
   nvm install 14.17.3 && \
   export NG_CLI_ANALYTICS=false && \
   npm install -g @angular/cli@13.3.9 && \
   apt-get install jq -y && \
   curl -sL https://aka.ms/InstallAzureCLIDeb | sudo bash




8. Log into Azure CLI by executing the command on the terminal. It takes you to the sign-in screen.

   az login

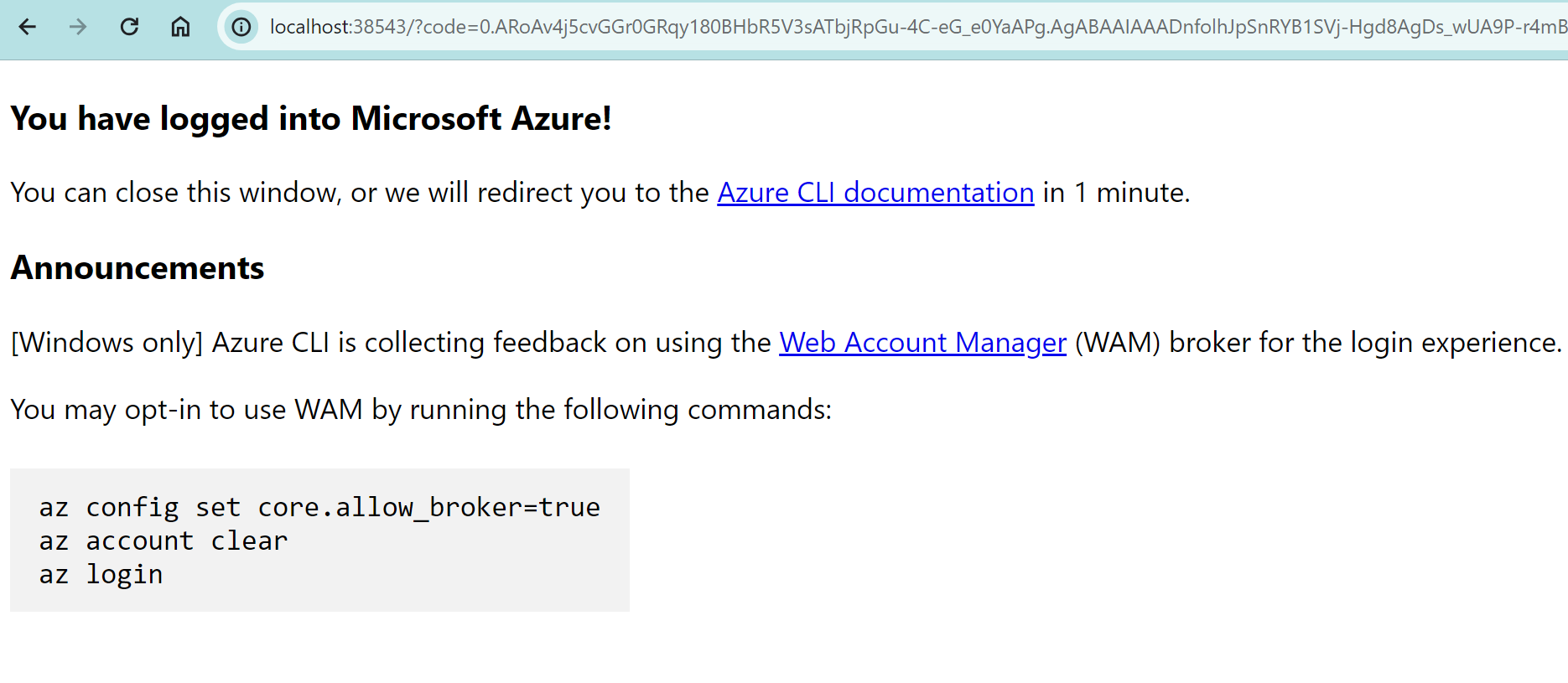

9. It takes you to the sign-in screen. Enter your credentials and upon success, you see a success message.



10. Validate that you're using the correct subscription.

    az account show


11. If needed, use this code to change subscription.

    az account set --subscription <subscription-id>


Configure environment variables

1. Enter the required environment variables on the terminal.

   export WEBSITE_NAME="" ## Unique name of the static web app or storage account that will be generated. Storage account name must be between 3 and 24 characters in length and use numbers and lower-case letters only.
   export RESOURCE_GROUP="" ## Name of resource group
   export LOCATION="" ## Azure region to deploy to, i.e. "westeurope"


Deploy storage account

1. Create resource group. Skip this step if the resource group exists already.

   az group create \
       --name $RESOURCE_GROUP \
       --location $LOCATION


2. Create storage account.

   az storage account create \
       --resource-group $RESOURCE_GROUP \
       --location $LOCATION \
       --name $WEBSITE_NAME \
       --sku Standard_LRS \
       --public-network-access Enabled \
       --allow-blob-public-access true


3. Configure the static website.

   az storage blob service-properties update \
       --account-name $WEBSITE_NAME \
       --static-website \
       --404-document index.html \
       --index-document index.html


4. Set $web container permissions to allow anonymous access.

   az storage container set-permission \
       --name '$web' \
       --account-name $WEBSITE_NAME \
       --public-access blob


Build and deploy the web app

1. Navigate to the OSDUApp folder.

   cd OSDUApp/


2. Copy Azure routing.ts file.

   cp providers/azure/routing.ts src/app/routing.ts


3. Install the dependencies.

   npm install


4. Modify the parameters in the config file located at /src/config/config.json.

Code snippet

Replace the values of the environment variables with your values.

export OSDU_ENDPOINT="" # Endpoint of the Azure Data Manager for Energy or OSDU instance to connect to
export DATA_PARTITION_ID="" # ADME Data Partition ID (i.e. opendes)
export DOMAIN_NAME=".dataservices.energy" # Domain name to use for the entitlements service. Use .dataservices.energy for any ADME deployment.
export TENANT_ID="" # Entra ID tenant ID
export CLIENT_ID="" # App Registration ID to use for the admin UI, usually the same as the ADME App Registration ID
export SCOPE="" # Scope of the ADME instance, i.e. "6ee7e0d6-0641-4b29-a283-541c5d00655a/.default"
export GRAPH_ENDPOINT="https://graph.microsoft.com/v1.0/" # Microsoft Graph API endpoint
export APPINSIGHTS_INSTRUMENTATIONKEY="" # Optional. Application Insights instrumentation key
export OSDU_CONNECTOR_API_ENDPOINT="" # Optional. API endpoint of the OSDU Connector API


jq --arg data "$DATA_PARTITION_ID" \
--arg domain "$DOMAIN_NAME" \
--arg tenant "$TENANT_ID" \
--arg client "$CLIENT_ID" \
--arg redirect "$REDIRECT_URI" \
--arg scope "$SCOPE" \
--arg endpoint "$OSDU_ENDPOINT" \
--arg graph "$GRAPH_ENDPOINT" \
--arg appinnsights "$APPINSIGHTS_INSTRUMENTATIONKEY" \
--arg connectorapi "$OSDU_CONNECTOR_API_ENDPOINT" \
'.settings.appInsights.instrumentationKey = $appinnsights |
    .settings.data_partition = $data |
    .settings.domain_name = $domain |
    .settings.idp.tenant_id = $tenant |
    .settings.idp.client_id = $client |
    .settings.idp.redirect_uri = $redirect |
    .settings.idp.scope = $scope |
    .settings.api_endpoints.entitlement_endpoint = $endpoint |
    .settings.api_endpoints.storage_endpoint = $endpoint |
    .settings.api_endpoints.search_endpoint = $endpoint |
    .settings.api_endpoints.legal_endpoint = $endpoint |
    .settings.api_endpoints.schema_endpoint = $endpoint |
    .settings.api_endpoints.file_endpoint = $endpoint |
    .settings.api_endpoints.secrets_endpoint = $connectorapi |
    .settings.api_endpoints.graphAPI_endpoint = $graph |
    .settings.api_endpoints.workflow_endpoint = $endpoint |
    .settings.api_endpoints.secrets_endpoint = $endpoint |
    .settings.api_endpoints.wddms_endpoint = $endpoint' \
src/config/config.json > src/config/temp.json
mv src/config/temp.json src/config/config.json

Manual

Replace the values according to the explanation.

{
    ...
    "domain_name": ".dataservices.energy", // Domain name to use for the entitlements service. Use .dataservices.energy for any ADME deployment.
    "data_partition": "<adme_data_partition>", // ADME Data Partition ID (i.e. opendes)
    "idp": {
        ...
        "tenant_id": "<tenant_id>", // Entra ID tenant ID
        "client_id": "<client_id>", // App Registration ID to use for the admin UI, usually the same as the ADME App Registration ID, i.e. "6ee7e0d6-0641-4b29-a283-541c5d00655a"
        "redirect_uri": "<redirect_uri>", // This is the website URL ($REDIRECT_URI), i.e. "https://contoso.z1.web.core.windows.net"
        "scope": "<client_id>/.default" // Scope of the ADME instance, i.e. "6ee7e0d6-0641-4b29-a283-541c5d00655a/.default"
    },
    "api_endpoints": { // Just replace contoso.energy.azure.com with your ADME_URL after removing https or wwww in all the API endpoints below.
        "entitlement_endpoint": "https://contoso.energy.azure.com/api/",
        "storage_endpoint": "https://contoso.energy.azure.com/api/",
        "search_endpoint": "https://contoso.energy.azure.com/api/",
        "legal_endpoint": "https://contoso.energy.azure.com/api/",
        "schema_endpoint": "https://contoso.energy.azure.com/api/",
        "osdu_connector_api_endpoint":"osdu_connector", // Optional. API endpoint of the OSDU Connector API*
        "file_endpoint": "https://contoso.energy.azure.com/api/",
        "graphAPI_endpoint": "https://graph.microsoft.com/v1.0/",
        "workflow_endpoint": "https://contoso.energy.azure.com/api/"
    }
    ...
}

Note

OSDU Connector API is built as an interface between consumers and OSDU APIs wrapping some API chain calls and objects. Currently, it manages all operations and actions on project and scenario objects.

5. Build the web UI.

   ng build


6. Upload the build to Storage Account.

   az storage blob upload-batch \
       --account-name $WEBSITE_NAME \
       --source ./dist/OSDUApp \
       --destination '$web' \
       --overwrite


7. Fetch the website URL.

   echo $REDIRECT_URI


8. Configure the ADME CORS policy and App Registration SPA redirect URI with the website URL.

9. Open the Website URL in the browser and validate that it's working correctly and connected to the correct Azure Data Manager for Energy instance.

Add CORS policy

For the Admin UI to work correctly, you need to add the redirect URI to the CORS policy on the Azure Data Manager for Energy instance. Learn how to add a CORS policy to your Azure Data Manager for Energy instance, see the CORS policy documentation.

Add redirect URI to App Registration

You need to add the redirect URI as a Single-Page App to the App Registration used by the Admin UI. To configure the redirect URI, follow the steps in the Add redirect URI to App Registration documentation.

Next steps

After you have a successful Admin UI working, you can:

• Add first set of users.
• Manage legal tags.
• Manage ACLs.

You can also ingest data into your Azure Data Manager for Energy instance:

• Tutorial on CSV parser ingestion.
• Tutorial on manifest ingestion.

References

For information about OSDU Admin UI, see OSDU GitLab.
For other deployment methods (Terraform or Azure DevOps CI/CD pipeline), see OSDU Admin UI DevOps.
